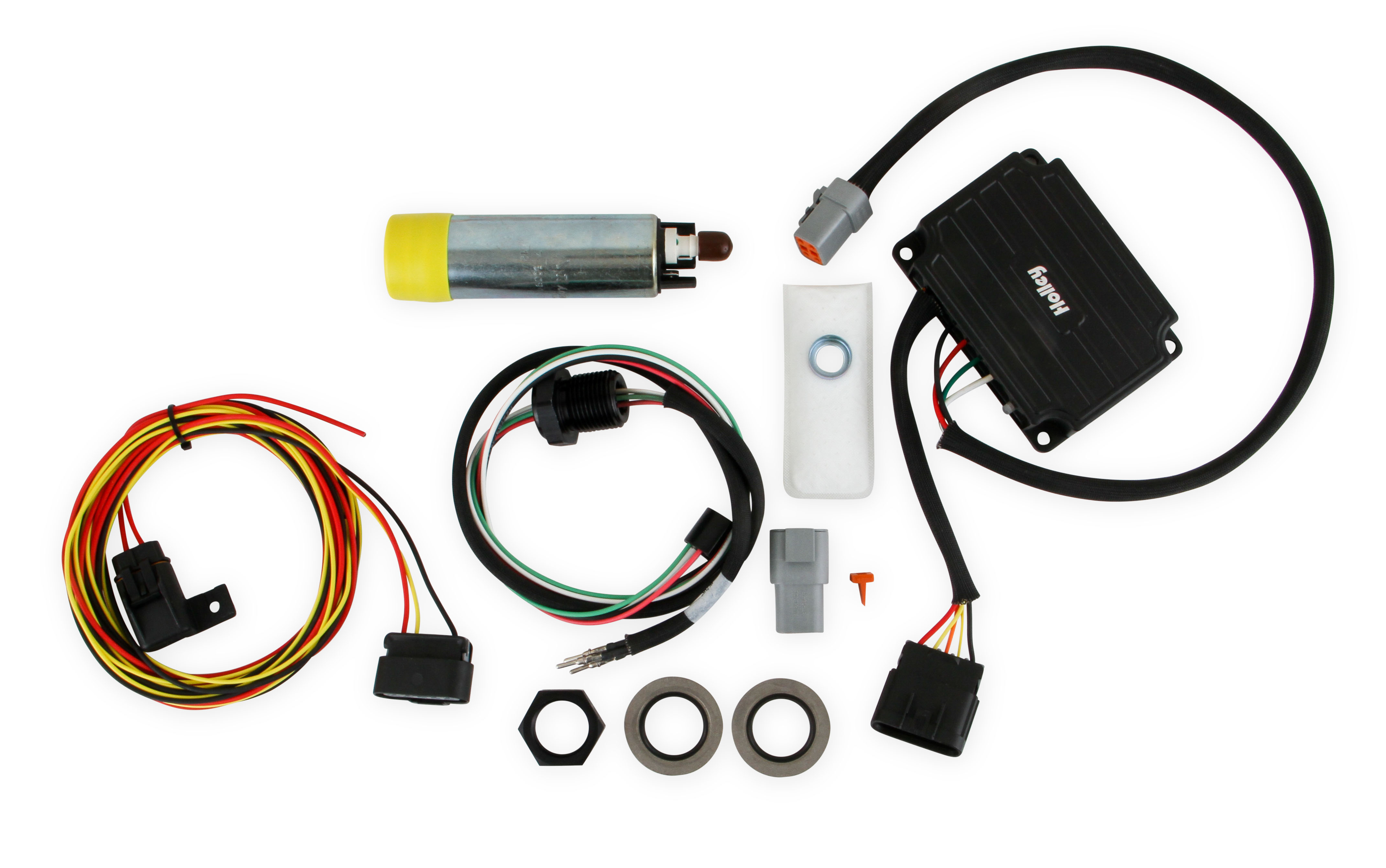

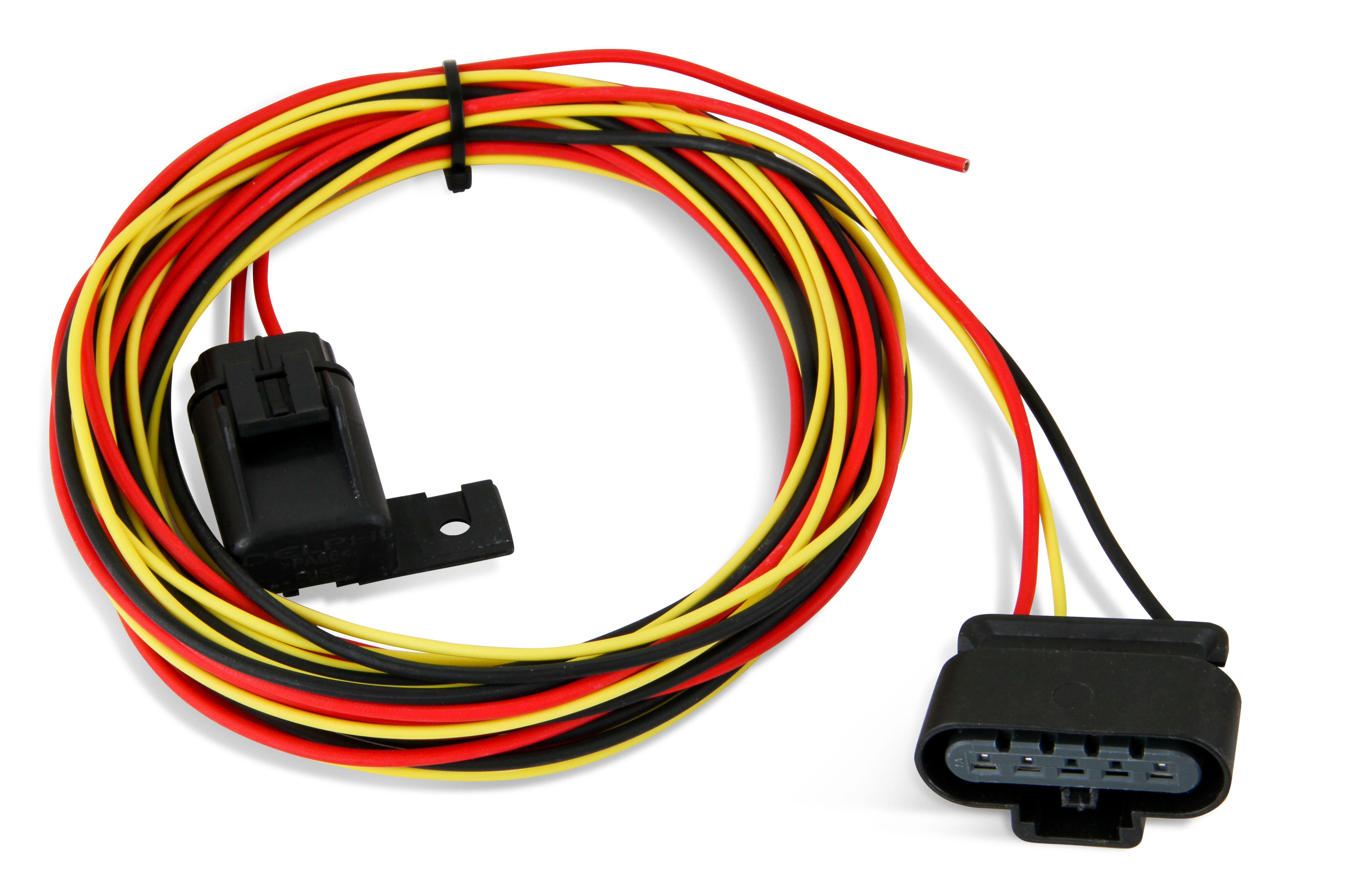

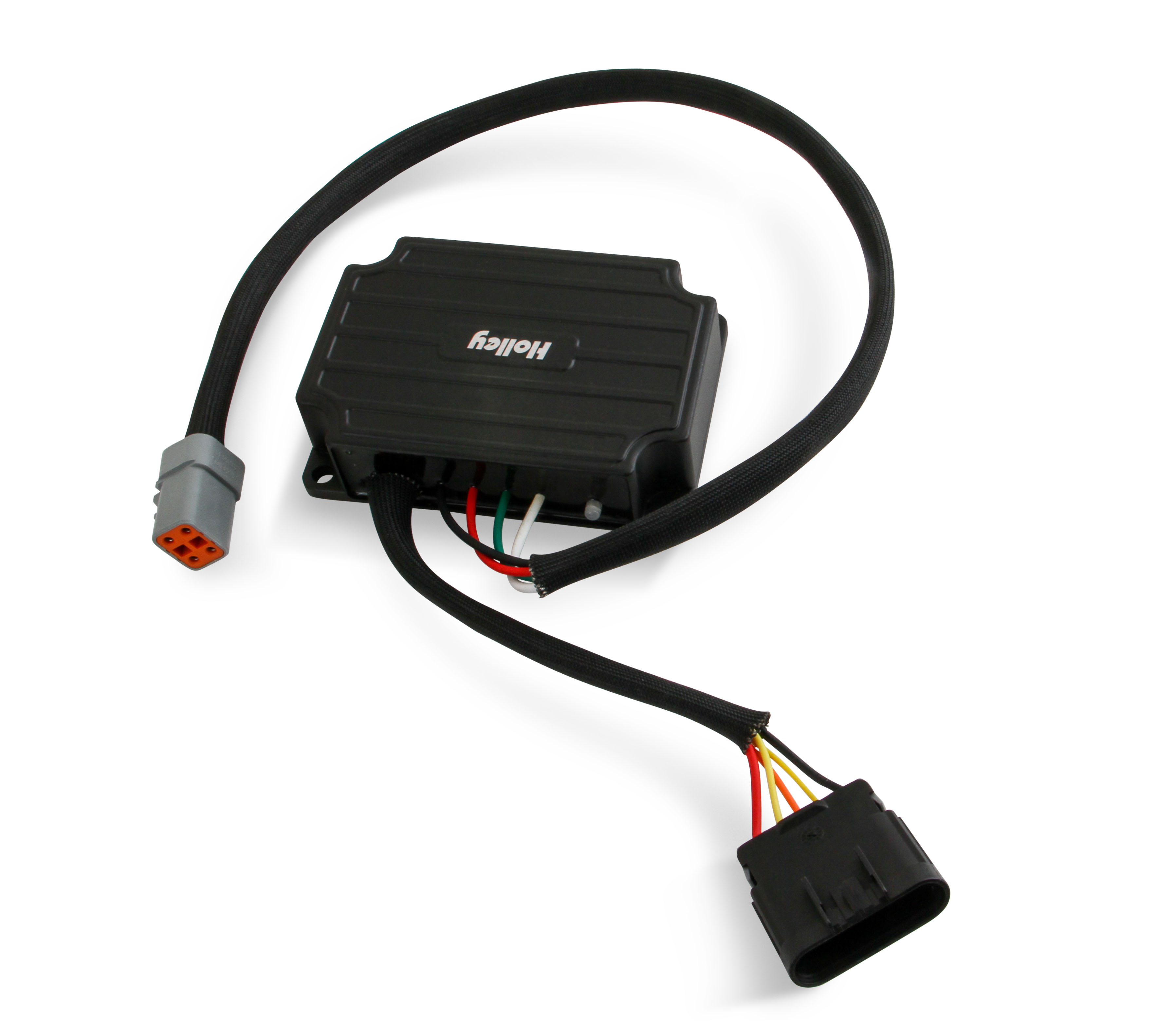

VR1 Series Brushless Fuel Pump w/Controller and Bulkhead Harness Quick Kit
SKU
HTPD-12-768
List price
$1,406.95
Price
$1,249.95
Description
Street/Strip Carb or EFI Applications
Supports up to 2150 EFI or 2400 Carb HP
Compatible with Pump Gas, Race Gas, Methanol and E85*
Features
- Capable of 130 PSI while providing significant flow for forced induction applications where belt driven pumps are normally used.
- Unlike other pumps, the VR Series are built for continuous duty if needed.
- High flow and high pressure with low amperage draw
- Can be fully submerged in the fuel cell or chassis mounted
- Maximum amp draw of the VR1 is 19 AMPS and 38 AMPS for the VR2
- Holley also offers a complete line of fuel filters and fuel pressure regulators that are designed to work as a system with these pumps
Specs
Brand
HOLLEY
Category
Electric Fuel Pump
Specs
Brand: Holley
Voltage: 12-18.5
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Steel
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: E85
part type: Electric Fuel Pump
Grade Type: Performance
Application: Universal
Fuel System: EFI
Product Type: Brushless Fuel Pump
Sub Category: Fuel Pumps and Related Components
Emission Code: 5
Free Flow GPH: 170 @ 13.8 Volts
Free Flow LPH: 644
Negative Ground: Yes
Outlet Quantity: 1
Pump Body Color: Silver
Maximum Pressure: 130
Fuel Delivery Type: Carburetor
Regulator Included: No
Maximum Flow Rating: 170
Internal Or External: Internal
Maximum Amperage Draw: 19
Gasket Or Seal Included: No
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
