Throttle Body Angle Adapter - for GM LS and LT, and LT4 Intakes
SKU
HTPD-717-15
List price
$101.95
Price
$90.39
Description

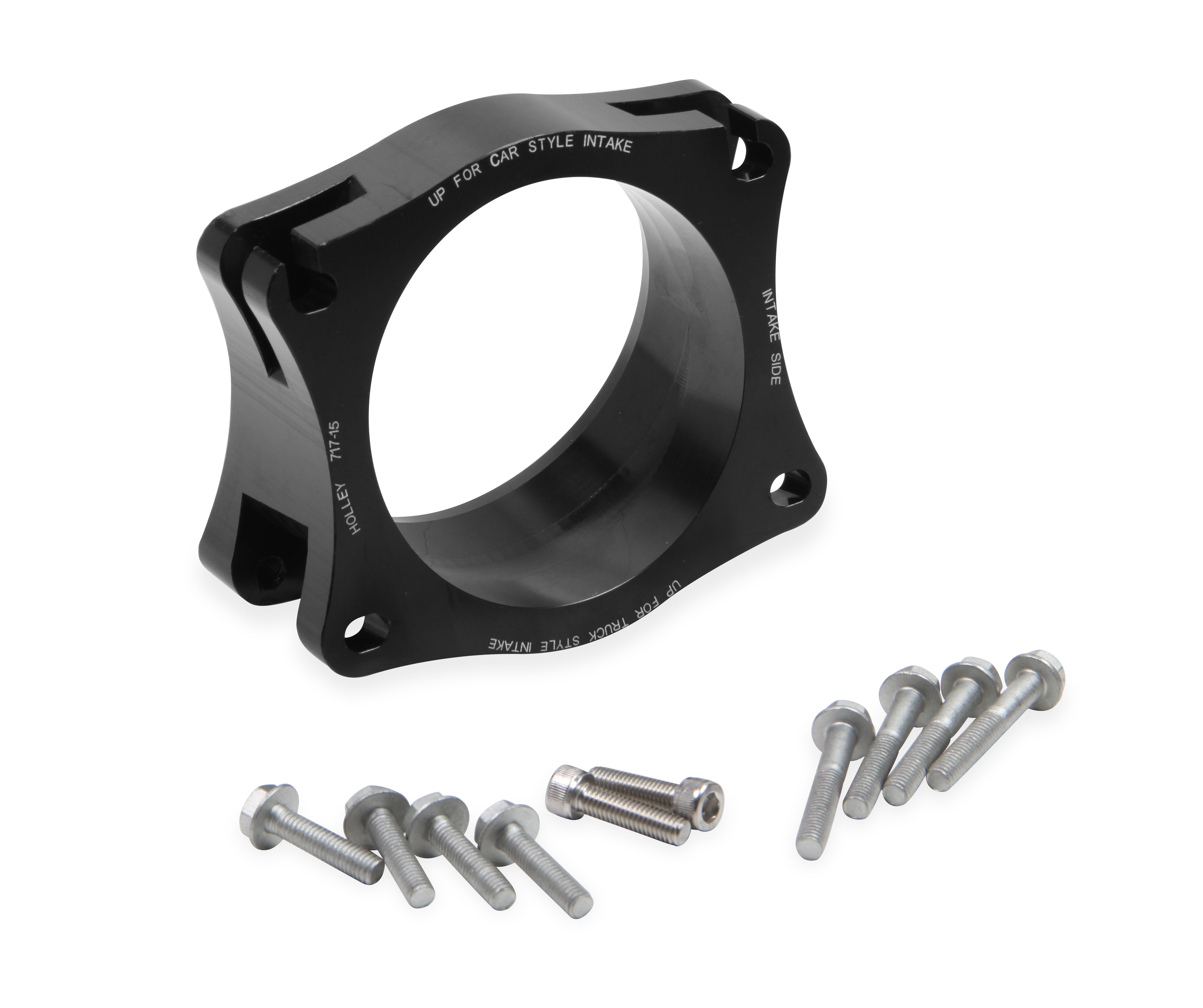

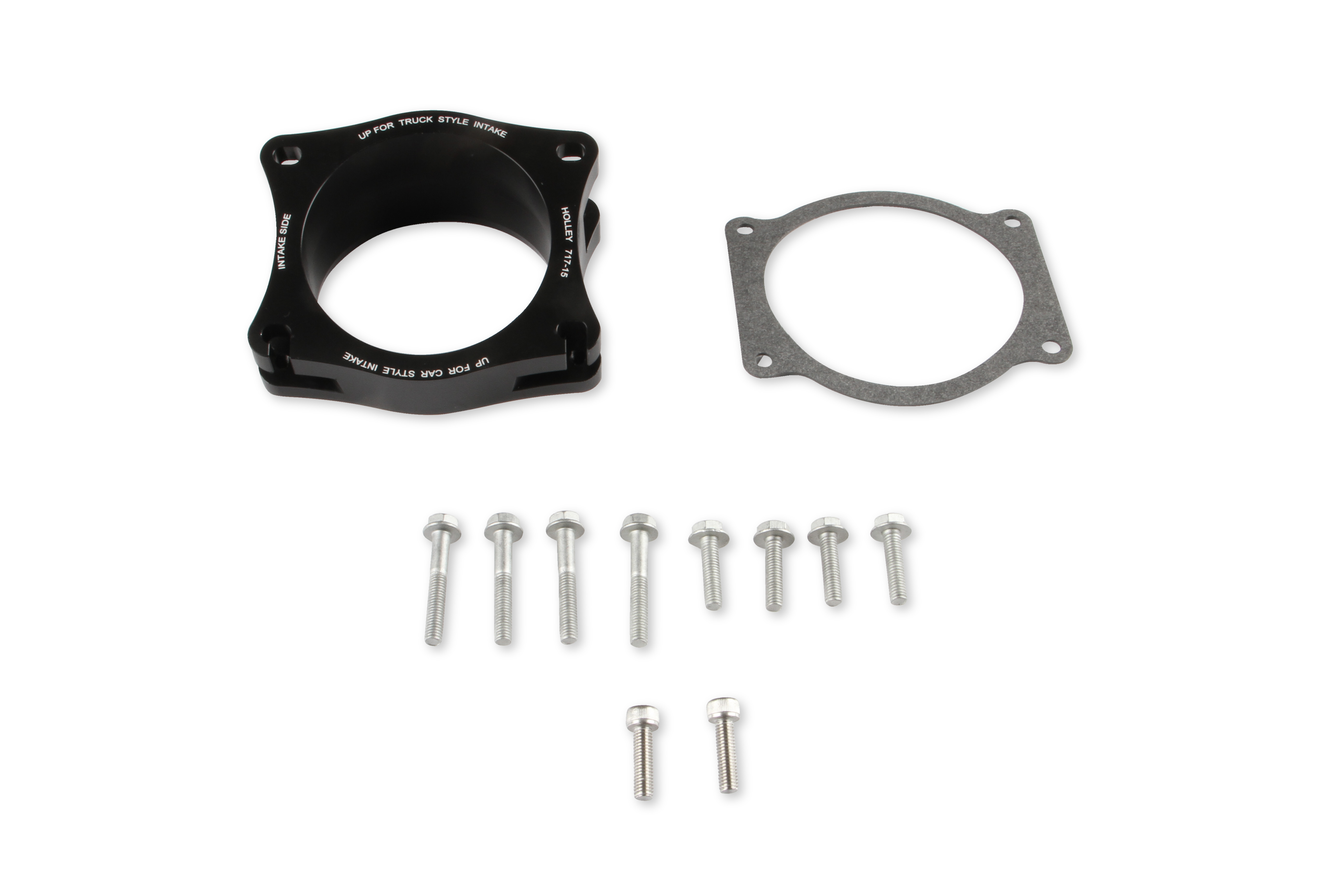

Throttle Body Angle Adapter
Fits GM LS, LT, and Gen-V LT4 Intake Manifolds
Features
- Billet Aluminum

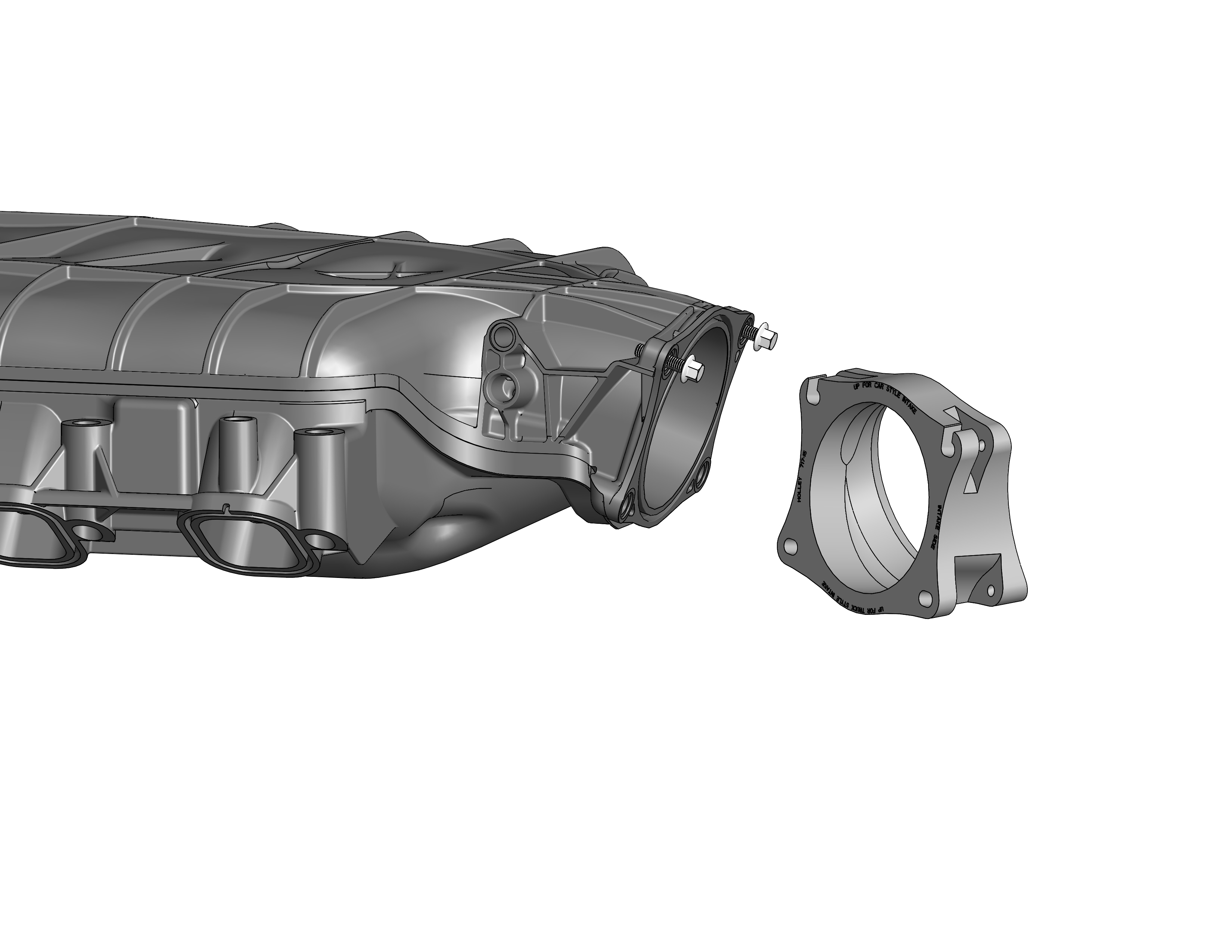

- Maintains proper throttle body blade orientation
- Eliminates drivability issues associated with inverting the throttle body

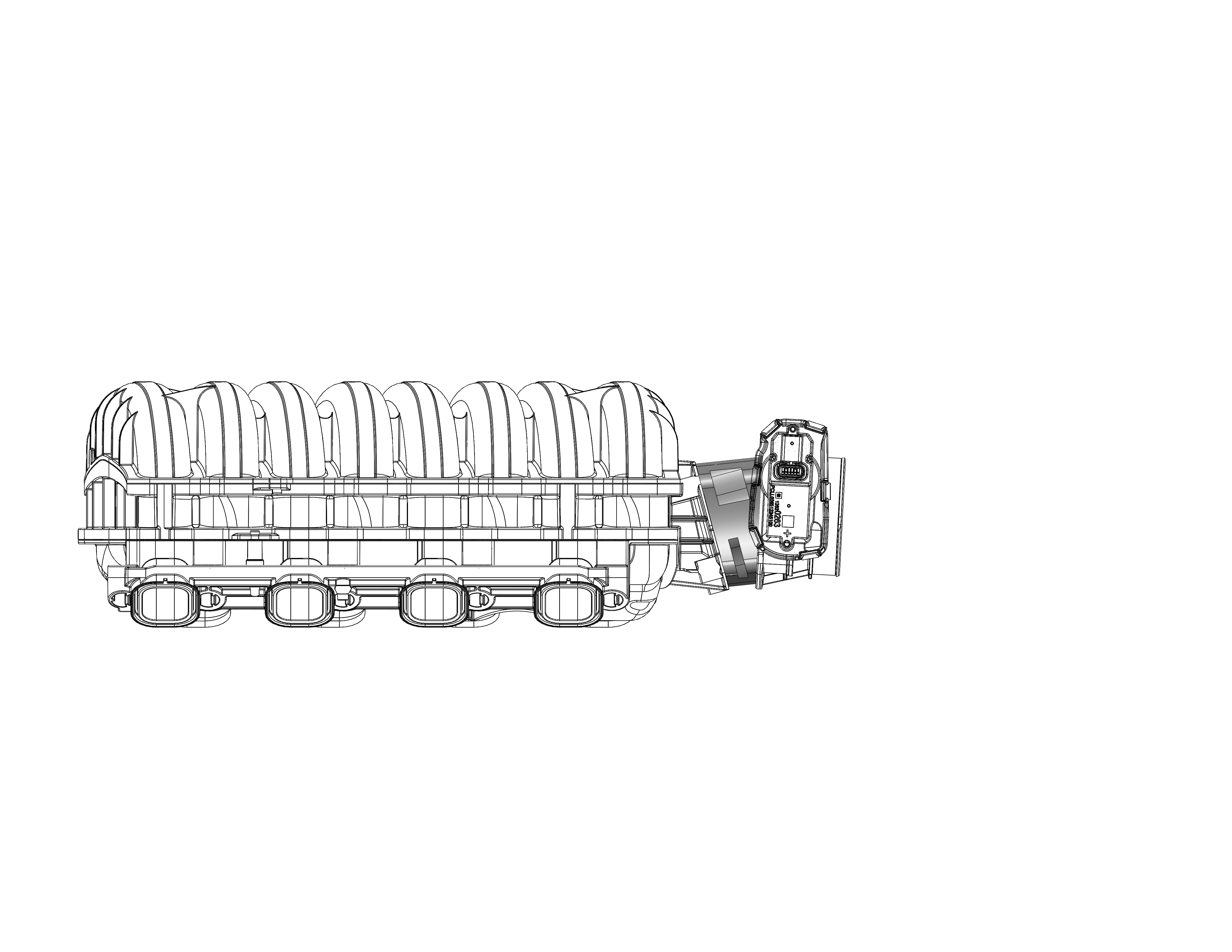

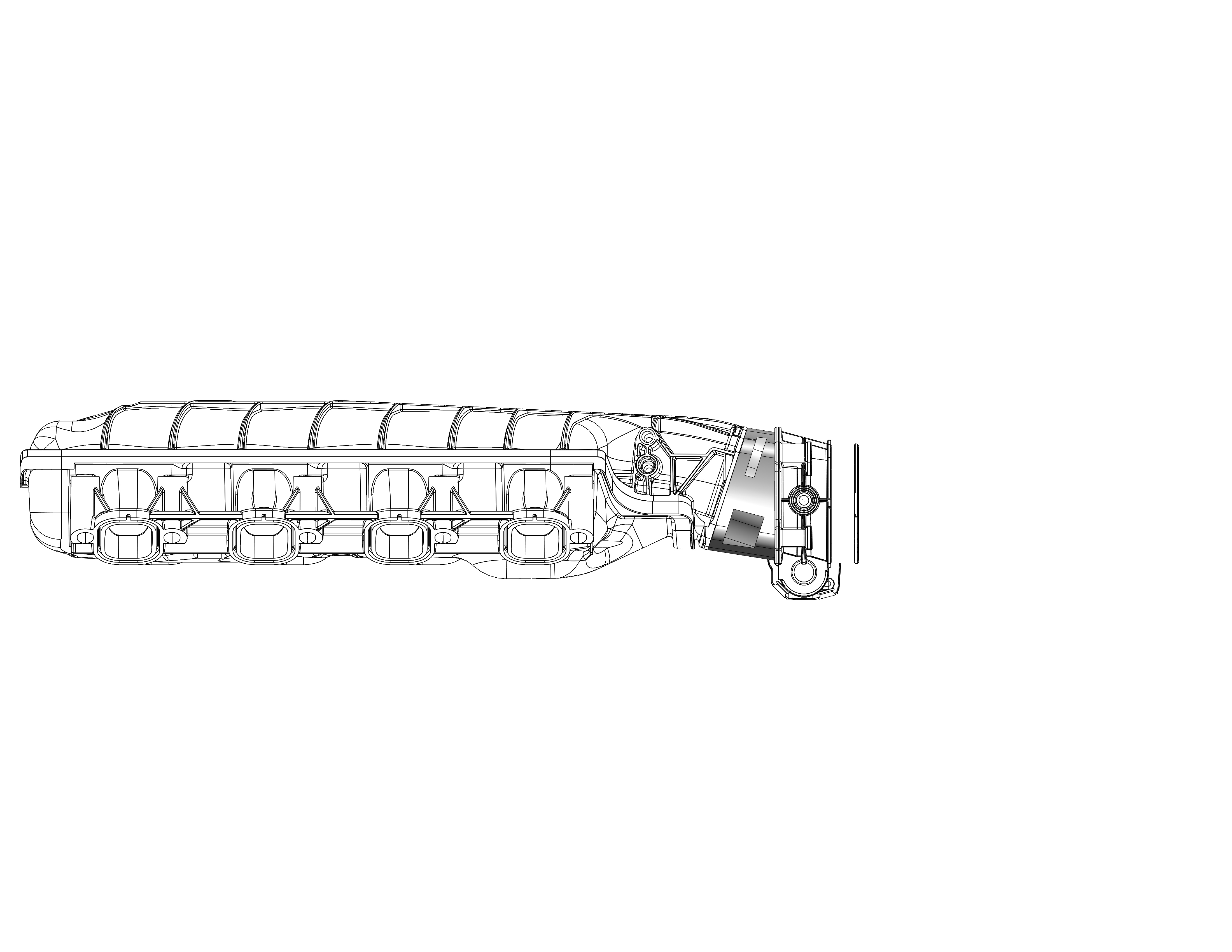

- Allows clearance to aftermarket accessory brackets or other clearance and routing issues
- No harness rerouting or extending required
- Works with both truck and car LT and LT4 intake bolt patterns
- Works with all 4-bolt LS intake bolt patterns
- Works with up to 95mm intakes and throttle body openings (Does not work with larger openings)
- Works with common LS and LT 104 x 70mm bolt pattern throttle bodies
- Adapts common LS 104 x 70mm bolt pattern throttle bodies to LT 5.3L truck intakes
- Works with Holley 92/95mm Hi-Ram and Mid-Ram intakes
- Allows Use of Cable Operated Throttle Body on Gen-V LT Truck Intake Manifold
Specs
Brand
HOLLEY
Category
Fuel Injection Throttle Body Adapter
Specs
Brand: Holley
Color: Black
Engine: GM Gen V LT1
Finish: Black
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Thickness: Wedge
part type: Fuel Injection Throttle Body Adapter
Grade Type: Performance
Construction: Billet Aluminum
Product Type: Throttle Body Adapter
Sub Category: Hardware, Fasteners and Fittings
Emission Code: 5
Accessory Drive Style: High-Mount

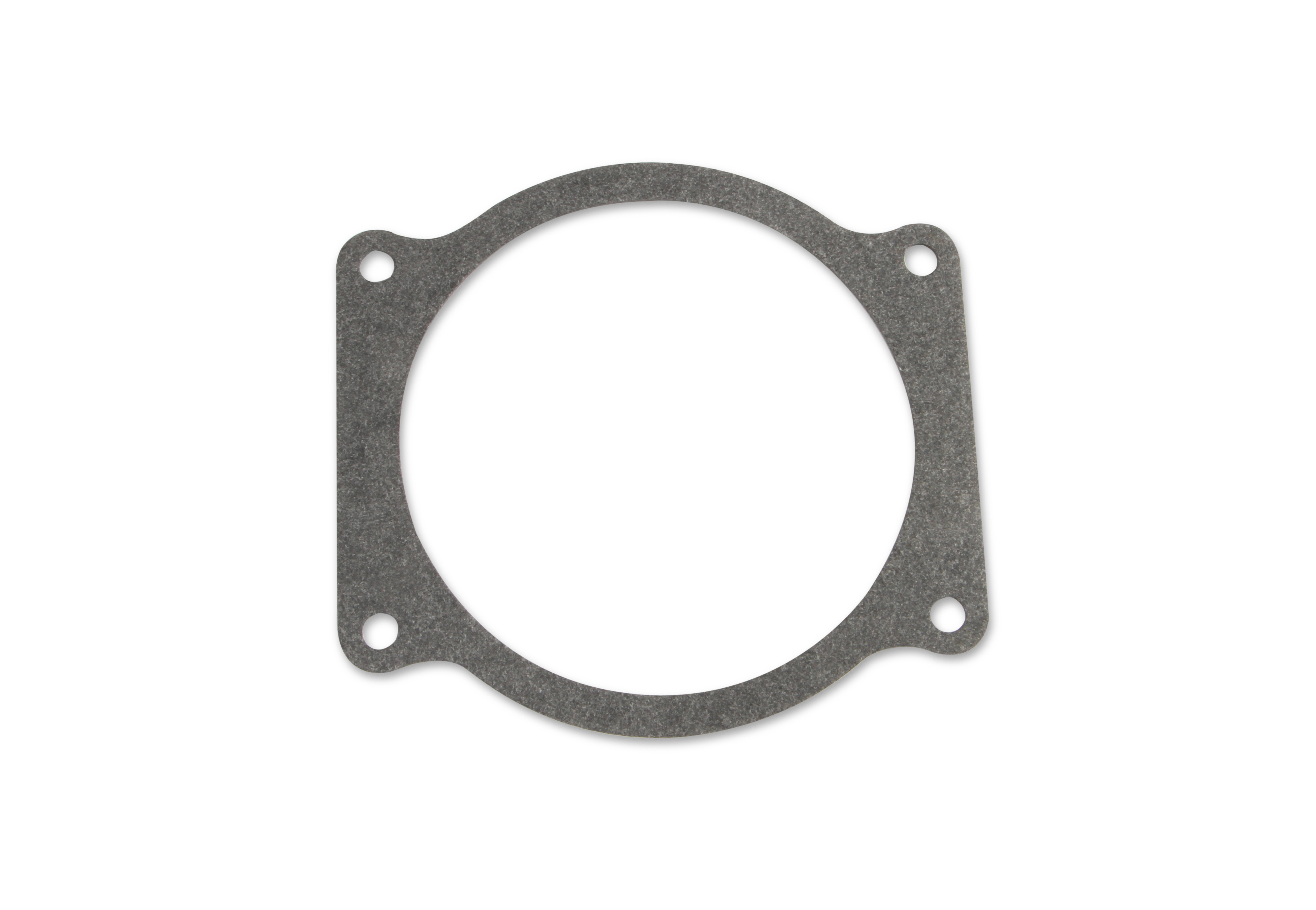

Gasket Or Seal Included: Yes
Main Port Inside Diameter: 92
PDFs
PDFs
68b2329cebaeb.pdf
(514.08 KB)
