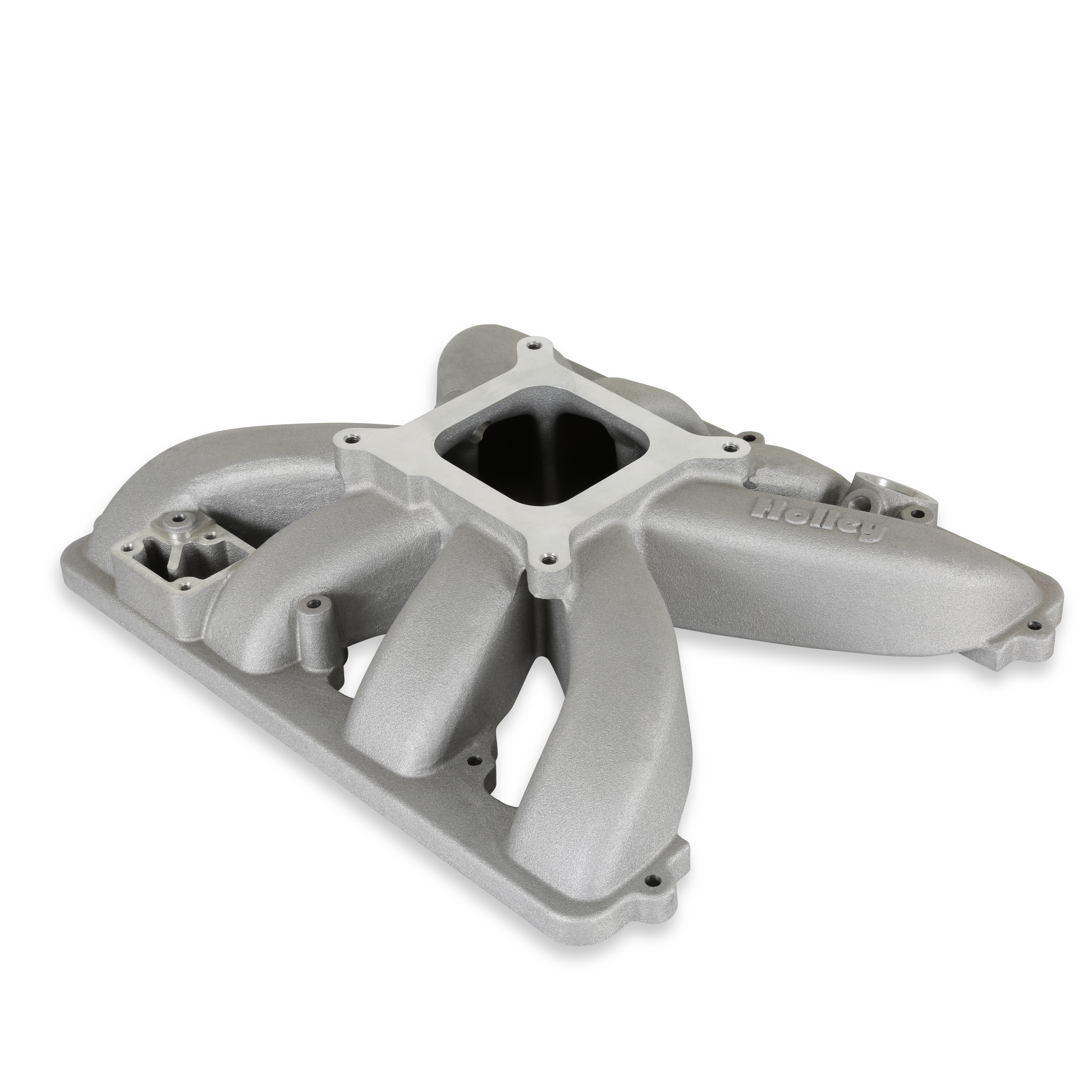

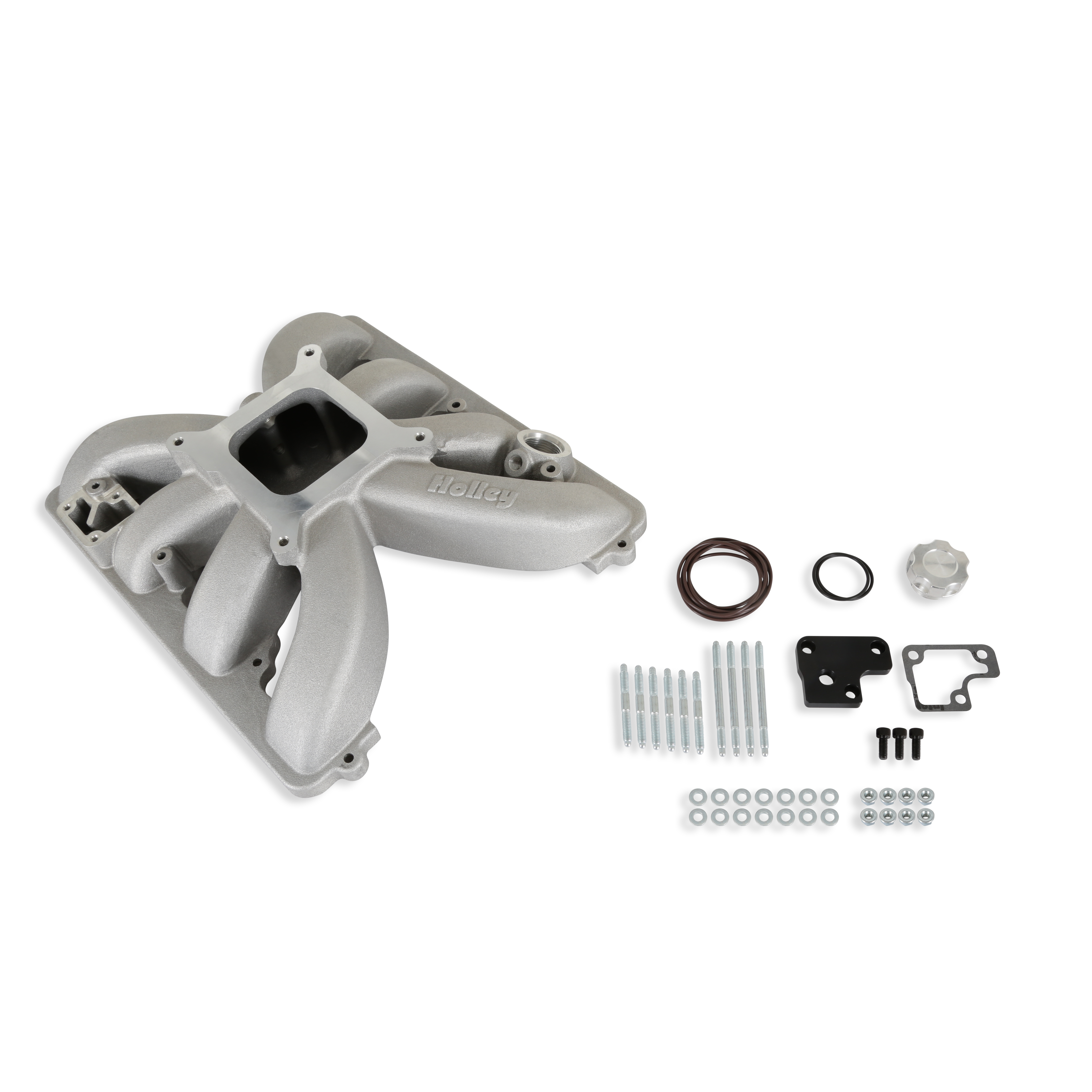

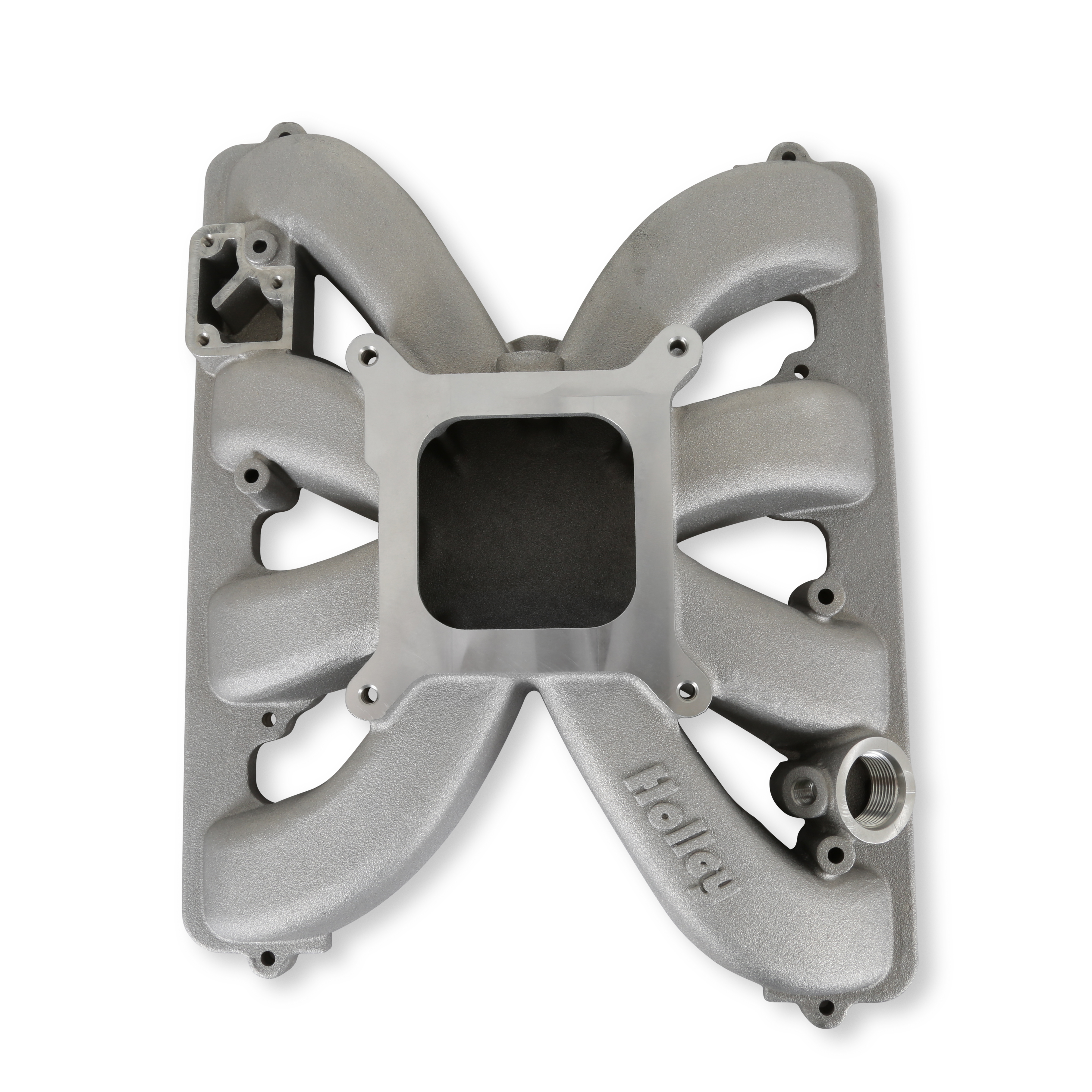

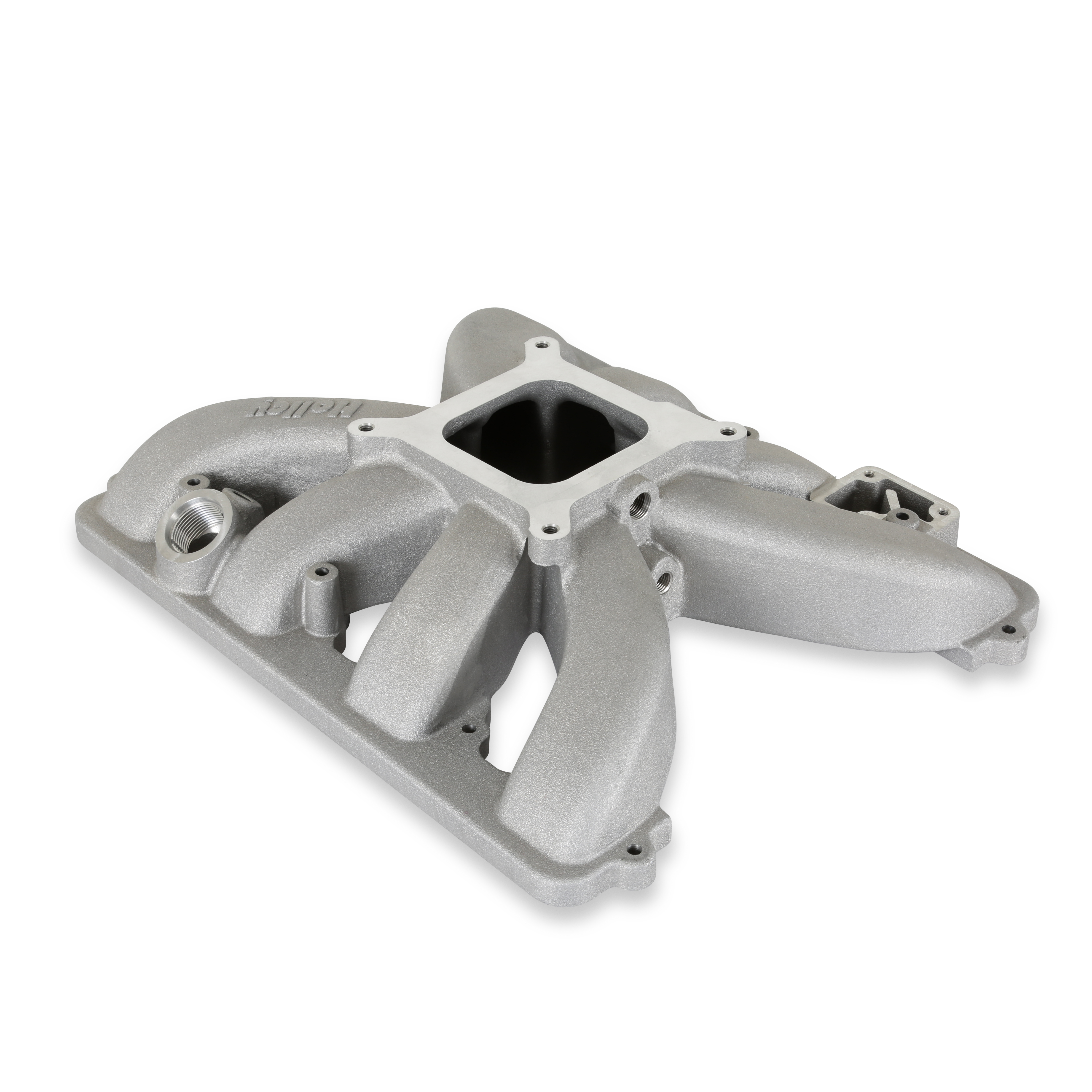

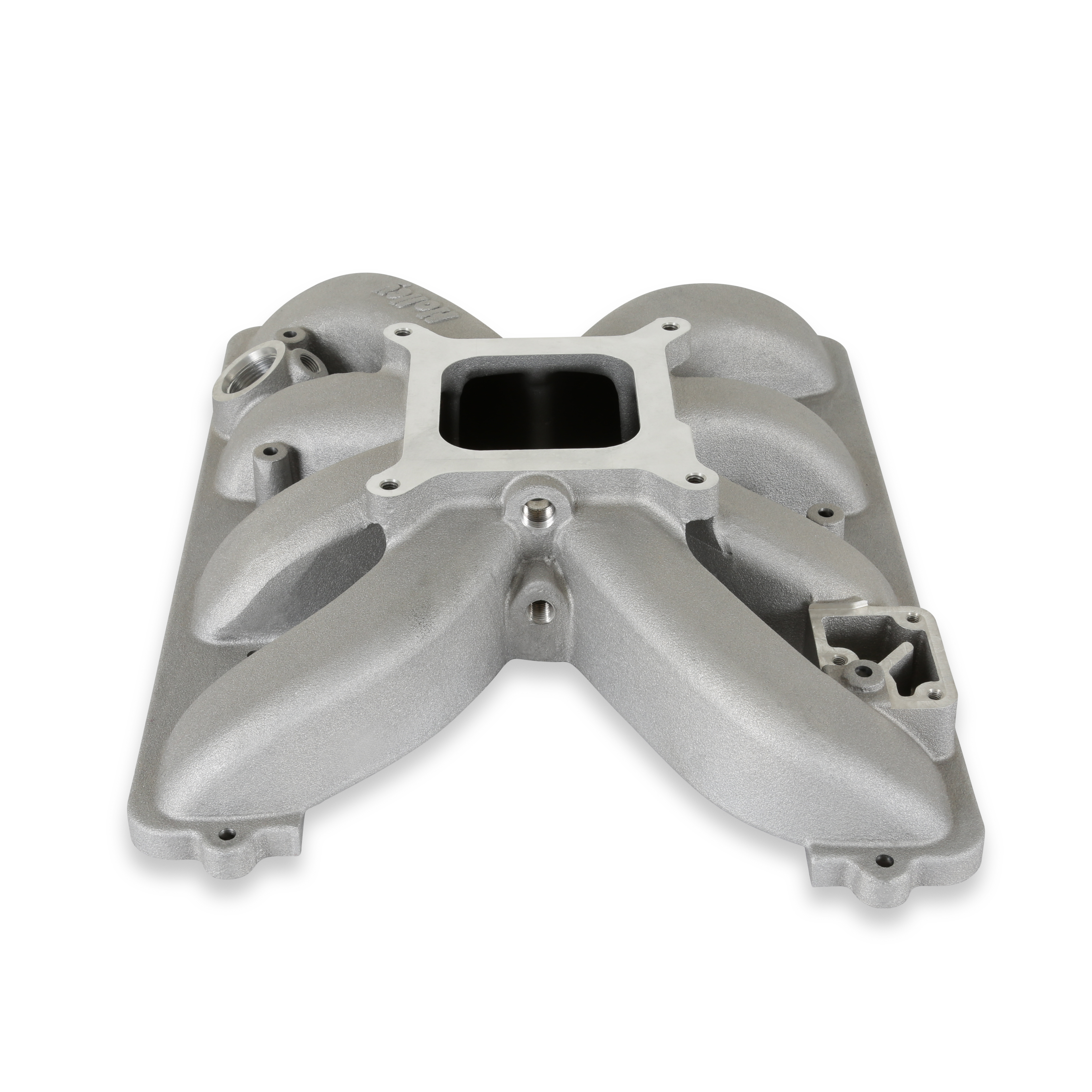

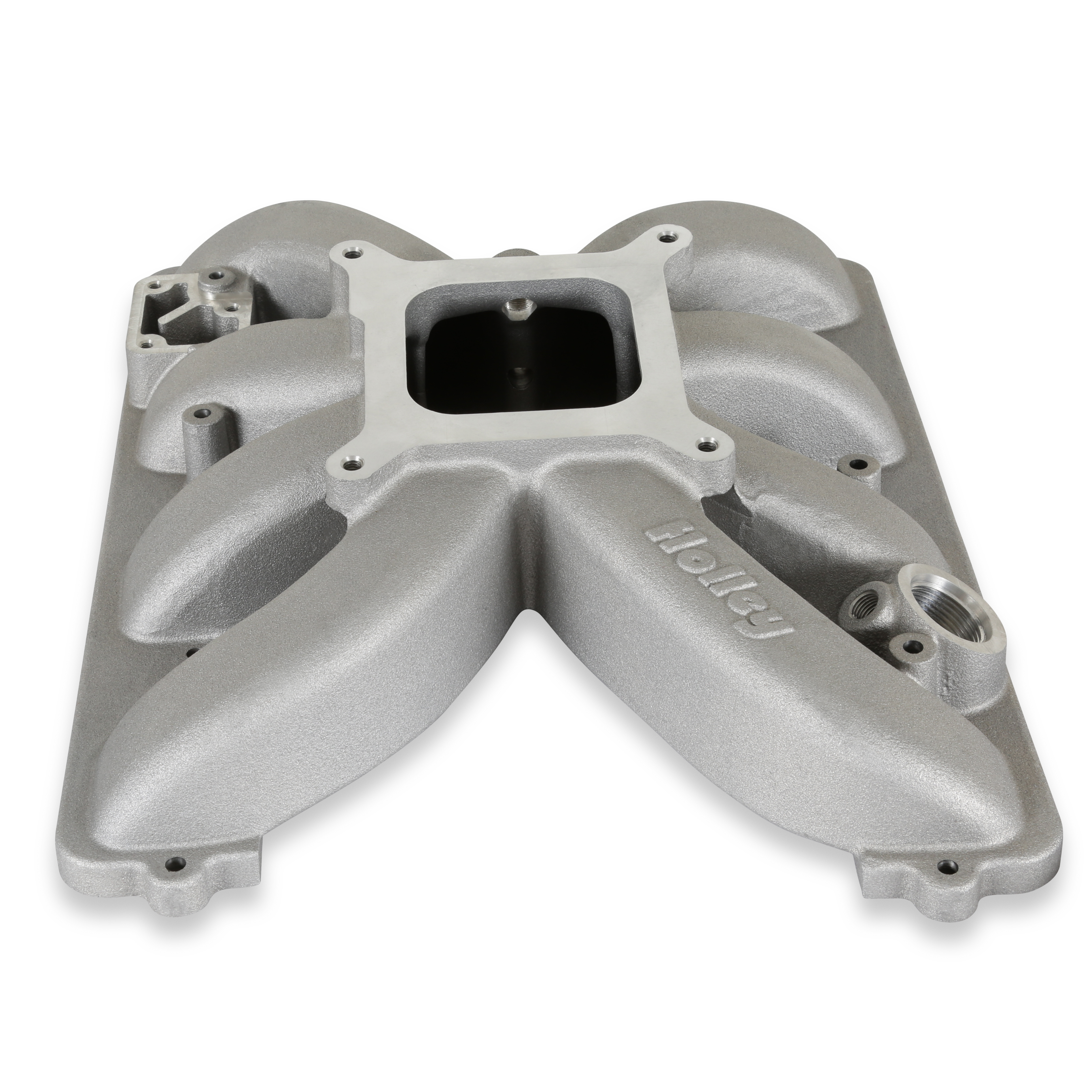

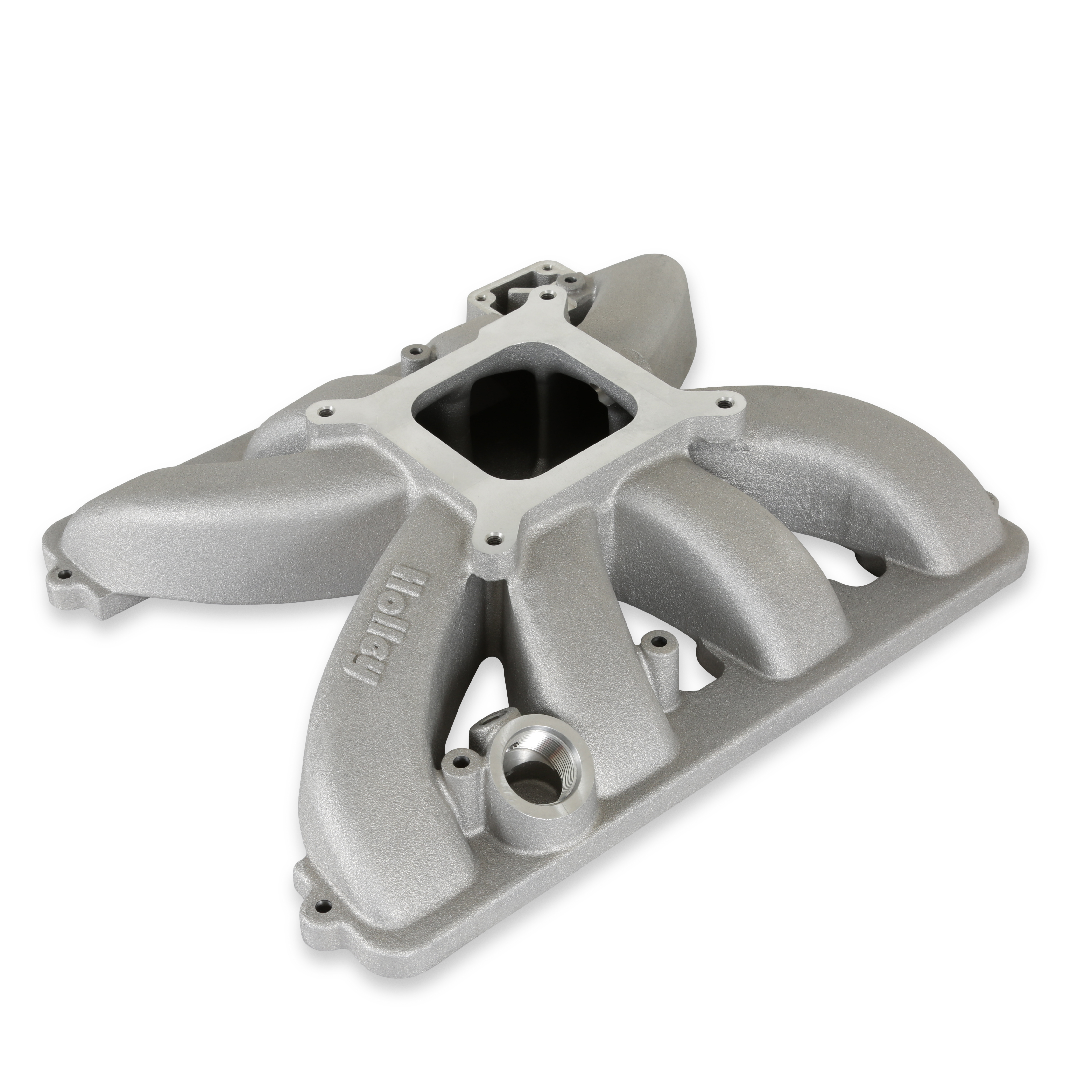

Single plane intake manifold for Gen III Hemi, Sniper EFI/Carb
SKU
HTPD-300-931
List price
$618.95
Price
$549.95
Description
fits 2009-2023 5.7-liter, 2005-2010 6.1-liter and 2011-2023 6.4-liter Chrysler Gen III Hemi engines.
Features
- Minimum carb flange height for maximum clearance to hood
- 4150 type throttle/carb flange
- Cast aluminum construction. Great for turbocharger, centrifugal blower or NOS power adders
- Billet fuel rails included with 300-930, 300-930BK
- Unique casting for 300-931, 300-931BK without injector bungs for clean appearance
- Height to throttle valve flange in front is 3.31-inch, rear is 4.25-inch
- Port size: 1.72-inches tall, 1.75-inches wide

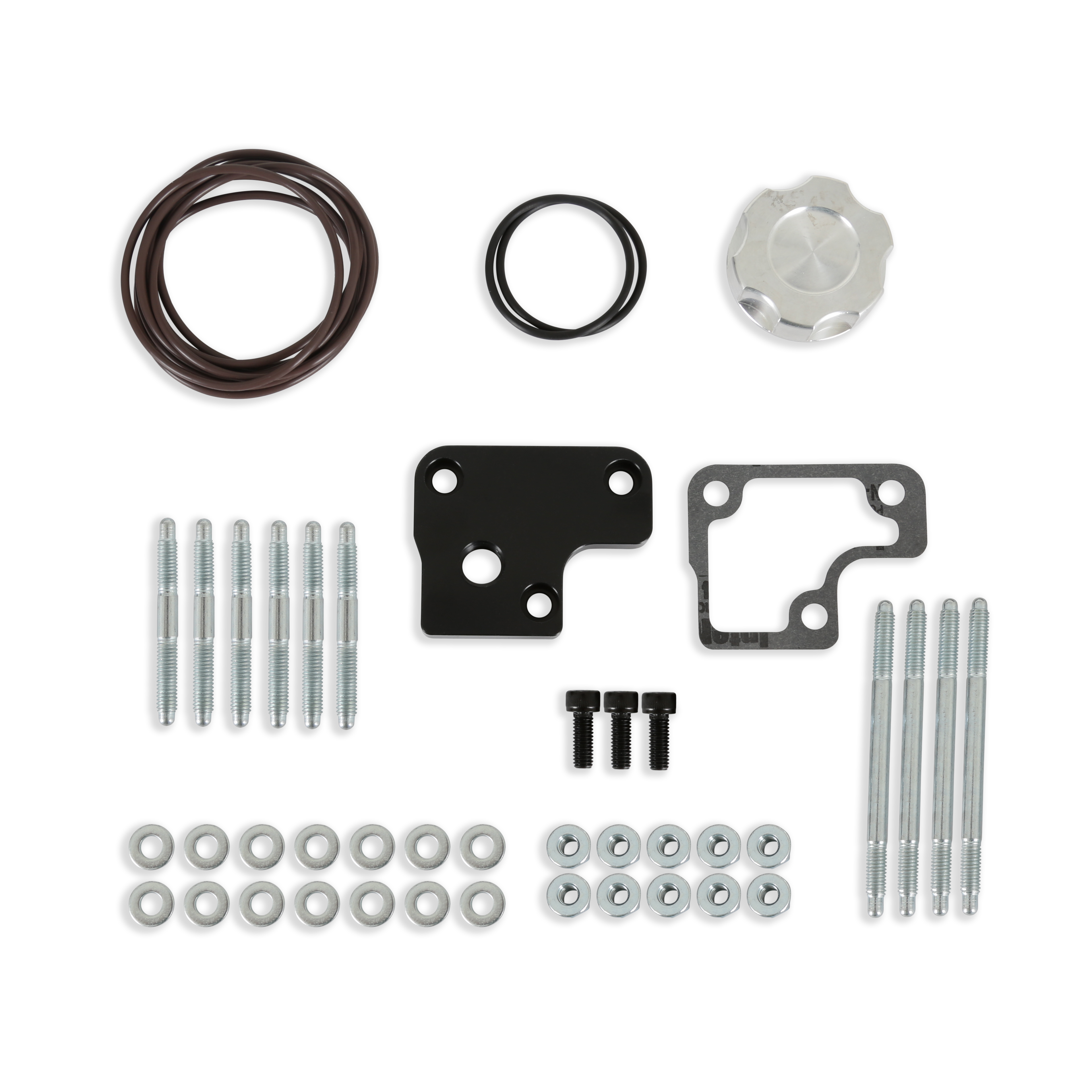

- Billet aluminum oil fill cap included
- Designed for use with either Bosch EV1 or Gen III Hemi OEM fuel injectors

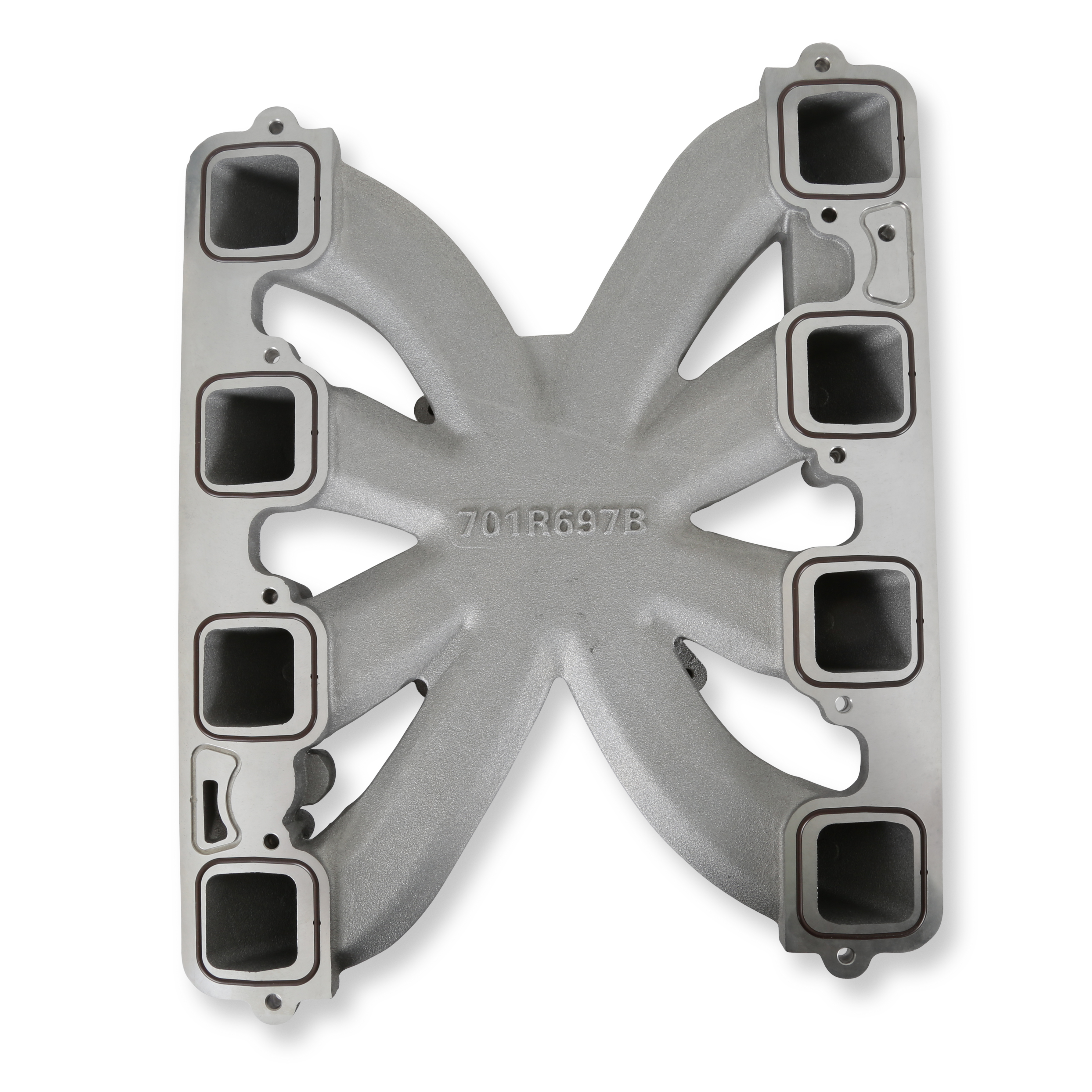

- O-ring seals around ports
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Color: Natural
Engine: GEN 3 HEMI
Finish: Satin
Warning: California Proposition 65
Category: Engine
EGR Port: No
Material: Aluminum
part type: Engine Intake Manifold
Grade Type: Performance
Construction: Cast
Product Type: Intake Manifold
Sub Category: Cylinder Block Components
Emission Code: 3
Plenum Finish: Natural
RPM Power Band: 2500-7500
Removable Runners: No
Fuel Rail(s) Included: No
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: No
Nitrous Bung(s) Included: No
Basic Operating RPM Range: 2500-7500
Carburetor Studs Included: No
Single Or Dual Plane Type: Single Plane
Intake Port Gasket(s) Included: No
