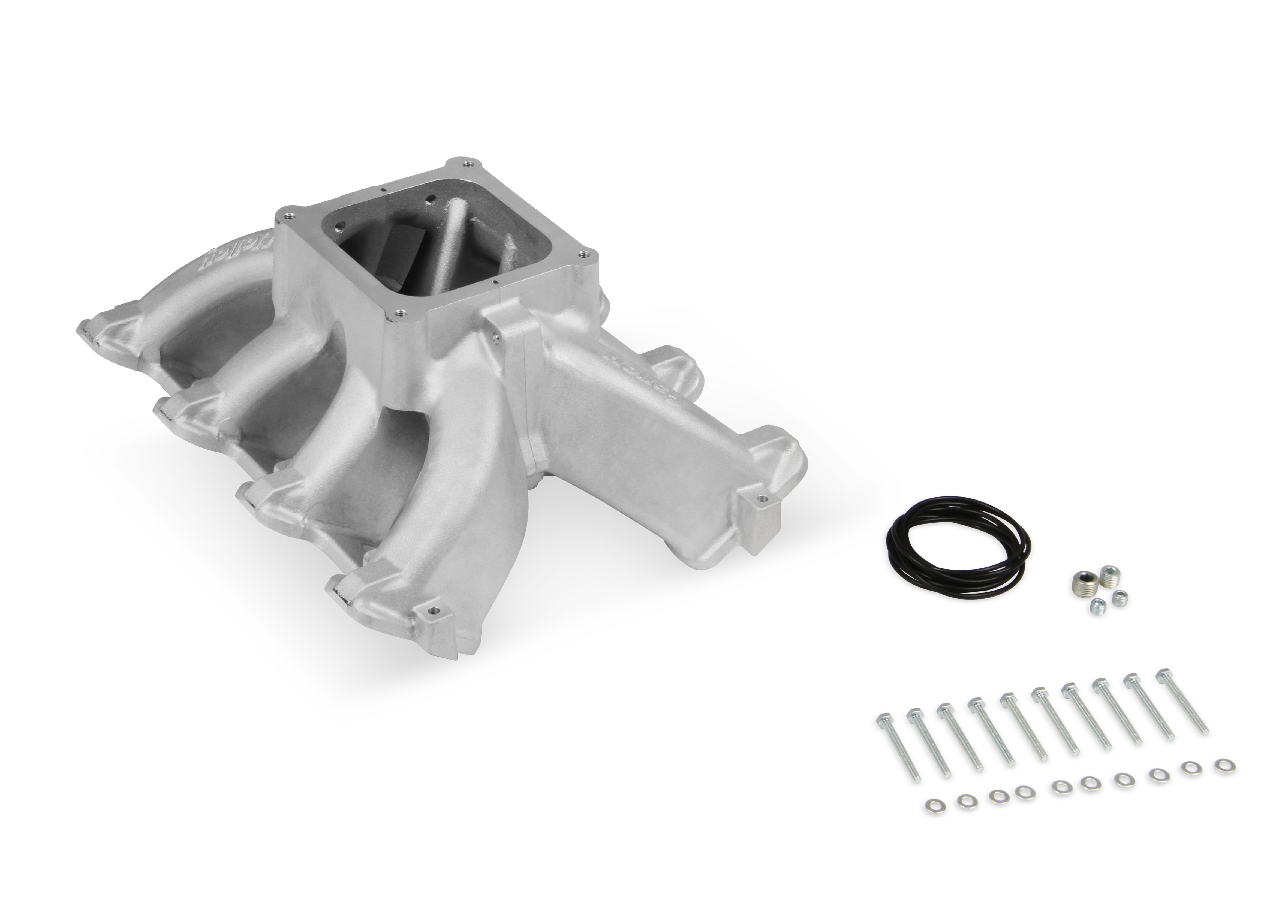

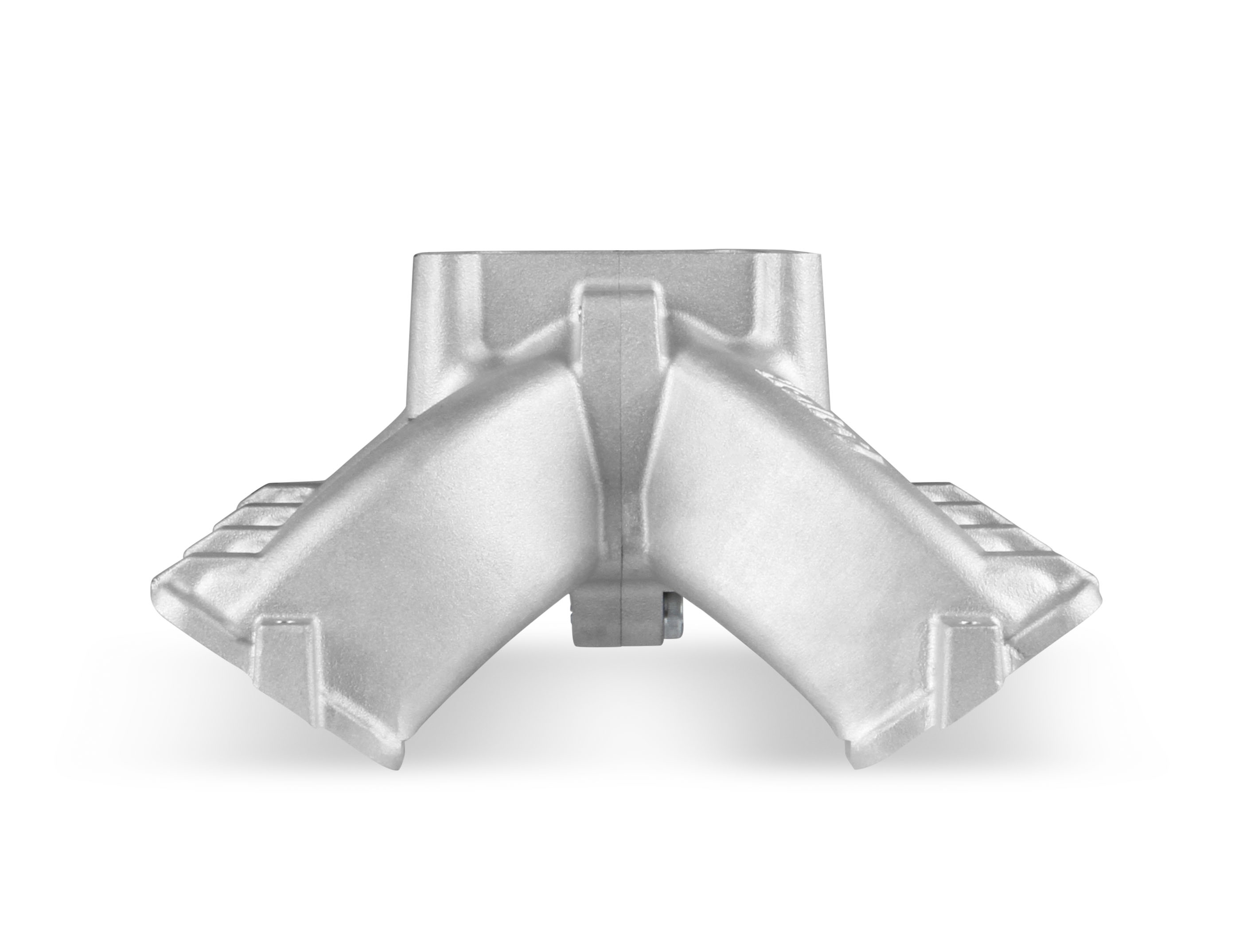

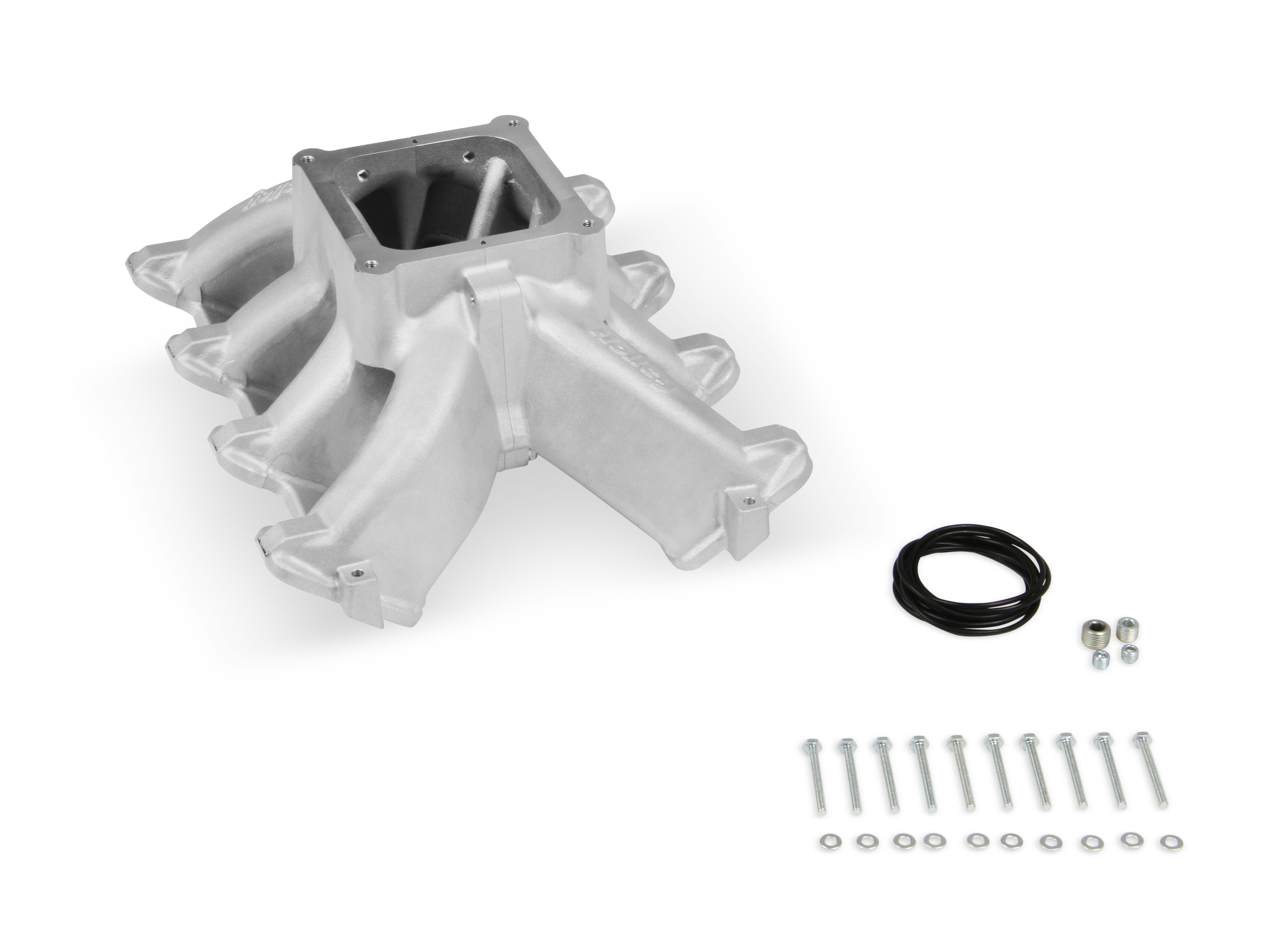

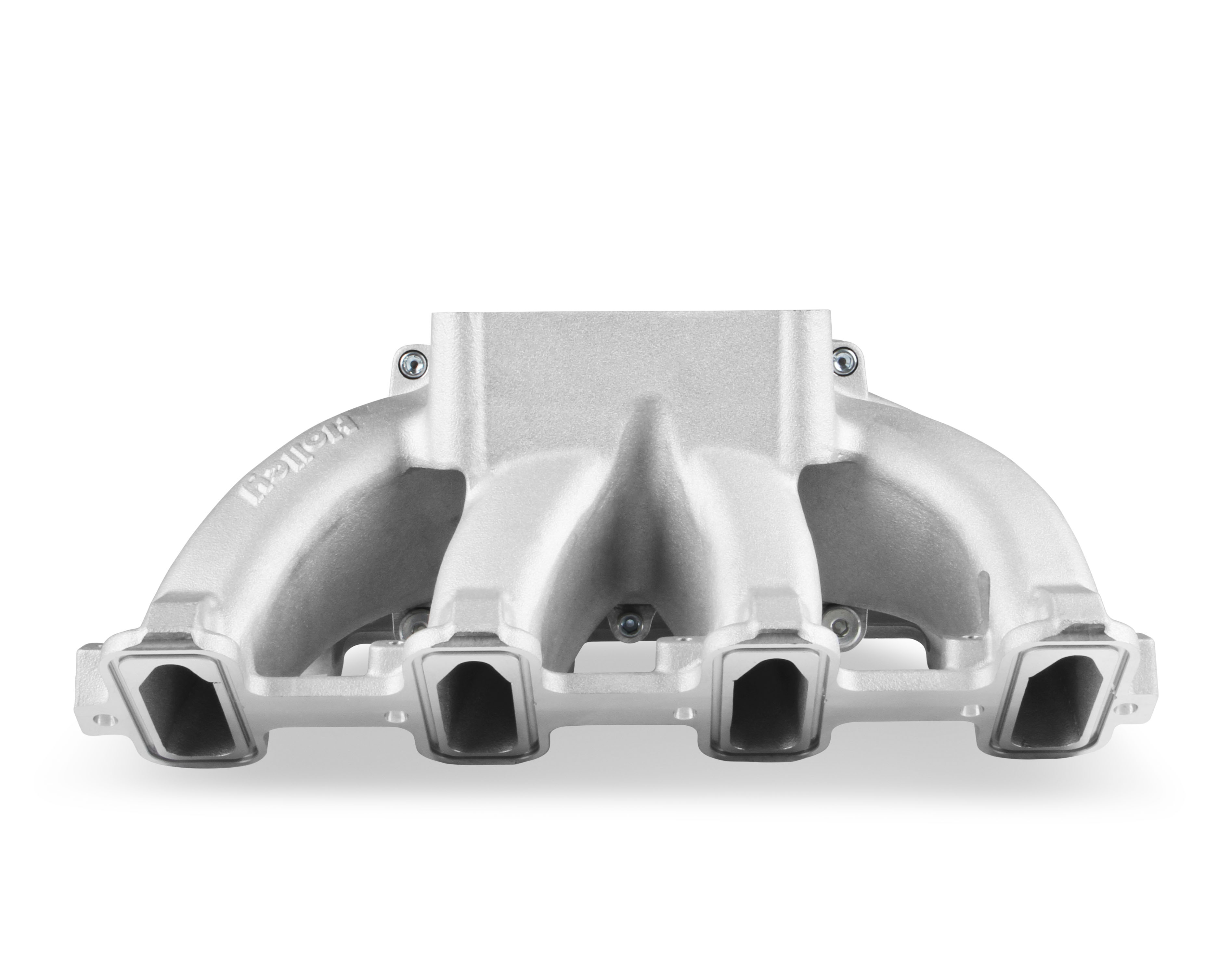

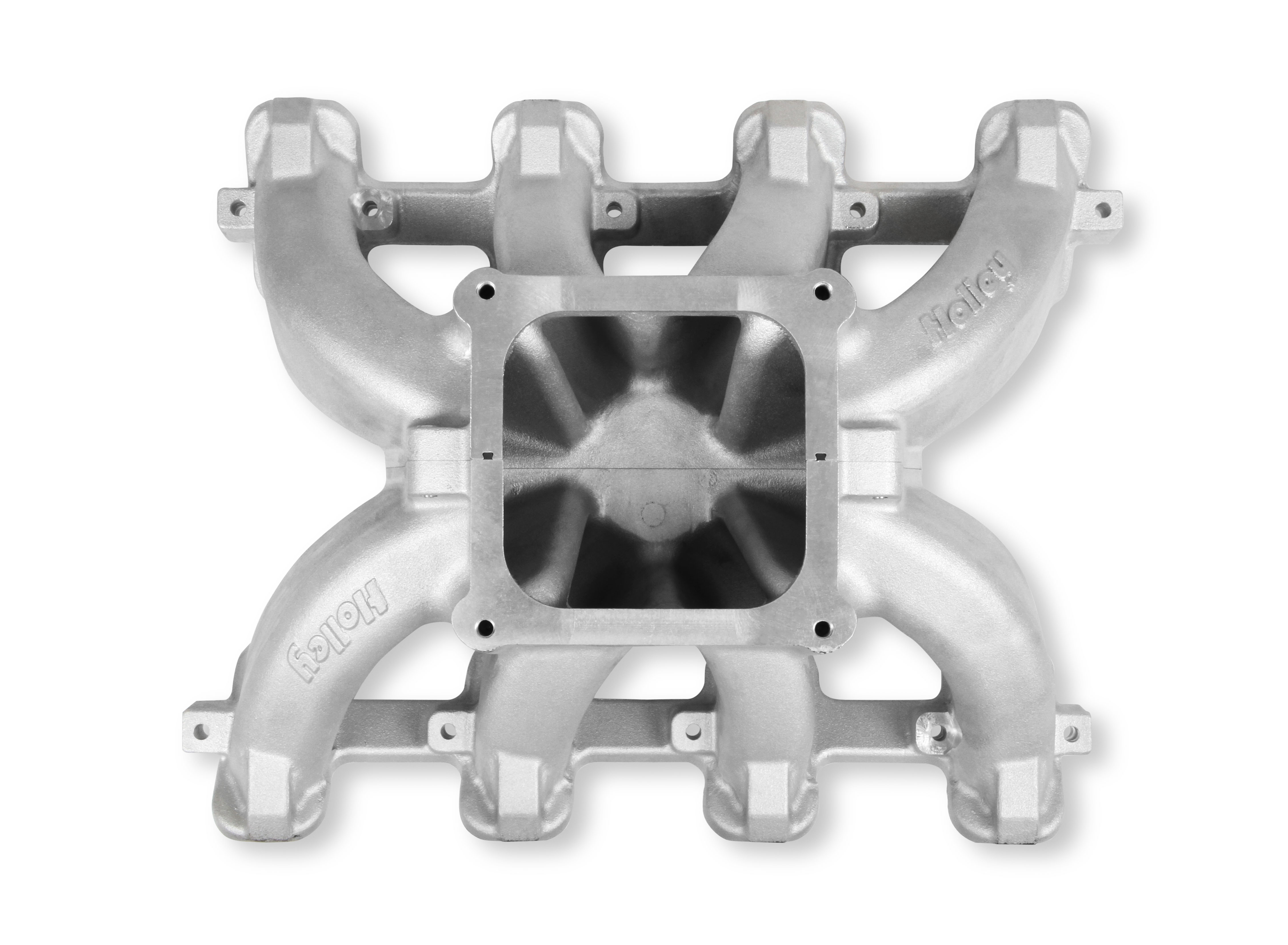

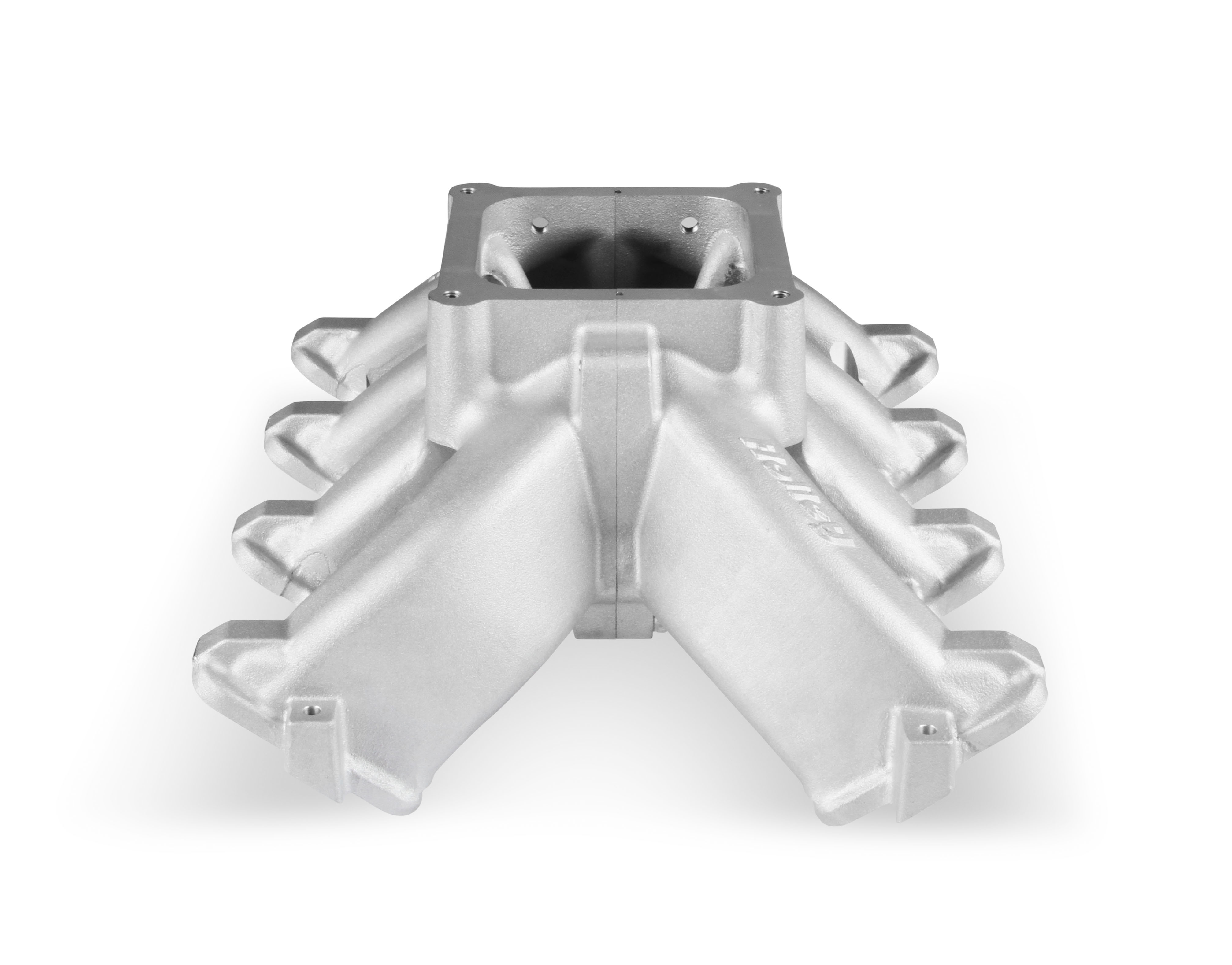

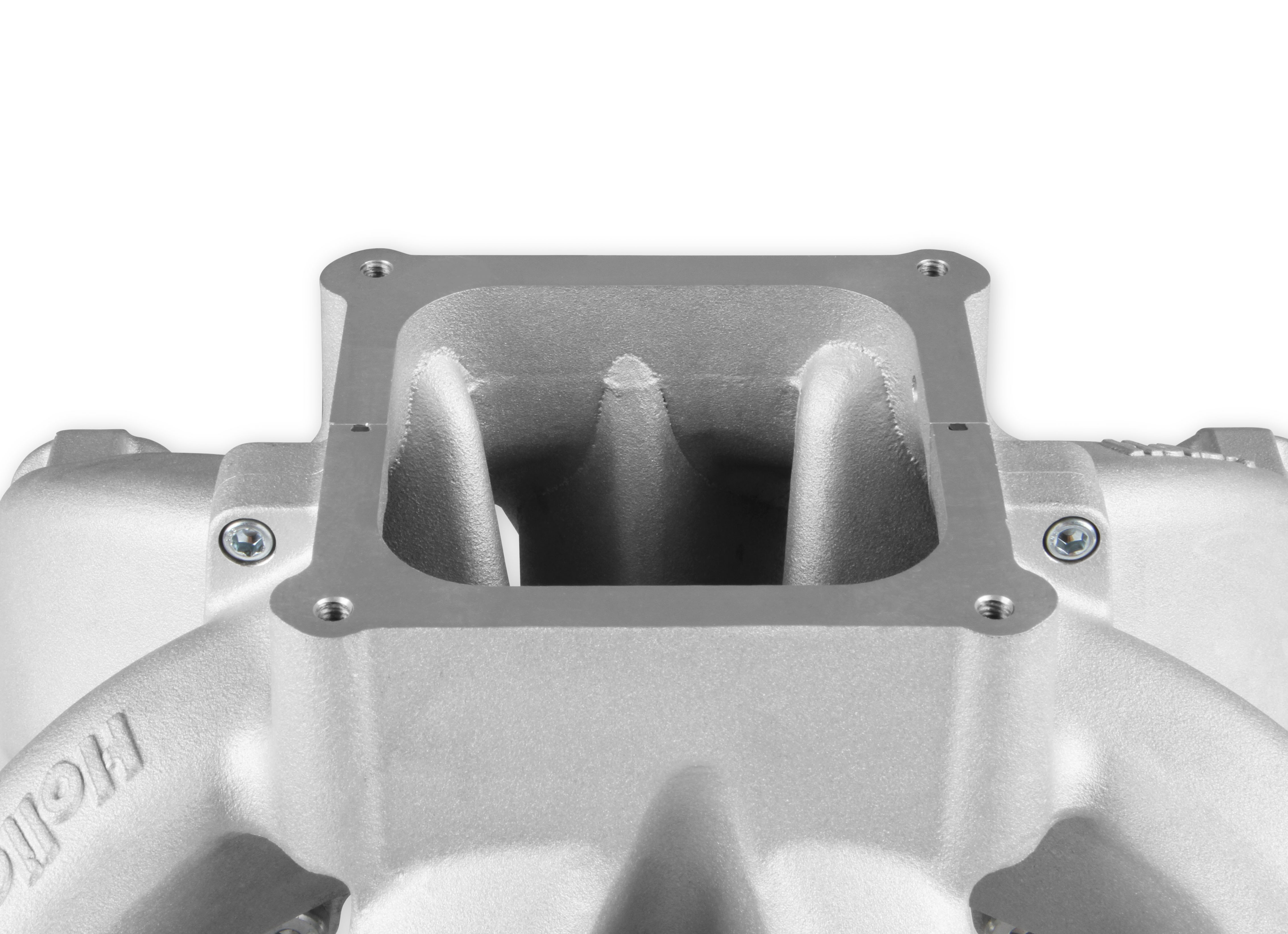

Single Plane 4500 Carbureted Split-Design Race Intake Manifold - GM LS1/LS2/LS6
SKU
HTPD-300-295
List price
$843.95
Price
$749.95
Description
Fits GM LS1/LS2/LS6 - Carbureted with Cast Finish
Features
- Maximum performance 4500 Dominator flange race design with hood clearance consideration
- Lighter than other split race intakes
- Split feature making porting efforts easy!
- 33 to 50% the price of other split race intakes

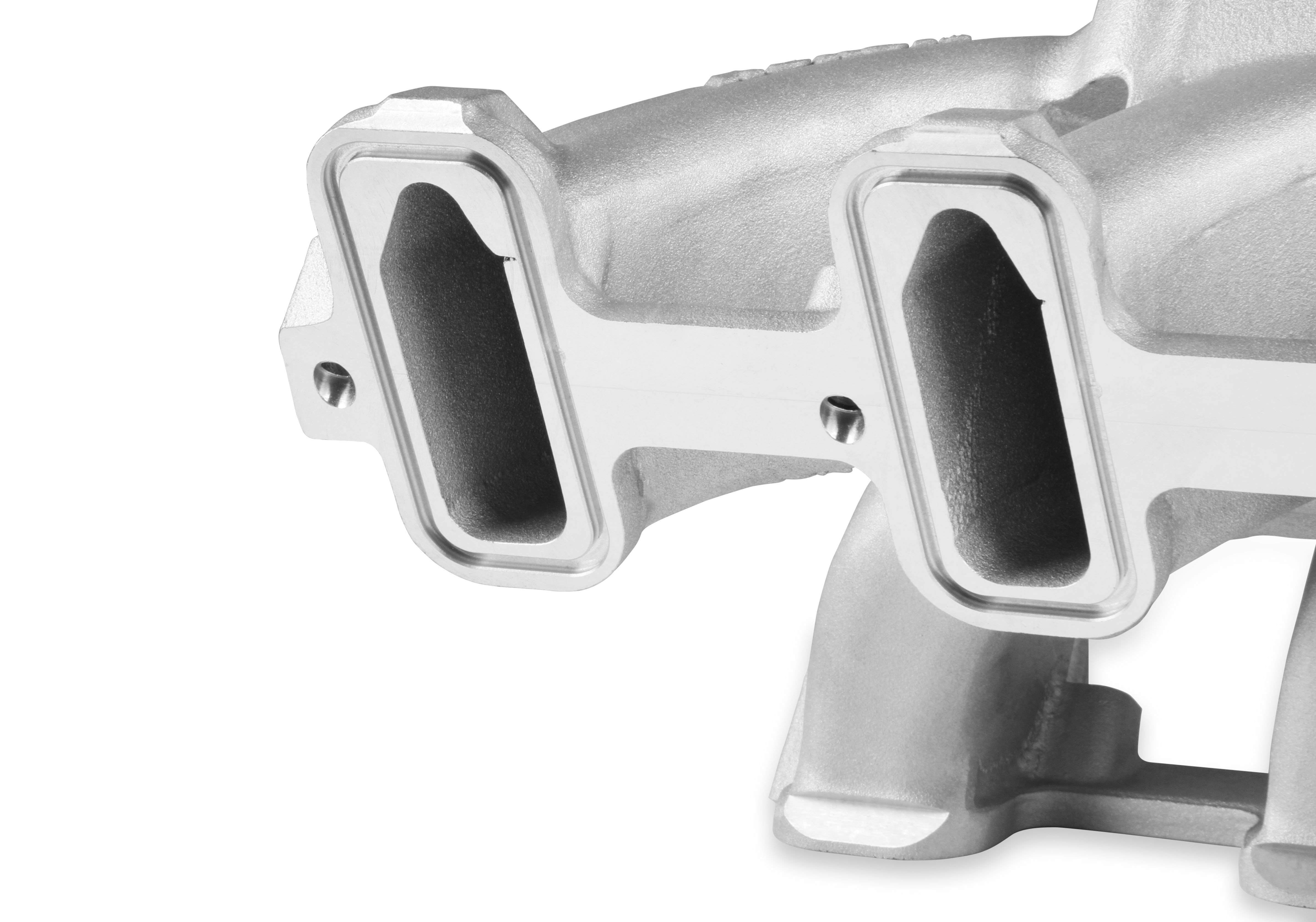

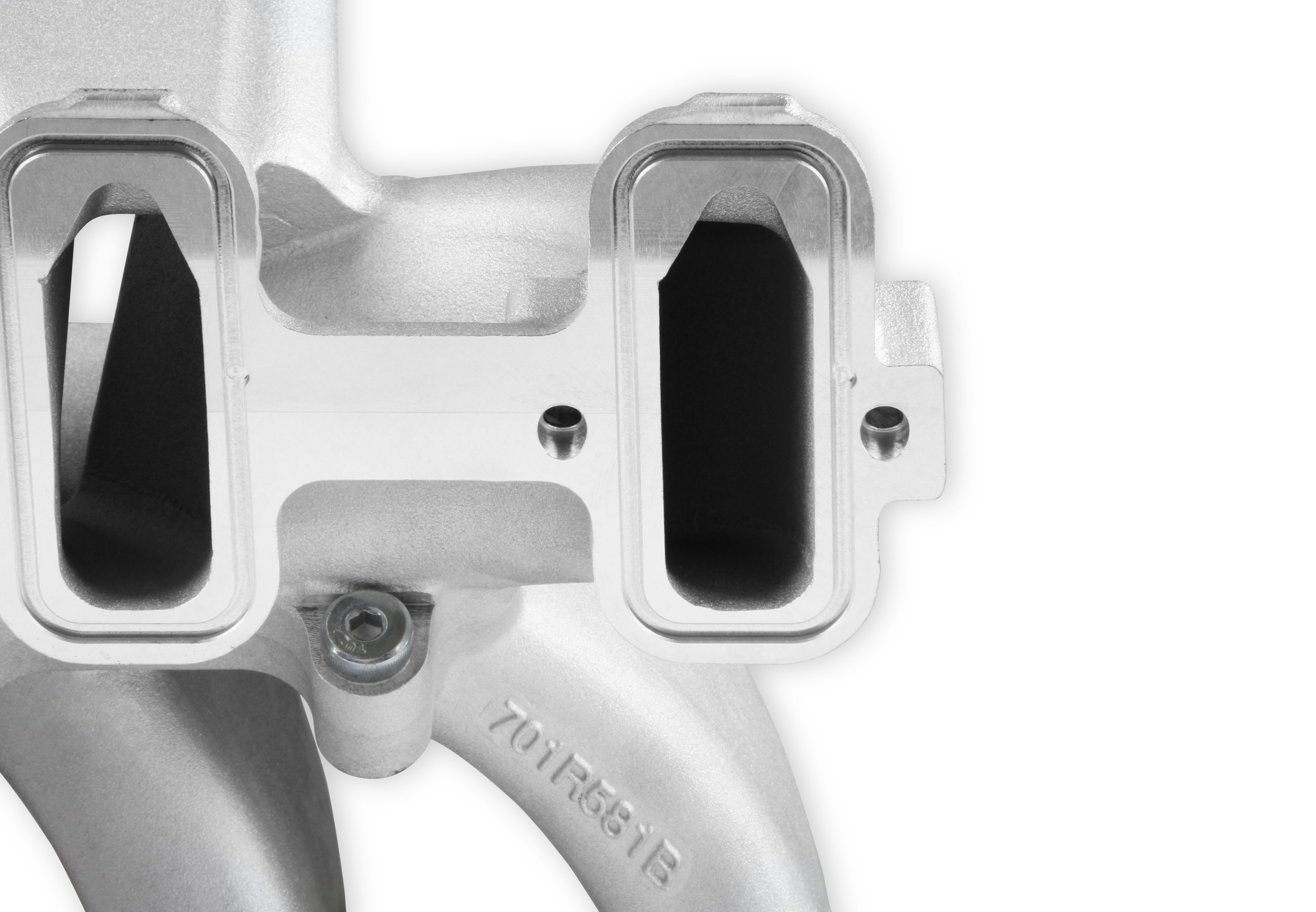

- Captured O-ring seals at head ports and plenum split

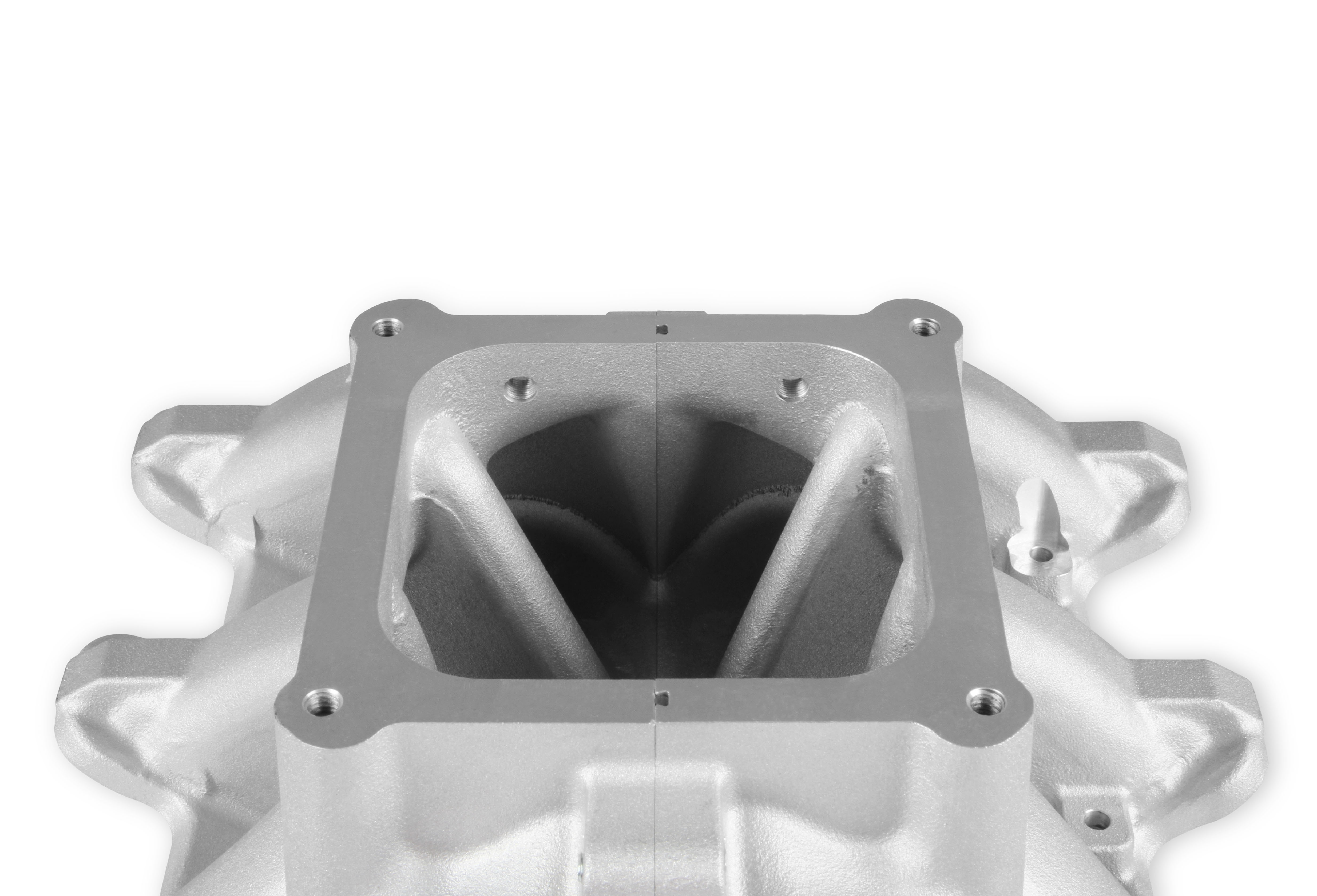

- Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange
- Two versions available: EFI type - Billet Fuel Rails and rail mounting hardware included, or Carbureted / Sniper EFI 4500 TBI style
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Color: Natural
Engine: GM LS1/LS2/LS6
Finish: Satin
Barrels: 4
Warning: California Proposition 65
Category: Engine
EGR Port: No
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
part type: Engine Intake Manifold
Grade Type: Performance
Rear Height: 7.32"
Construction: Cast
Flange Style: 4500
Front Height: 7.32"
Product Type: Intake Manifold
Sub Category: Cylinder Block Components
Emission Code: 3
Manifold Type: Split Single Plane
Plenum Finish: Natural
RPM Power Band: 2500-7000
Fuel System Type: Carbureted
Carburetor Flange: Dominator/4500
Removable Runners: No
Rear Maximum Height: 7.32
Front Maximum Height: 7.32
Fuel Rail(s) Included: No
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: No
Nitrous Bung(s) Included: No
Basic Operating RPM Range: 2500-7500
Carburetor Studs Included: No
Single Or Dual Plane Type: Single Plane
Intake Port Gasket(s) Included: No
