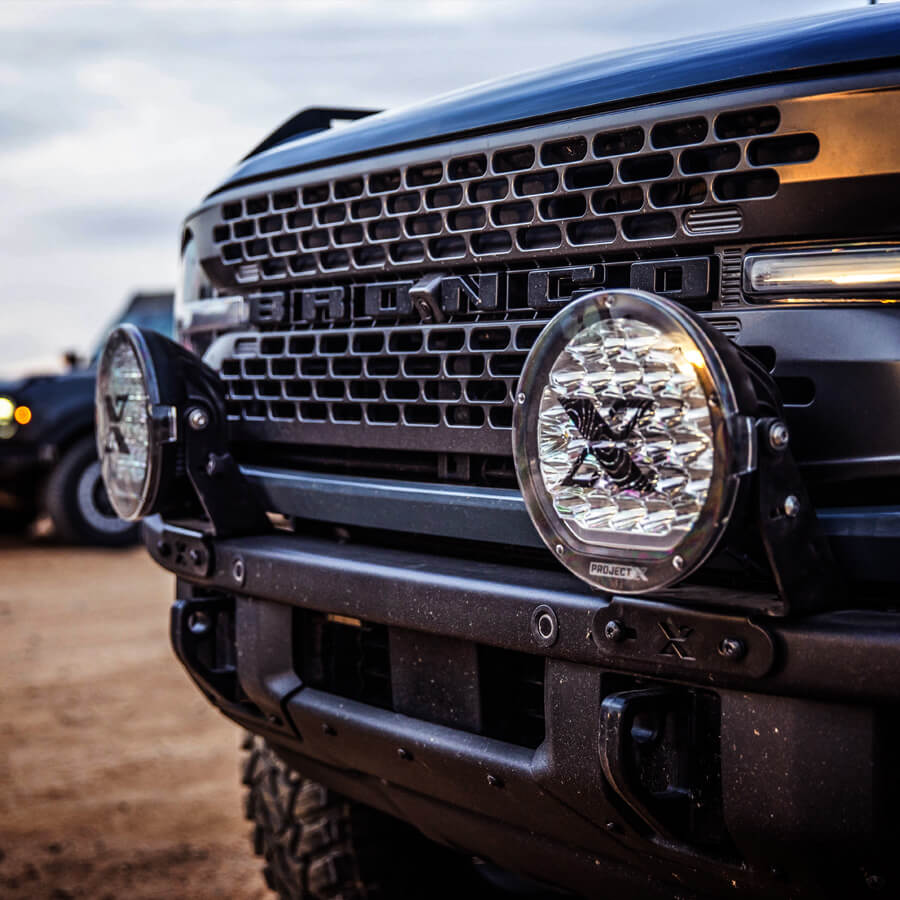

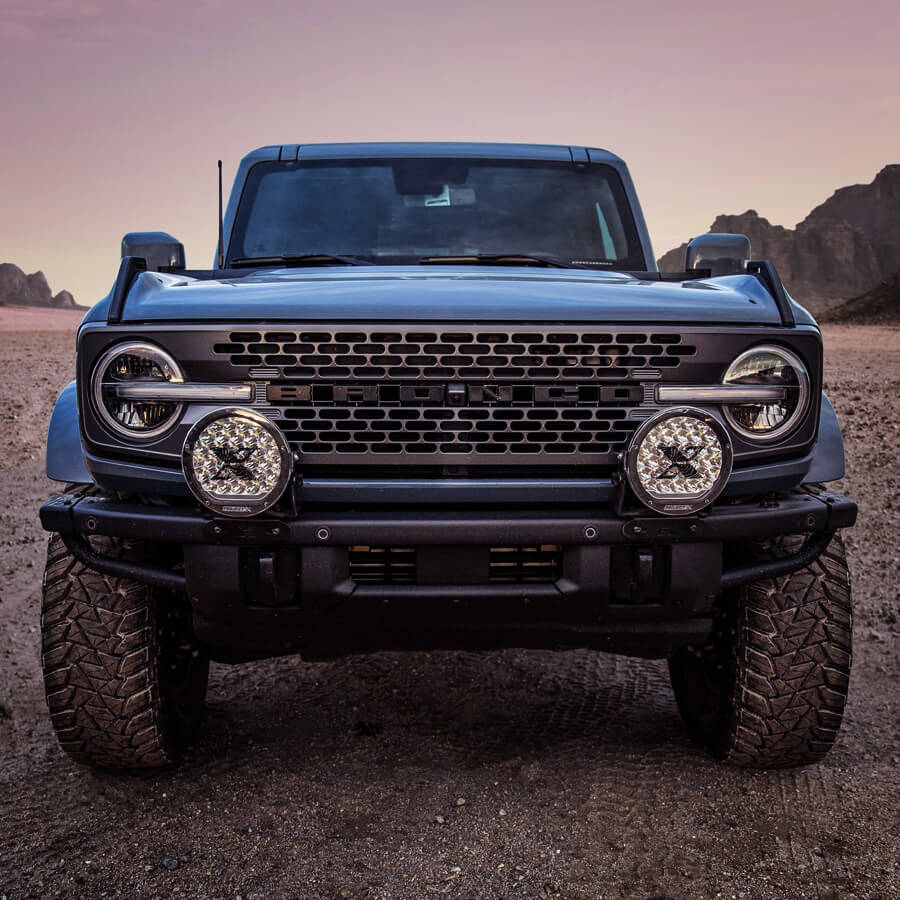

Easy bolt-on solution for installing two Series X HP.85 lights on your 2021-Present Bronco modular front bumper using factory accessory ready hardware and mounting locations.

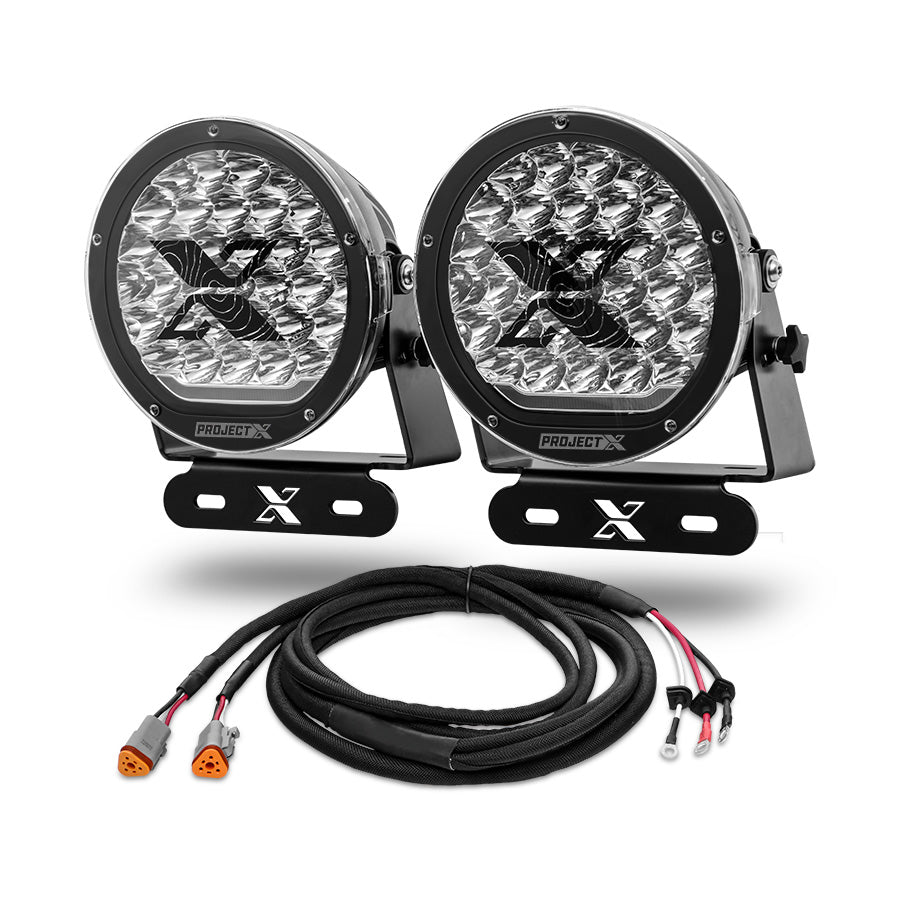

This kit comes with everything you need to get the optimal performance out of Series X HP.85 LED lights totaling 43,560 lumens on the front of your Bronco. The Kit includes two Project X Series X HP.85 Lights, two HP.85 Modular Bumper Brackets, and a wiring harness.

Pair and control your new Bumper kit with our the top-rated 12V Switch Panel, Ghost Box by Project X (Sold Separately). Its wiring made simple, allowing you to quickly and easily install and start managing any 12V circuit. Control the Ghost Box via an optional keypad and/or your mobile device. Each circuit offers constant on, strobe, and dimming functions.

Quickly cycle through the functions in order from a single button, via the app: turn off any functions you don't need and adjust the strobing and dimming. Each Ghost Box also features adjustable low voltage protection and over-current protection. Enhance your 12V experience with Ghost Box.
Application:

• 2021-Present Ford Bronco 2-door w/ Modular Bumper
• 2021-Present Ford Bronco 4-door w/ Modular Bumper
• 2022-Present Ford Bronco Raptor w/ Modular Bumper
• Does not fit Bronco Sport

Features:

Power:

• Input Voltage: 9 - 33V
• LED Power Output: 330W
• Current Draw at 12V: 28.8A
• Power Consumption: 345.6W
• Operating Temp: -40 degrees F to 149 degrees F
• Heat Management: Active Thermal Management System (ATMS)
• Protection: Reverse Polarity, Protection
• EMC: ECE R10

LED:

• LED Type: Osram LEDs
• No. LED's: 33 per Light

Lumens:

• Color Temp: 5700 degrees K
• Color Rendering Index: 72
• Raw Lumens: 43,560
• Effective Lumens: 30,820
• Candela: 1,129,624
• Beam Length (1 lamp): 1 lux at 1443 Feet
• Beam Length (2 lamps): 1 lux at 2034 Feet
• Beam Width (1 lamp): 1 lux at 147 Feet
• Beam Width (2 lamps): 1 lux at 206 Feet

Construction:

• Mount Material: 304 Stainless Steel
• Mount Coating: Black Powder Coat
• Light Housing: Pressure die-cast aluminum
• Lens: Hard coated Polycarbonate
• IP Rating: IP66 and IP67
• Includes: Mount, Two-HP.85, Hardware and Wiring Harness
