PRP's Limit Strap Kit for Kawasaki KRX 1000 kit provides you with hardened bolts that are longer than OEM, along with new washers and powder coated spacers for the limit straps. The limit straps are PRP quad layer limit straps, which have been proven over the years with Trophy Trucks and Class 1 buggies.

Limiting Strap Information

Limiting straps are vital in custom suspension setups that help prevent damage to suspension and drivetrain components. Without limiting straps, your shocks are the stops at maximum droop.

The shock from your vehicle's un-sprung weight can cause damage to shocks such as when jumping or at high speed over rough sections.

Limiting straps can also prevent damage to your CV joints by limiting the amount of maximum angle on your axles. All CV joints have a maximum amount of degree deflection that they can safely be run at with custom suspension setups.

With many suspension setups, the deflection angle can go farther than the CV joint can handle resulting in damage, shorter run life, and CV failure.

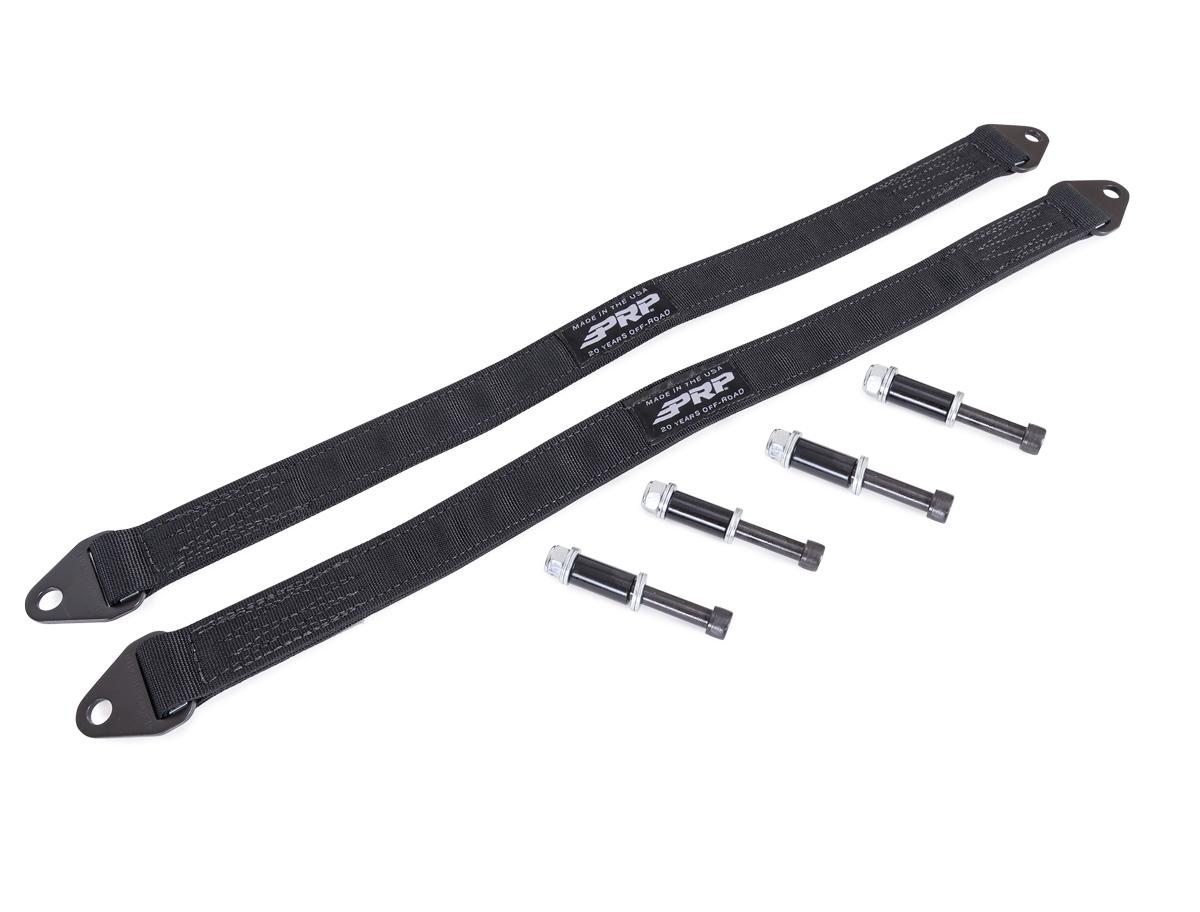

Includes
4 longer shock bolts (M12 X 1.75 X 110MM for front, M12 X 1.75 x 110MM for rear)
4 shock bolt washers (M12 Flat)
4 shock bolt spacers powder coated black (1 inch for front, 1.5 inch for rear)
4 shock bolt nuts (M12 X 1.75)
2 PRP quad layered limit straps (32 inch for front, 39 inch for rear)
Features

• Layered For Strength: 4 Layered webbing rated for 10,000lbs
• Heat Treated Steel Tabs: Improved wear resistance, increased strength, and relief of internal stress
• Hardware: Four longer shock bolts and bolt washers

Benefits

• Protect Your Investment: Prevent unecessary load on your suspension by limiting the possibility of over
• Ride On The Trails Longer: Reduce possiblity of your drivetrain from topping out and spoiling the trip
• Driver Harder, Faster, Safer: Drive with confidence while pushing the limits of your vehicle
