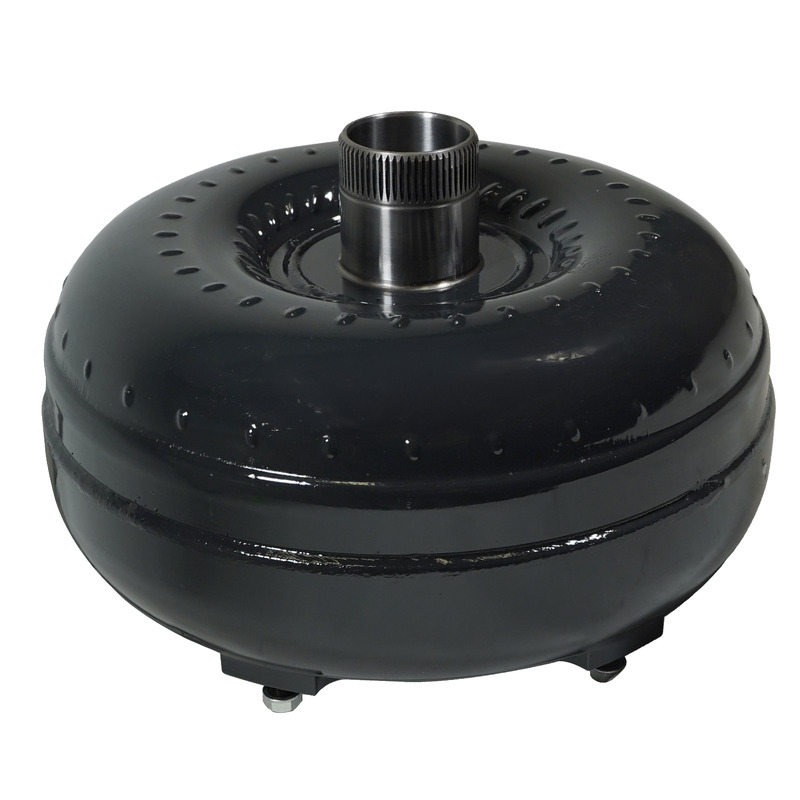

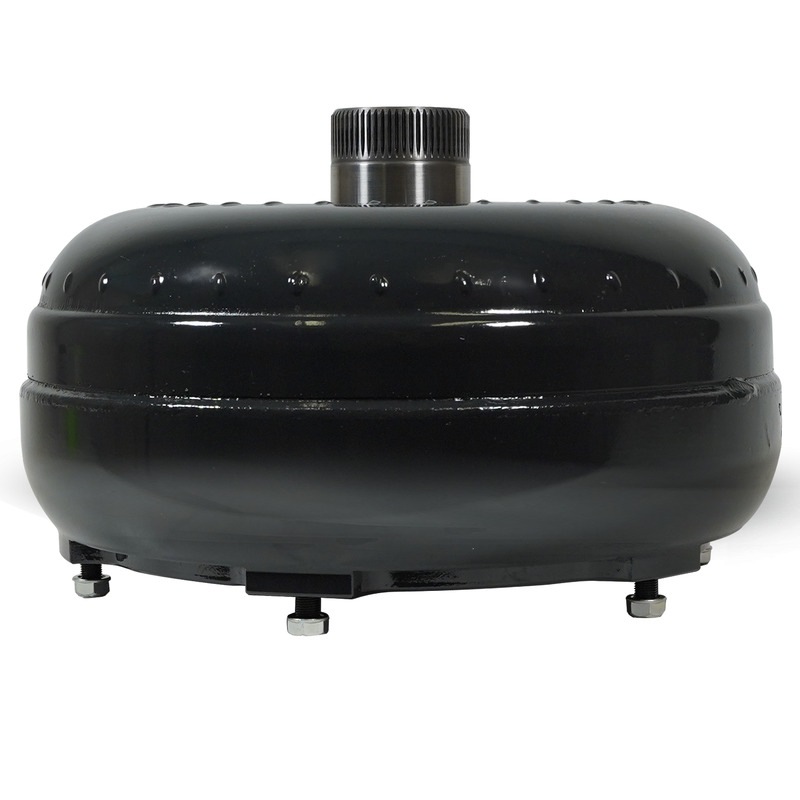

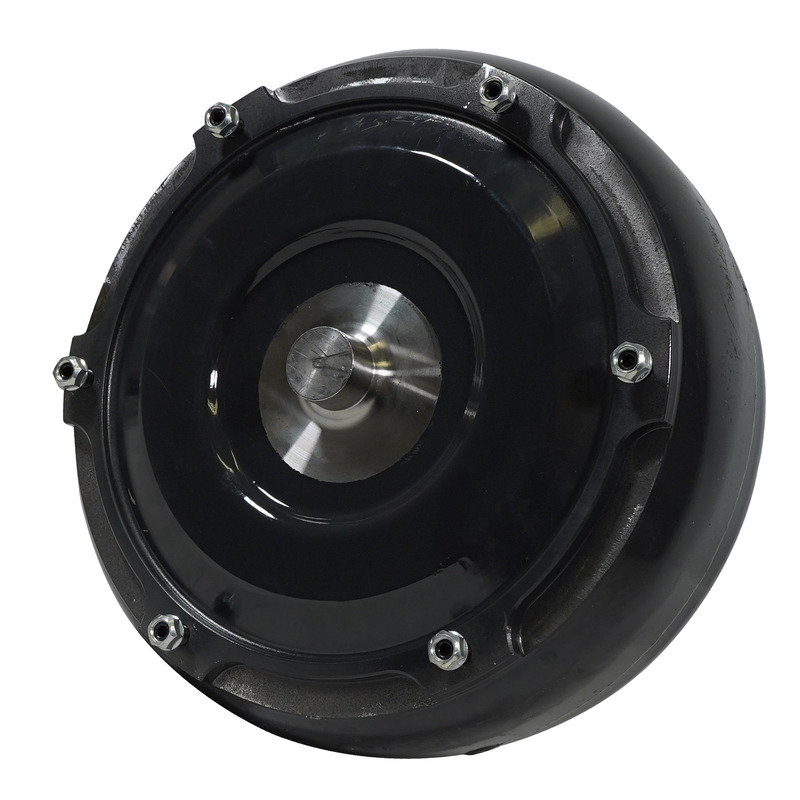

The BD 6R140 ProForce 4D Torque Converter is designed for hard-working and modified 6.7L Power Stroke Diesels. This Torque Converter is equipped with 4 clutch surfaces designed to handle heavy towing loads and is intended for up to 900+ horsepower.

Our in-house CNC machined forged cover is designed to prevent warping and improper balance while facilitating the increased clutch count without sacrificing strength.

In addition to a new cover, BD has designed a custom piston, bearing hub, release springs and backing plate to retain the OEM captured clutch design which delivers the same great drivability 6R140 owners are accustomed to.

Install Time:

7 Hours

Warranty:

Parts

• 36-Months

Labor

• 12,000 miles

Note:

• No Race abuse covered

Note:
Will not fit early 2011 trucks with 8-bolt flex plate - will have to update to 6 bolt flex plate.

Emissions:

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)

Features:

• 23 percent increased piston area for additional clutch clamping force
• Billet bearing hub, piston and clutch retainer
• Captured clutch design with clutch return springs
• Increased clutch and steel plate count for improved heat dissipation
• Comes with hardware
• Factory furnace-brazed pump and turbine fins
• Four friction surfaces instead of the factory two surfaces
• Stamp forged 1-piece cover
