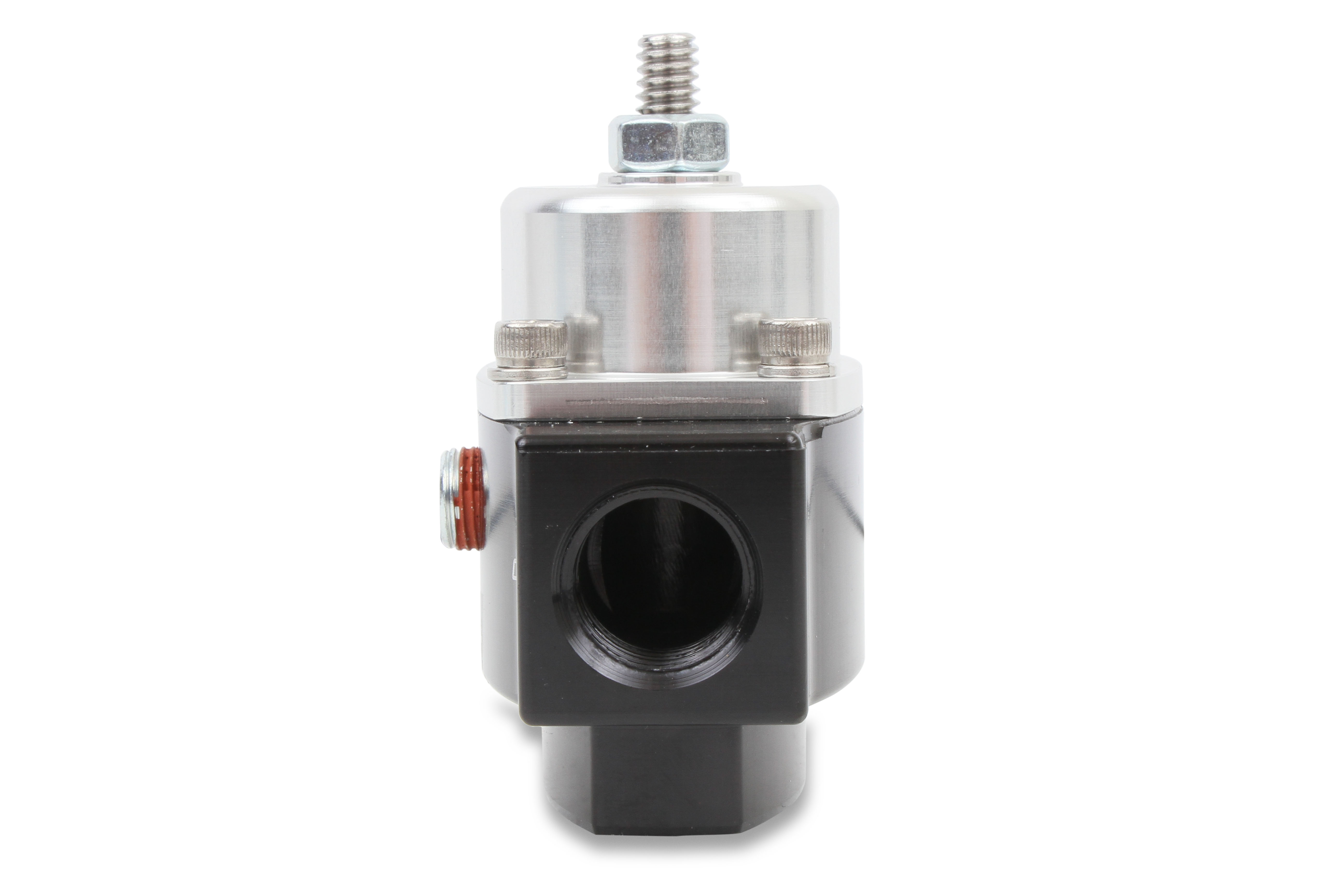

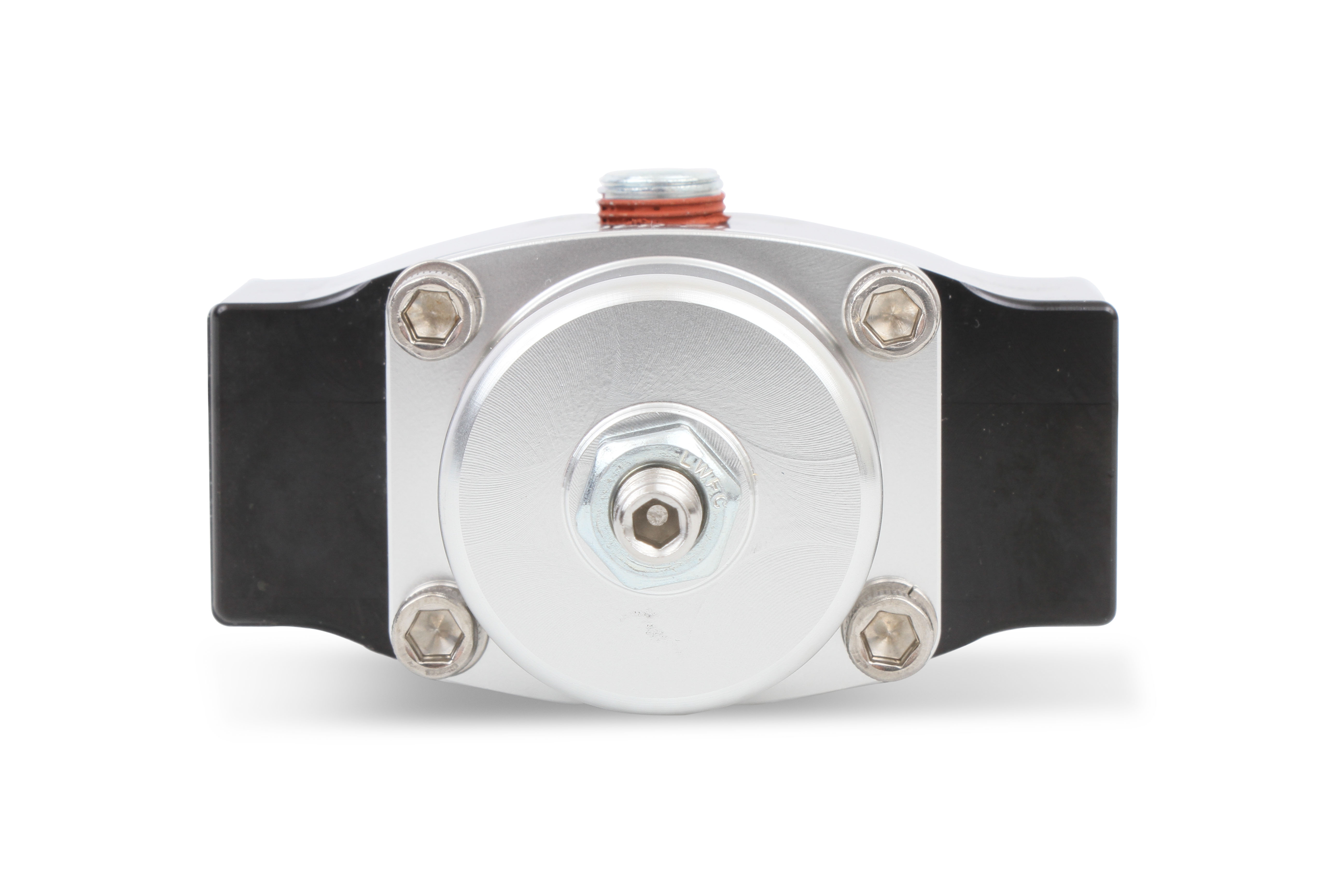

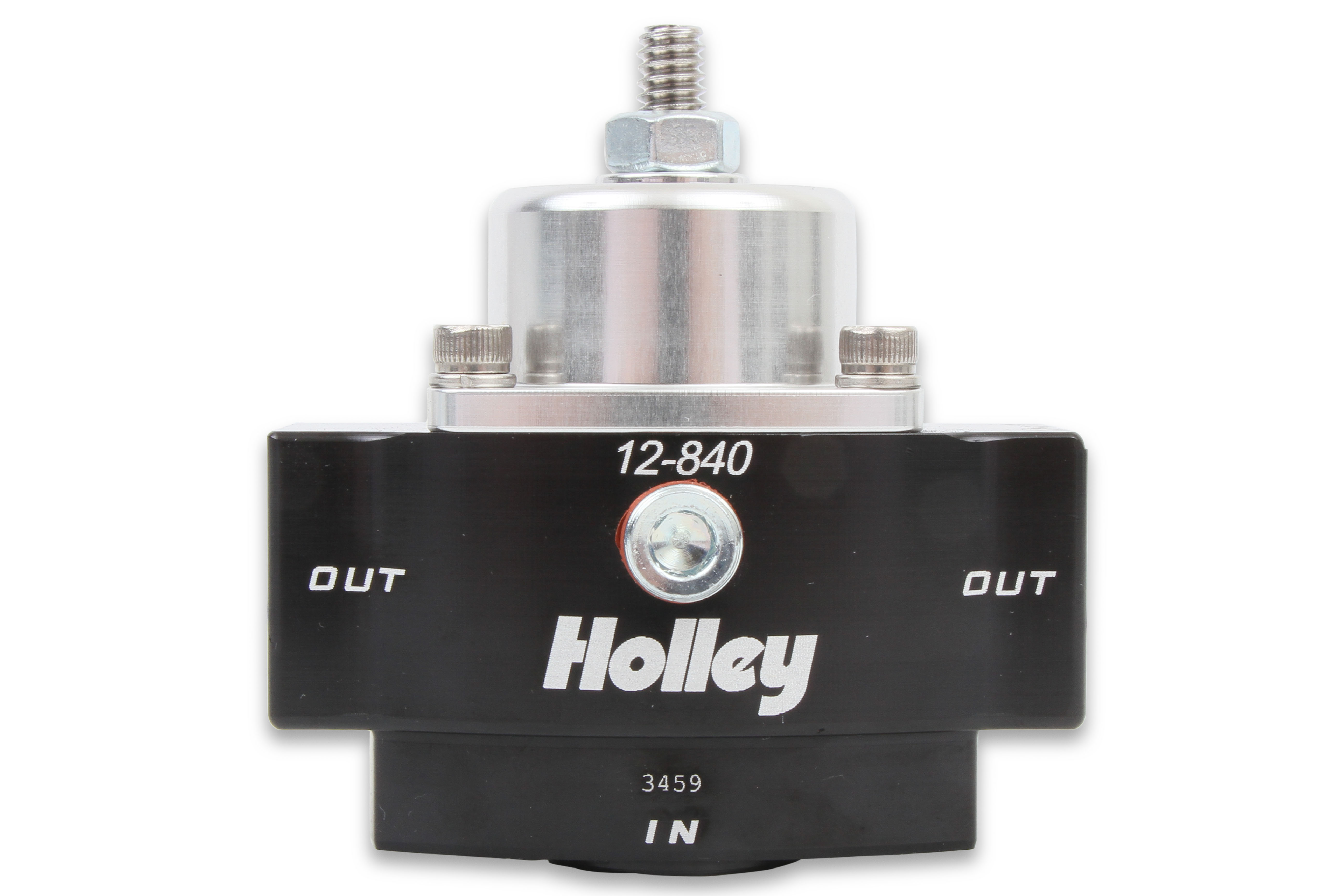

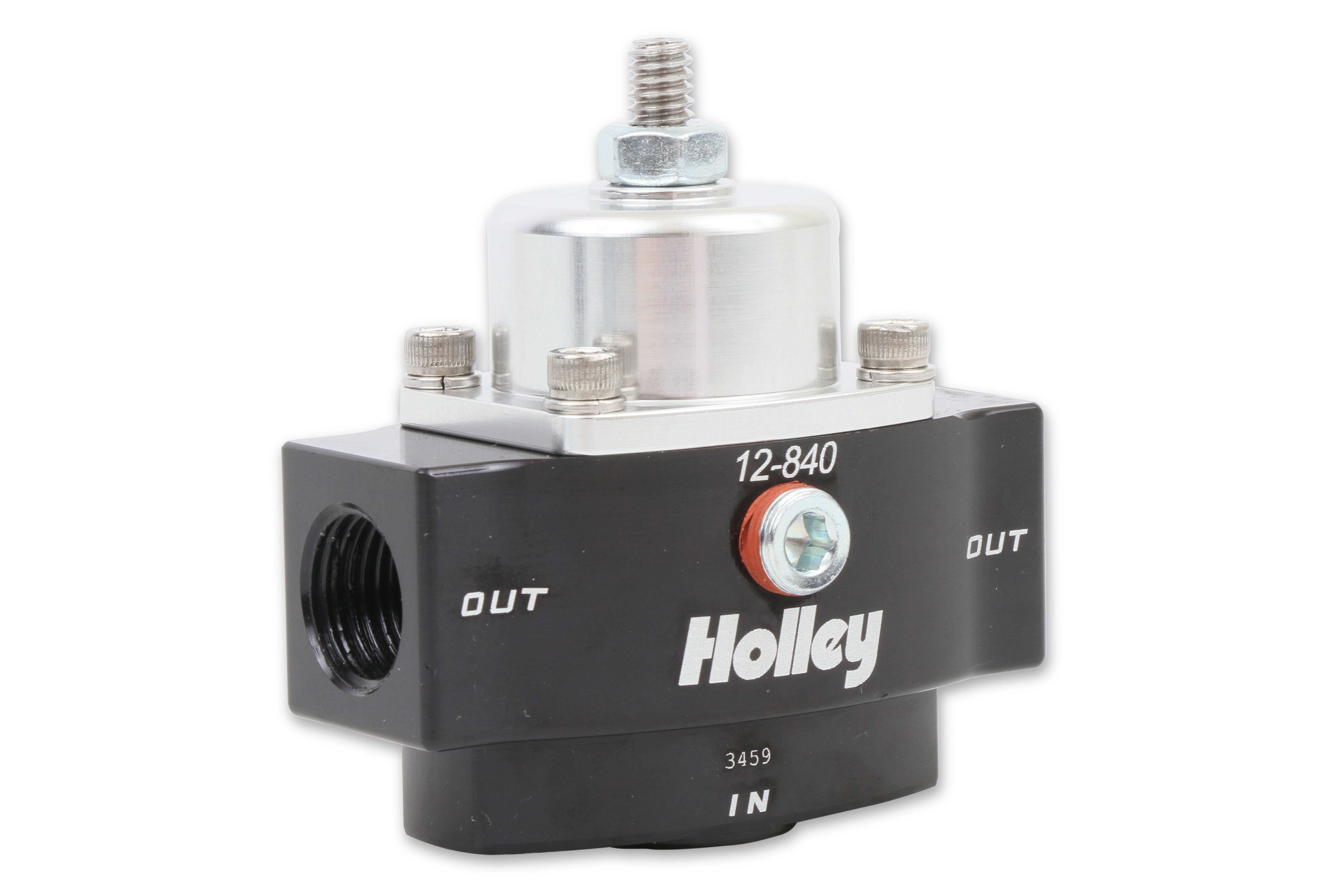

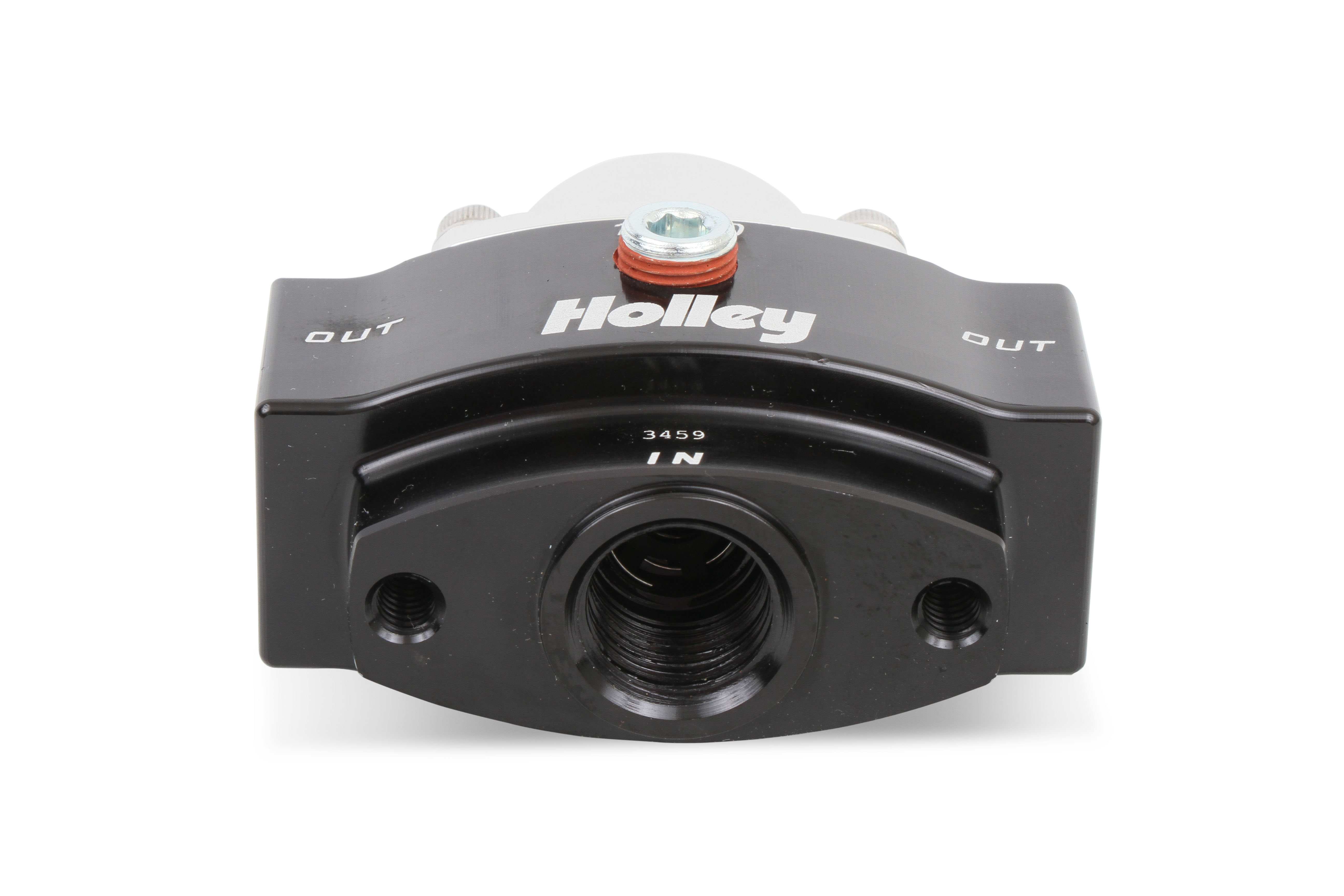

HP Billet Carbureted Fuel Pressure Regulator
SKU
HTPD-12-840
List price
$180.00
Price
$134.95
Description
Street/Strip Carbureted Applications Two Port Adjustable from 4.5 to 9 PSI
Features
- Adjustable from 4.5-9 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
- Used in systems where a return line is not needed
- Use with electric or mechanical pumps
- One 3/8" NPT inlet and two 3/8" NPT outlets
- 1/8" NPT gauge port
- Comparable and interchangeable with popular Holley® 12-803 regulator

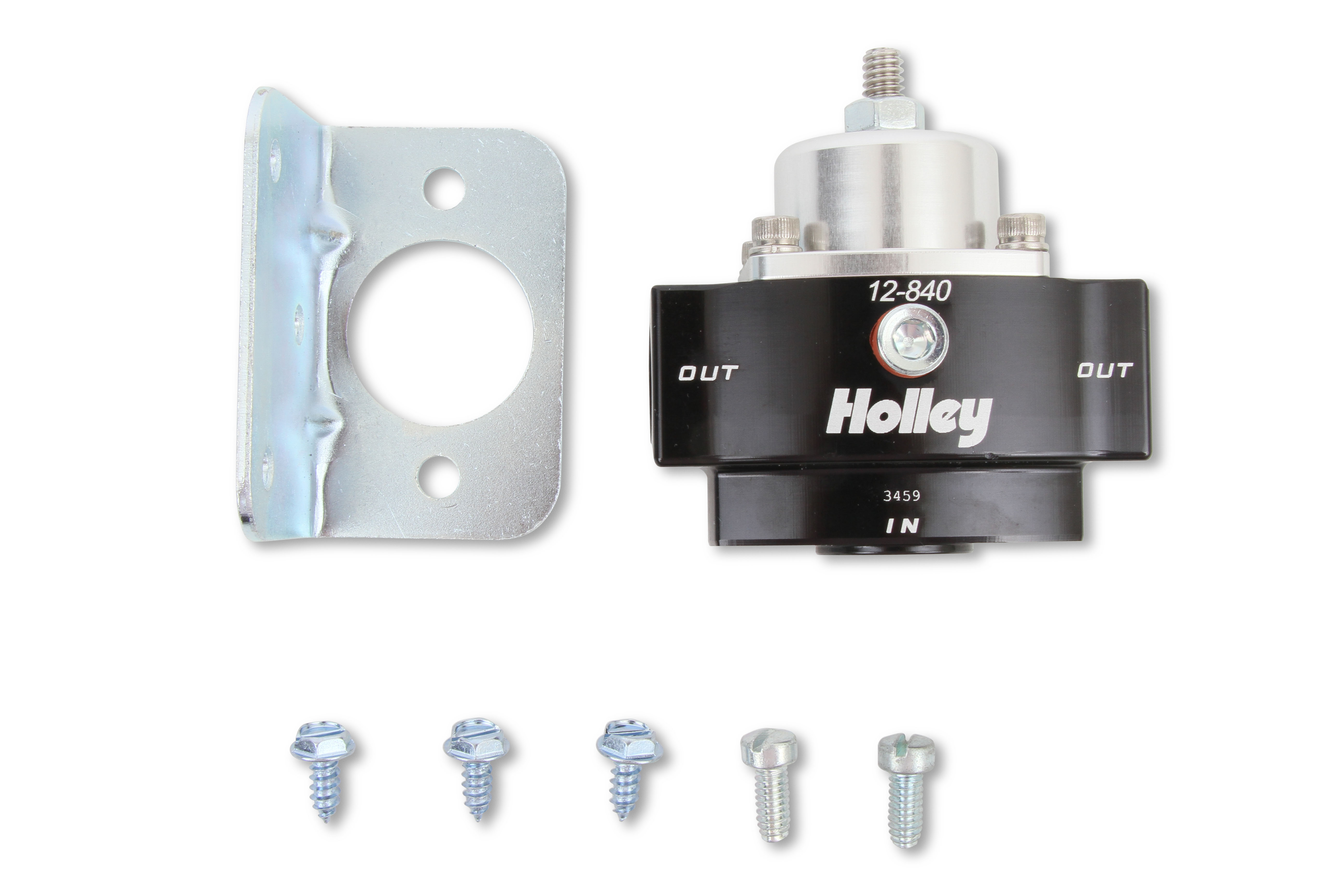

- Mounting bracket included
Specs
Brand
HOLLEY
Category
Fuel Pressure Regulator
Specs
Brand: Holley
Color: Black Anodized
Style: Non-Return
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
part type: Fuel Pressure Regulator
Adjustable: Yes
Grade Type: Performance
Inlet Size: 3/8 inch NPT
Inlet Type: NPT
Fuel System: Carbureted
Outlet Size: 3/8 inch NPT
Outlet Type: NPT
Rebuildable: Yes
Inlet Gender: Female
Product Type: Fuel Pressure Regulator
Sub Category: Carburetion
Emission Code: 5
Mounting Type: Inline
Outlet Gender: Female
Port Quantity: 2
Gauge Included: No
Pressure Range: 4.5-9 PSI
Maximum Pressure: 9
Minimum Pressure: 4.5
Gauge Port Included: Yes
Inlet Port Diameter: 3/8
Inlet Port Quantity: 1
Outlet Port Diameter: 3/8
Outlet Port Quantity: 2
Mounting Bracket Included: Yes
