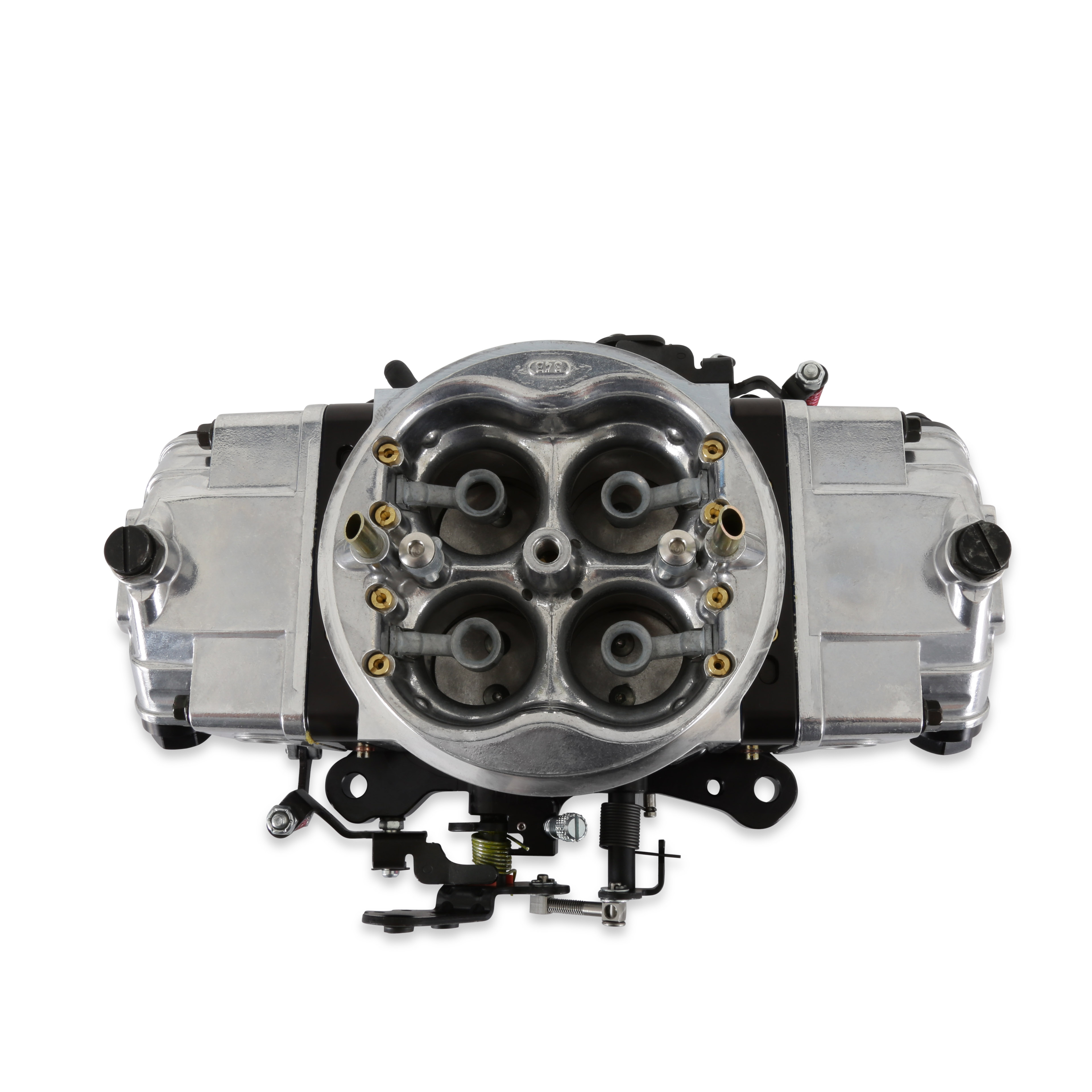

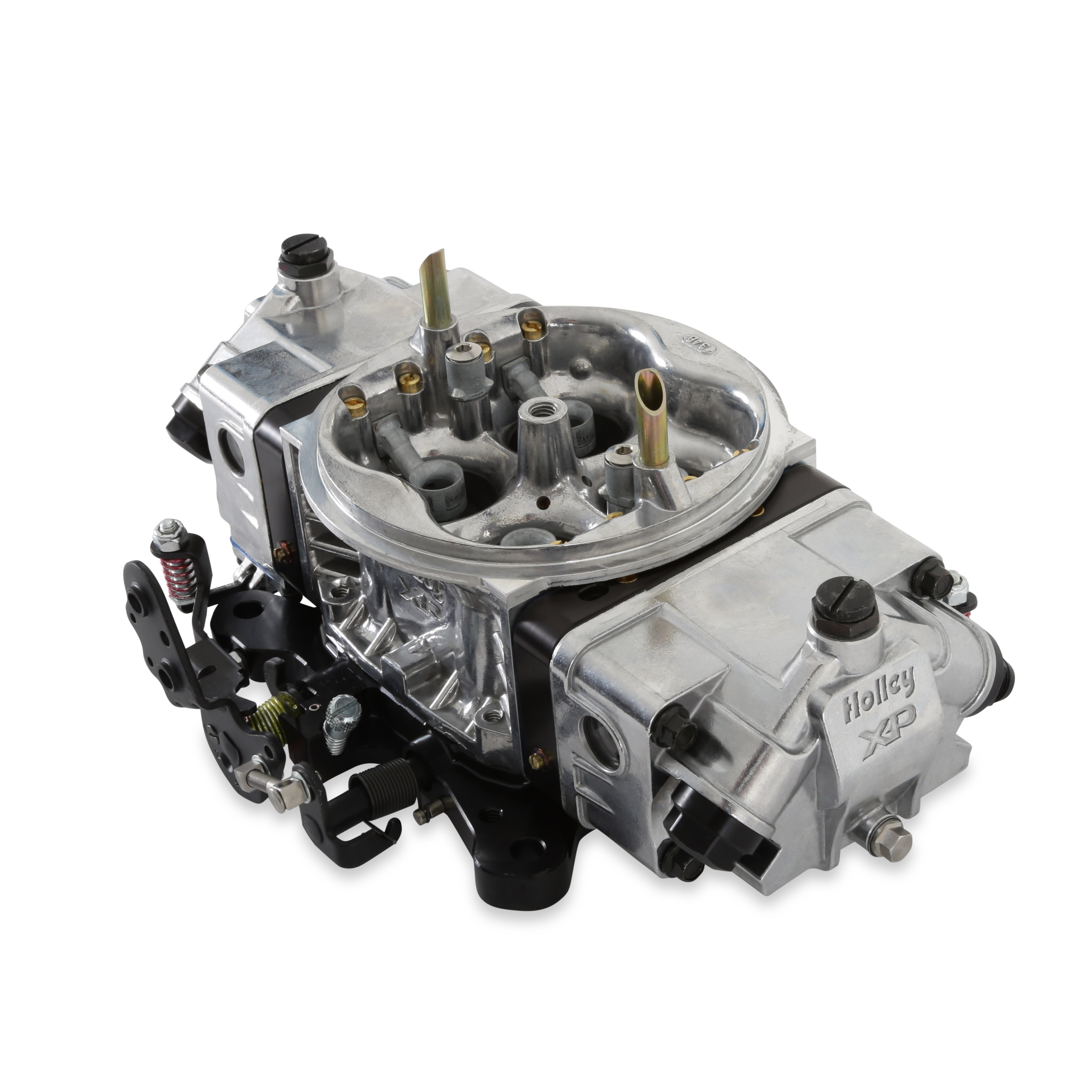

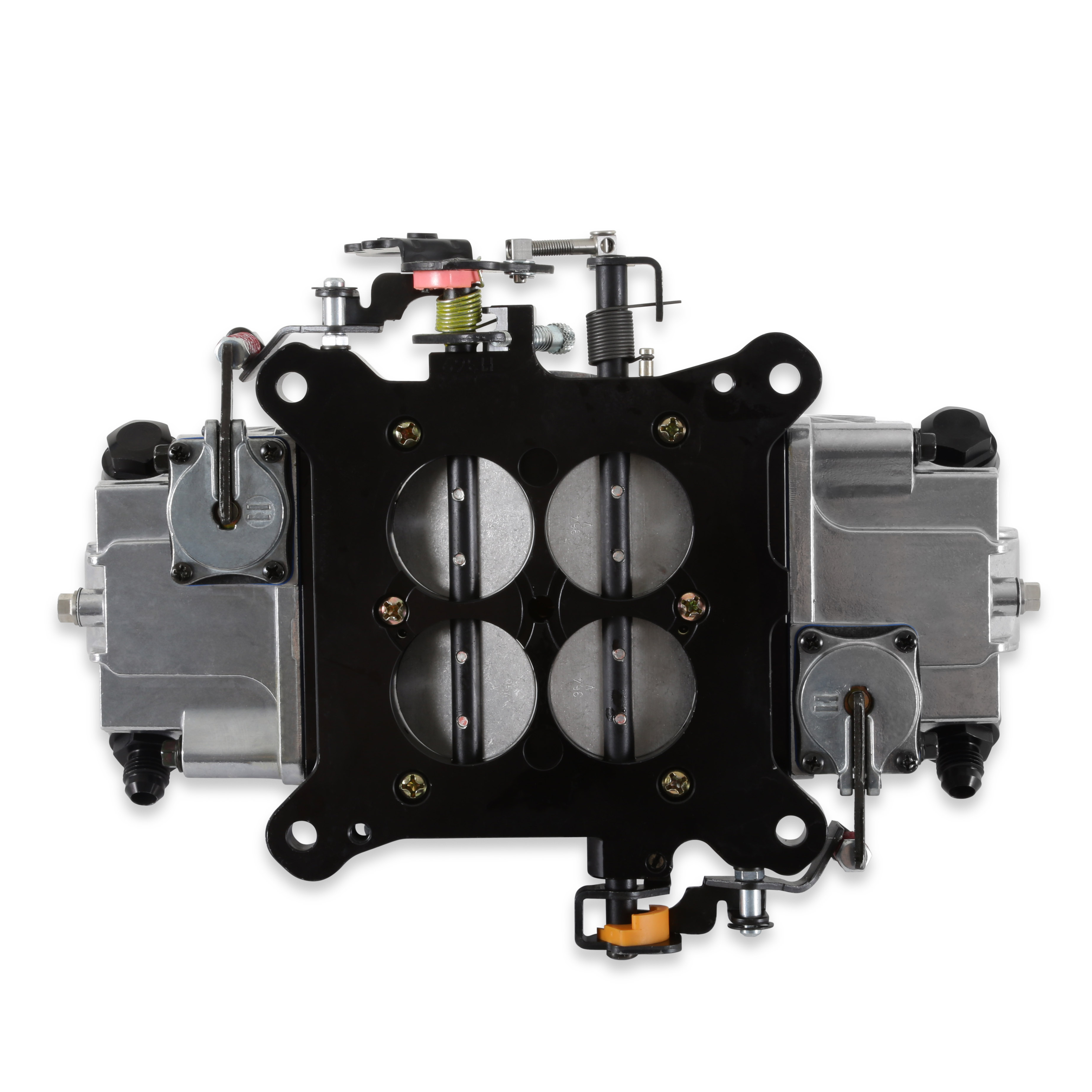

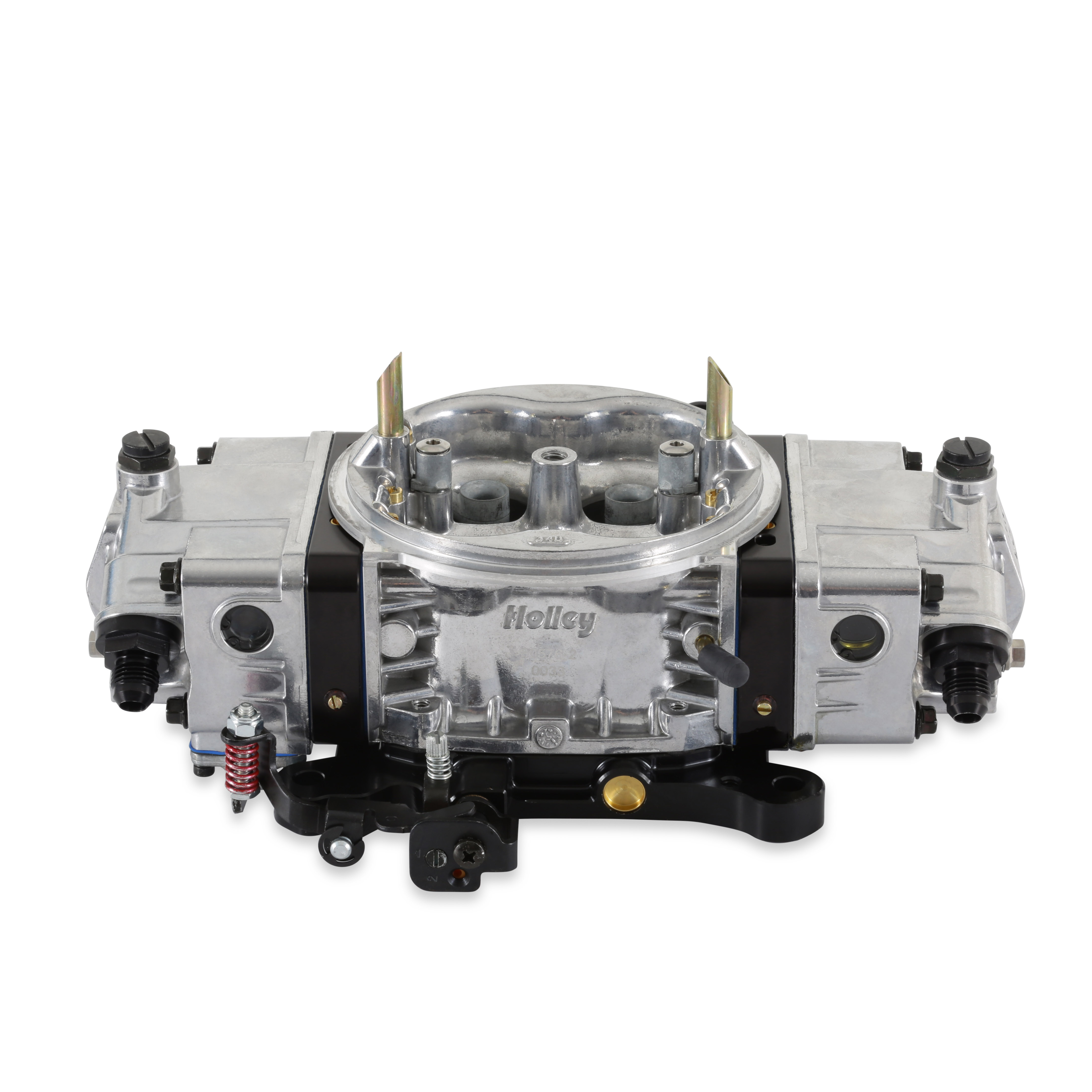

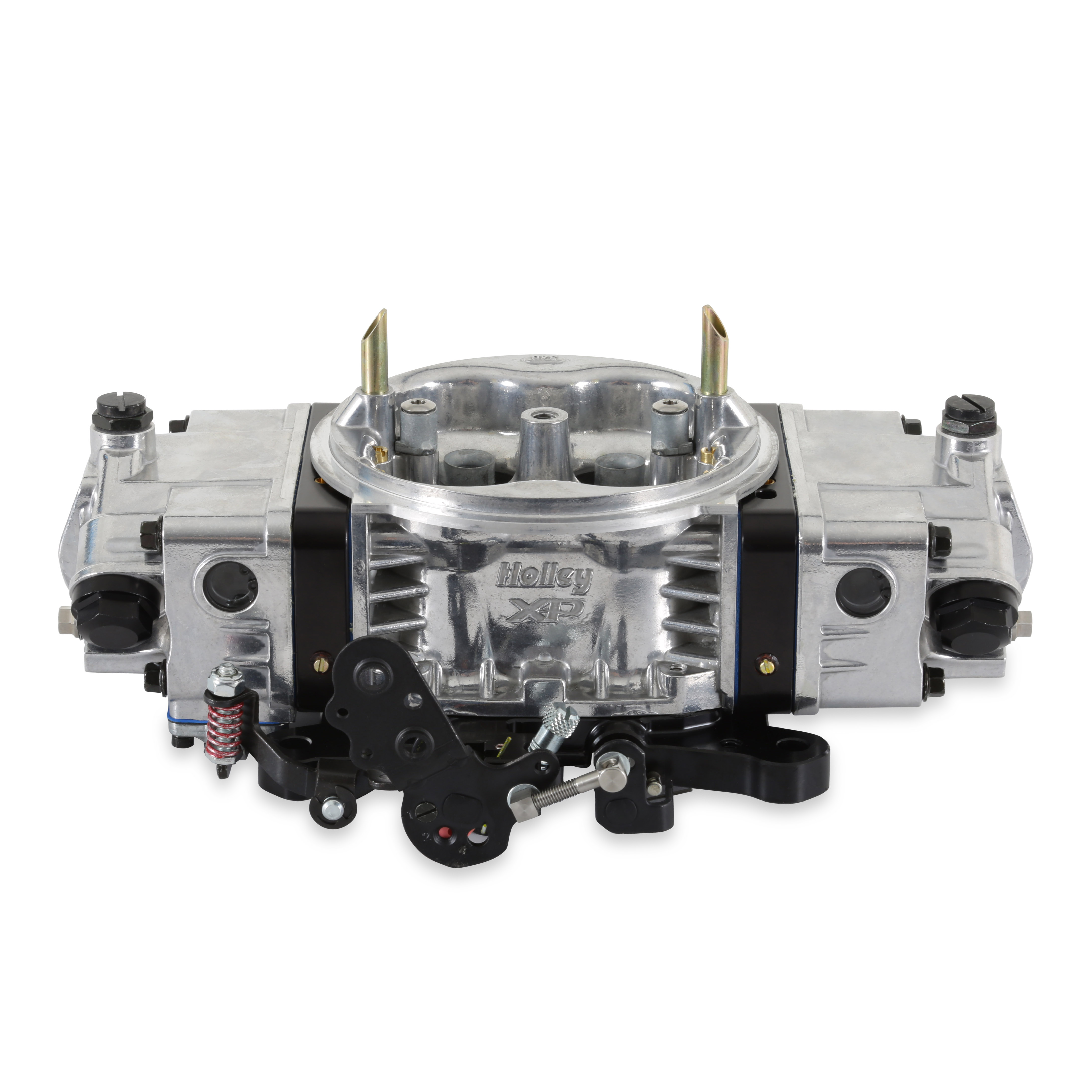

Holley Supercharger XP Carburetor - Draw-Thru
SKU
HTPD-0-80576SA
List price
$1,319.94
Price
$1,099.95
Description
750 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline
Features
- Tumble polished shiny finish for good looks
- Designed for use on the WEIAND® 671 supercharger (big block Chevrolet/Chrysler 392) or WEIAND® 871 supercharger (small block Chevrolet/Chrysler 426)
- Contoured venturri inlet offers balanced airflow for increased horsepower
- Screw in air bleeds for precision tuning capabilities
- Dual 30cc accelerator pumps for additional fuel under initial acceleration
- Dual feed fuel inlets for constant high volume fuel delivery
- 4 corner idle allows you to precisely control your idle system
- Mechanical Secondaries for perfect off the line launches
- Boost referenced power valve for proper enrichment under acceleration
- Throttle lever cut off for clearance on a sideways application
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Specs
Brand
HOLLEY
Category
Carburetor
Specs
CFM: 750
Fuel: Gasoline
Brand: Holley
Choke: None
Model: XP-Series
Finish: Shiny
Barrels: 4
Booster: Downleg
Circuit: 2
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Condition: New
part type: Carburetor
Body Color: Polished
Fuel Inlet: Dual
Grade Type: Performance
Marine Use: No
Body Finish: Polished
Flange Type: Square/4150
Secondaries: Mechanical
System Type: Draw Thru
Product Type: Carburetor
Sub Category: Carburetion
Emission Code: 3
Throttle Bore: 1.688 inch
Venturii Size: 1.375 inch
Booster Design: Downleg
Carburetor Use: Performance and Race
Barrel Quantity: 4
Marine Approved: No
Spacer Included: No
Linkage Attached: Yes
Primary Main Jet: 72
Secondary Main Jet: 86
Carburetor Material: Aluminum
Primary Power Valve: 10.5
Primary Jet Diameter: 72
Mounting Hole Quantity: 4
Primary Pump Nozzle Size: 31
Supercharged Application: Yes
Secondary Pump Nozzle Size: 31
Cubic Feet Per Minute Rating: 750
