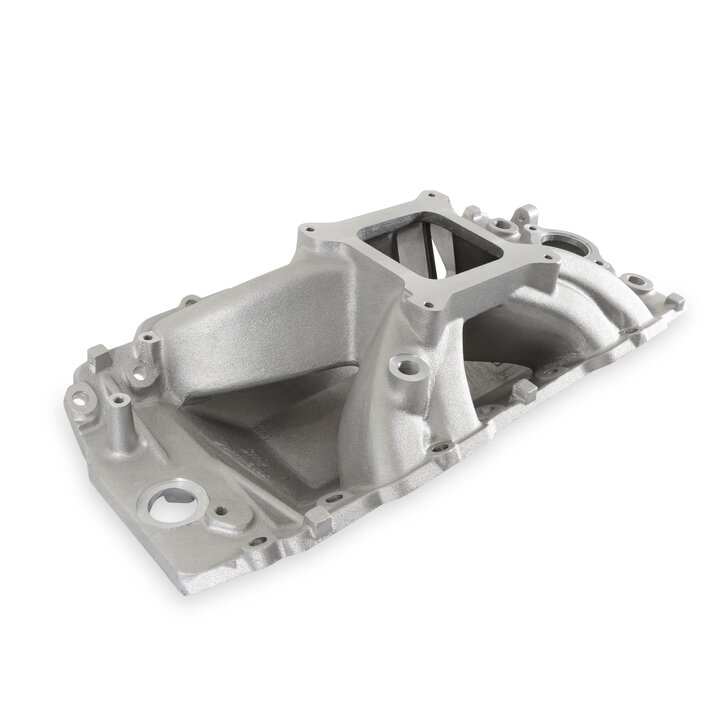

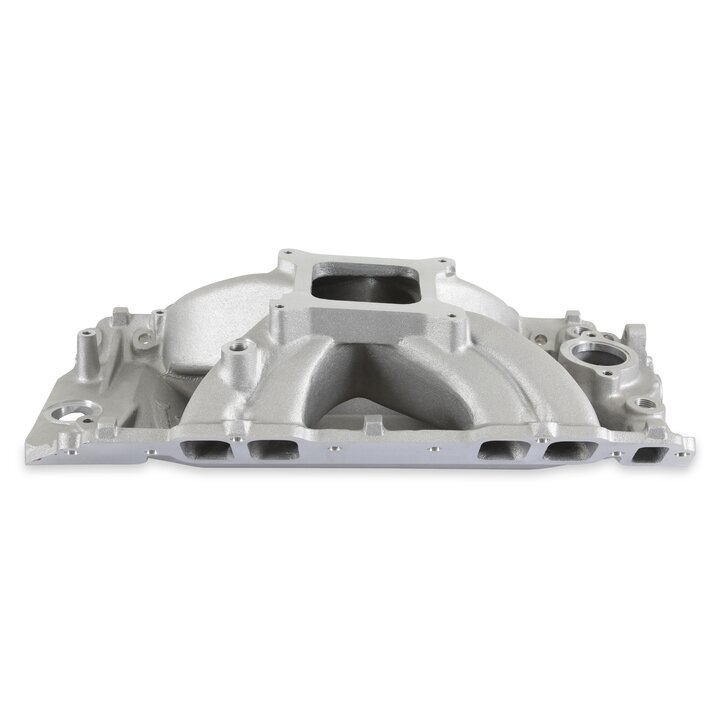

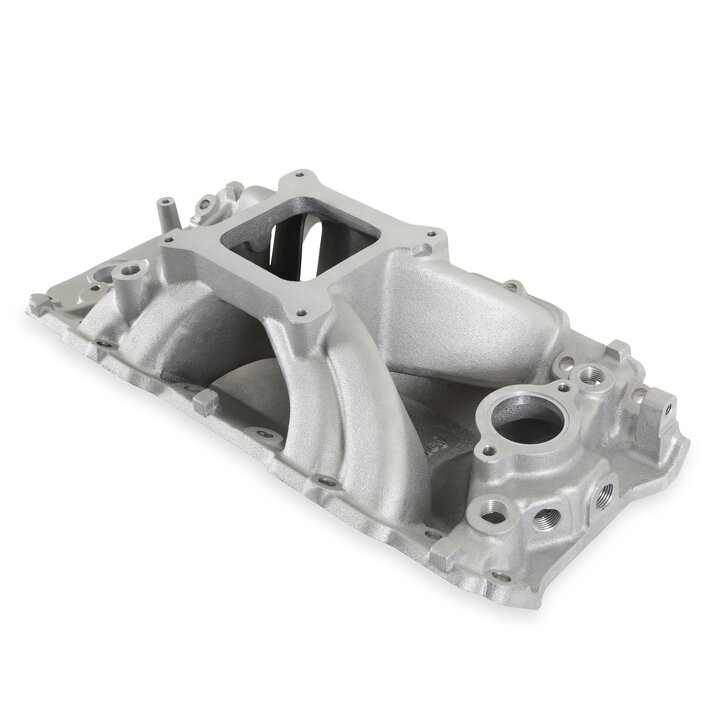

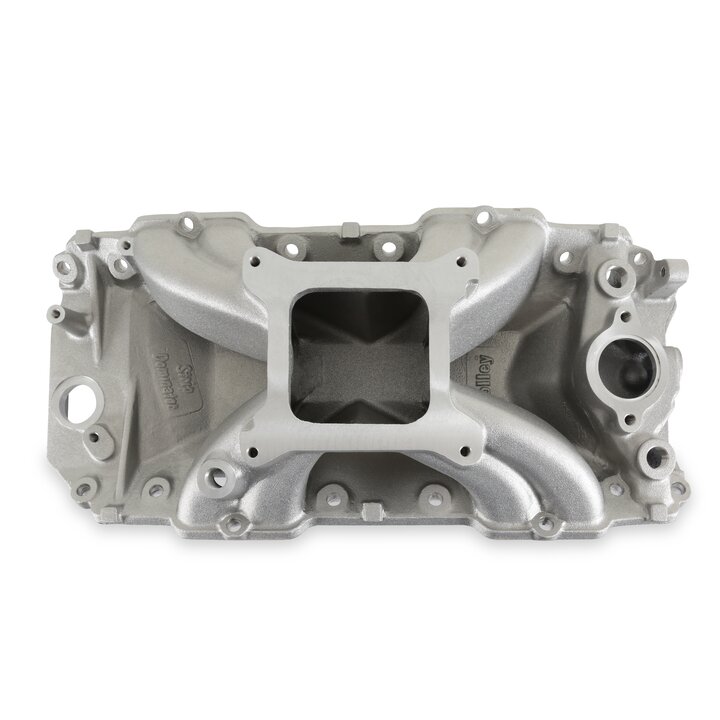

Holley Strip Dominator Intake - Big Block Chevy V8
SKU
HTPD-300-5
List price
$470.95
Price
$417.95
Description
Carburetor Intake Manifold 396ci-502ci - Rectangular Port Heads
Features
- Single Plane/Open Plenum Design
- Deep Plenum Design with Isolated Runners
- 4150 Square Bore Carburetor Mounting Flange
- Power band: 4500-8500 RPM
- Port Size: 2.30” height 1.60" width
- Height: Front 4.77", Rear 6.16"
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Color: Natural
Engine: Chevy Big Block V8
Finish: Satin
Warning: California Proposition 65
Category: Intake Manifolds
EGR Port: No
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Grade Type: Performance
Rear Height: 6.16 inch
Construction: Cast
Flange Style: 4150 Square Bore
Front Height: 4.77 inch
Product Type: Intake Manifold
Emission Code: 3
Manifold Type: High Rise
Plenum Finish: Natural
RPM Power Band: 4500-8500
Fuel System Type: Carb
Carburetor Flange: Square/4150
Removable Runners: No
Rear Maximum Height: 6.16
Front Maximum Height: 4.77
Fuel Rail(s) Included: No
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: No
Nitrous Bung(s) Included: No
Basic Operating RPM Range: 4500-8500
Carburetor Studs Included: No
Single Or Dual Plane Type: Single Plane
Intake Port Gasket(s) Included: No
