Holley Small Block Ford Mid-Mount Complete Accessory System
SKU
HTPD-20-370BK
List price
$2,868.95
Price
$2,549.95
Description

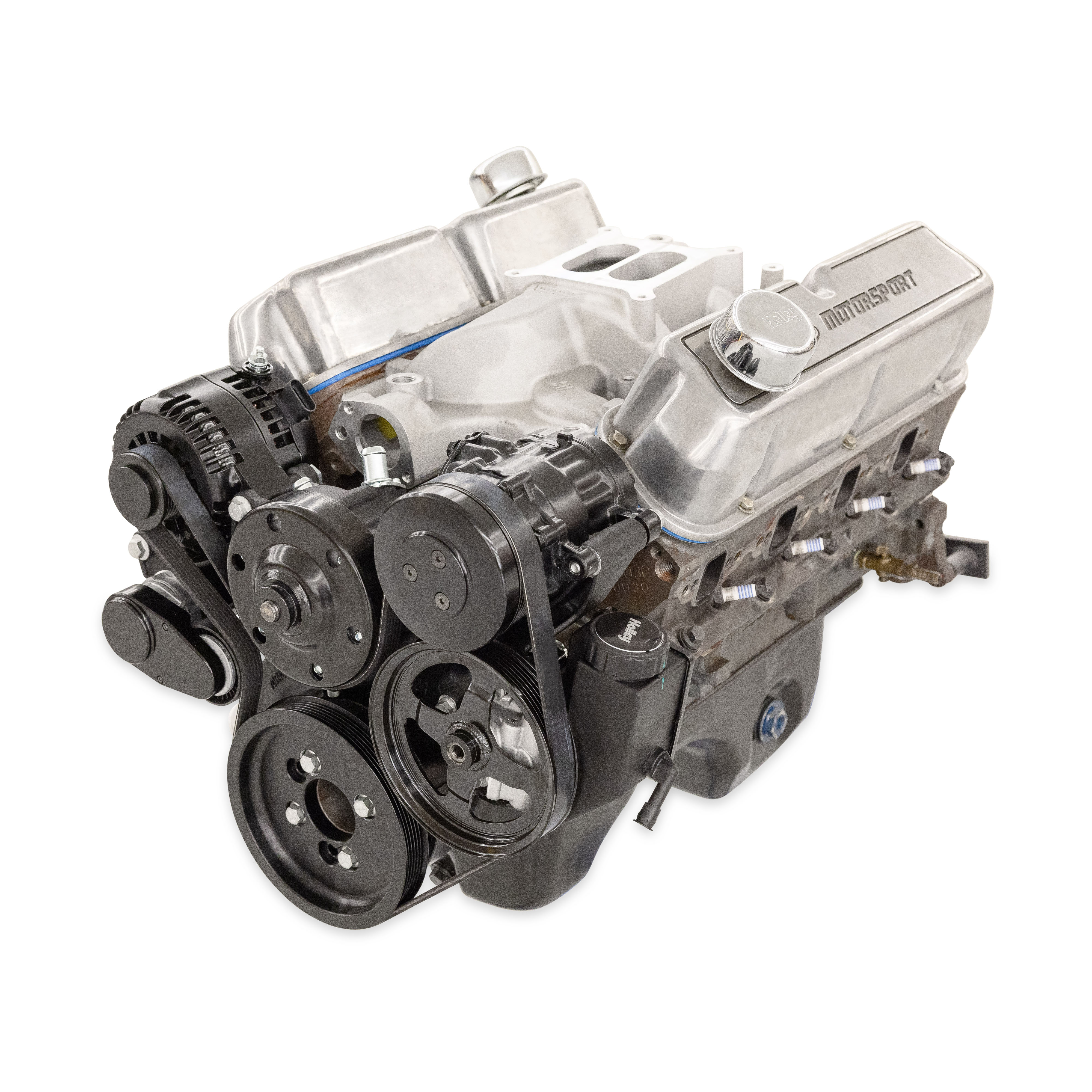

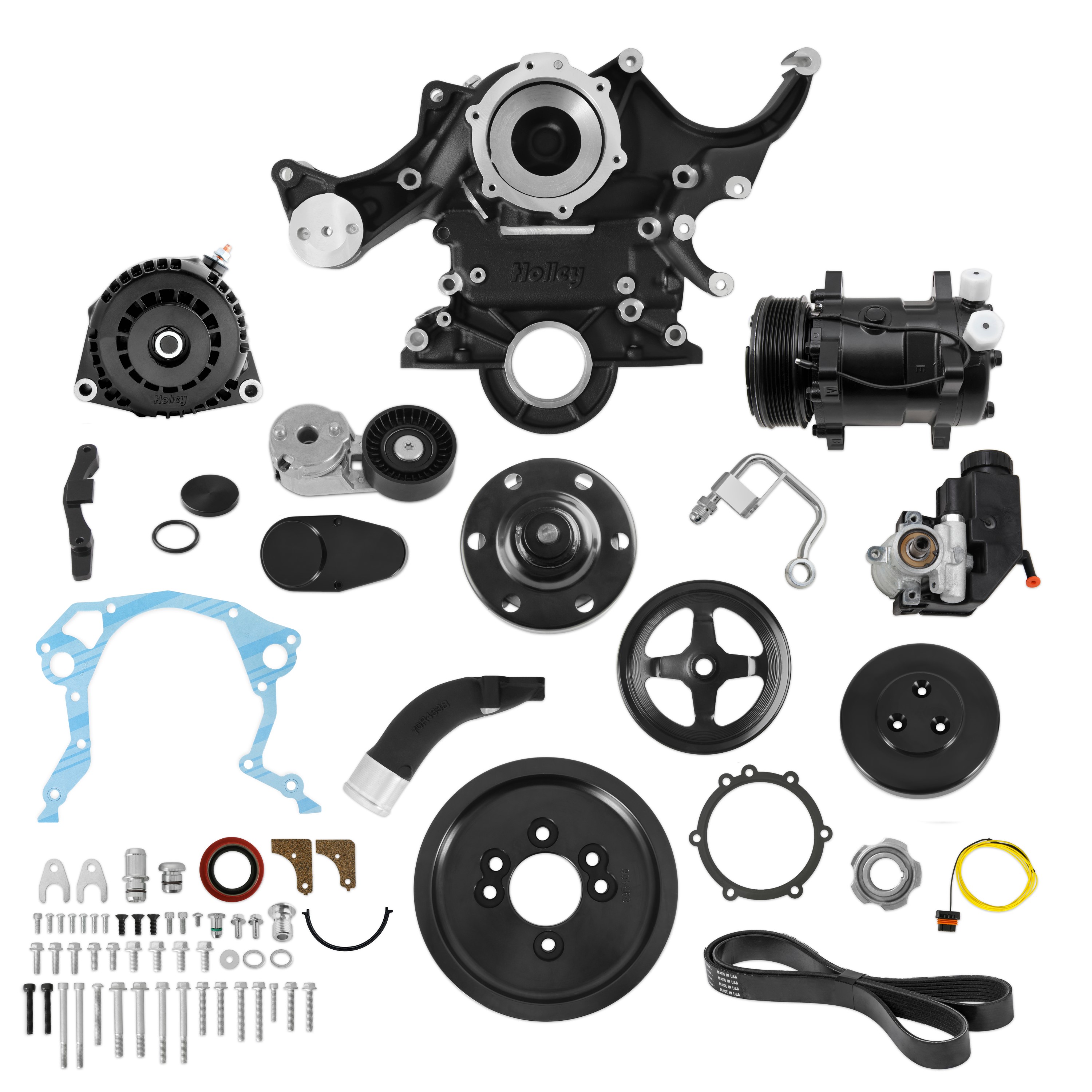

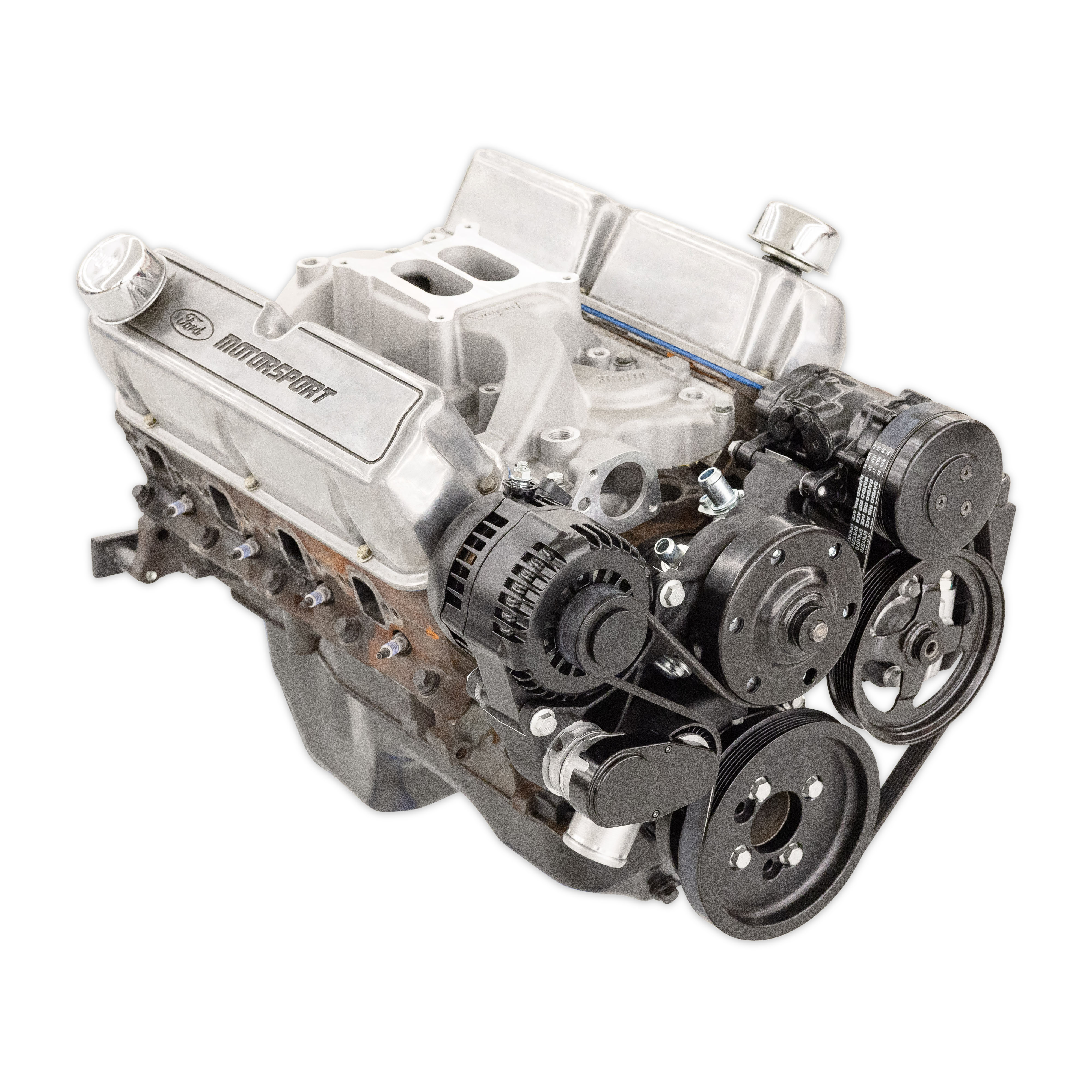

Small Block Ford Mid-Mount Complete Accessory Drive - Black Finish
Features
- The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives.

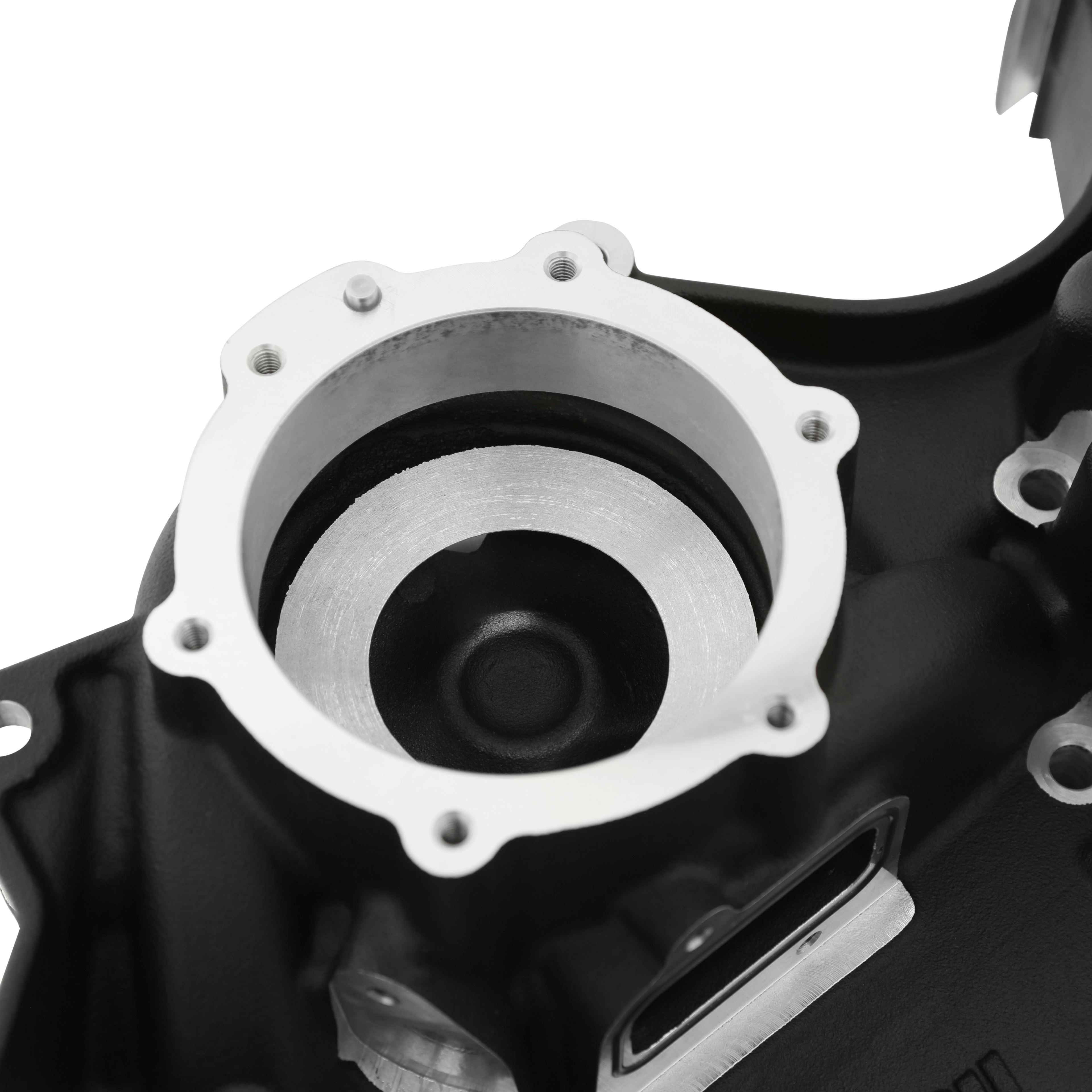

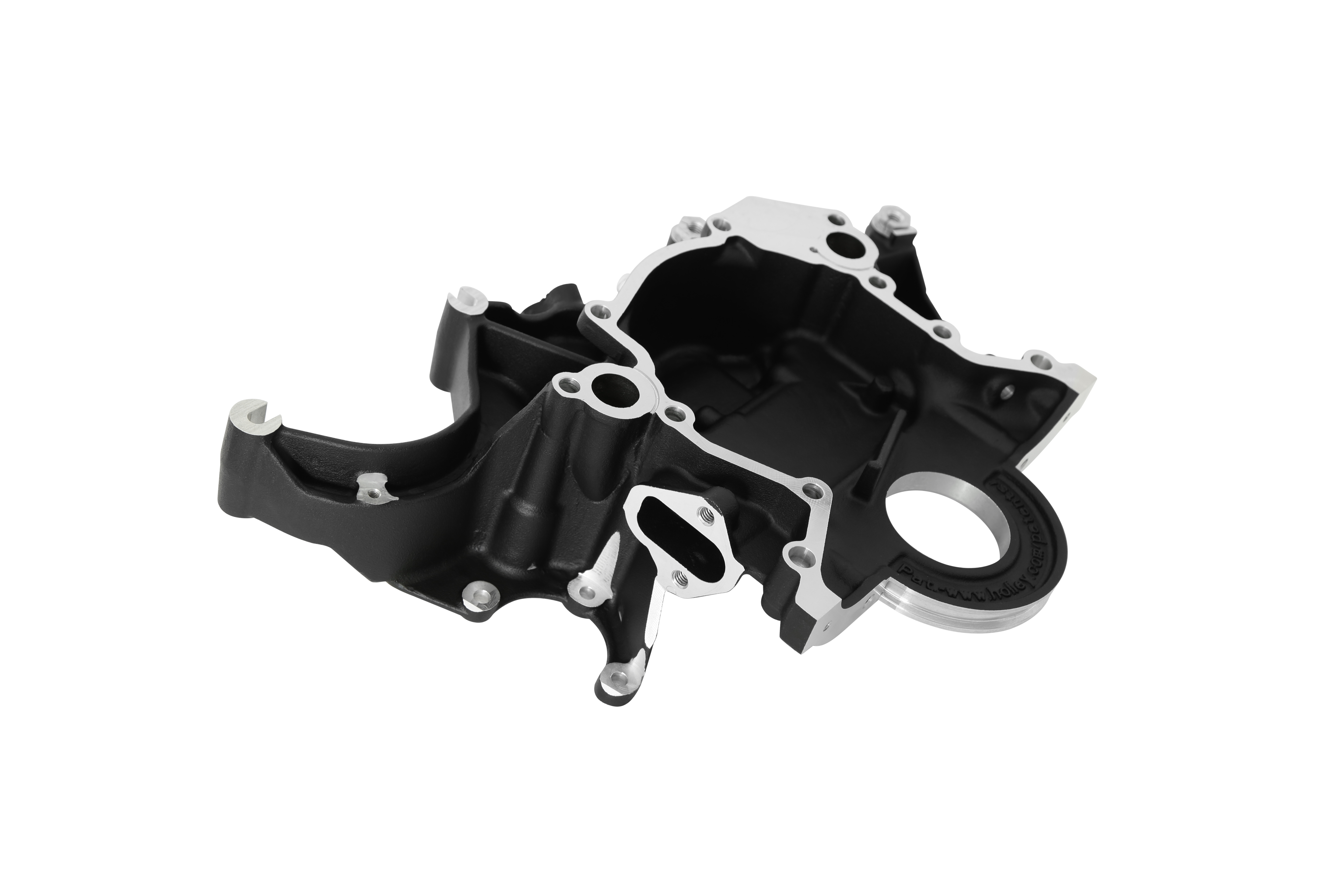

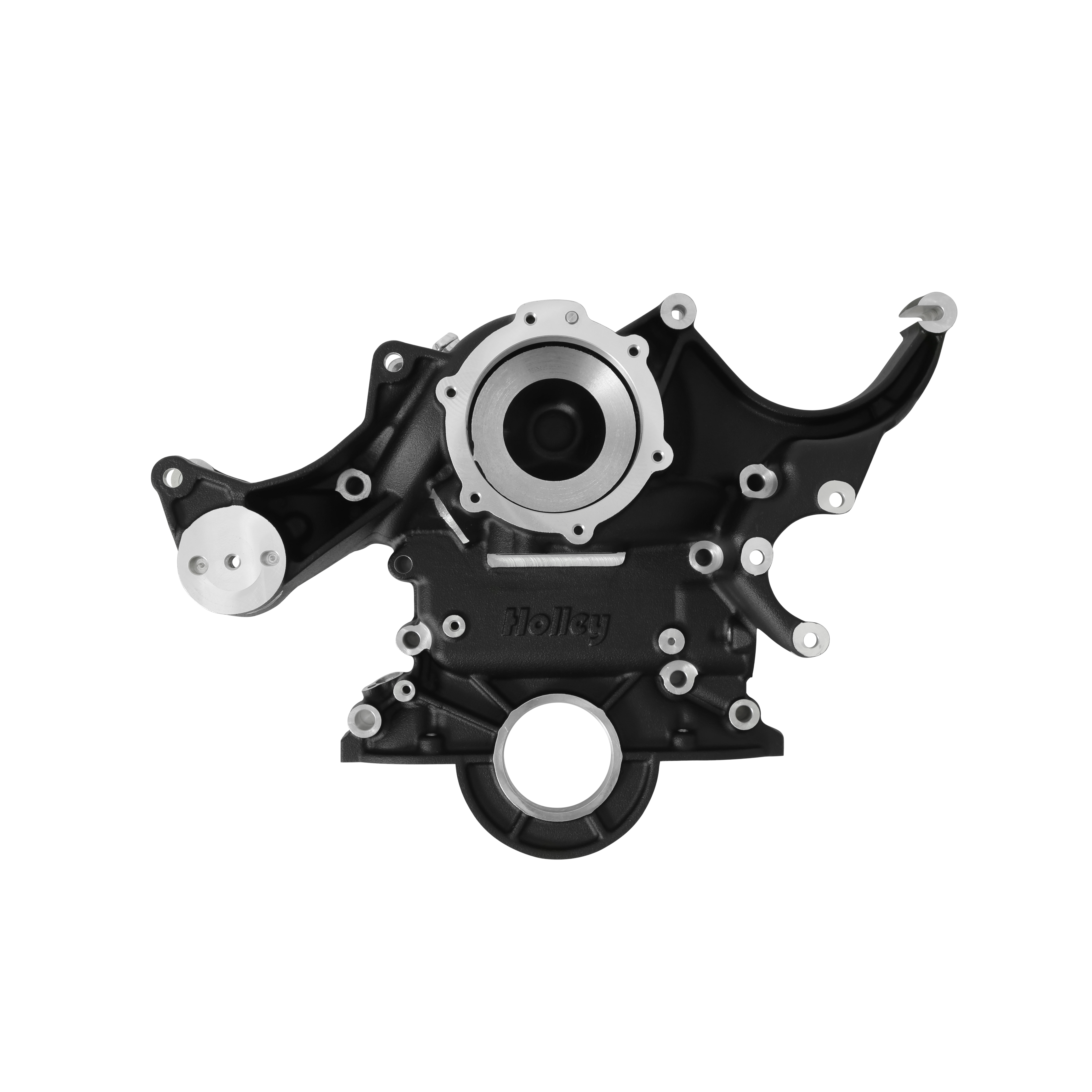

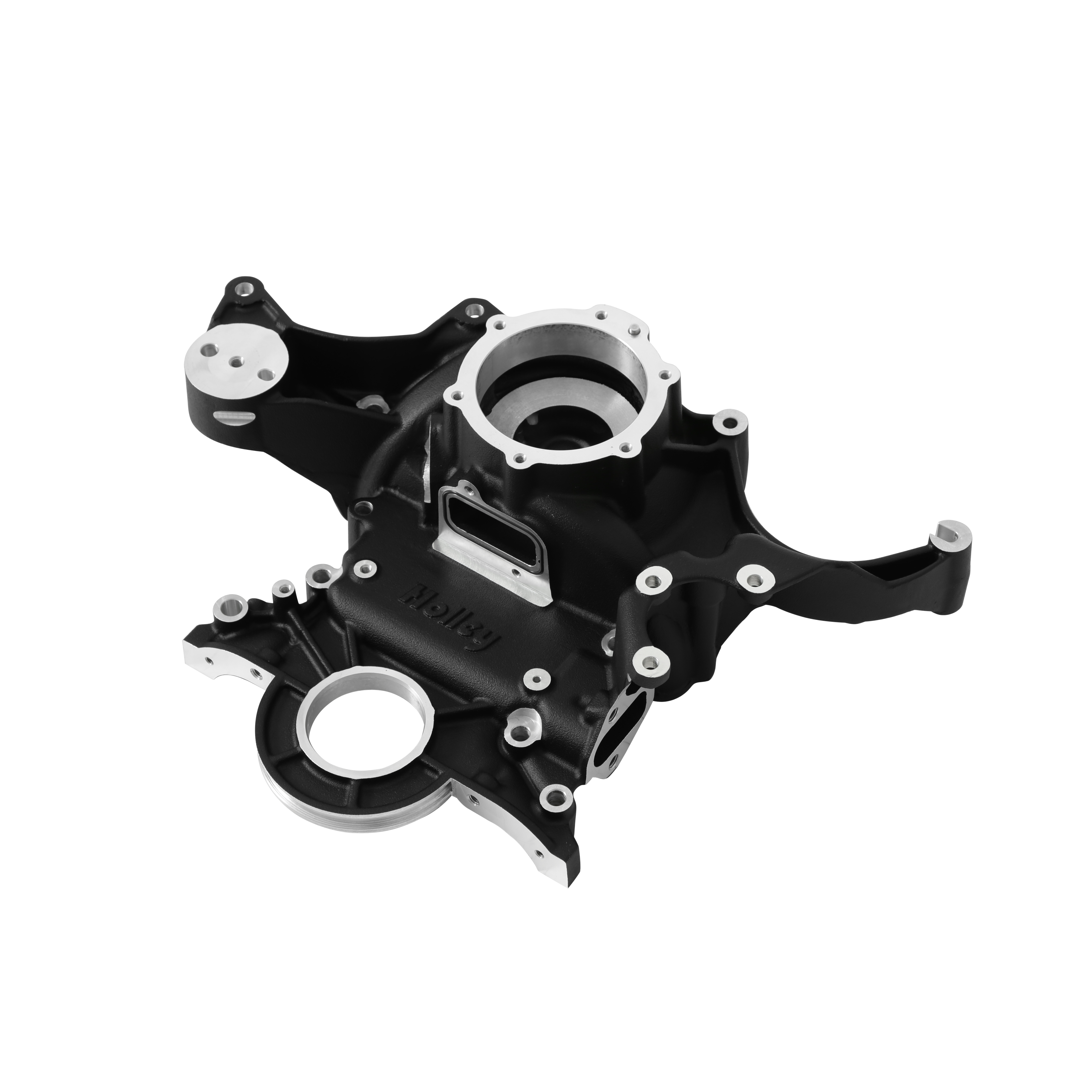

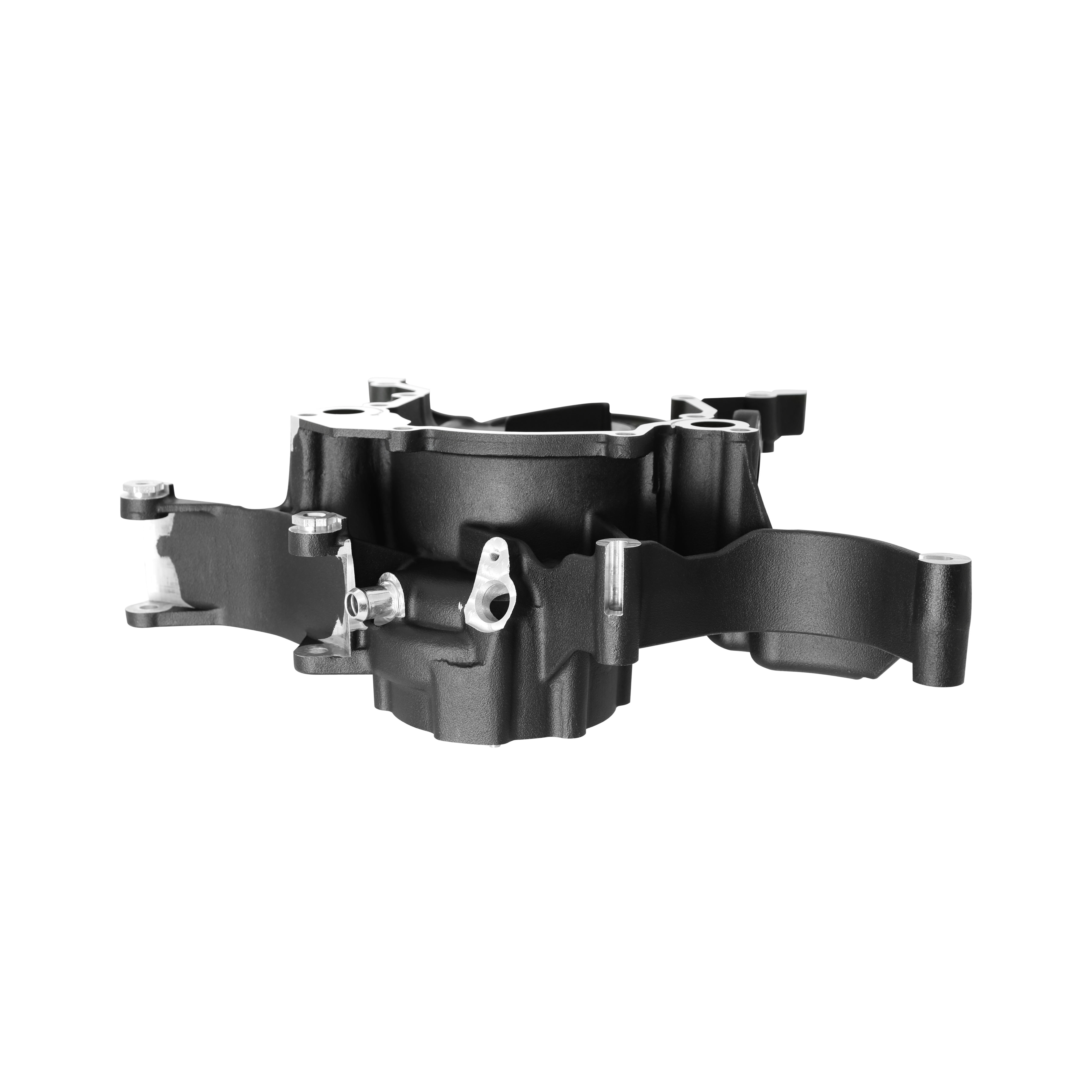

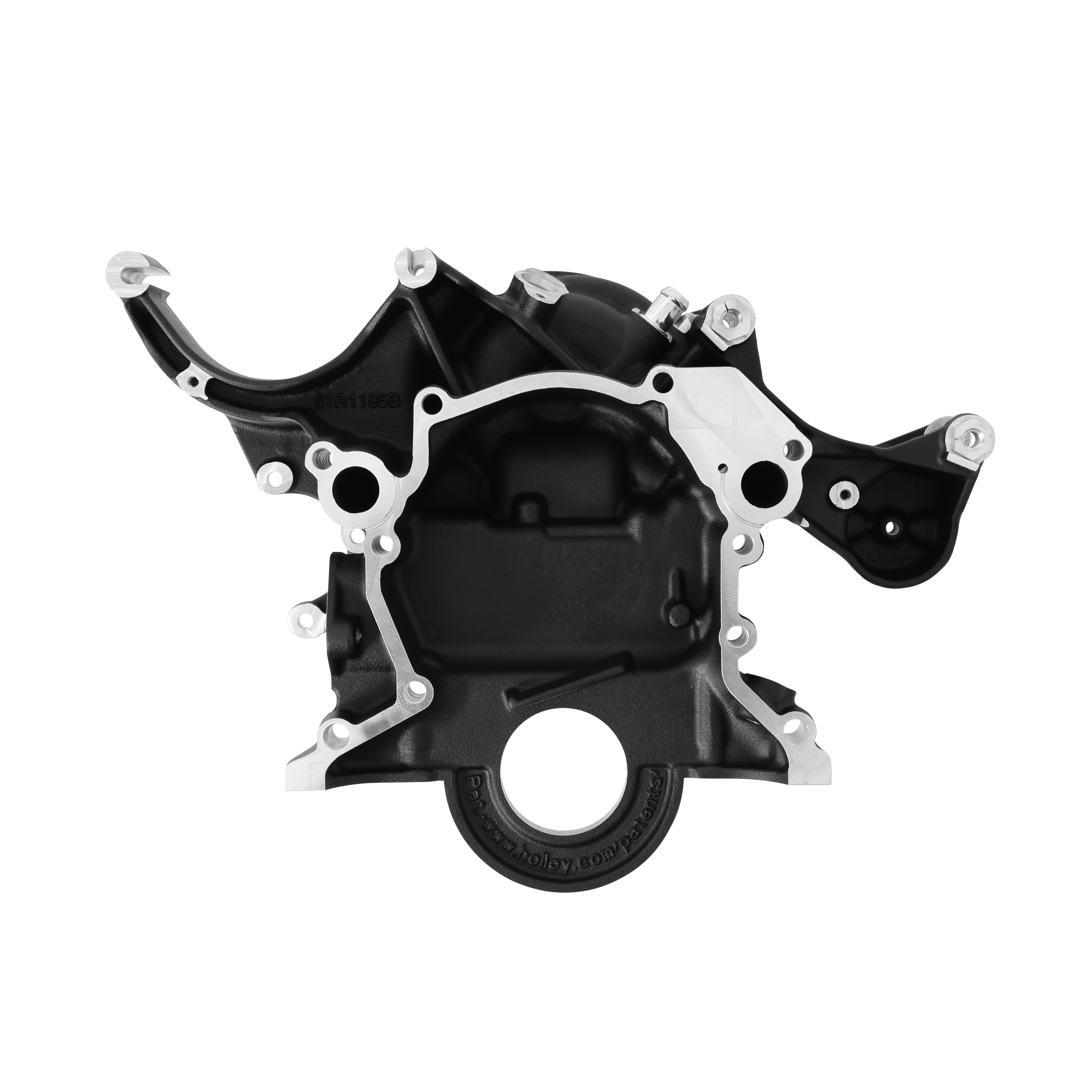

- Bracketless accessory mounting integrated with supplied front timing cover assembly
- Water pump inlet pipe mounts for either drivers-side or passenger-side lower radiator hose routing, timing cover also has mounting for driver or pass-side ignition timing pointers
- Two return heater hose ports (upper center & pass-side low) with hose adapter/port plug included
- Crankshaft belt pulley configured for 3 or 4-bolt crank dampers, spacer p/n’s 97-446, 97-447, or 97-448 are available for purchase to adjust for different OE crank damper pulley flange depths
- Driver & pass-side A/C hose connections are available for purchase to account for A/C routing on different vehicles, p/n’s 97-443 (driver-side) & 97-444 (pass-side)
- Power steering may be deleted with a drive belt change, see installation instructions for the commonly available drive belt required
- A mechanical fuel pump may be used with this kit. See installation instructions for required timing cover mod to be performed and the power steering pump will need relocation, use kit 97-436, a remote mounted P/S reservoir also required
- C7 LT1 style premium alternator, 150 amp
- C7 LT1 style water pump design
- Compact SD7 A/C compressor
- Type II power steering pump with baffled reservoir
- P/S adapter hardline to AN -6 adapter included
- OE pulley ratios for optimal accessory performance
- Available in natural and black finishes
- Billet alternator, tensioner, and compressor pulley covers
Specs
Brand
HOLLEY
Category
Accessory Drive Belt Kit
Specs
Brand: Holley
Engine: Ford Small Block
Finish: Black
Output: 150 Amps
Warning: California Proposition 65
Category: Belts and Cooling
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Belt Type: Serpentine
part type: Accessory Drive Belt Kit
Belt Color: Black
Grade Type: Performance
Application: Small Block Ford
Damper Style: Factory
Product Type: Accessory Drive Kits
Sub Category: Accessory Drive Belt System Components
Belt Included: Yes
Emission Code: 5
Idler Included: N/A
Tensioner Type: Spring Loaded
Damper Included: No
Pulley Material: Composite and Steel
Tensioner Color: Black
Alternator Color: Black
Alternator Style: LT1
Choose Your Part: Accessory Drive Kits
Housing Material: Aluminum
Water Pump Color: Black
Water Pump Style: GM Cartridge
Hardware Included: Yes
Idler Pulley Color: N/A
Tensioner Included: Yes
A/C Compressor Type: SD7
Alternator Amperage: 150
Alternator Included: Yes
Alternator Material: Cast Aluminum
Thermostat Included: No
Water Neck Included: No
Water Pump Included: Yes
Water Pump Material: Aluminum
Water Pump Rotation: Counterclockwise (Left)
Belt Groove Quantity: 6
Accessory Drive Style: Mid-Mount
Inlet Inside Diameter: 44.62mm/17.6"
Tensioner Cover Color: Black
Idler Bracket Included: N/A
Inlet Outside Diameter: 51.45mm/2.025"
A/C Compressor Included: Yes
Alternator Fan Included: Built-In
Alternator Pulley Color: Black
Crankshaft Pulley Color: Black
Water Pump Pulley Color: Black
Alternator Bracket Color: Black
Tensioner Cover Included: Yes
Tensioner Cover Material: Aluminum
Alternator Pulley Grooves: 6
Crankshaft Pulley Grooves: 6
Power Steering Pump Color: Black
Power Steering Pump Style: GM Type 2
Universal Or Specific Fit: Specific
Water Pump Pulley Grooves: 6
Alternator Pulley Included: Yes
Alternator Pulley Material: Steel
Crankshaft Pulley Included: Yes
Crankshaft Pulley Material: Steel
Water Pump Pulley Included: Yes
Water Pump Pulley Material: Steel
A/C Compressor Pulley Color: Black
Alternator Bracket Material: Aluminum
A/C Compressor Bracket Color: Black
Alternator Brackets Included: Yes
Power Steering Pump Included: Yes
A/C Compressor Pulley Grooves: 6
A/C Compressor Pulley Included: Yes
A/C Compressor Pulley Material: Steel
Power Steering Pulley Included: Yes
A/C Compressor Bracket Included: Yes
A/C Compressor Bracket Material: Aluminum
Power Steering Hardline Included: Yes
Power Steering Pump Pulley Color: Black
Power Steering Pump Bracket Color: Black
Power Steering Reservoir Included: Yes
Power Steering Pump Pulley Grooves: 6
Power Steering Pump Pulley Material: Steel
Power Steering Pump Reservoir Color: Black
Power Steering Pump Reservoir Style: Attached
Crankshaft Pulley Bolt Hole Quantity: 4
Power Steering Pump Bracket Material: Aluminum
Power Steering Pump Brackets Included: Yes
Power Steering Pump Pulley Attachment: Press-On
Power Steering Pump Reservoir Material: Plastic
