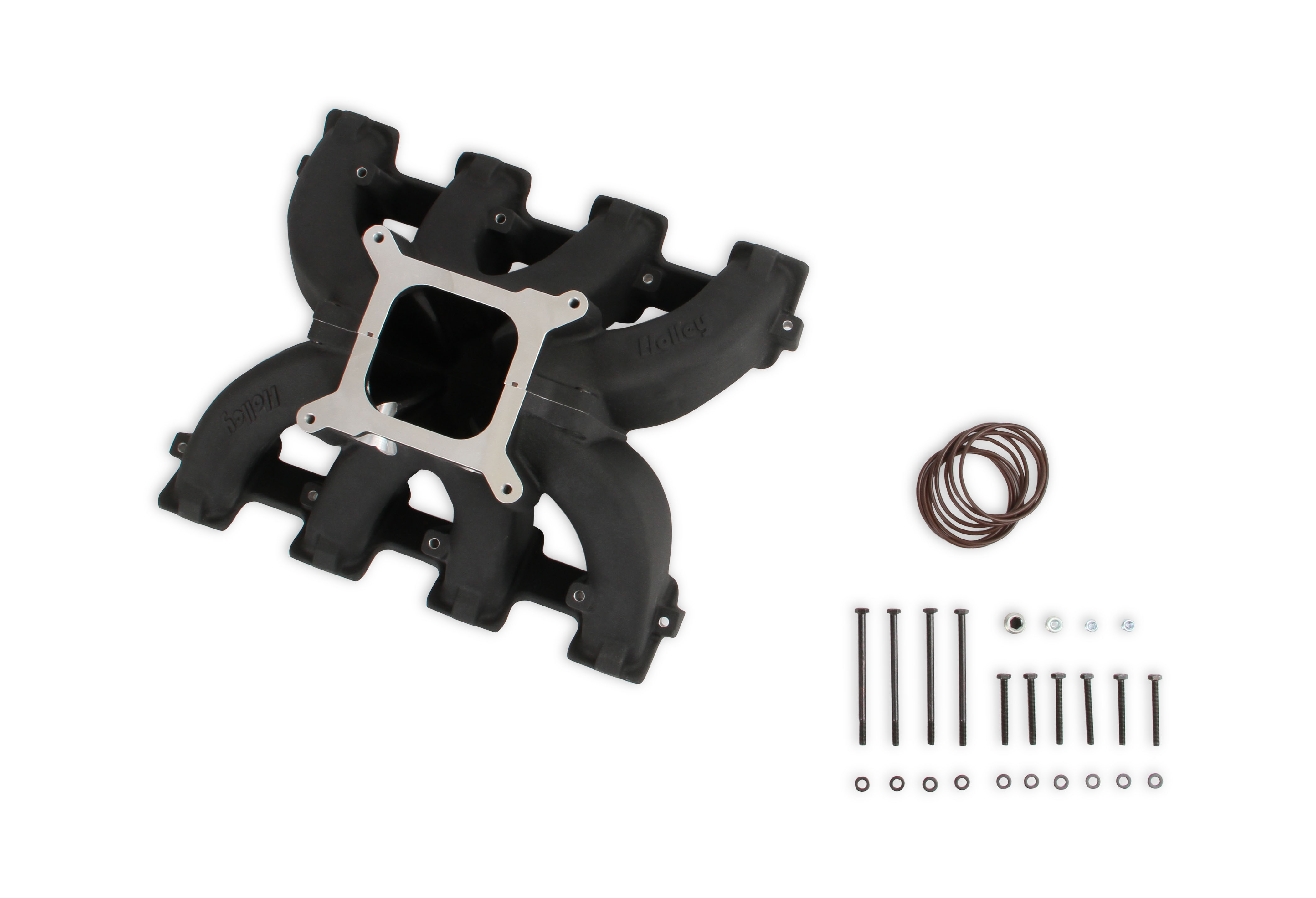

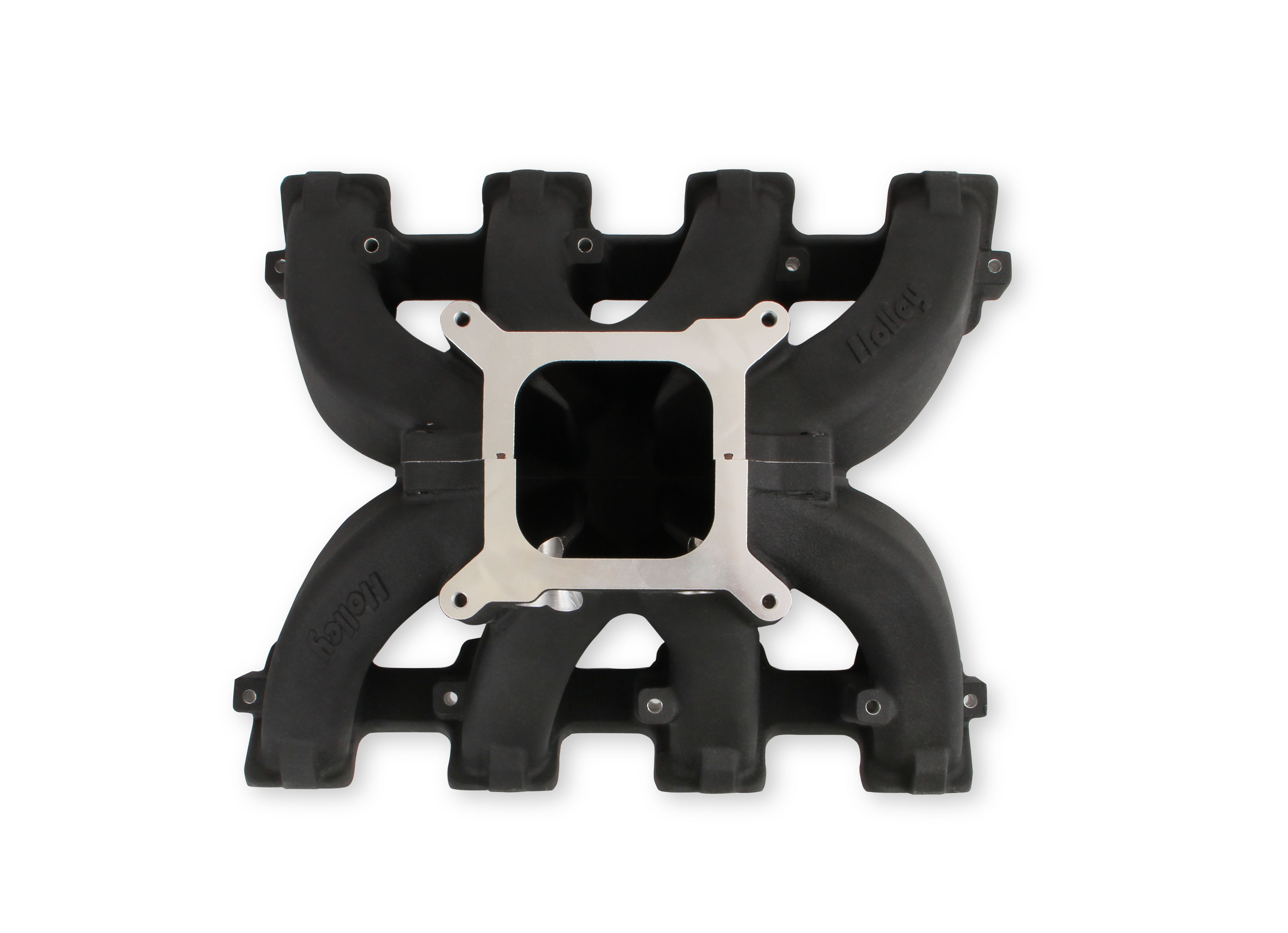

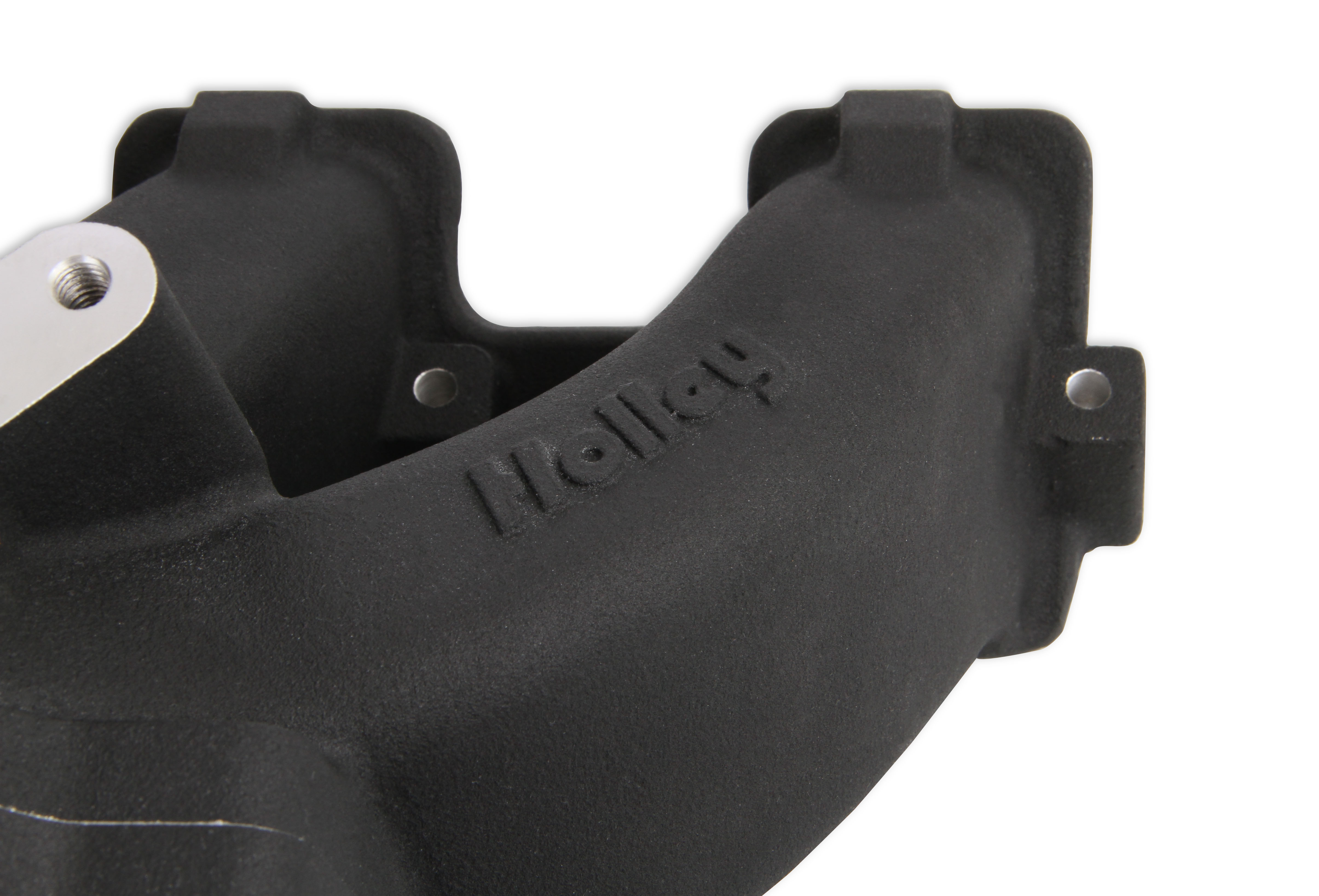

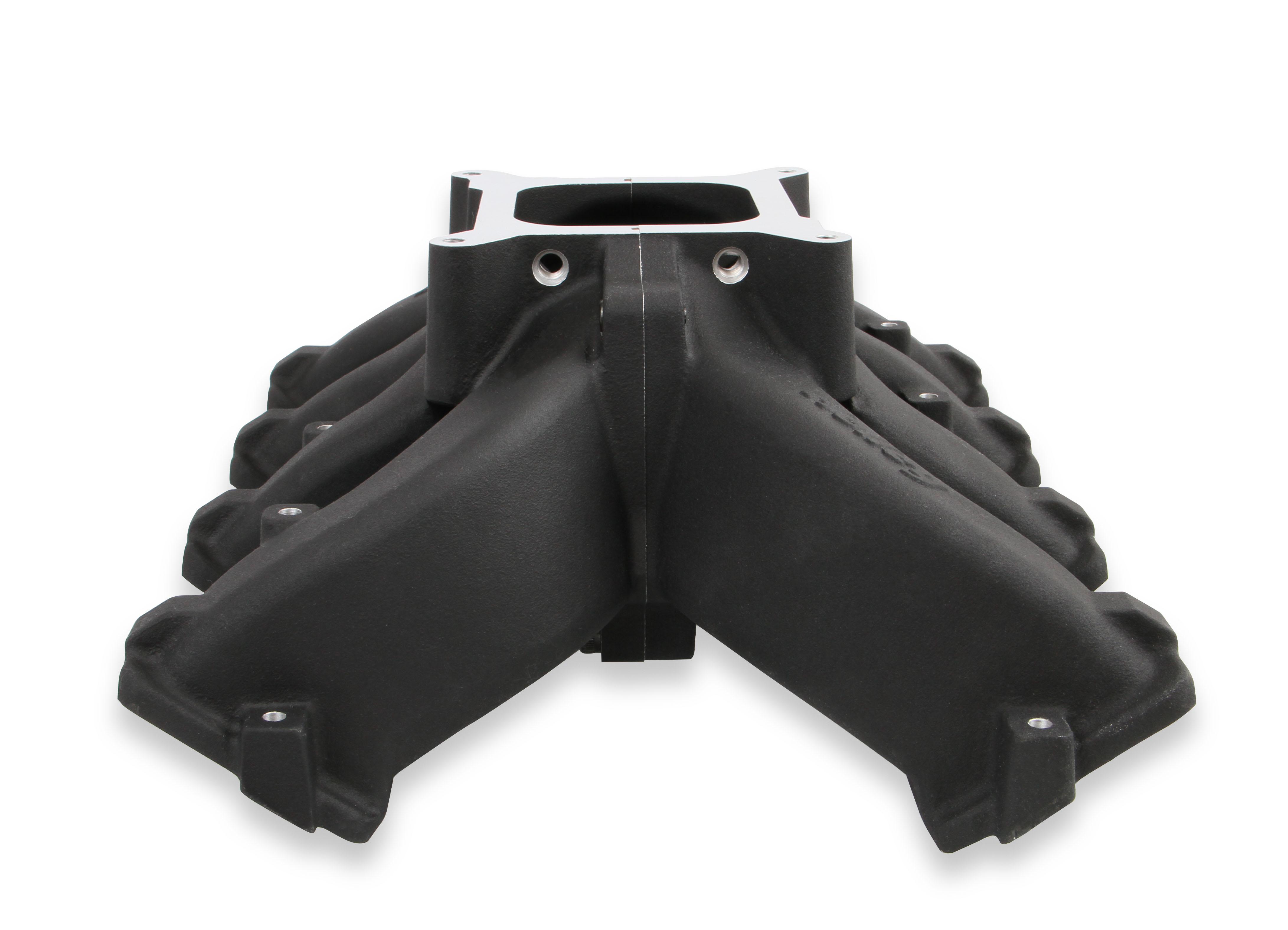

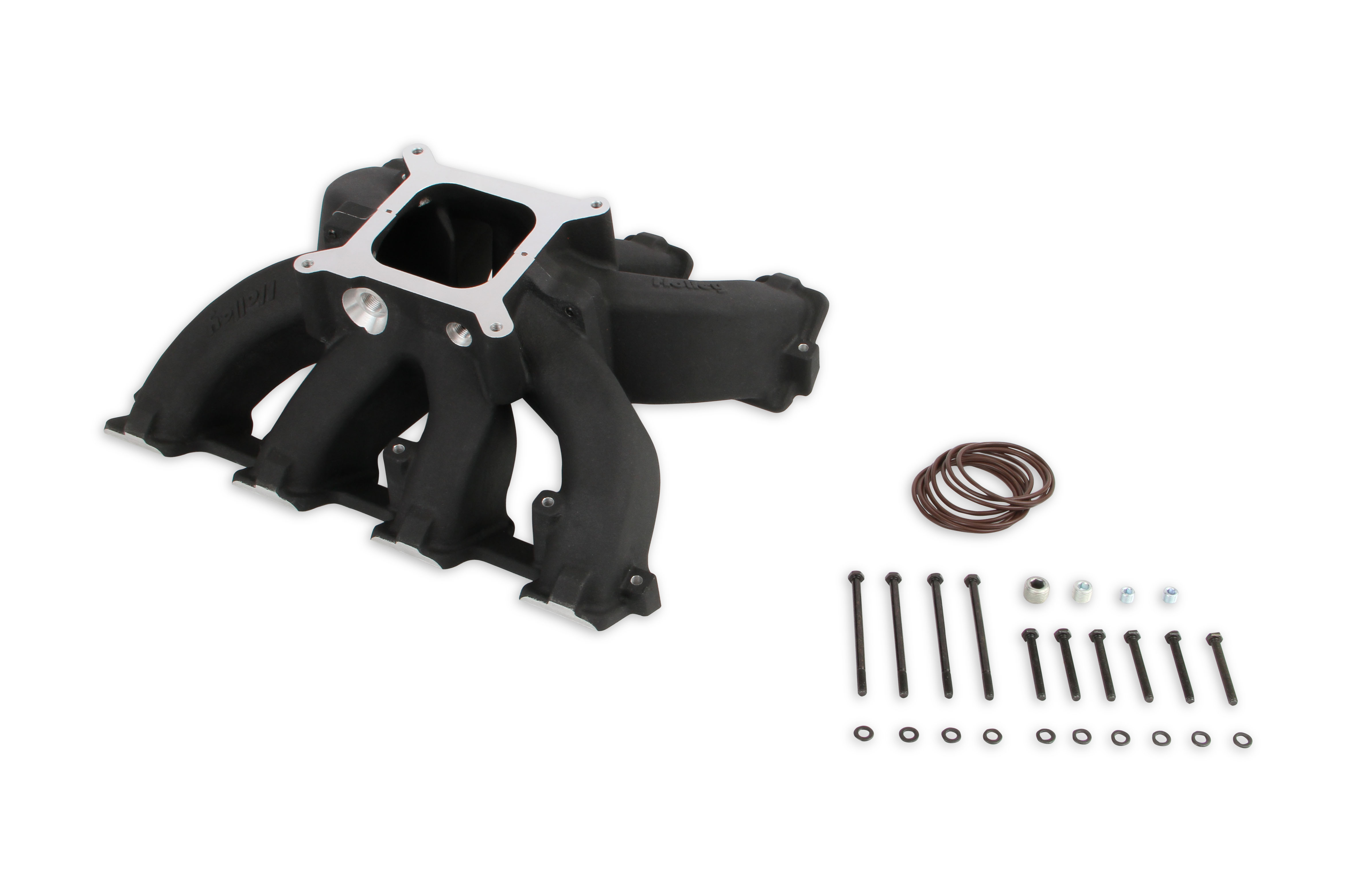

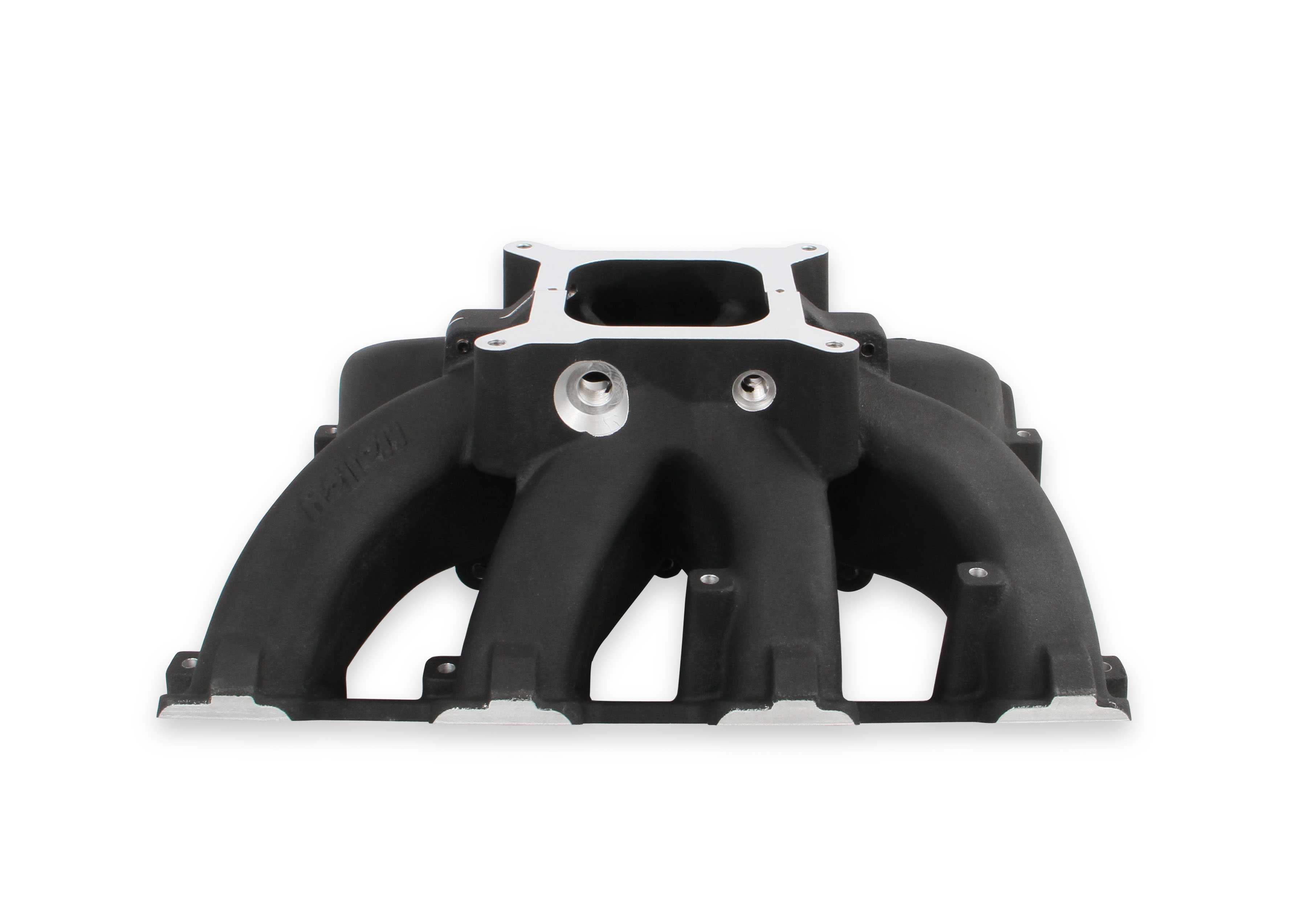

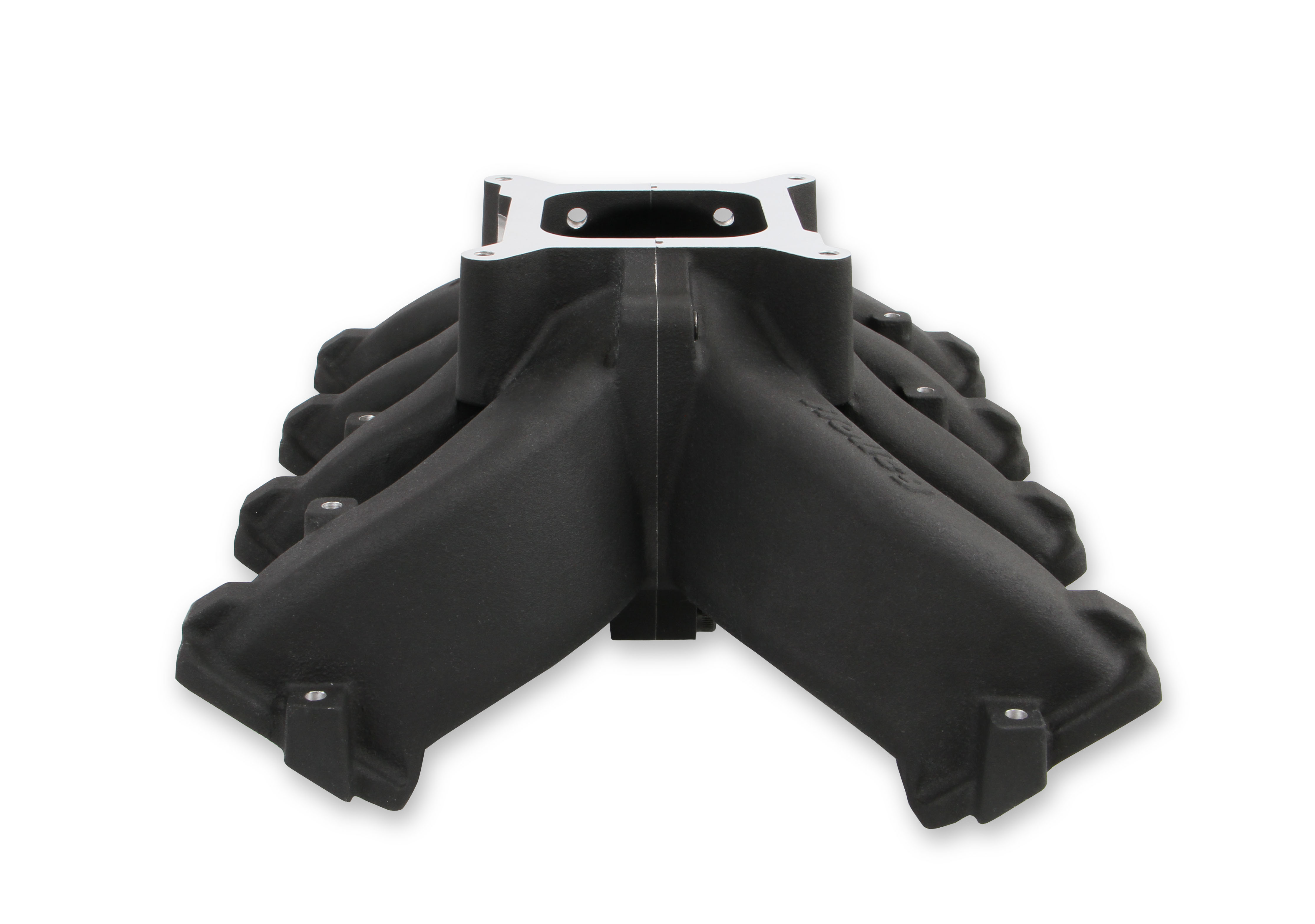

Holley Single Plane Split-Design Race Intake Manifold- GM LS3/L92- Black-4150
SKU
HTPD-300-291BK
List price
$816.95
Price
$725.95
Description
Carbureted single plane split-design race intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style cylinder heads
Features
- Maximum performance race design with hood clearance consideration
- Lighter than other split race intakes

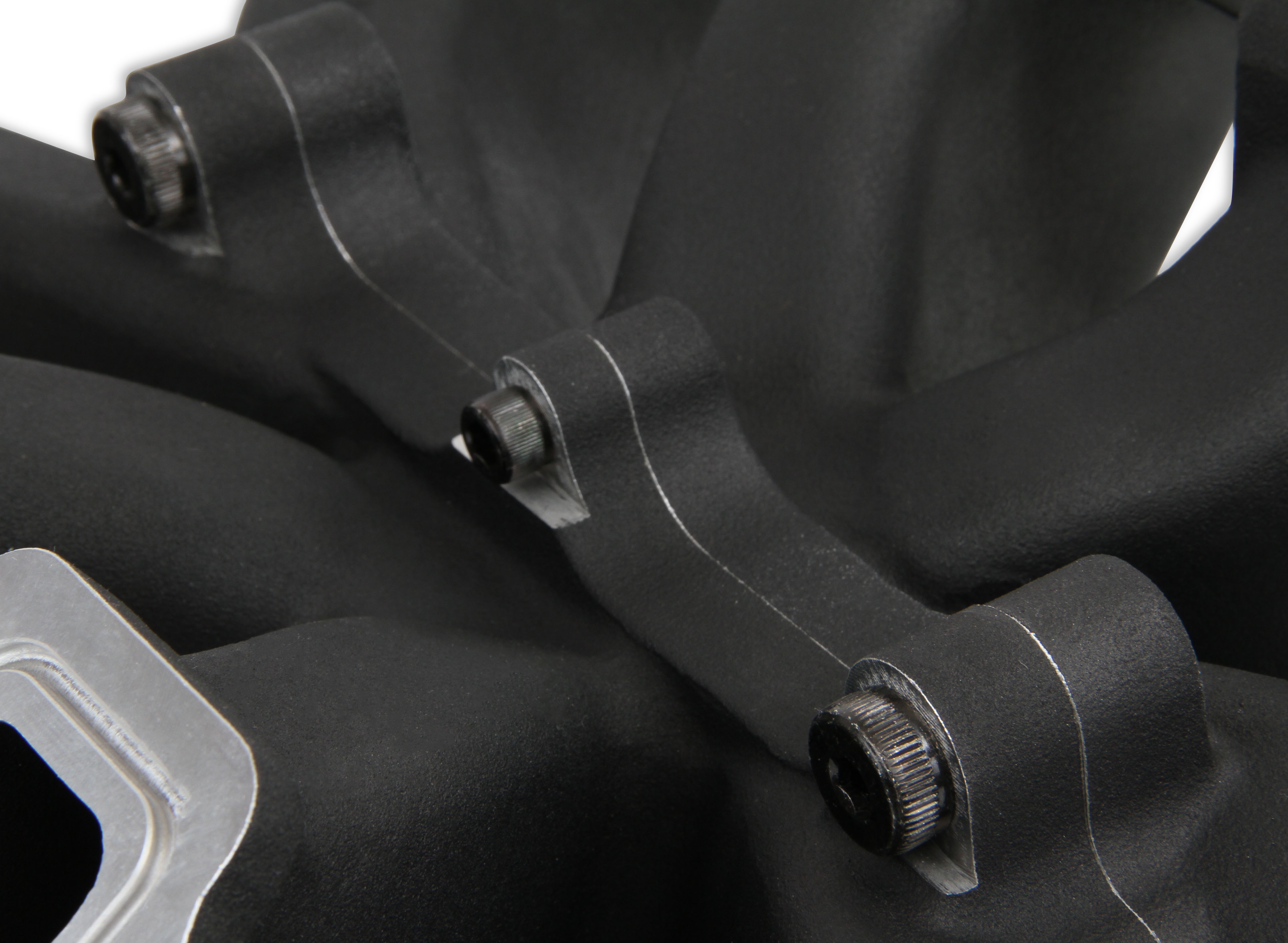

- Split feature making porting efforts easy!
- 33 to 50% the price of other split race intakes

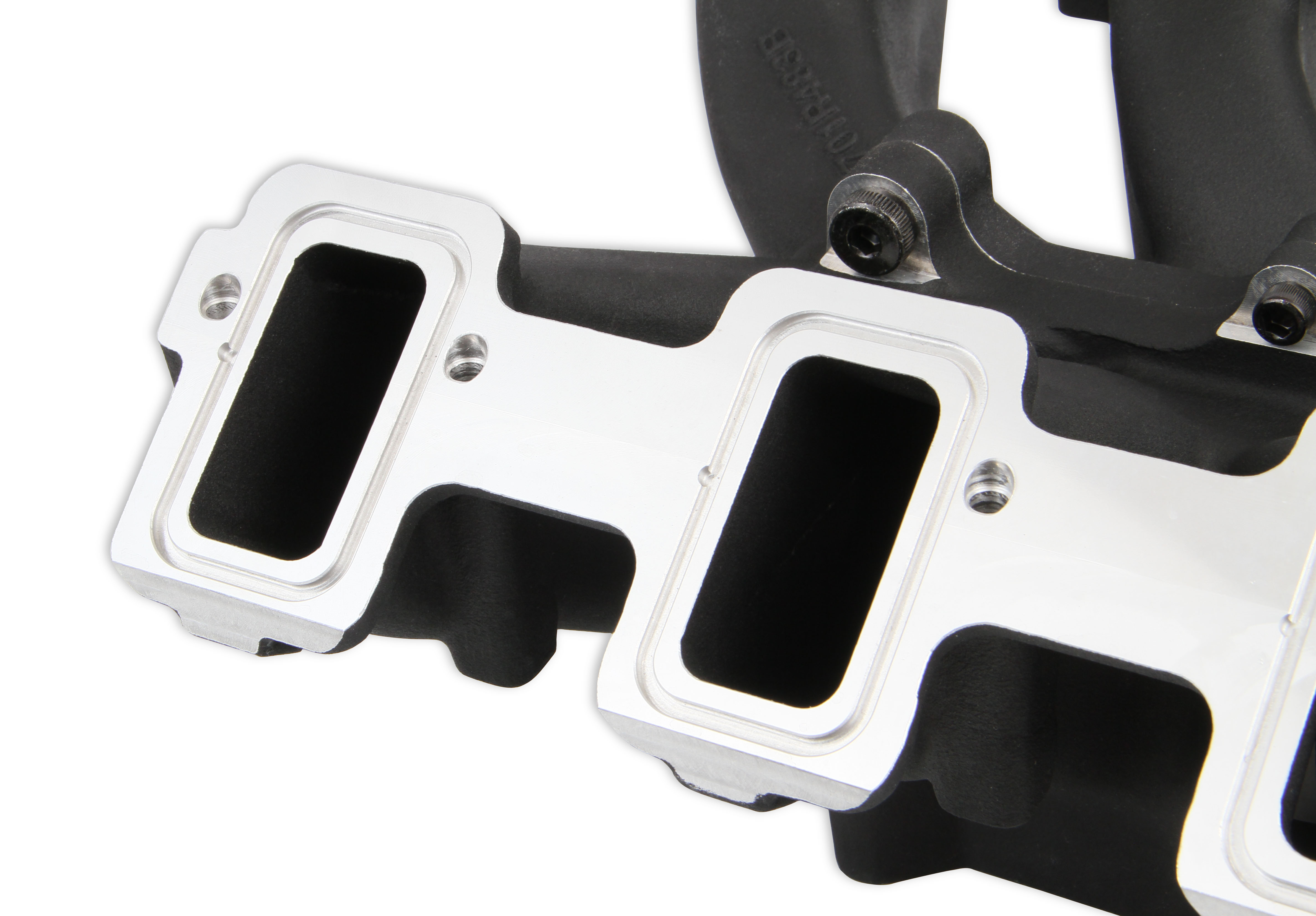

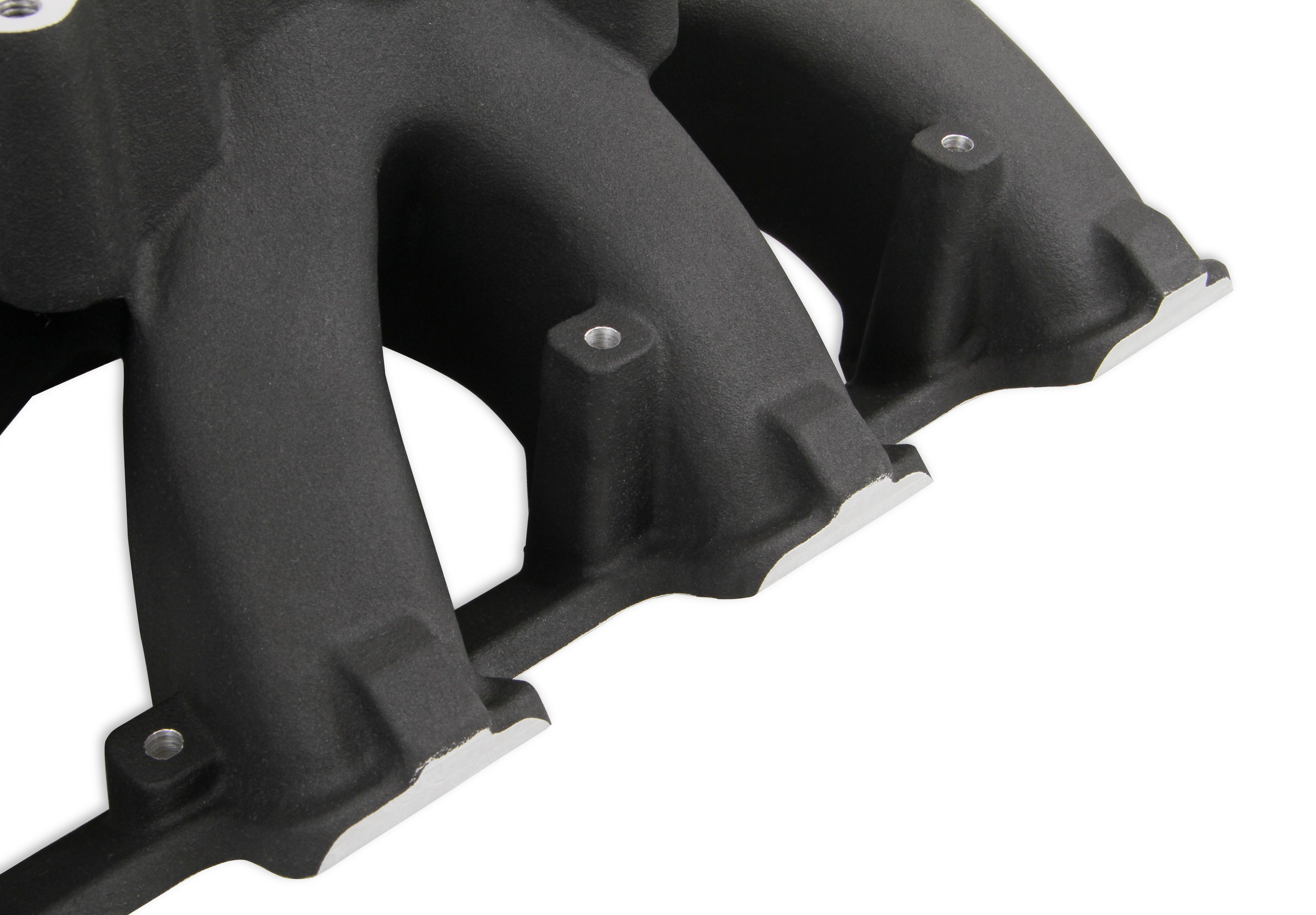

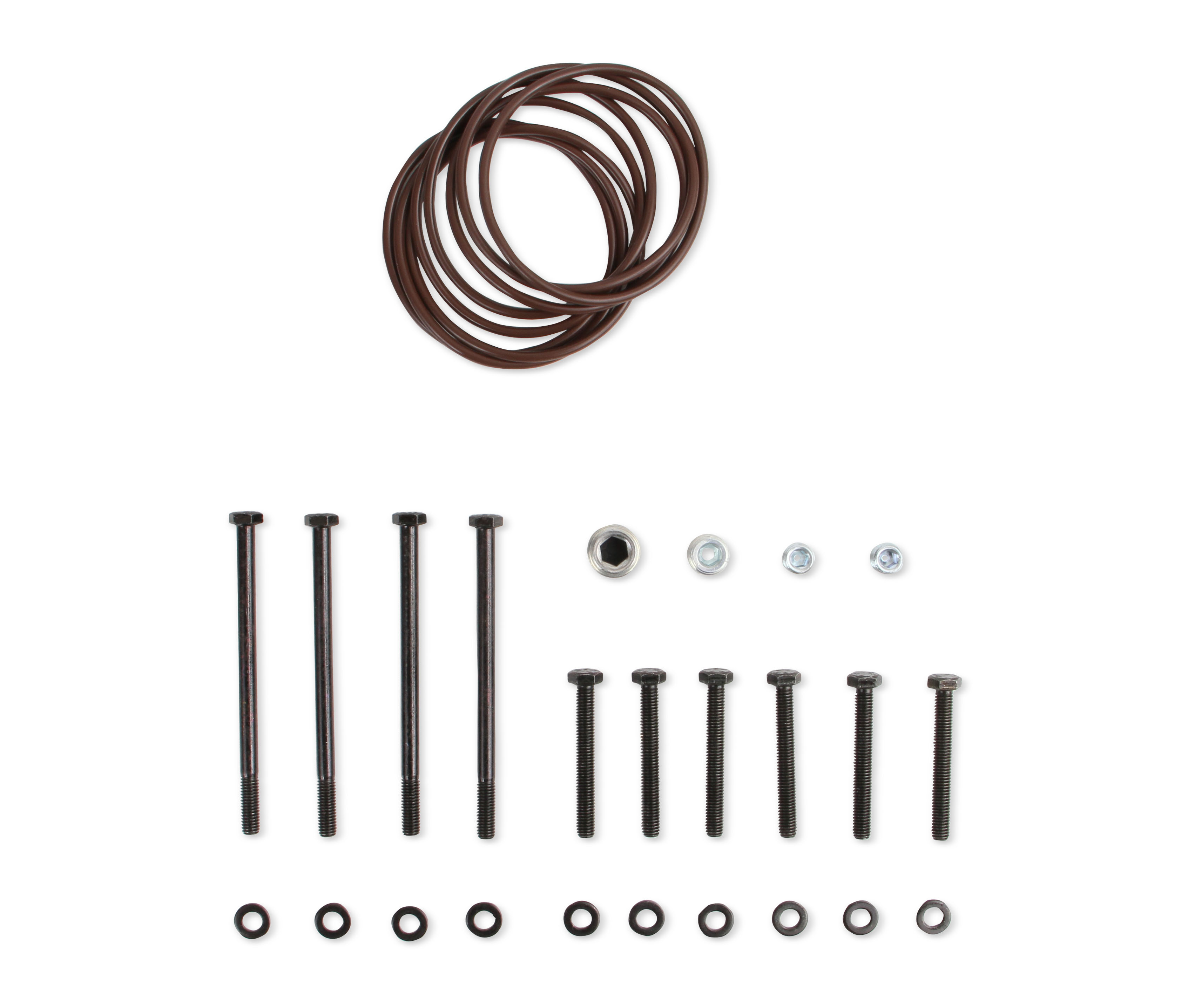

- Captured O-ring seals at head ports and split

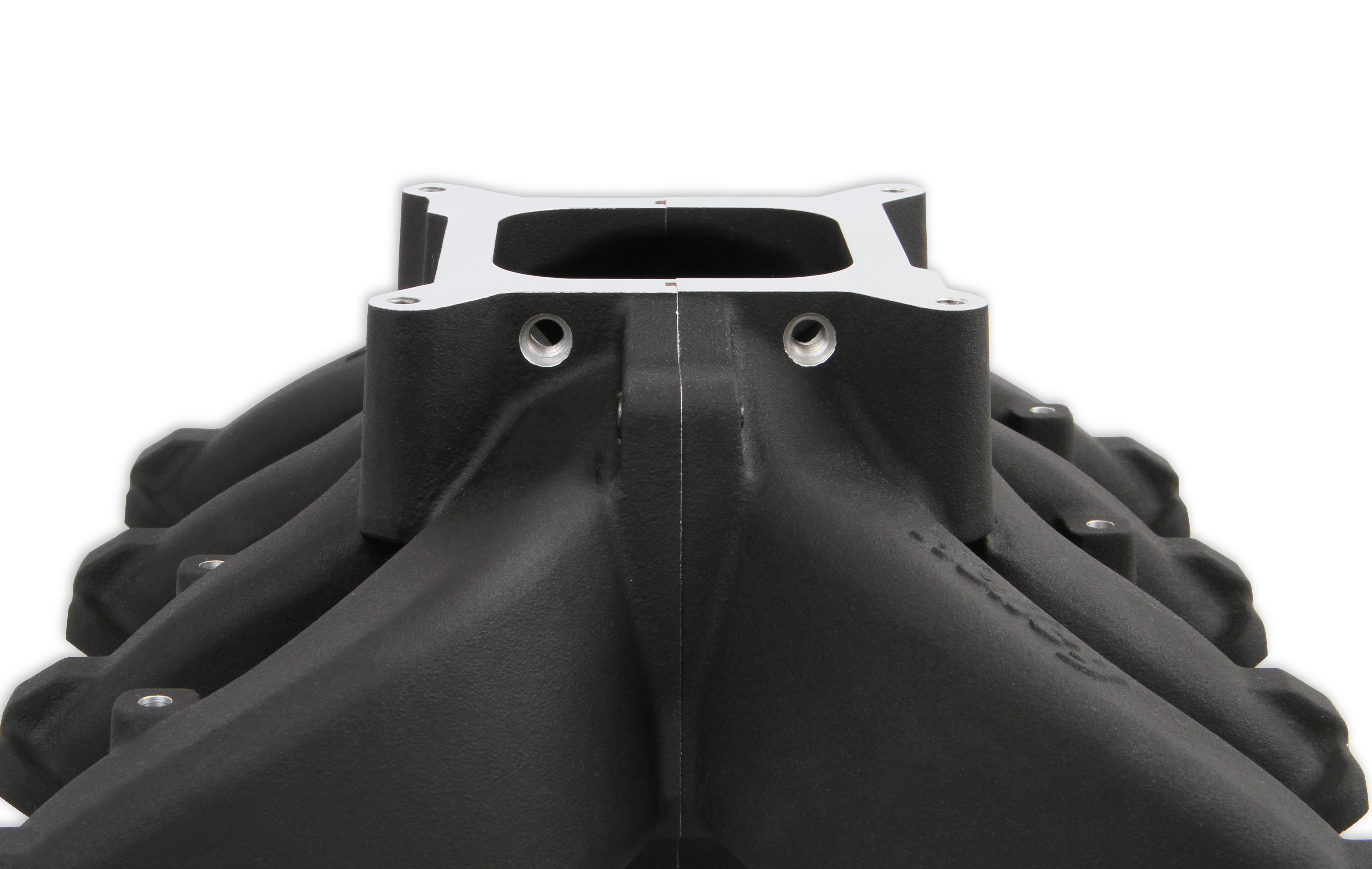

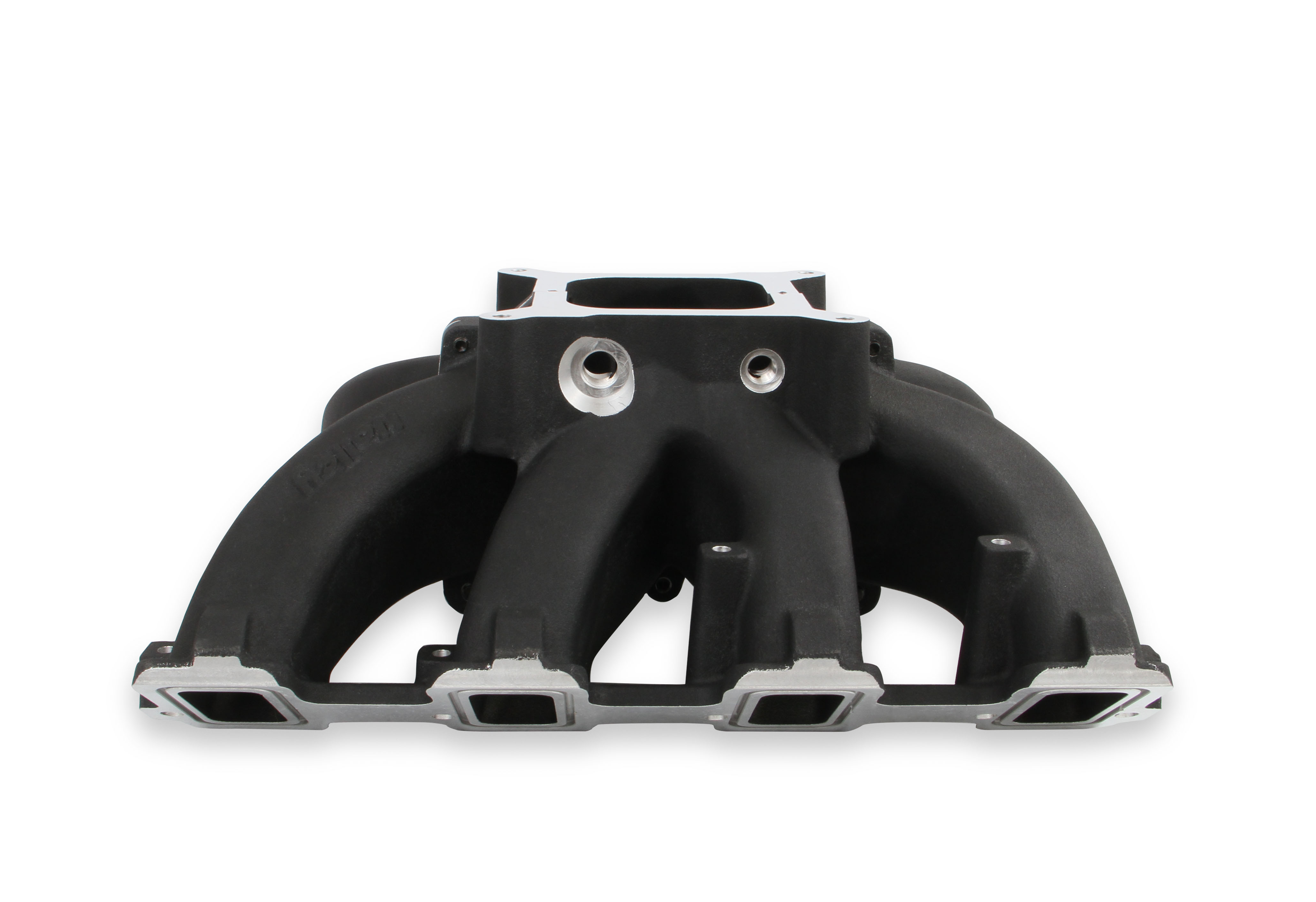

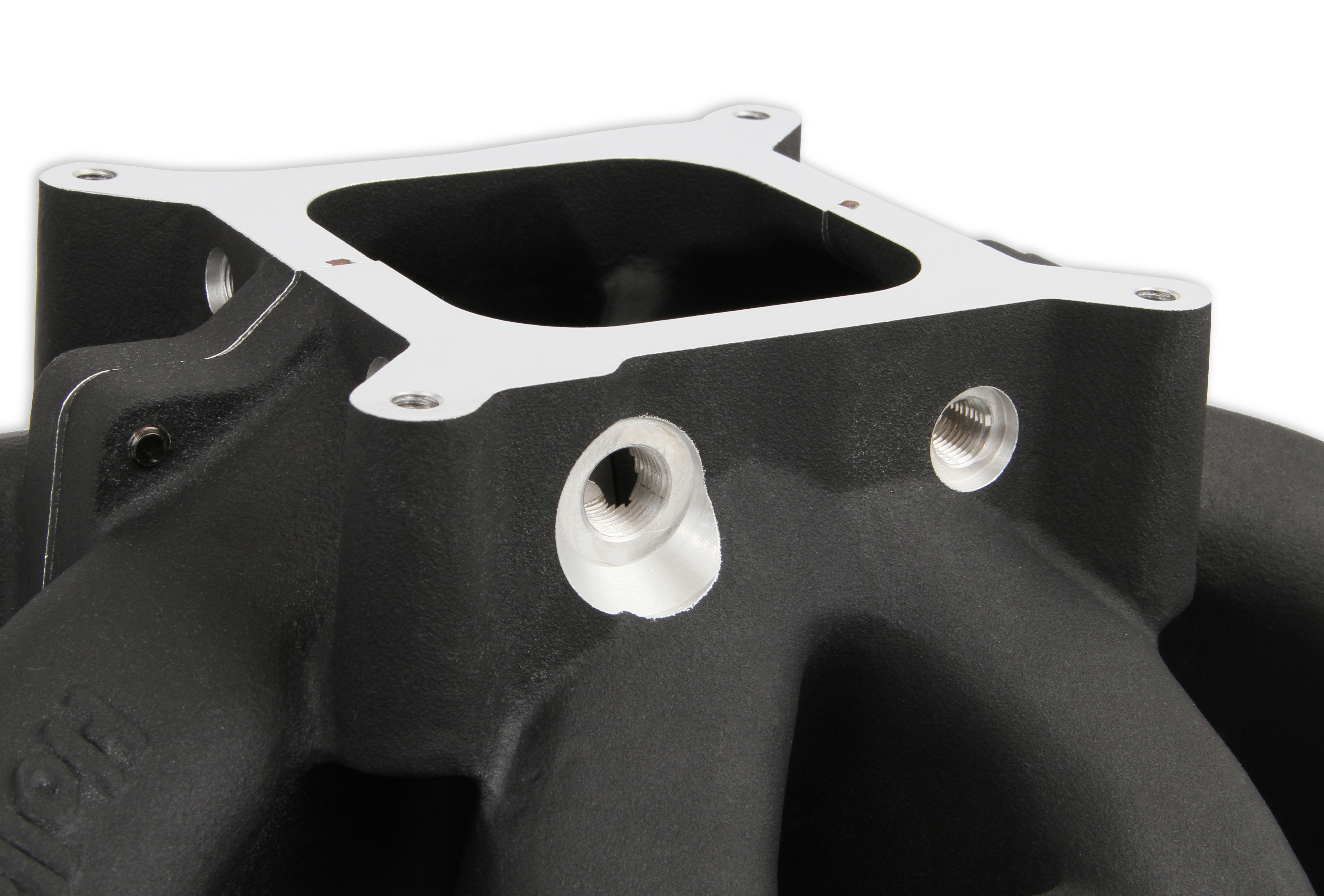

- Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange
- Black Finish
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Color: Black
Engine: GM LS3/L92
Finish: Black
Barrels: 4
Warning: California Proposition 65
Category: Engine
EGR Port: No
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
part type: Engine Intake Manifold
Grade Type: Performance
Rear Height: 7.25 inch
Construction: Cast
Flange Style: 4150 Square Bore
Front Height: 7.25 inch
Product Type: Intake Manifold
Sub Category: Cylinder Block Components
Emission Code: 3

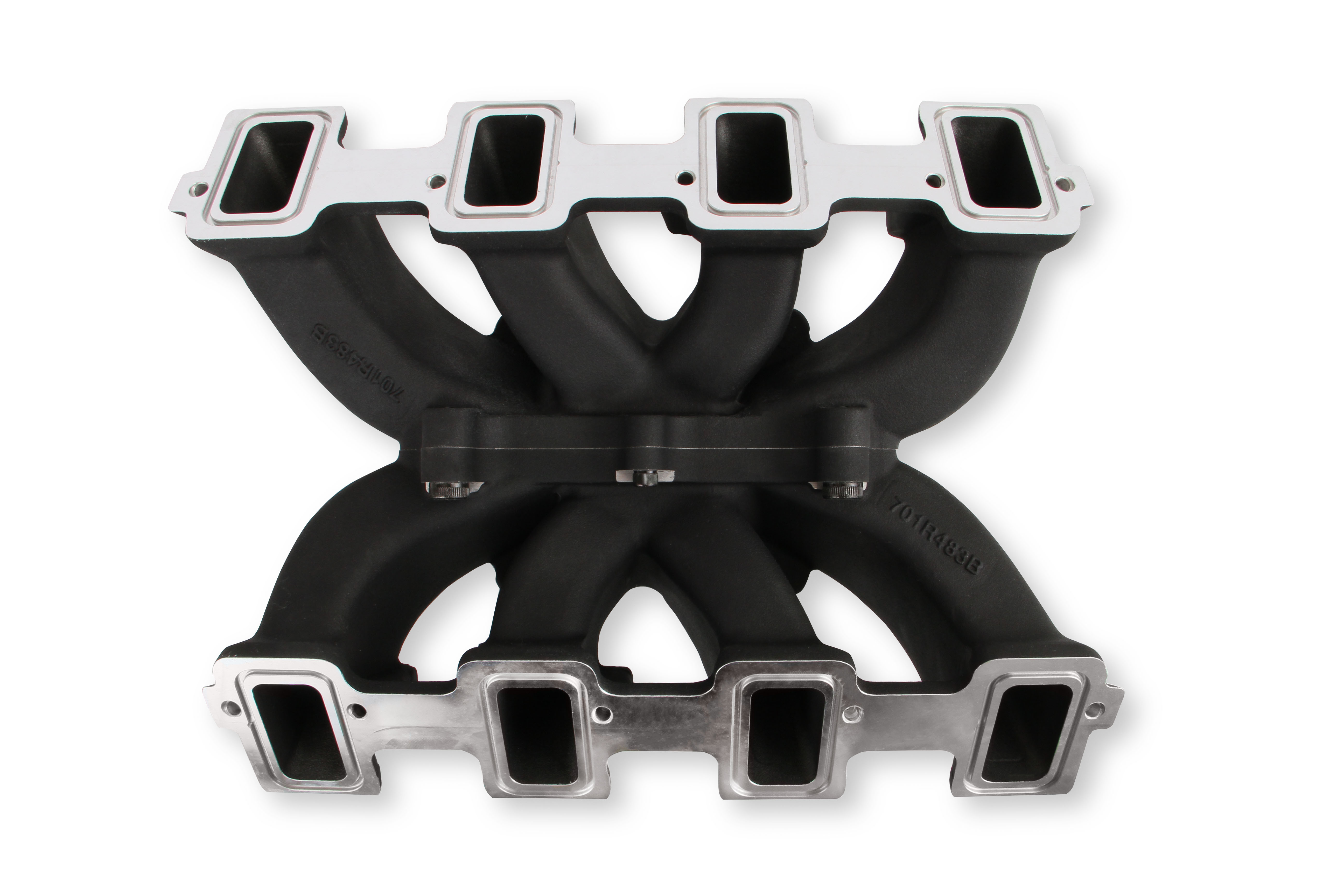

Manifold Type: Split Single Plane
Plenum Finish: Black
RPM Power Band: 2500-7000 RPM
Recommended Use: Forced Induction
Fuel System Type: Carb
Carburetor Flange: Square/4150
Removable Runners: No
Rear Maximum Height: 7.25
Front Maximum Height: 7.25
Fuel Rail(s) Included: No
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: No
Nitrous Bung(s) Included: No
Basic Operating RPM Range: 2500-7500
Carburetor Studs Included: No
Single Or Dual Plane Type: Single Plane
Intake Port Gasket(s) Included: No
PDFs
PDFs
68b211fb9380e.pdf
(669.37 KB)
