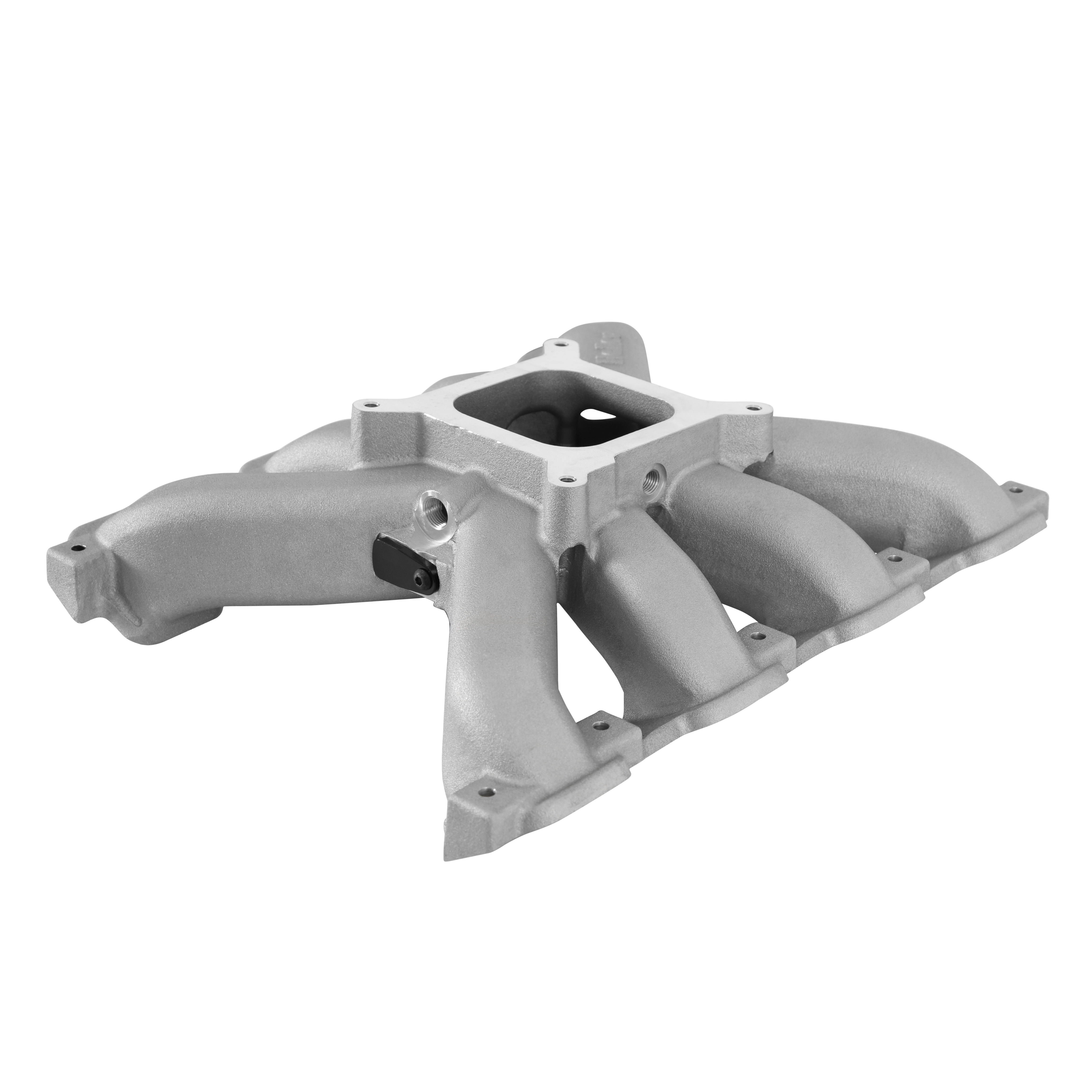

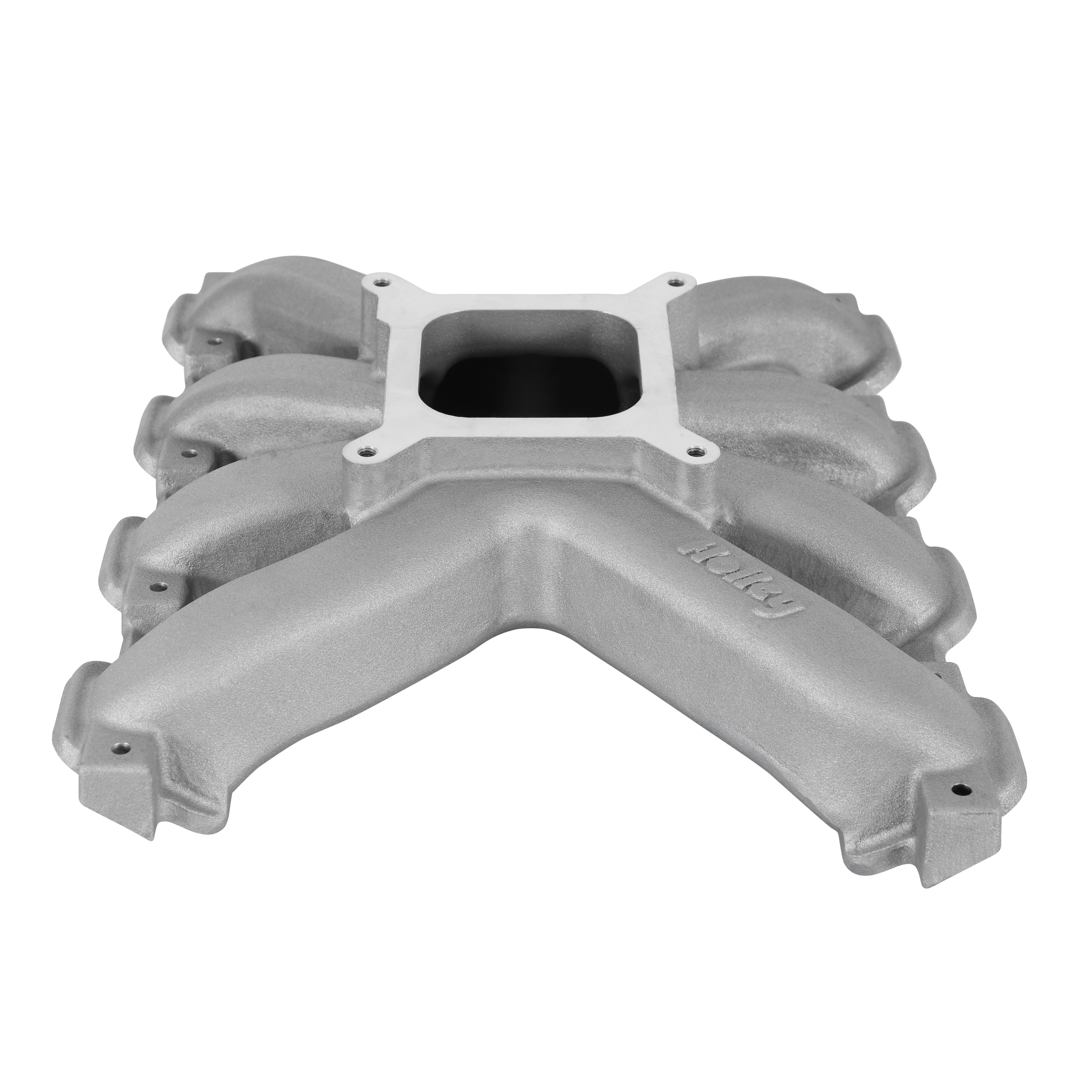

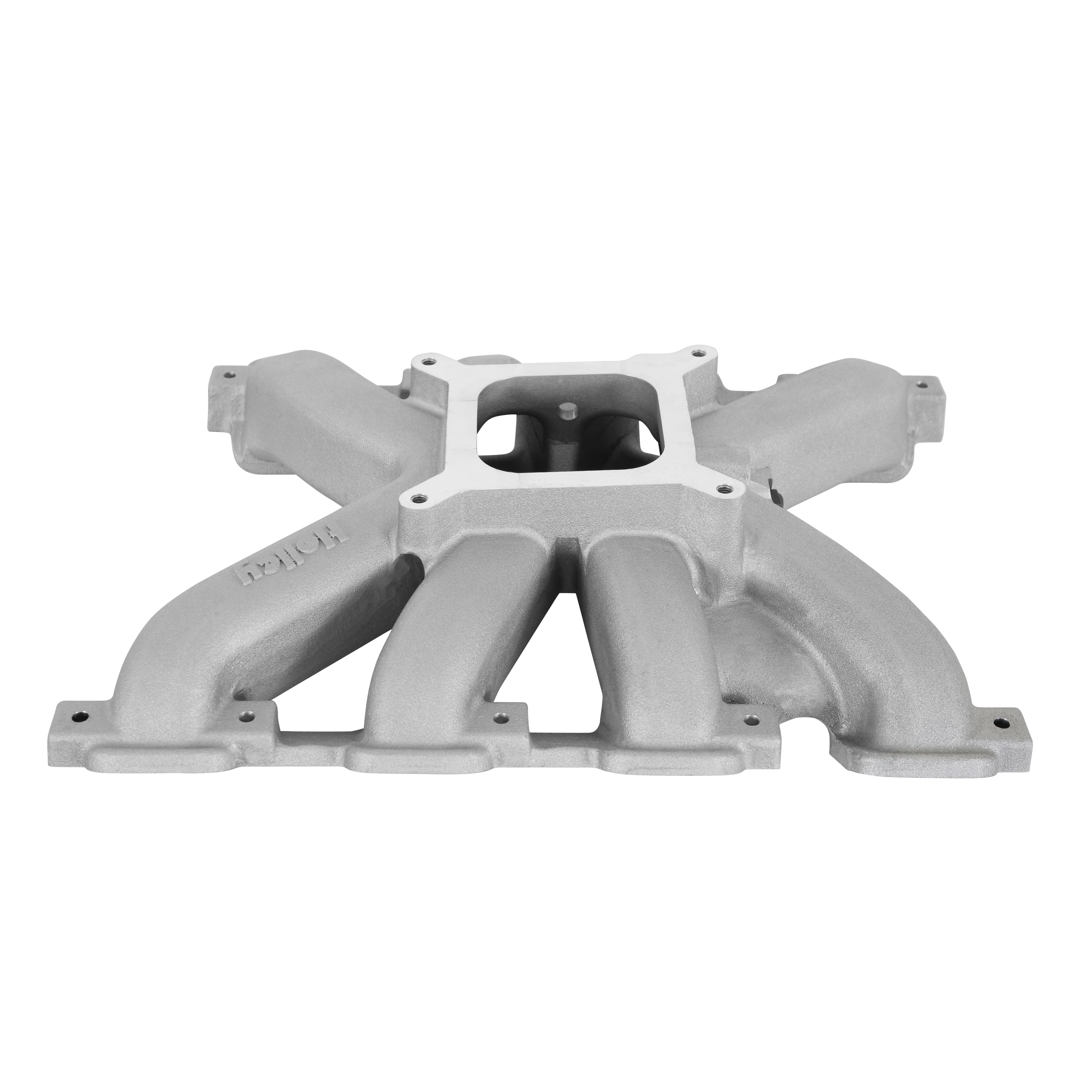

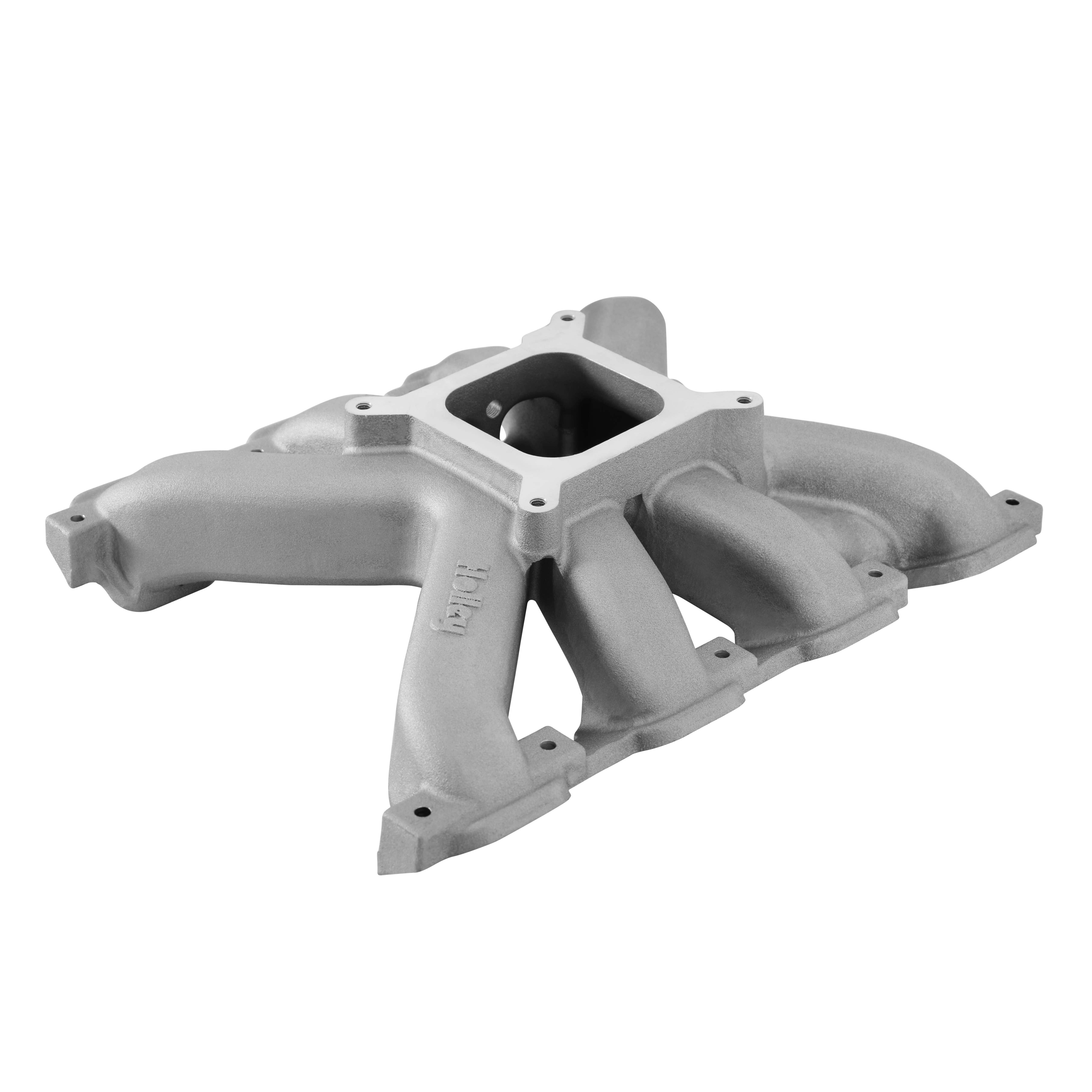

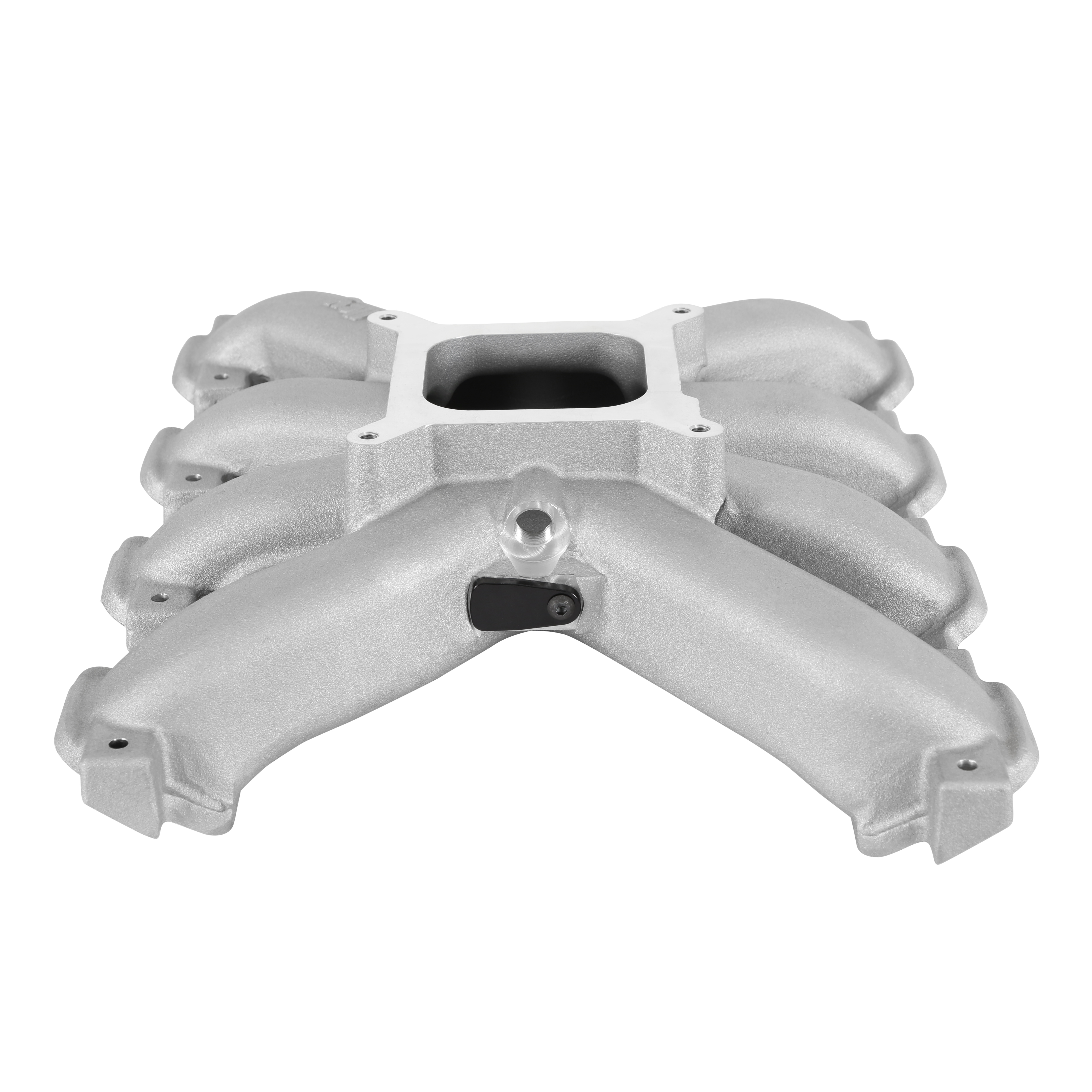

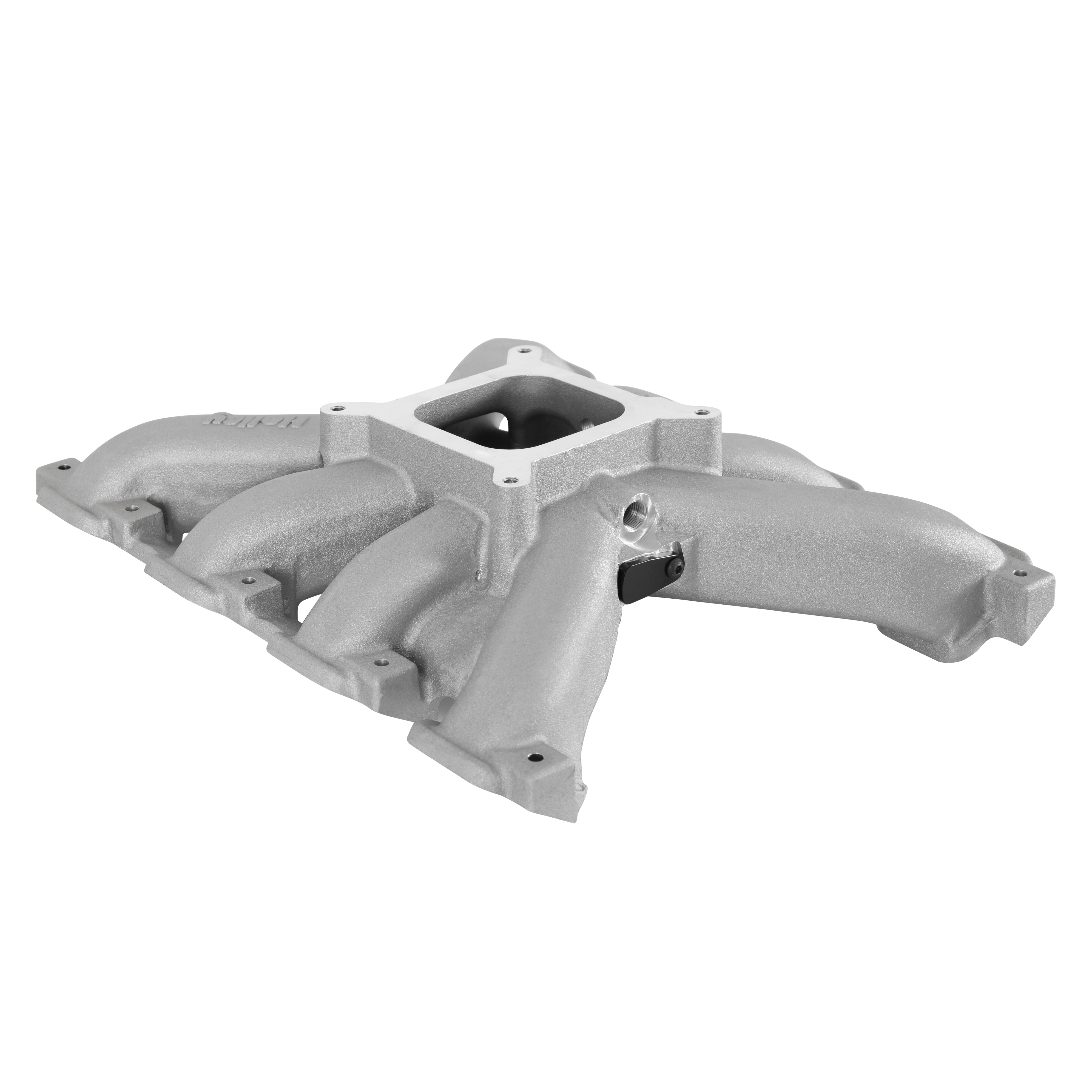

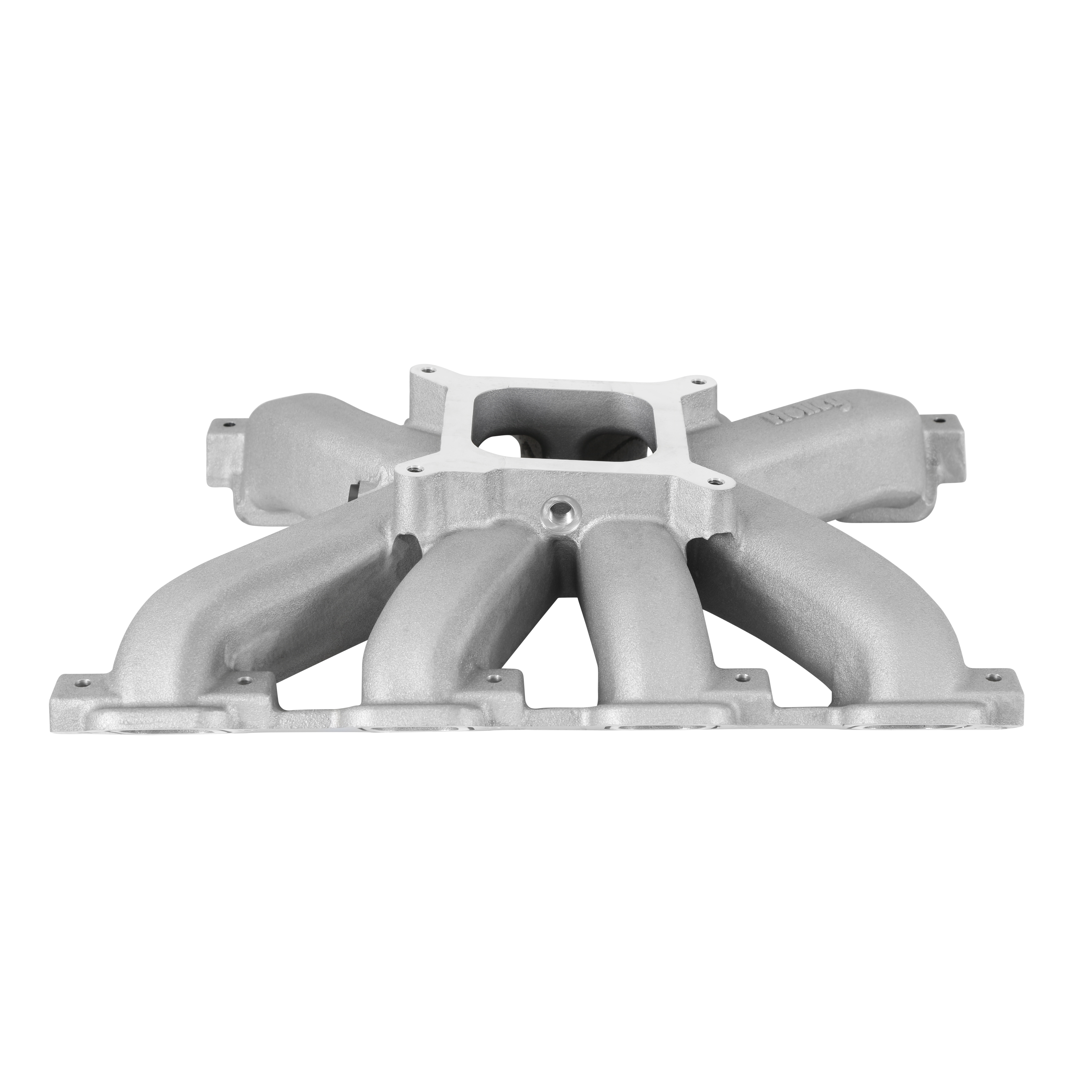

Holley Single Plane Intake - GM Gen V LT
SKU
HTPD-300-940
List price
$506.95
Price
$449.95
Description
Fits most GM Gen V LT Engines with OE-type LT Cylinder Heads
Features
- 2500-7000 RPM power band
- 4150 / 4160 Square bore flange
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Provides classic engine bay look of carb style intake
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.
- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange

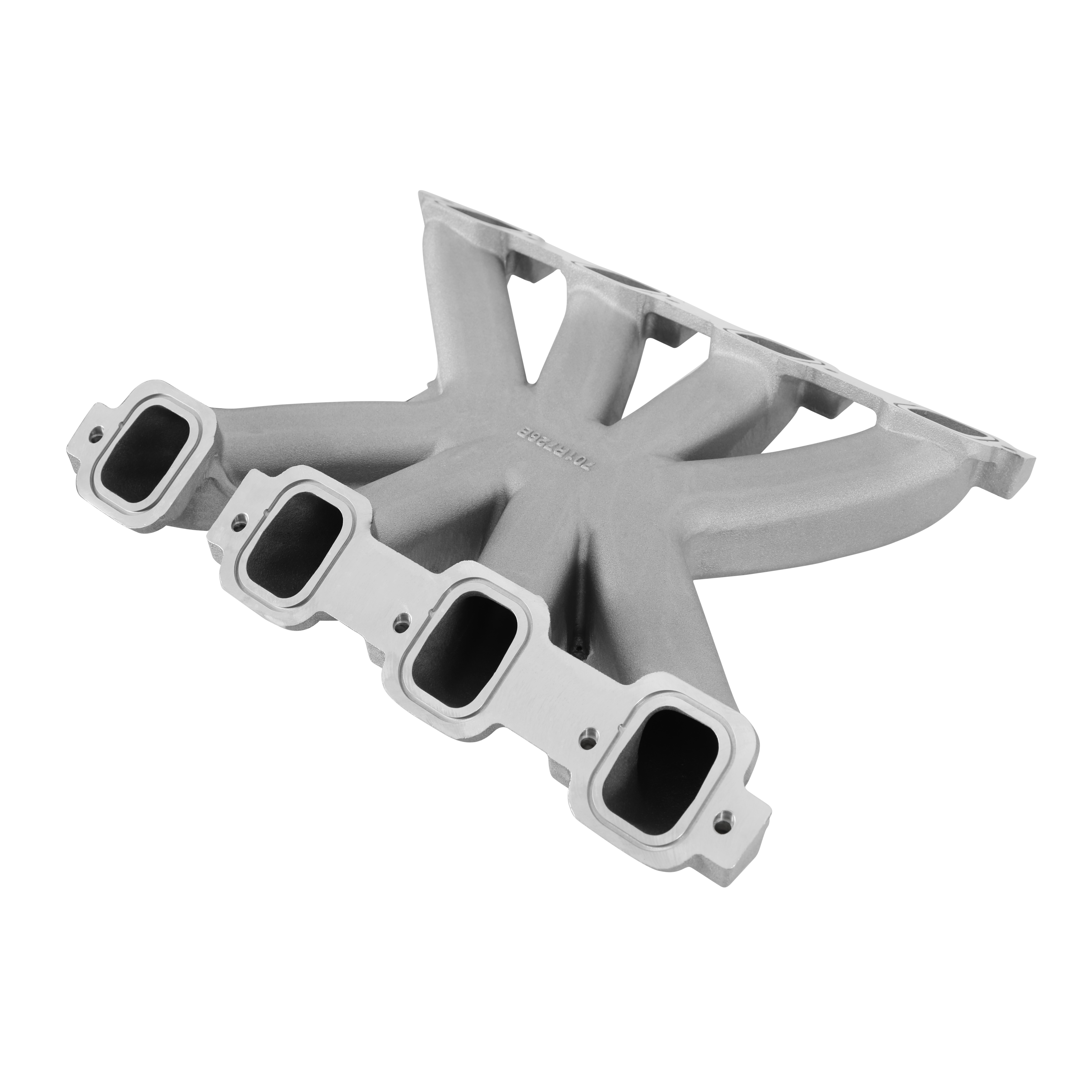

- Port size - 2.33" height x 1.27" wide

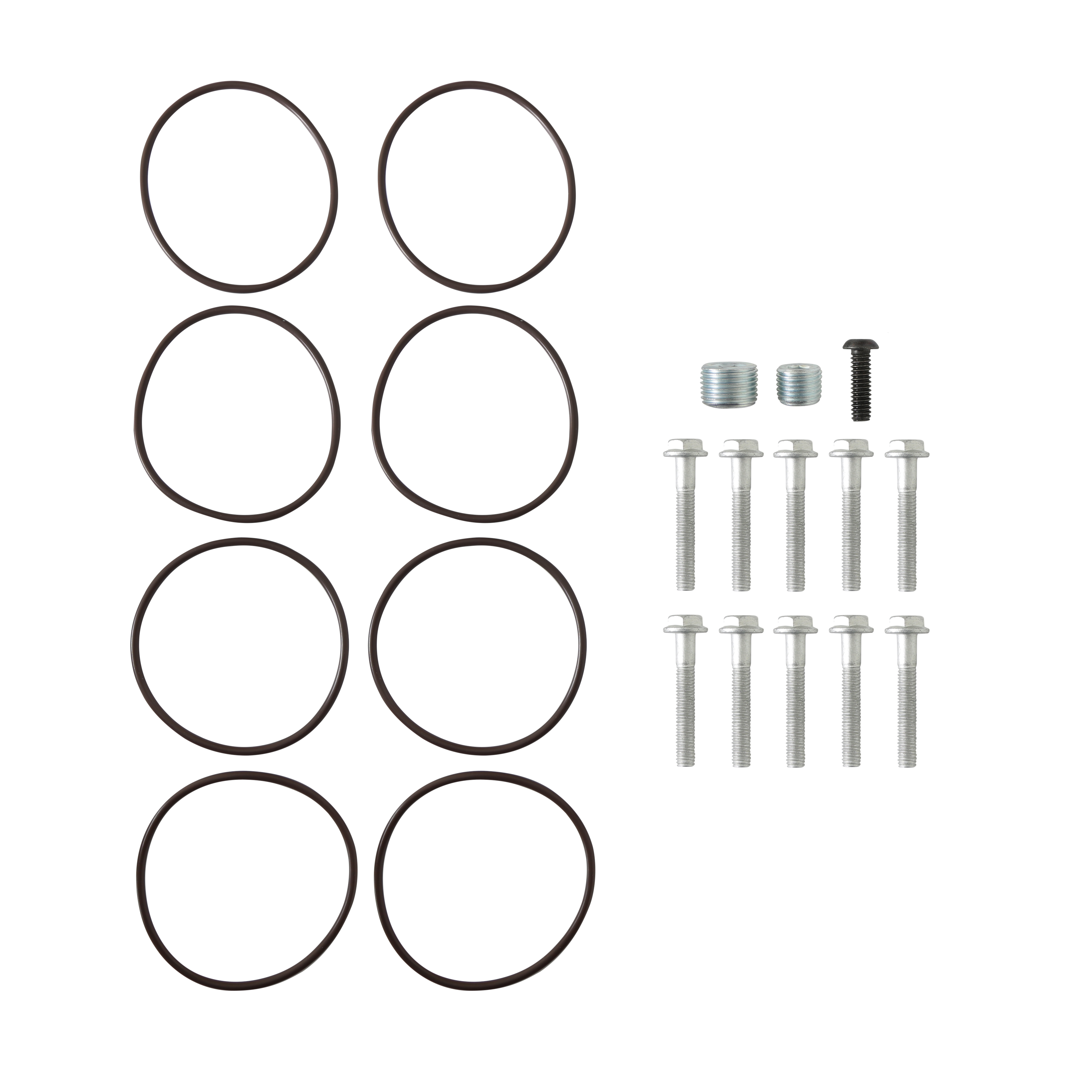

- Includes FKM o-ring intake to cylinder head gaskets
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Color: Natural
Engine: GM Gen V LT1
Finish: Satin
Warning: California Proposition 65
Category: Engine
EGR Port: No
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
part type: Engine Intake Manifold
Grade Type: Performance
Rear Height: 5.417 inch
Construction: Cast
Flange Style: 4150
Front Height: 5.417 inch
Product Type: Intake Manifold
Sub Category: Cylinder Block Components
Emission Code: 3
Manifold Type: Single Plane
Plenum Finish: Natural
RPM Power Band: 2500-7000 RPM
Recommended Use: Forced Induction
Fuel System Type: EFI
Carburetor Flange: Square/4150
Removable Runners: No
Rear Maximum Height: 5.417
Front Maximum Height: 5.417
Fuel Rail(s) Included: No
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: No
Nitrous Bung(s) Included: No
Basic Operating RPM Range: 2500-7000
Carburetor Studs Included: No
Single Or Dual Plane Type: Single Plane
Intake Port Gasket(s) Included: No
