Holley SBC 4150 Single Plane Intake Manifold
SKU
HTPD-300-264
List price
$489.95
Price
$434.95
Description
Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications).
Features
- Single plane design with isolated plenum to keep the air charge cooler
- 4150 square bore mounting flange to adapt most aftermarket throttle body designs
- Power band: 2500-7500 RPM

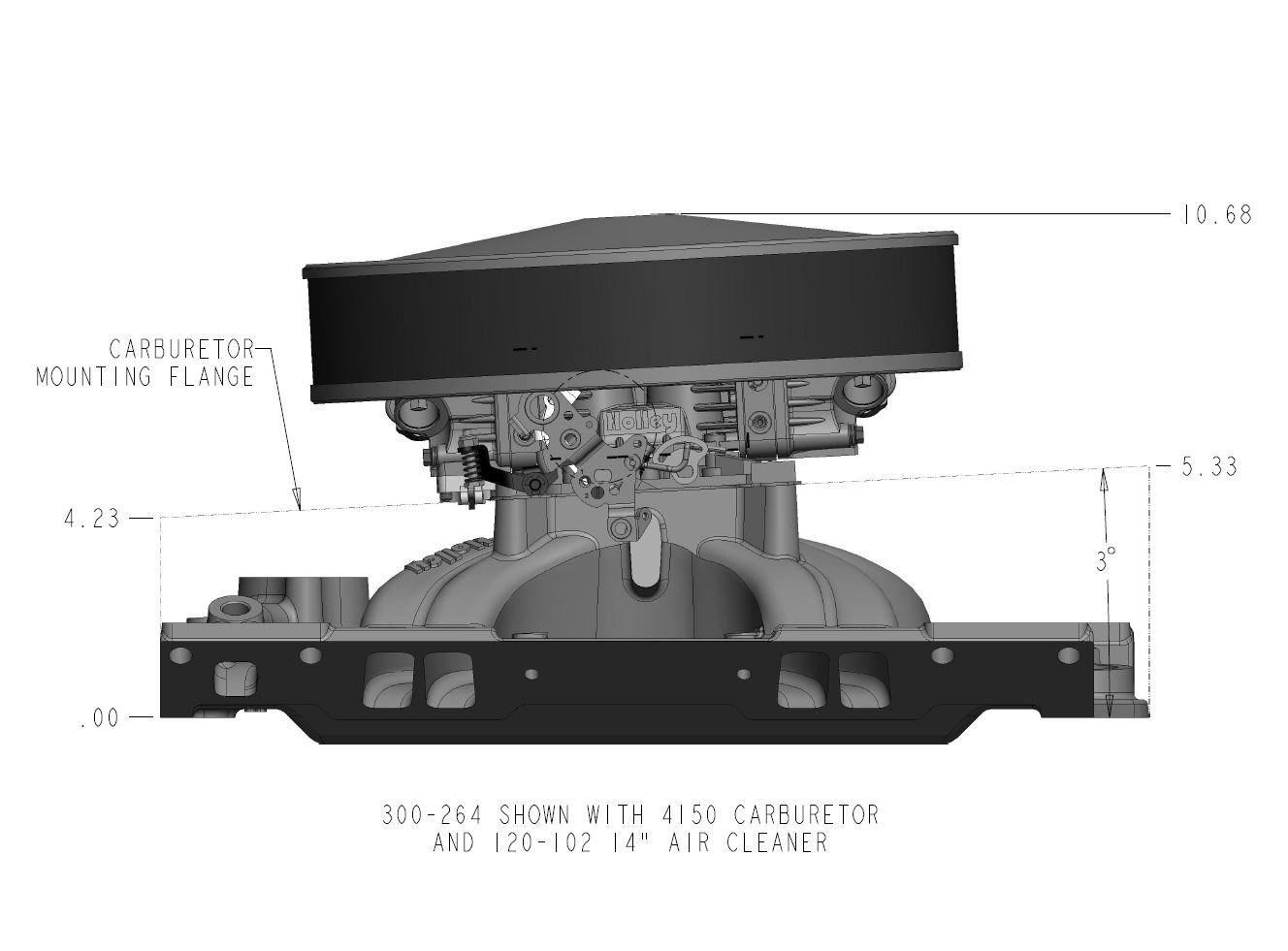

- Height: Front 4.23", Rear 5.33"
- Port Size: 2.05” height 1.02" width
- Small Block Chevrolet 262-400 cid engines equipped with 1996-2002 (L31) Vortec cylinder heads (non-EGR applications)
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Color: Natural
Engine: Chevrolet Small Block Gen I
Finish: Satin
Warning: California Proposition 65
Category: Engine
EGR Port: No
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
part type: Engine Intake Manifold
Grade Type: Performance
Rear Height: 5.28"
Construction: Cast
Flange Style: 4150
Front Height: 4.18"
Product Type: Intake Manifold
Sub Category: Cylinder Block Components
Emission Code: 3
Manifold Type: Single Plane
Plenum Finish: Natural
RPM Power Band: 2500-7500
Fuel System Type: Carbureted
Carburetor Flange: Square/4150
Removable Runners: No
Rear Maximum Height: 5.28
Front Maximum Height: 4.18
Fuel Rail(s) Included: No
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: No
Nitrous Bung(s) Included: No
Basic Operating RPM Range: 2500-7500
Carburetor Studs Included: No
Single Or Dual Plane Type: Single Plane
Intake Port Gasket(s) Included: No
