HOLLEY PUMP MODULE SYSTEM - Twin 450 LPH
SKU
HTPD-12-365
List price
$952.71
Price
$816.61
Description

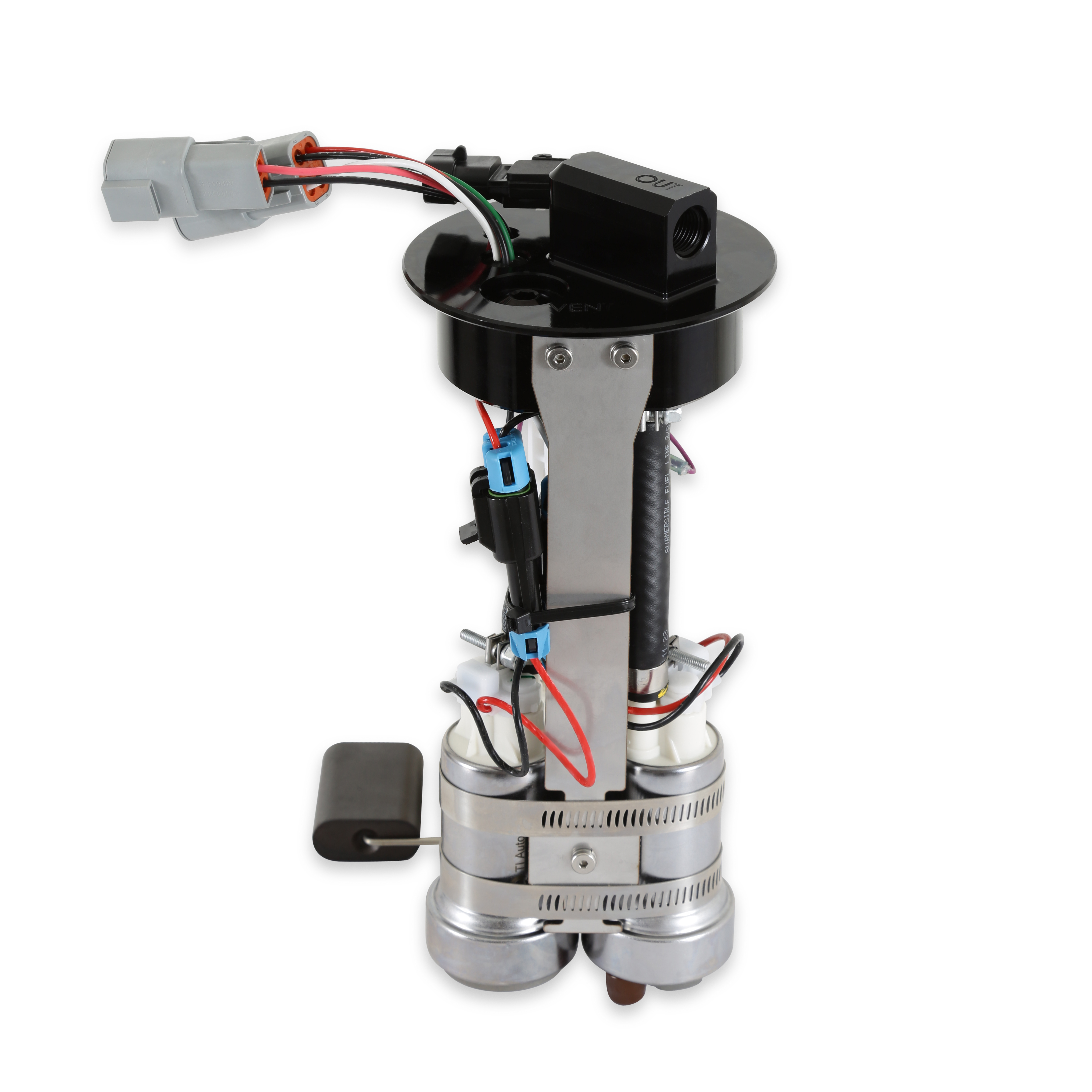

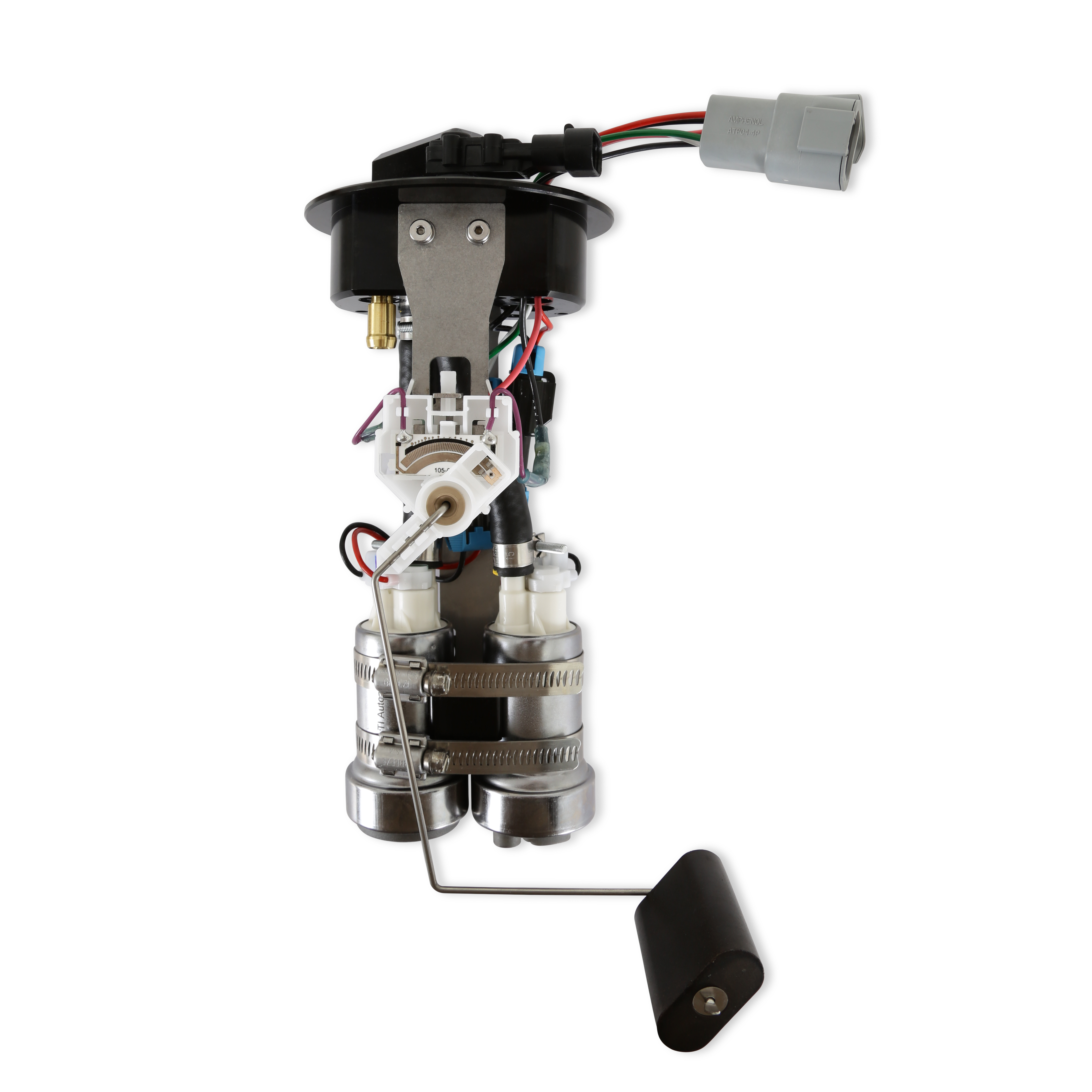

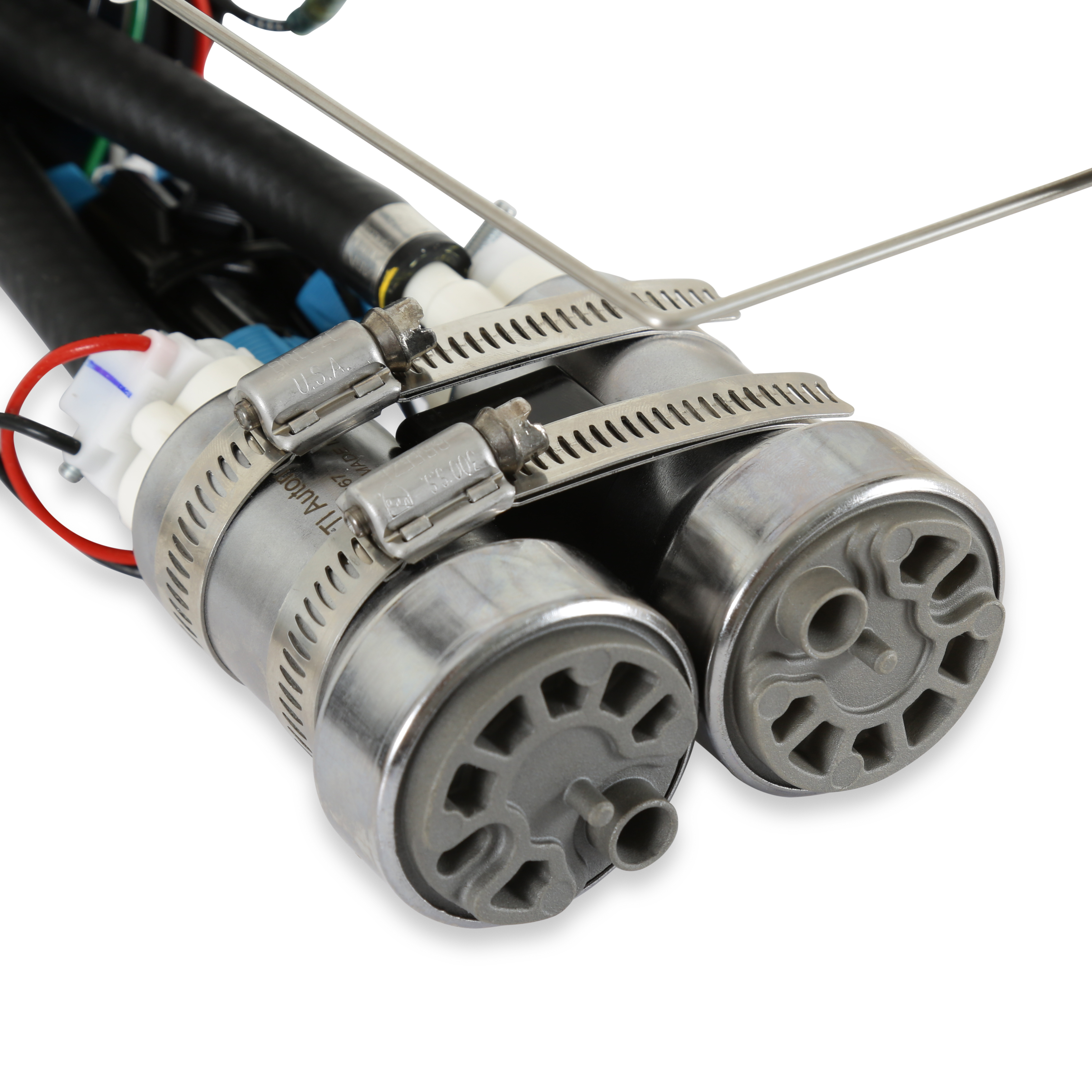

Fits 1998-2002 Camaro / Firebird - Twin 450 LPH Pump Module
Features

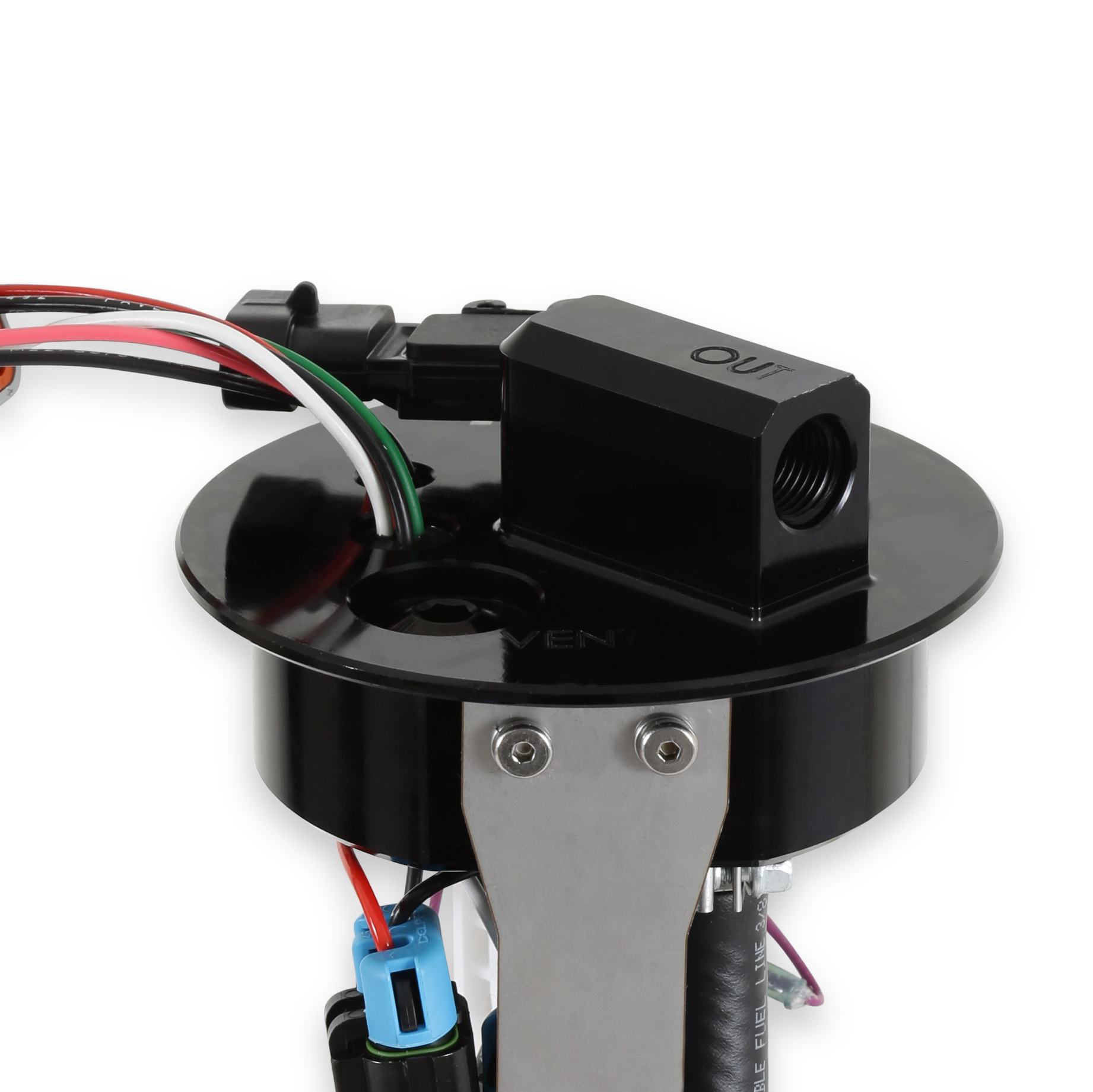

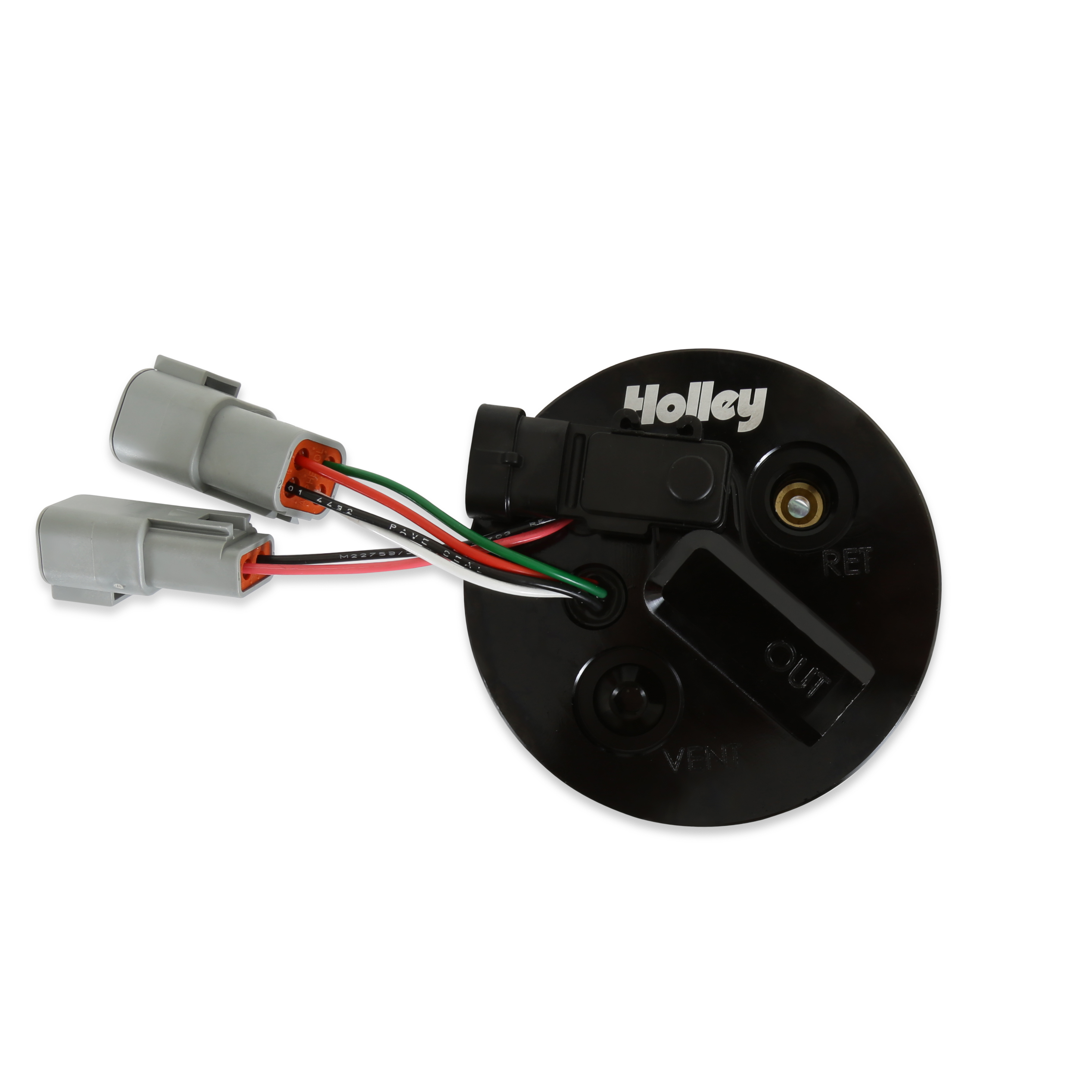

- Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent
- All SKUs compatible with Gasoline AND E85
- Comes pre-installed with new pre-calibrated fuel level (33 – 240 Ω) and tank pressure sensors

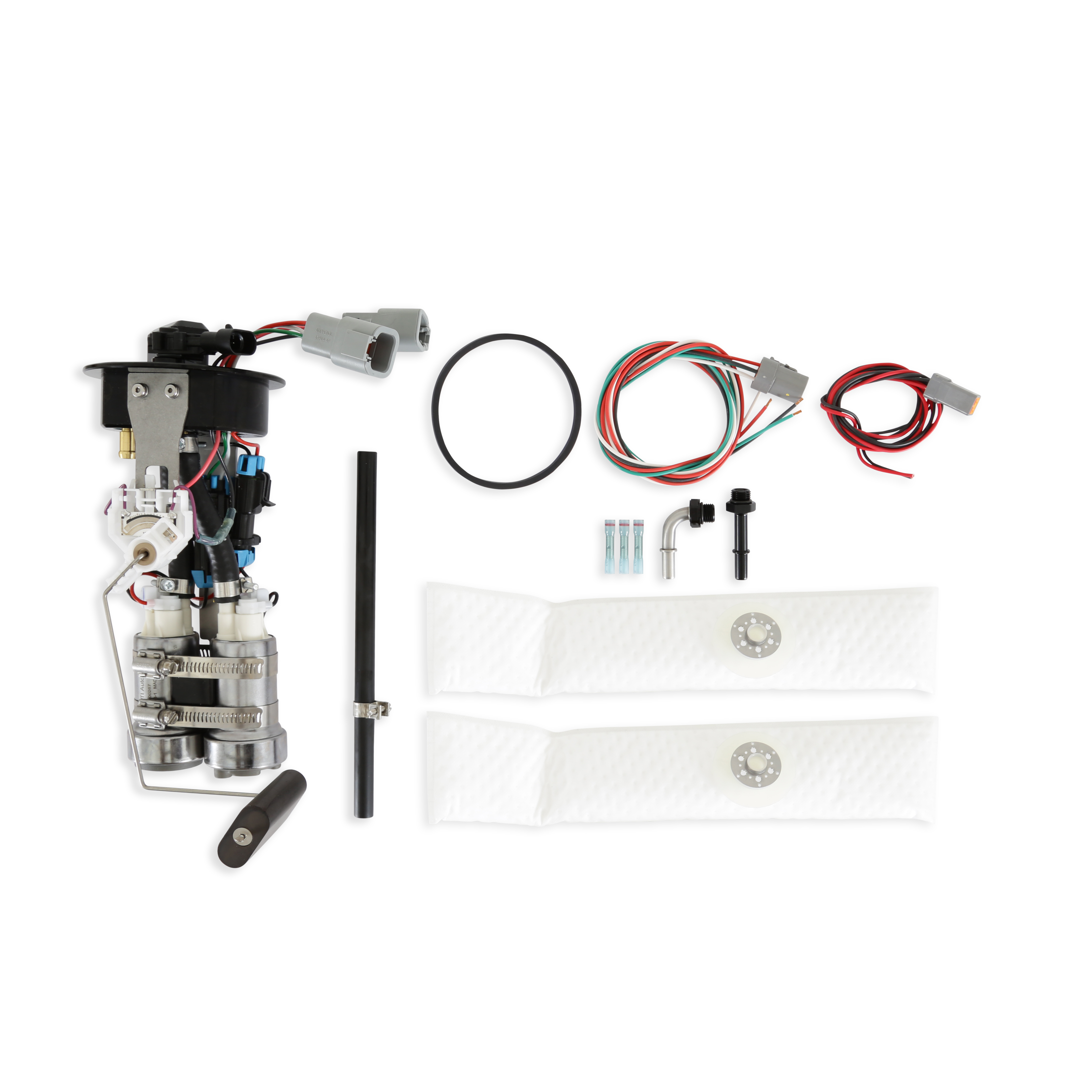

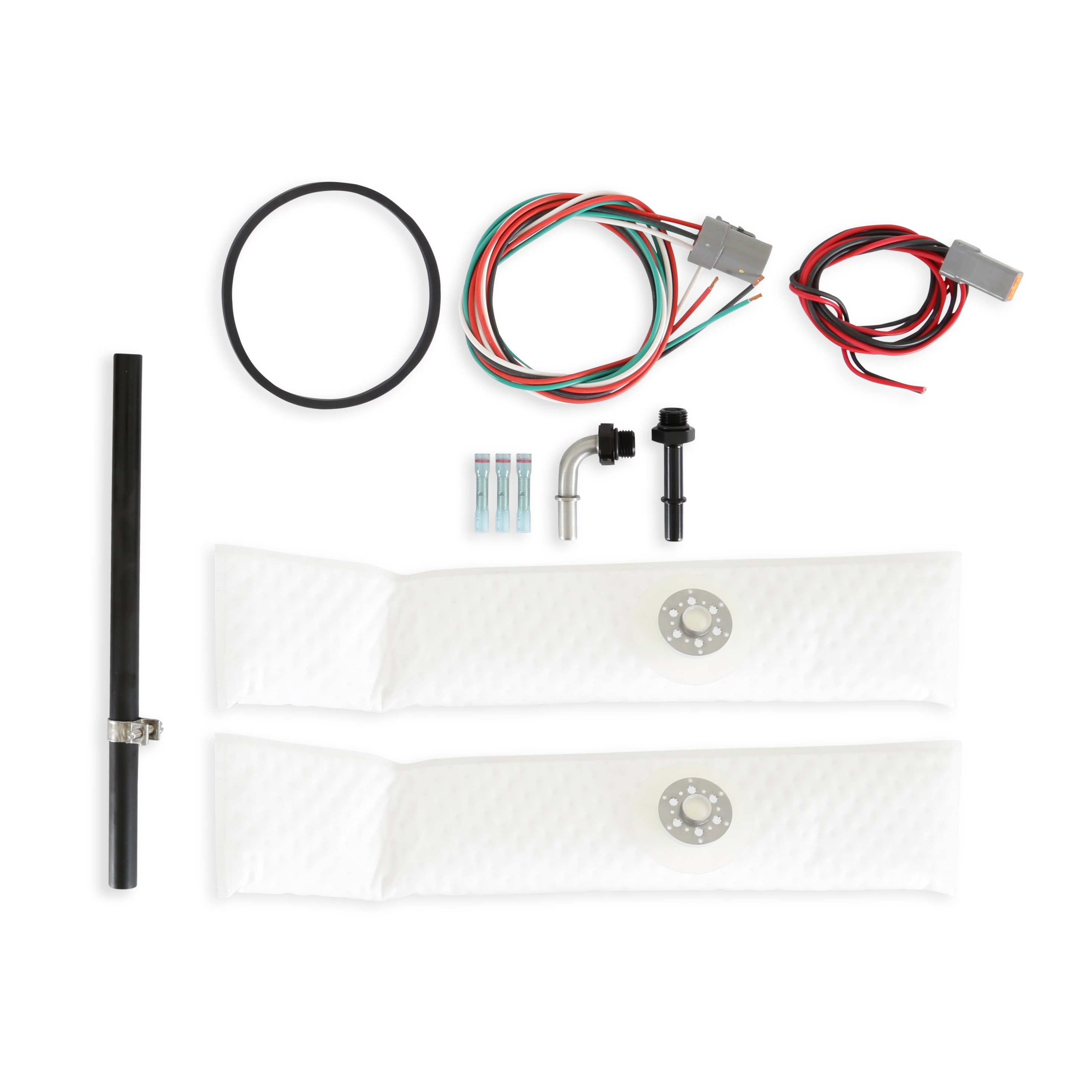

- Includes new gasket to complete installation

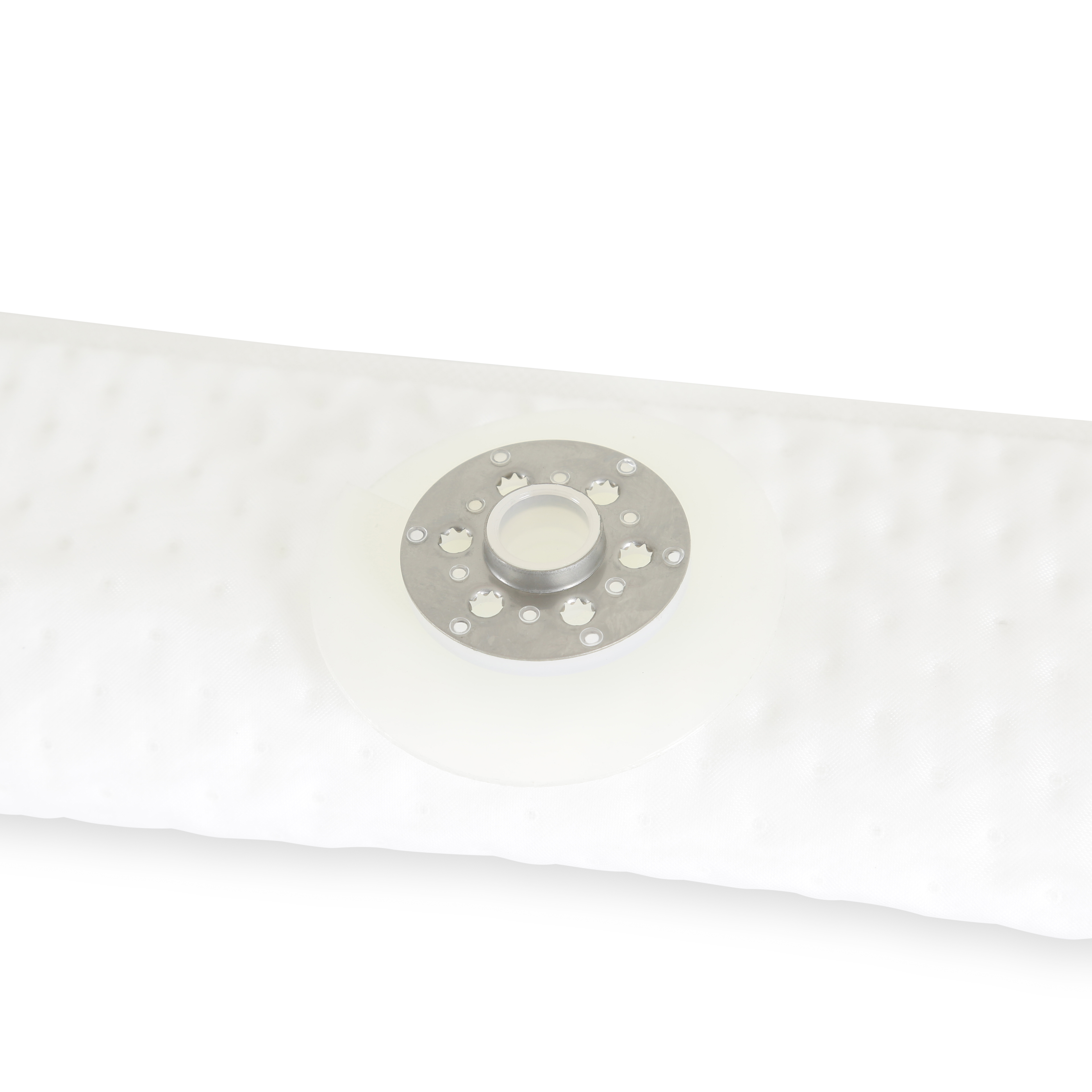

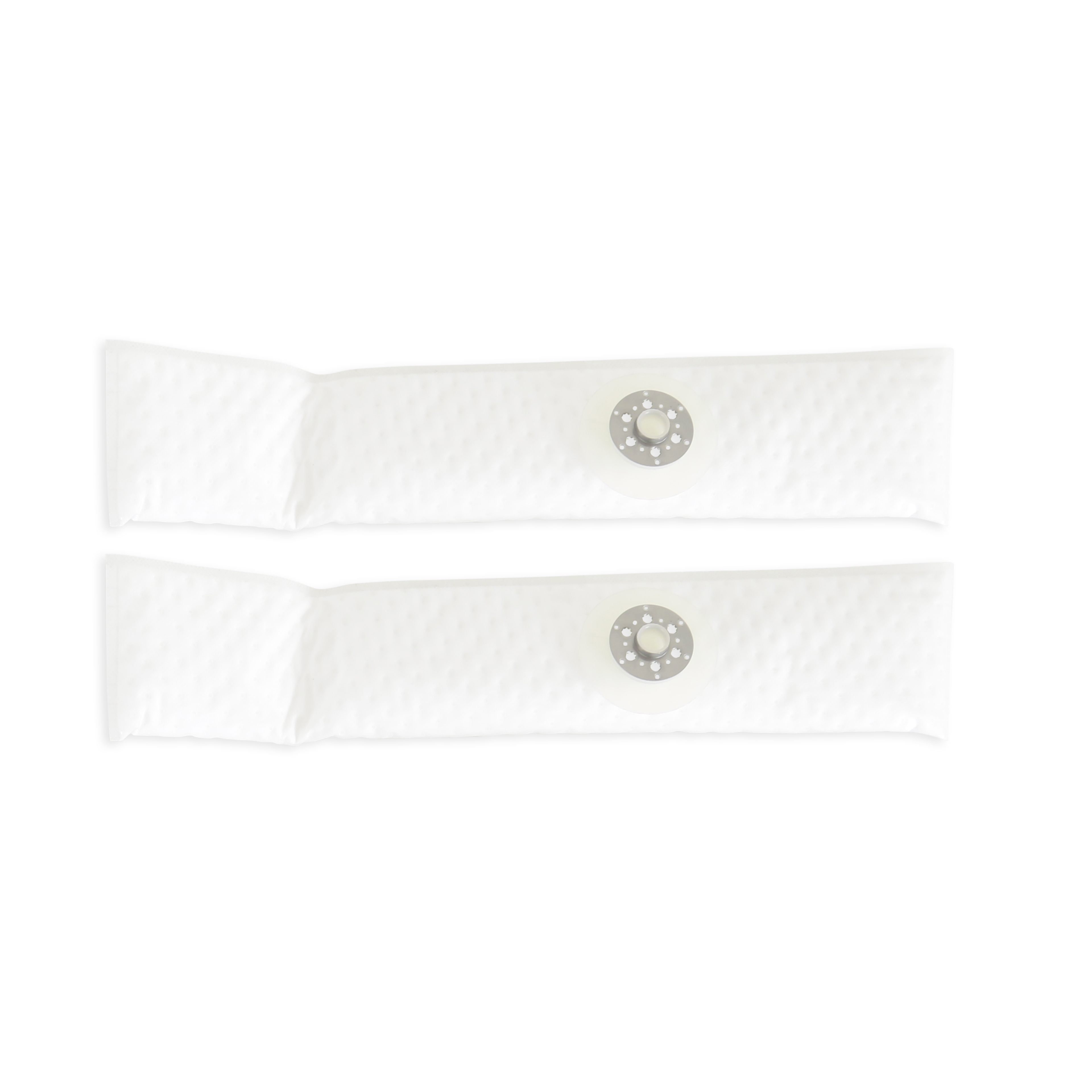

- A 3 x 11-inch HydraMat is included for each pump
- Fits factory plastic tank used in LS1 98-02 Camaro / Firebird or an earlier 4th Gen F-body with fuel tank upgrade
- Fittings included allowing connection to the factory 3/8 quick connect feed and return lines
- Flanges have been designed to be compatible with feed and return line sizes up to -8AN
- Step-down butt connectors included to wire level sensor
- Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL - sold separately)
- Kit includes vehicle pigtail harness - All connectors used are DTM style
Specs
Brand
HOLLEY
Category
Fuel Pump Module Assembly
Specs
Brand: Holley
Finish: Anodized Black
Height: Standard
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Billet Alluminum 6061-T6
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline/E85 Compatible
Pump Type: Electric
part type: Fuel Pump Module Assembly
Grade Type: Performance
Inlet Size: 6 AN ORB
Inlet Type: 6 AN ORB
Fuel System: EFI
Outlet Size: 6 AN ORB
Outlet Type: 6 AN ORB
Product Type: Fuel Pump Module
Sub Category: Fuel Pumps and Related Components
Emission Code: 5
Free Flow GPH: 236
Free Flow LPH: 900
Wire Quantity: 6
Inlet Quantity: One
Connector Color: Gray
Negative Ground: Yes
Outlet Quantity: One
Connector Gender: Female
Housing Material: Aluminum
Maximum Pressure: 60
Connector Quantity: 1
Lock Ring Included: No
Regulator Included: No
Average Flow Rating: 900
In Tank or External: In Tank
Single Or Dual Pump: Dual
Average Current Draw: 34
Fuel Filter Included: Yes
Resistance Ohms Full: 240
Resistance Ohms Empty: 33
Gasket Or Seal Included: Yes
Gasket Or Seal Material: Rubber
Universal Or Specific Fit: Specific
Fuel Sending Unit Included: Yes
Mounting Hardware Included: Yes
Internal Or External Strainer: External
Fuel Tank Pressure Sensor Included: Yes
