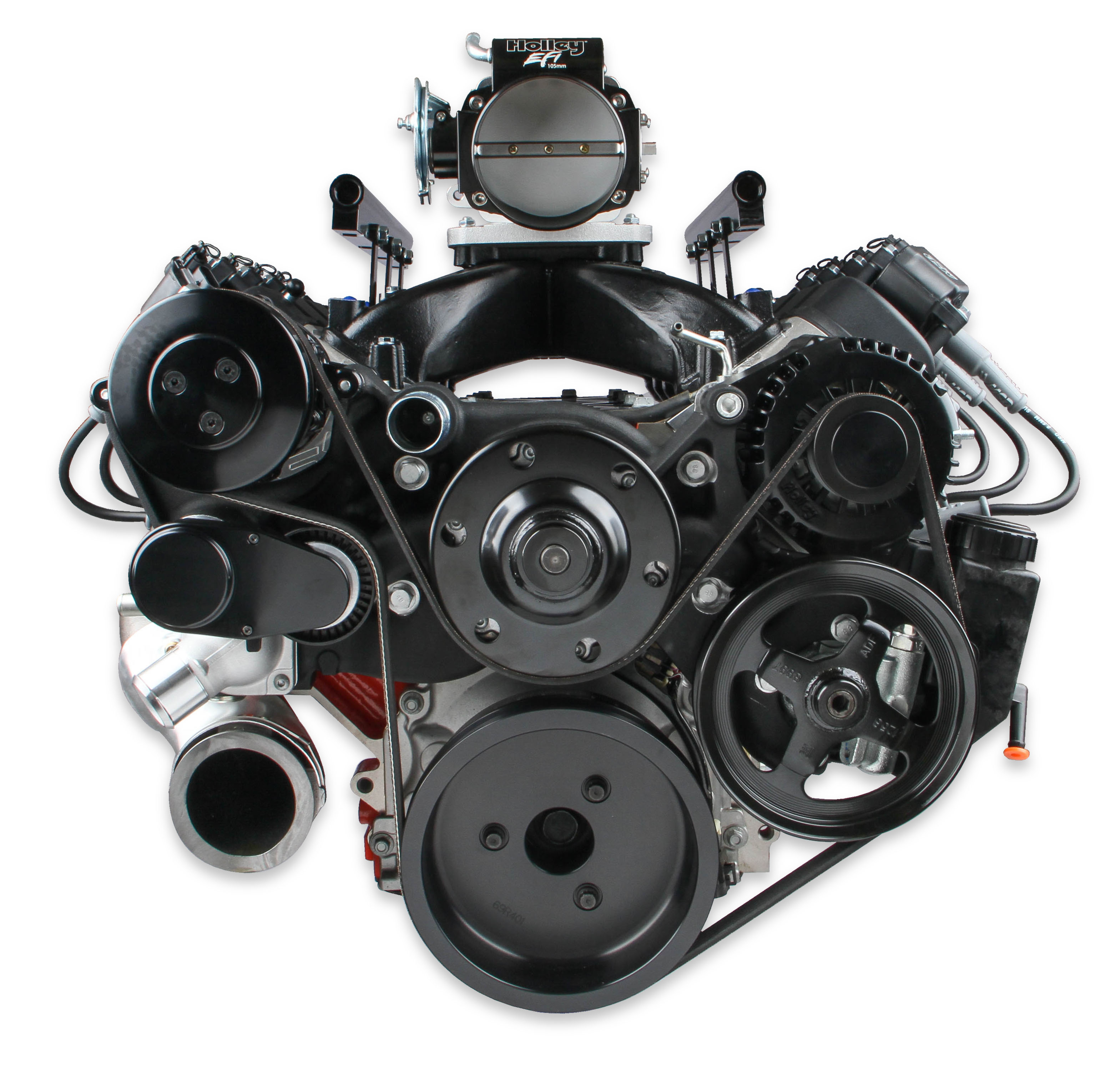

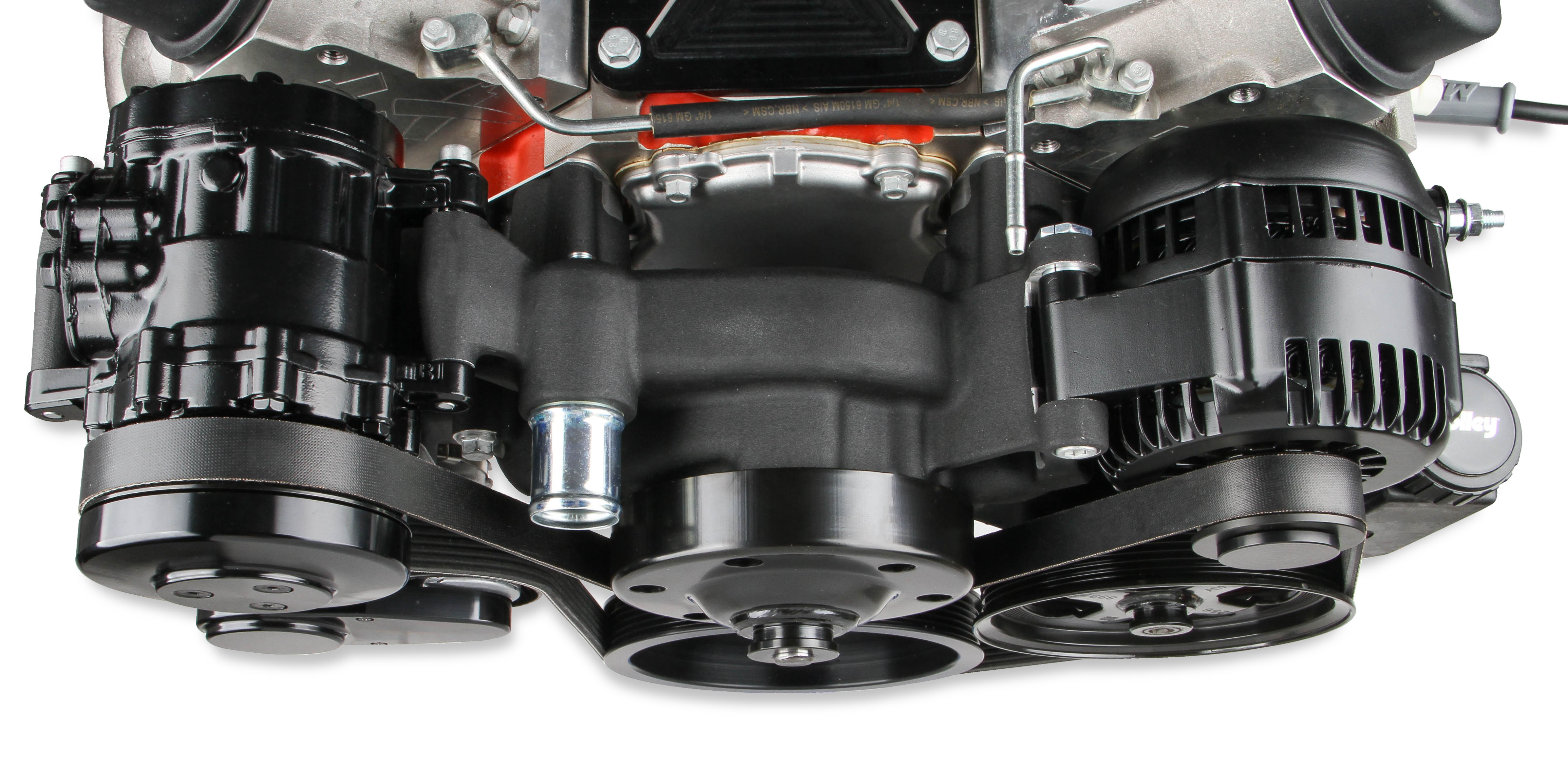

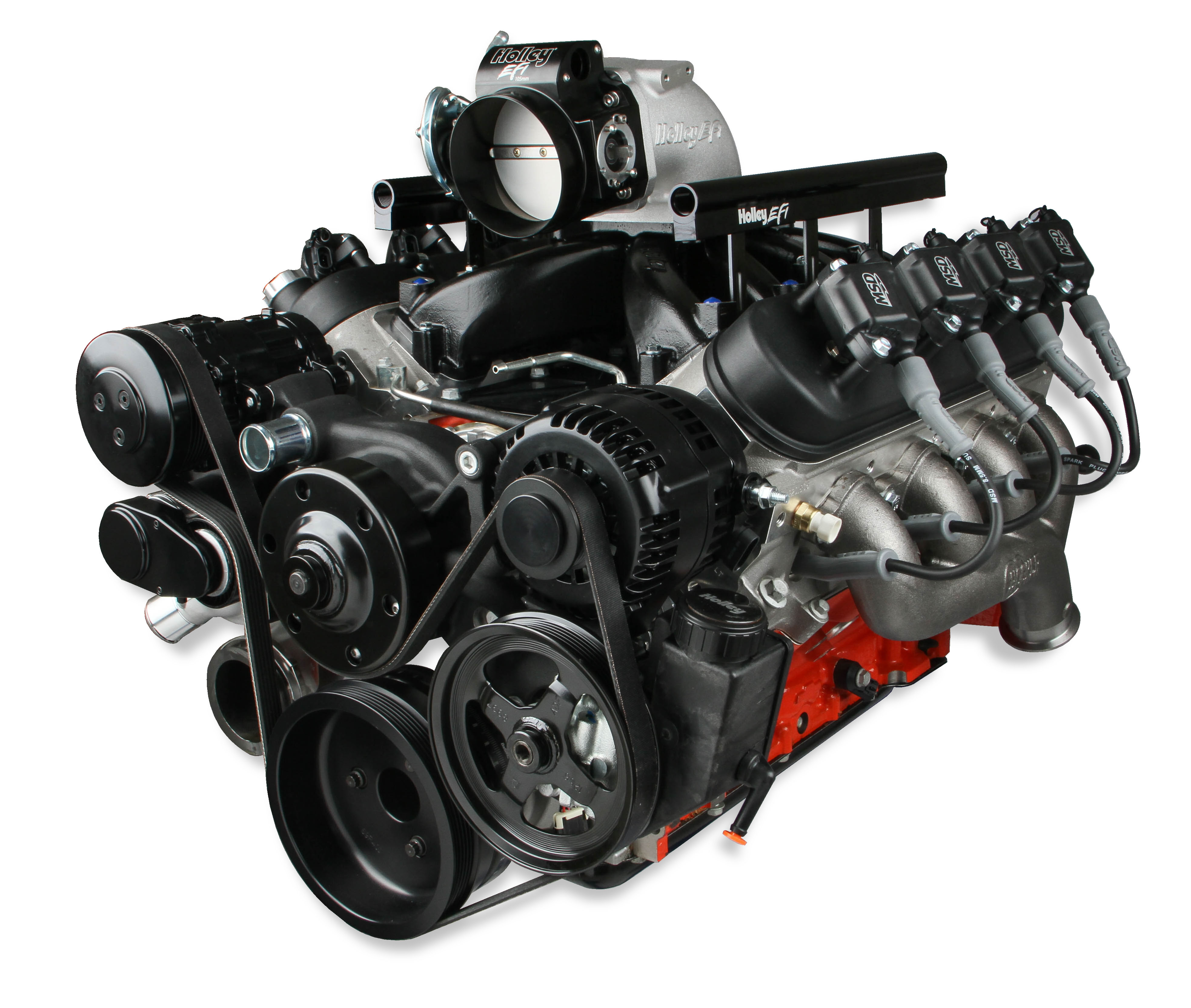

Holley Premium Black Mid-Mount Complete Accessory System
SKU
HTPD-20-180BK
List price
$4,106.95
Price
$3,649.95
Description

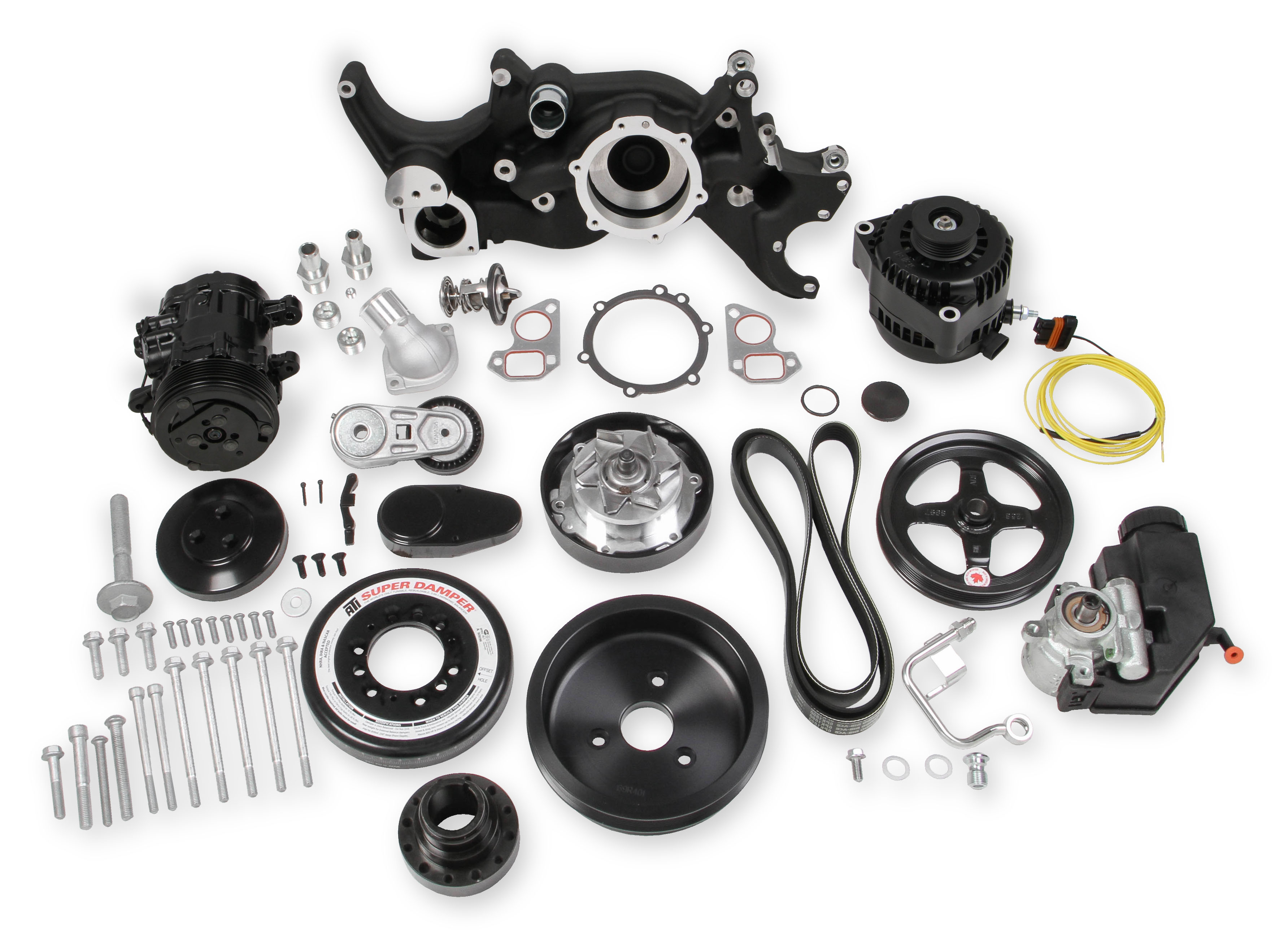

LS Engine Drive includes SD7 A/C Compressor, Alternator, P/S Pump, Tensioner, SFI certified damper w/hard anodized billet crank pulley, Belt, & Pulleys
Features
- Bracketless accessory mounting with ultra-easy assembly
- Bottom outlet heater hose options for swap application clearance

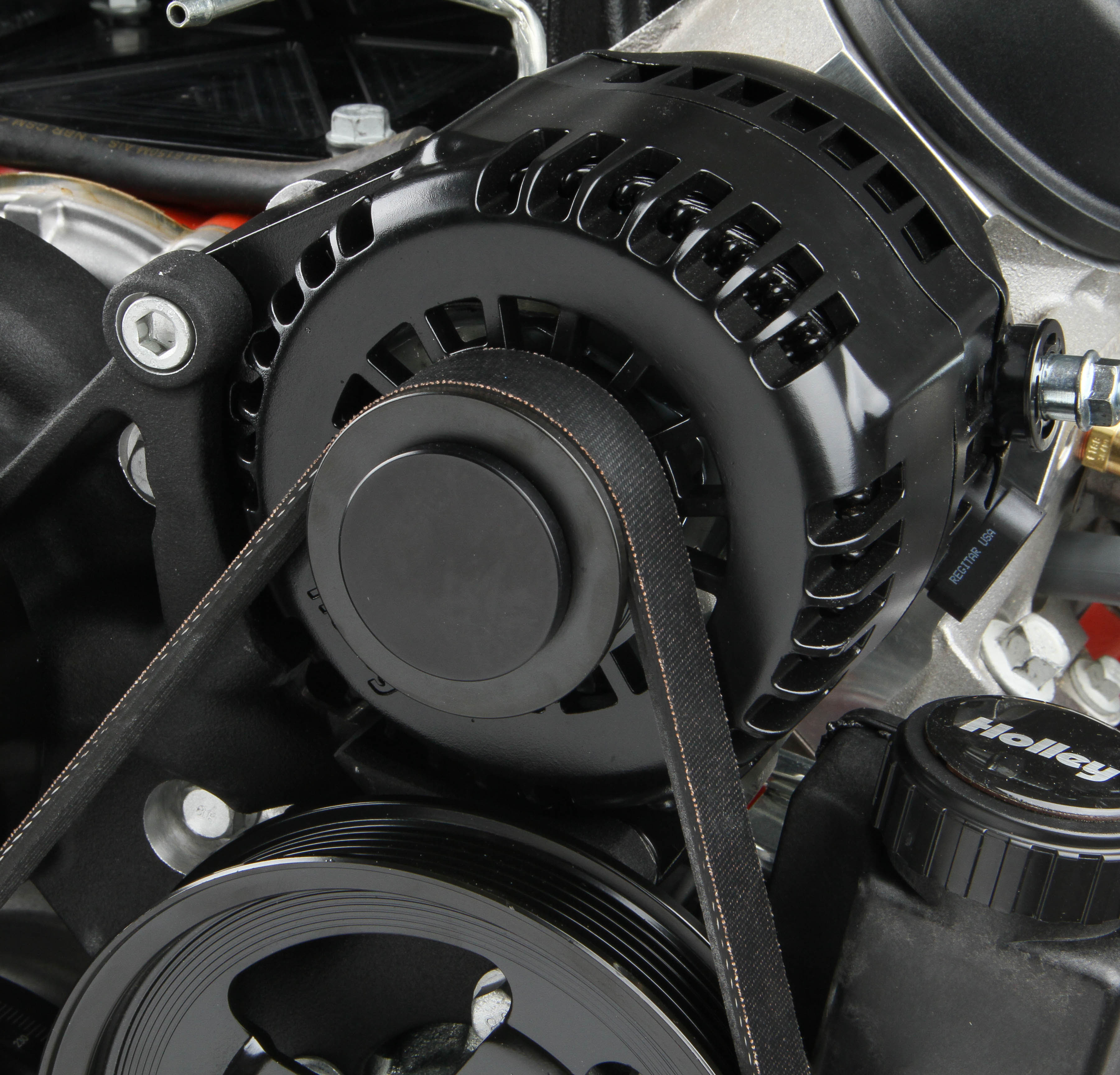

- LT1 style premium 150 amp alternator
- LT1 style water pump cartridge design
- Compact SD7 A/C compressor

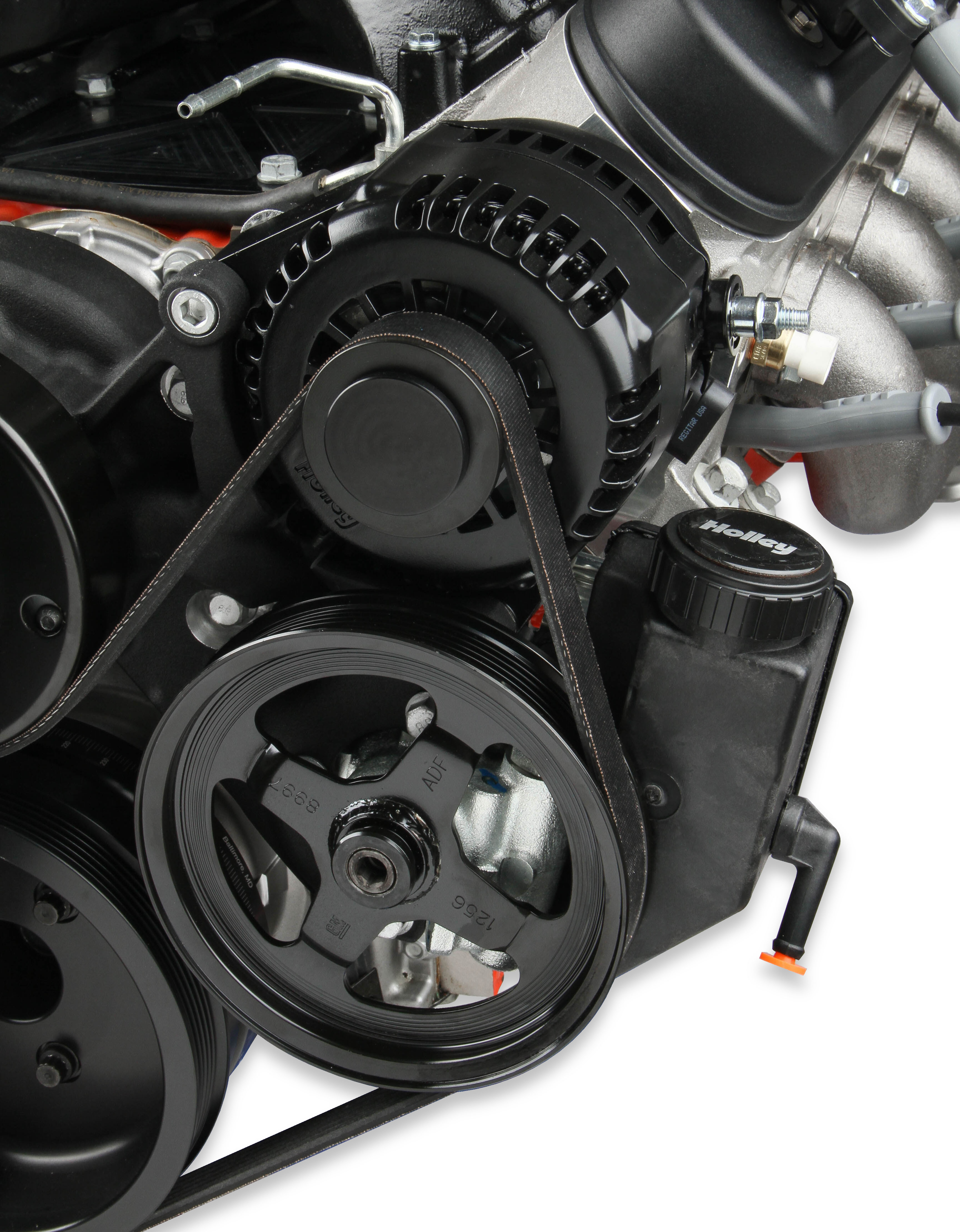

- Type II power steering pump with baffled reservoir
- P/S adapter hardline to AN -6 adapter included
- Steam tube input port
- Shortened top outlet nipple for more radiator hose turns and routing room
- OE pulley ratios for optimal accessory performance
- No adapters/spacers required!

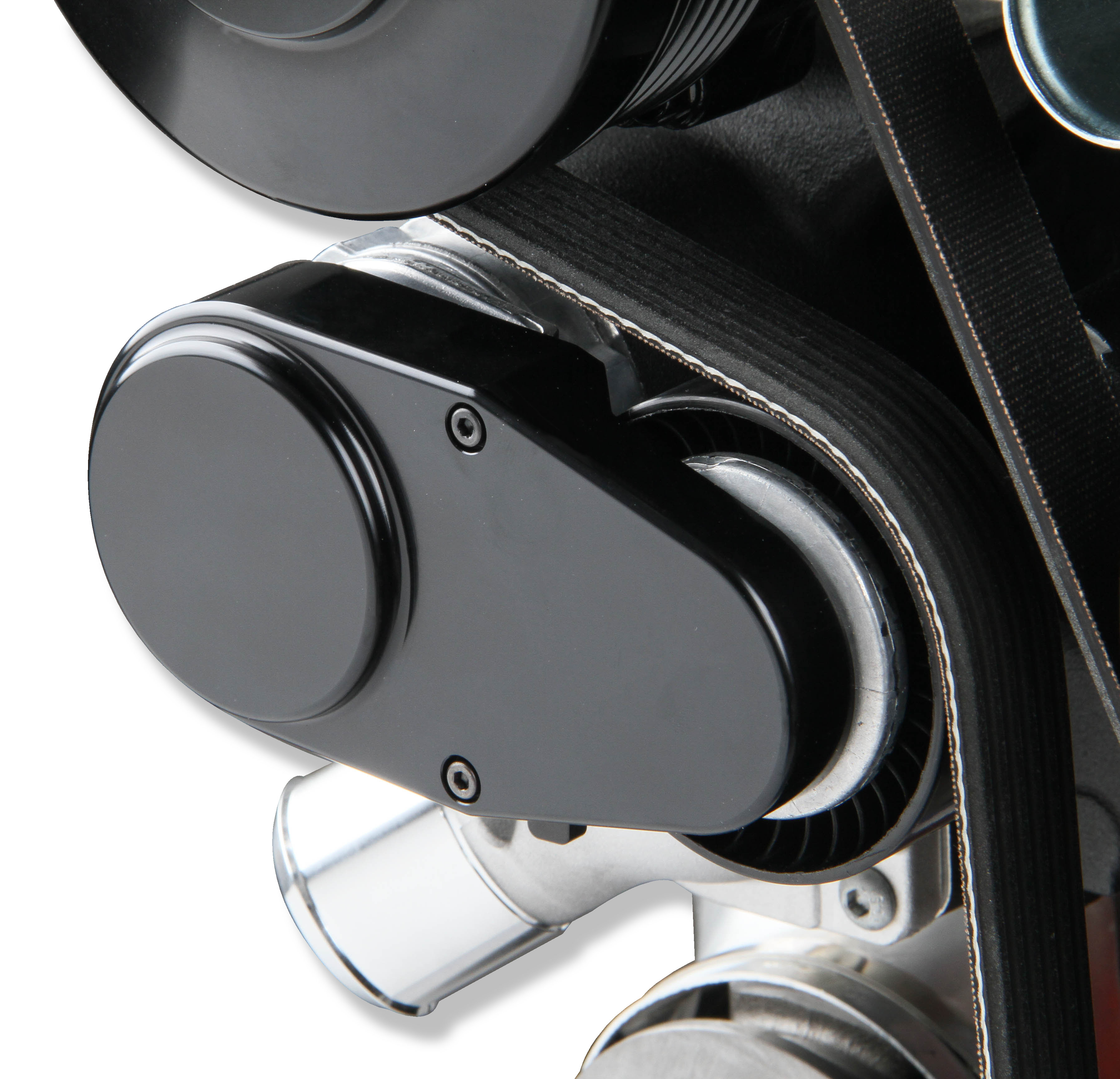

- Billet tensioner cover
- Billet alternator, and compressor pulley covers
- SFI certified damper w/hard anodized billet crank pulley
- Works with all common aftermarket and factory Throttle bodies and intakes.
- Works with VVT applications
- Works with Hooker turbo manifolds.
- Fit ALL wet sump LS engines except supercharged. Also will fit dry sump LS engines converted to wet sump.
- Black Finish
Specs
Brand
HOLLEY
Category
Accessory Drive Belt Kit
Specs
Brand: Holley
Engine: GM Gen III/IV (LS)
Finish: Black
Output: 150 Amps
Warning: California Proposition 65
Category: Belts and Cooling
Material: Cast Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
part type: Accessory Drive Belt Kit
Inlet Size: 35.4mm/1.4"
Application: GM LS
Damper Style: SFI Certified
Product Type: Accessory Drive Kits
Pulley Style: Serpentine
Sub Category: Accessory Drive Belt System Components
Belt Included: Yes
Emission Code: 5
Damper Included: Yes
Choose Your Part: Accessory Drive Kits
Tensioner Included: Yes
A/C Compressor Type: SD7
Alternator Amperage: 150
Alternator Included: Yes
Thermostat Included: Yes
Water Neck Included: Yes
Water Pump Included: Yes

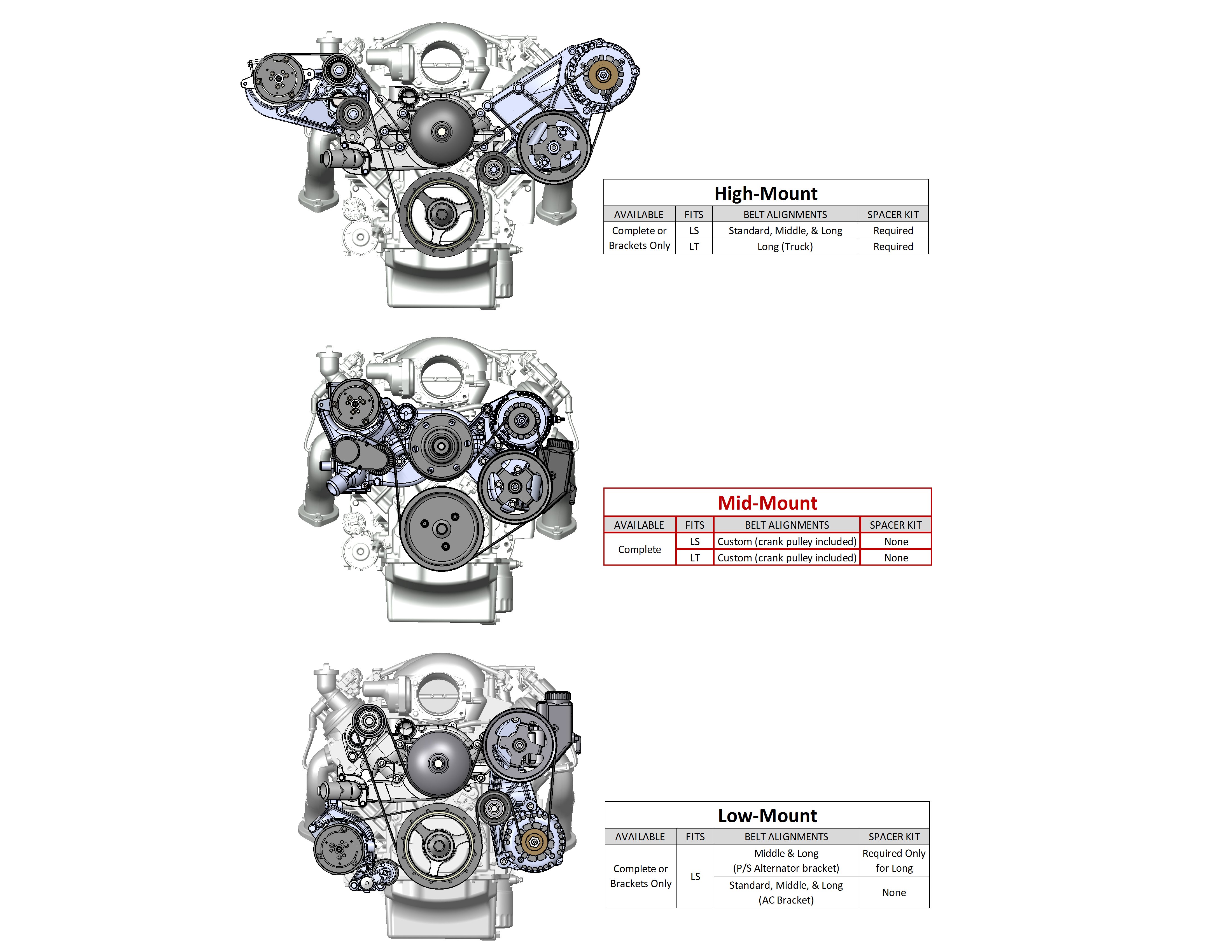

Accessory Drive Style: Mid-Mount
A/C Compressor Included: Yes
Water Pump Pulley Included: Yes
Power Steering Pump Included: Yes
Power Steering Pulley Included: Yes
Power Steering Hardline Included: Yes
Power Steering Reservoir Included: Yes
