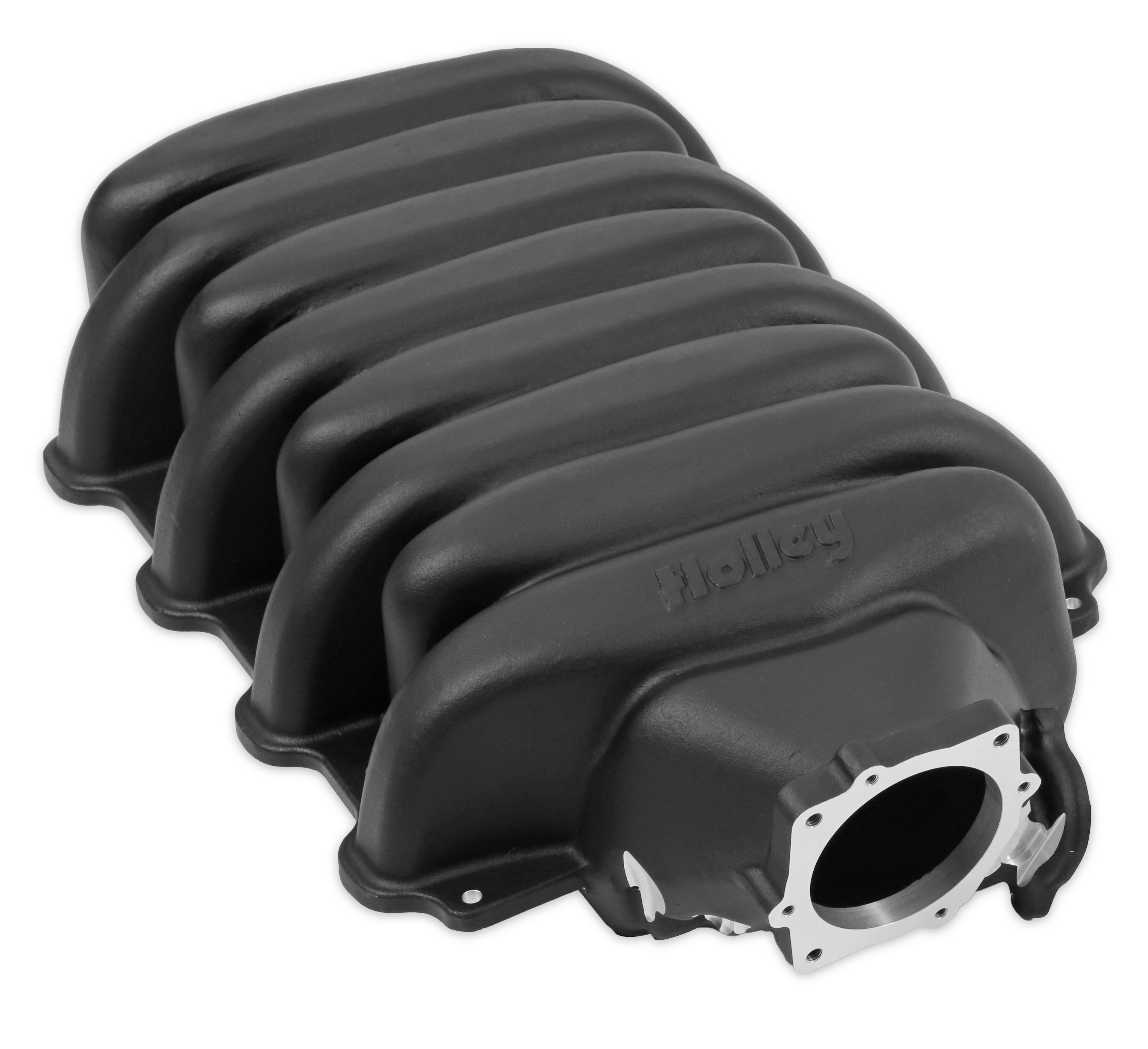

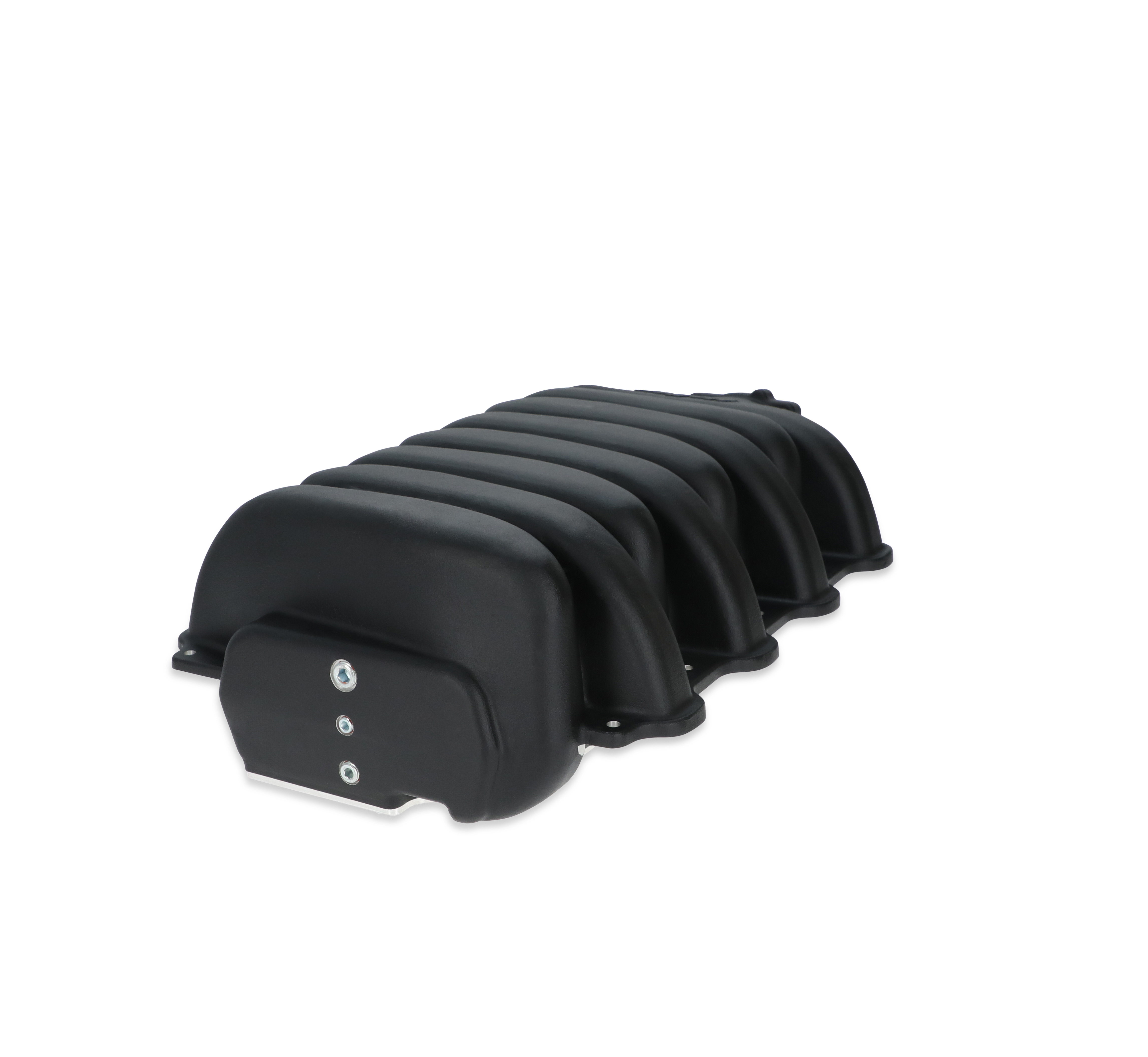

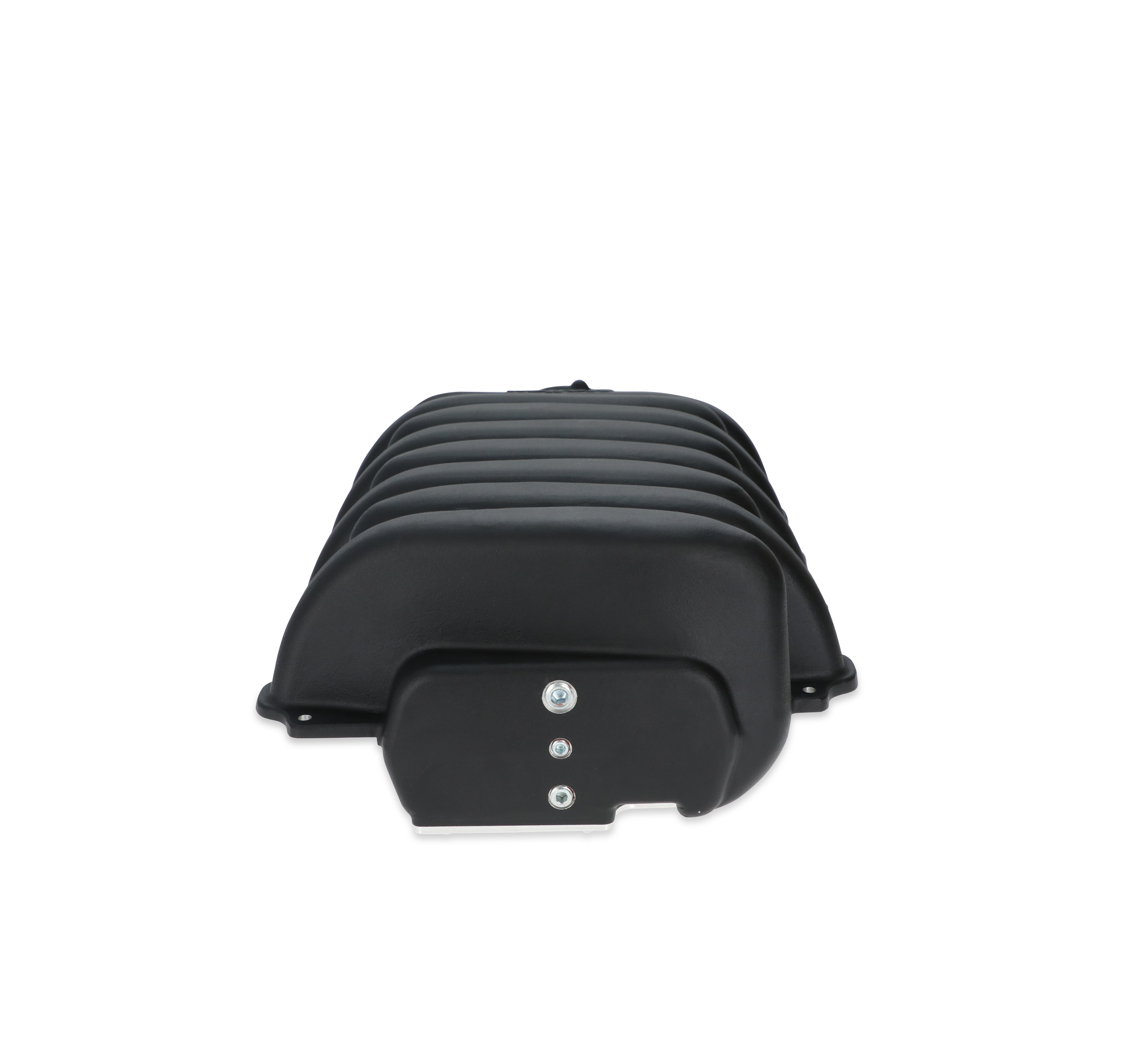

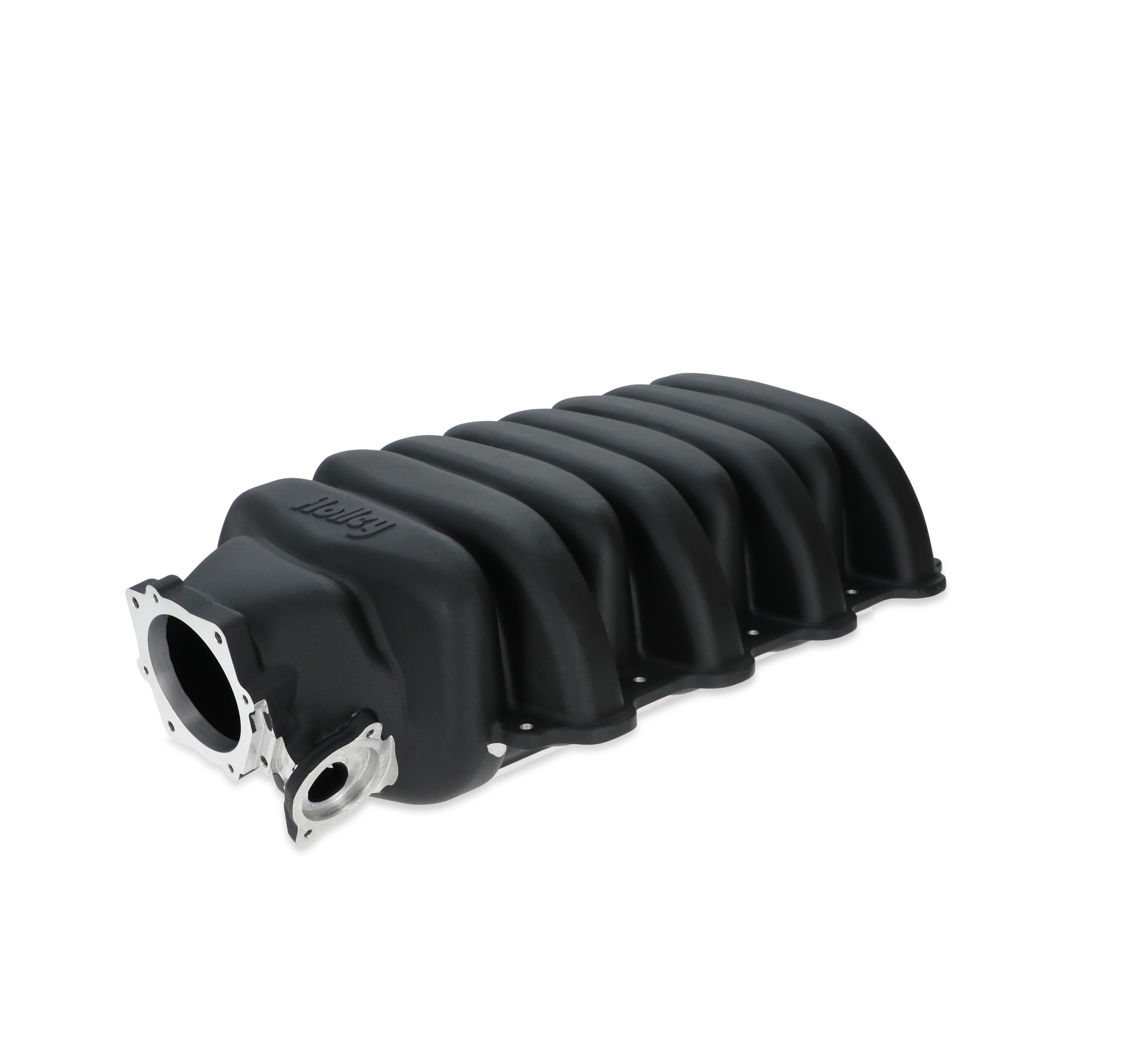

Holley Low-Profile Intake Manifold - Godzilla - Black Powdercoat
SKU
HTPD-300-900BK
List price
$1,043.95
Price
$927.95
Description

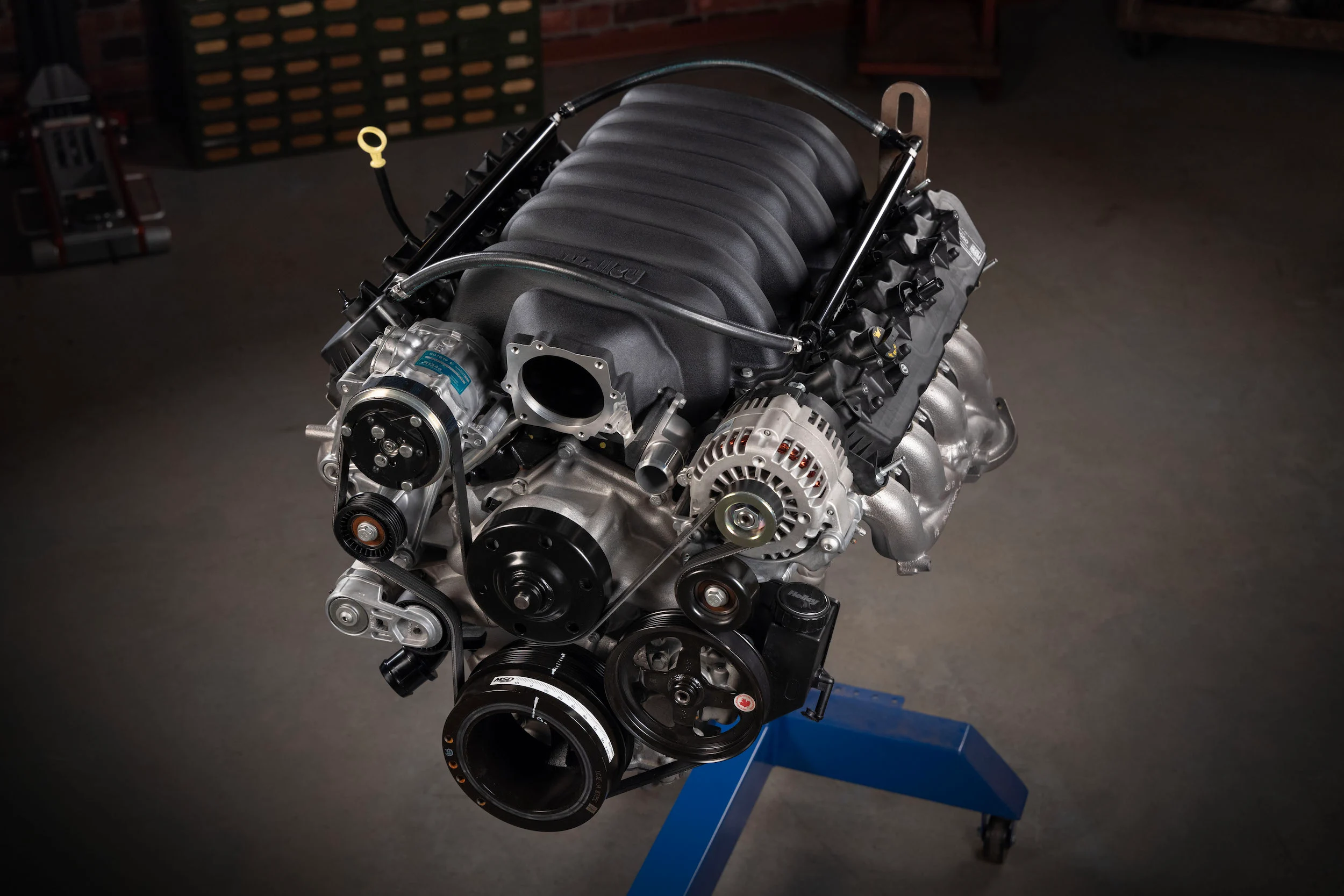

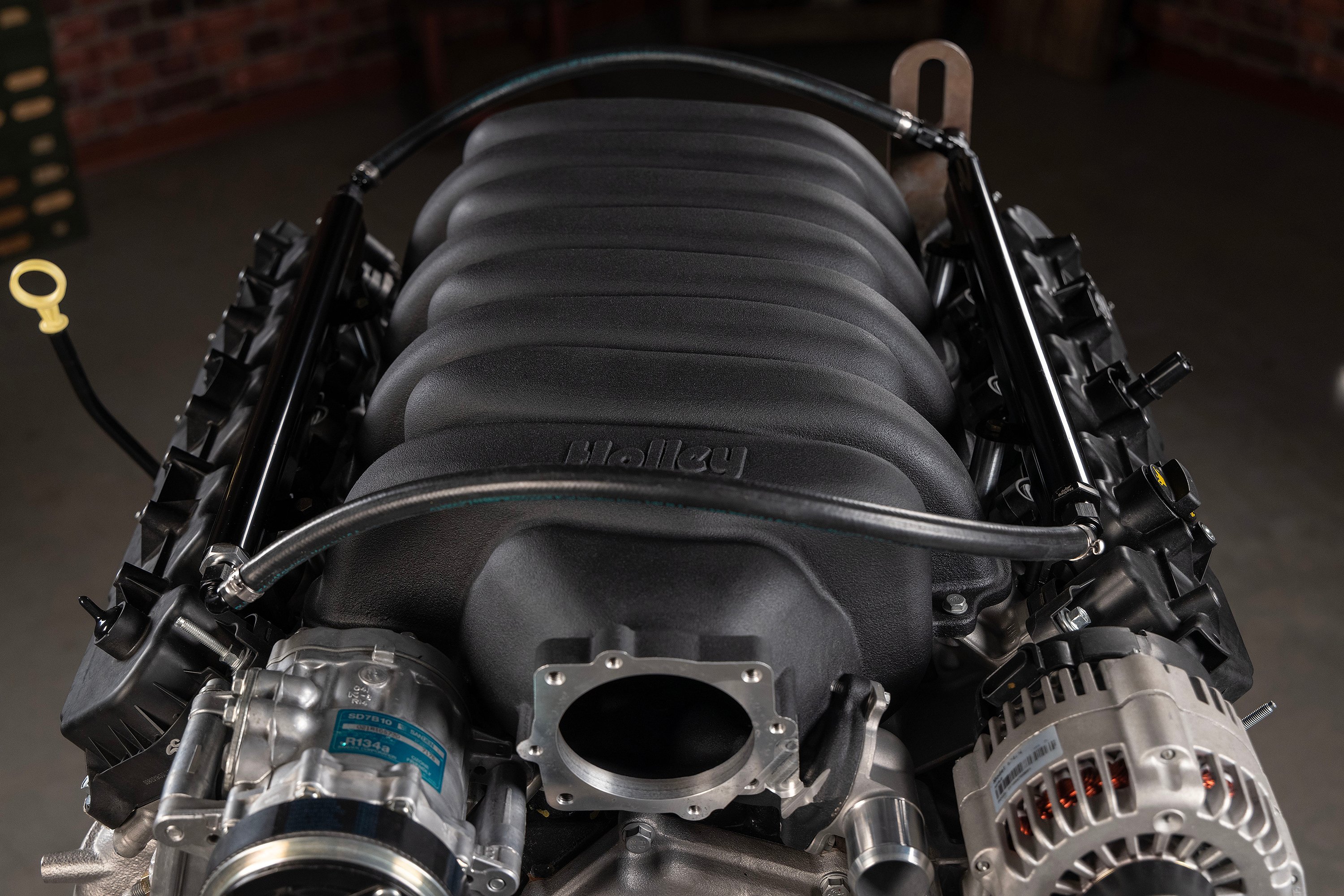

Fits Ford 7.3L Godzilla Engine
Features

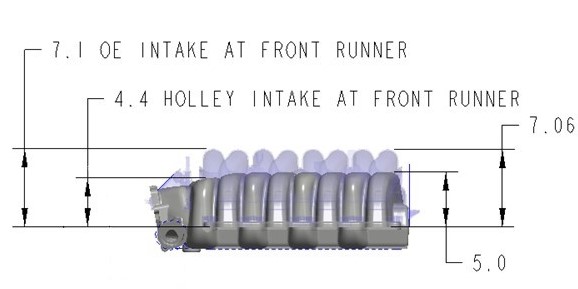

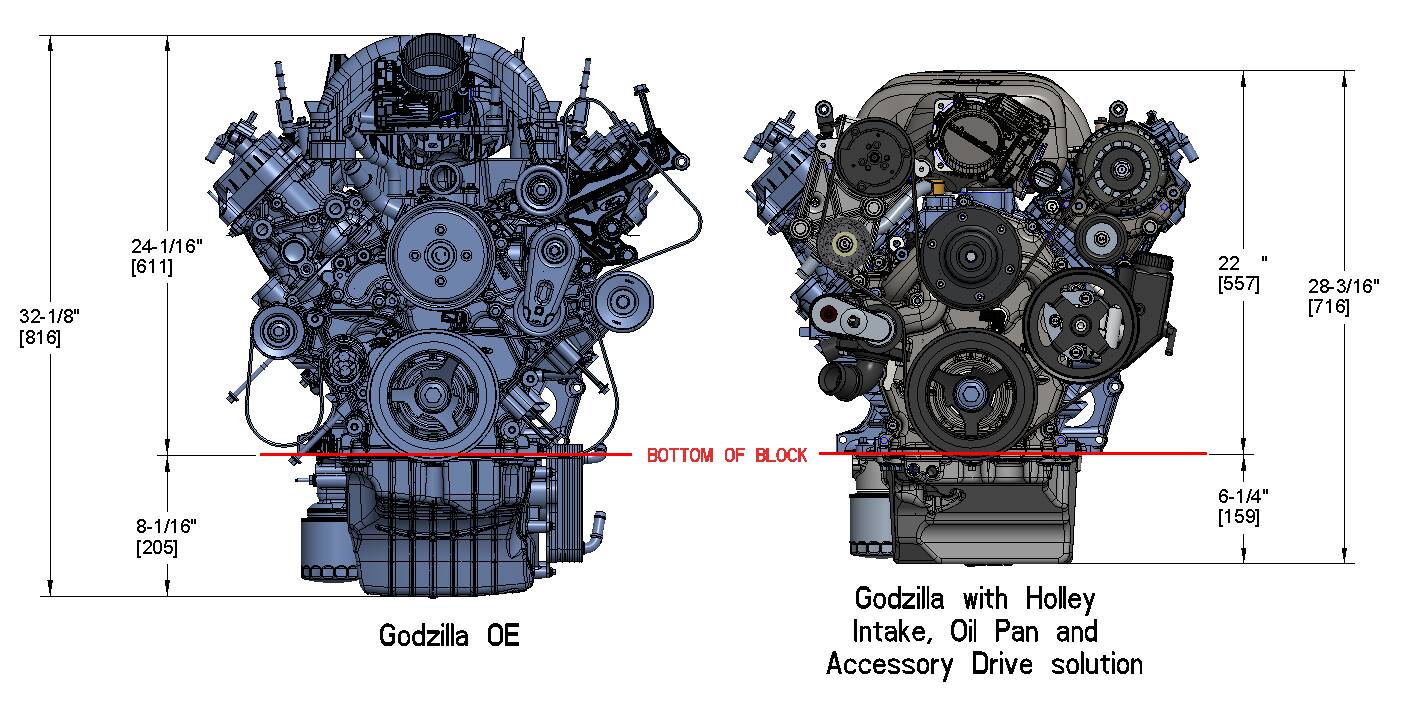

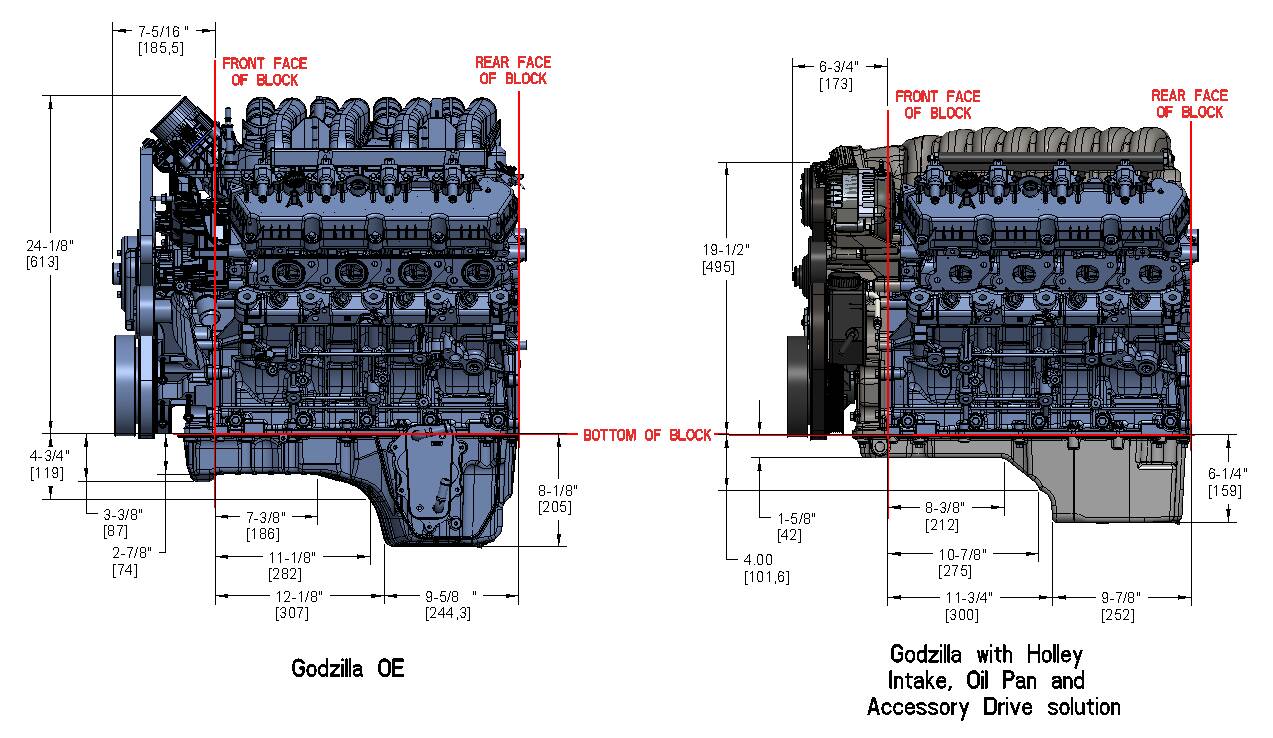

- Patent-pending design optimizes hood clearance for engine swap applications with gains ranging from 2 to 3.5-inches
- Robust cast aluminum construction that will withstand high-boost turbocharger and supercharger applications
- Runner design optimizes horsepower and torque in upper RPM range, especially when engine is allowed to breathe with better components (throttle body, cam, etc.)
- Three throttle body options to choose from: OE 7.3L DBW, Fox Body cable driven style, 2020-2023 GT500 (requires part # 300-903)

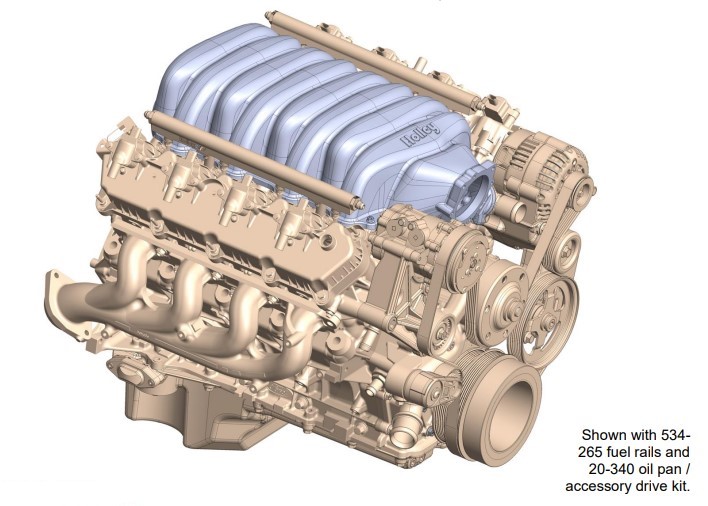

- Perfect complement to Holley’s Godzilla Accessory Drive and Oiling System (20-320 / 20-320BK / 20-340 / 20-340BK) for fitment into tight engine bays

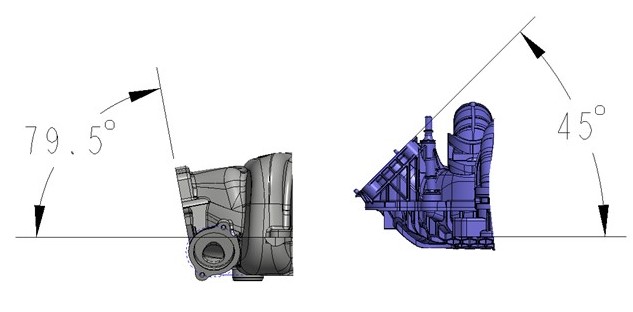

- Corrects OE throttle body flange angle by 55 degrees for significantly improved clearance and intake pipe routing

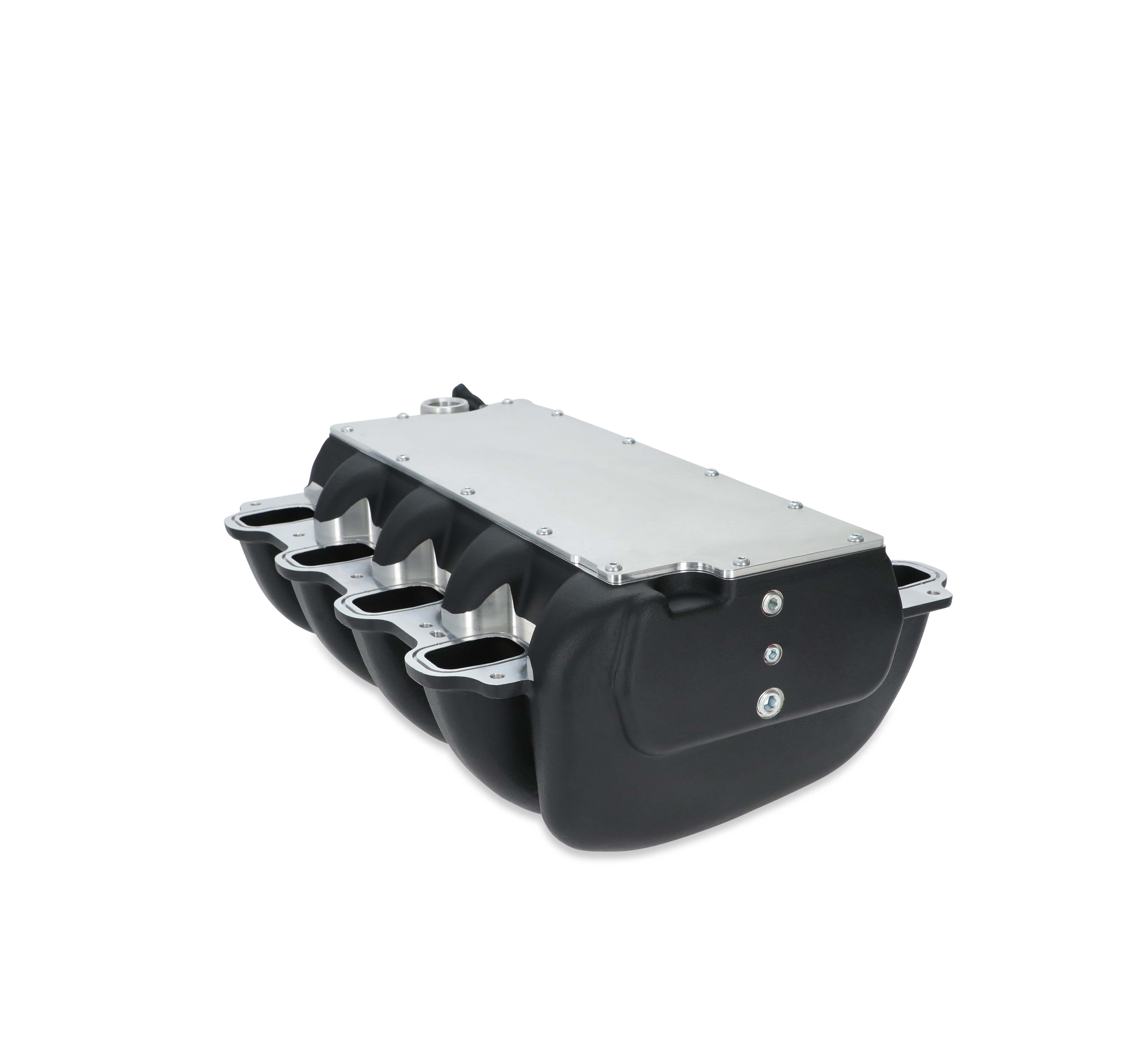

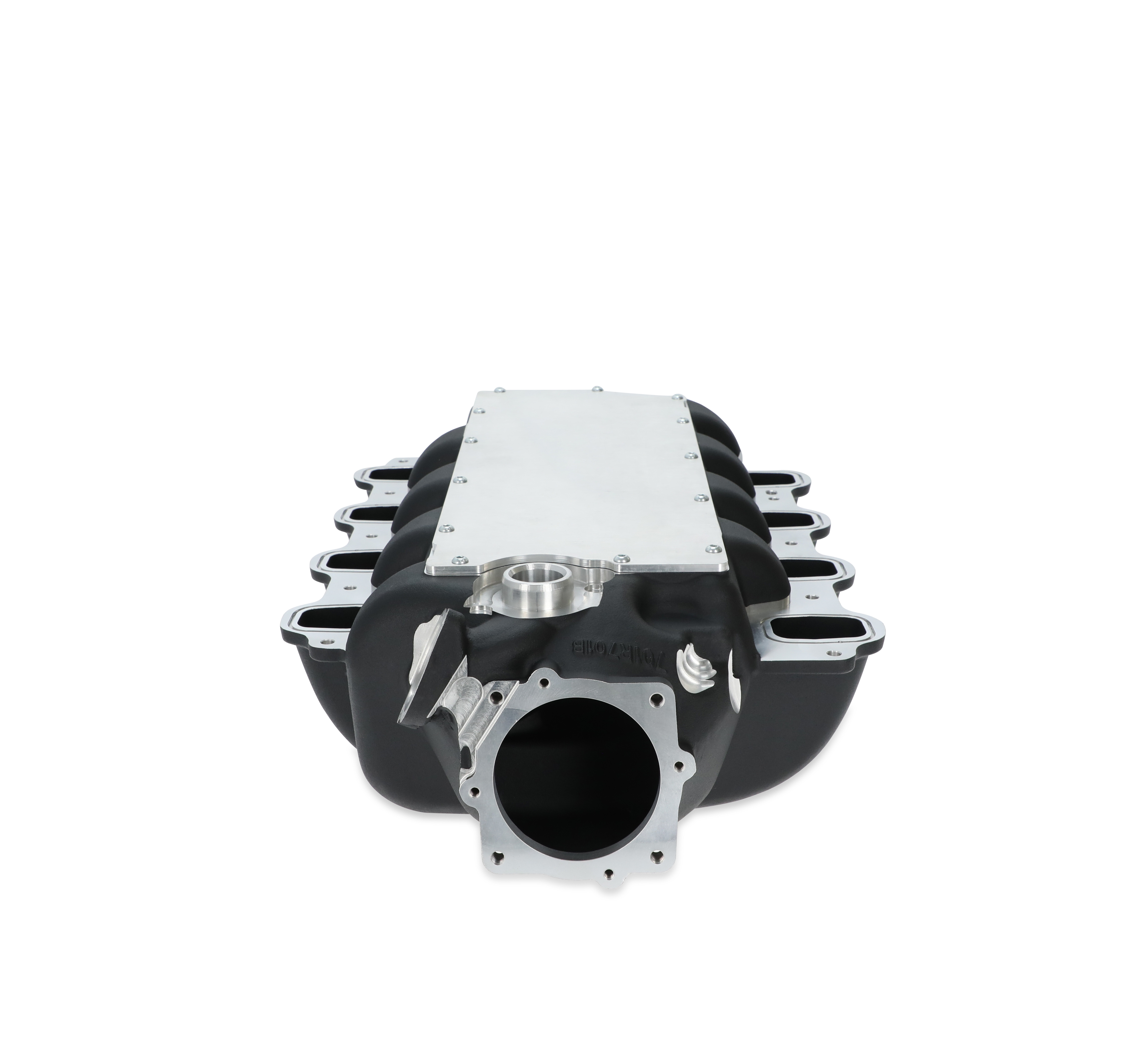

- Removable lower intake panel that can be removed for additional porting, nitrous, etc
- Includes 3/8 NPT, 1/4 NPT and 1/8 NPT vacuum ports at rear of manifold

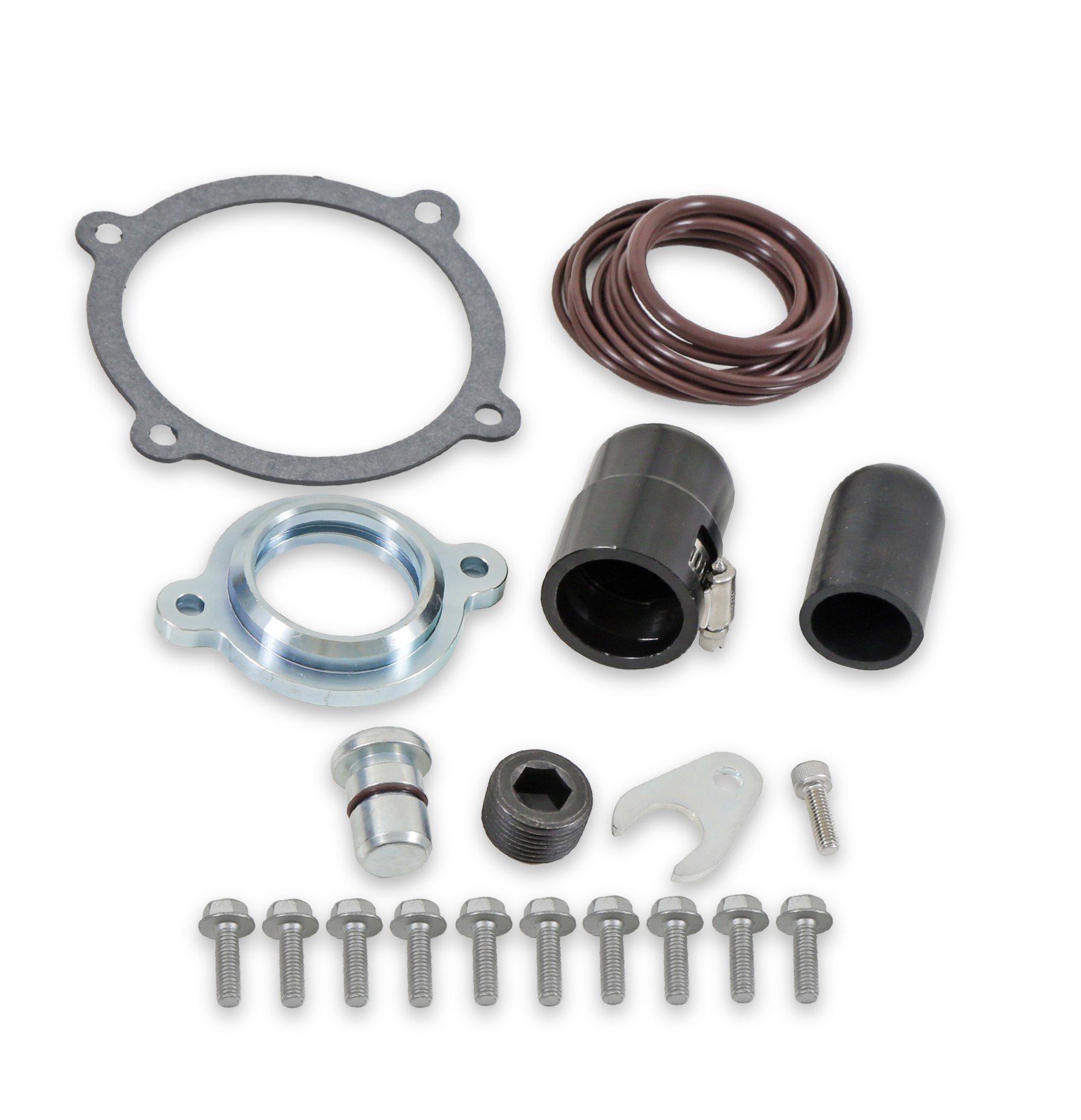

- Includes throttle body gasket and all necessary o-rings and adapters to mount to the engine
- Compatible with OE or Holley accesory drives and OE or Holley Fuel Rails
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Engine: Ford 7.3L Godzilla
Finish: Black Powdercoated
Warning: California Proposition 65
Category: Engine
EGR Port: No
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
part type: Engine Intake Manifold
Grade Type: Performance
Rear Height: 5.00 inch
Construction: Cast
Front Height: 3.625 inch
Product Type: Intake Manifold
Sub Category: Cylinder Block Components
Emission Code: 3
Manifold Type: Low-Profile
Plenum Finish: Black
Throttle Bore: 92mm
RPM Power Band: 2000-6500
Fuel System Type: EFI
Removable Runners: No
Rear Maximum Height: 5
Front Maximum Height: 3.625
Fuel Rail(s) Included: No
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: No
Nitrous Bung(s) Included: No
Basic Operating RPM Range: 2000-6500
Carburetor Studs Included: No
Single Or Dual Plane Type: Single Plane
Intake Port Gasket(s) Included: No
PDFs
PDFs
68b25e87411c8.pdf
(749.1 KB)
