Holley Hi-Ram EFI Intake Manifold Kit - Small Block Chevy
SKU
HTPD-300-950
List price
$1,124.95
Price
$999.95
Description

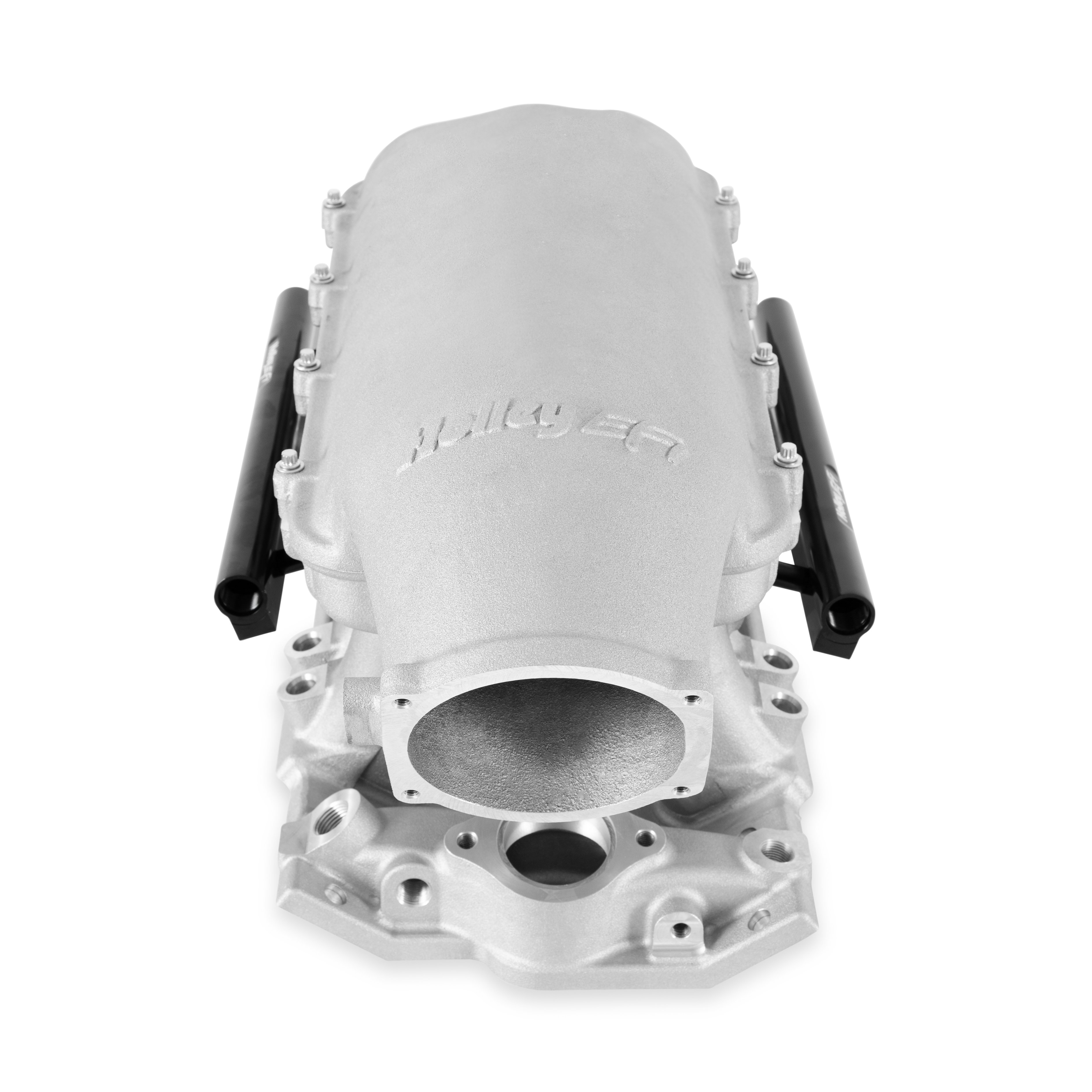

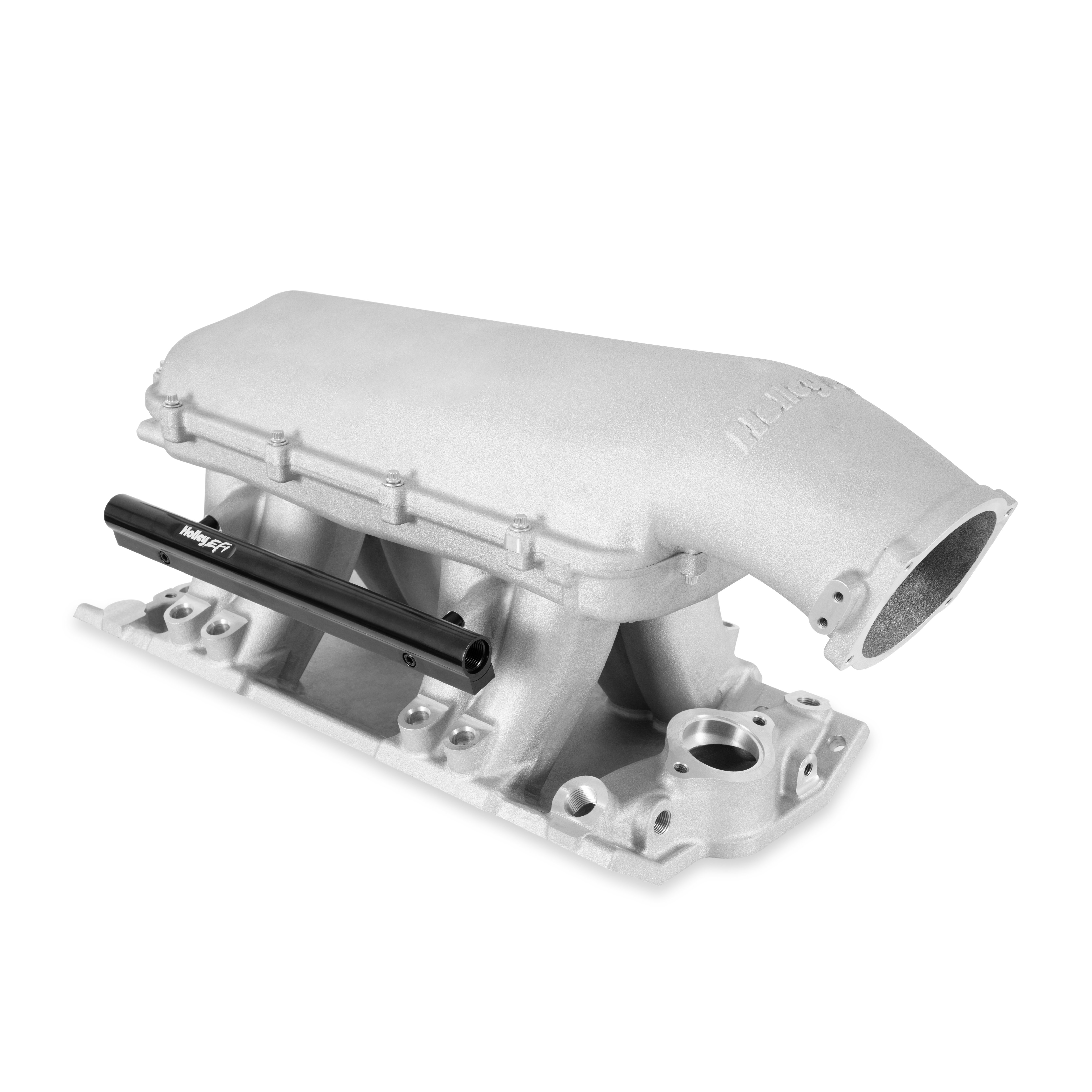

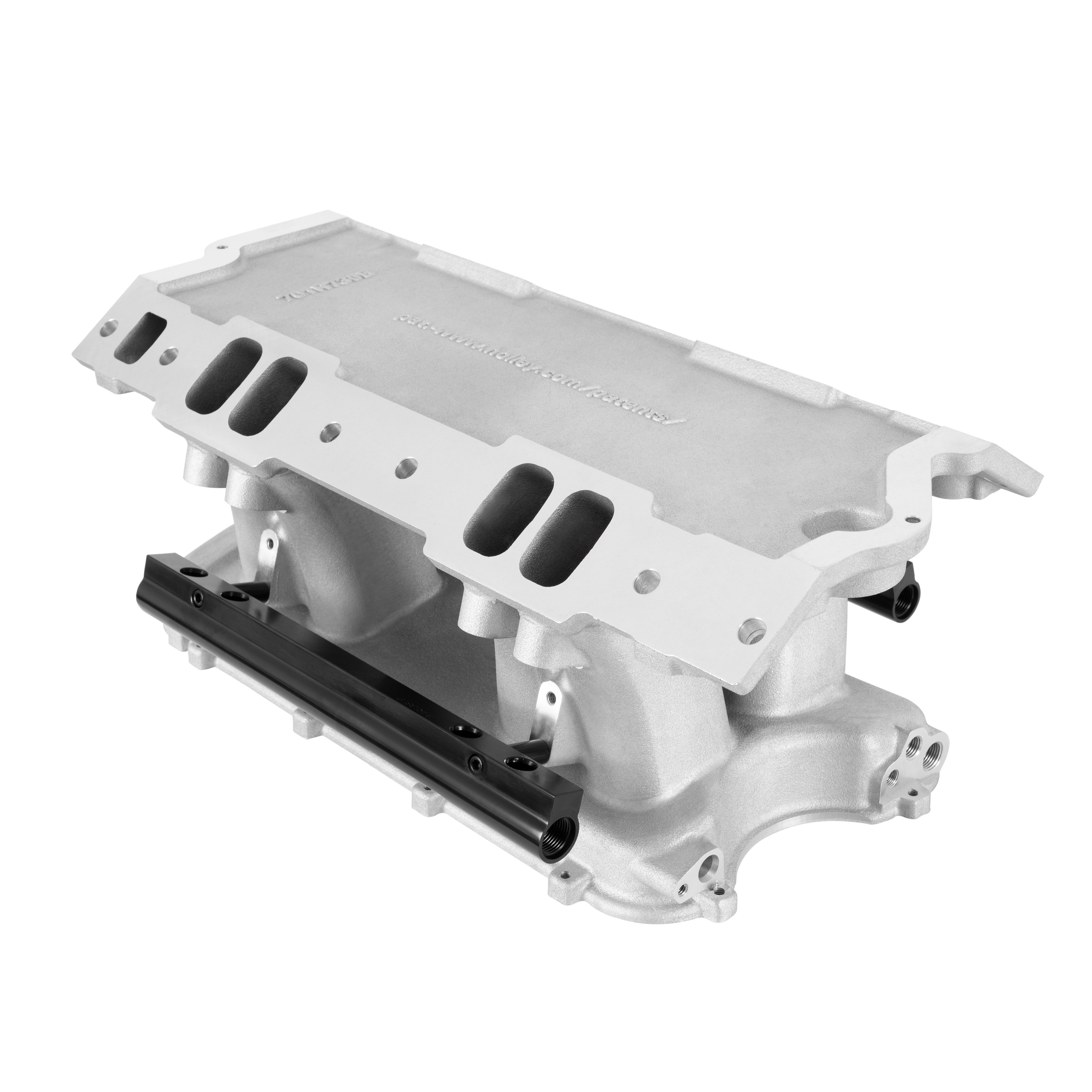

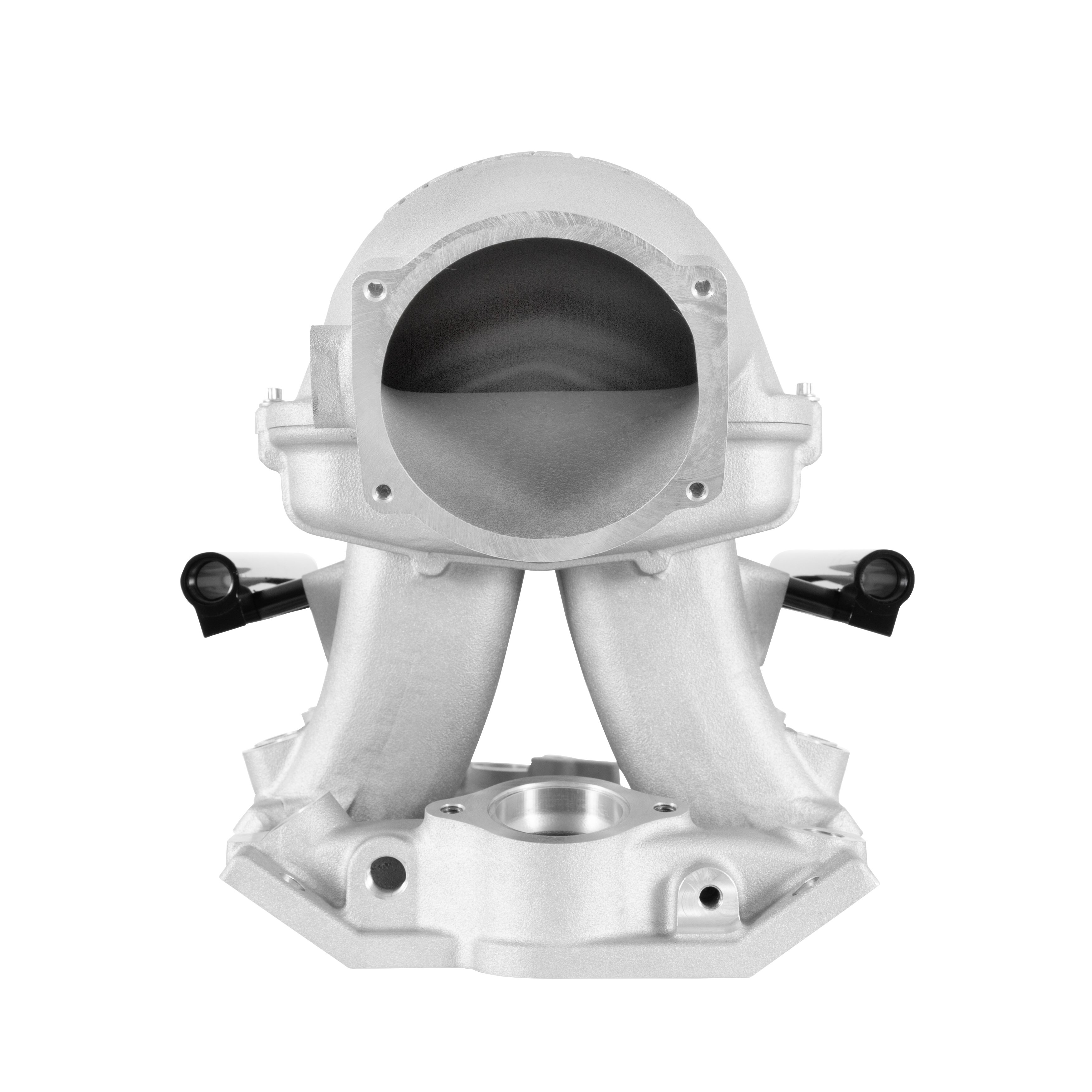

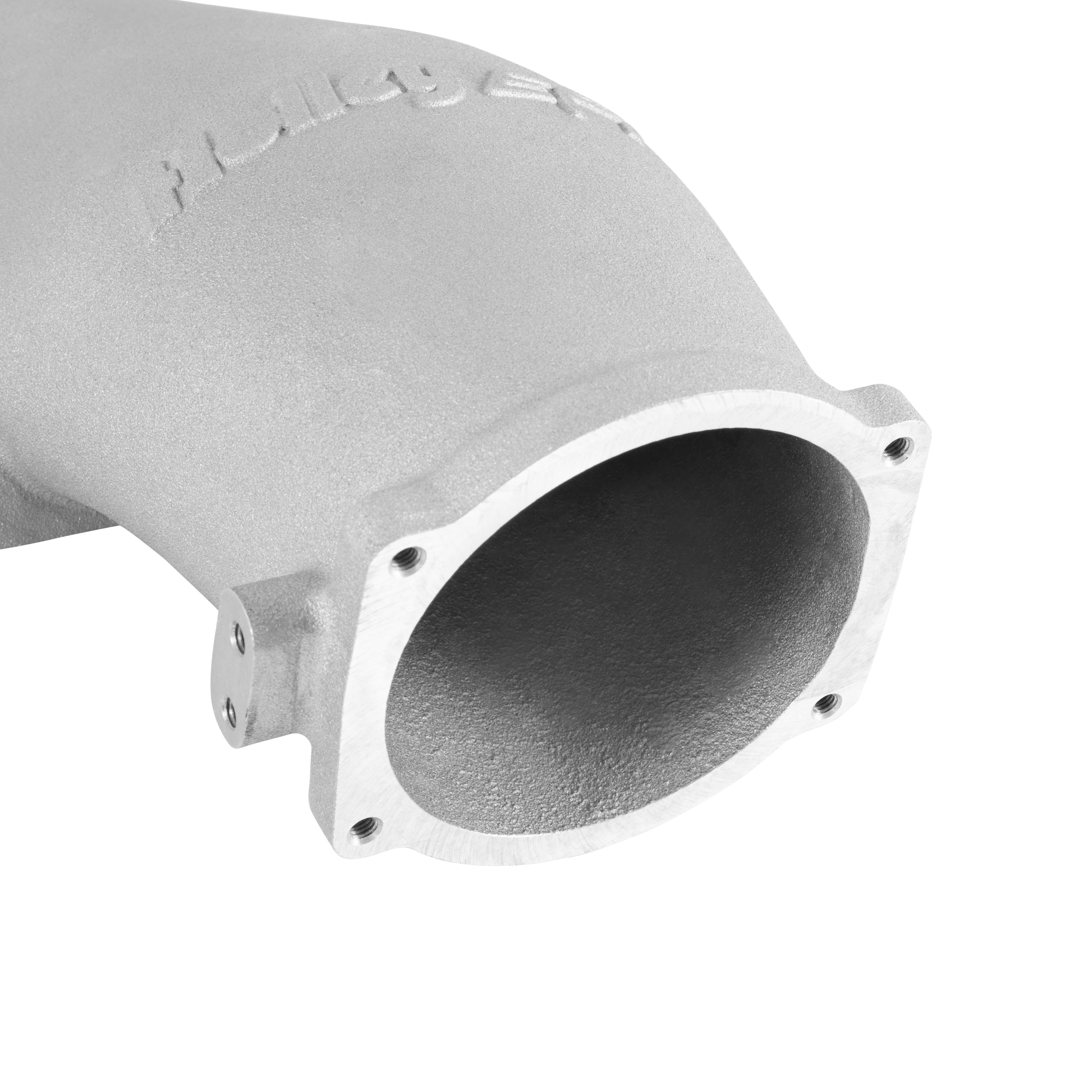

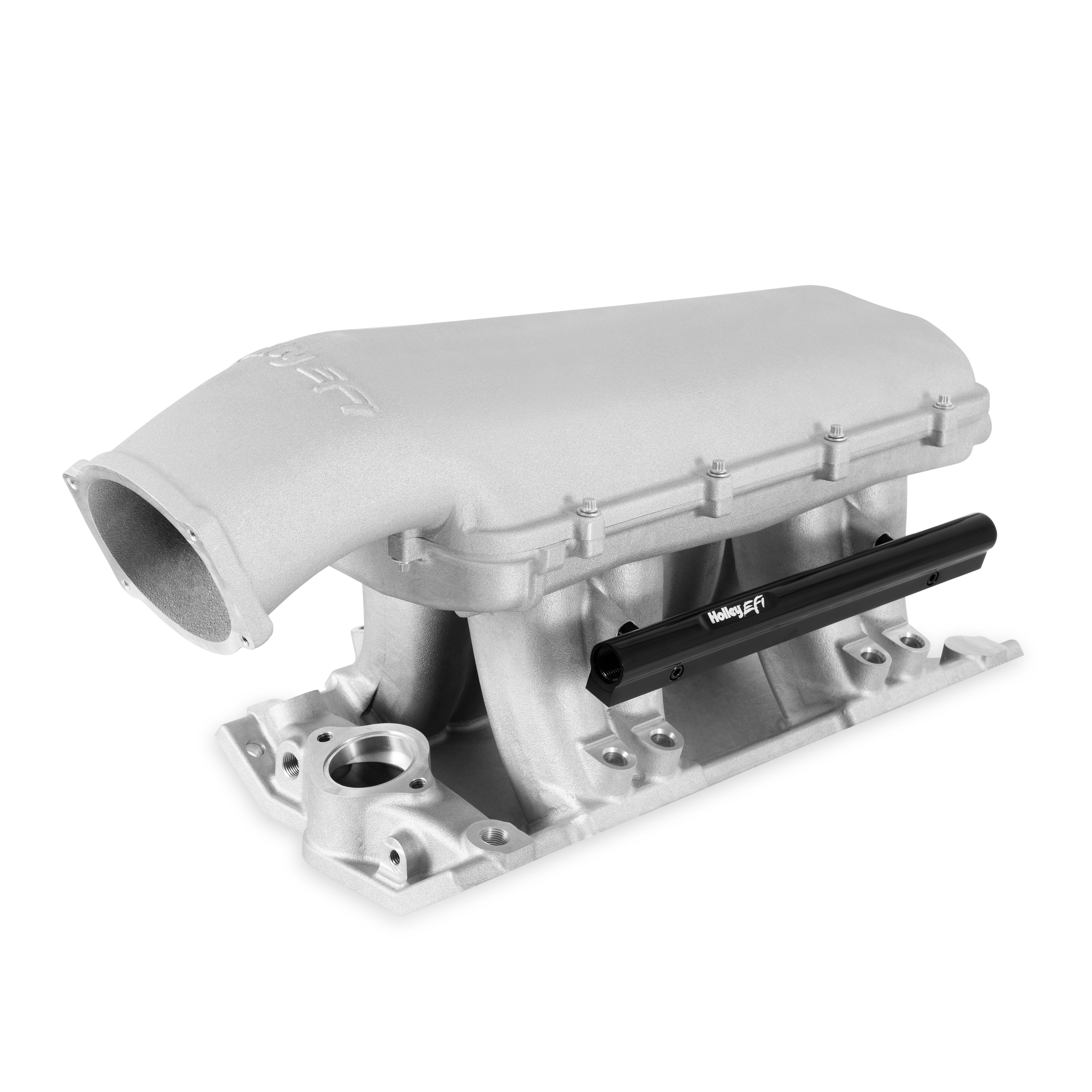

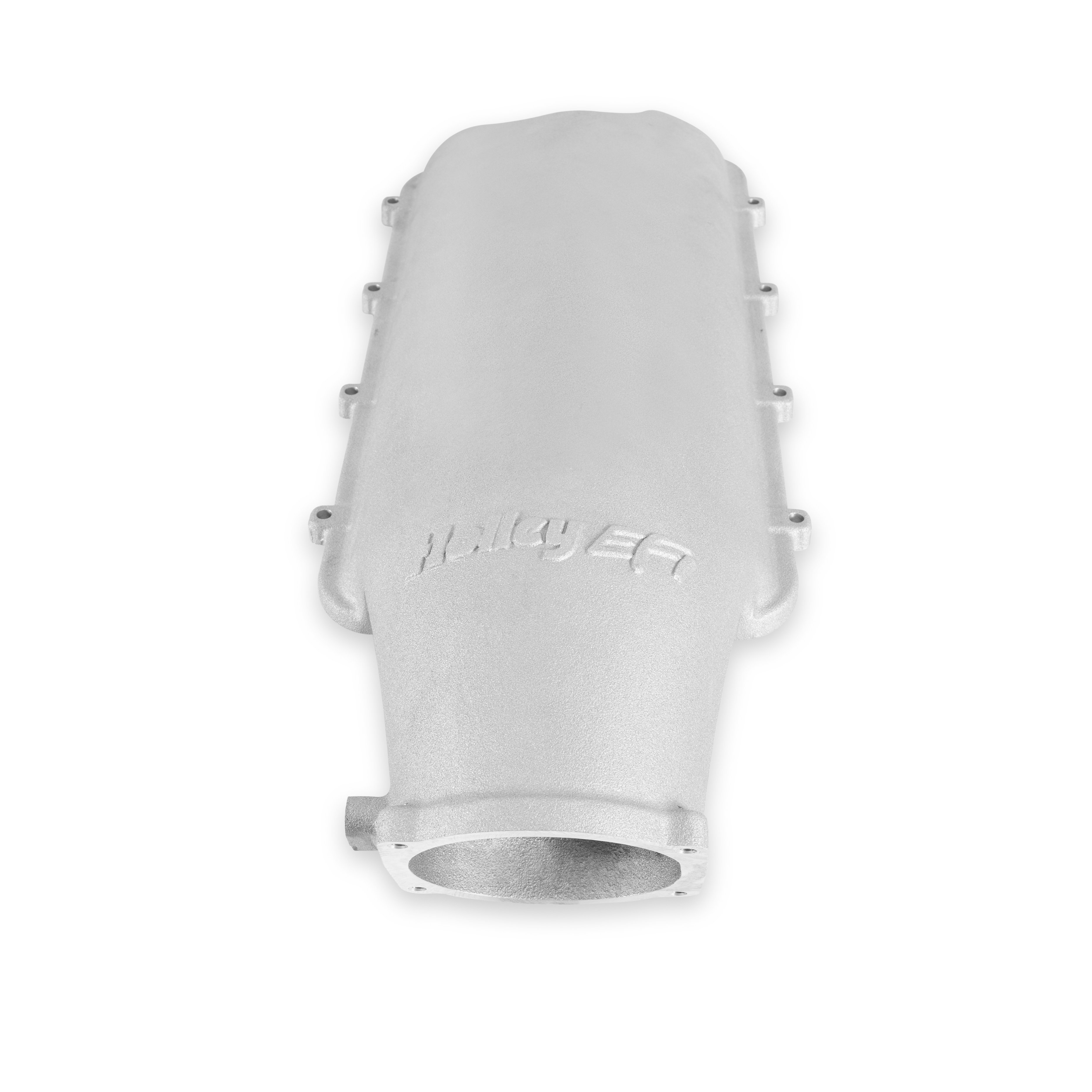

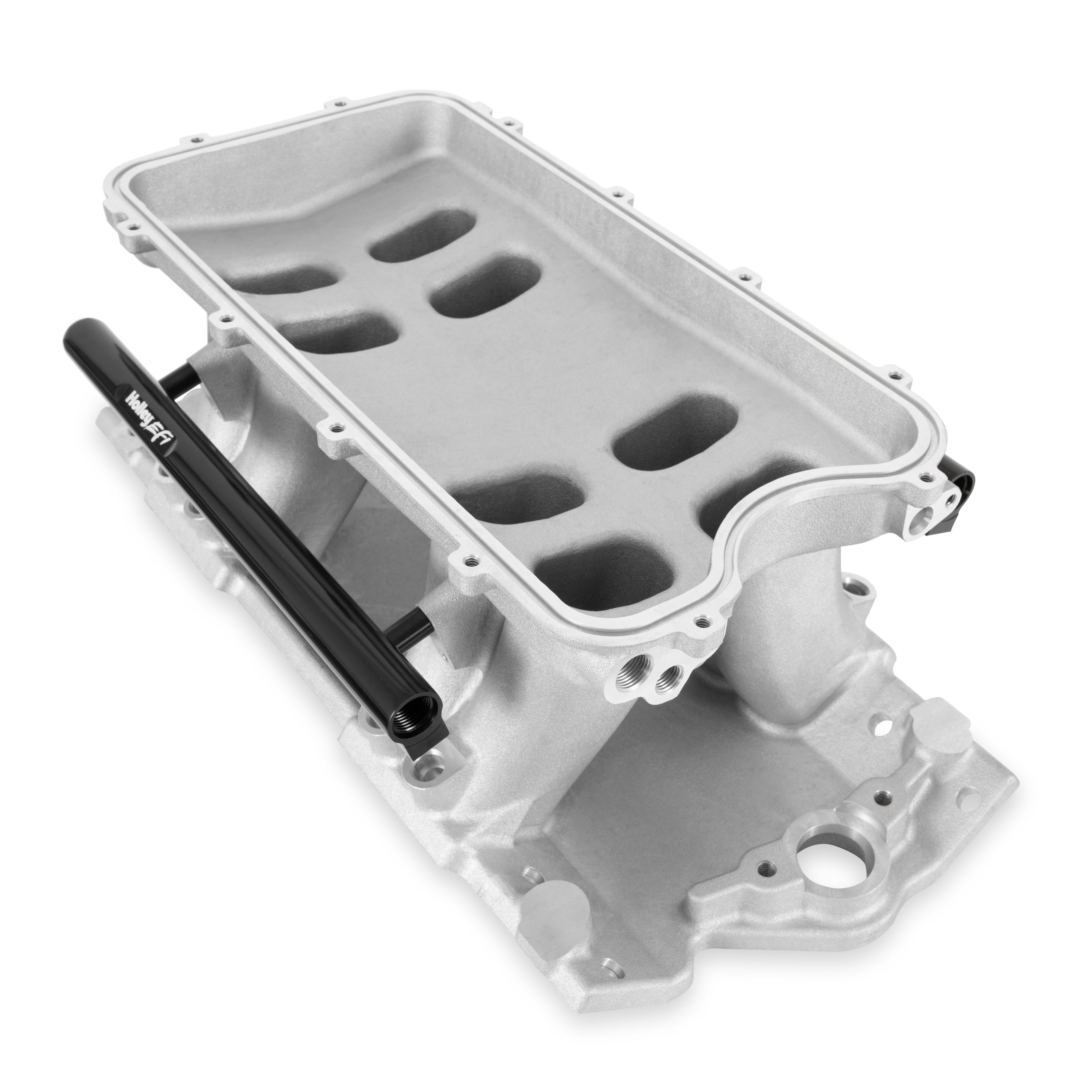

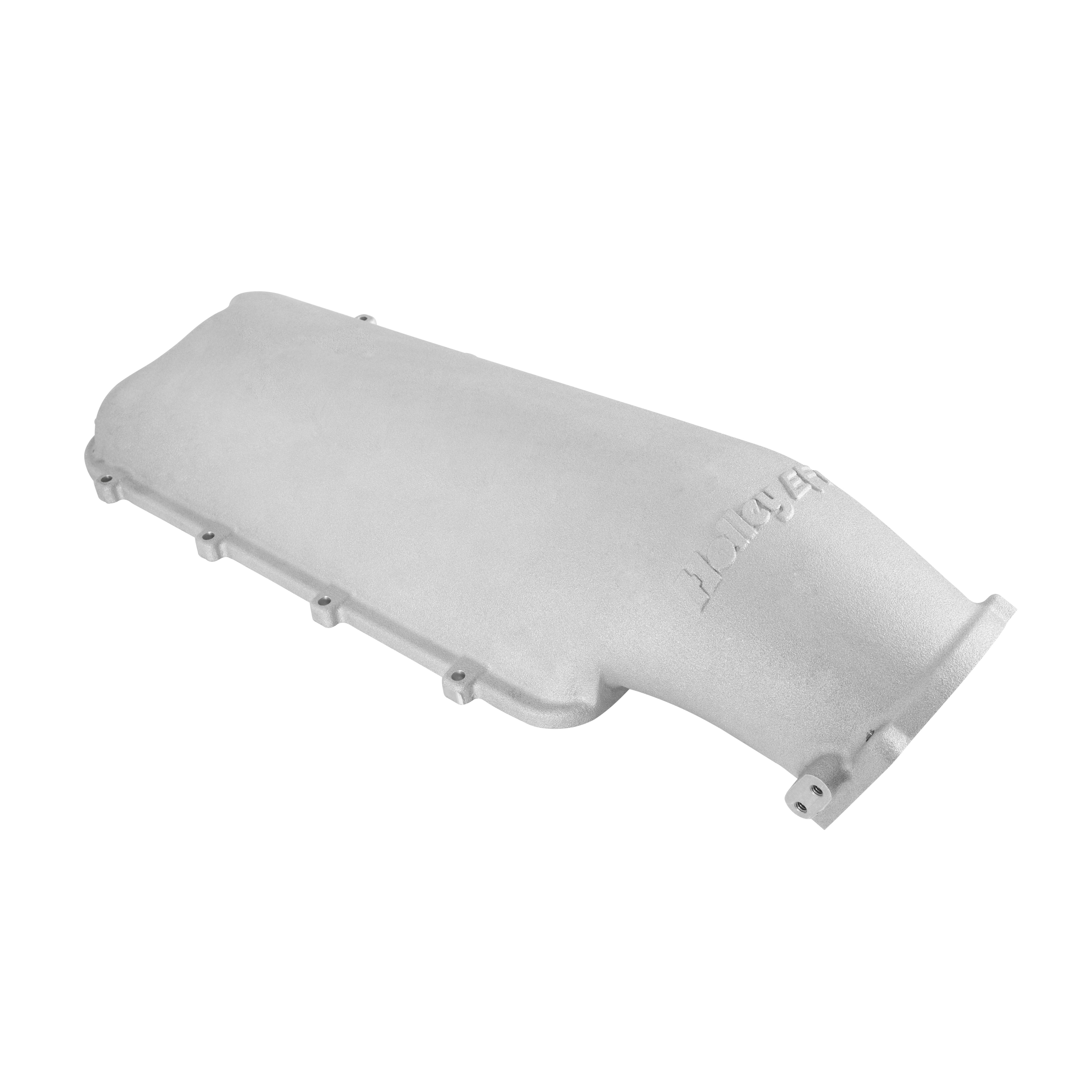

Small block Chevy Hi-Ram intake manifold with 105mm LS throttle body flange plenum top
Features
- The Small Block Chevy Hi-Ram manifold is available in either a traditional Hi-Ram 105mm plenum layout or with a hood-height friendly 95mm front-feed plenum layout
- Cost-effective alternative to fabricated sheet-metal or billet manifolds for high-performance applications where induction system height is not limited
- Designed for 1955-86 265-400 Gen 1 Chevy engines fitted with cylinder heads having a standard intake manifold flange configuration. Not designed for raised intake port, 18 degree, or L31 Vortec type cylinder heads.
- Uses drive by wire or cable actuated GM Gen IV LS 4-bolt throttle bodies
- MAP sensor port is for a GM Gen IV LS MAP sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum
- The coolant outlet is a standard Small Block Chevy thermostat housing flange and (1) 1/2 NPT and (2) 3/8 NPT coolant ports are provided.
- Power Band: 1500-8000 RPM

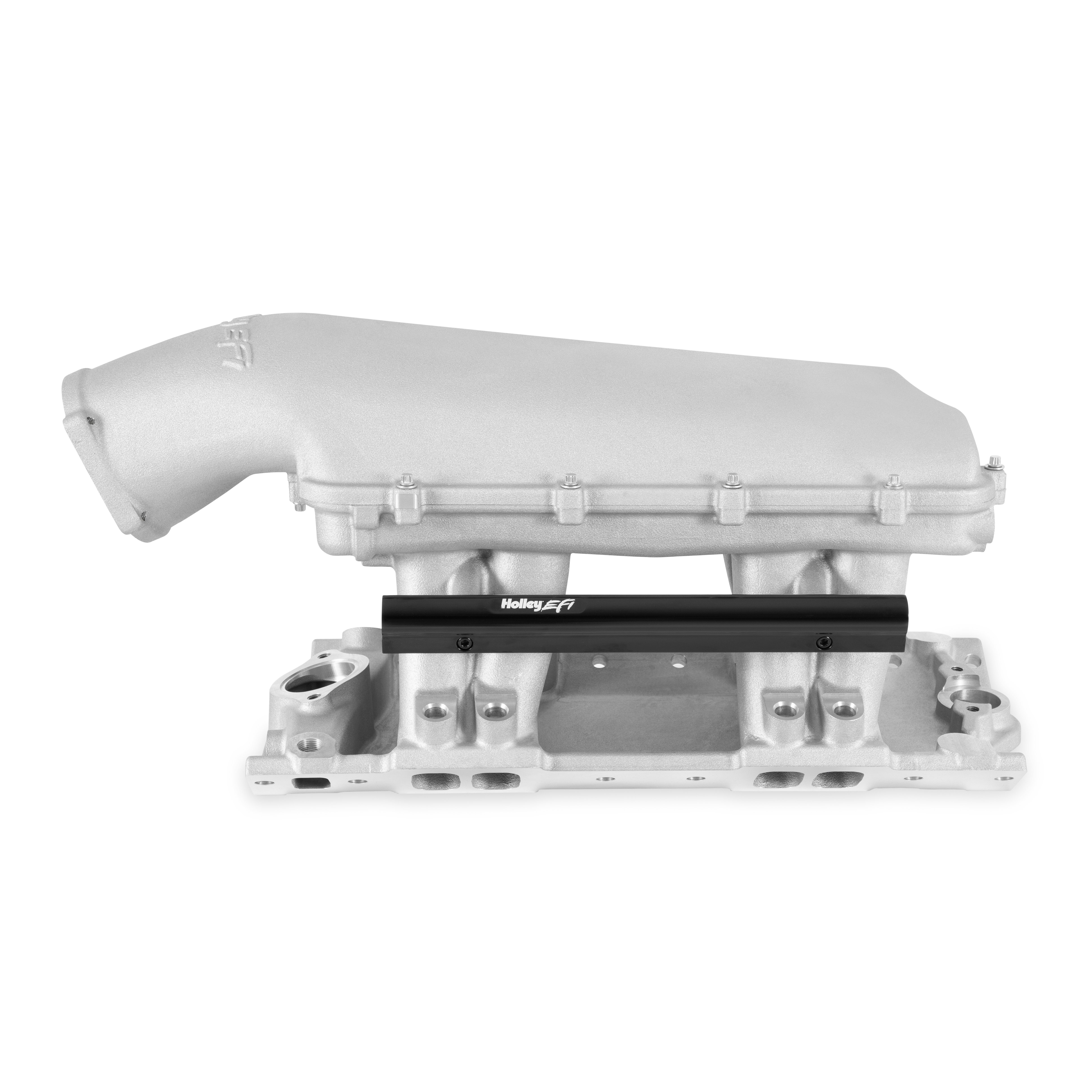

- Black anodized EFI fuel rails are machined for -8AN O-ring fittings and come included with the EFI Hi-Ram kits.

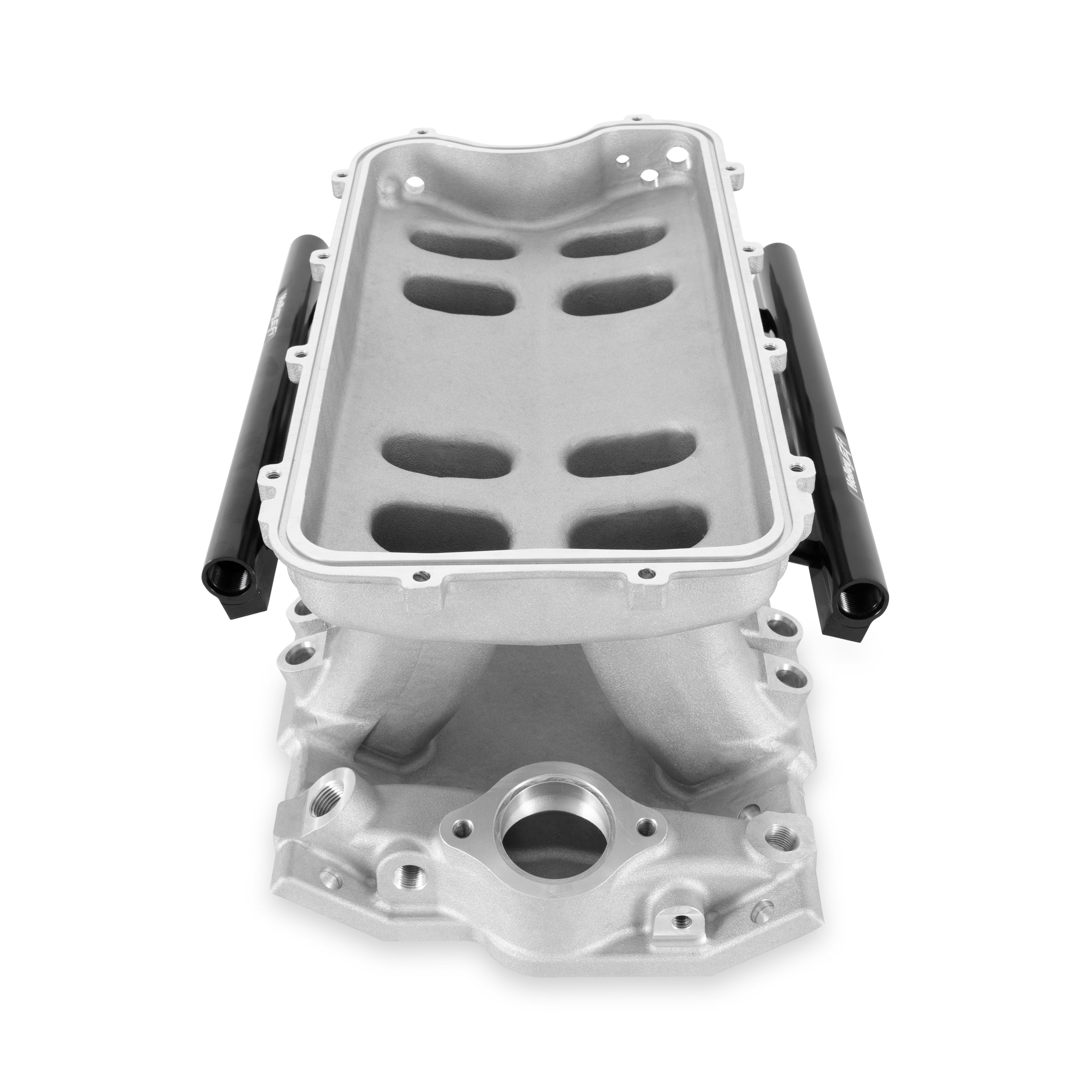

- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish
- Requires the use of early type GM or small cap MSD or Holley Distributors. Not compatible with HEI distributors

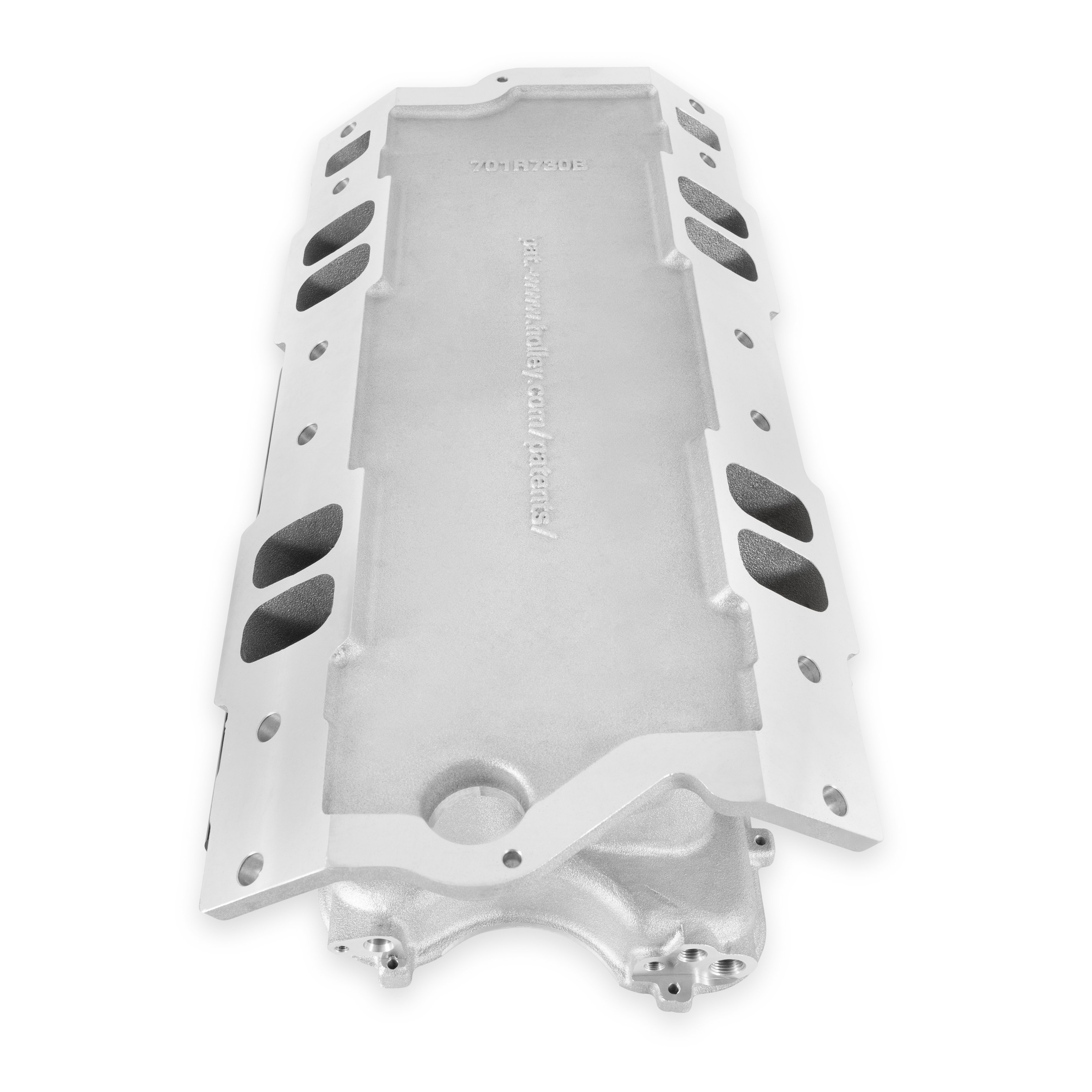

- 1.95” tall x 1.25” wide port flange openings, uses Mr. Gasket intake manifold gasket #5281

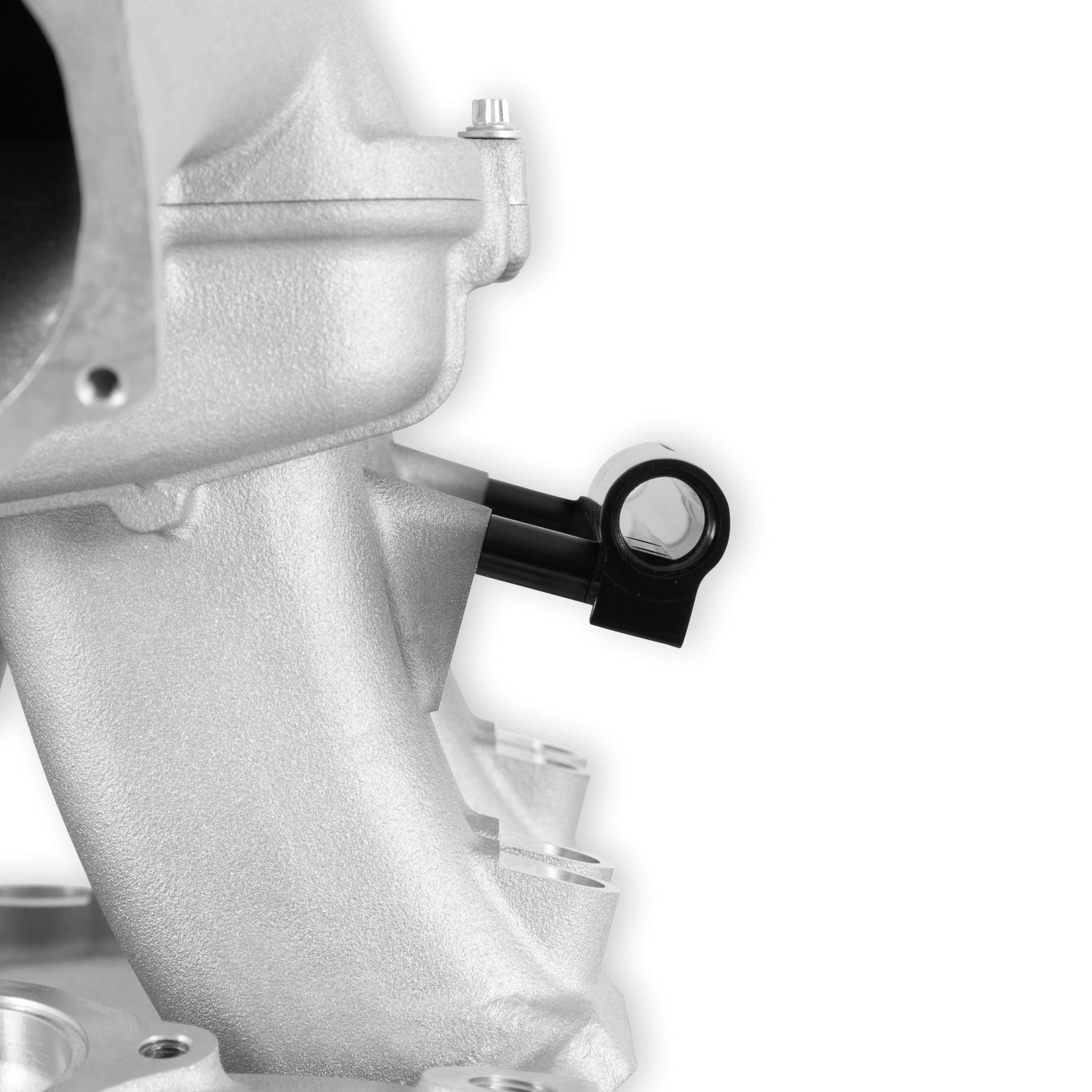

- Throttle Cable Bracket is supplied in the kit
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Color: Natural
Engine: Chevrolet Small Block Gen I
Finish: Natural
Warning: California Proposition 65
Category: Engine
EGR Port: No
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Port Size: 1.95 x 1.25
part type: Engine Intake Manifold
Grade Type: Performance
Construction: Cast
Product Type: Intake Manifold
Sub Category: Cylinder Block Components
Emission Code: 4
Manifold Type: Hi-Ram
Plenum Finish: Natural
Plenum Volume: 528
Throttle Bore: 105
RPM Power Band: 1500-8000
Fuel System Type: EFI
Removable Runners: No

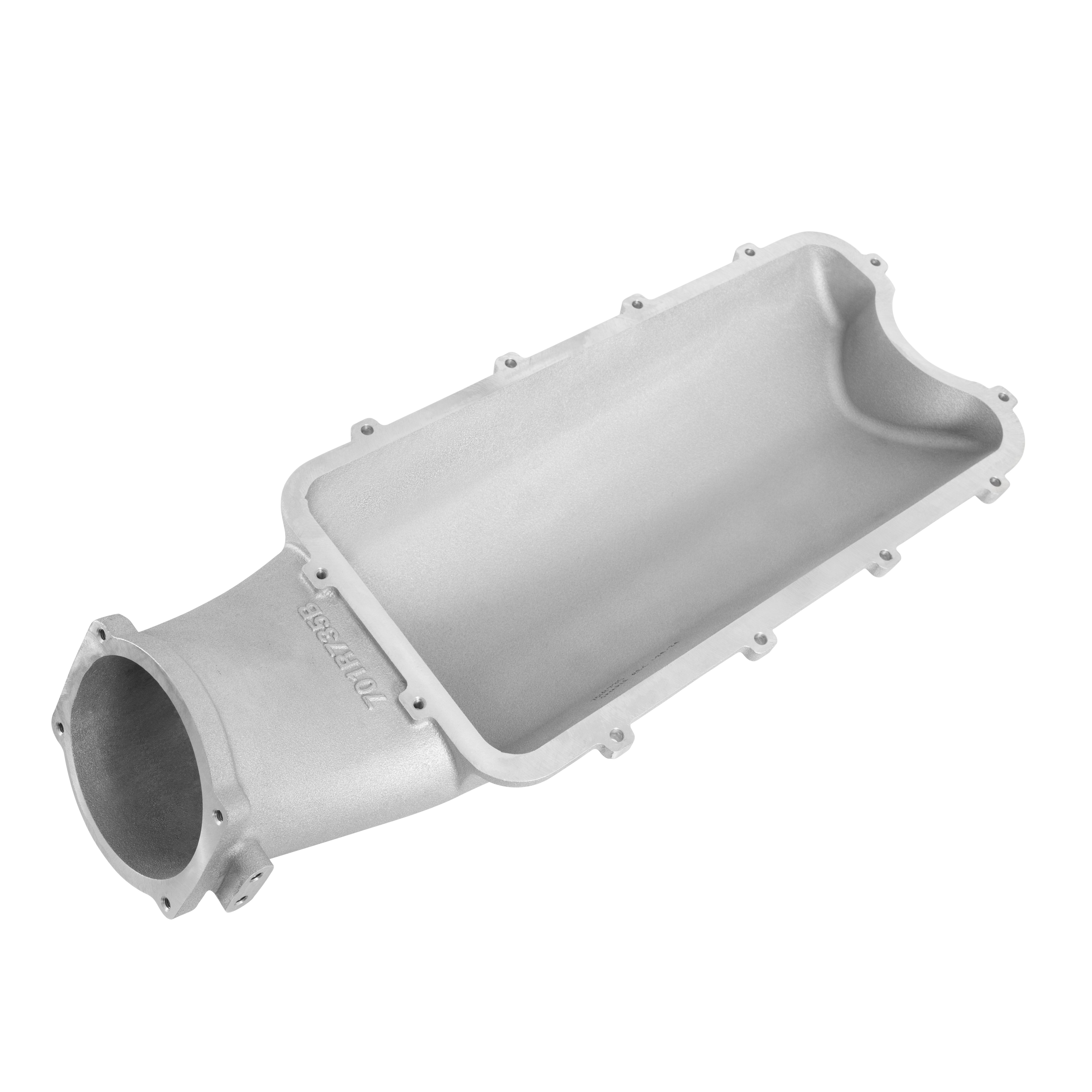

Removable Top/Lid: Yes

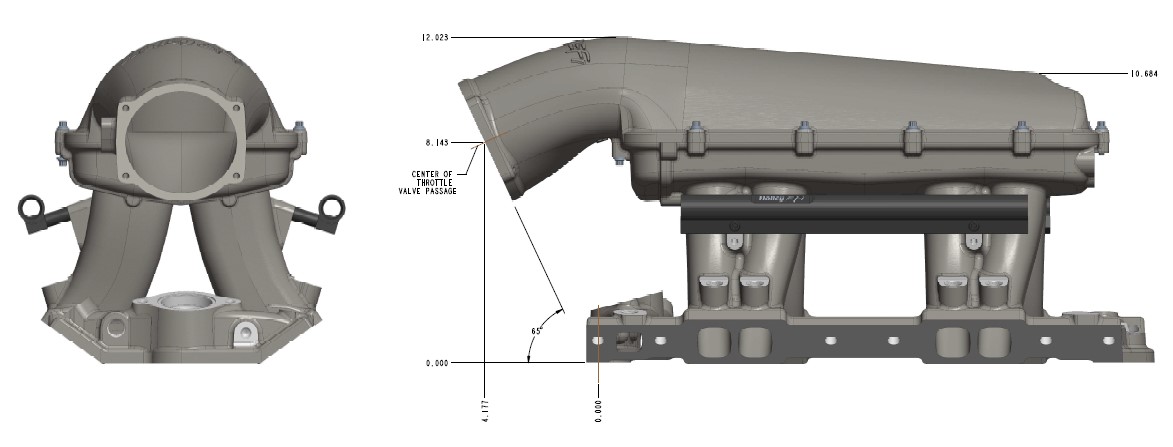

Rear Maximum Height: 10.69
Front Maximum Height: 12.023
Intake Runner Length: 6.35
Fuel Rail(s) Included: Yes
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: Yes
Nitrous Bung(s) Included: No
Single Or Dual Plane Type: Single Plane
