Holley Hi-Ram EFI Intake Manifold Kit - Big Block Chevy
SKU
HTPD-300-963
List price
$1,181.95
Price
$1,049.95
Description

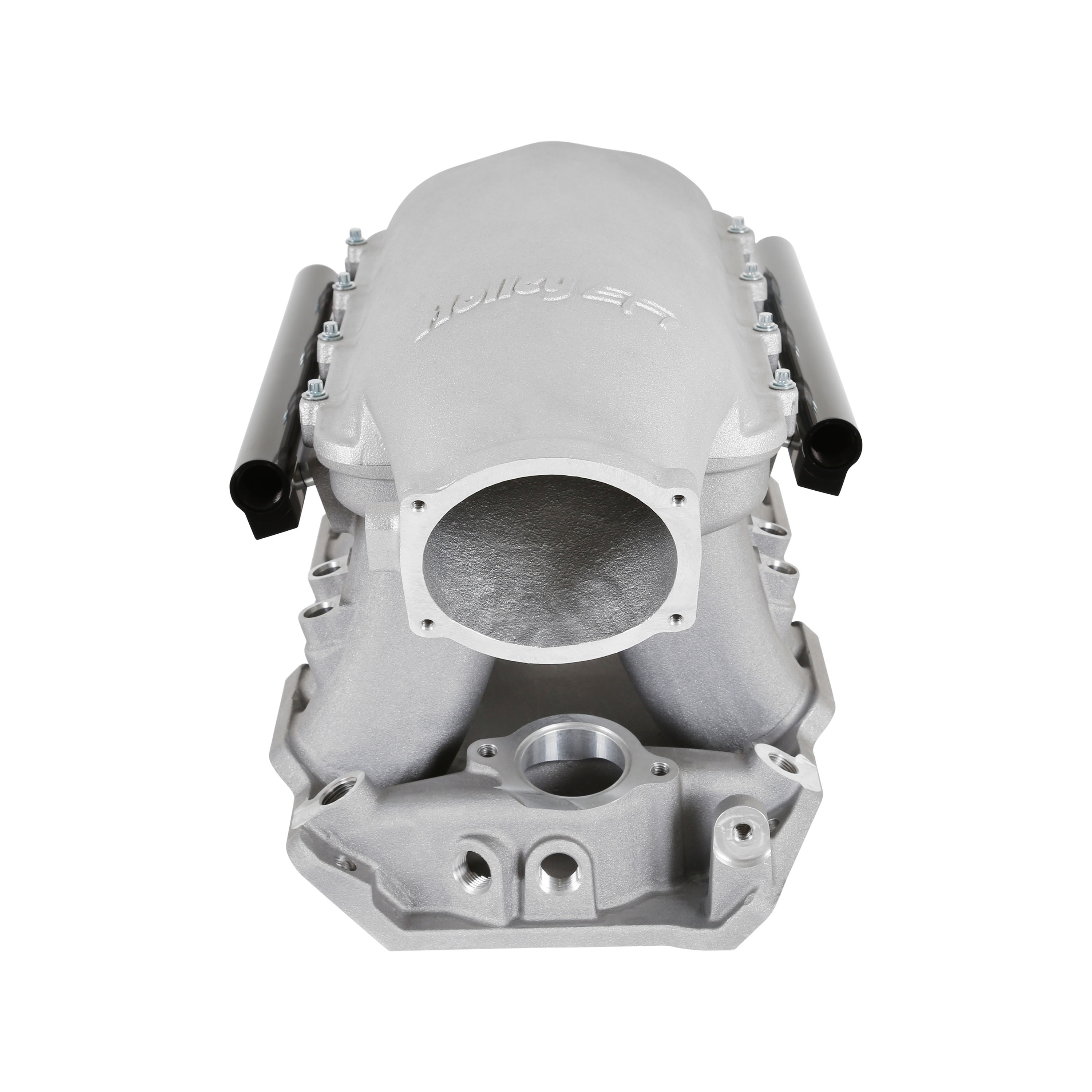

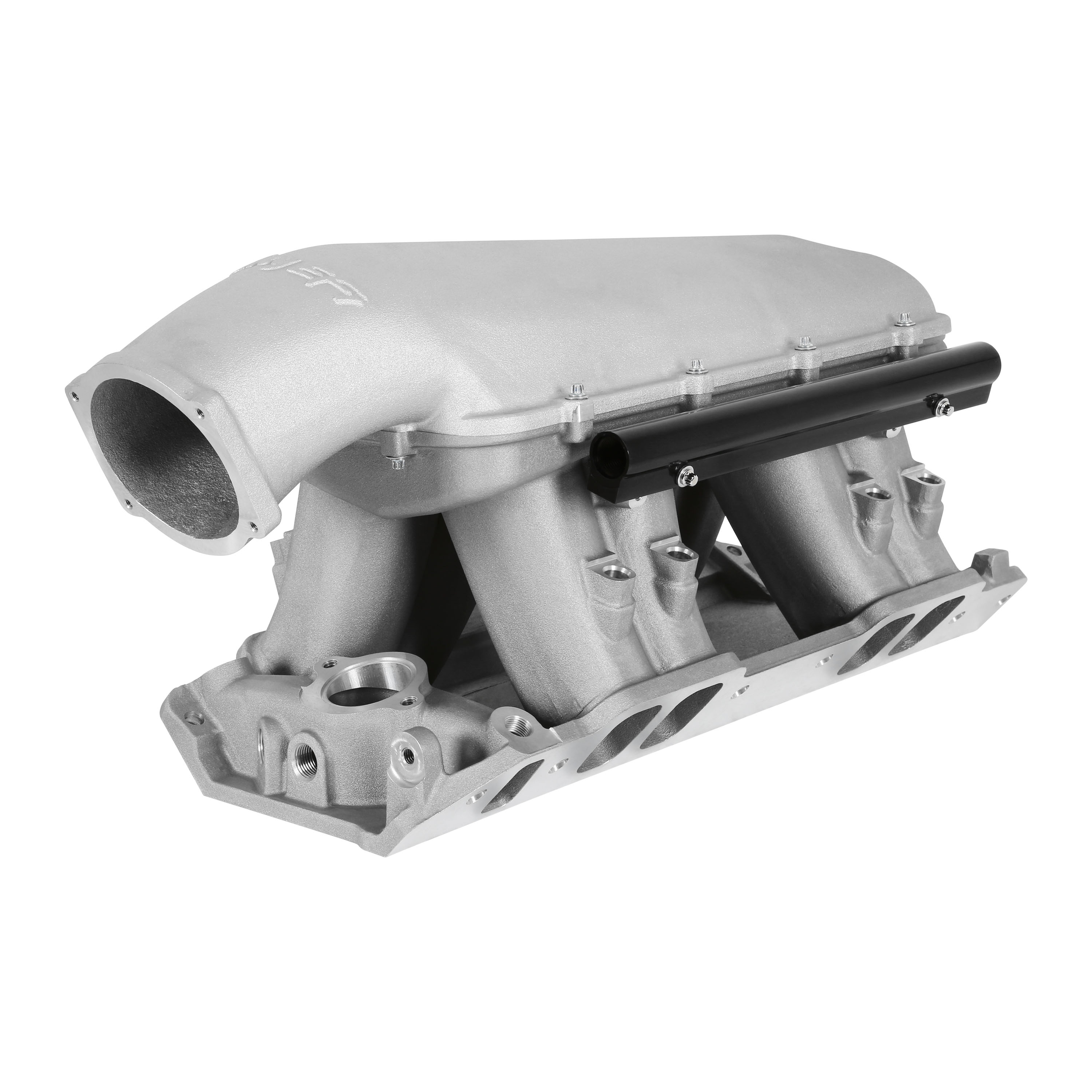

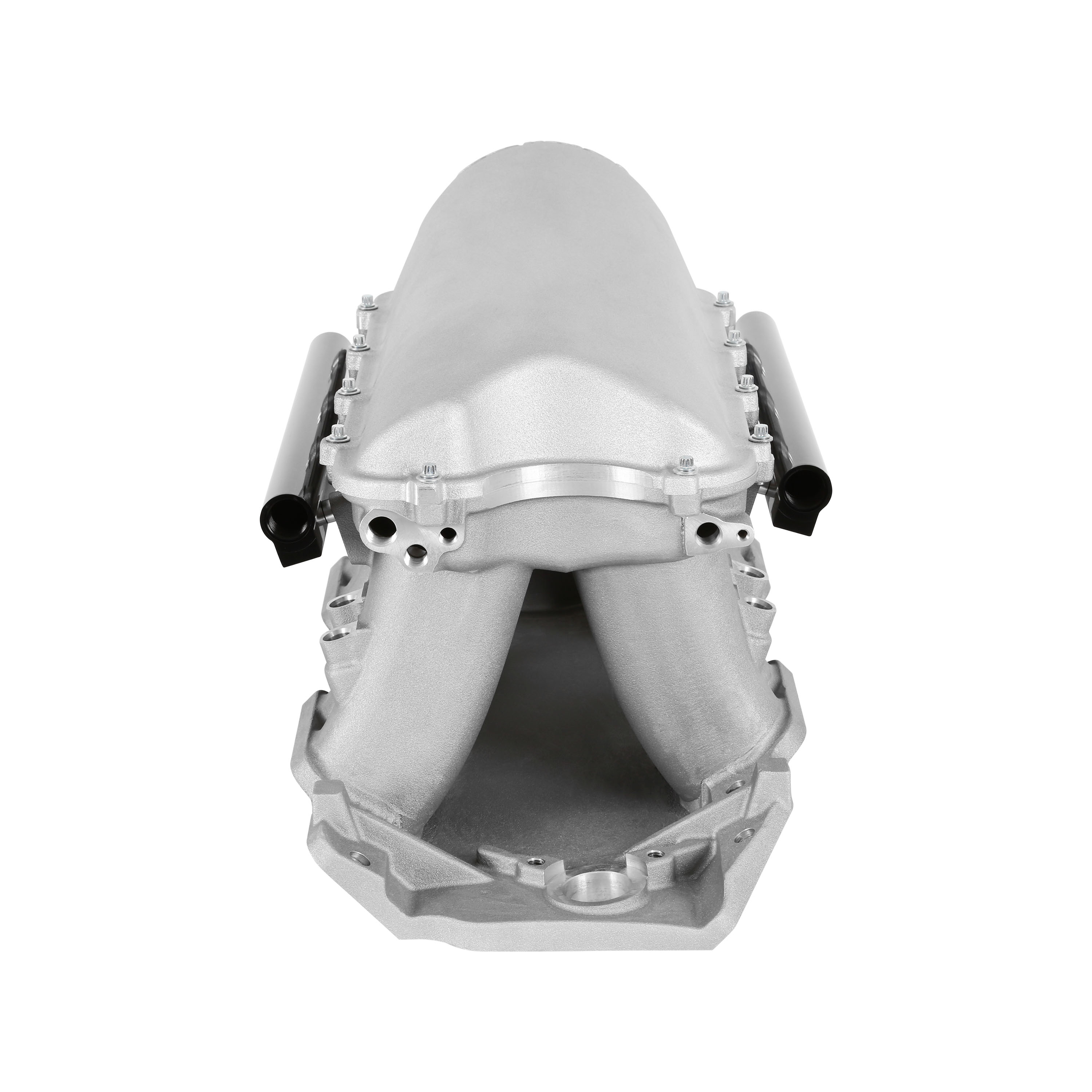

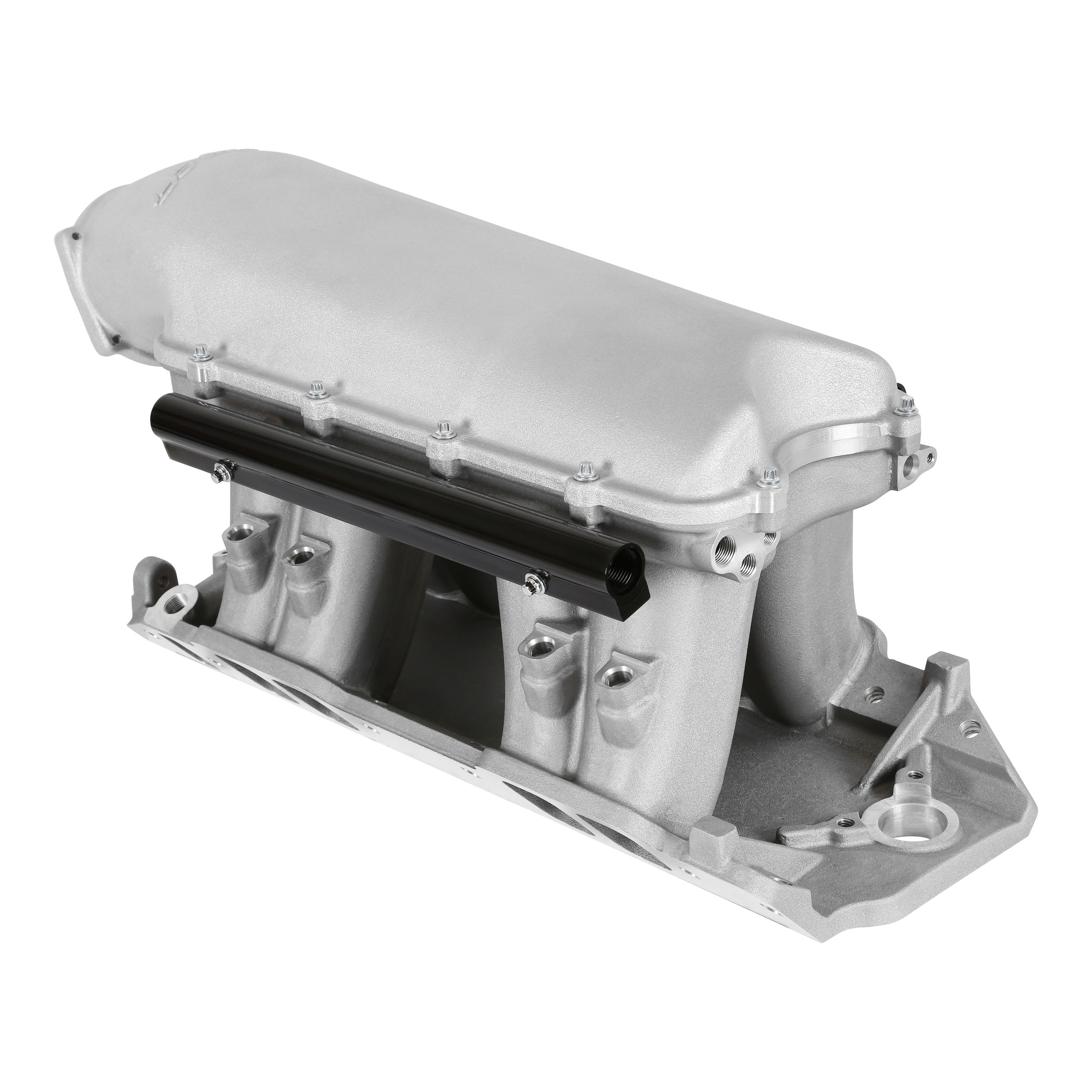

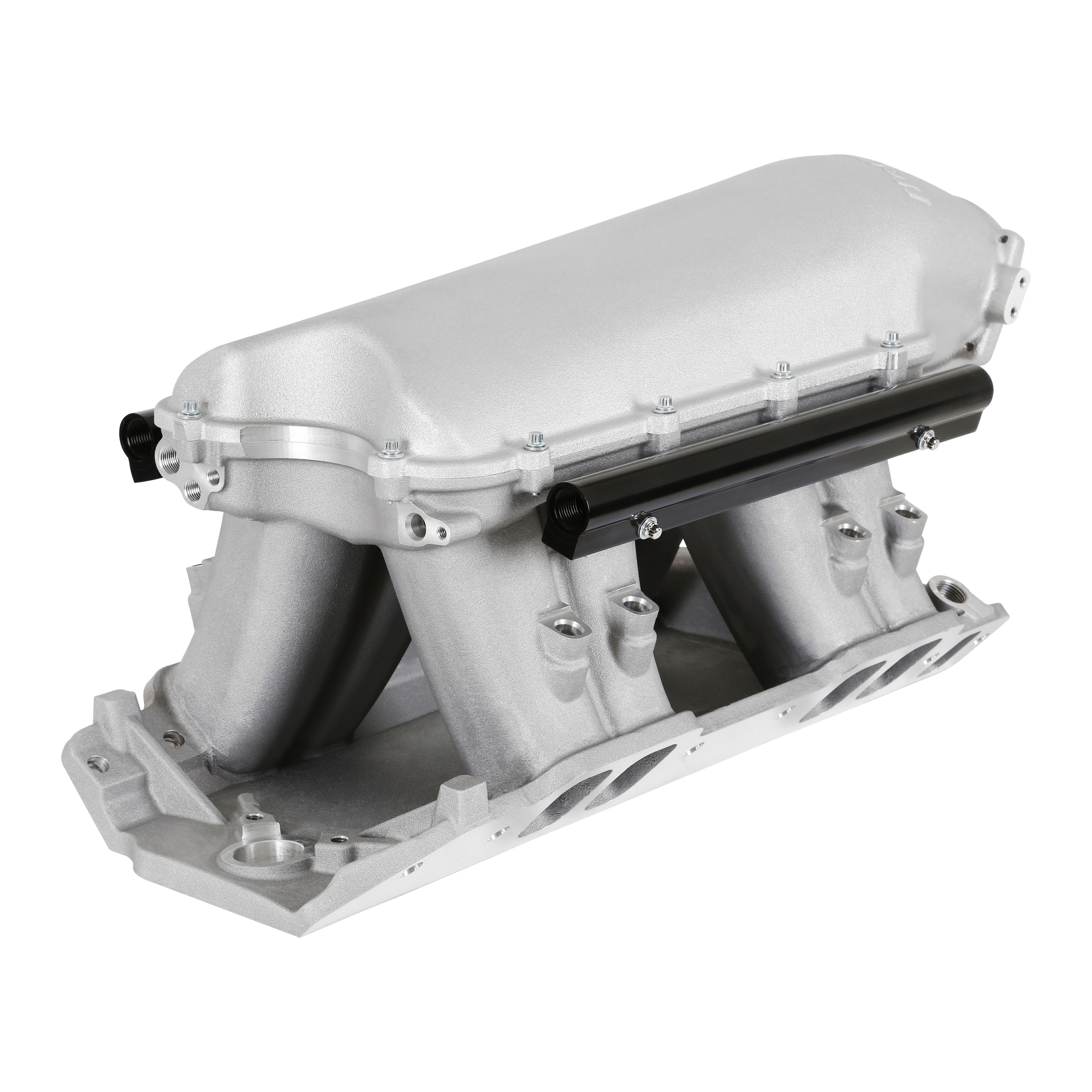

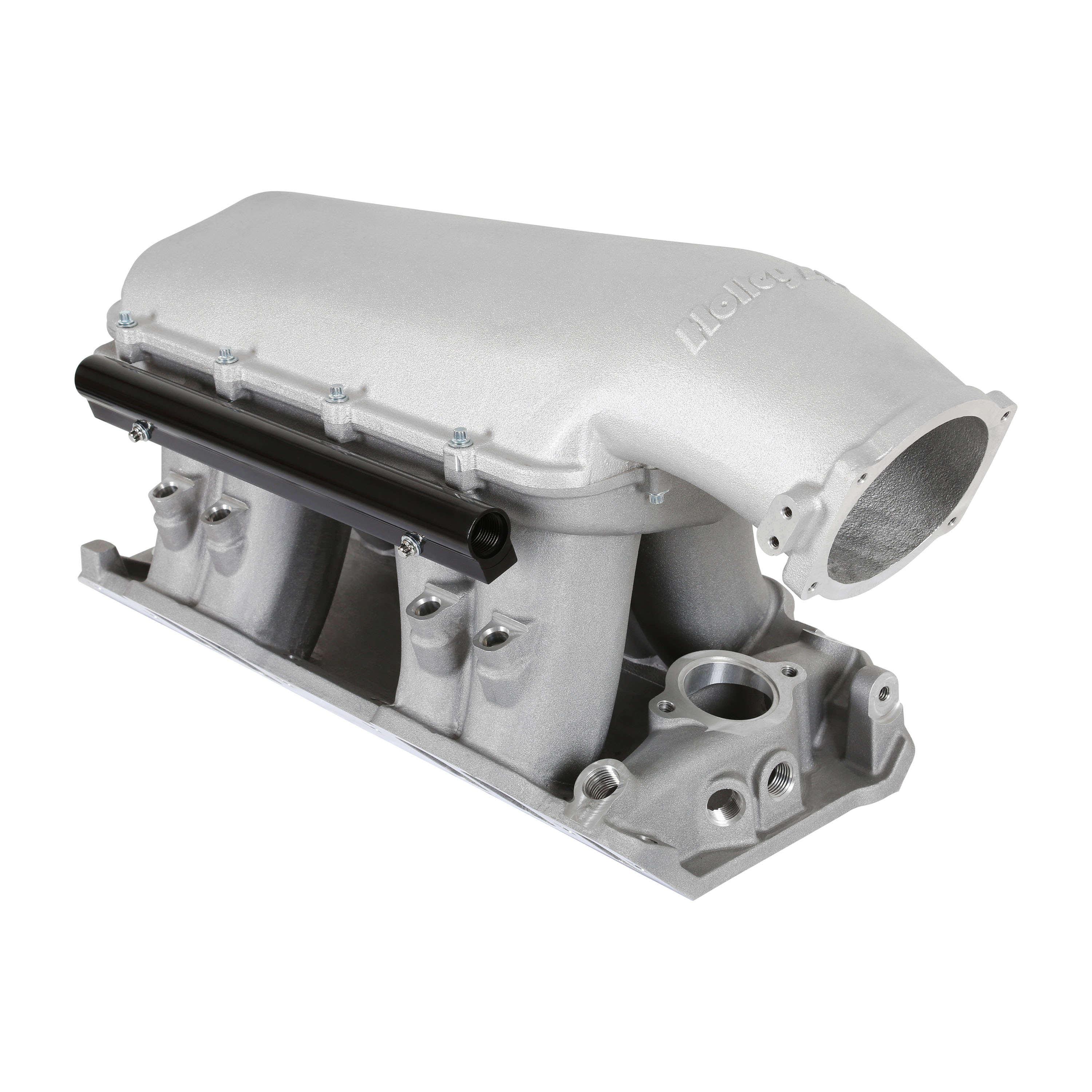

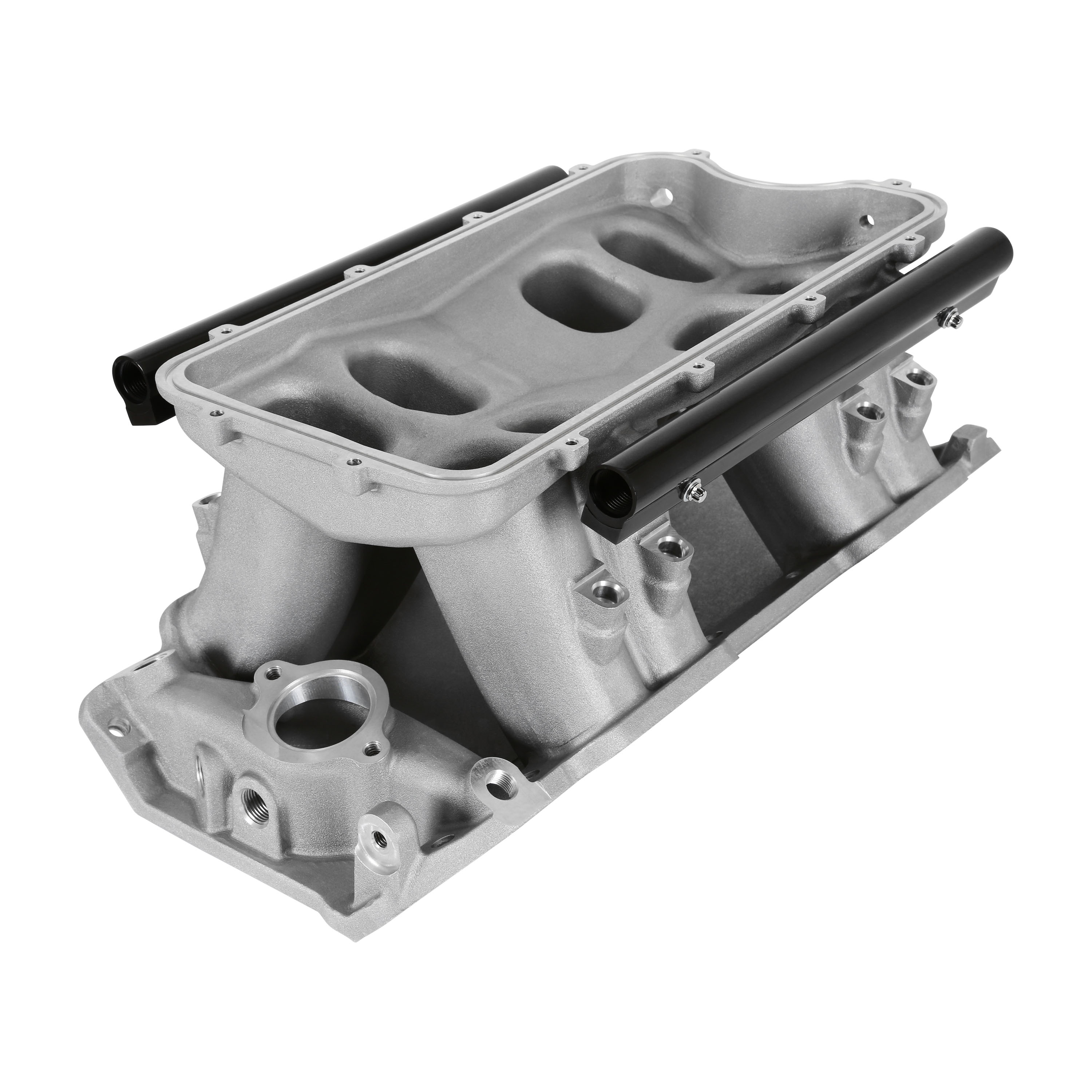

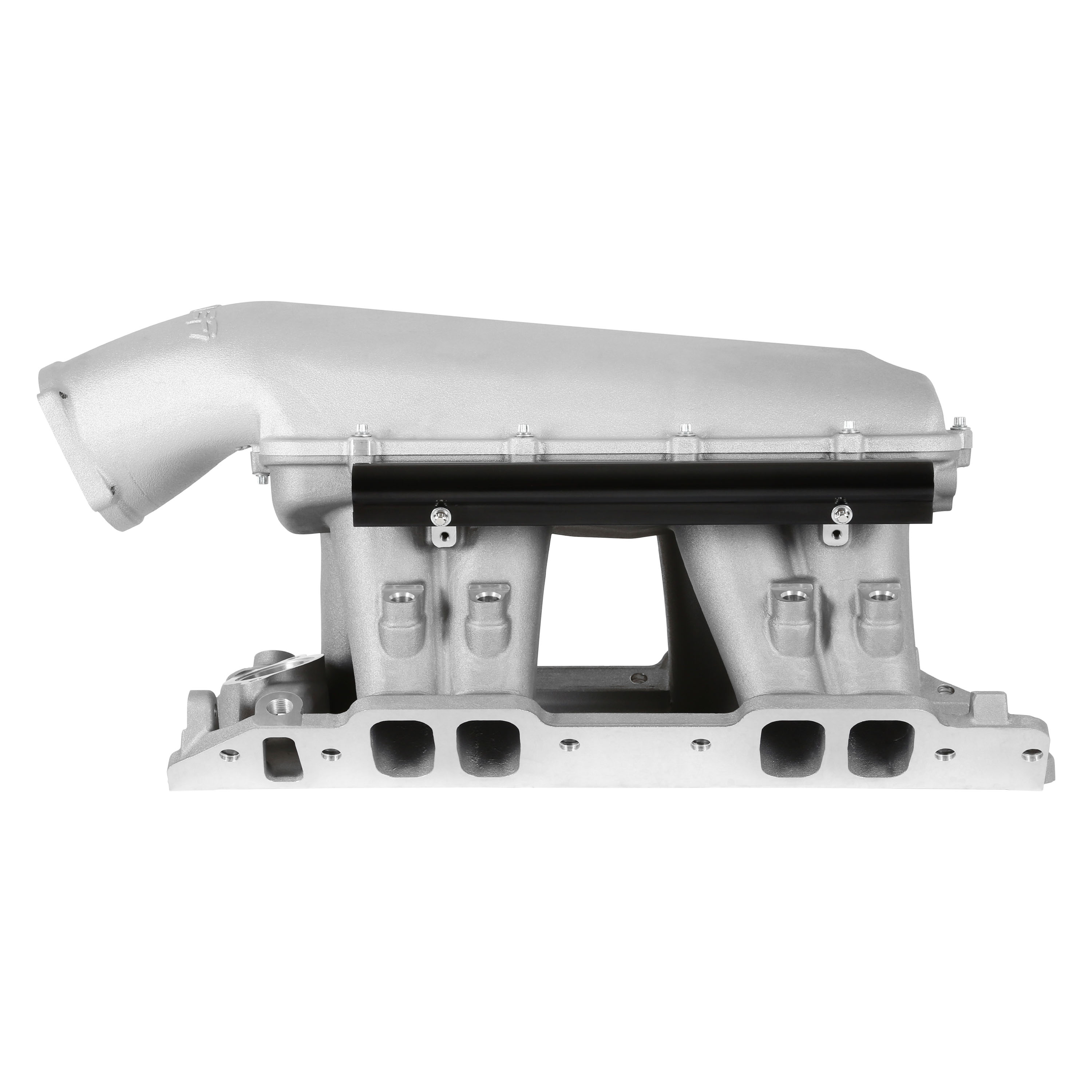

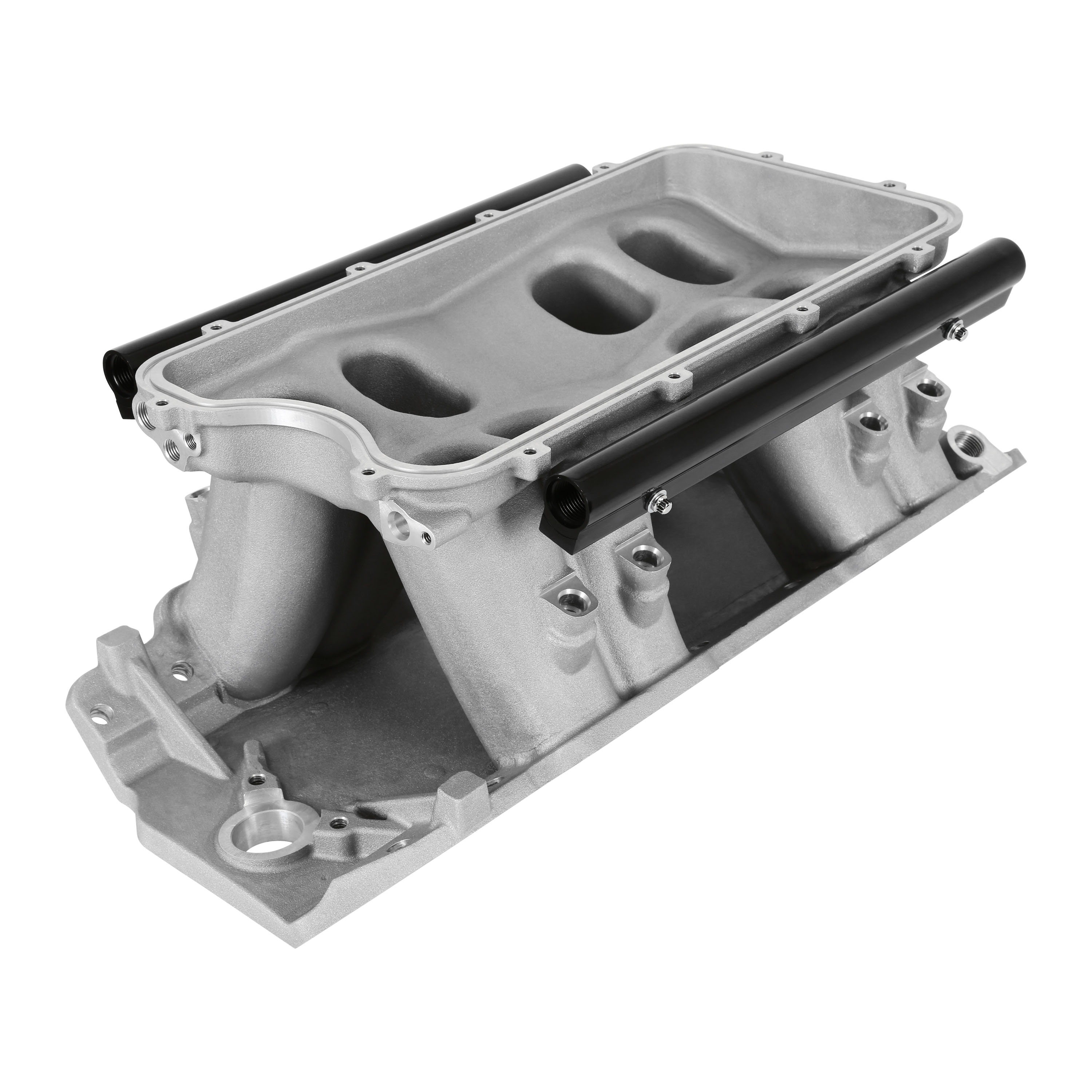

Hi-Ram intake manifold with 105mm LS GenIV type throttle body flange type plenum top. A -10AN fuel rail kit is included.
Features

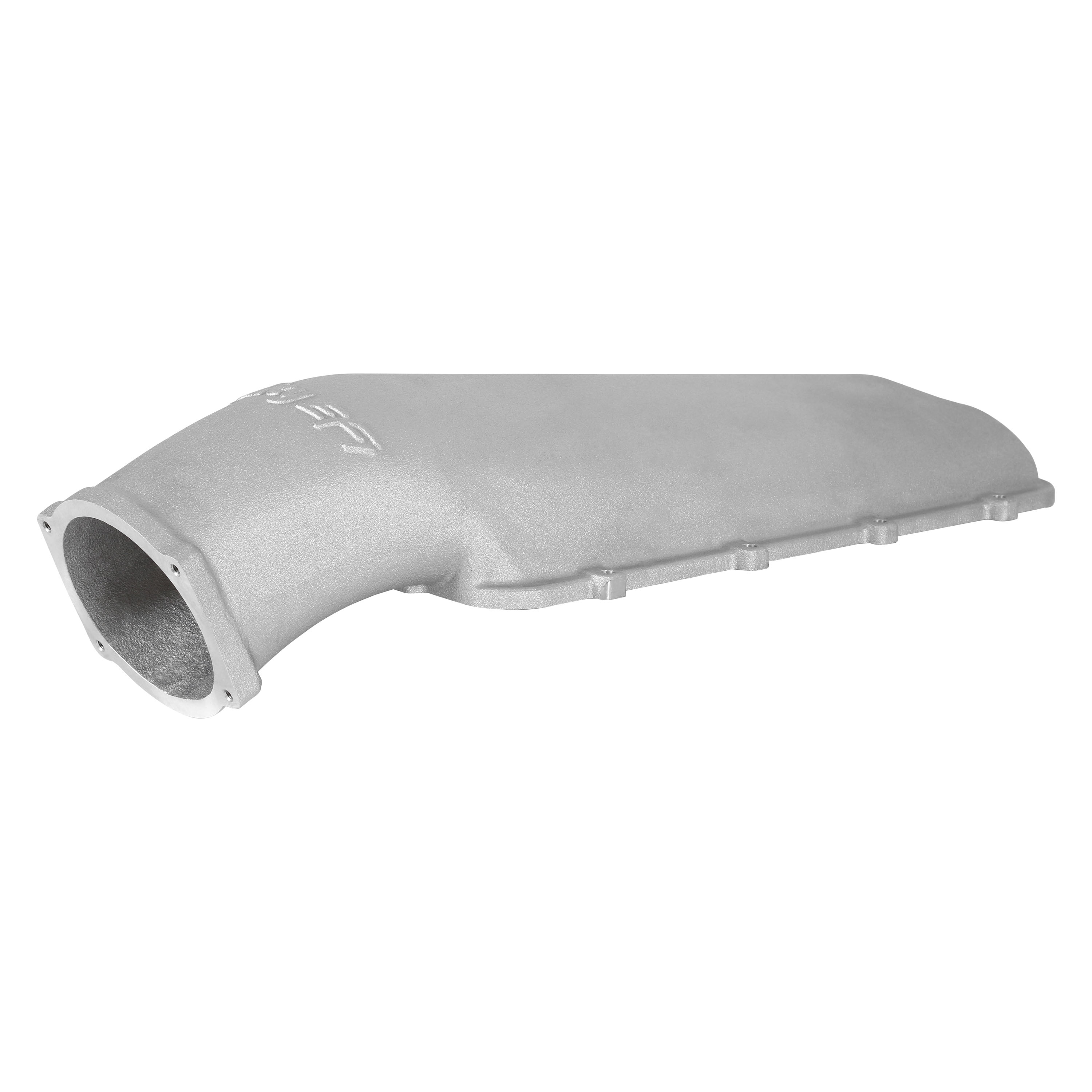

- The Big Block Chevy Hi-Ram manifold is available in either a traditional Hi-Ram 105mm plenum top or with a 2 x 4150 4-barrel throttle body plenum top options
- Hi-Ram intake manifolds are a cost-effective alternative to fabricated sheet-metal or billet manifolds for high-performance applications where induction system height is not limited
- 300-961, 300-963, and 300-964 are designed for 1965 & later 396-502+ MKIV-MKVI standard 9.80” deck height Big Block Chevy engines with standard intake flange rectangle-port cylinder heads.
- Uses drive by wire or cable actuated GM Gen IV LS 4-bolt throttle bodies
- MAP sensor port is for a GM Gen IV LS MAP sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum
- The coolant outlet is a standard Chevy thermostat housing flange. and (2) 1/2 NPT and (1) 3/8 NPT coolant ports are provided.
- Power Band: 1500-8000 RPM

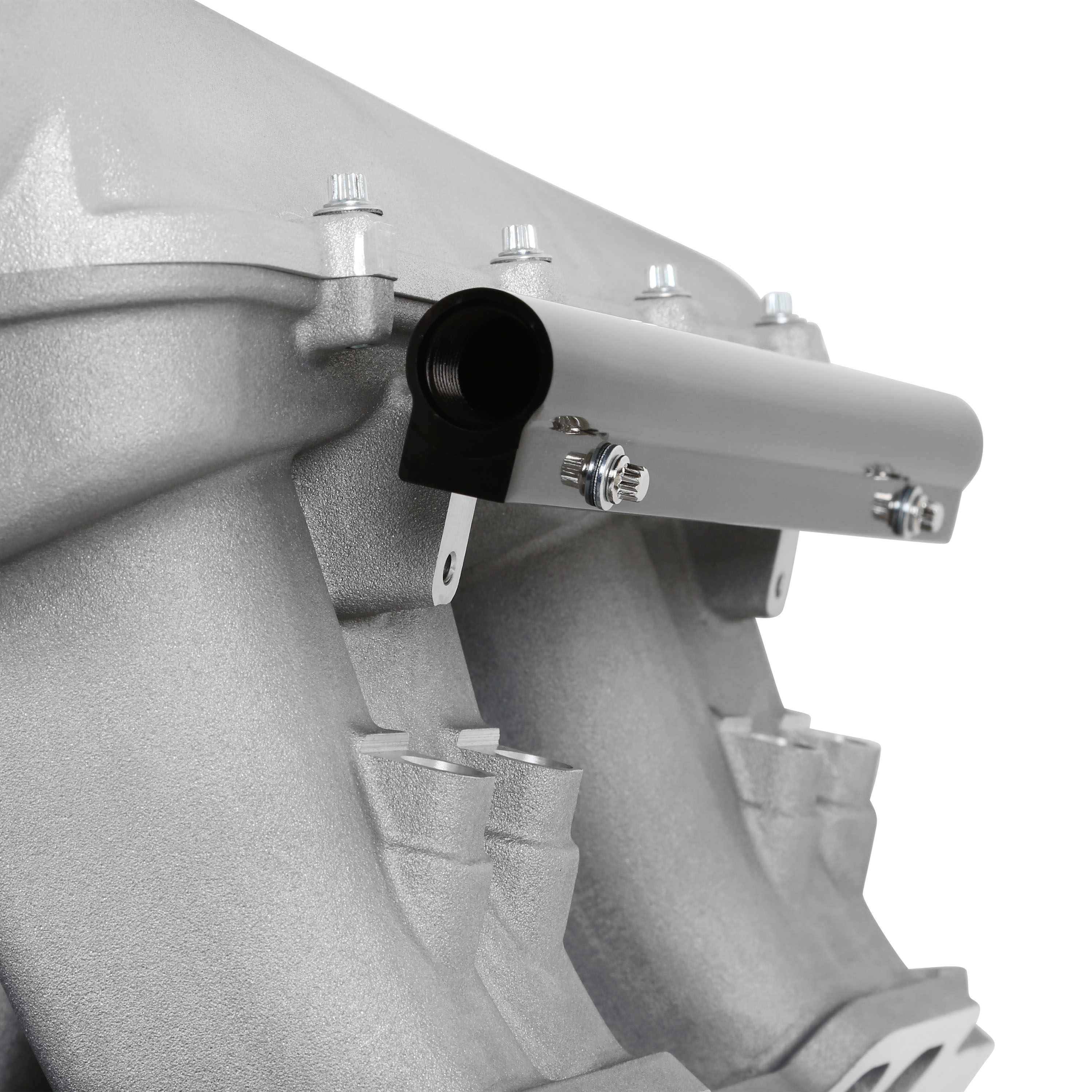

- Black anodized EFI fuel rails are machined for -10AN O-ring fittings and come included with these EFI Hi-Ram kits.

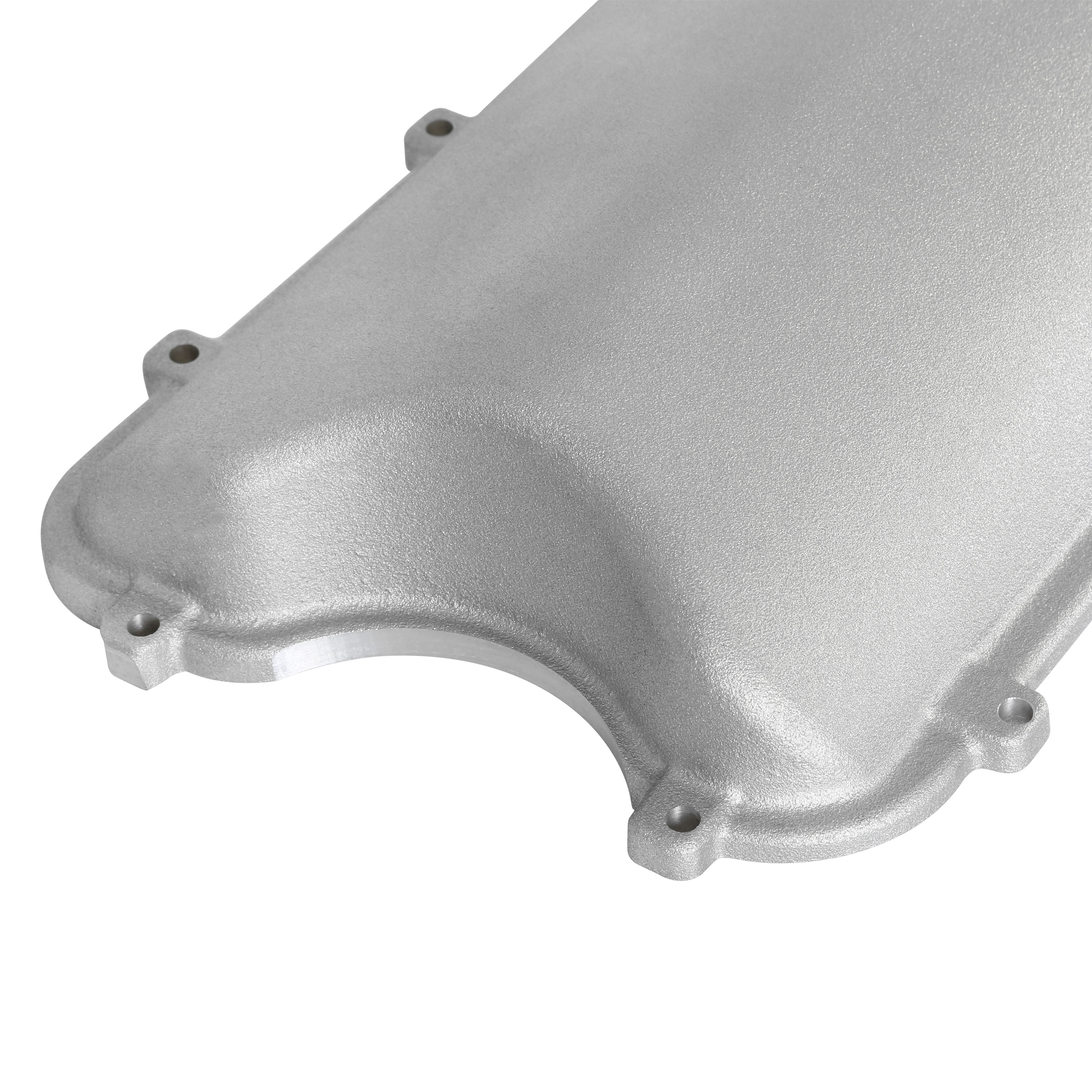

- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish
- Requires the use of early type GM or small cap MSD or Holley Distributors. Not compatible with HEI distributors

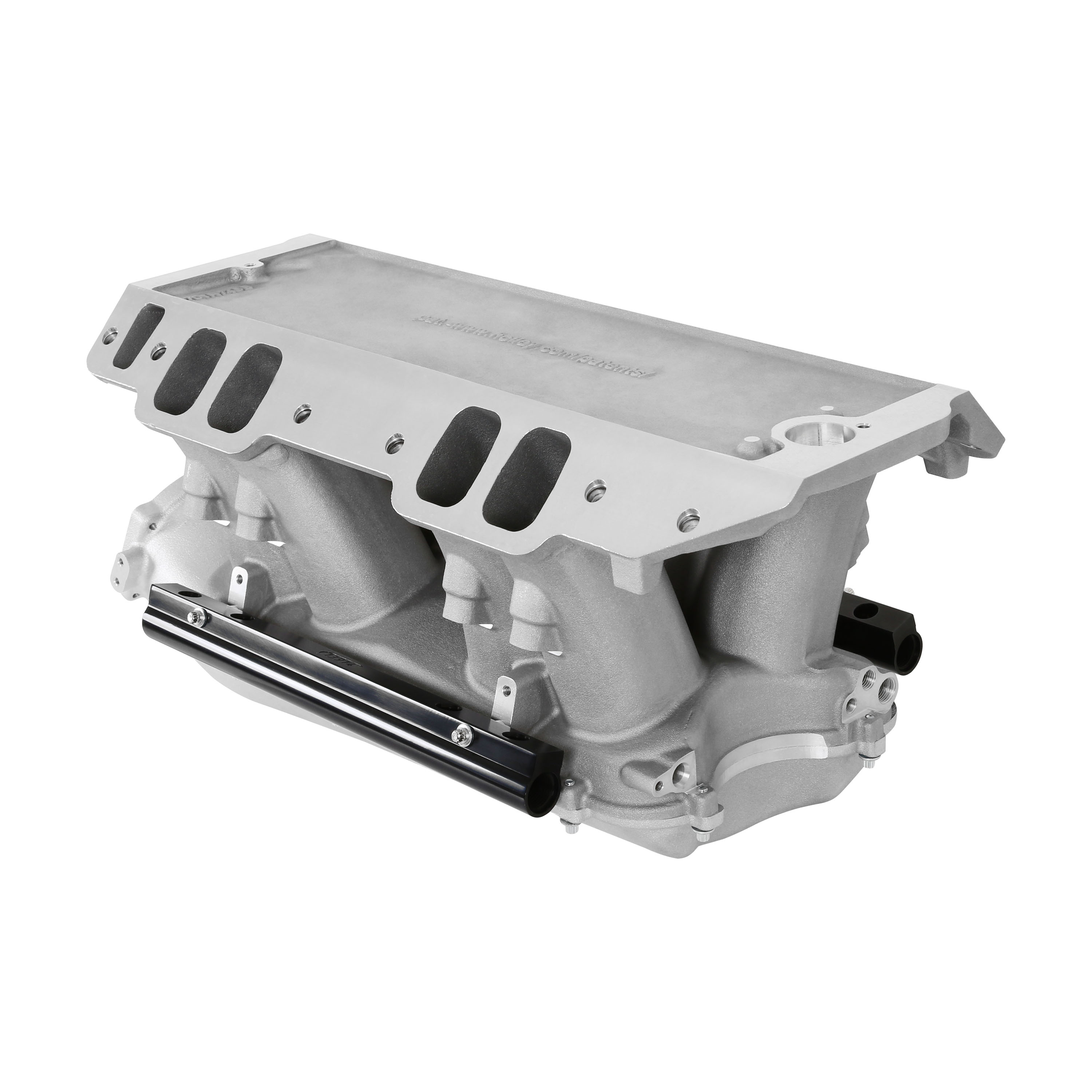

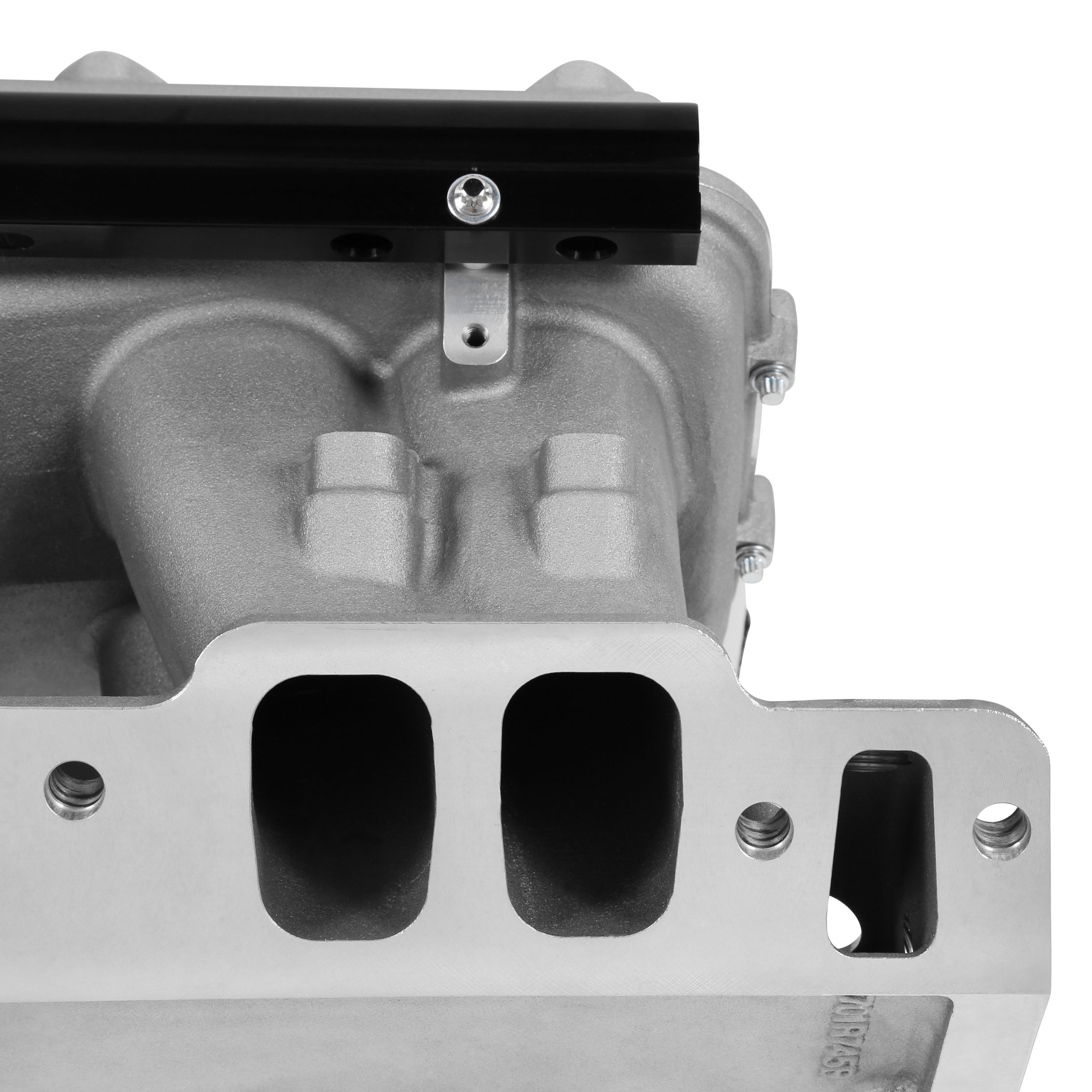

- 2.40” tall x 1.60” wide port flange openings, uses Mr. Gasket intake manifold gasket #5817
- Throttle Cable Bracket is supplied in the kit
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Color: Natural
Engine: Chevy Big Block V8
Finish: Natural Cast
Warning: California Proposition 65
Category: Intake Manifolds
EGR Port: No
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Grade Type: Performance
Construction: Cast
Product Type: Intake Manifold
Emission Code: 3
Manifold Type: Hi-Ram
Plenum Finish: Natural
Throttle Bore: 105
RPM Power Band: 1500-8000
Fuel System Type: EFI
Removable Runners: No
Removable Top/Lid: Yes
Fuel Rail(s) Included: Yes
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: Yes
Cylinder Head Port Shape: Rectangle
Nitrous Bung(s) Included: No
Basic Operating RPM Range: 1500-8000
Carburetor Studs Included: No
Single Or Dual Plane Type: Single Plane
Throttle Body Bore Diameter: 105
Intake Port Gasket(s) Included: No
