Holley Godzilla High-Mount Accessory Drive - F100 Swap - Complete - Natural
SKU
HTPD-20-345
List price
$2,924.95
Price
$2,599.95
Description

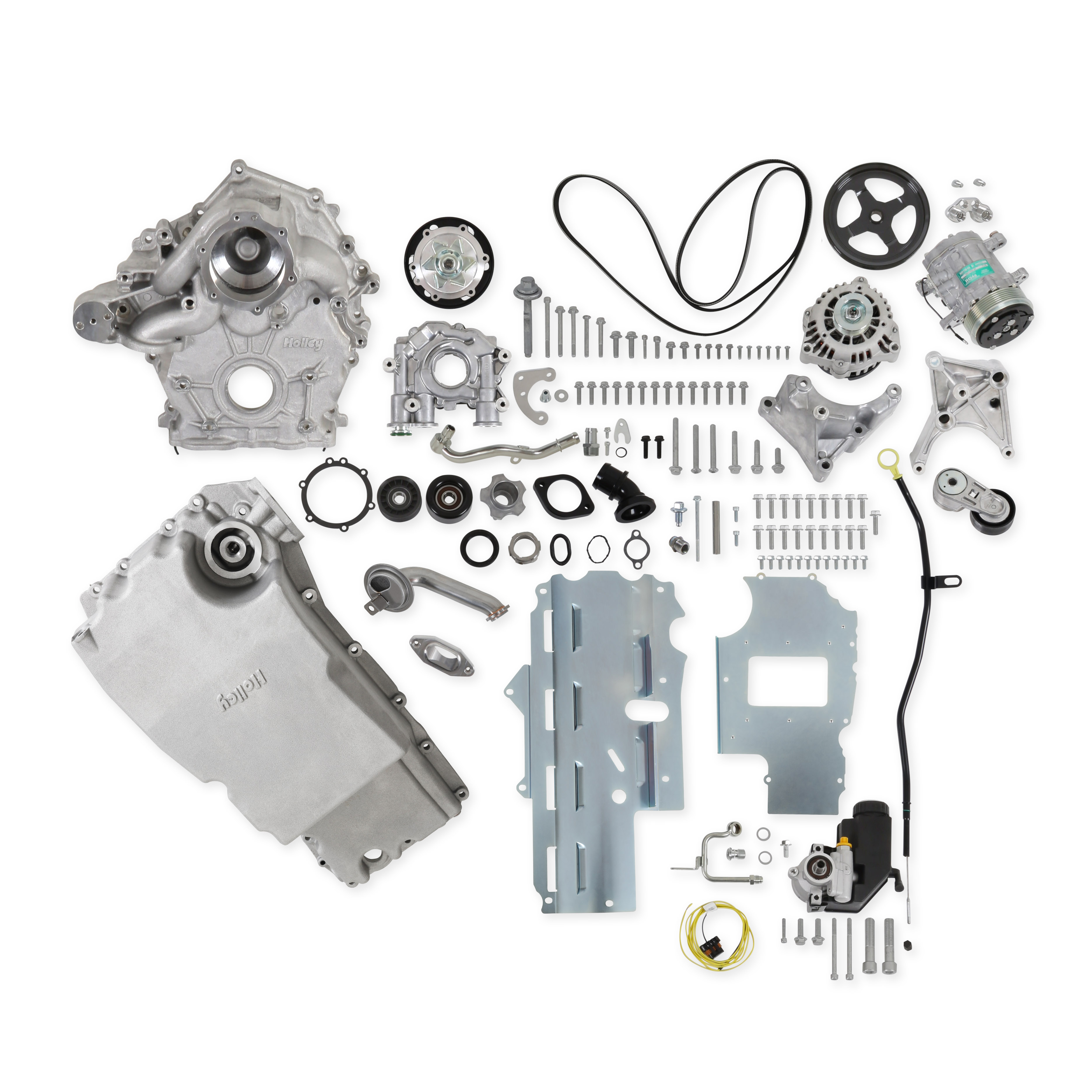

Fits Ford 7.3L Godzilla - Includes Holley Timing Cover/Coolant Manifold, SD7 A/C Compressor, Alternator, P/S Pump, Tensioner, Water Pump, Belt & Pulleys, Oil Pump, and Oil Pan
Features
- Complete kits include everything needed for the most common, cost-effective combination – including all adapters, accessories, and belt
- Crank concentric driven Gerotor oil pump utilizes all Melling internal components

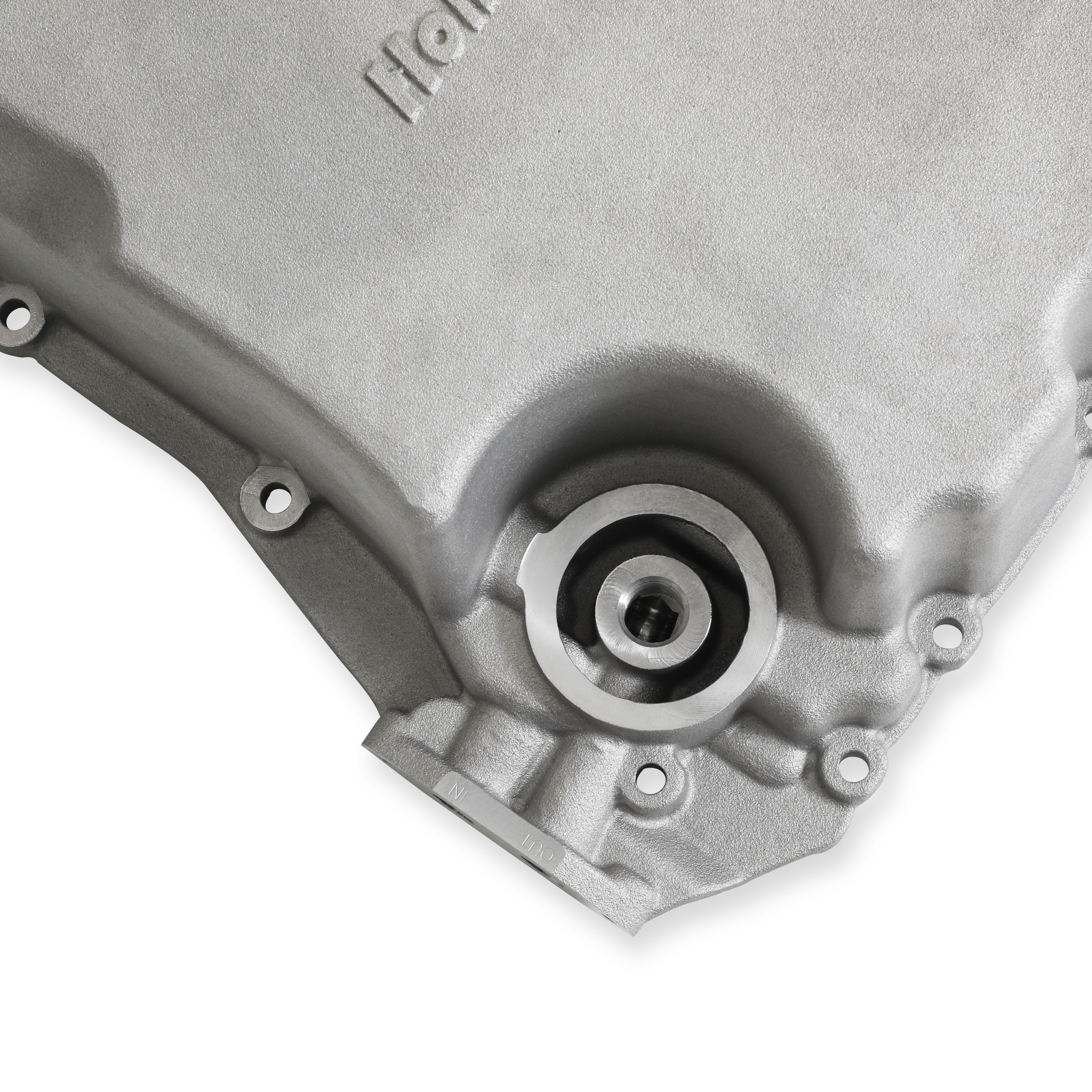

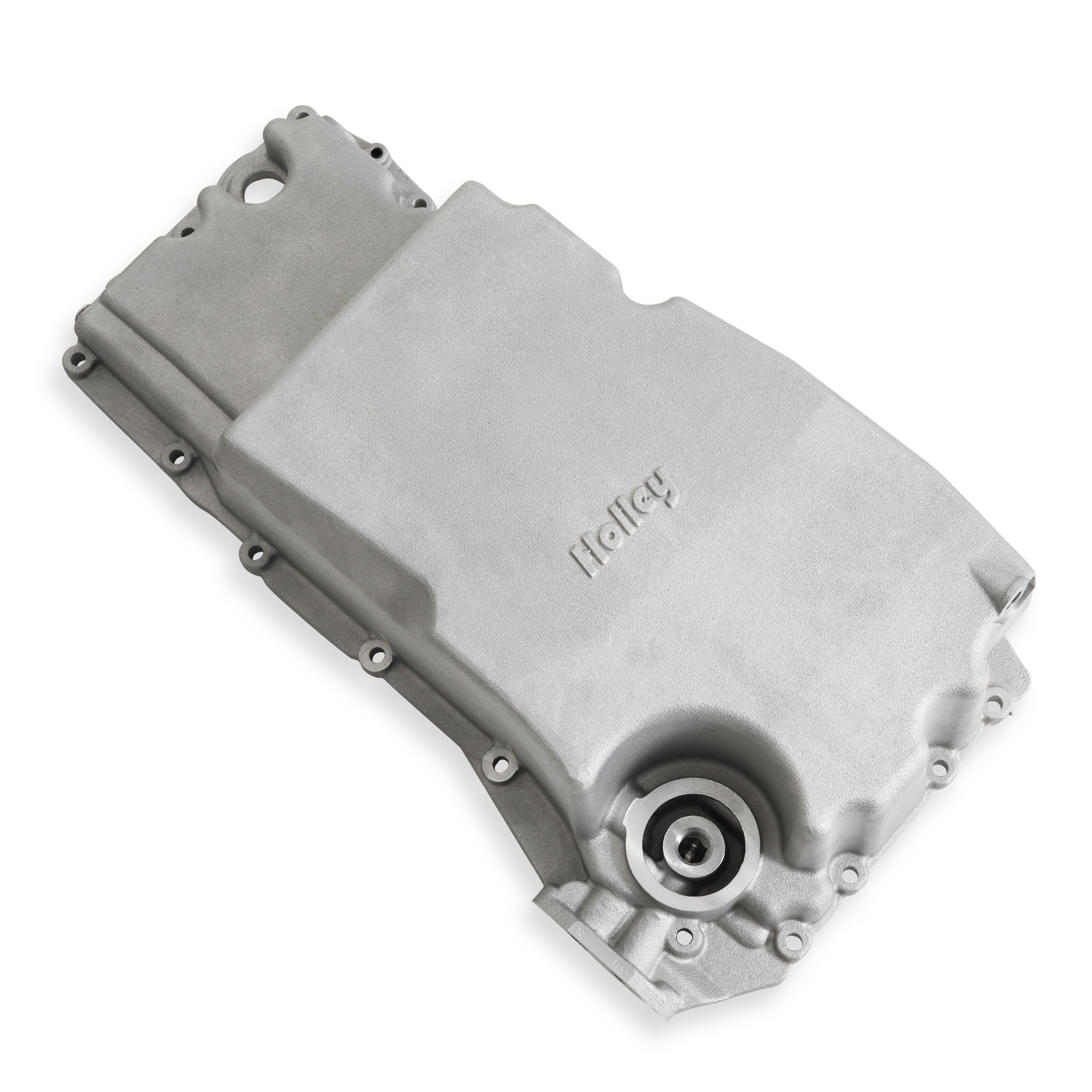

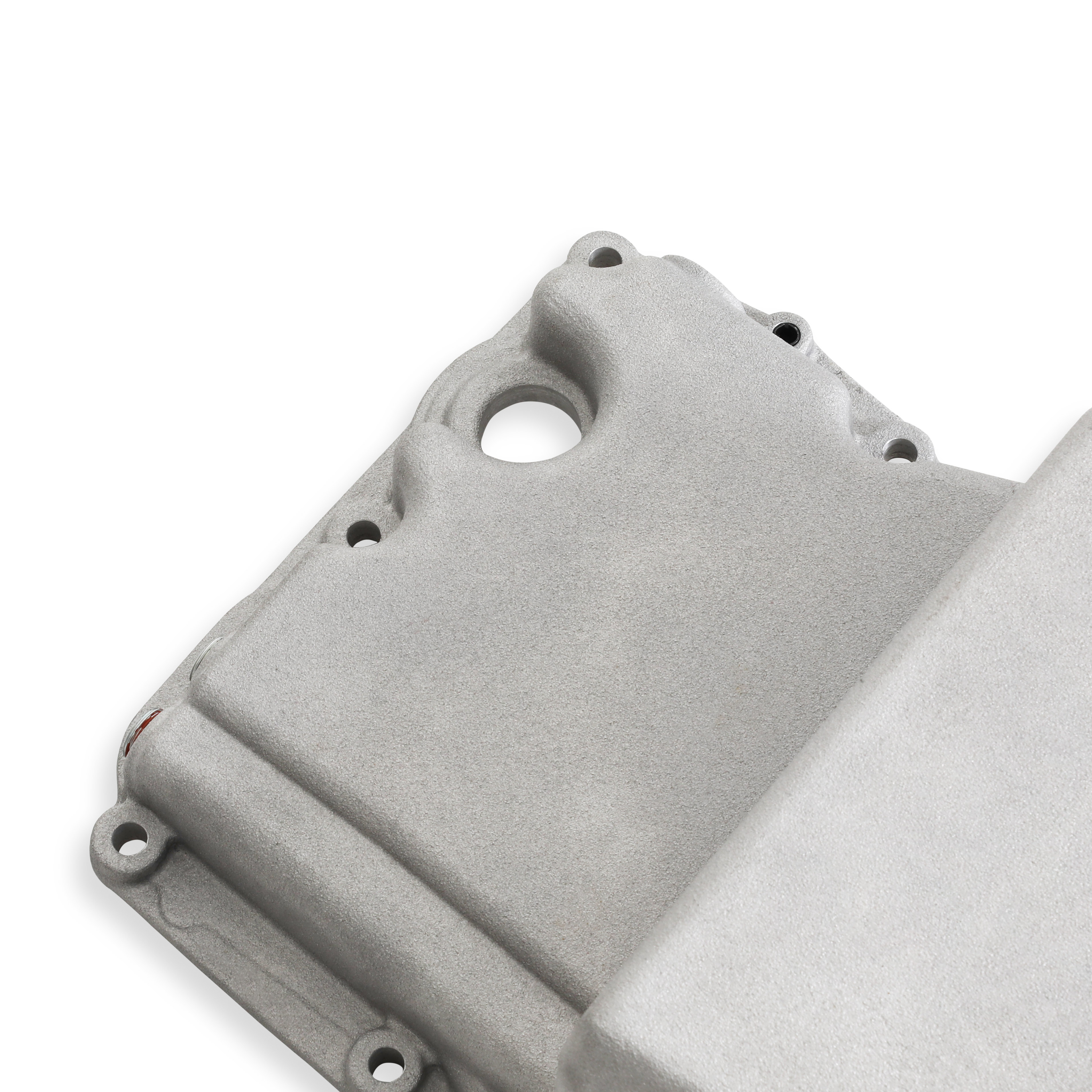

- OE style cast oil pan design with 6.5 quarts oil capacity (with filter) and 1/2-inch NPT turbo drain-back port
- Integrated oil priming ports and procedure and oil cooler plumbing
- Always accessible" pressure spring port allows for quick oil spring pressure changes

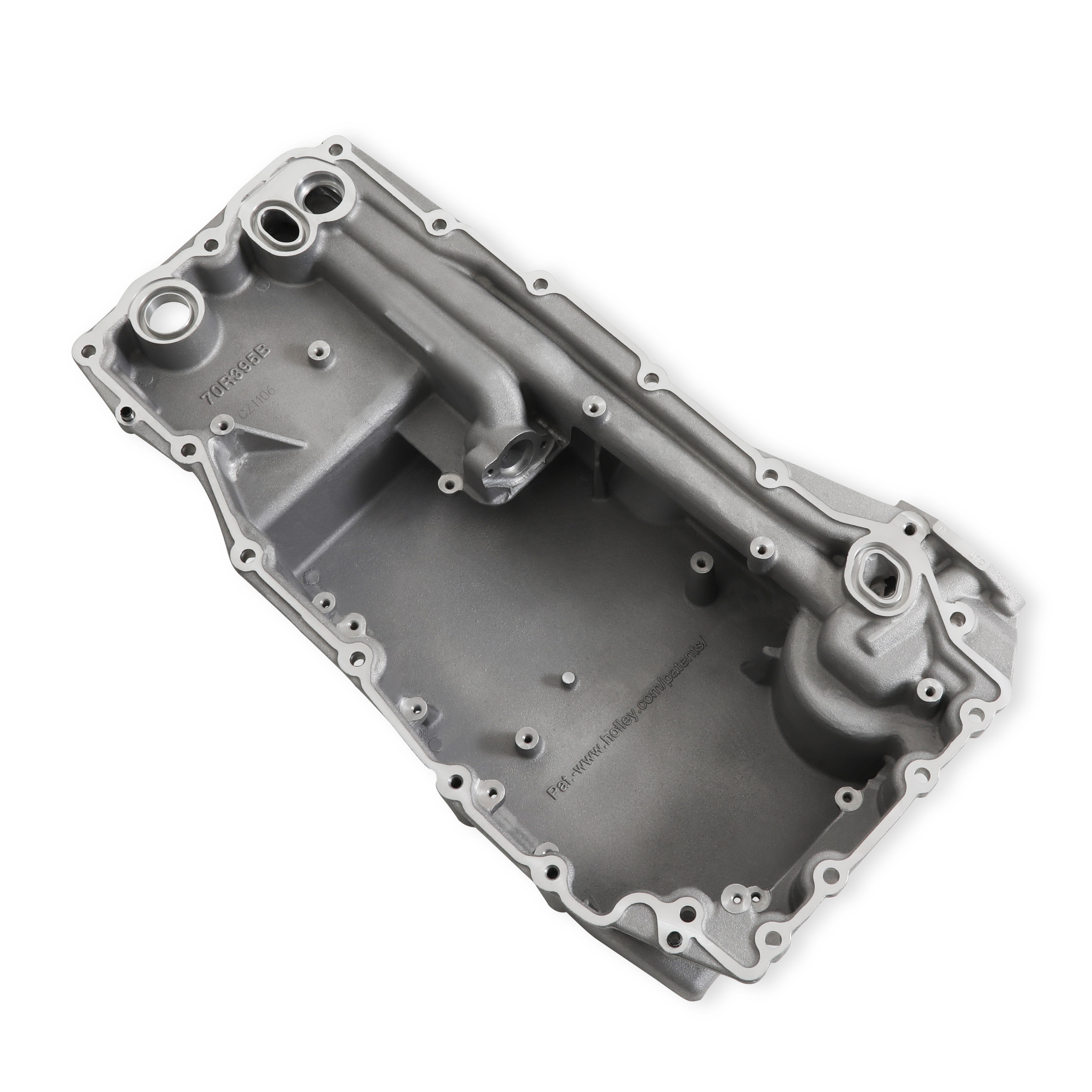

- Advanced windage tray and baffle system keep oil in the sump
- New oil pan hardware and dipstick included
- Fits Ford 7.3-liter Godzilla engine – ideal for engine swaps
- Includes new front main seal and installation tool
- Works with the original factory crank pulley, as well as aftermarket damper/pulleys
- This high-mount accessory drive has all accessories pulled up and in tighter than other options
- Relocates heater hose connections out of sight for a noticeable visual improvement over the OE design
- Alternator options do not require the original ECU control to function
- P/S pump with the optional external reservoir is ideal for hydro-boost applications
- Choose from natural as-cast aluminum or black finish
Specs
Brand
HOLLEY
Category
Accessory Drive Belt Kit
Specs
Oil Pump Type: Gerotor
Brand: Holley
Engine: Ford 7.3L Godzilla
Finish: Natural
Output: 150 Amps
Warning: California Proposition 65
Category: Belts and Cooling
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Belt Type: Serpentine
Sump Type: Wet
part type: Accessory Drive Belt Kit
Belt Color: Black
Grade Type: Performance
Application: Ford 7.3L Godzilla
Damper Style: Factory
Oil Pan Type: Cast
Product Type: Accessory Drive Kits
Sub Category: Accessory Drive Belt System Components
Belt Included: Yes
Emission Code: 5
Sump Location: Rear
Idler Included: Yes
Oil Pan Finish: Natural
Tensioner Type: Spring Loaded
Damper Included: No
Oil System Type: Wet Sump
Pulley Material: Composite and Steel
Tensioner Color: Natural
Alternator Color: Natural
Alternator Style: LT1
Choose Your Part: Accessory Drive Kits
Housing Material: Aluminum
Oil Cooler Ports: Yes
Oil Pan Included: Yes
Oil Pan Material: Cast Aluminum
Water Pump Color: Natural
Water Pump Style: GM Cartridge
Hardware Included: Yes
Oil Pump Included: Yes
Idler Pulley Color: Black
Tensioner Included: Yes
A/C Compressor Type: SD7
Alternator Amperage: 150
Alternator Included: Yes
Alternator Material: Cast Aluminum
Oil Cooler Included: No
Oil Pickup Included: Yes
Thermostat Included: No
Water Neck Included: No
Water Pump Included: Yes
Water Pump Material: Aluminum
Water Pump Rotation: Counterclockwise (Left)
Accessory Drive Style: High-Mount
Oil Adapters Included: No
Idler Bracket Included: Yes
Oil Pump Gear Material: Powdered Metal
A/C Compressor Included: Yes
Alternator Fan Included: Built-In
Alternator Pulley Color: Silver
Oil Drain Plug Included: Yes
Water Pump Pulley Color: Black
Alternator Bracket Color: Natural
Crankshaft Seal Included: Yes
Tensioner Cover Included: No
Alternator Pulley Grooves: 6
Power Steering Pump Color: Natural
Power Steering Pump Style: GM Type 2
Universal Or Specific Fit: Specific
Water Pump Pulley Grooves: 6
Alternator Pulley Included: Yes
Alternator Pulley Material: Steel
Turbo Drain Back Port Size: 1/2" NPT
Water Pump Pulley Included: Yes
Water Pump Pulley Material: Steel
A/C Compressor Pulley Color: Silver
Alternator Bracket Material: Aluminum
A/C Compressor Bracket Color: Natural
Alternator Brackets Included: Yes
Power Steering Pump Included: Yes
A/C Compressor Pulley Grooves: 6
A/C Compressor Pulley Included: Yes
A/C Compressor Pulley Material: Steel
Power Steering Pulley Included: Yes
A/C Compressor Bracket Included: Yes
A/C Compressor Bracket Material: Aluminum
Oil System Capacity (w/ filter): 6.5 Quarts
Integrated Turbo Drain Back Port: 1/2" NPT
Power Steering Hardline Included: Yes
Power Steering Pump Pulley Color: Black
Power Steering Pump Bracket Color: Natural
Power Steering Reservoir Included: Yes
Power Steering Pump Pulley Grooves: 6
Power Steering Pump Pulley Material: Steel
Power Steering Pump Reservoir Color: Black
Power Steering Pump Reservoir Style: Attached
Power Steering Pump Bracket Material: Aluminum
Power Steering Pump Brackets Included: Yes
Power Steering Pump Pulley Attachment: Press-On
Power Steering Pump Reservoir Material: Plastic
Crankshaft Seal Installation Tool Included: Yes
