Holley Godzilla High-Mount Accessory Drive
SKU
HTPD-20-340
List price
$2,981.95
Price
$2,649.95
Description

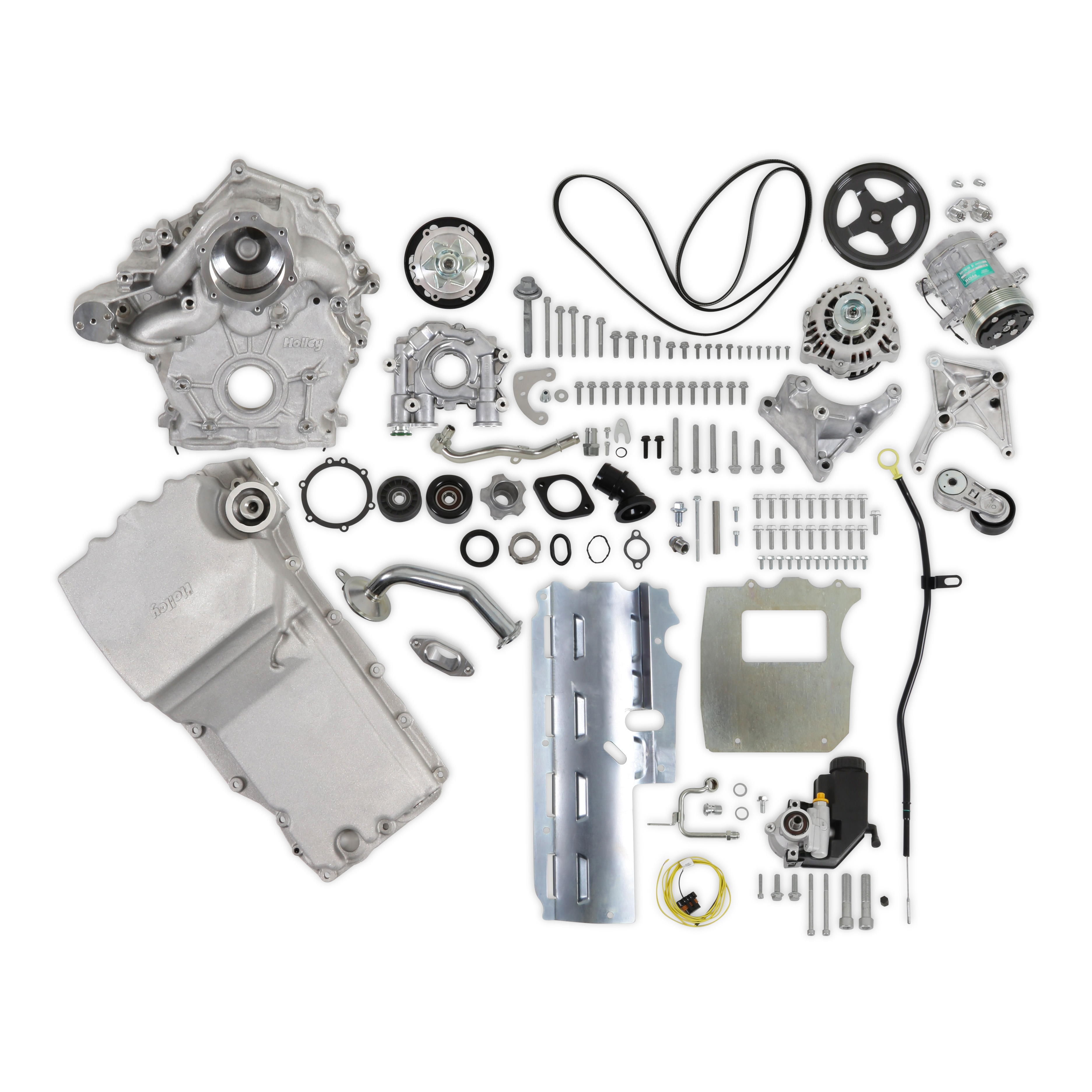

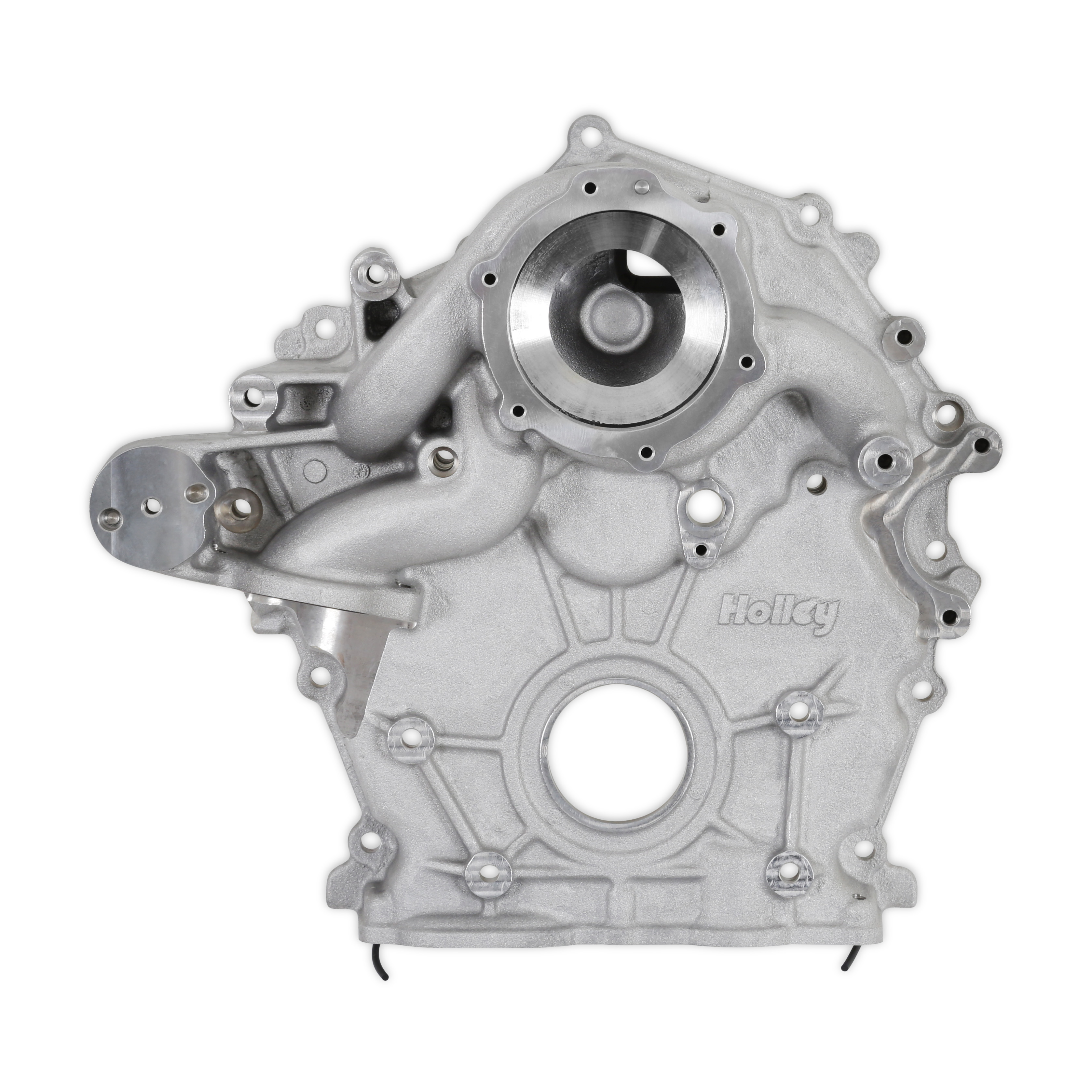

Fits Ford 7.3L Godzilla - Includes Holley Timing Cover/Coolant Manifold, SD7 A/C Compressor, Alternator, P/S Pump, Tensioner, Water Pump, Belt & Pulleys, Oil Pump, and Oil Pan
Features
- Complete kits include everything needed for the most common, cost-effective combination – including all adapters, accessories, and belt

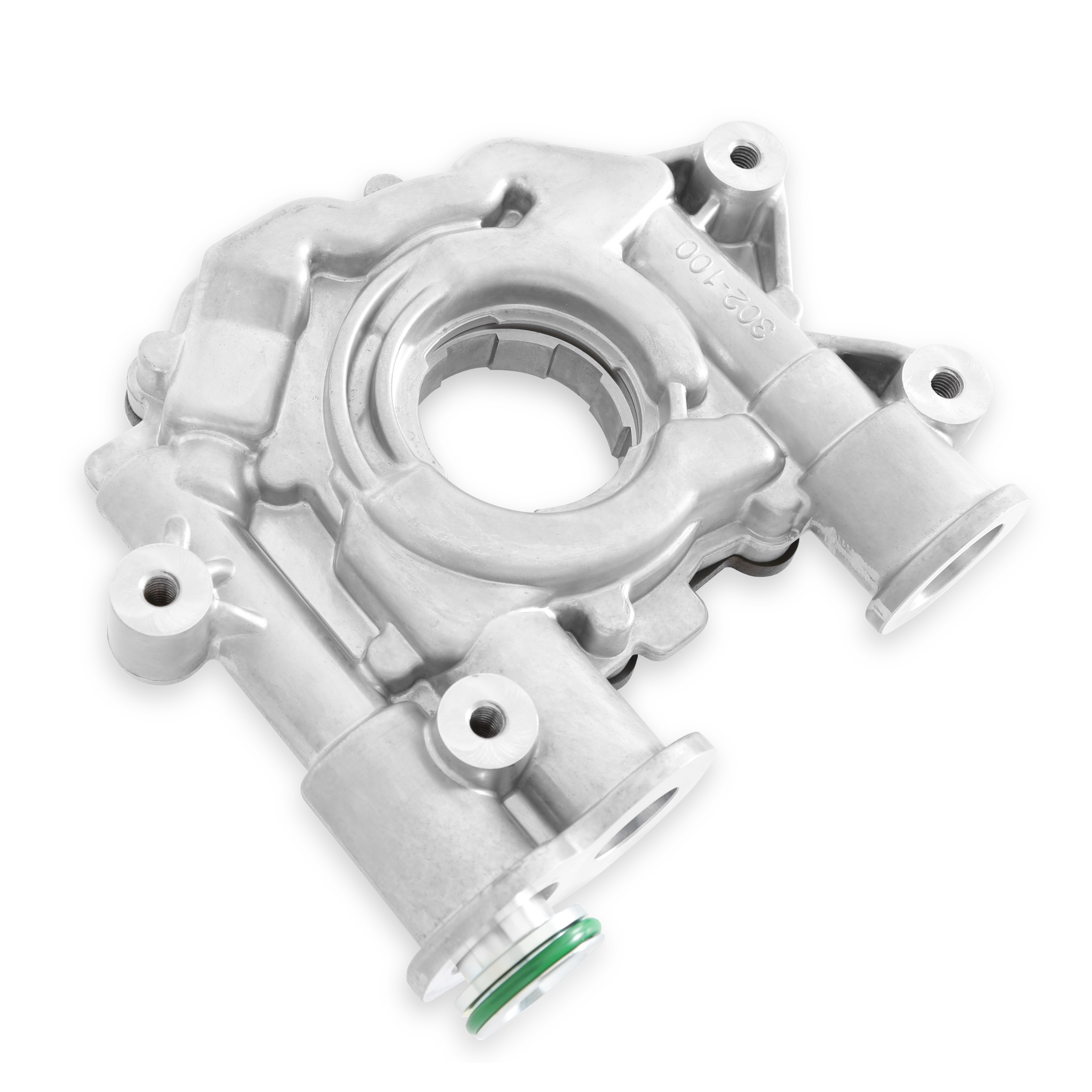

- Crank concentric driven Gerotor oil pump utilizes all Melling internal components

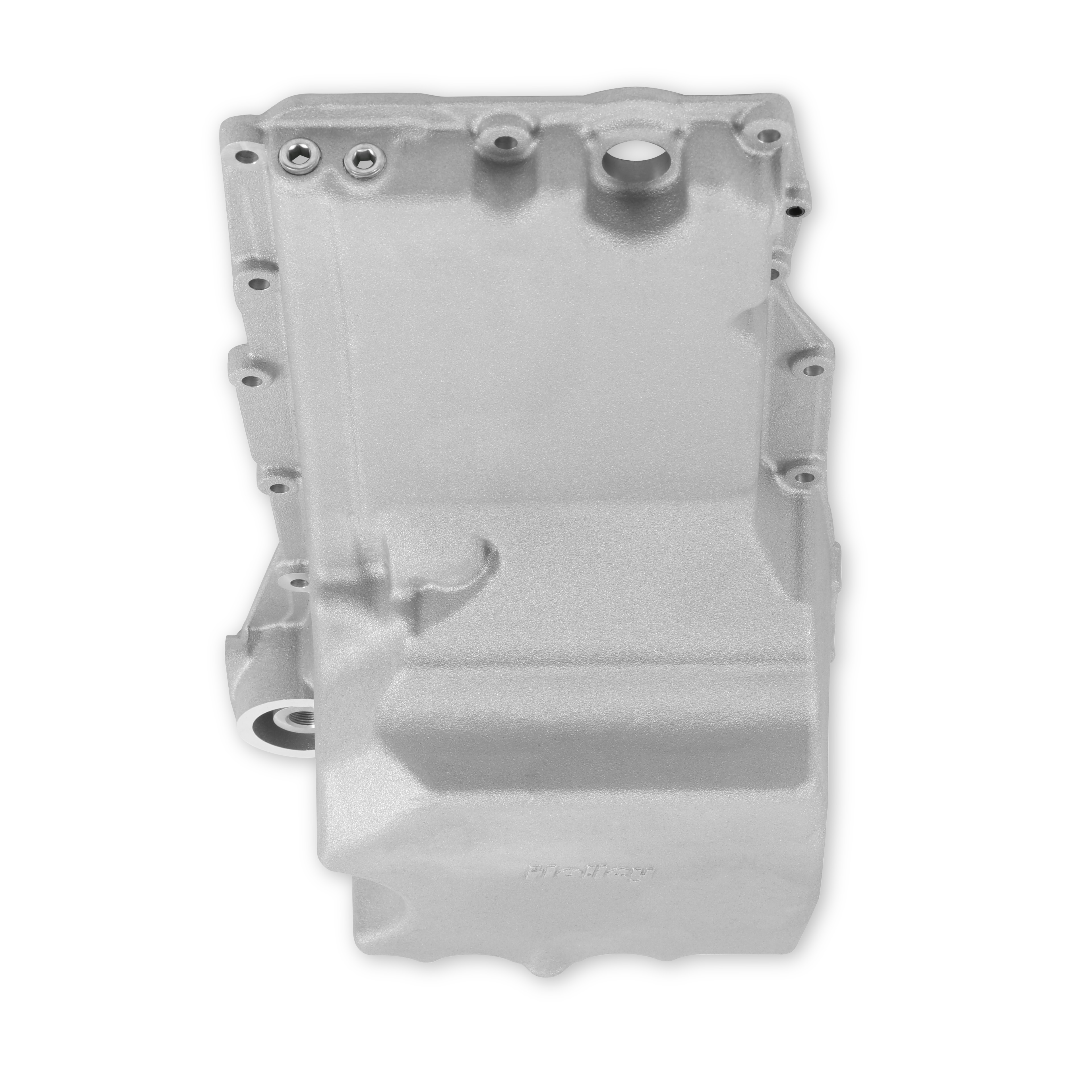

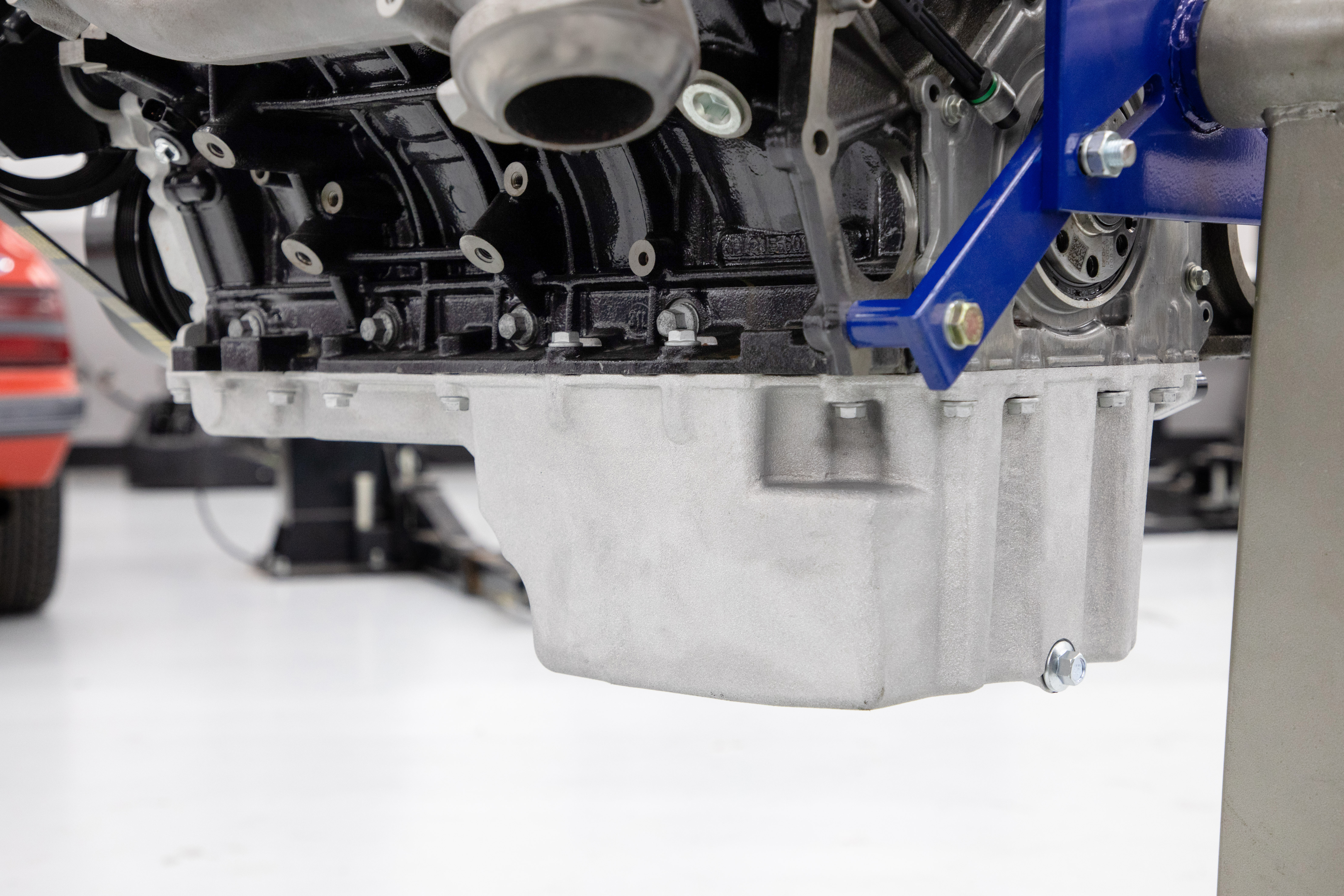

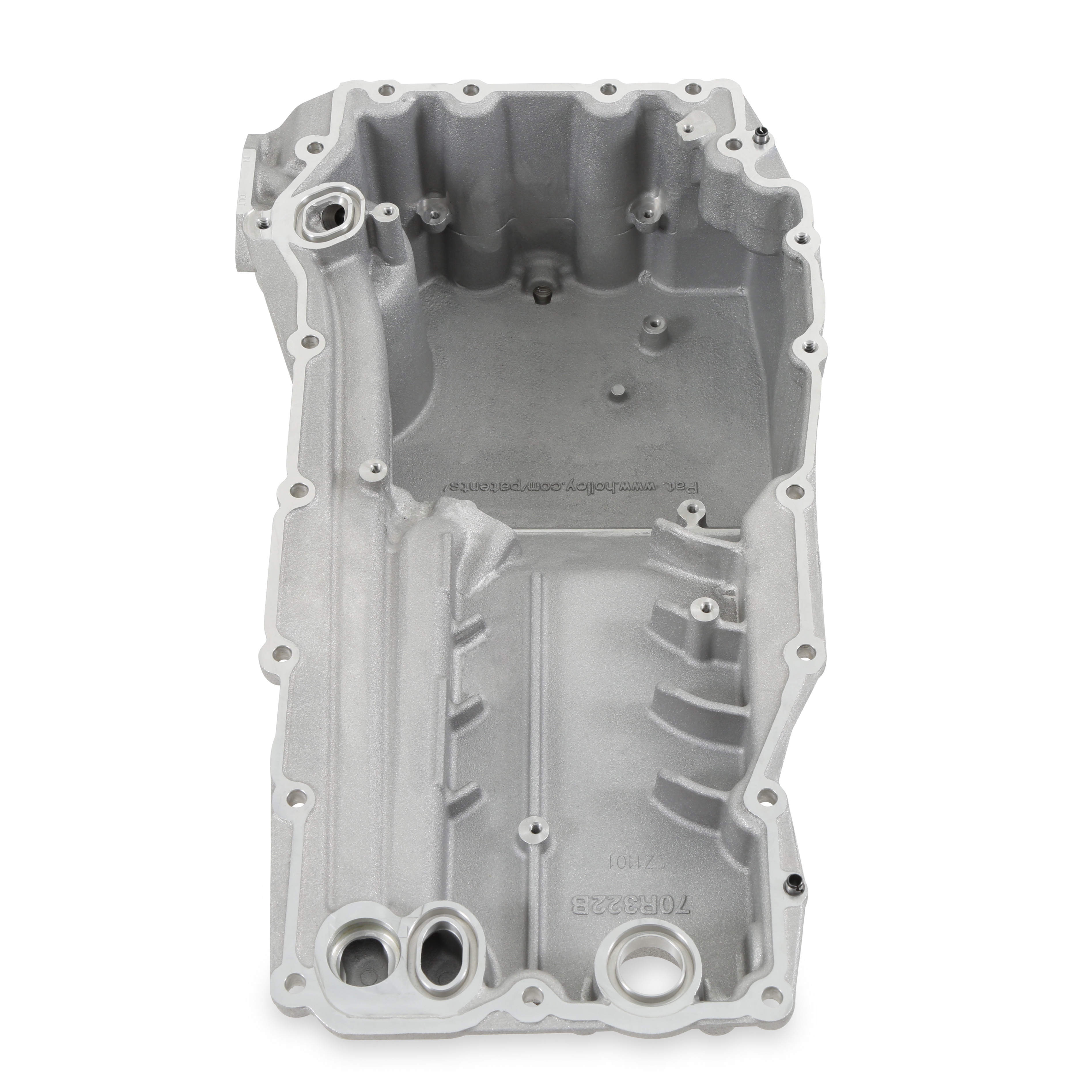

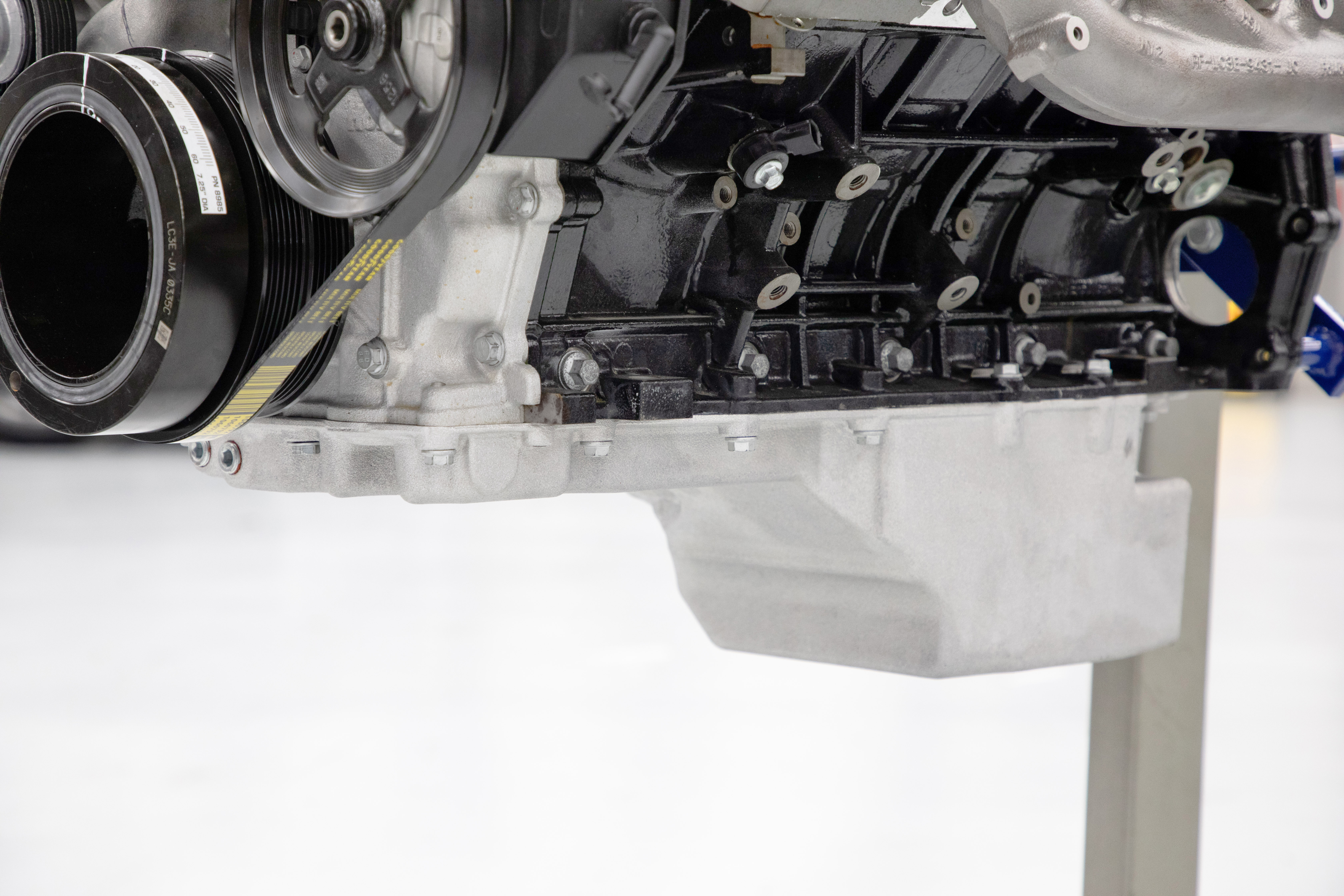

- OE style cast oil pan design with 6.5 quarts oil capacity (with filter) and 1/2-inch NPT turbo drain-back port
- Integrated oil priming ports and procedure and oil cooler plumbing ports (must purchase Earl's #1138ERL or 1139ERL to utilize oil cooler ports)
- "Always accessible" pressure spring port allows for quick oil spring pressure changes

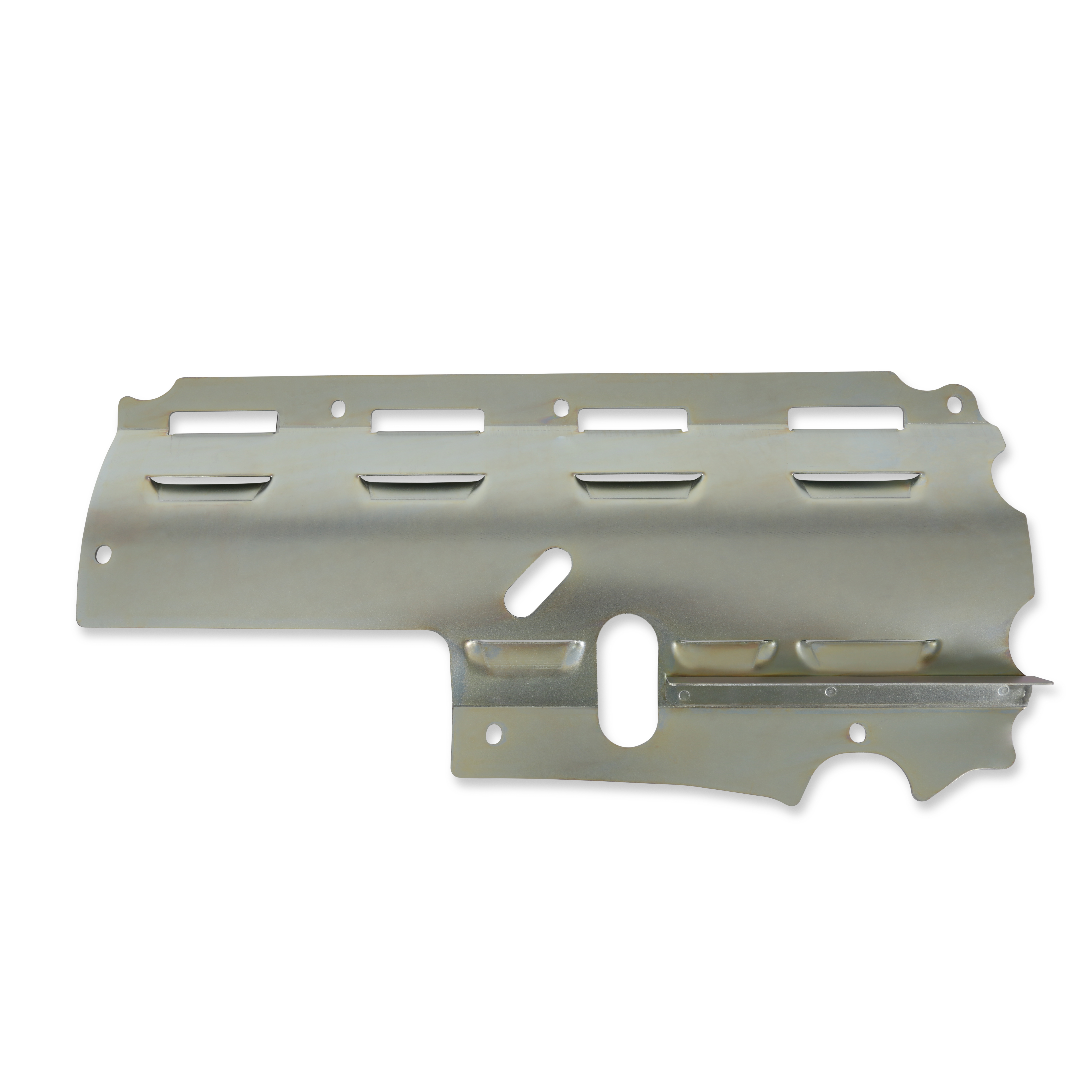

- Advanced windage tray and baffle system keep oil in the sump

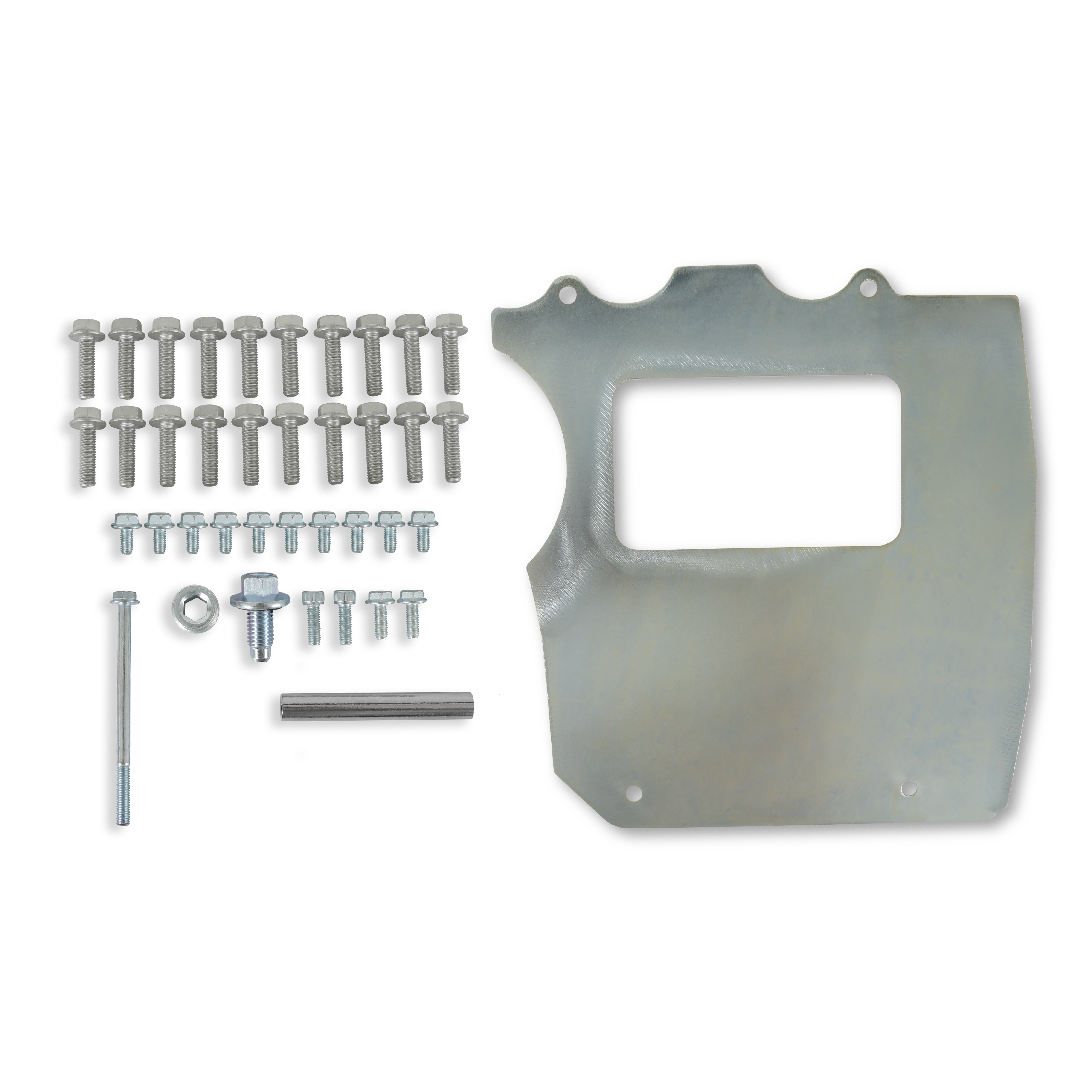

- New oil pan hardware and dipstick included
- Fits Ford 7.3-liter Godzilla engine – ideal for engine swaps
- Includes new front main seal and installation tool
- Works with the original factory crank pulley, as well as aftermarket damper/pulleys

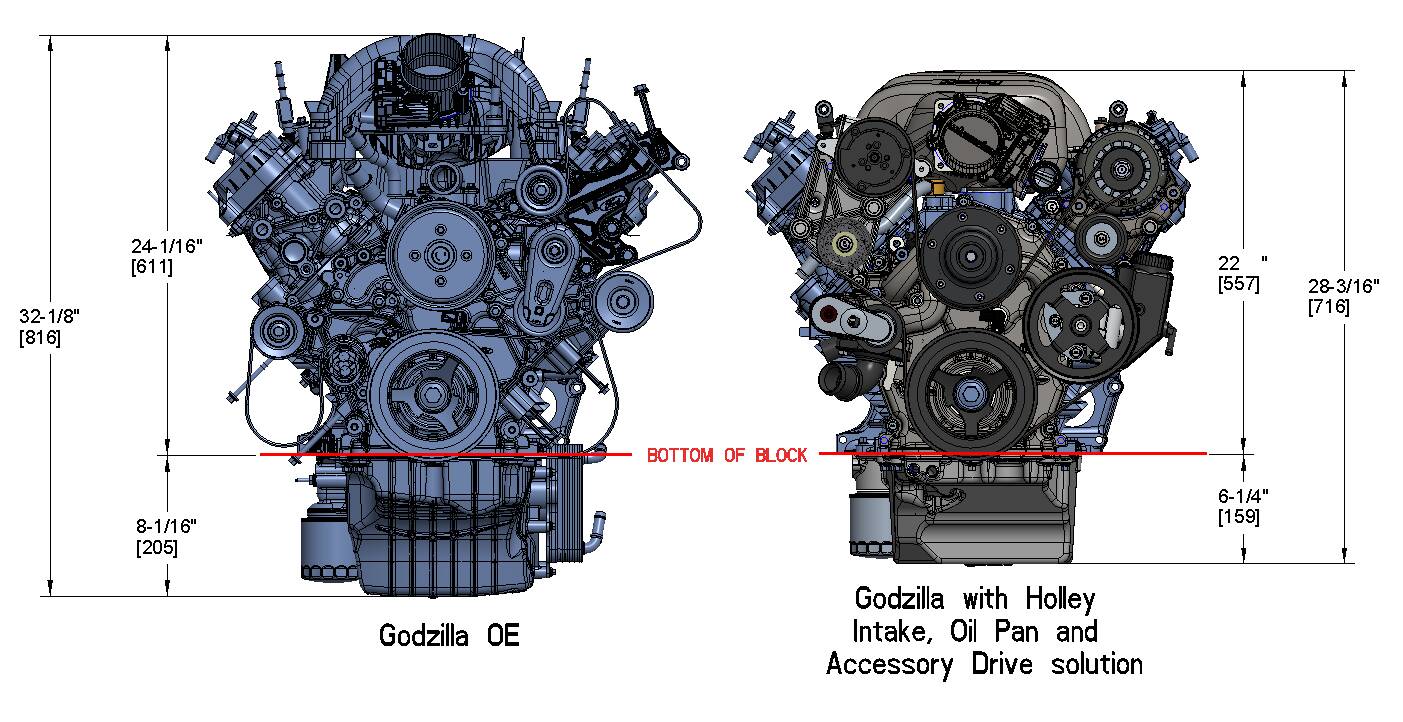

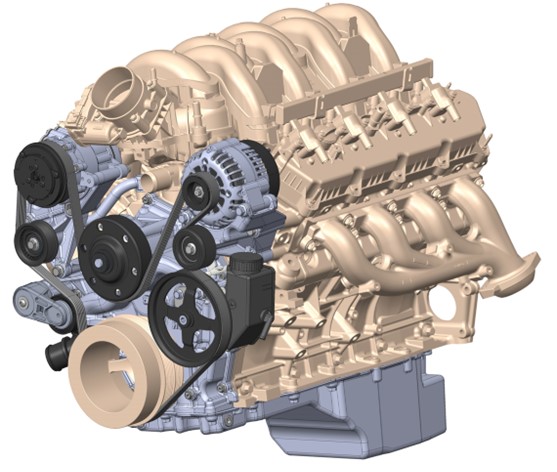

- This high-mount accessory drive has all accessories pulled up and in tighter than other options
- Relocates heater hose connections out of sight for a noticeable visual improvement over the OE design
- Alternator options do not require the original ECU control to function
- P/S pump with the optional external reservoir is ideal for hydro-boost applications
- Choose from natural as-cast aluminum or black finish
Specs
Brand
HOLLEY
Category
Accessory Drive Belt Kit
Specs
Brand: Holley
Engine: Ford 7.3L Godzilla
Finish: Cast
Output: 105 Amps
Warning: California Proposition 65
Category: Belts and Cooling
Material: Cast Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Belt Type: Serpentine
part type: Accessory Drive Belt Kit
Belt Color: Black
Grade Type: Performance
Application: Ford 7.3L Godzilla
Damper Style: Factory
Product Type: Accessory Drive Kits
Pulley Color: Black
Pulley Style: Serpentine
Sub Category: Accessory Drive Belt System Components
Belt Included: Yes
Emission Code: 5
Oil Pump Type: Gerotor
Damper Included: No
Pulley Material: Composite and Steel
Housing Material: Aluminum
Oil Cooler Ports: Yes
Oil Priming Port: Yes
Hardware Included: Yes
Tensioner Included: Yes
A/C Compressor Type: SD7
Alternator Amperage: 105
Alternator Included: Yes
Oil Cooler Included: No
Thermostat Included: No
Turbo Oil Drainback: Yes
Water Neck Included: Yes
Water Pump Included: Yes
Belt Groove Quantity: 8
Accessory Drive Style: High-Mount
Oil Adapters Included: No
Oil Pump Gear Material: Powdered Metal
A/C Compressor Included: Yes
Oil Pump and Pan Included: Yes
Universal Or Specific Fit: Specific
Water Pump Pulley Included: Yes
Power Steering Pump Included: Yes
Power Steering Pulley Included: Yes
Oil System Capacity (w/ filter): 6.5 Quarts
Power Steering Hardline Included: Yes
Power Steering Reservoir Included: Yes
