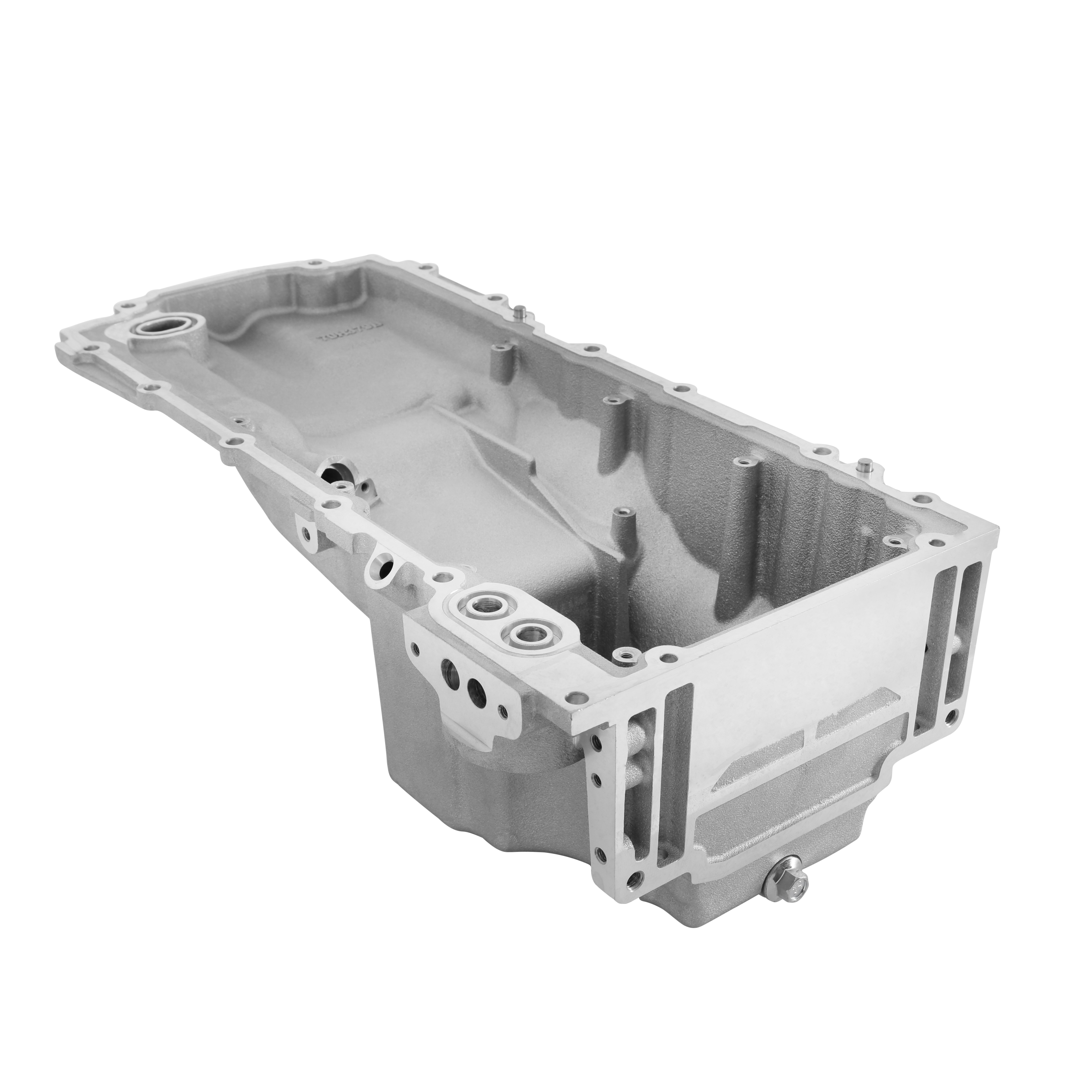

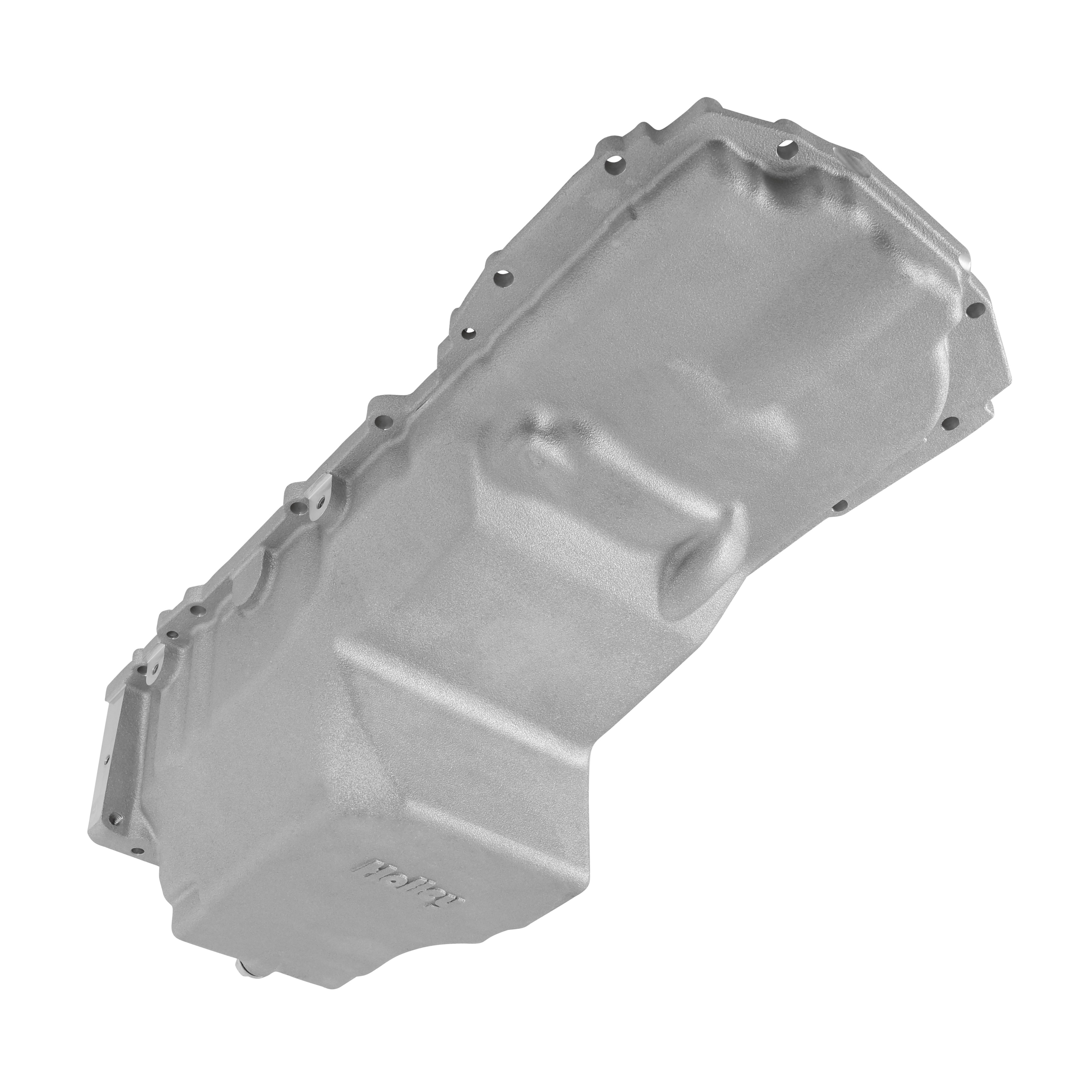

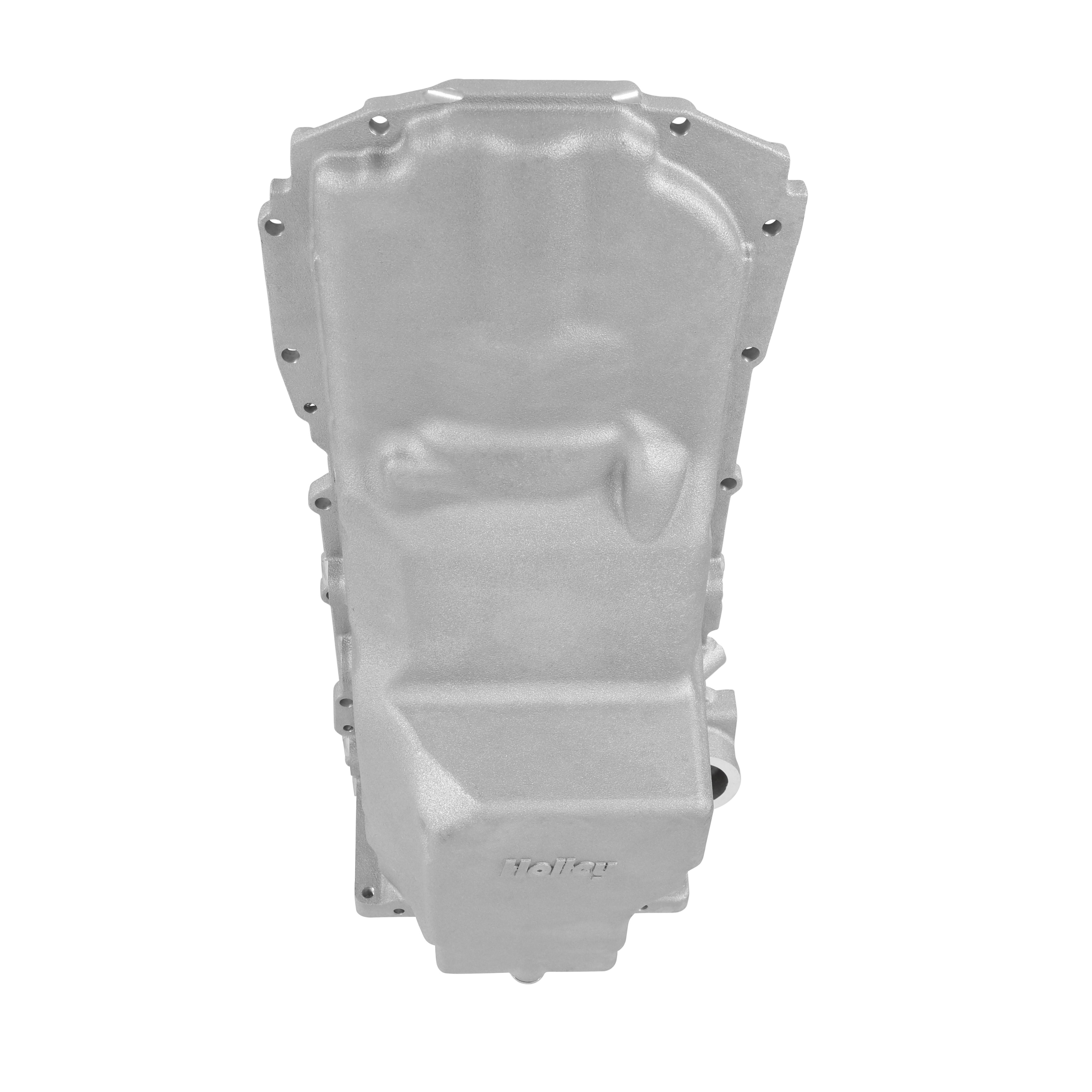

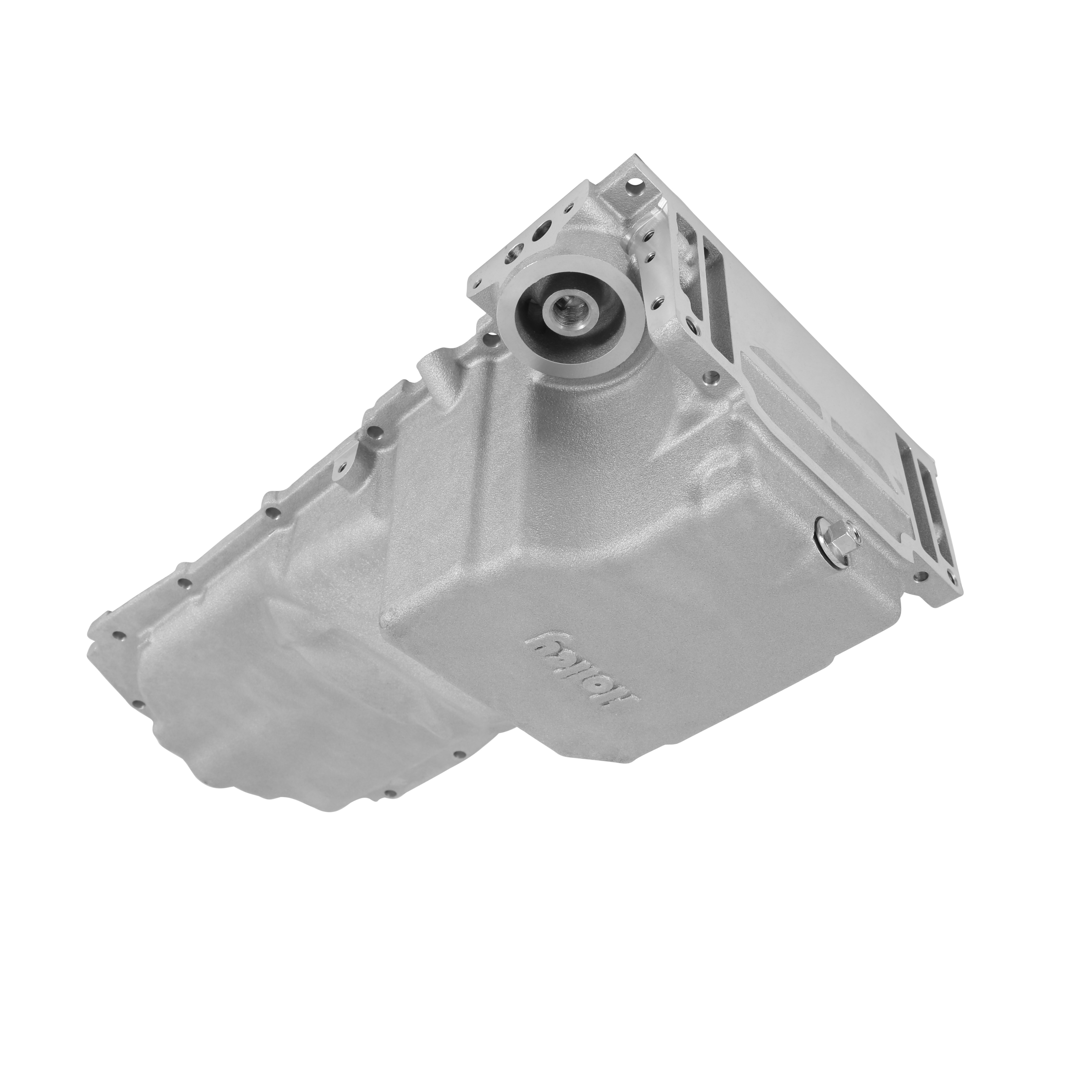

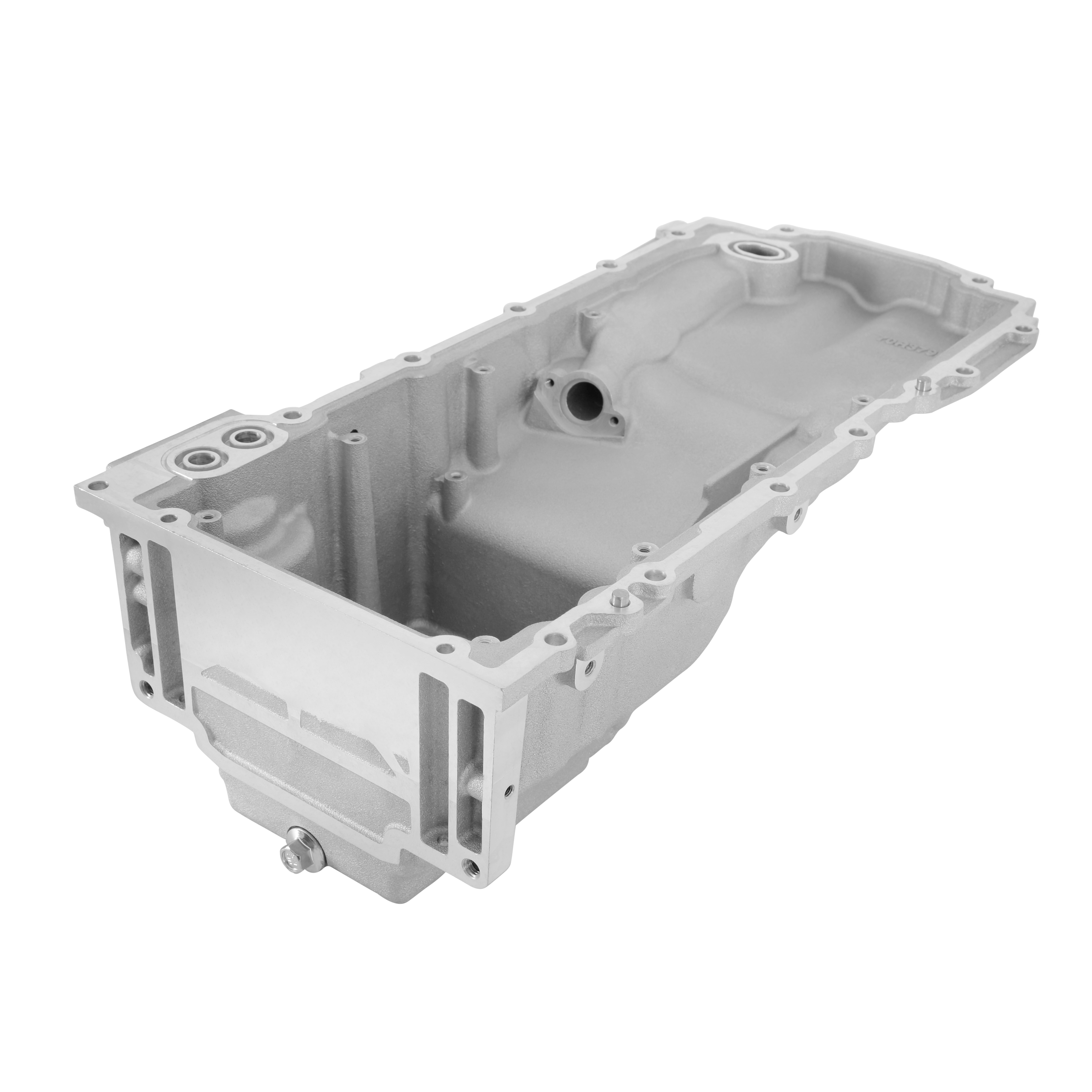

Holley GM LT Swap Oil Pan - 4WD / Truck / Off-Road
SKU
HTPD-302-24
List price
$581.95
Price
$516.95
Description
Fits 1973-1987 GM K10 LT Swapped Trucks and Other 4WD LT Swap Projects
Features
- Fits GM K10 and other LT Swapped 4-wheel drive applications

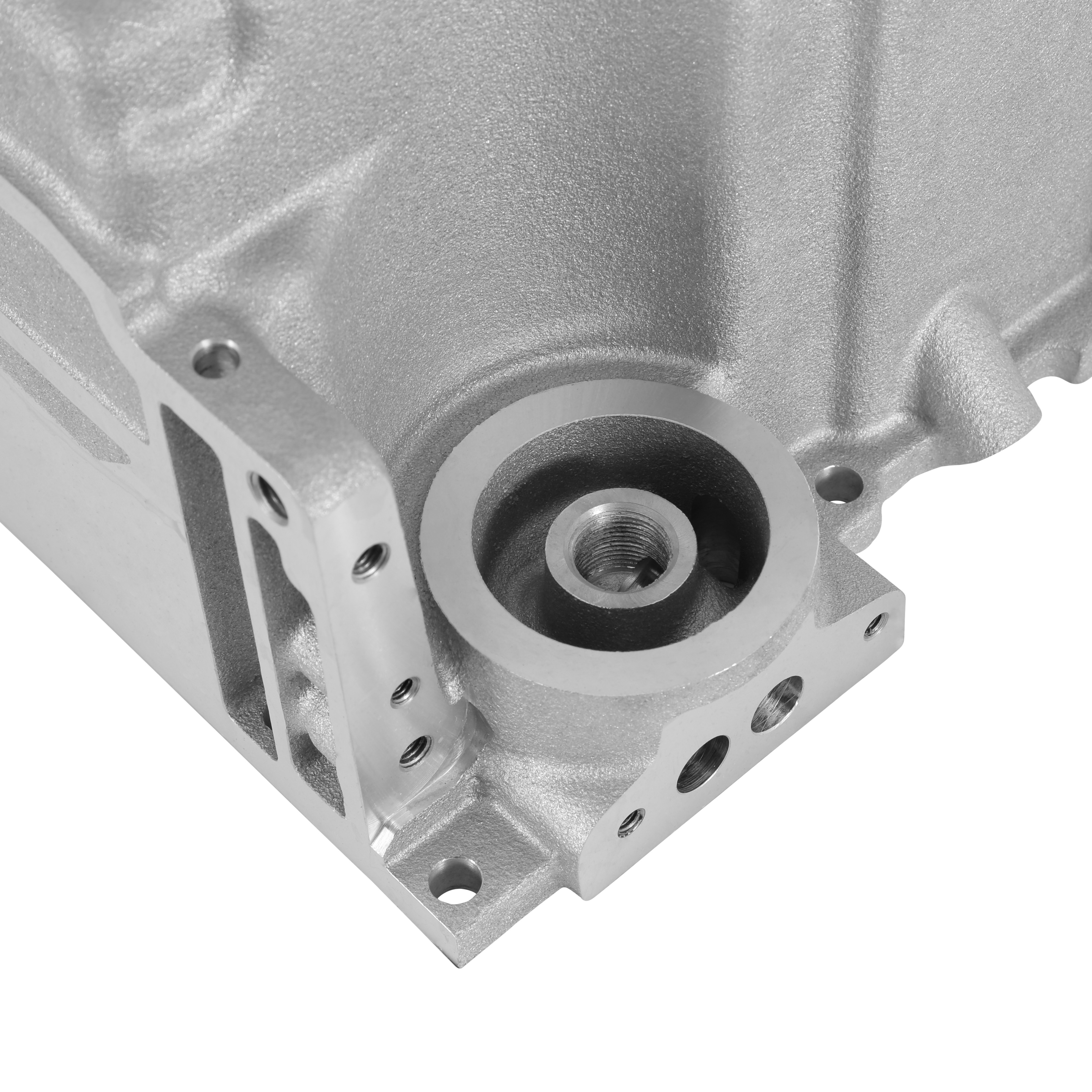

- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
- Compatible with hinged-door baffle #302-34 and rock shield #302-35 which can be added at any time
- Traditional high-quality cast aluminum appearance with clean exterior styling

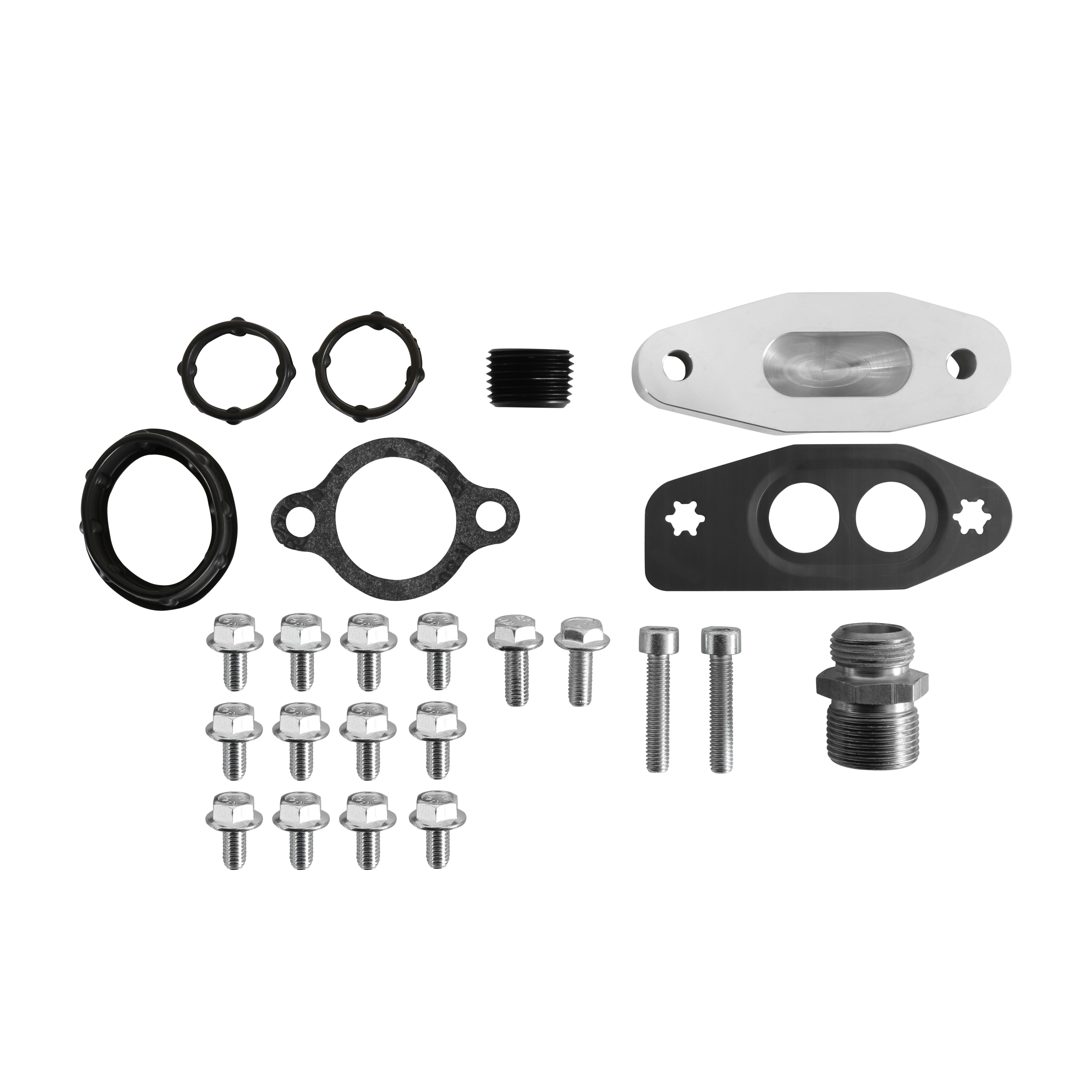

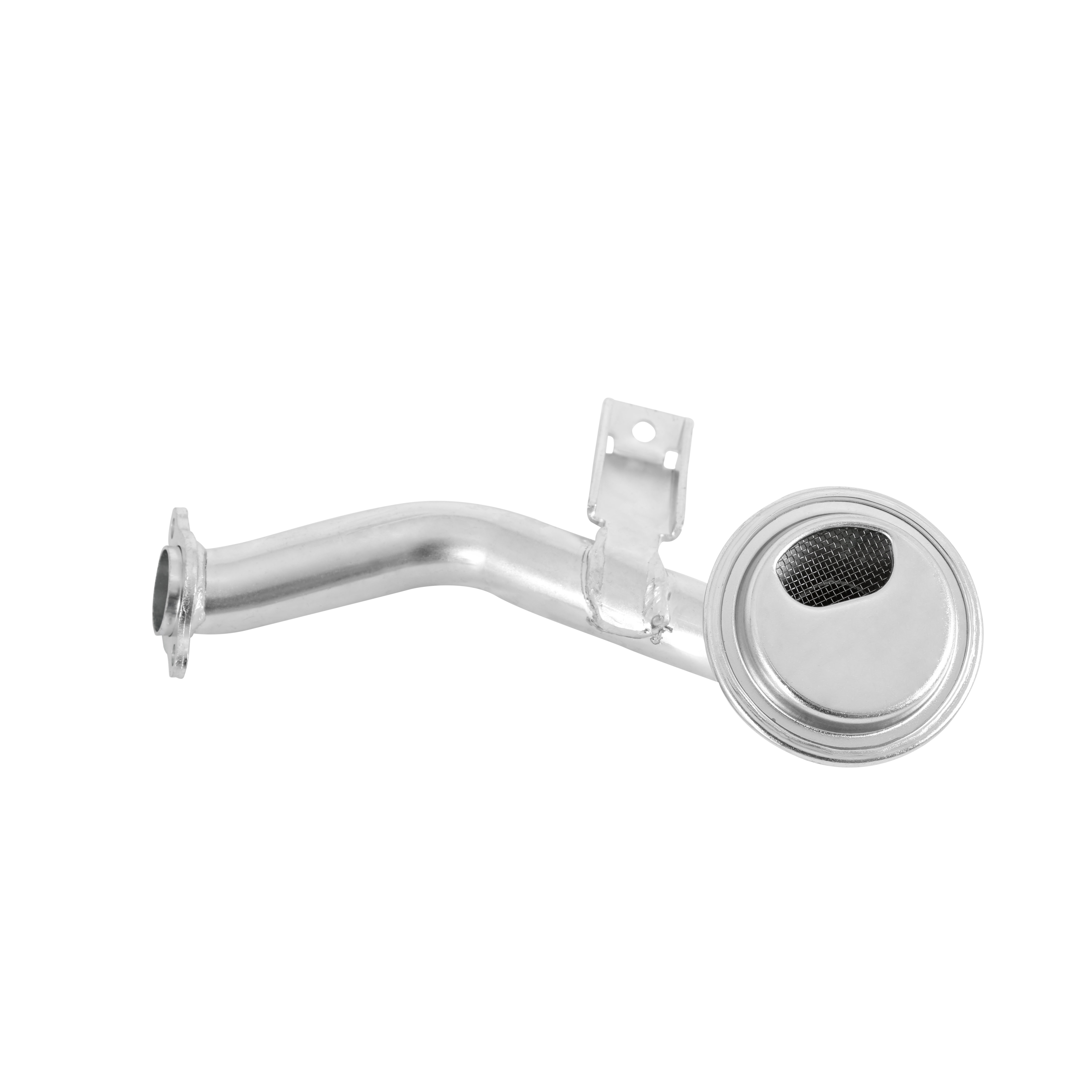

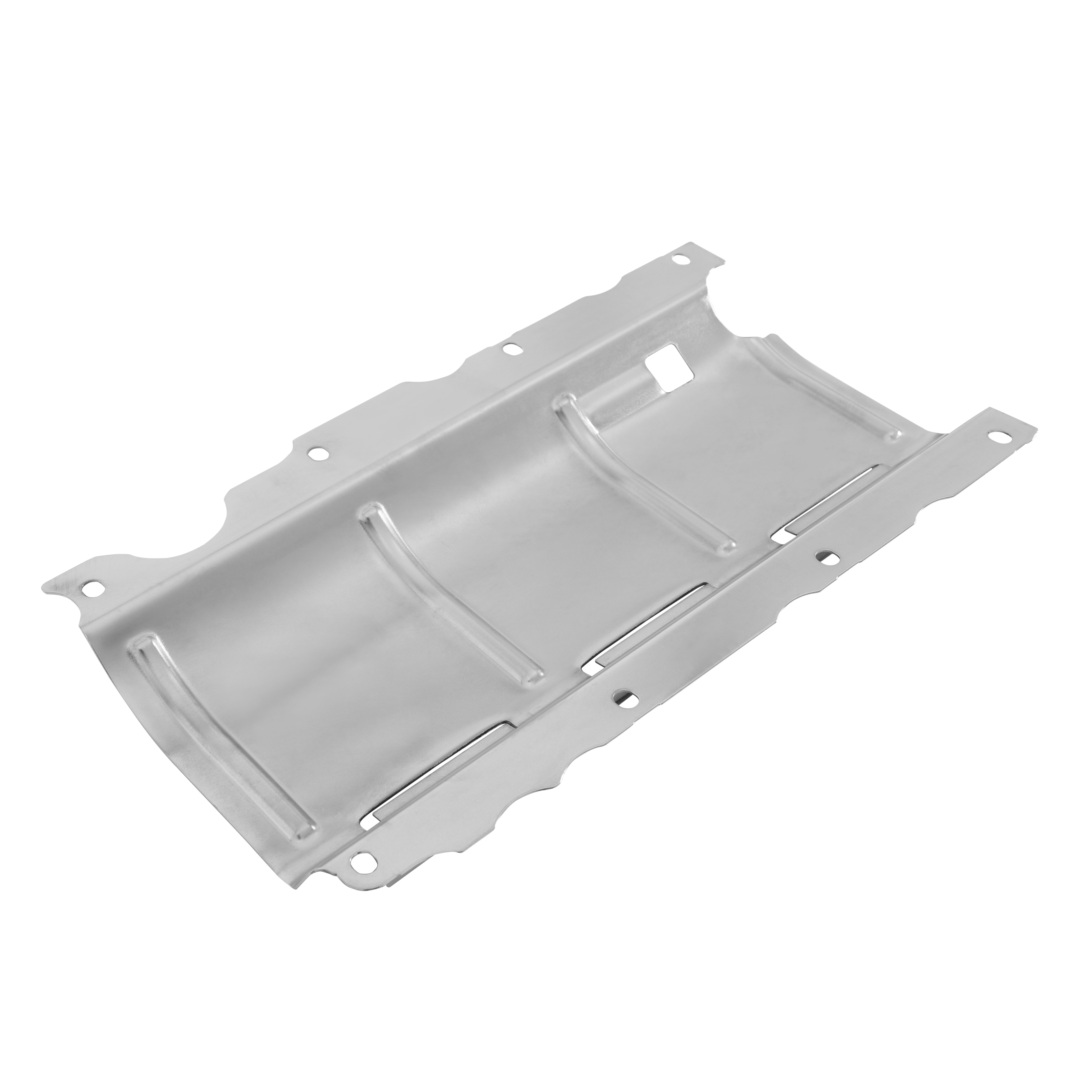

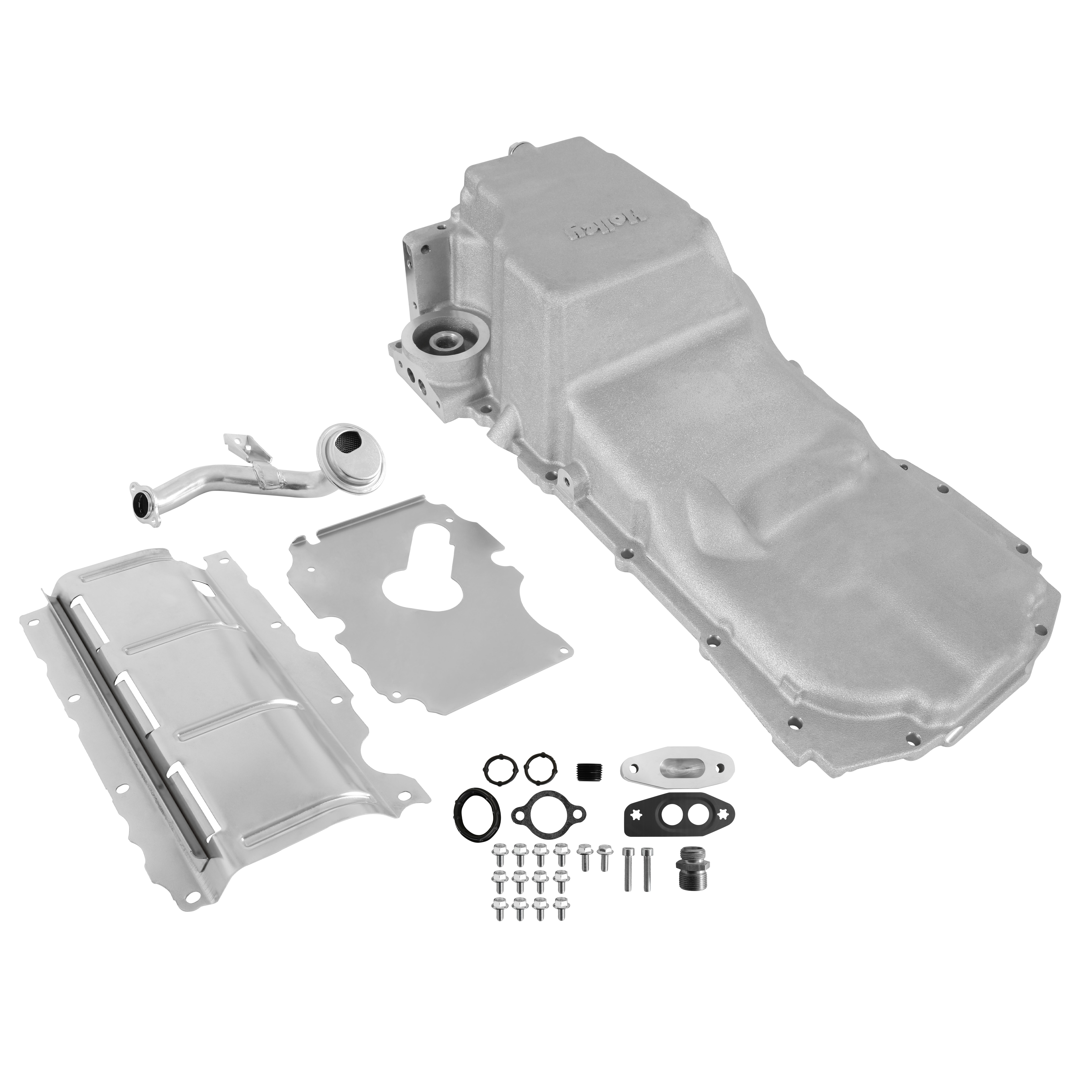

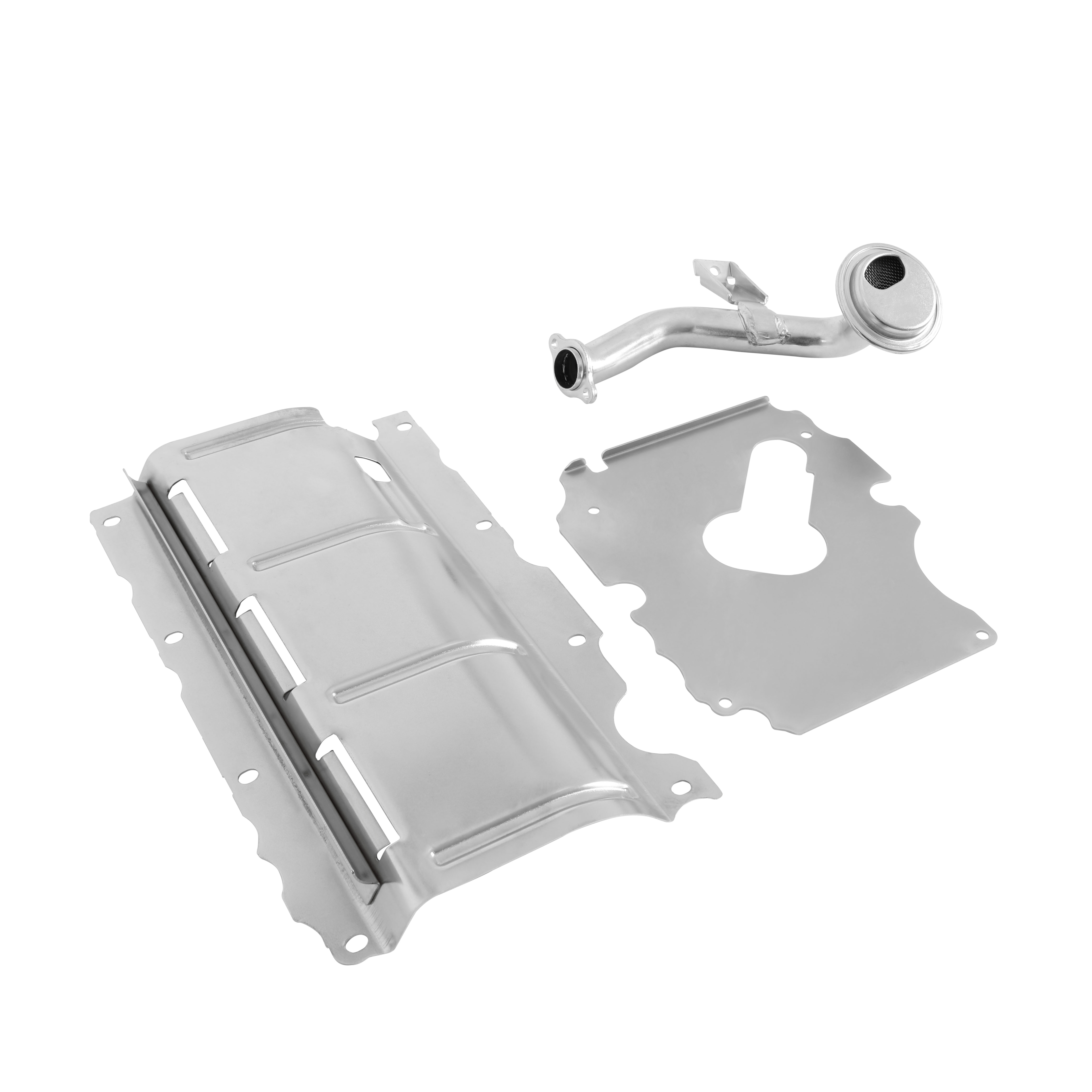

- Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover
- Maximum crankshaft stroke - 4.00-inches
Specs
Brand
HOLLEY
Category
Engine Oil Pan
Specs
Application: GM Gen V LT
Oil Pan Type: Off-Road / 4WD
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Dipstick Port: No
Emission Code: 5
Sump Location: Rear
Maximum Stroke: 4.00"
Pickup Included: Yes
Choose Your Part: Oil Pan Kit
Oil Pan Capacity: 5.6 Quarts
Drain Plug Included: Yes
Turbo Oil Drainback: No
Windage Tray Included: No
Crank Shaft Wiper Included: No
Oil System Capacity (w/ filter): 6.1 Quarts
Brand: Holley
Color: Silver
Engine: GM Gen V (LT)
Finish: Natural Cast
Baffled: No
Warning: California Proposition 65
Capacity: 5.6
Category: Engine
Material: Cast Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Sump Type: Wet
part type: Engine Oil Pan
Grade Type: Performance
