Holley GM LS Swap Oil Pan - Additional Front Clearance
SKU
HTPD-302-2
List price
$664.93
Price
$569.94
Description
Fits most GM/Muscle Car/Classic Car/Trucks and any LS Swapped Vehicle Requiring More Clearance at the Front Half of the Pan
Features
- Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan.
- Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications.
- NOTE – Oil pan #302-2 may not be used with LS7 engines or “stroker” engines greater than 3.62”.
- Can be used anywhere a GM F-Body oil pan can be used
- New applications will be added as testing confirms fitment
- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
- Traditional high-quality cast aluminum appearance with clean exterior styling.
- Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember.

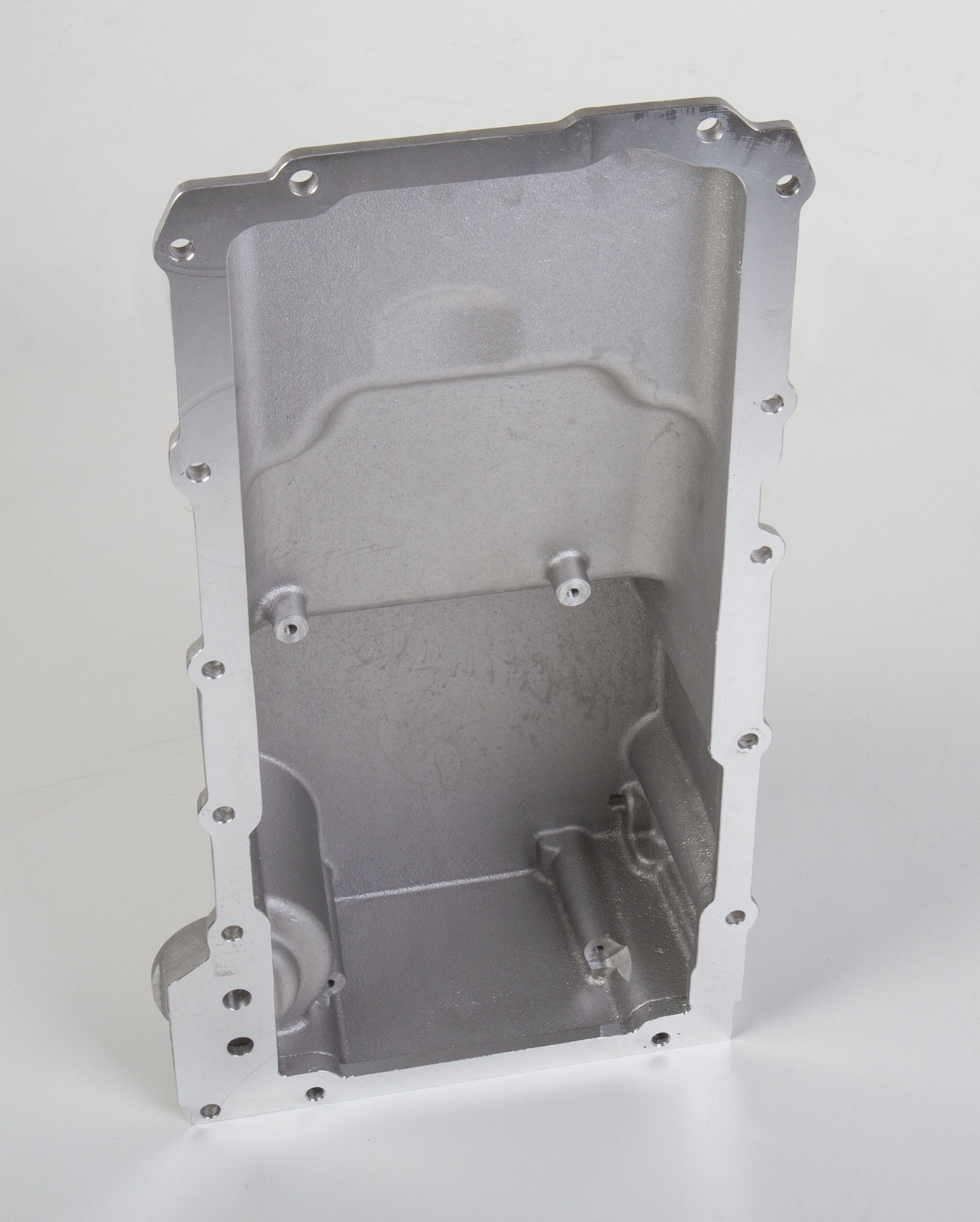

- Cast and machined aluminum

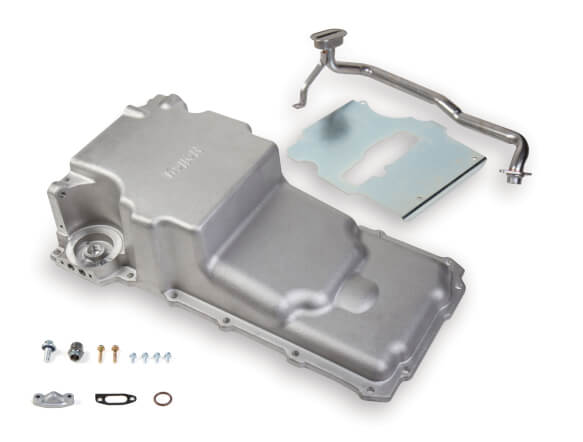

- Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
Specs
Brand
HOLLEY
Category
Engine Oil Pan
Specs
Brand: Holley
Color: Silver
Engine: GM Gen III/IV (LS)
Finish: Natural Cast
Baffled: No
Warning: California Proposition 65
Capacity: 6
Category: Engine
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Sump Type: Wet
part type: Engine Oil Pan
Grade Type: Performance
Application: GM LS Engines
Oil Pan Type: Cast
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Dipstick Port: No
Emission Code: 5
Sump Location: Rear
Maximum Stroke: 3.62"
Pickup Included: Yes
Choose Your Part: Oil Pan Kit
Oil Pan Capacity: 6.0 Quarts
Drain Plug Included: Yes
Turbo Oil Drainback: No
Windage Tray Included: No
Crank Shaft Wiper Included: No
