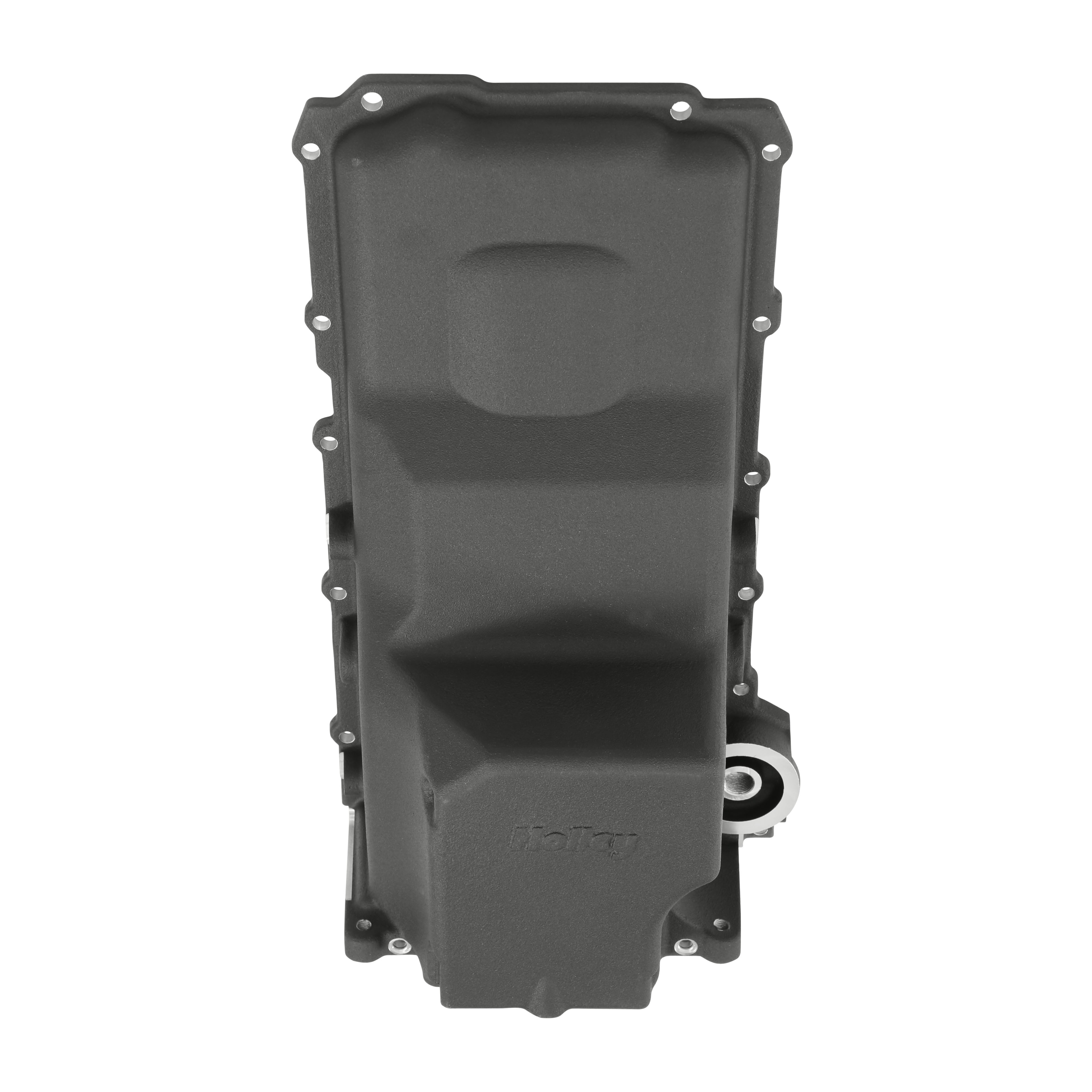

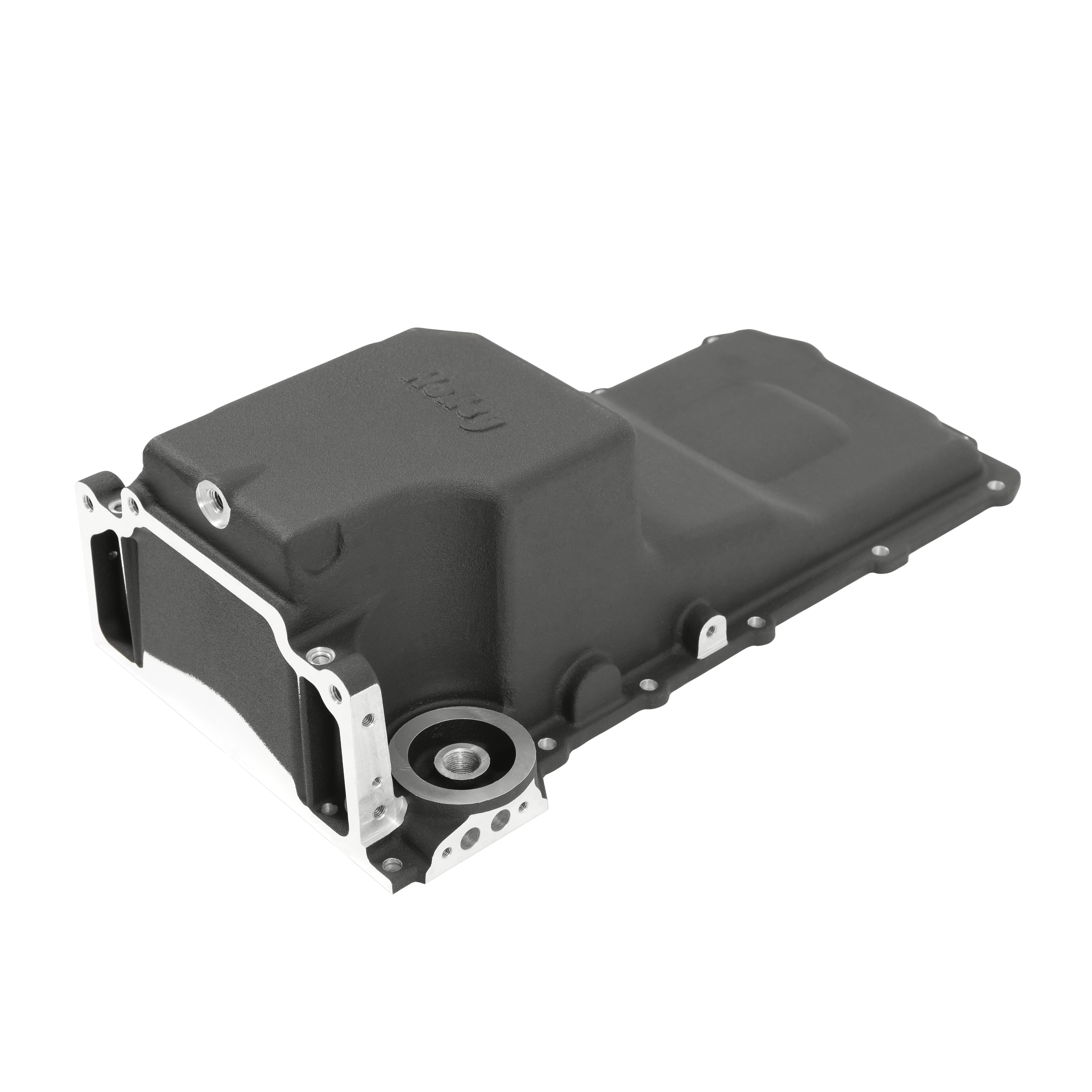

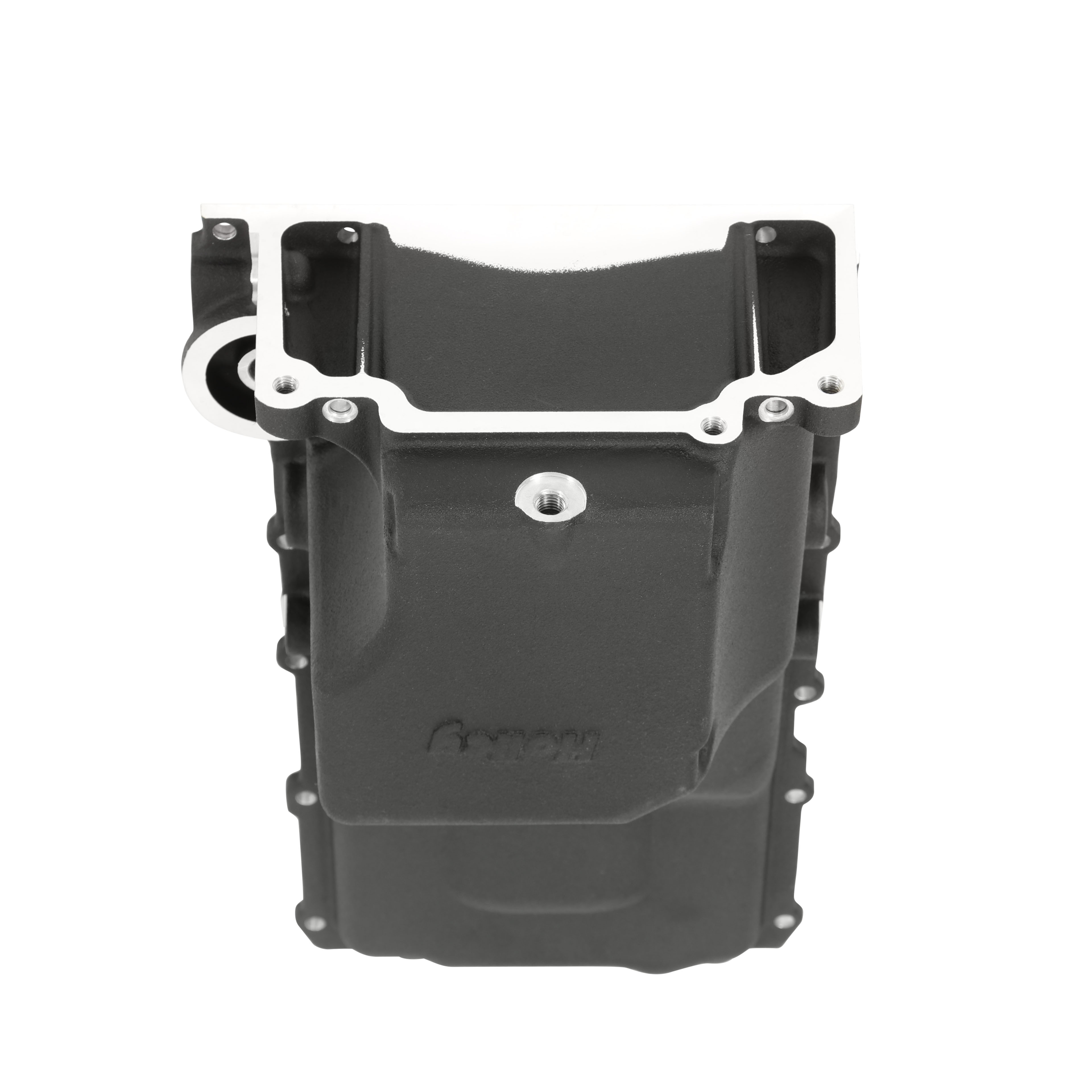

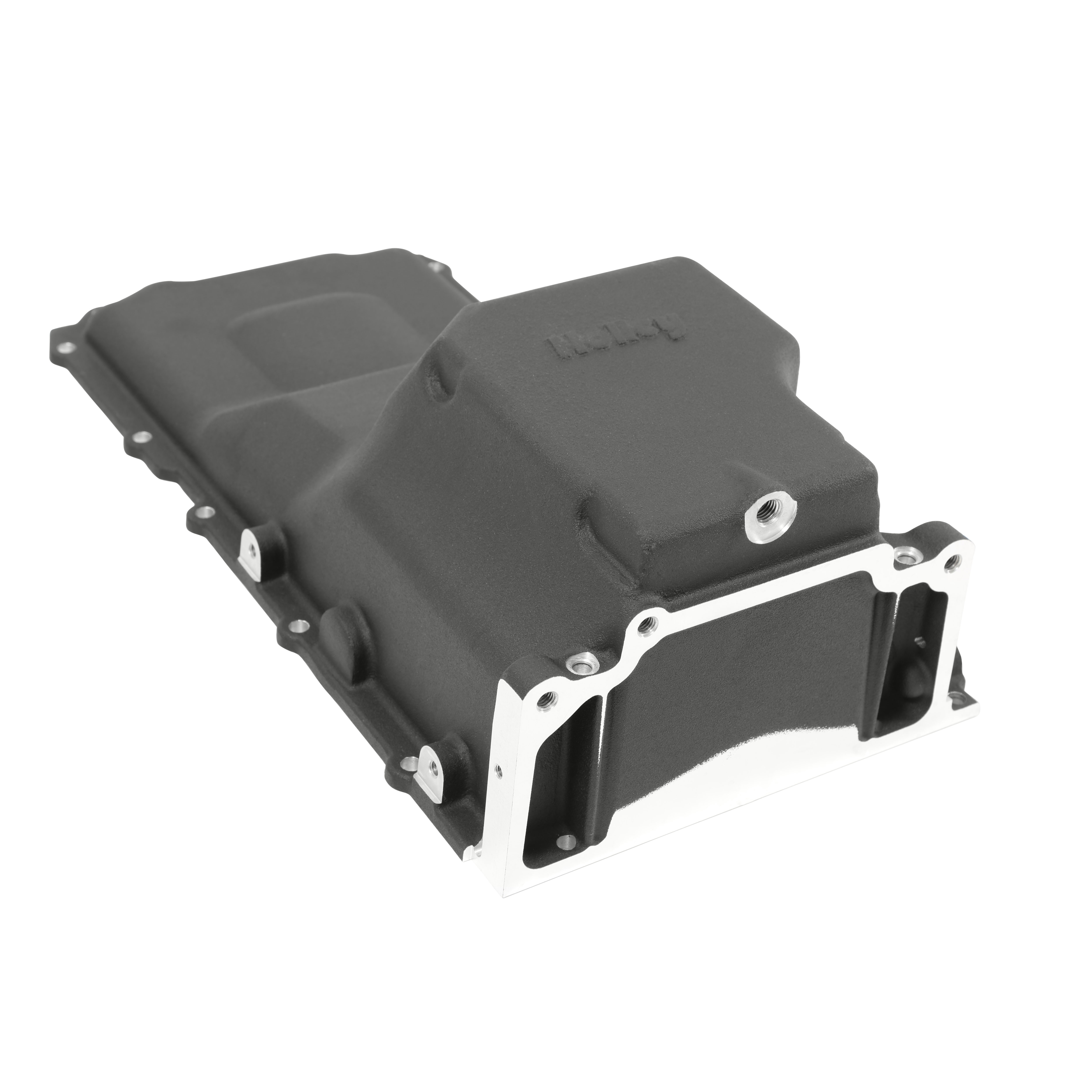

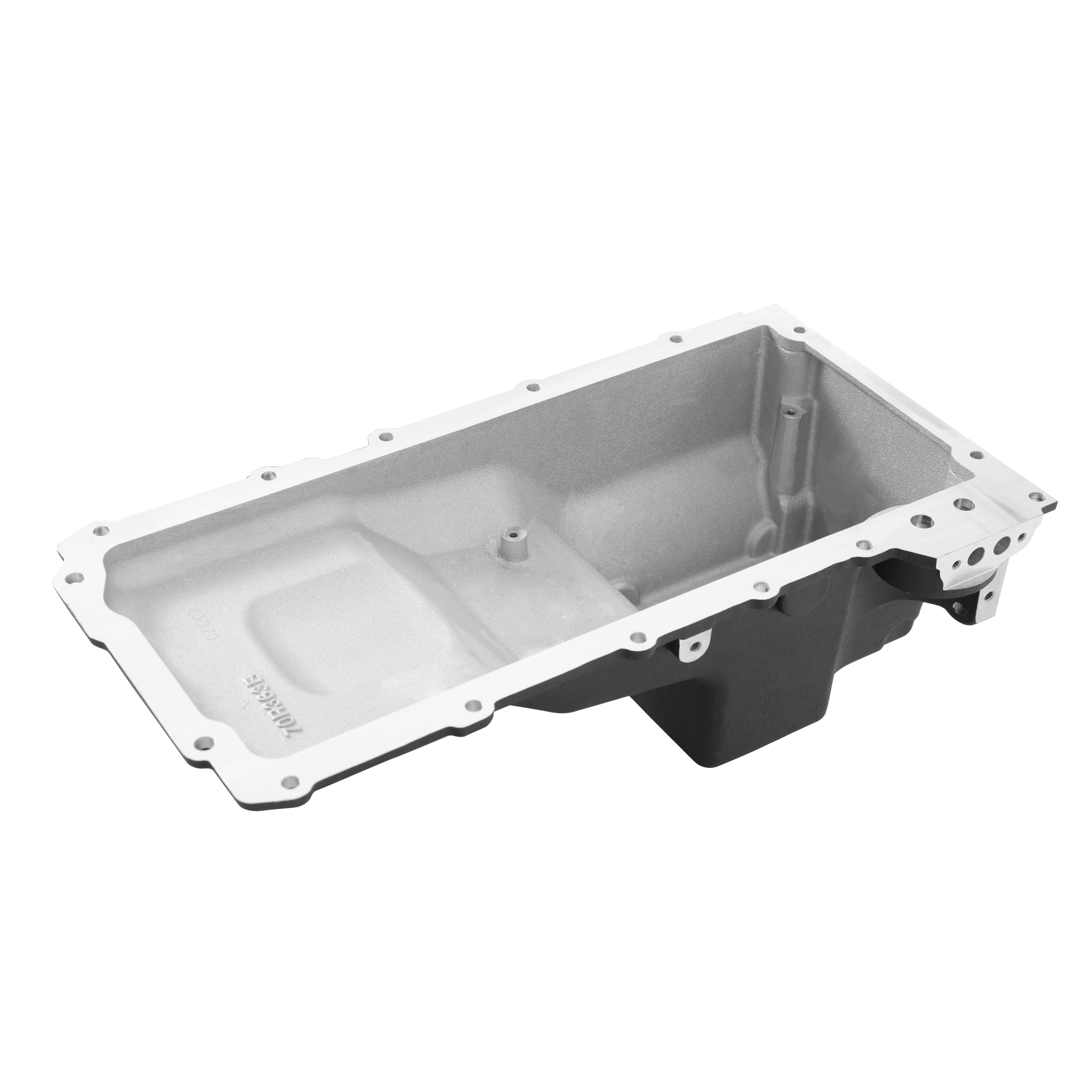

Holley GM LS Swap Oil Pan - 4WD / Truck / Off-Road - Black
SKU
HTPD-302-4BK
List price
$529.95
Price
$306.95
Description
Fits 1973-1987 GM K10 LS Swapped Trucks and Other 4WD LS Swap Projects
Features
- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
- Traditional high-quality cast aluminum appearance with clean exterior styling

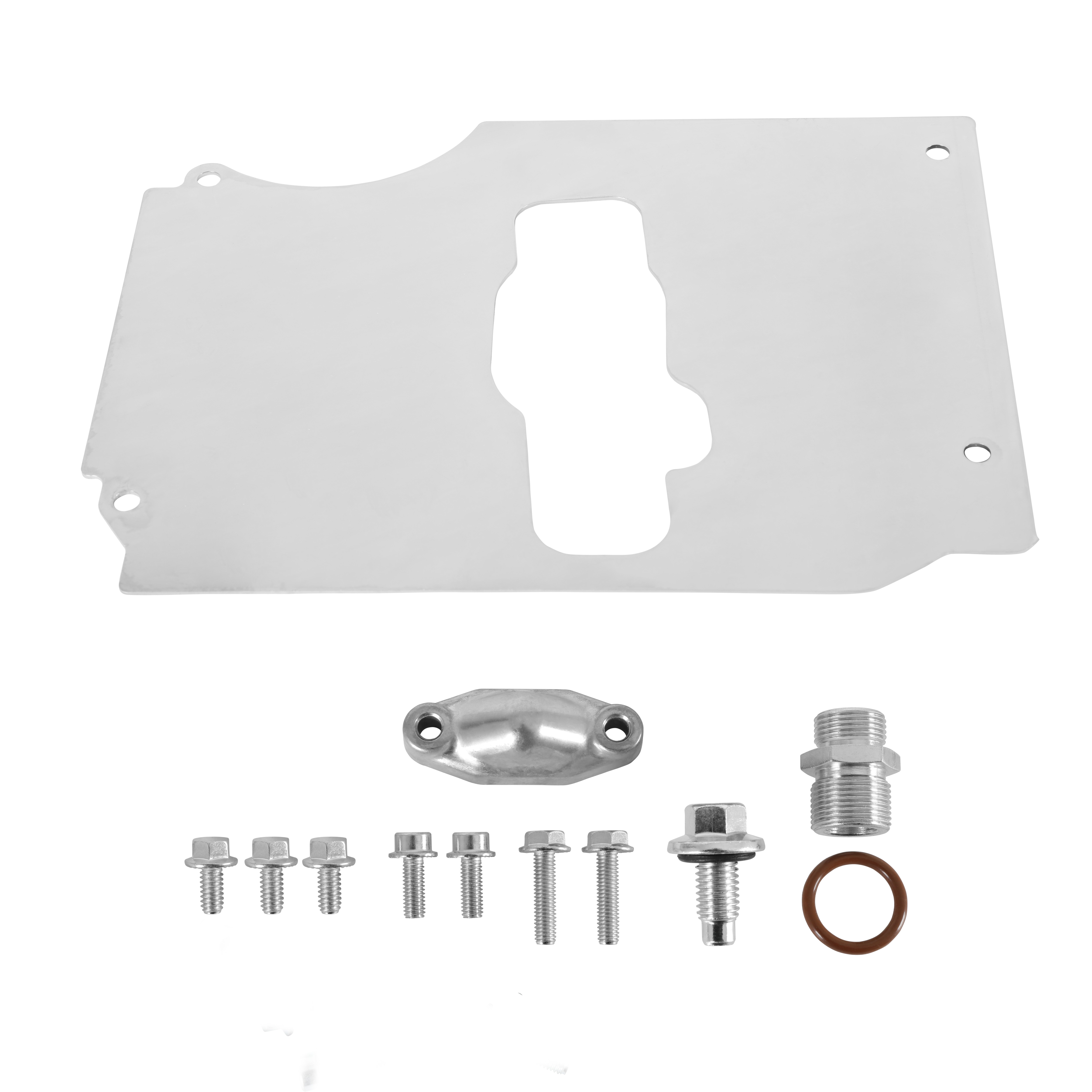

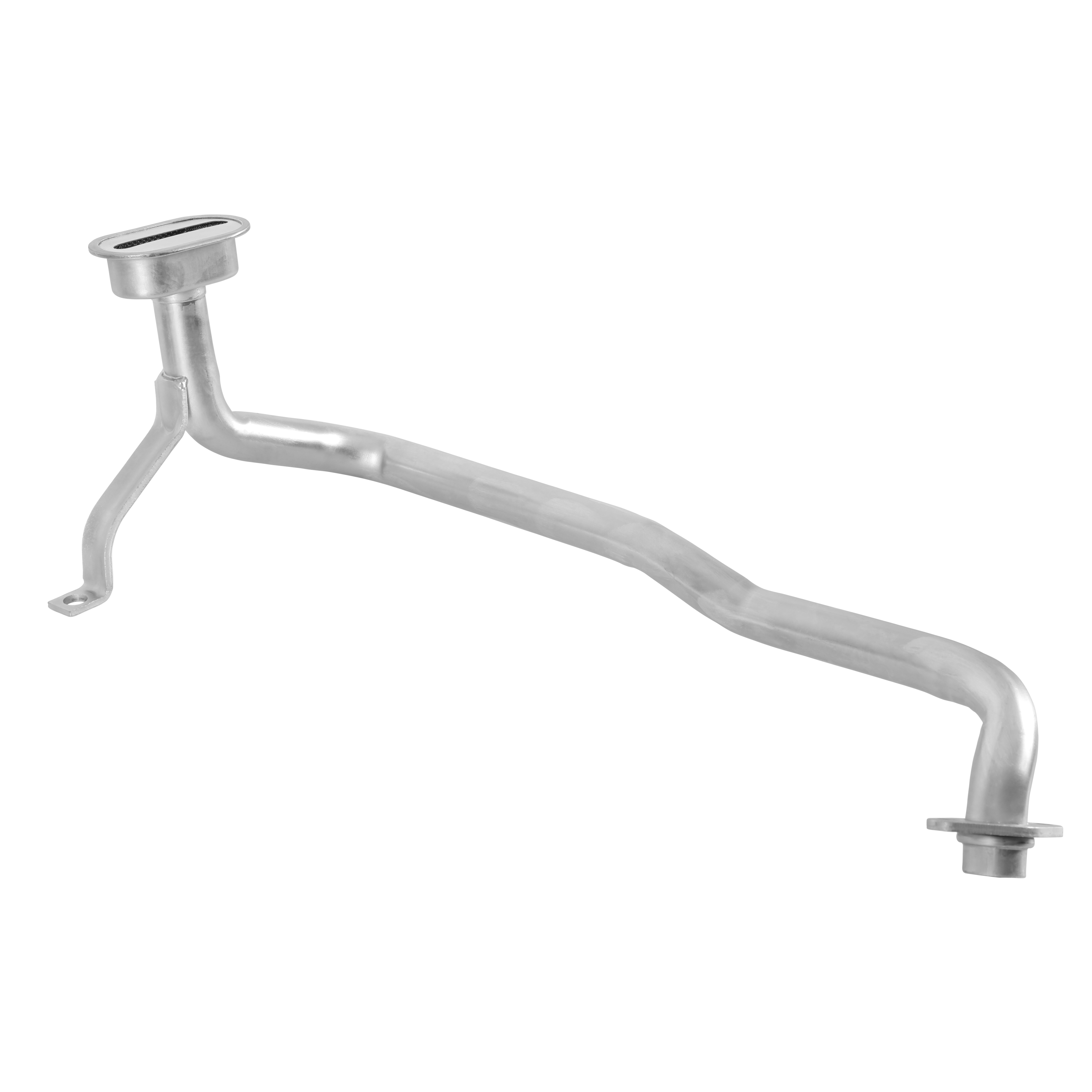

- Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover.
- Fits GM K10 and other LS Swapped 4-wheel drive applications
- Maximum crankshaft stroke - 4.00-inches
- Compatible with hinged-door baffle #302-33 and rock shield #302-35 which can be added at any time
Specs
Brand
HOLLEY
Category
Engine Oil Pan
Specs
Brand: Holley
Color: Black
Engine: GM Gen III/IV (LS)
Finish: Natural Cast
Baffled: No
Warning: California Proposition 65
Capacity: 5.6
Category: Engine
Material: Cast Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Sump Type: Wet
part type: Engine Oil Pan
Grade Type: Performance
Application: GM LS Engines
Oil Pan Type: Off-Road / 4WD
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Dipstick Port: No
Emission Code: 5
Sump Location: Rear
Maximum Stroke: 4.00"
Pickup Included: Yes
Choose Your Part: Oil Pan Kit
Oil Pan Capacity: 5.6 Quarts
Drain Plug Included: Yes
Turbo Oil Drainback: No
Windage Tray Included: No
Crank Shaft Wiper Included: No
Oil System Capacity (w/ filter): 6.1 Quarts
PDFs
PDFs
68b2633a612cd.pdf
(502.79 KB)
