Holley GM Gen V LT Swap Oil Pan - Oil Return Not Machined
SKU
HTPD-302-21
List price
$557.94
Price
$464.95
Description
GM Gen V LT Swap Oil Pan - Same Dimensions as 302-20 - Oil Return Boss Can Be Drilled and Tapped
Features
- Designed for LT engine swap installations in classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan
- Allows for up to 4.00-inch crankshaft stroke
- Can be used anywhere a GM F-body oil pan can be used
- Provides OE style fitment – OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
- Traditional high-quality cast aluminum appearance with clean exterior styling
- Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember
- Traditional high-quality cast aluminum appearance with clean exterior styling.
- Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember.
- Cast and machined aluminum
- Cast boss on pan can be tapped for oil or PVC return - if needed (part number 302-20 comes with this machined port)
- Optional Hinge Door Baffle - Available Separately

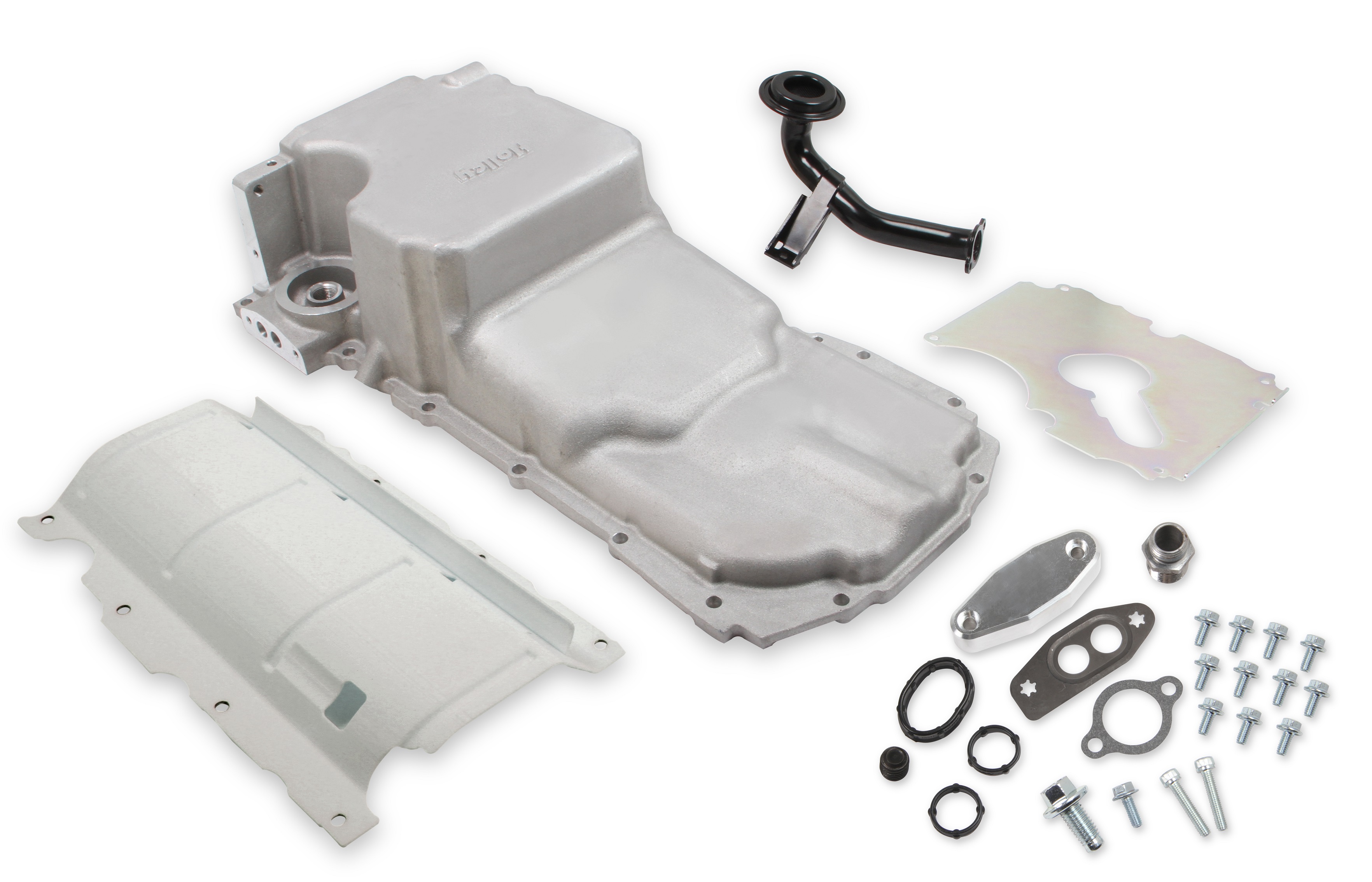

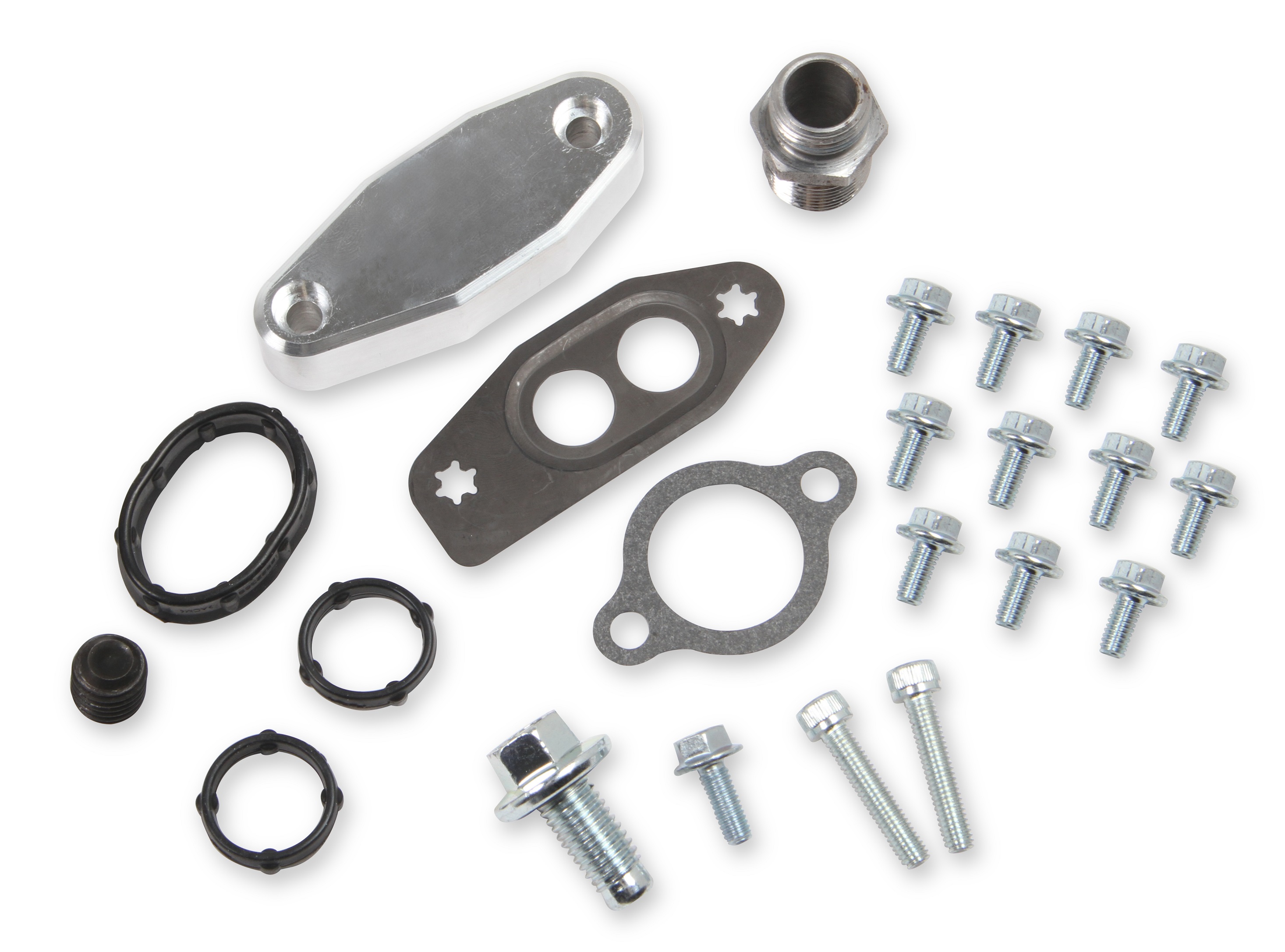

- Complete kit includes: windage tray, sump baffle, OE style pick-up tube, oil filter stud, billet oil passage cover, etc.
Specs
Brand
HOLLEY
Category
Engine Oil Pan
Specs
Brand: Holley
Color: Silver
Engine: GM Gen V (LT)
Finish: Natural Cast
Baffled: No
Warning: California Proposition 65
Capacity: 6.1
Category: Engine
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Sump Type: Wet
part type: Engine Oil Pan
Grade Type: Performance
Application: GM Gen V LT
Oil Pan Type: Cast
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Dipstick Port: No
Emission Code: 6
Sump Location: Rear
Maximum Stroke: 4.00"
Oil Return Size: Not Machined
Pickup Included: Yes
Oil Pan Capacity: 6.1 Quarts
Drain Plug Included: Yes
Turbo Oil Drainback: No
Windage Tray Included: Yes
Crank Shaft Wiper Included: No
