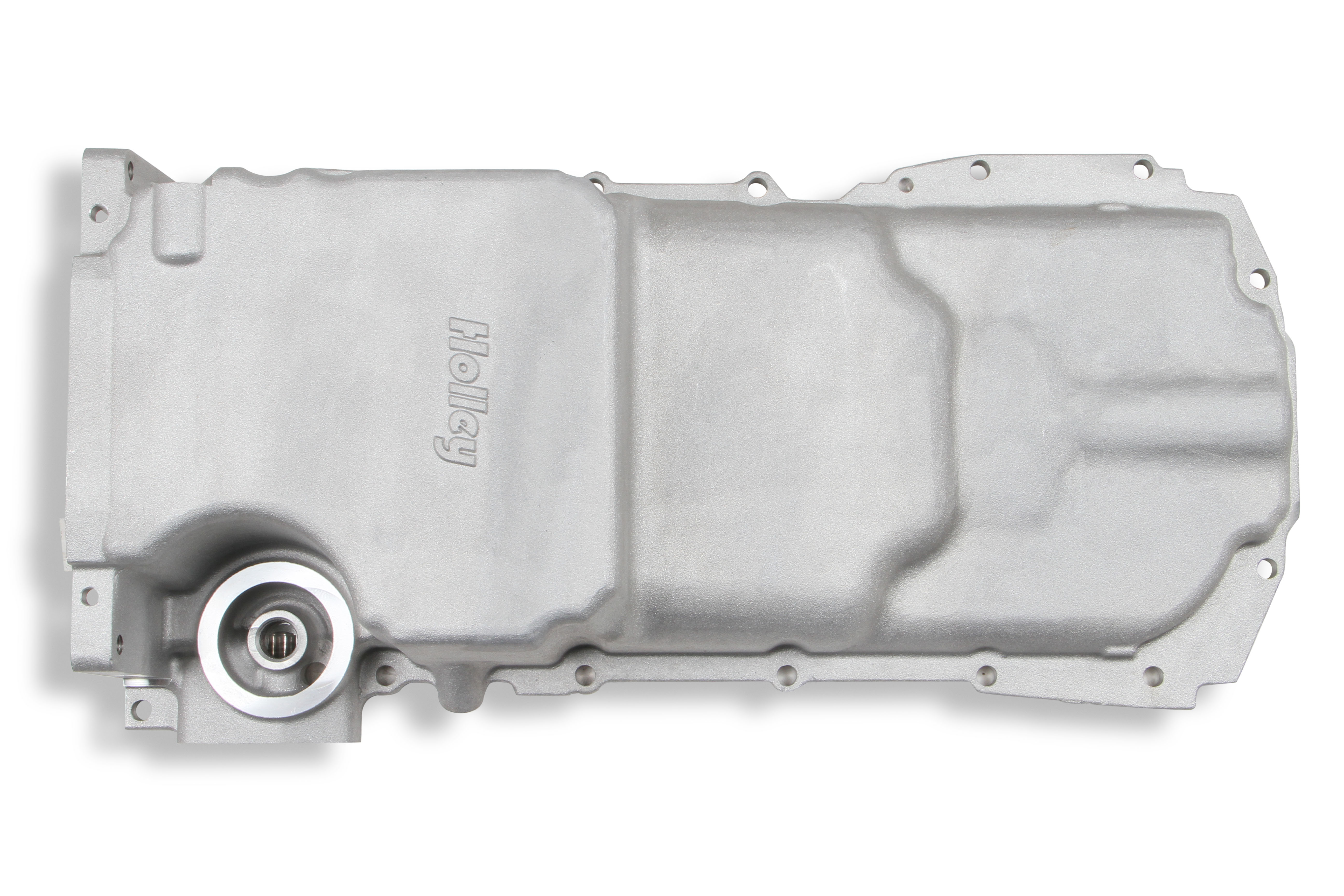

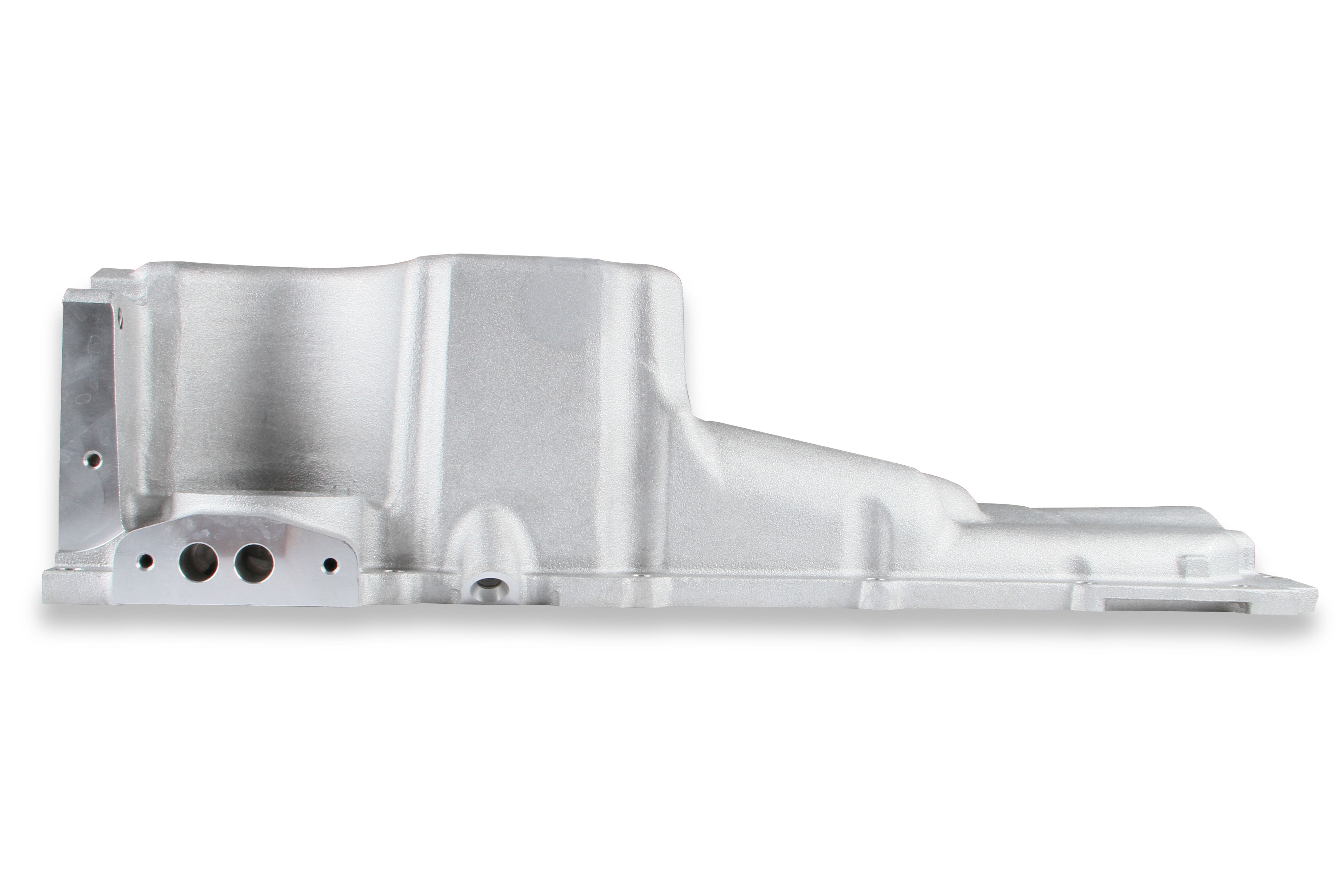

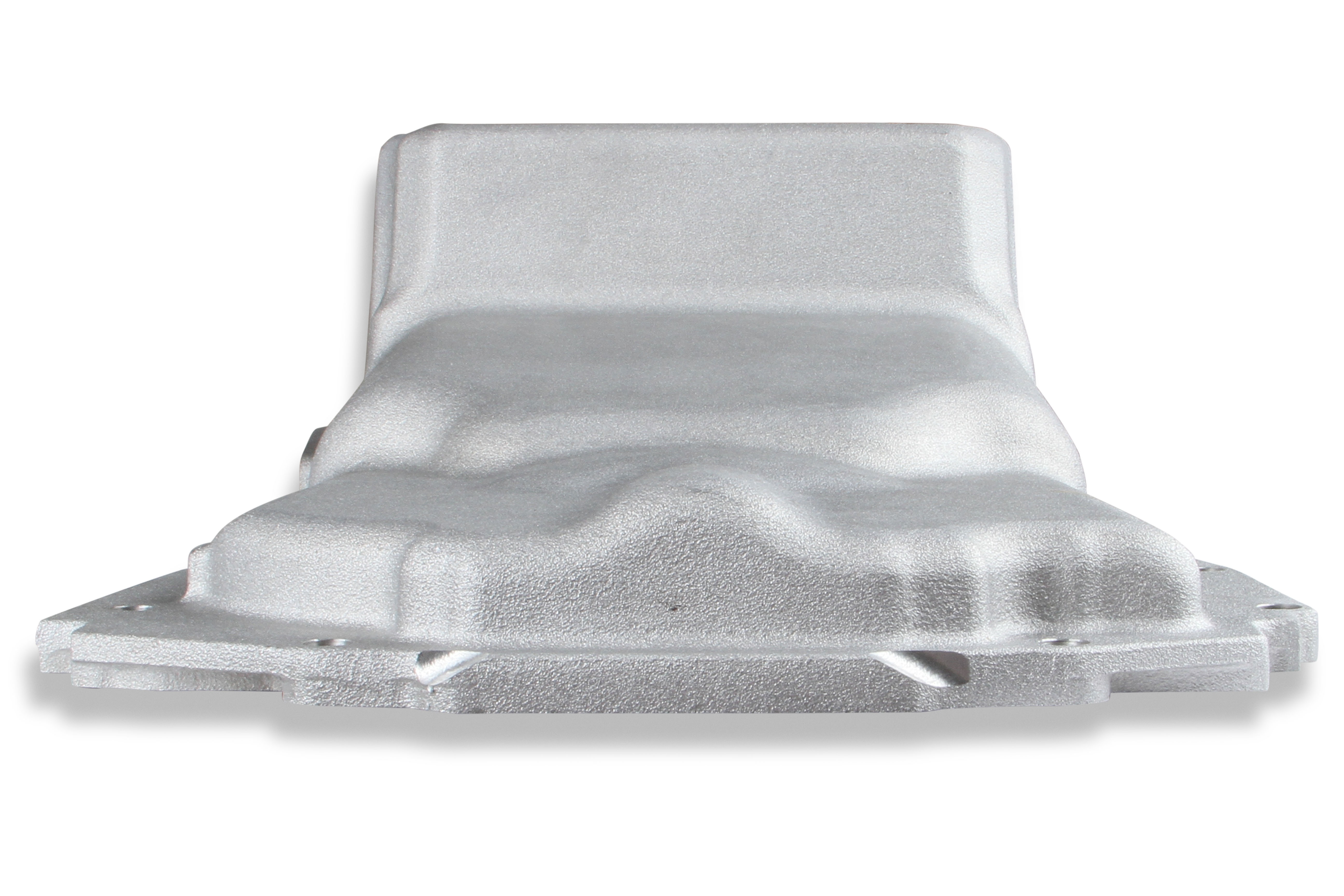

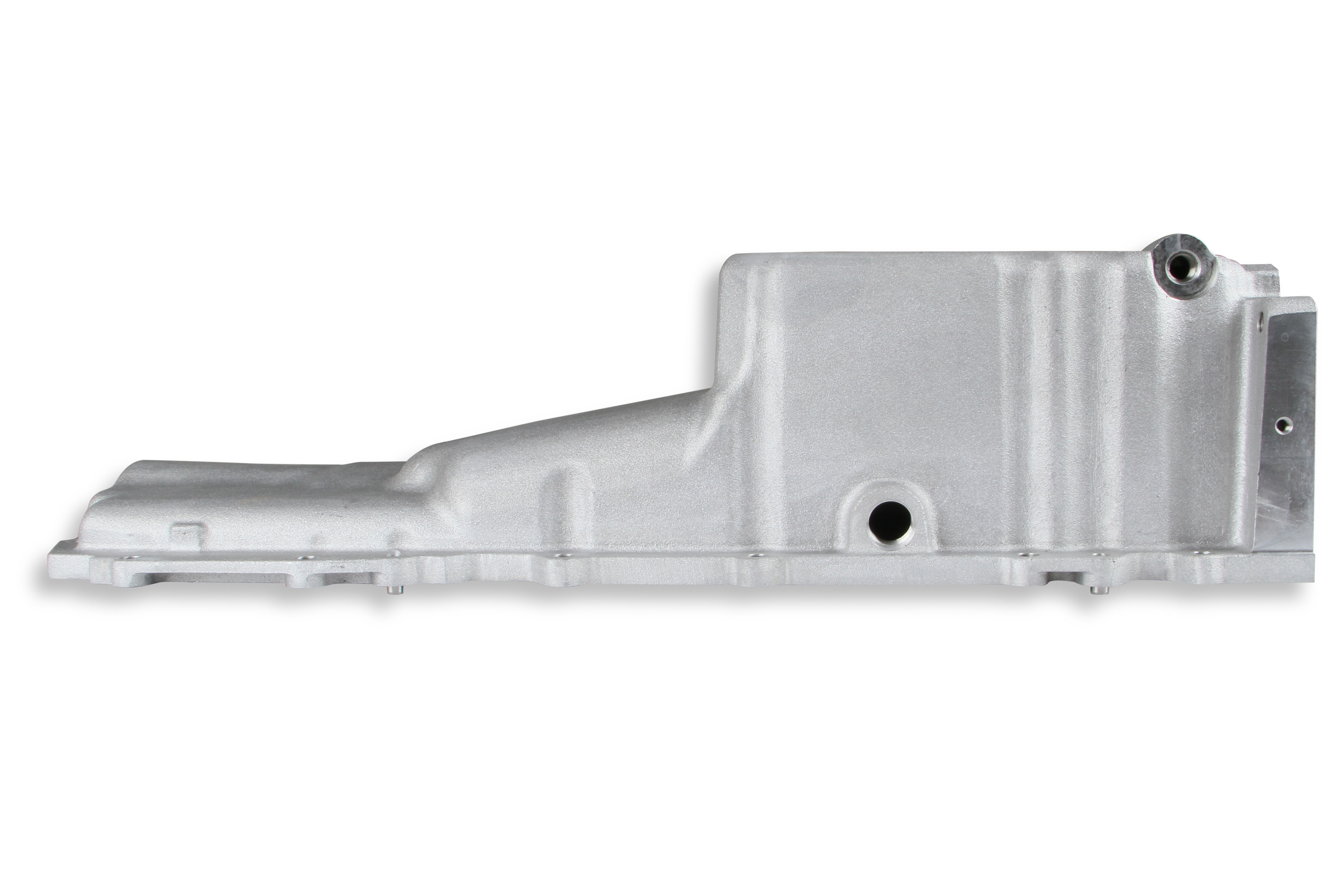

Holley GM Gen V LT Swap Oil Pan - Drag Race - As Cast with Turbo Oil Return
SKU
HTPD-302-22
List price
$704.40
Price
$527.95
Description
GM Gen V LT Swap Oil Pan - Drag Race - As Cast - Includes special drag race hinged door baffles & pickup with Turbo Oil Return
Features
- Designed for LT Engine Swap Installations in Classic Car and Truck Chassis Requiring More Oil Pan to Chassis Clearance Around the Front Half of the Oil Pan
- Allows for up to 4.00” Crankshaft Stroke
- Can Be Used Anywhere a GM F-Body Oil Pan Can Be Used

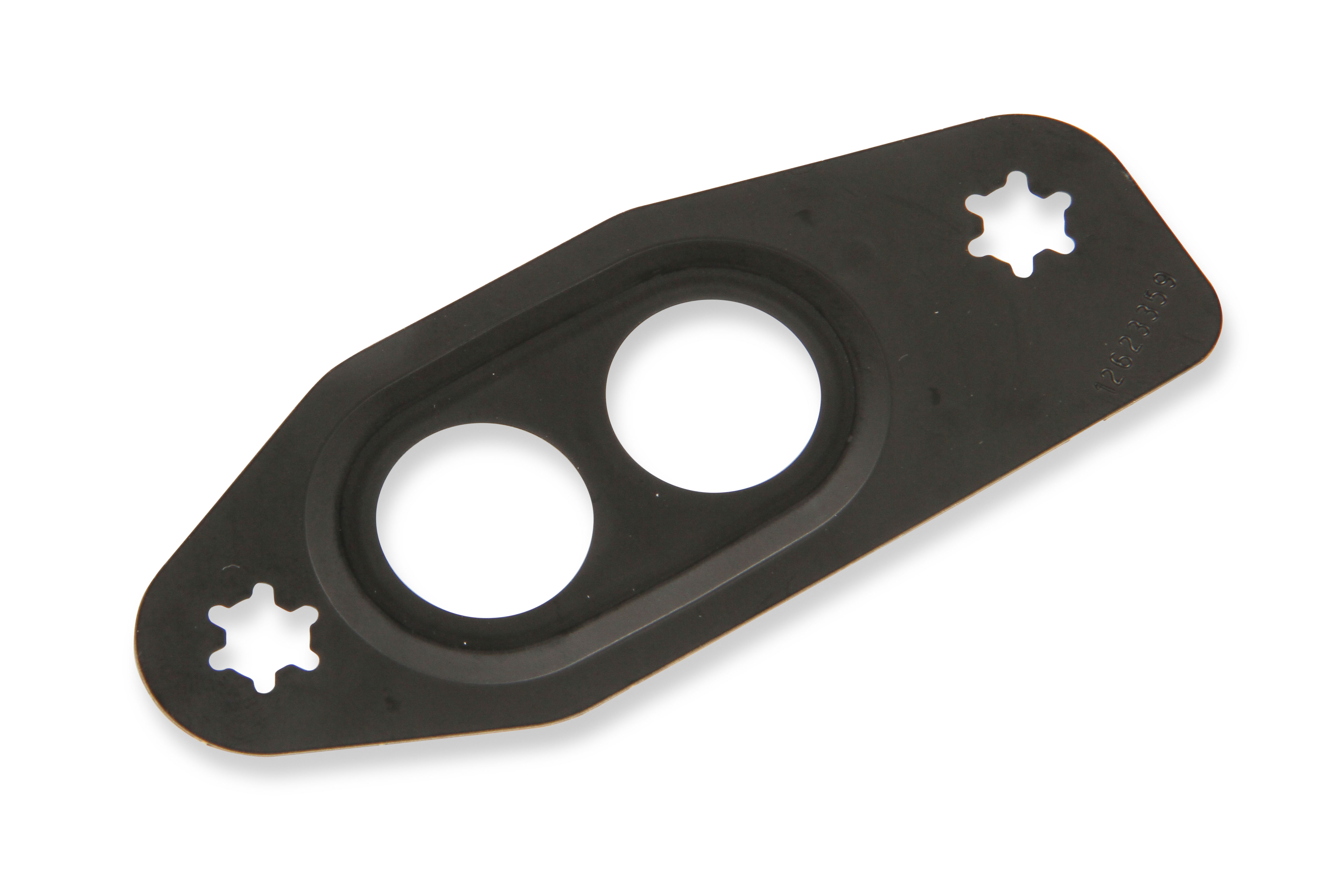

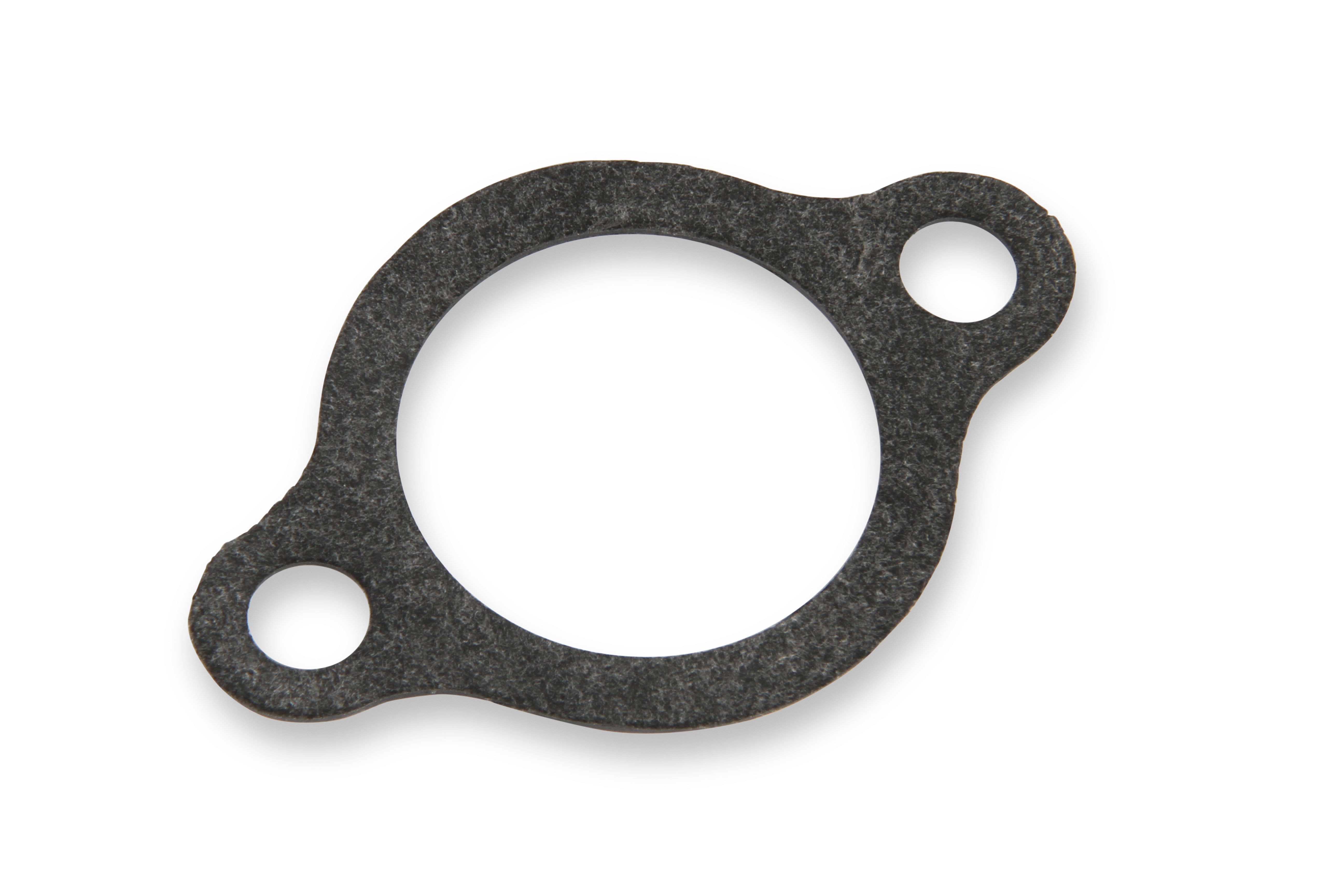

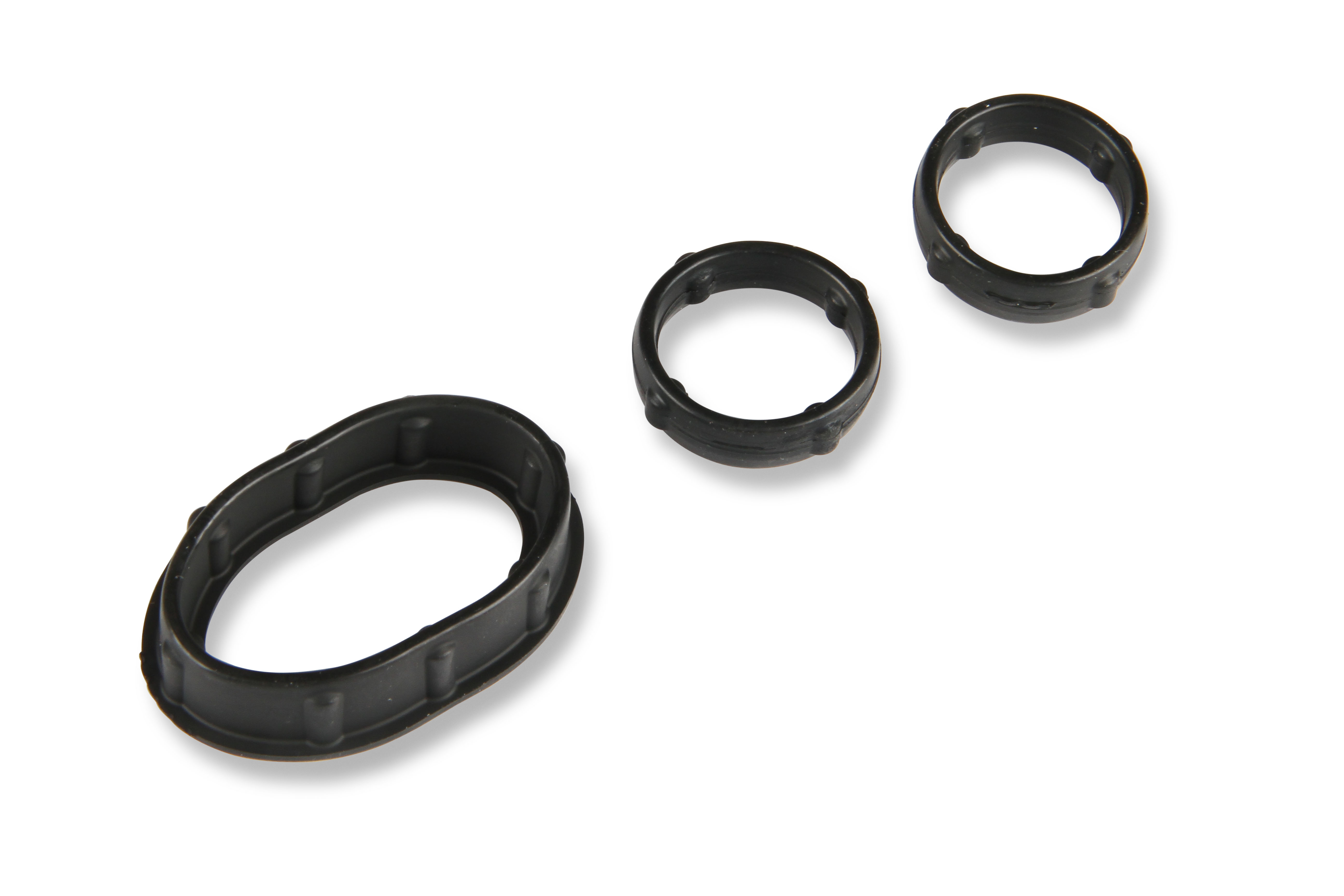

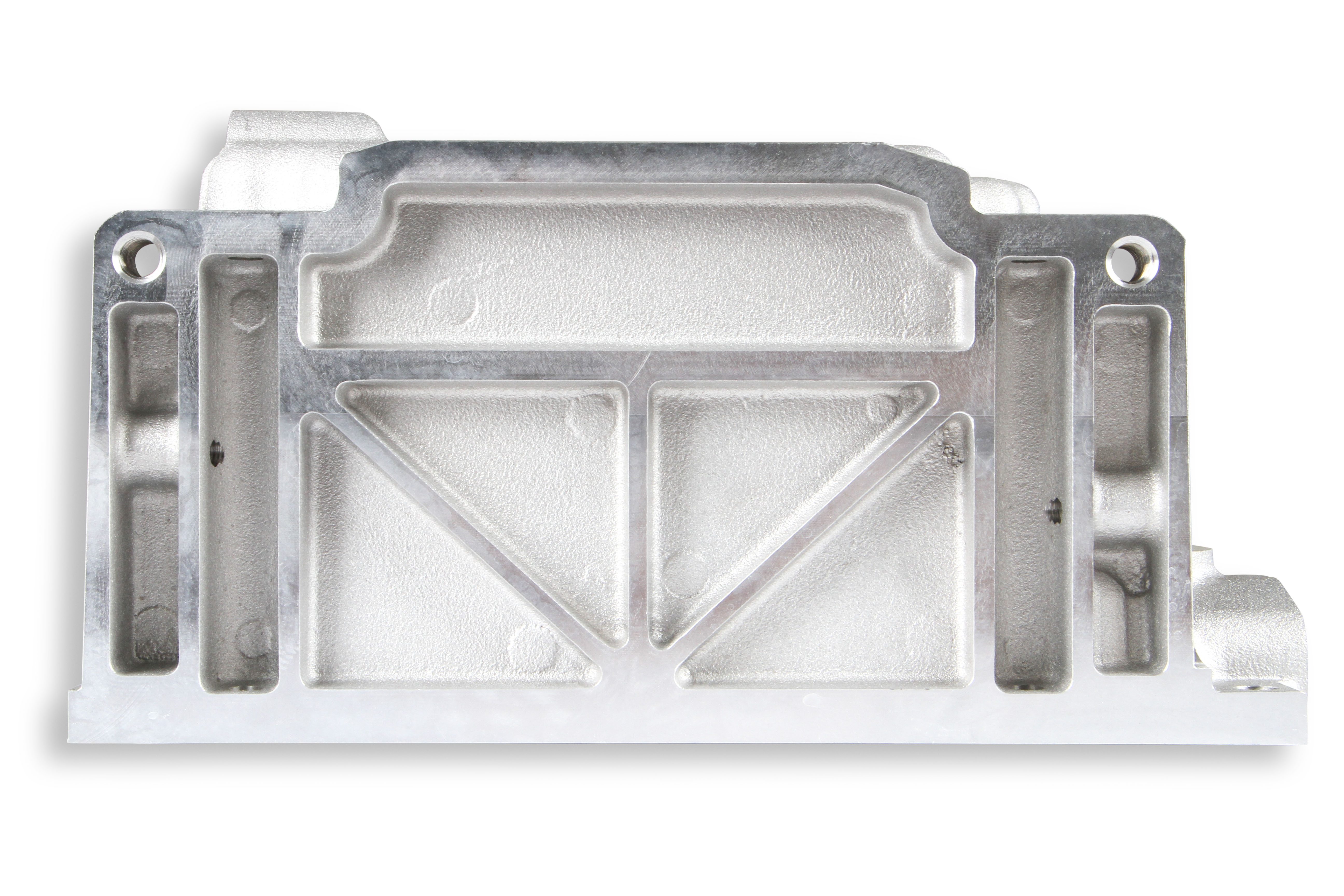

- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments

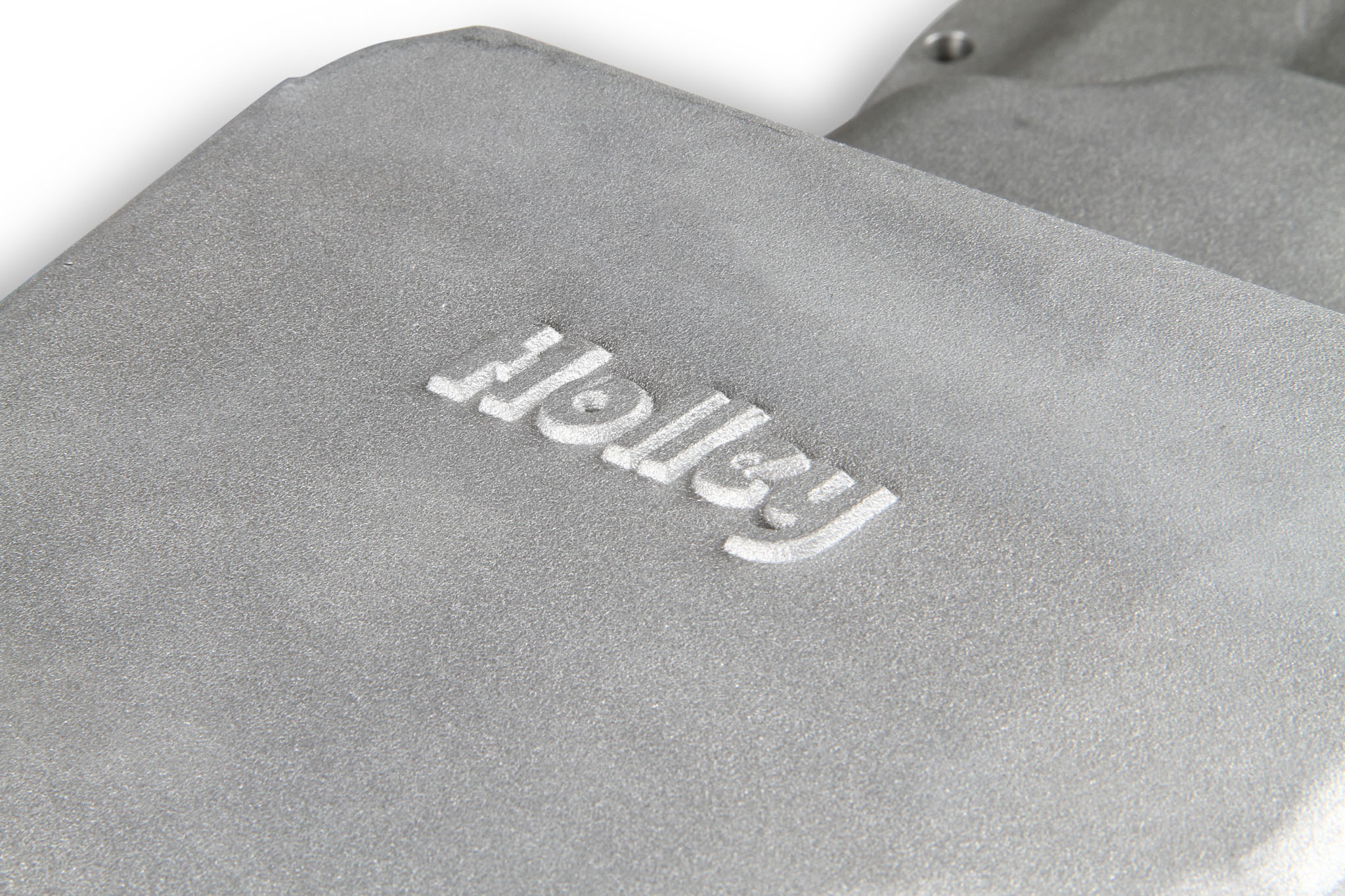

- Traditional High-Quality Cast Aluminum Appearance With Clean Exterior Styling
- Provides Maximum Clearance for Vehicles Where the Steering Linkage is Behind the Engine cross-member
- Traditional high-quality cast aluminum appearance with clean exterior styling.
- Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember.

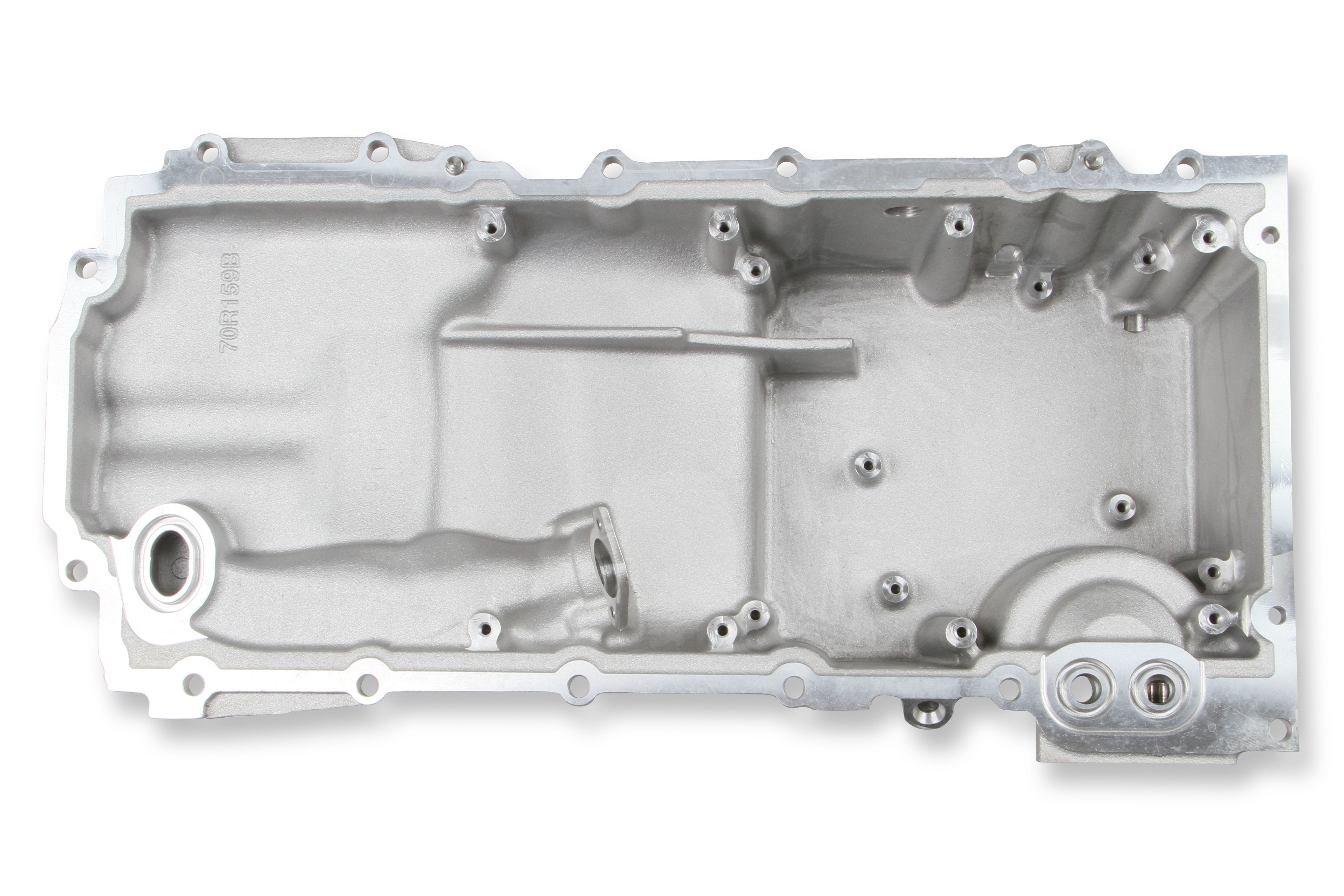

- Cast and machined aluminum
- Oil Cooler Port Provision
- 1/2” NPT port – Ideal for Turbo Oil Return or PCV Oil Return

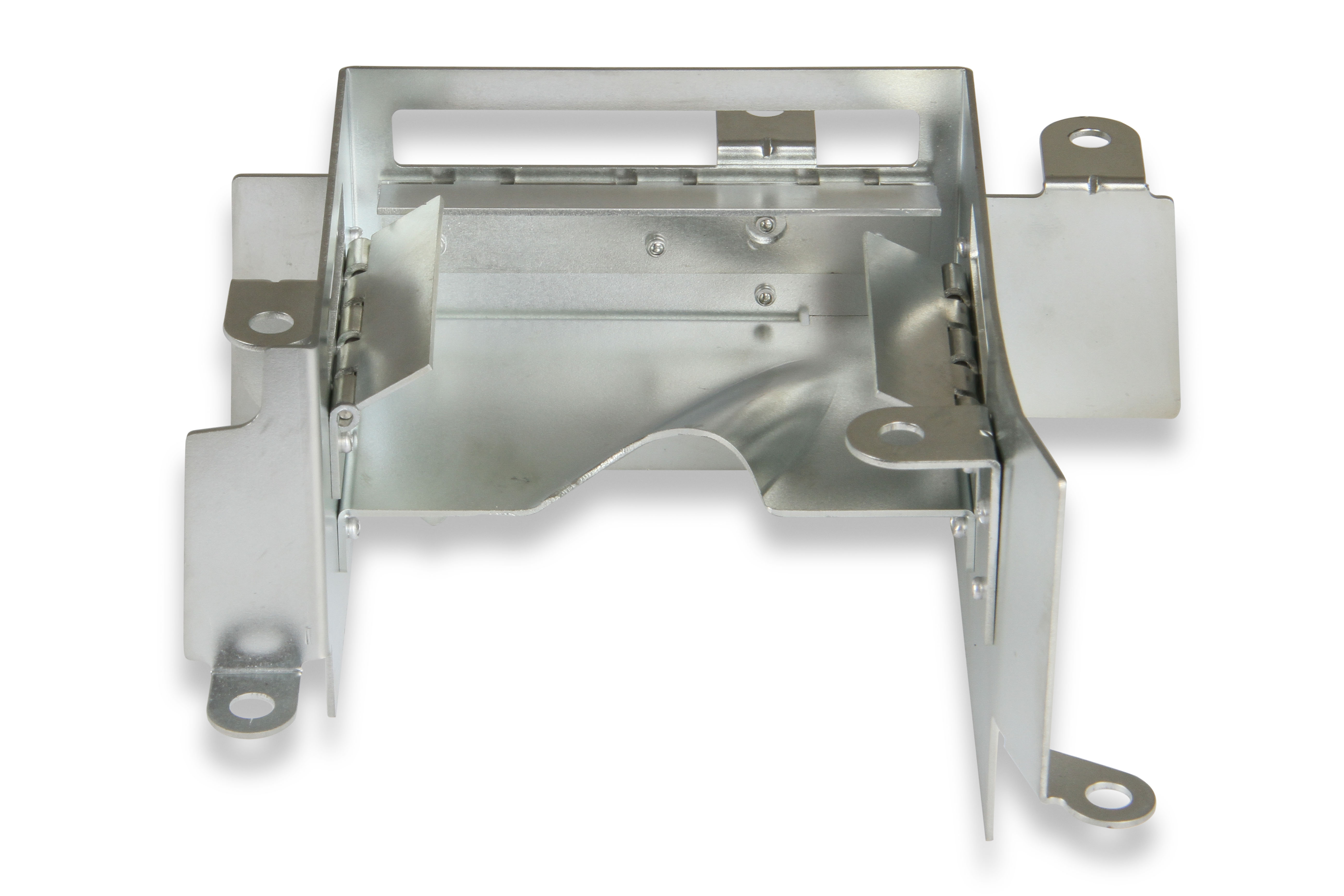

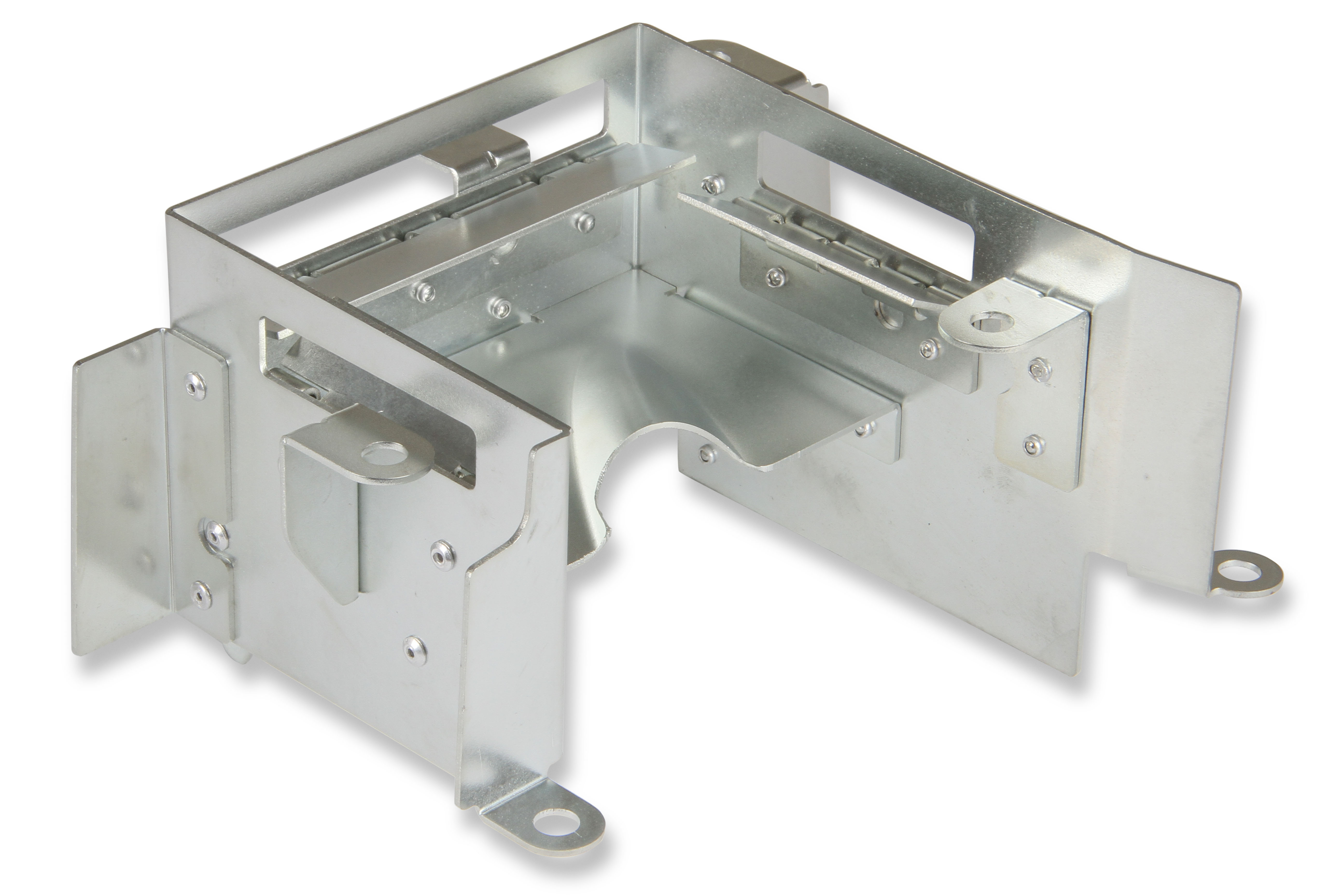

- Hinge Door Baffles Available

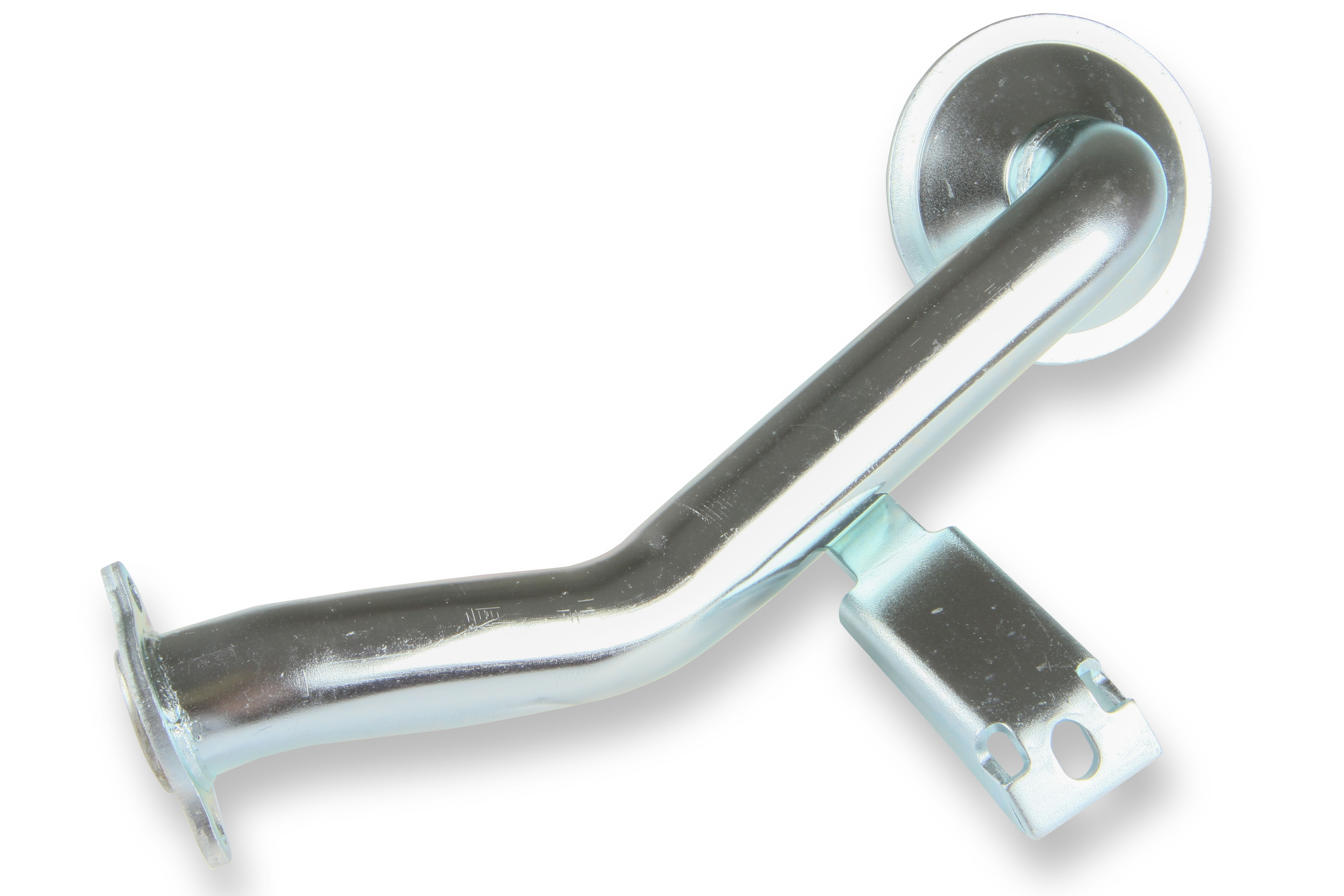

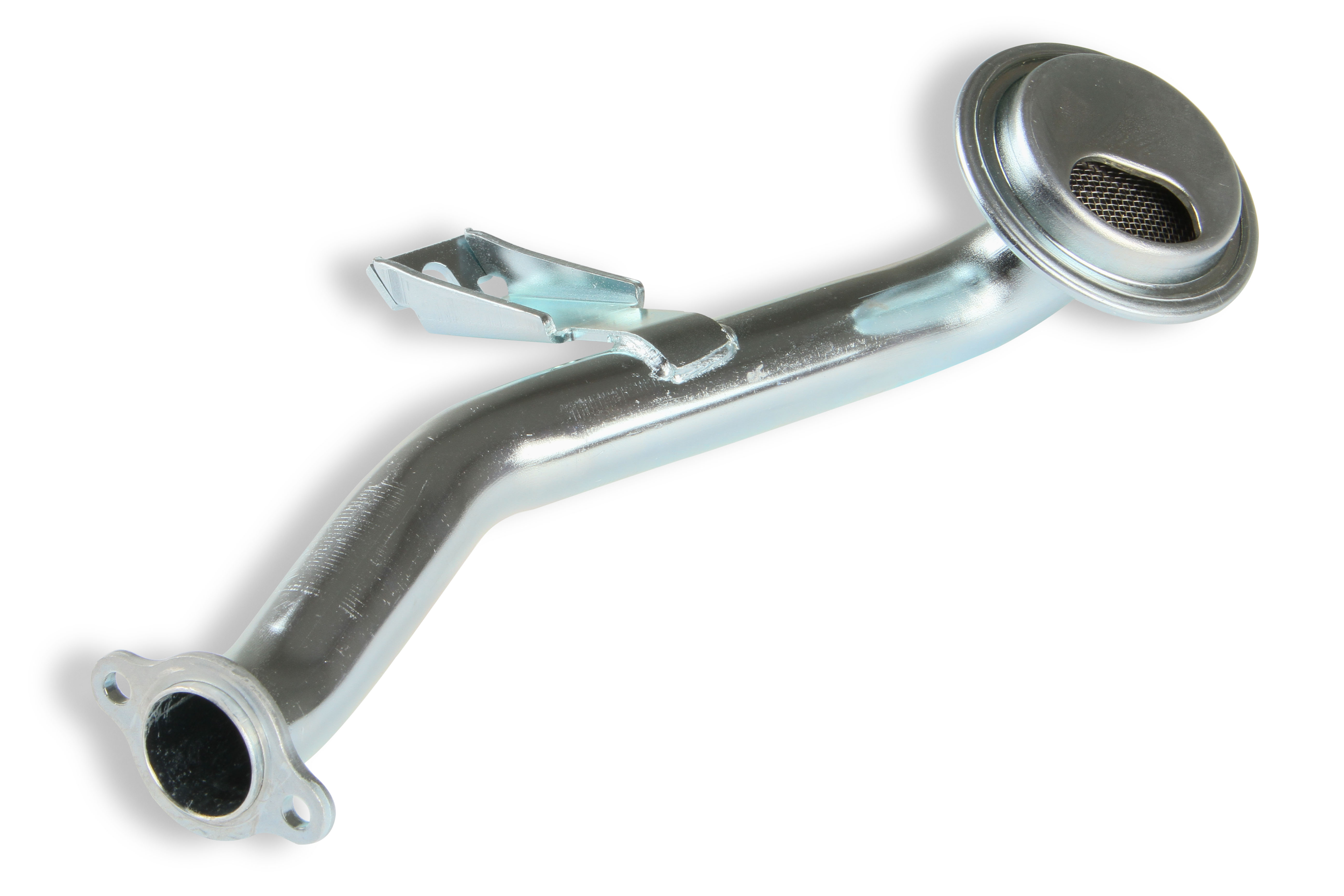

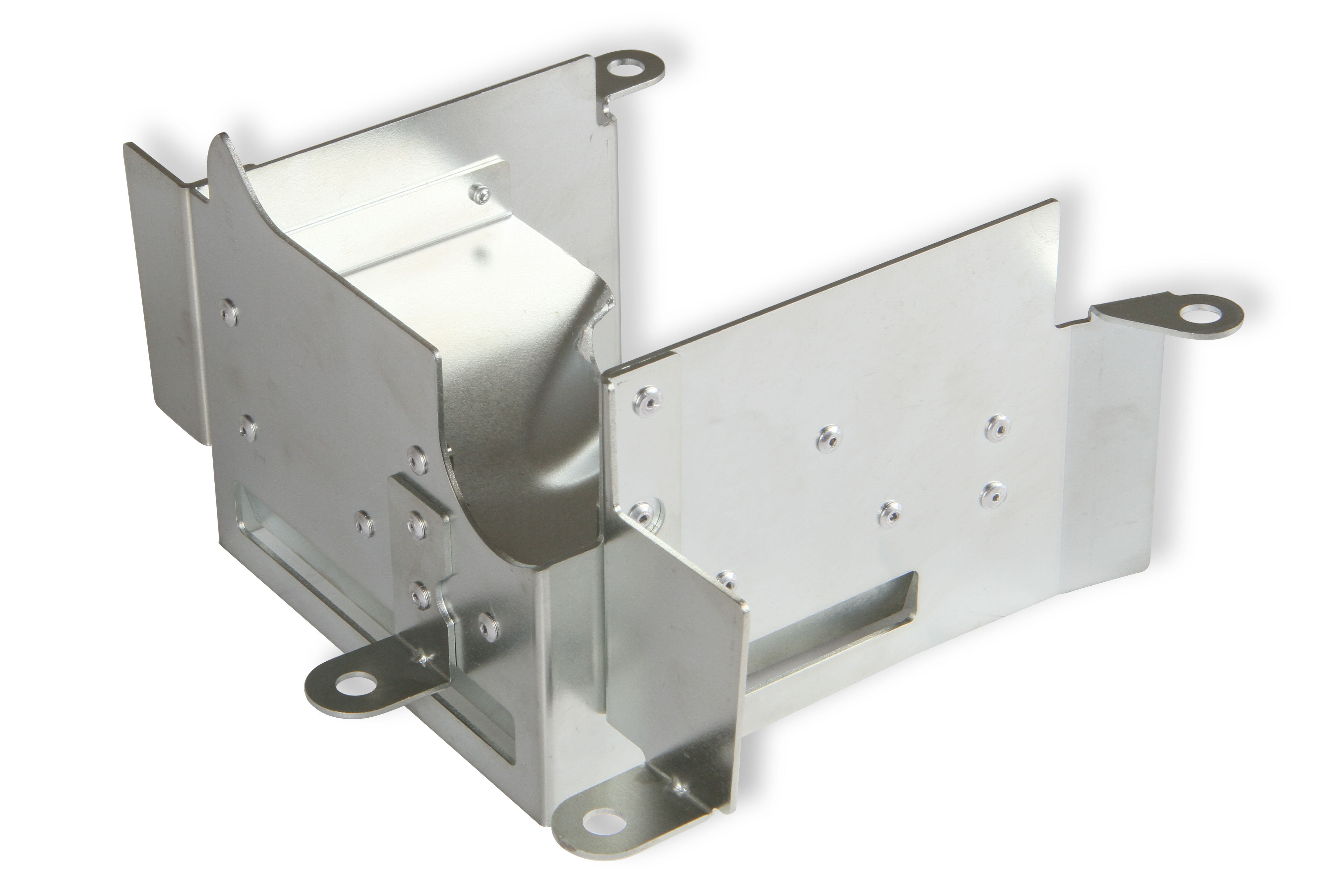

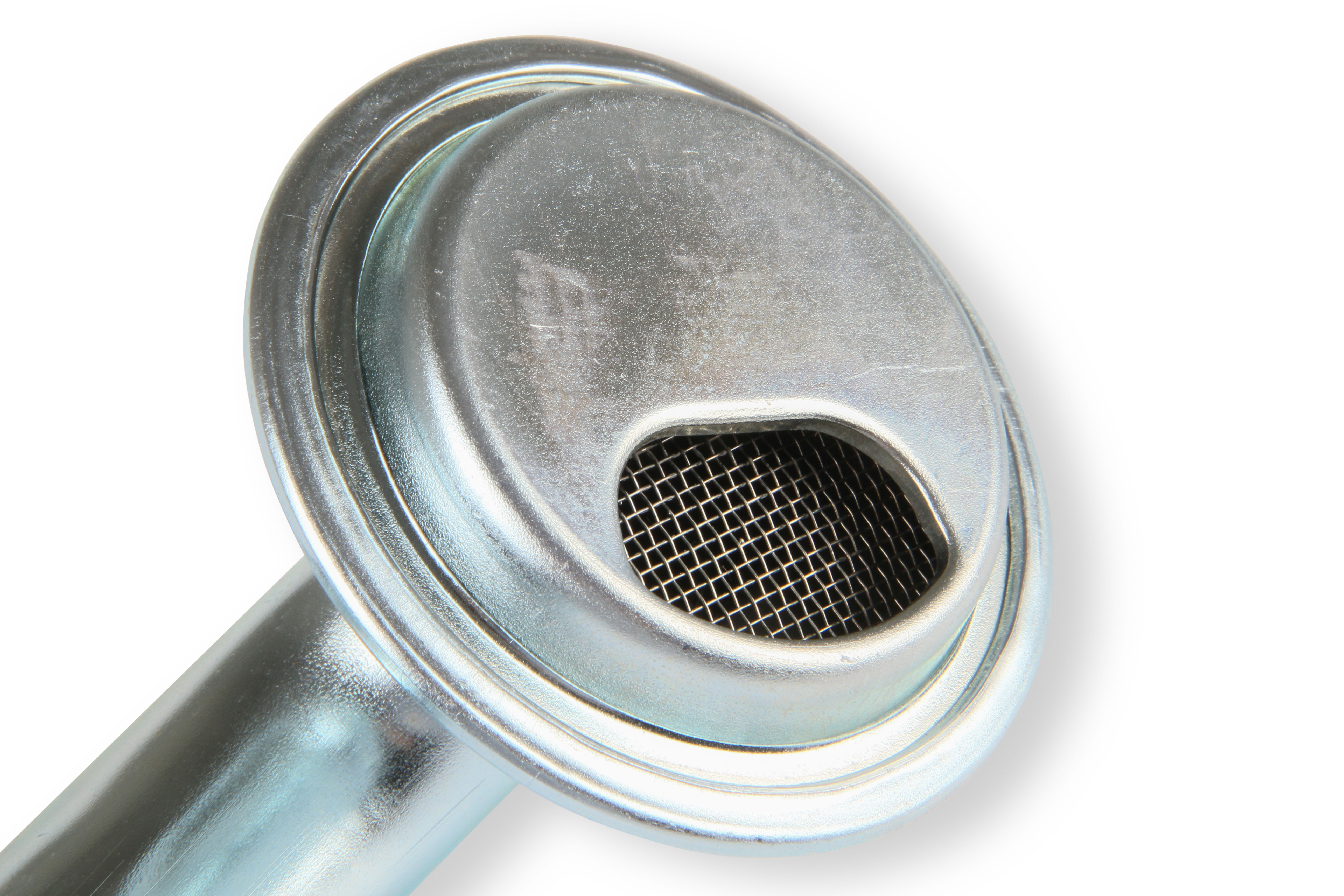

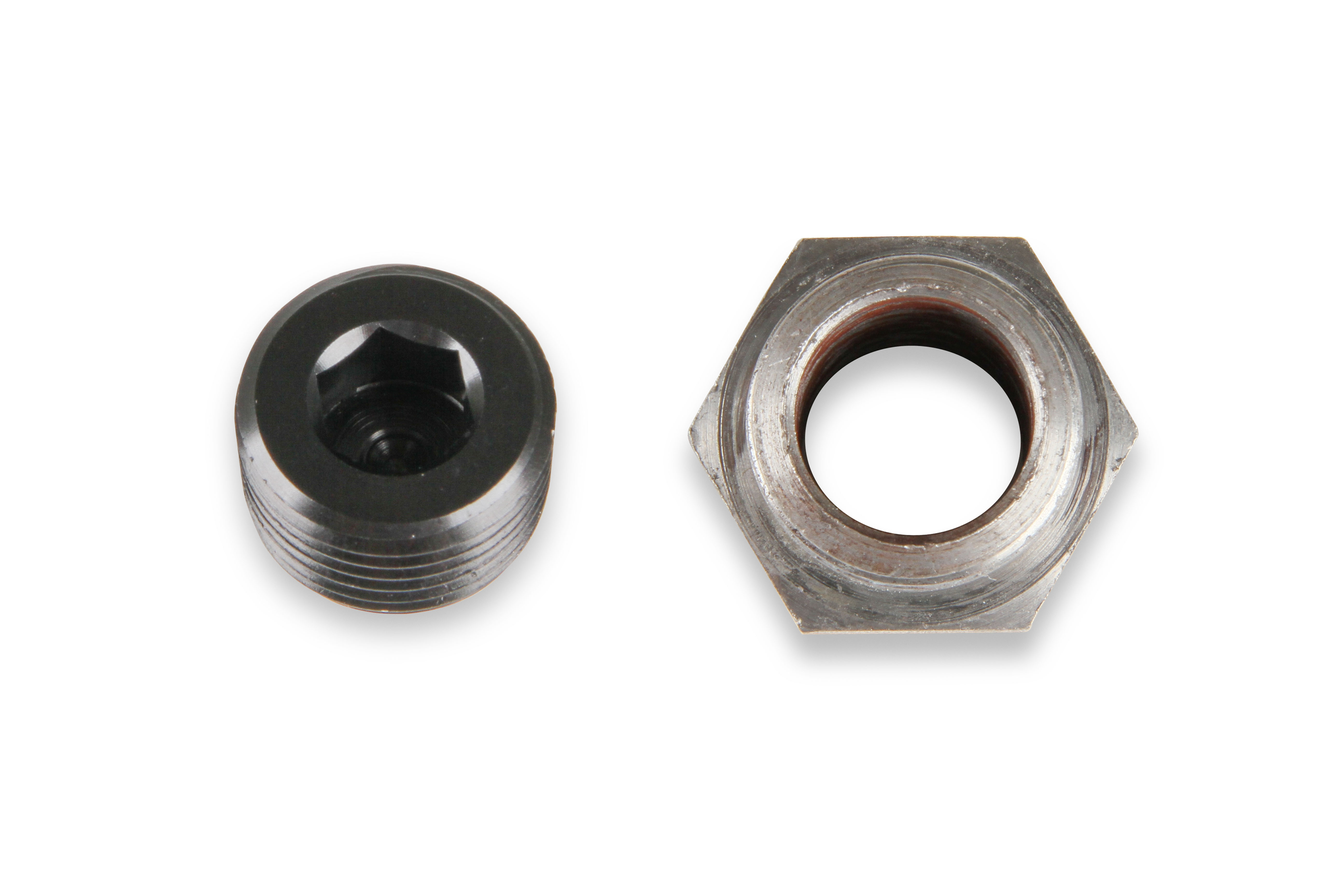

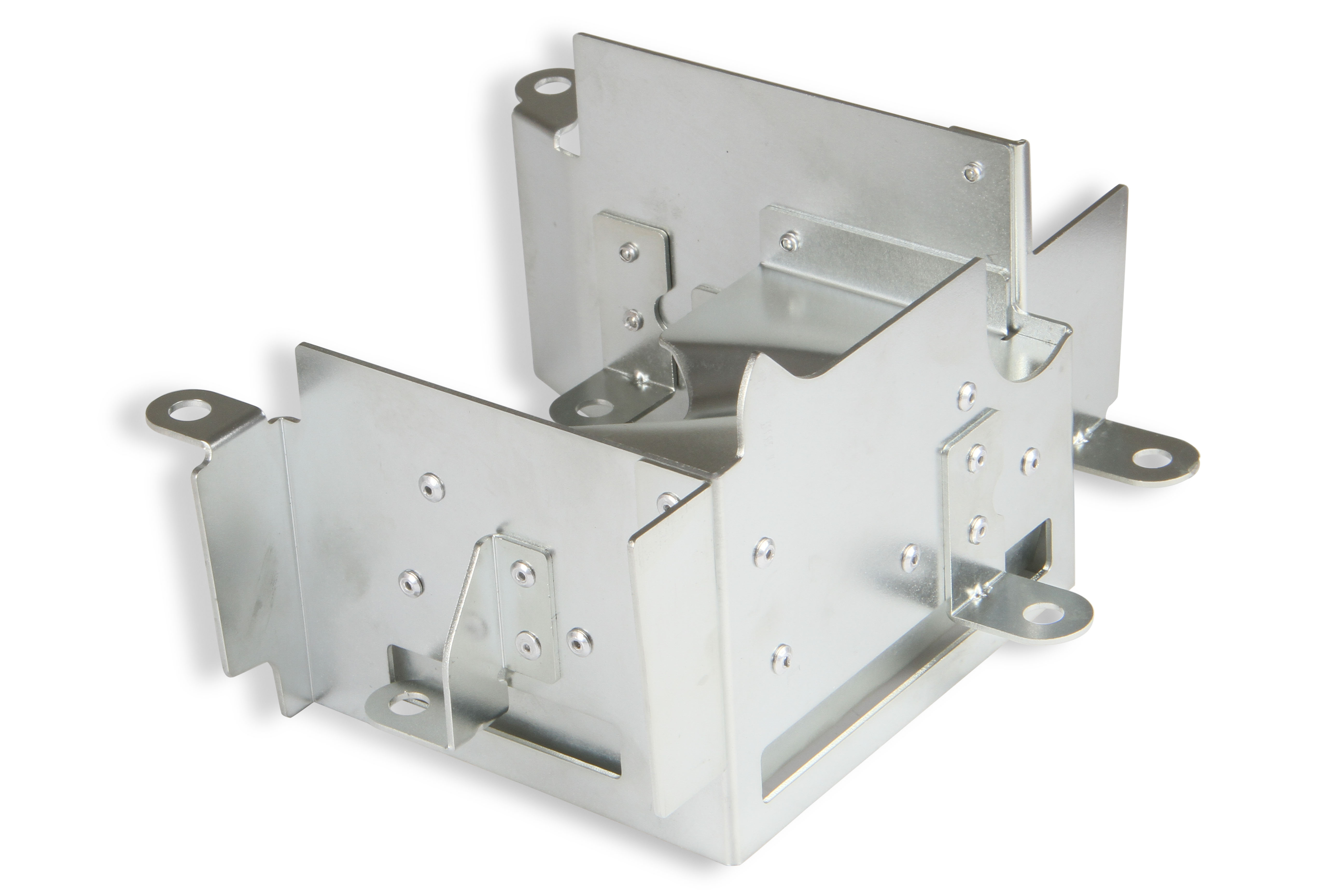

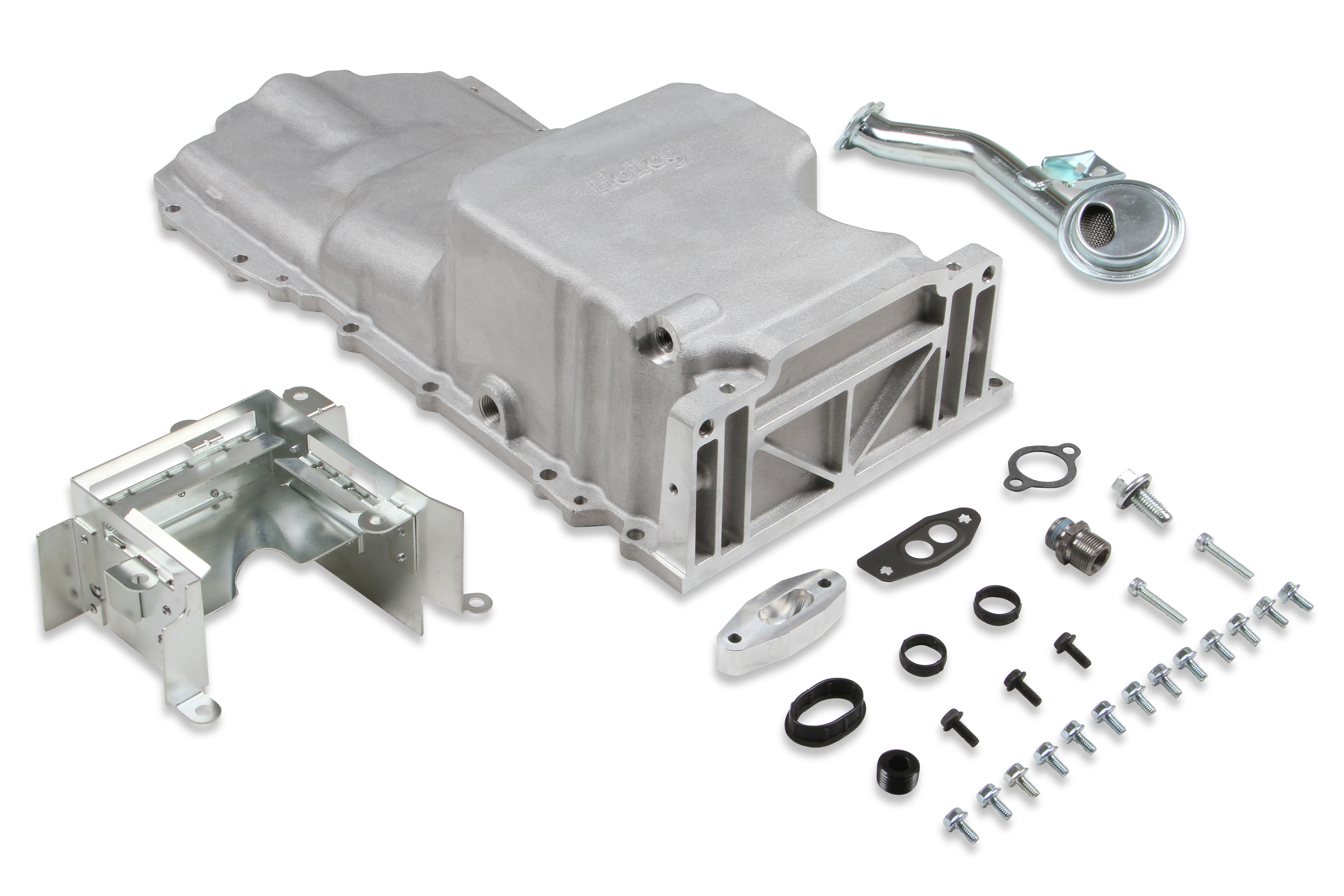

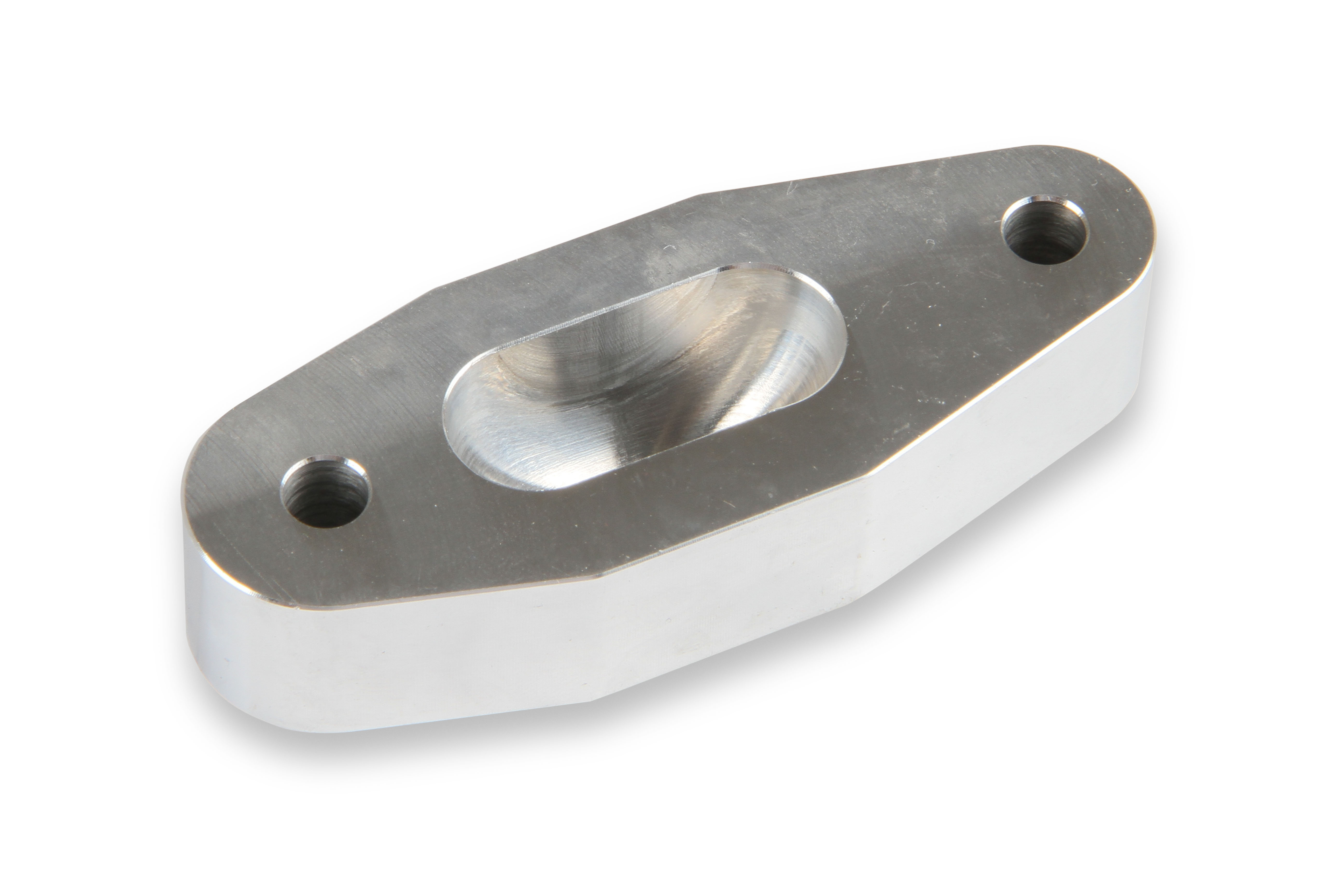

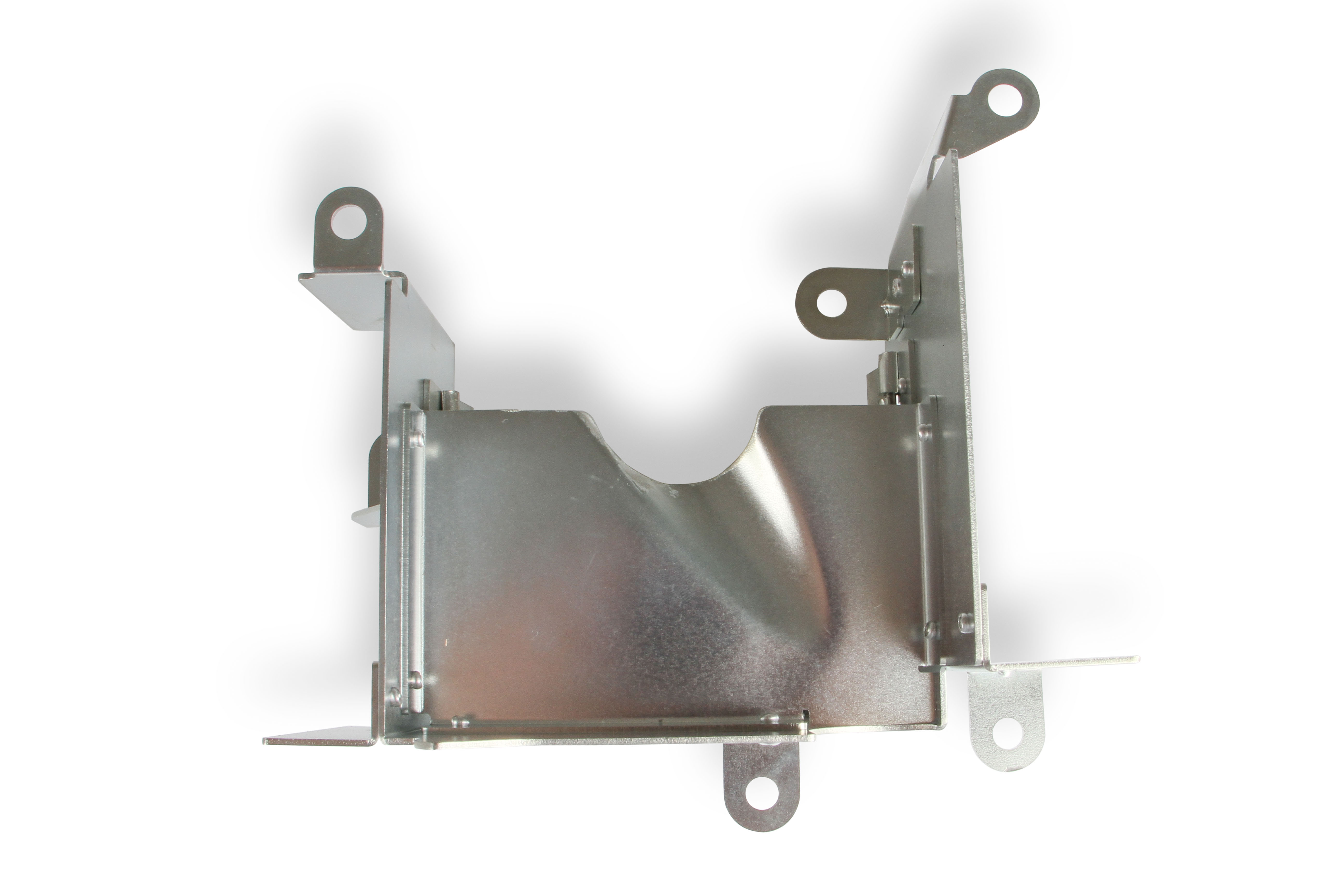

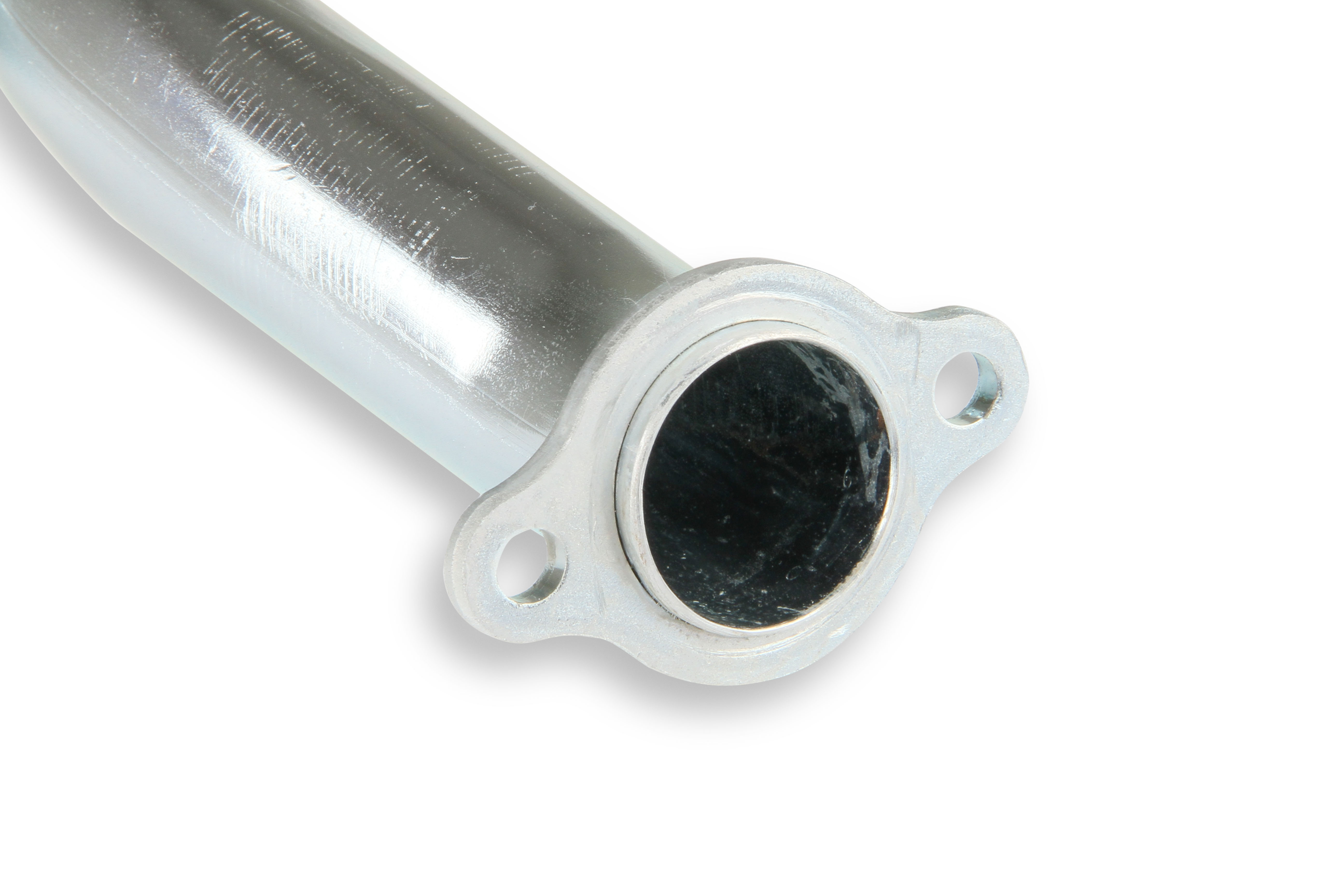

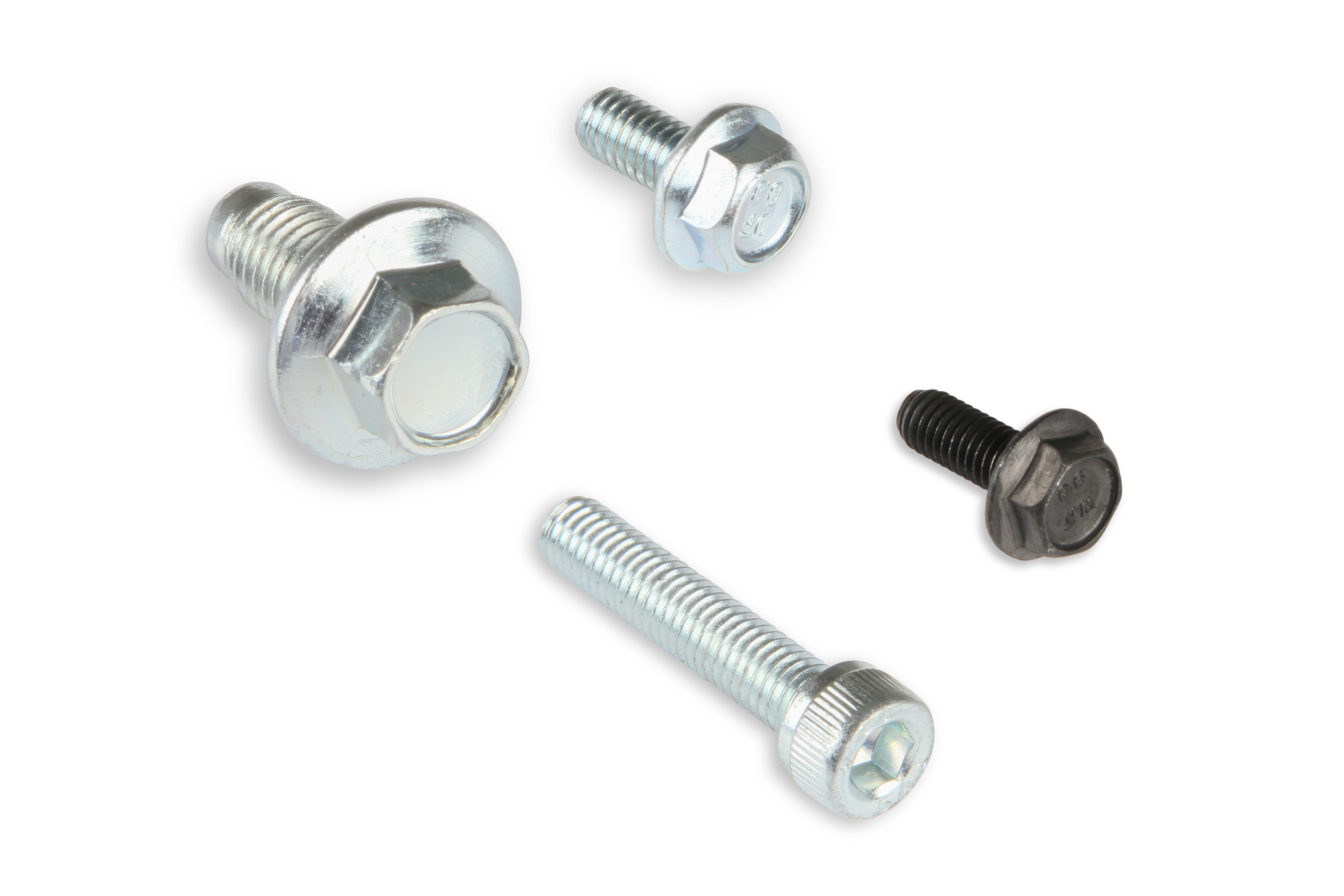

- Complete Kit Includes: Windage Tray, Sump Baffle, OE Style Pick-Up Tube, Sump Port Plug, Oil Filter Stud, Billet Oil Passage Cover, etc.
Specs
Brand
HOLLEY
Category
Engine Oil Pan
Specs
Brand: Holley
Color: Silver
Engine: GM Gen V (LT)
Finish: Natural Cast
Baffled: No
Warning: California Proposition 65
Capacity: 6.1
Category: Engine
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Sump Type: Wet
part type: Engine Oil Pan
Grade Type: Performance
Application: GM Gen V LT
Oil Pan Type: Cast
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Dipstick Port: No
Emission Code: 5
Sump Location: Rear
Maximum Stroke: 4.00"
Pickup Included: Yes
Oil Pan Capacity: 6.1 Quarts
Drain Plug Included: Yes
Turbo Oil Drainback: Yes
Windage Tray Included: Yes
Crank Shaft Wiper Included: No
