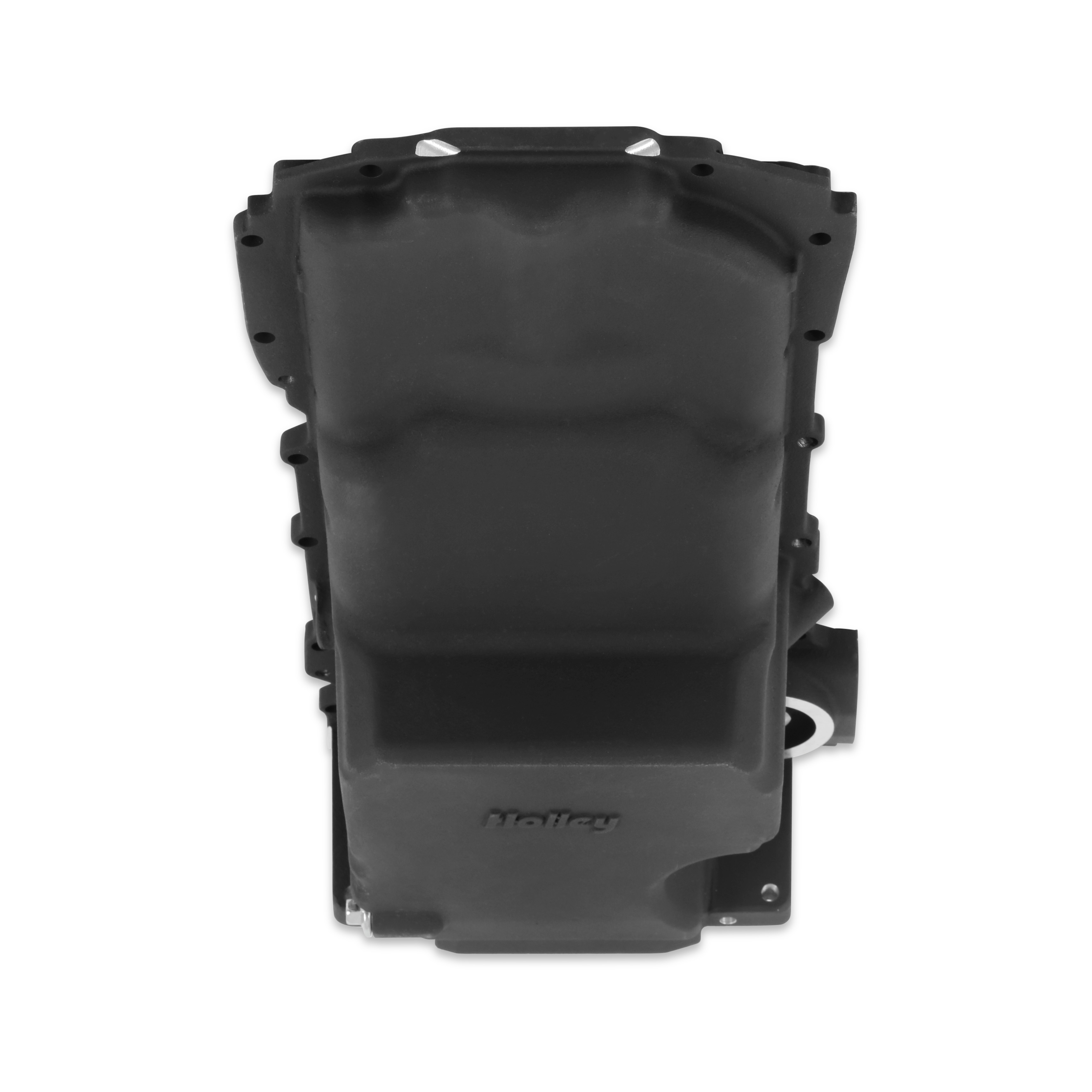

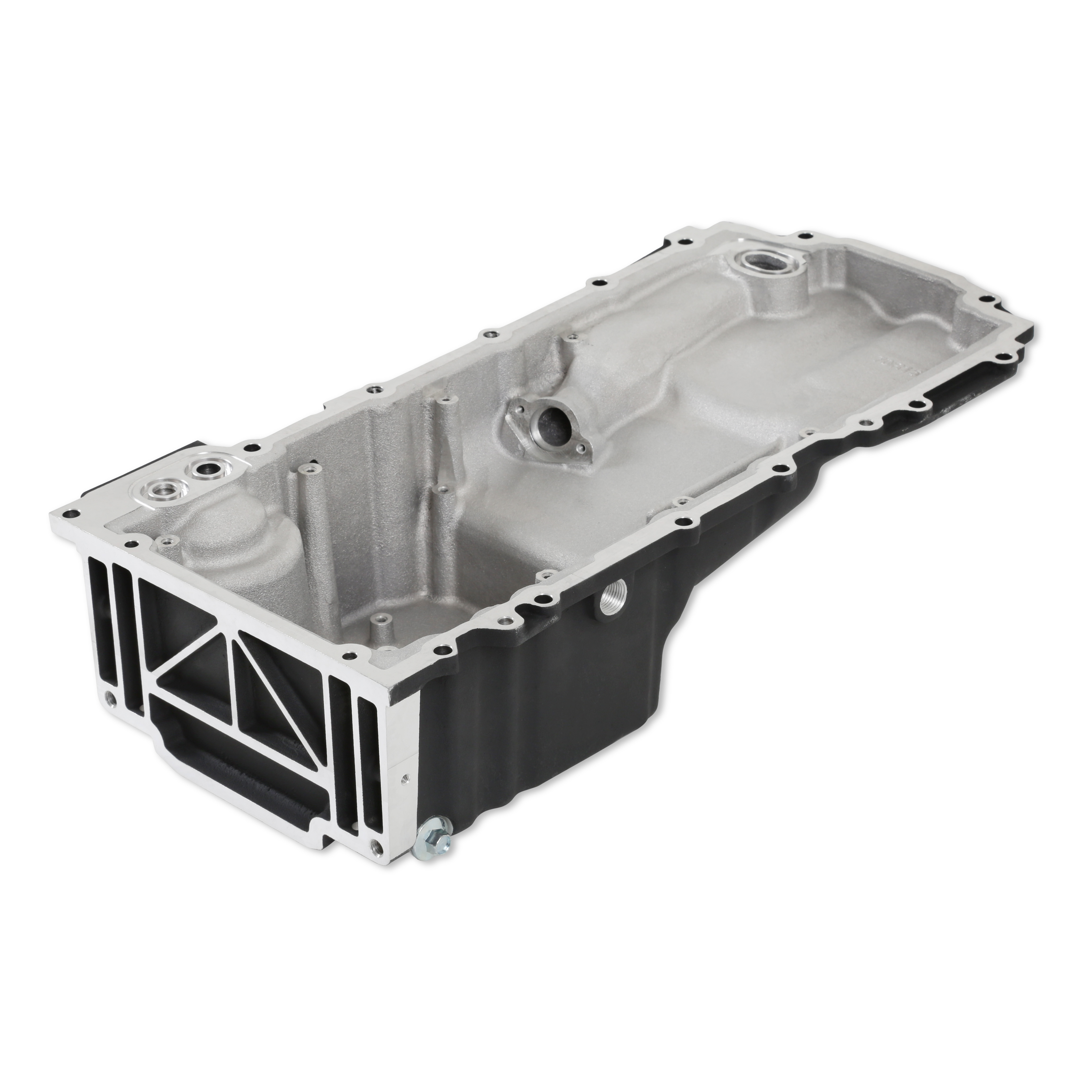

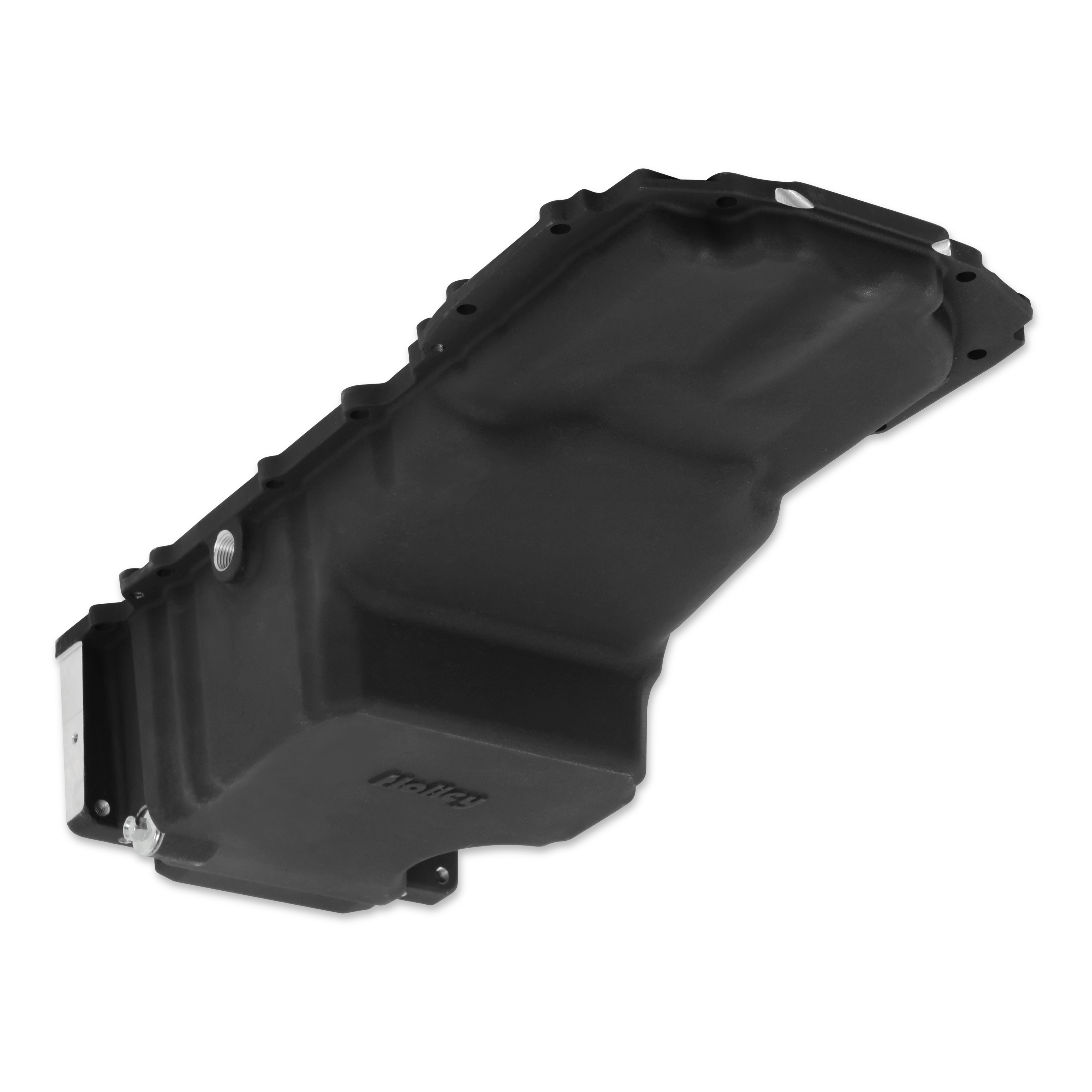

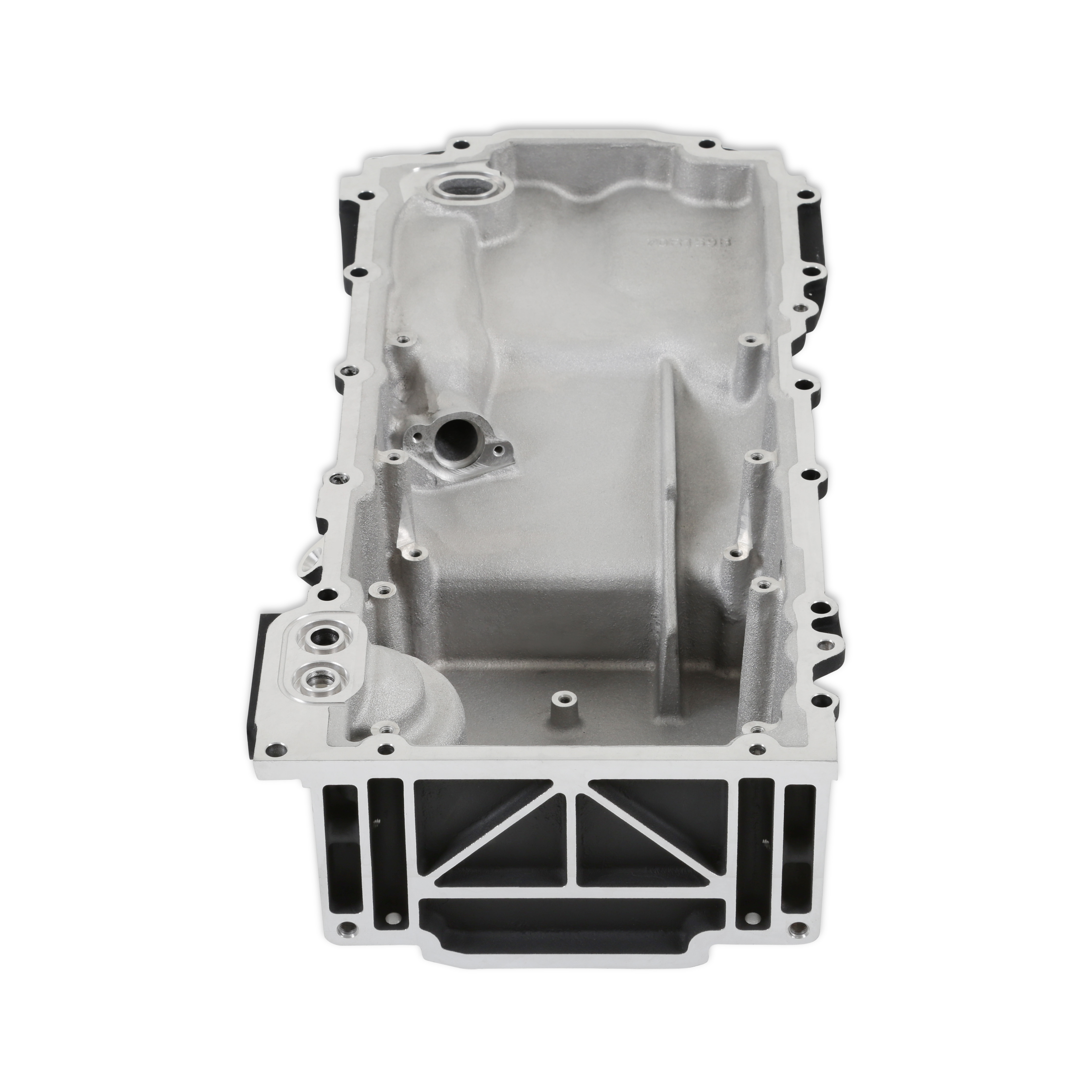

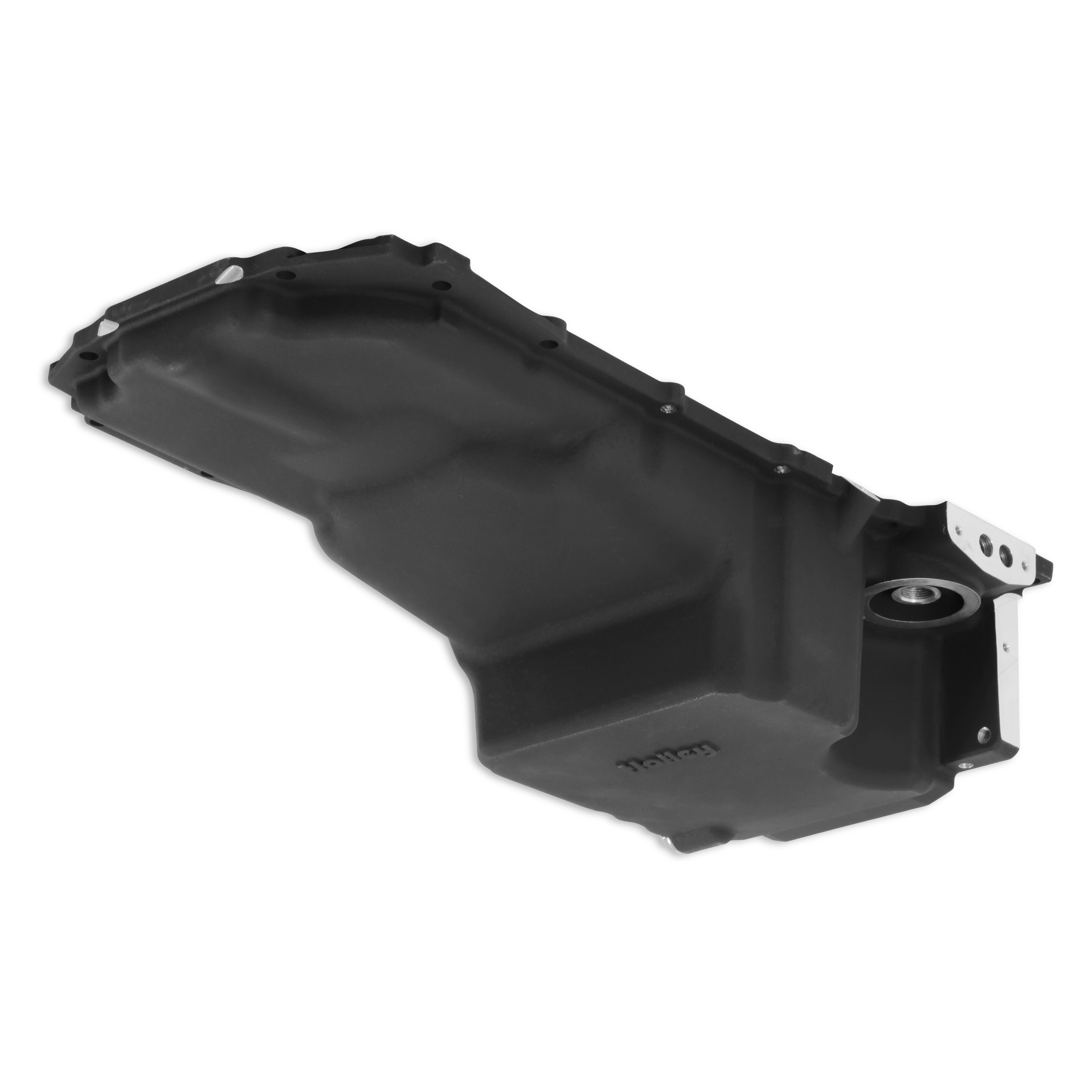

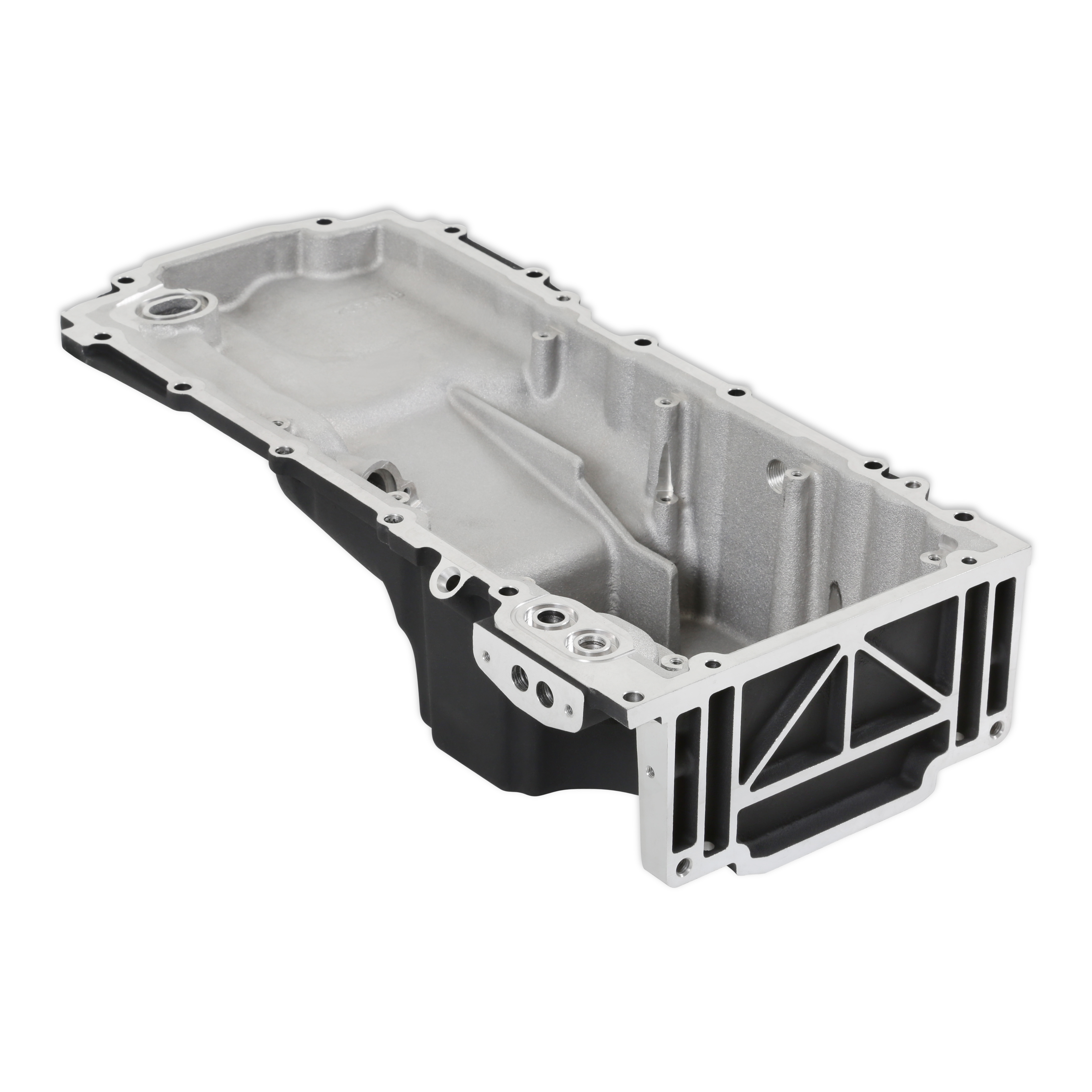

Holley GM Gen-V LT Swap Oil Pan
SKU
HTPD-302-20BK
List price
$618.95
Price
$549.95
Description
GM Gen V LT Swap Oil Pan - Black - with Turbo Oil or PVC Return Port
Features
- Designed for LT Engine Swap Installations in Classic Car and Truck Chassis Requiring More Oil Pan to Chassis Clearance Around the Front Half of the Oil Pan
- Allows for up to 4.00” Crankshaft Stroke
- Can Be Used Anywhere a GM F-Body Oil Pan Can Be Used
- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
- Traditional High-Quality Cast Aluminum Appearance With Clean Exterior Styling
- Provides Maximum Clearance for Vehicles Where the Steering Linkage is Behind the Engine cross-member

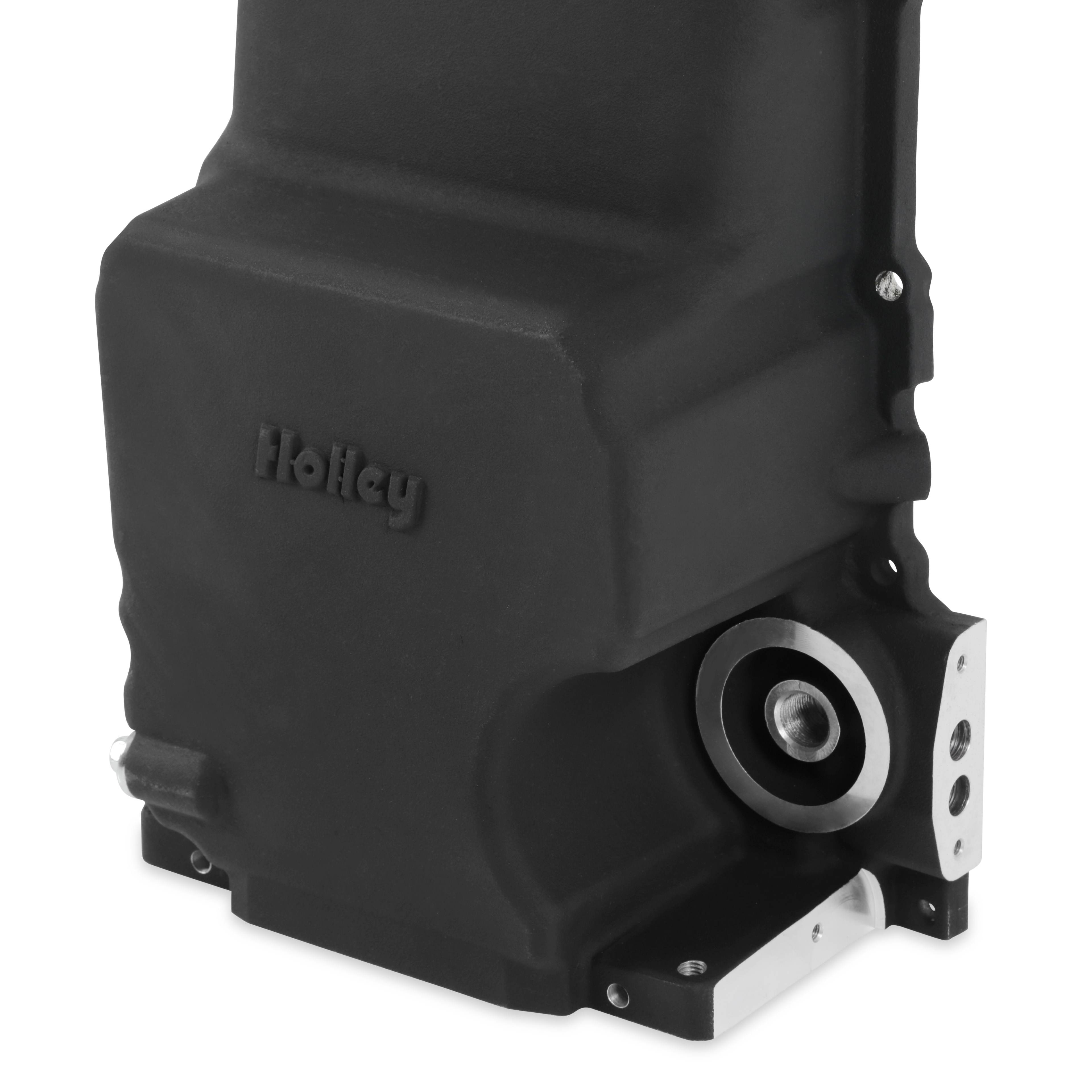

- Oil cooler port provision
- Cast and machined aluminum

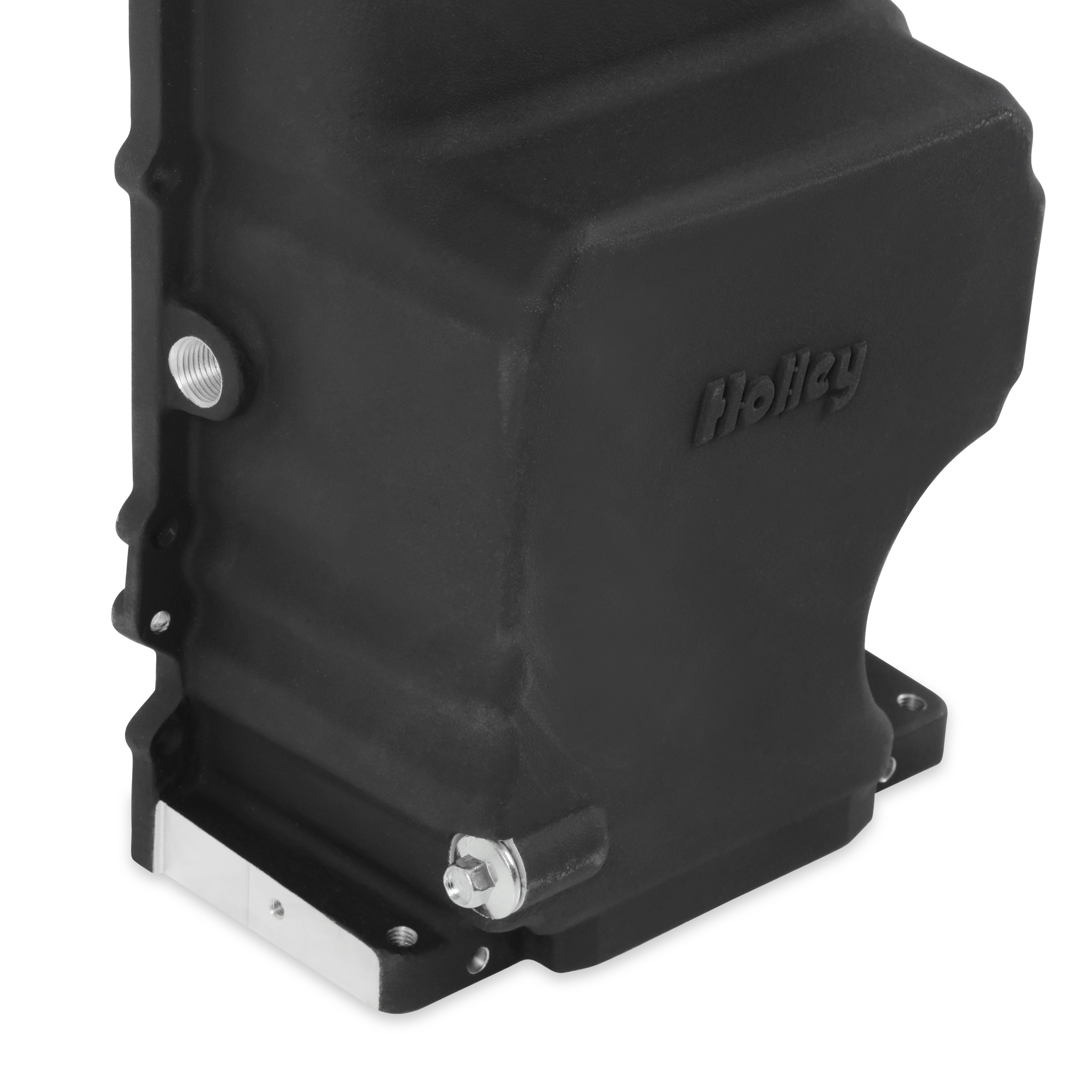

- 1/2” NPT port – Ideal for Turbo Oil Return or PCV Oil Return
- Optional Hinge Door Baffle - Available Separately

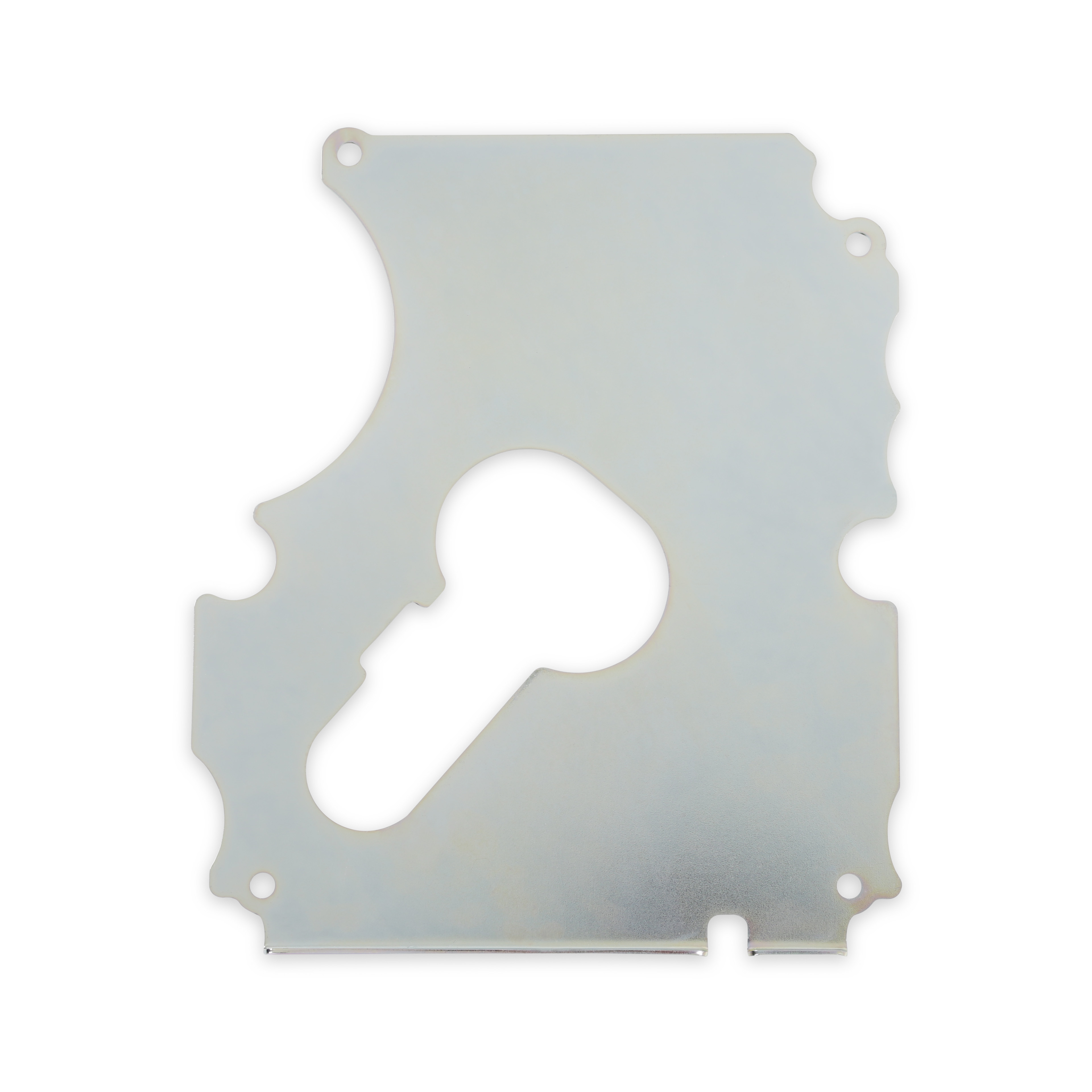

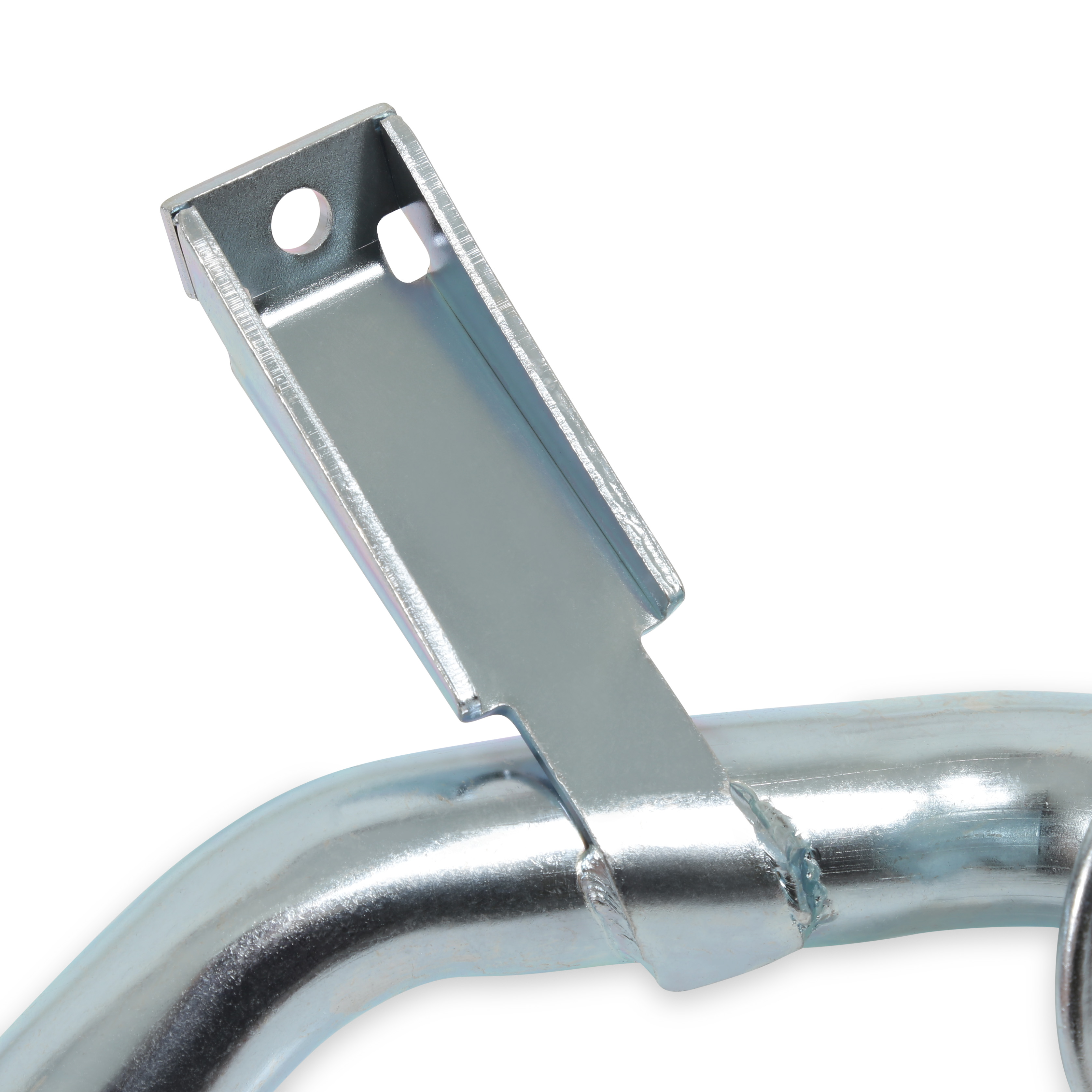

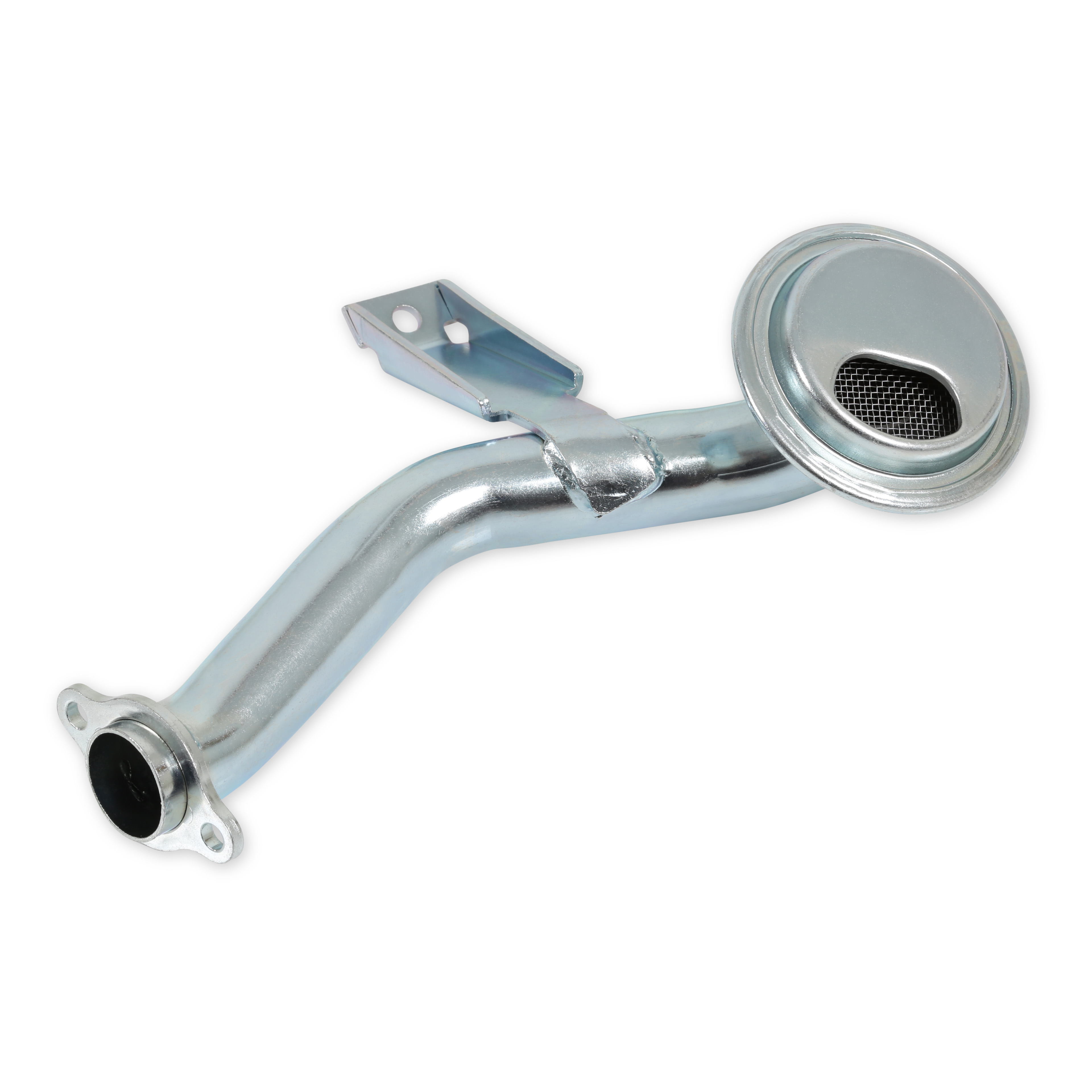

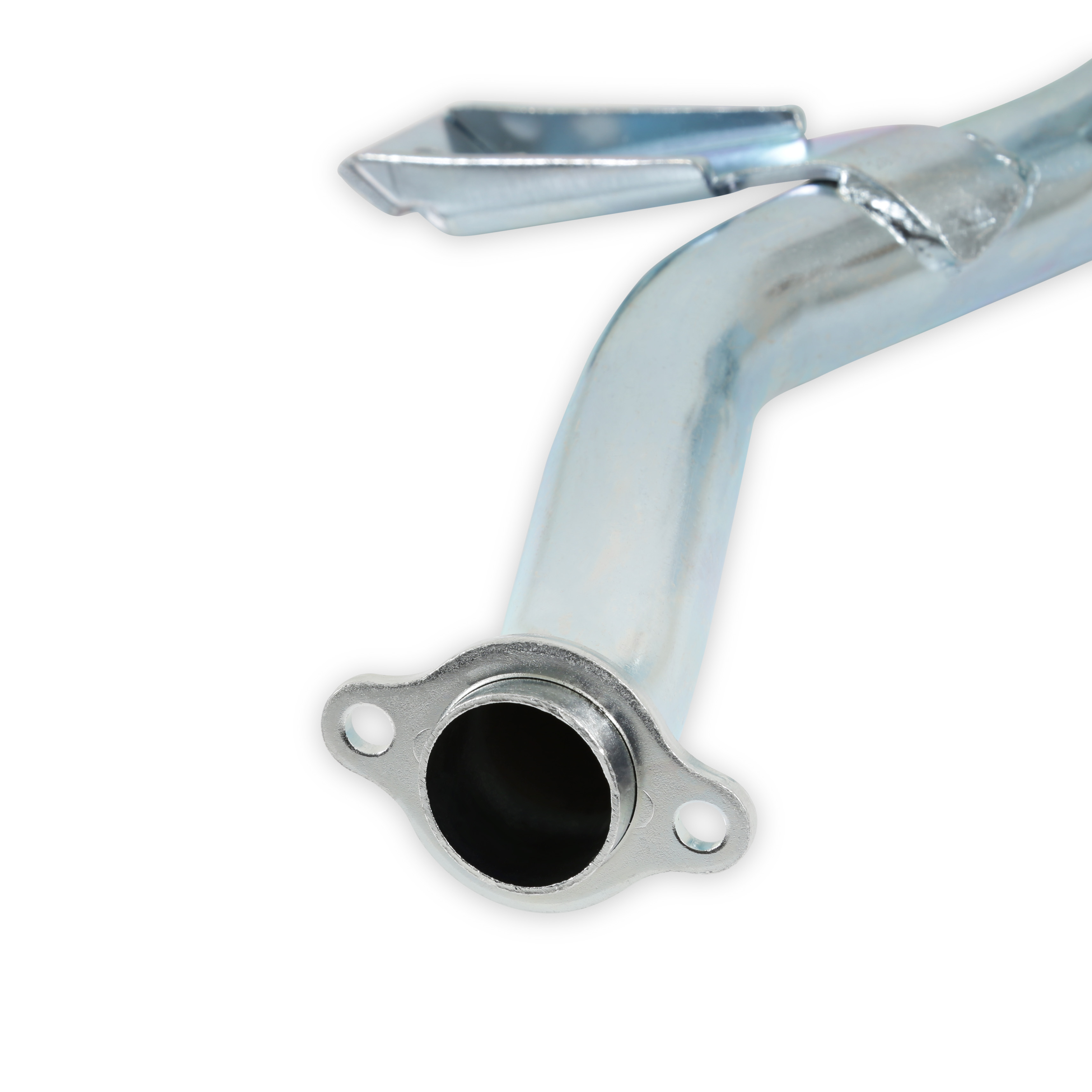

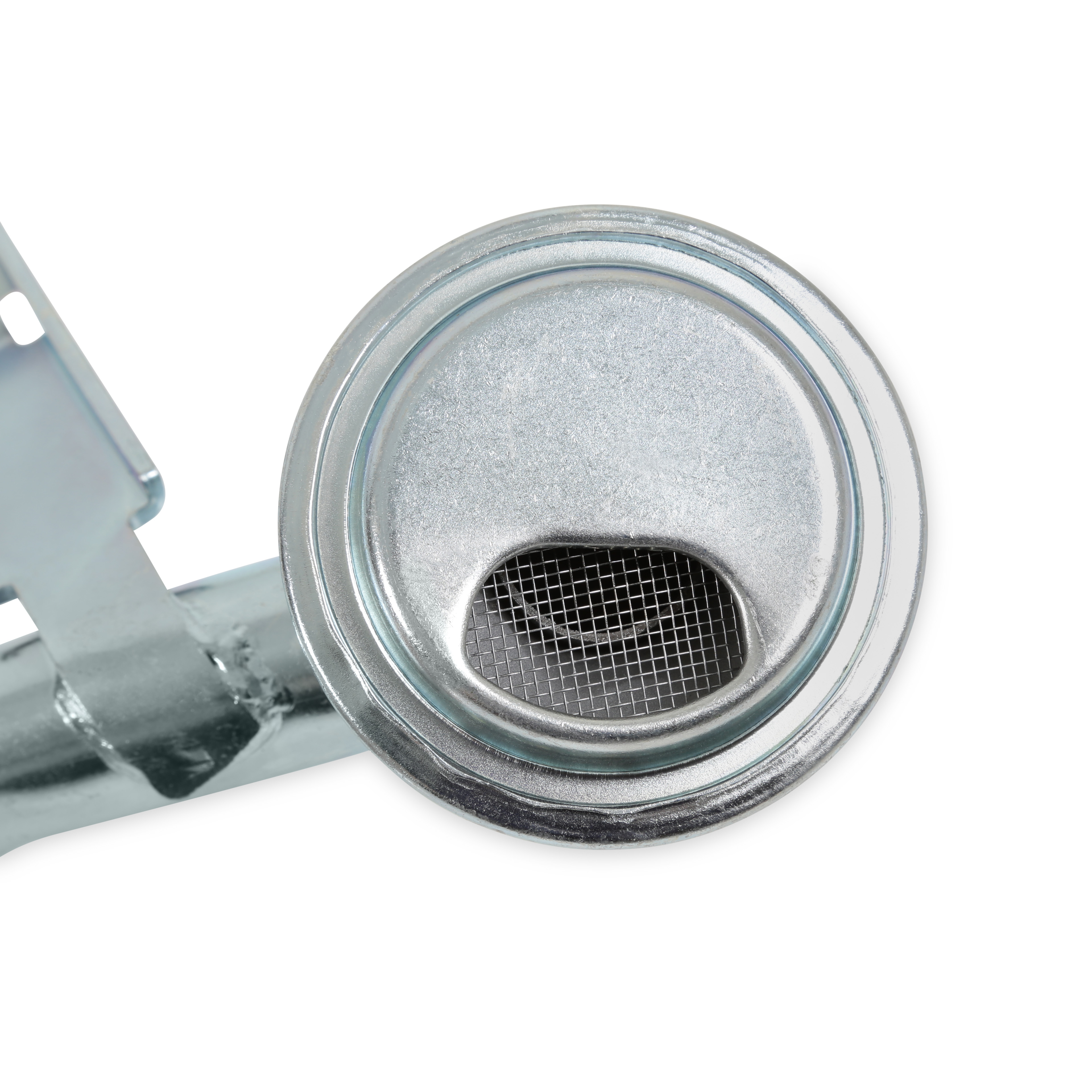

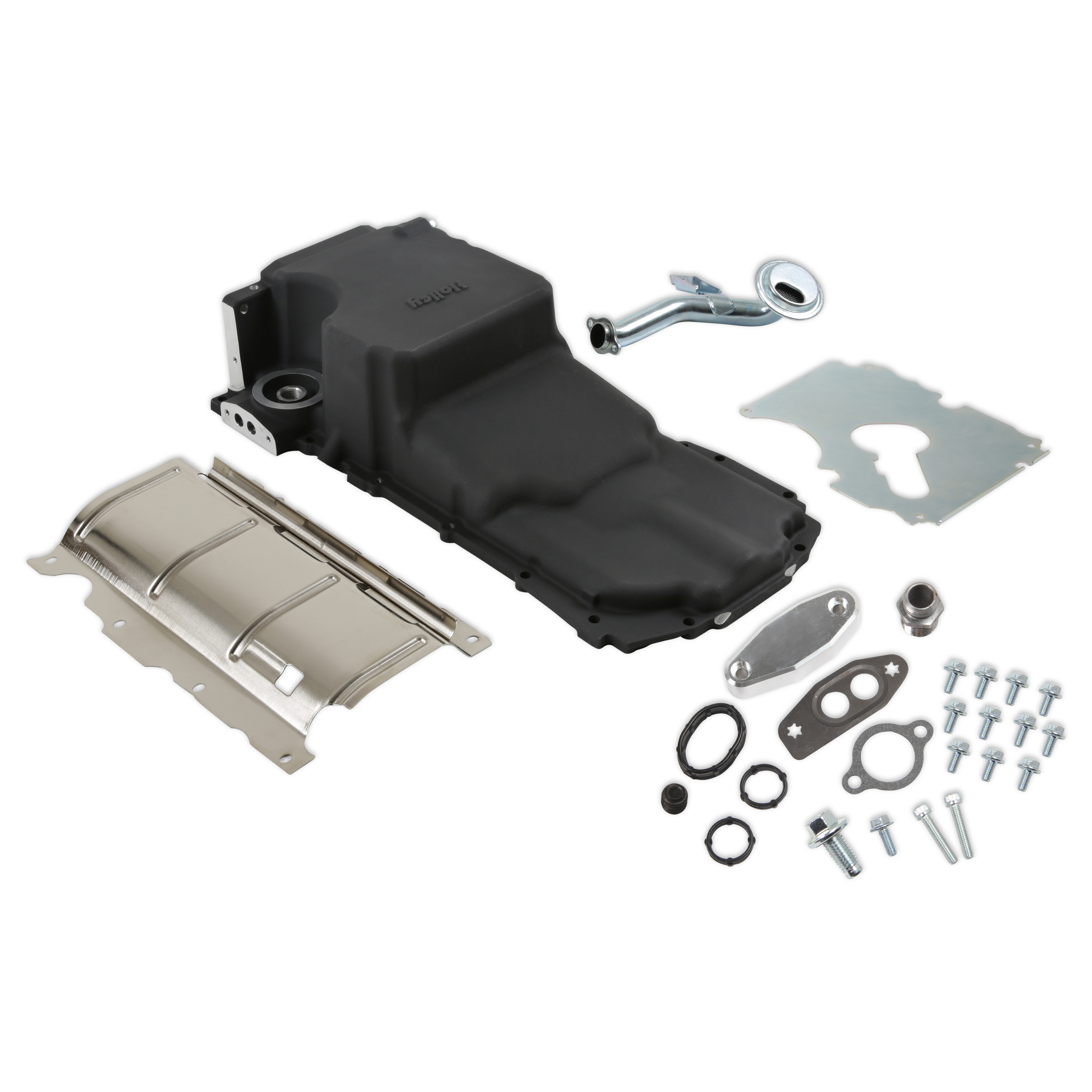

- Complete Kit Includes: Windage Tray, Sump Baffle, OE Style Pick-Up Tube, Sump Port Plug, Oil Filter Stud, Billet Oil Passage Cover, etc.
Specs
Brand
HOLLEY
Category
Engine Oil Pan
Specs
Brand: Holley
Color: Black
Engine: GM Gen V (LT)
Finish: Black
Baffled: No
Warning: California Proposition 65
Capacity: 6.1
Category: Engine
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Sump Type: Wet
part type: Engine Oil Pan
Grade Type: Performance
Application: GM Gen V LT
Oil Pan Type: Cast
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Dipstick Port: No
Emission Code: 6
Sump Location: Rear
Maximum Stroke: 4.00"
Oil Return Size: 1/2" NPT
Pickup Included: Yes
Oil Pan Capacity: 6.1 Quarts
Drain Plug Included: Yes
Turbo Oil Drainback: Yes
Windage Tray Included: Yes
Crank Shaft Wiper Included: No
