Holley Gen III Hemi Swap Oil Pan - Mid-Sump VVT - Black
SKU
HTPD-302-61BK
List price
$548.95
Price
$487.95
Description
Fits VVT Gen III Hemi Engines
Features
- The factory oil pans on Gen III Hemi engines don’t fit or hang too Low for muscle car engine wwaps

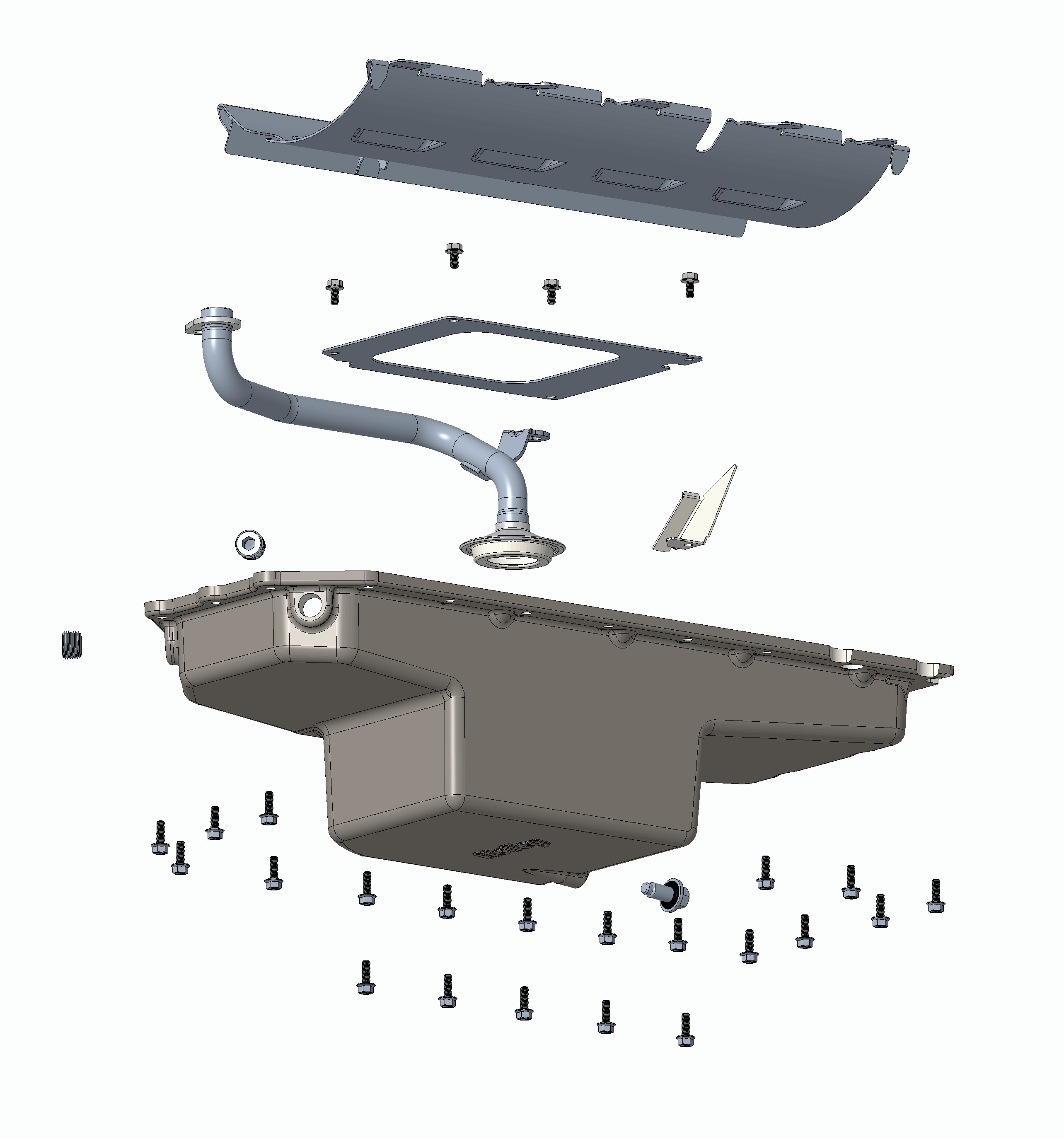

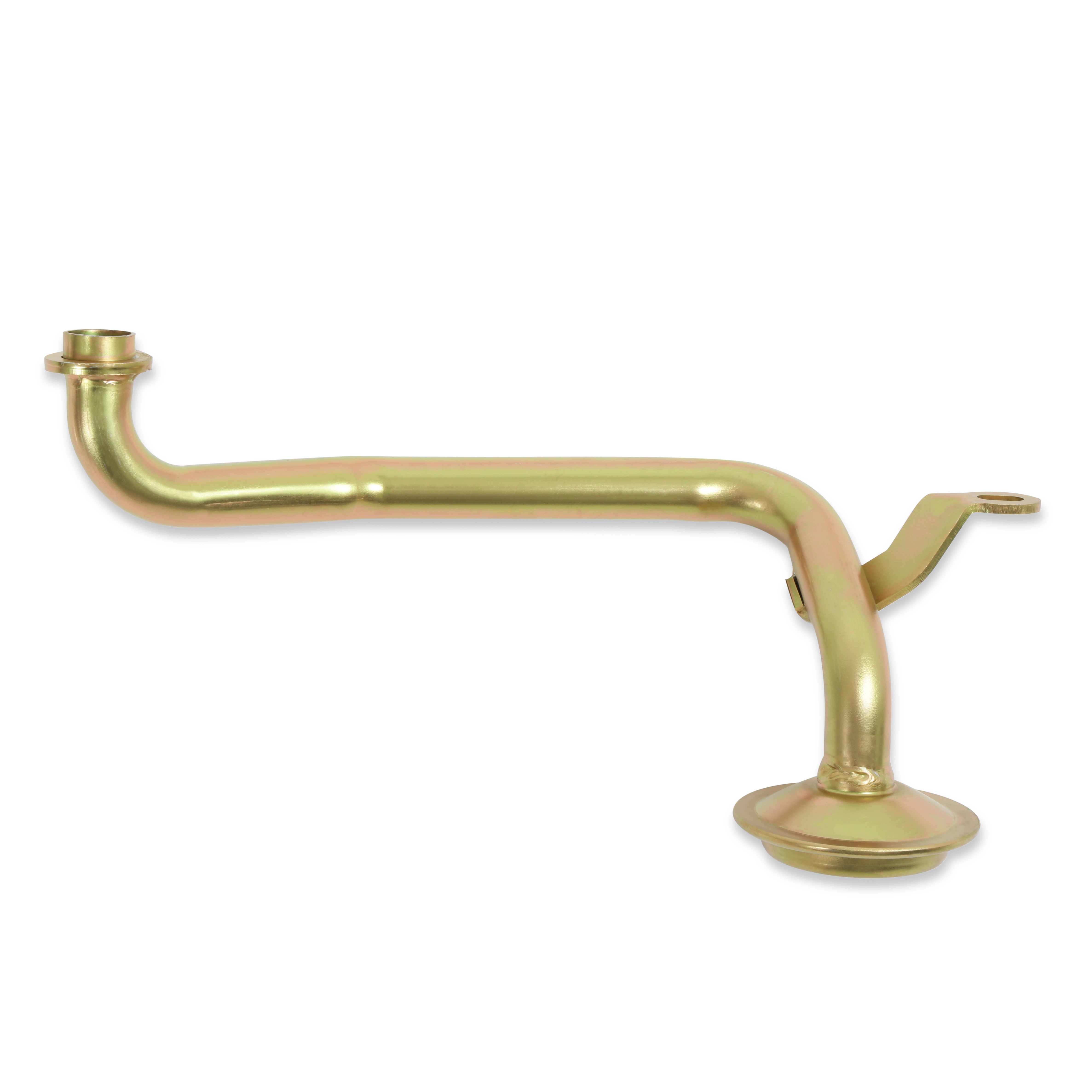

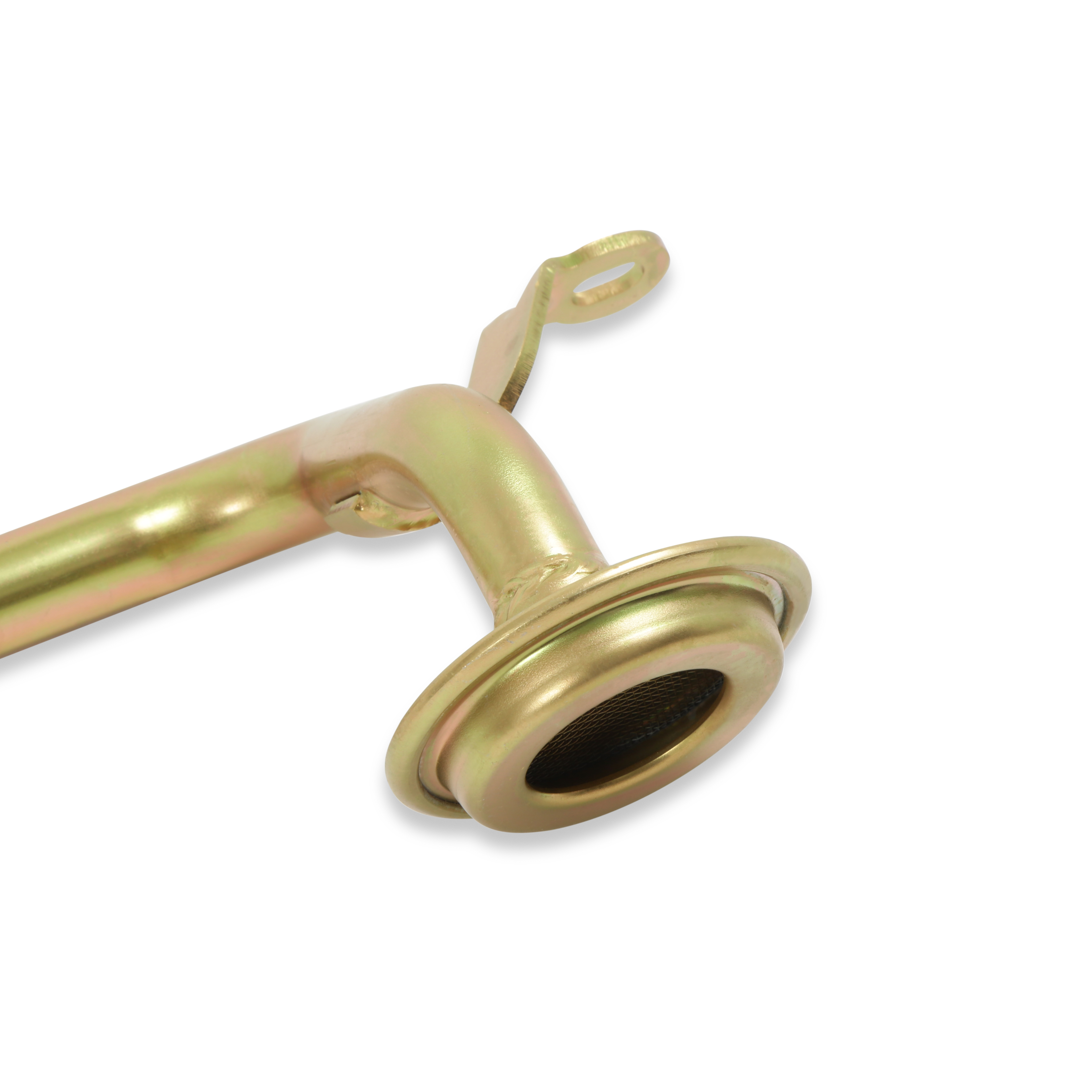

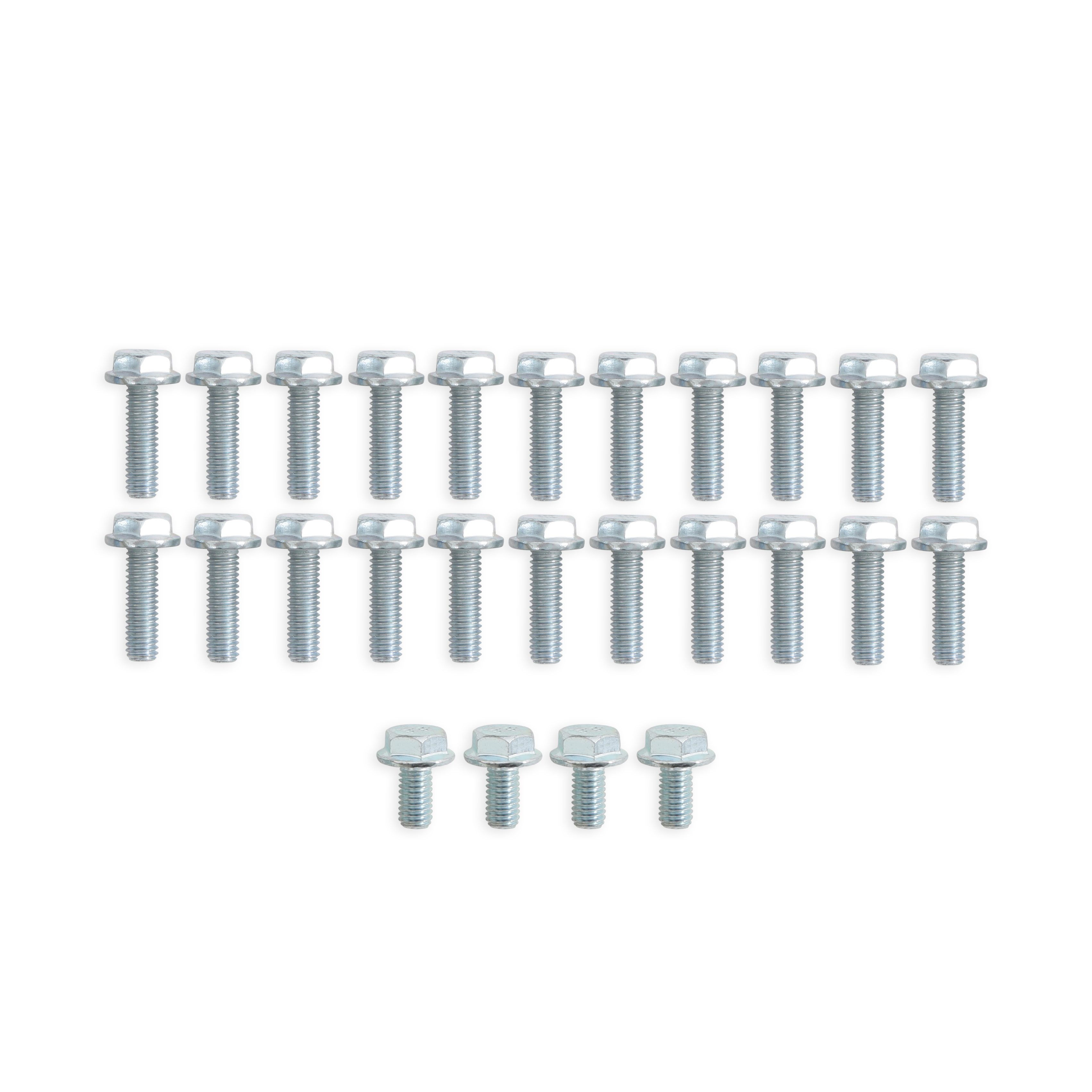

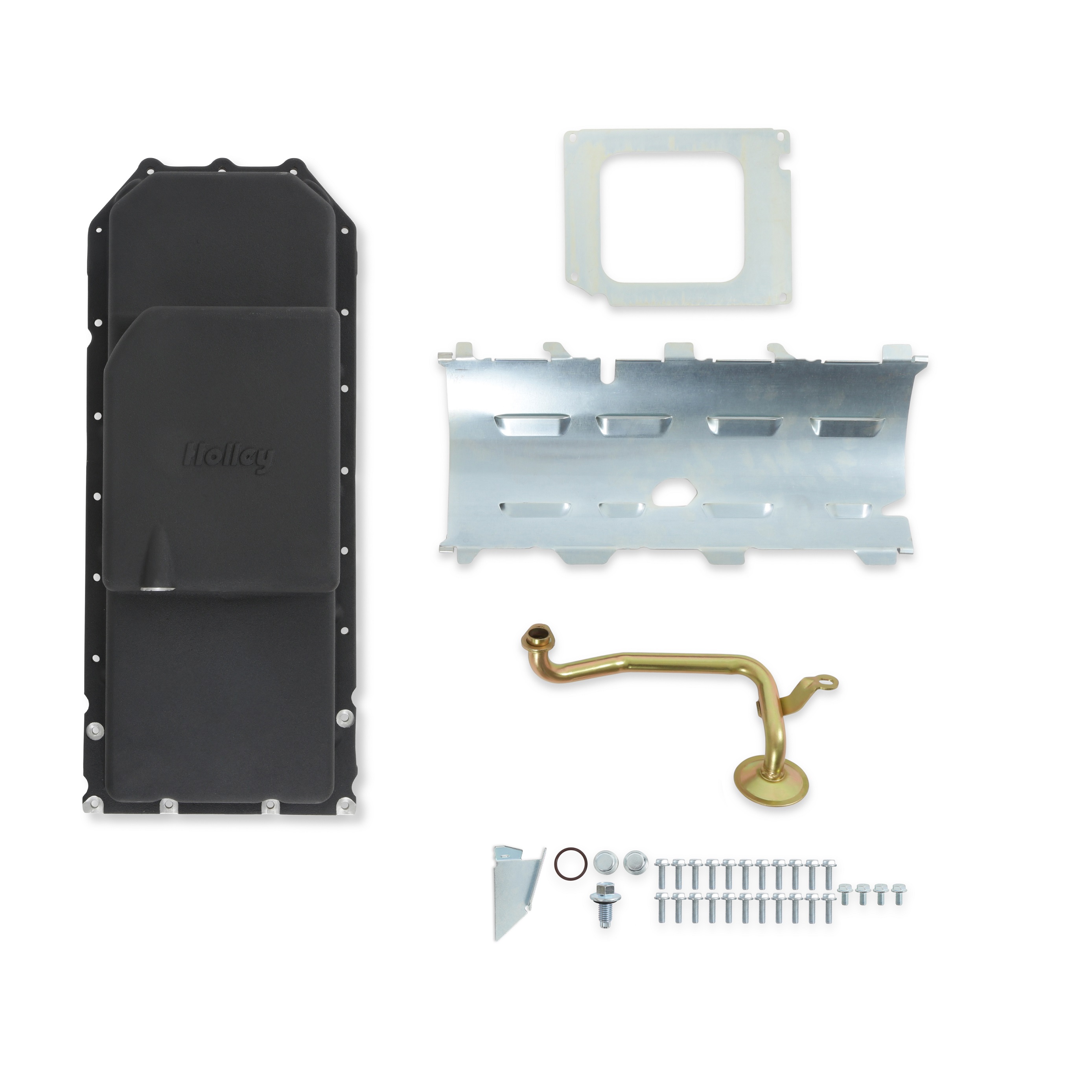

- Complete oil pan kit That includes oil pan, pickup assembly, O-ring seal, windage tray, baffling & mounting bolts – no extras that must be purchased separately (i.e. gaskets, pickup, windage tray, bolts)

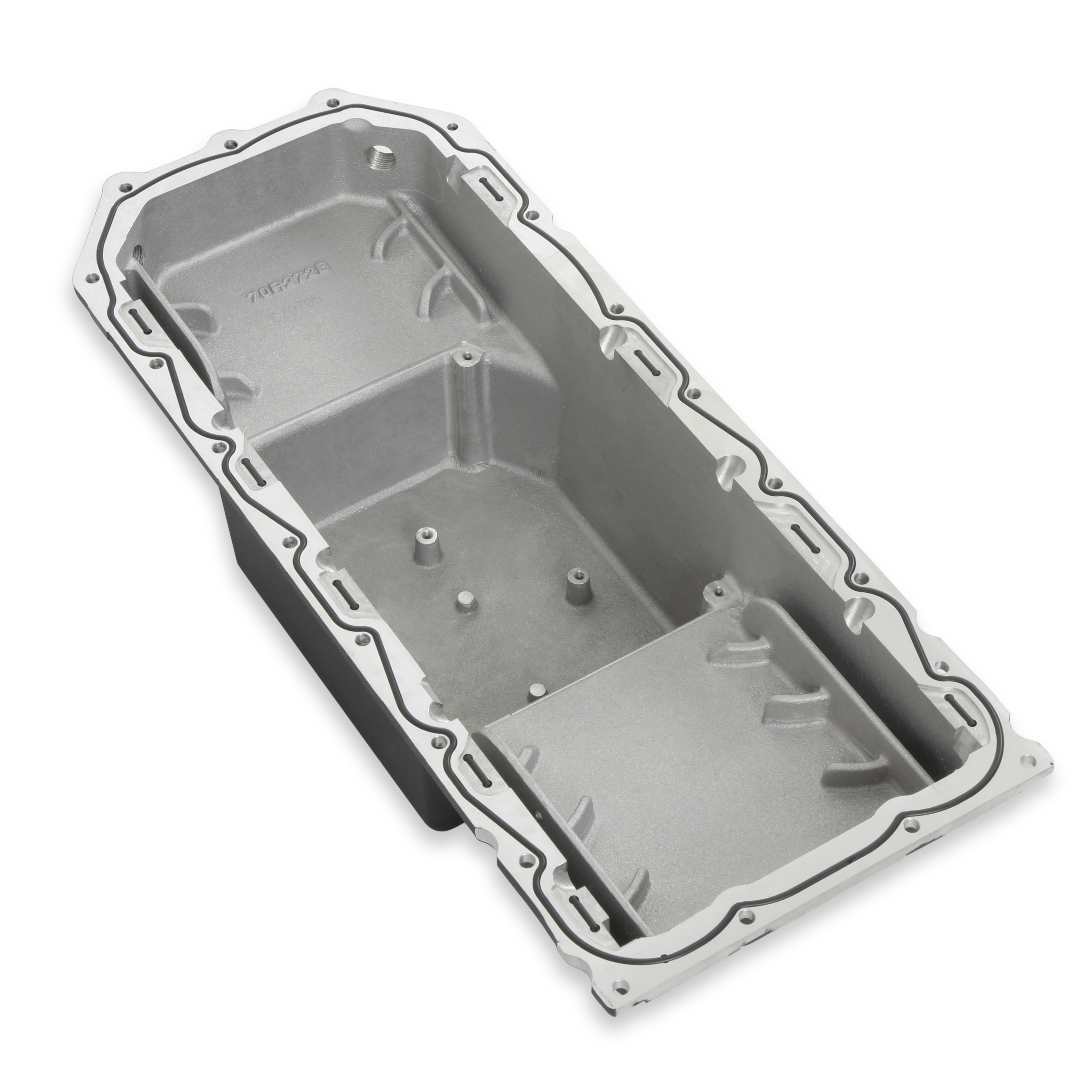

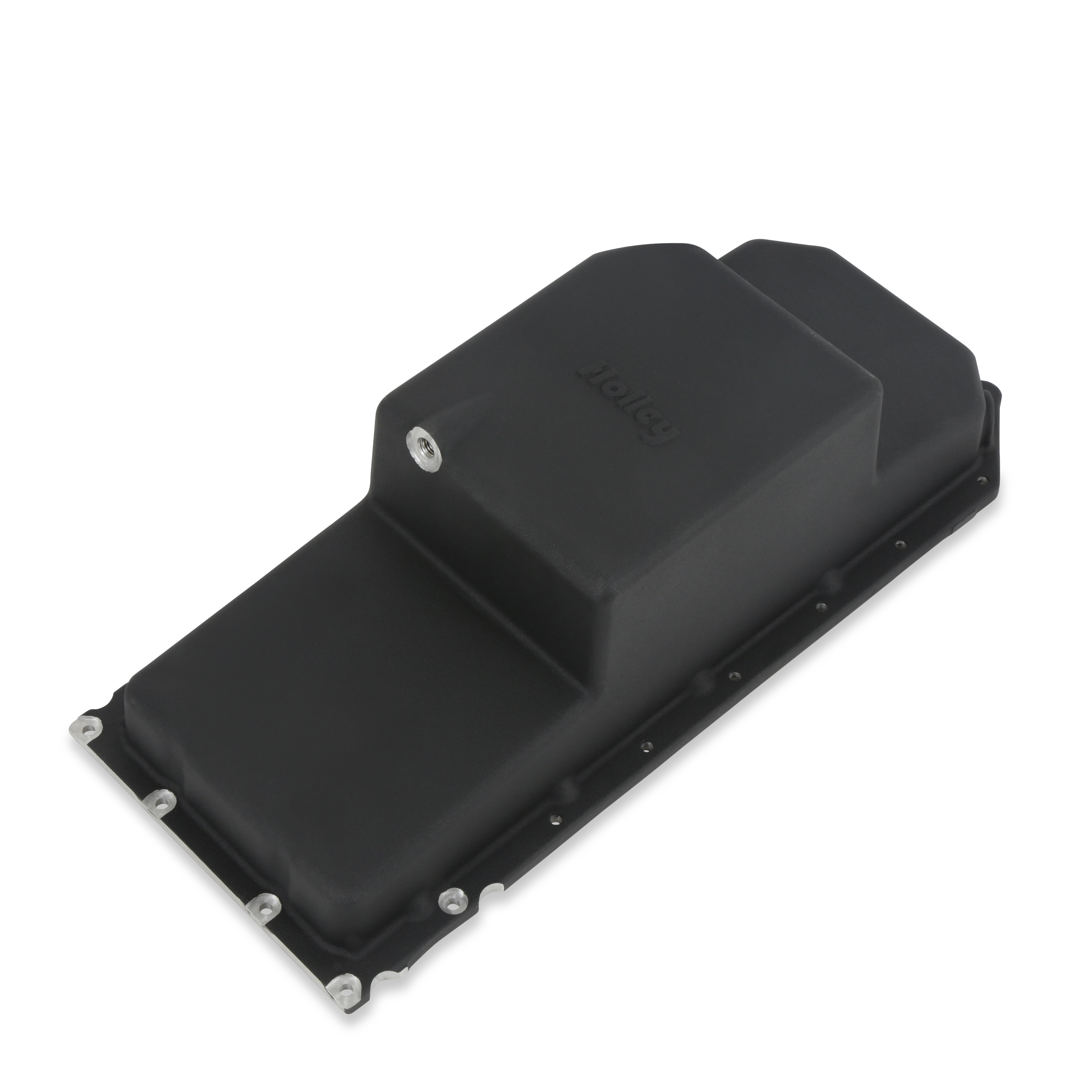

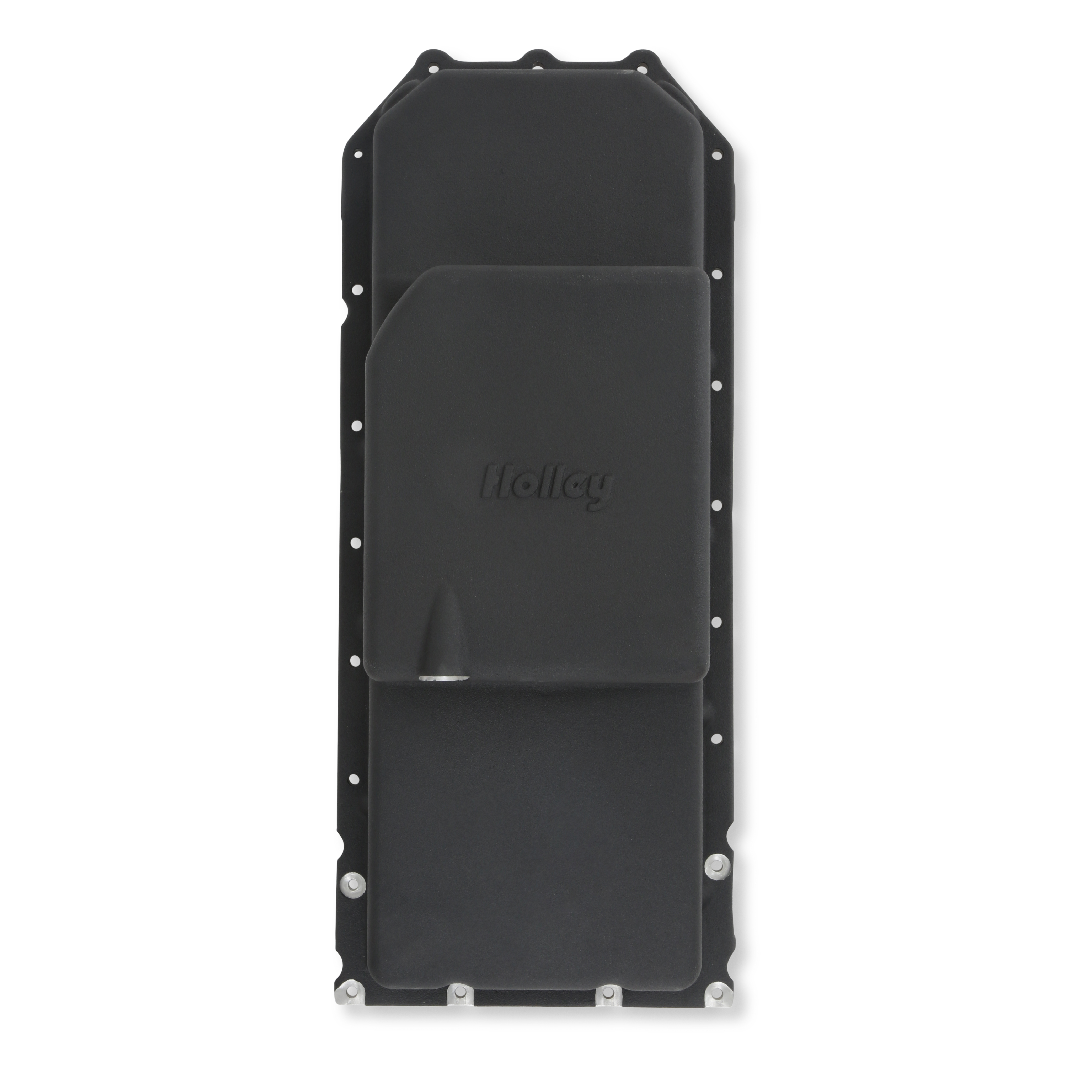

- Cast aluminum mid-sump engine swap oil pan

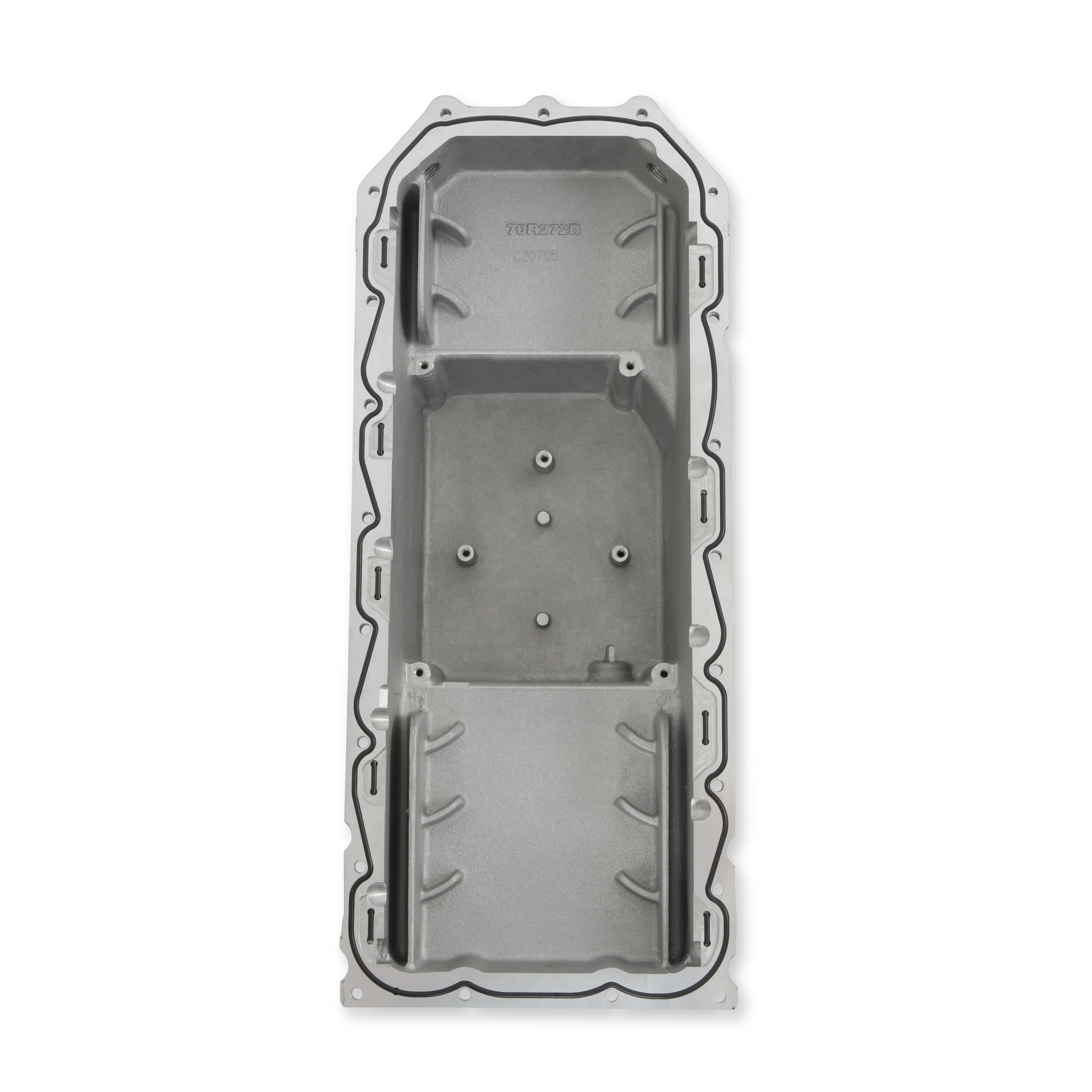

- Unique O-ring seal to block and captured windage tray (patent pending)
- Includes two 1/2-inch NPT oil return ports to provide a convenient oil return for turbochargers (one port on each front corner)

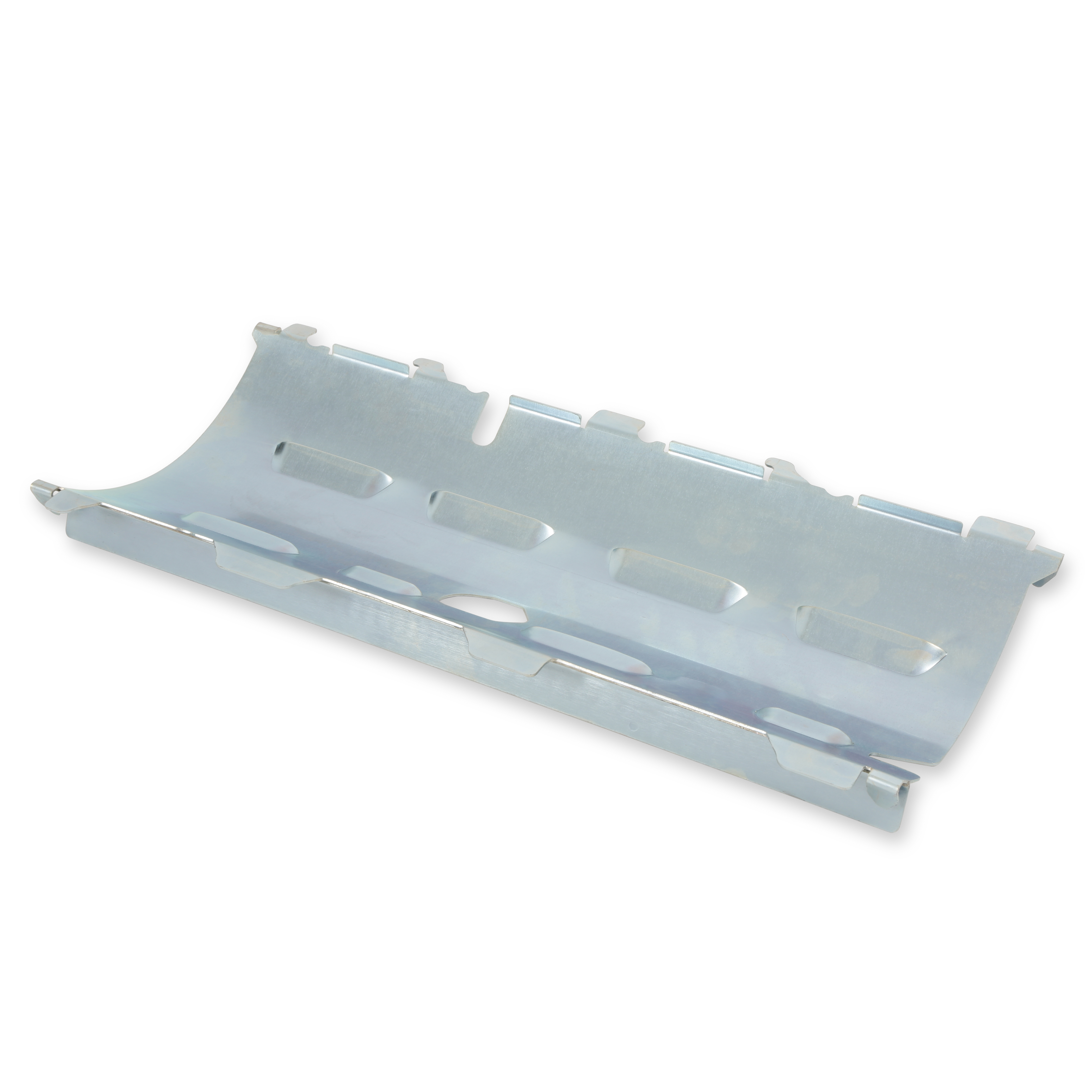

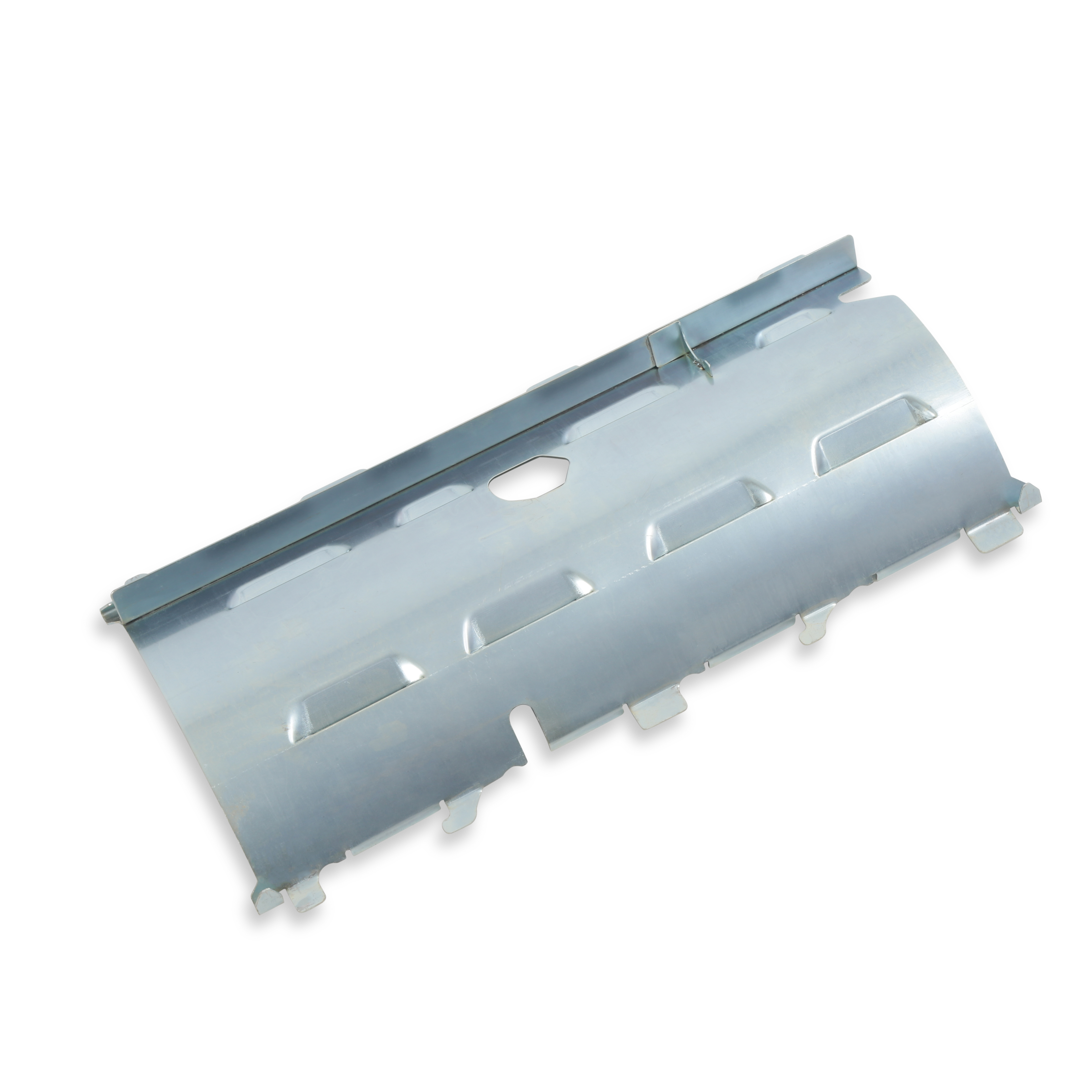

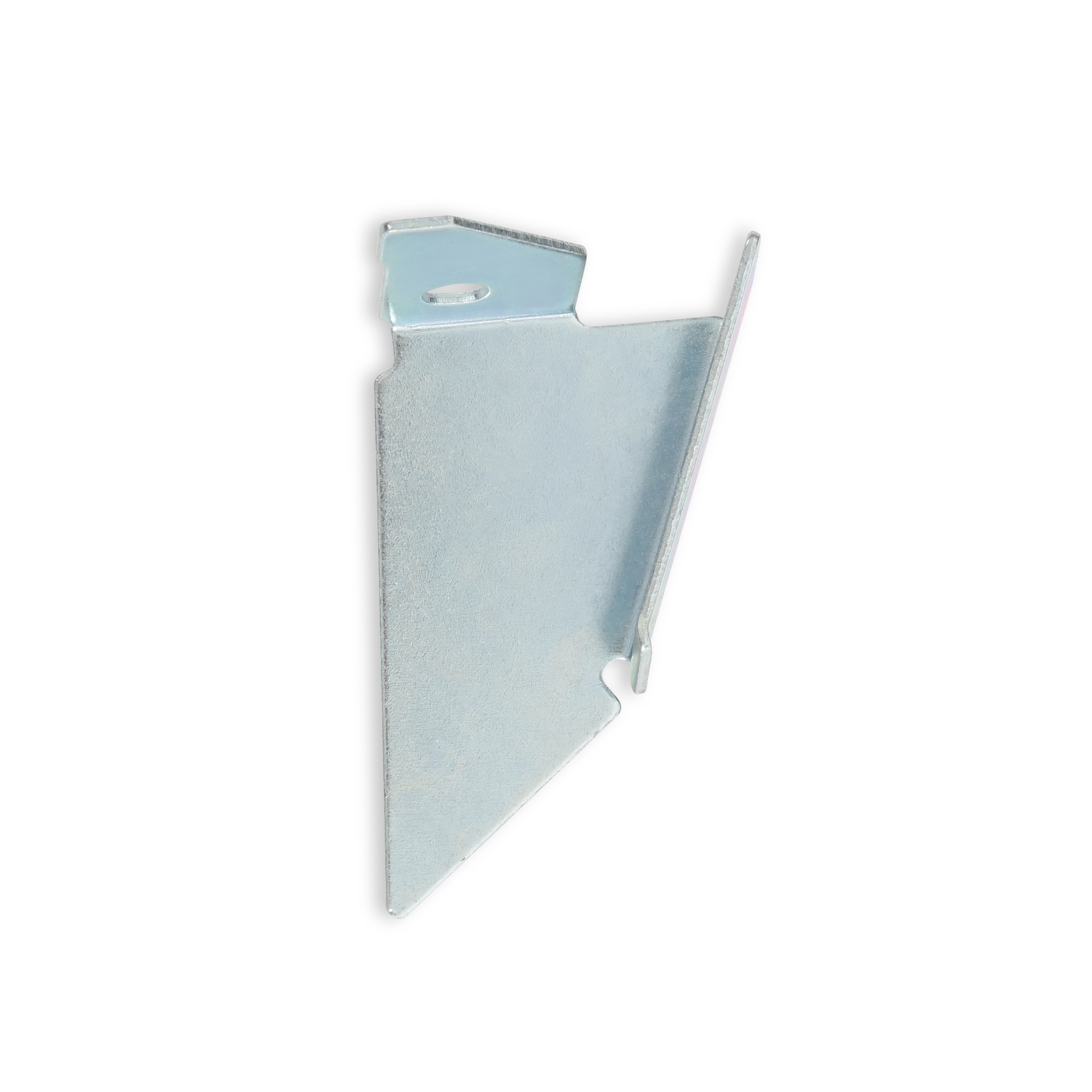

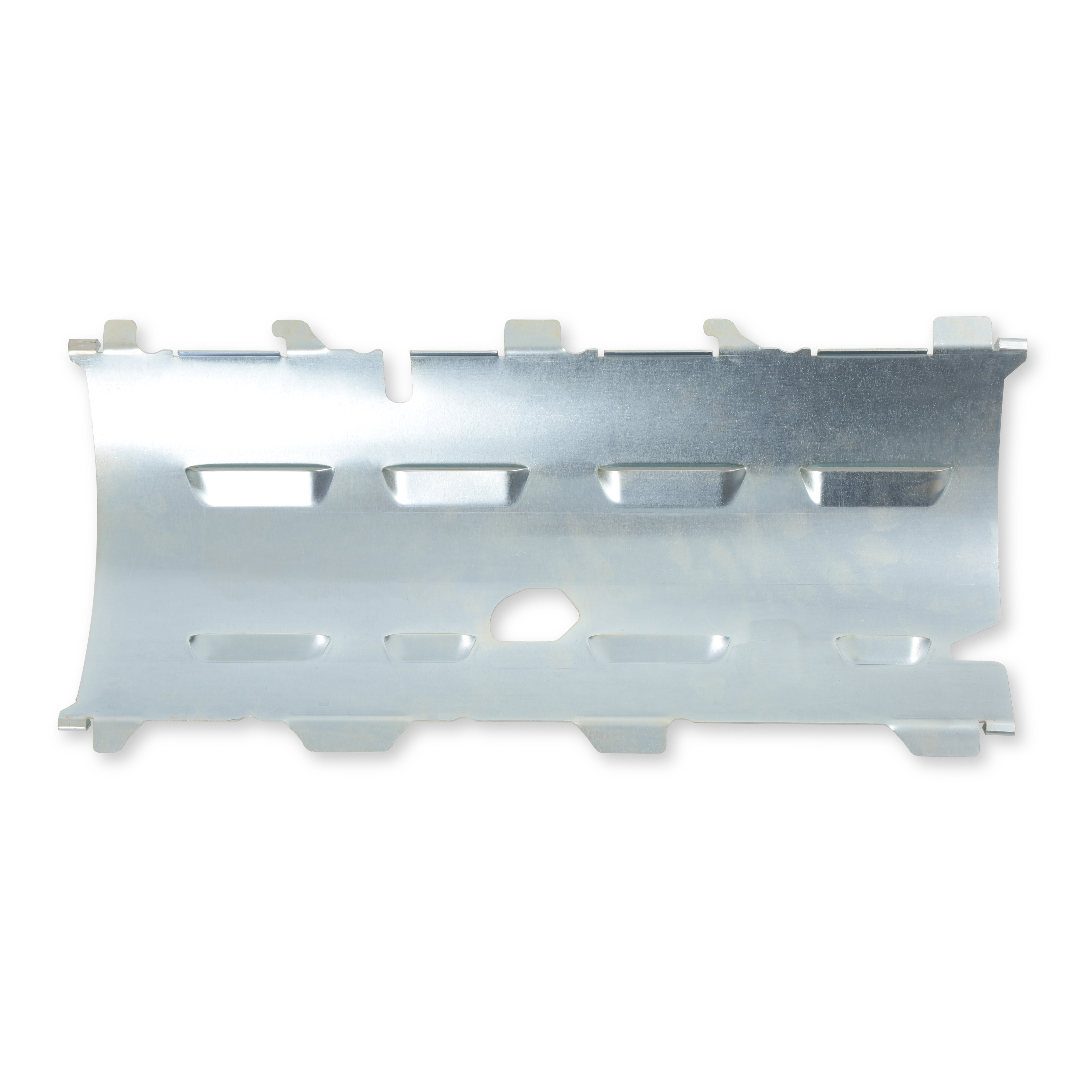

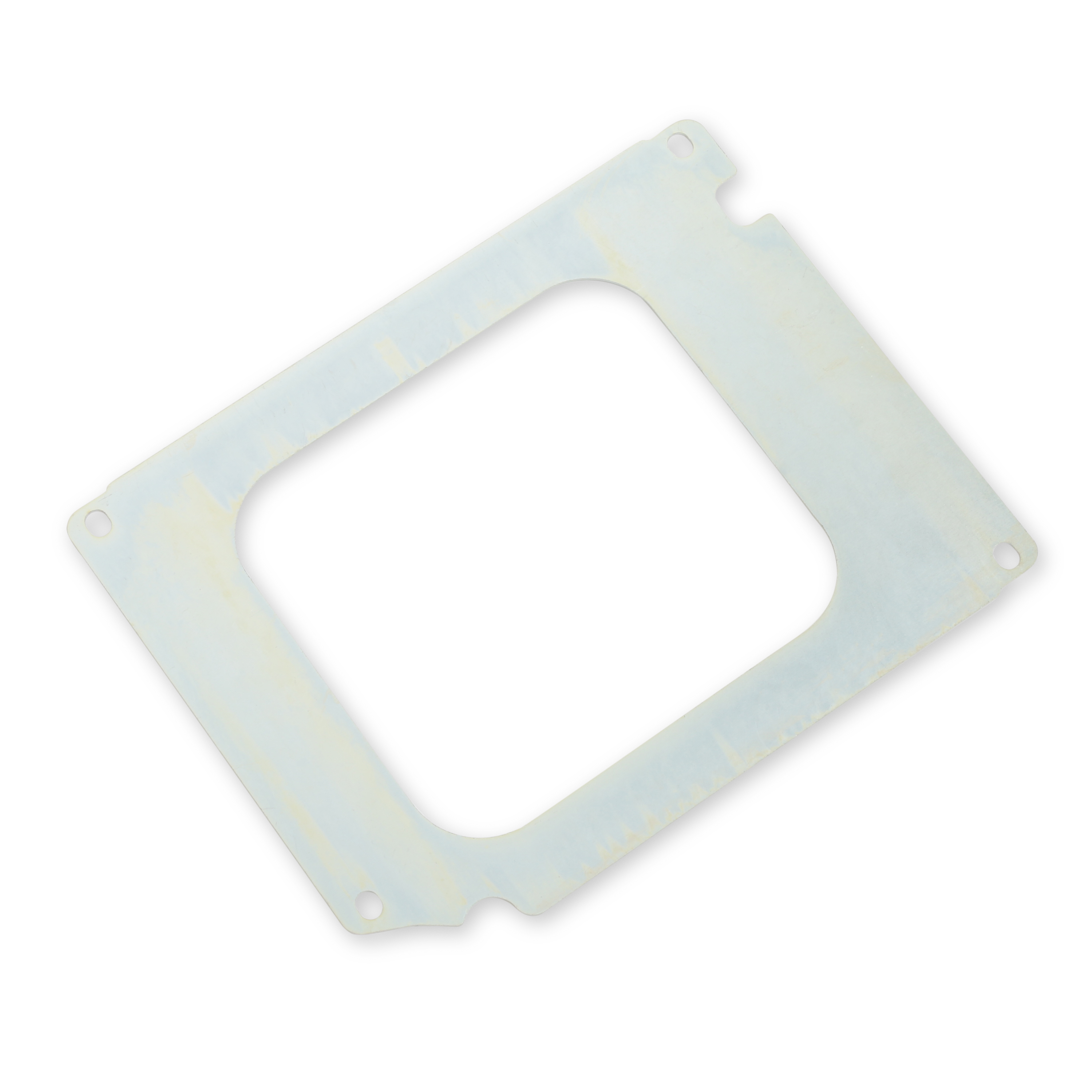

- Integrated windage tray & baffle to control oil (fits up to 4.060” stroke)
- Part # 302-61BK Fits later engines with variable valve timing (VVT) 2009-up 5.7L, 2009-up 6.4L Hemi engines
- Fits 1963-1974 Mopar A-Body, B-Body, C-Body, and E-Body – see the vehicle application tab
- Oil capacity – 6 quarts (6.5 quarts w/ filter)
- Works with most factory & aftermarket dipsticks (302-74 available separately)
- Patent pending
Specs
Brand
HOLLEY
Category
Engine Oil Pan
Specs
Brand: Holley
Color: Black
Engine: Gen III Hemi
Finish: Black
Baffled: Yes
Warning: California Proposition 65
Capacity: 6
Category: Engine
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Cam Style: VVT
Sump Type: Wet
part type: Engine Oil Pan
Grade Type: Performance
Application: Gen III Hemi
Oil Pan Type: Cast
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Dipstick Port: No
Emission Code: 6
Sump Location: Center
Maximum Stroke: 4.060"
Oil Return Size: 1/2" NPT

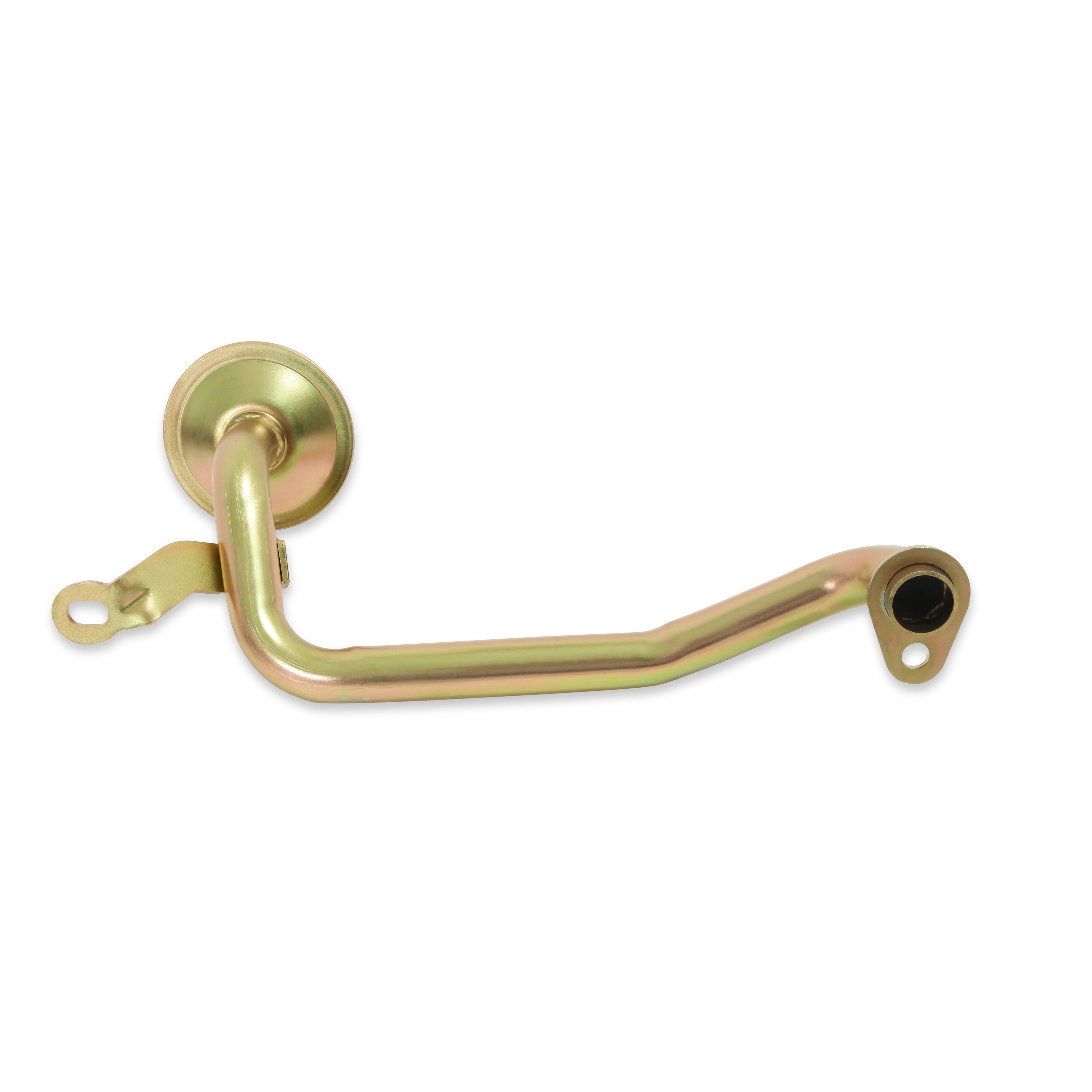

Pickup Included: Yes
Oil Pan Capacity: 6.0 Quarts

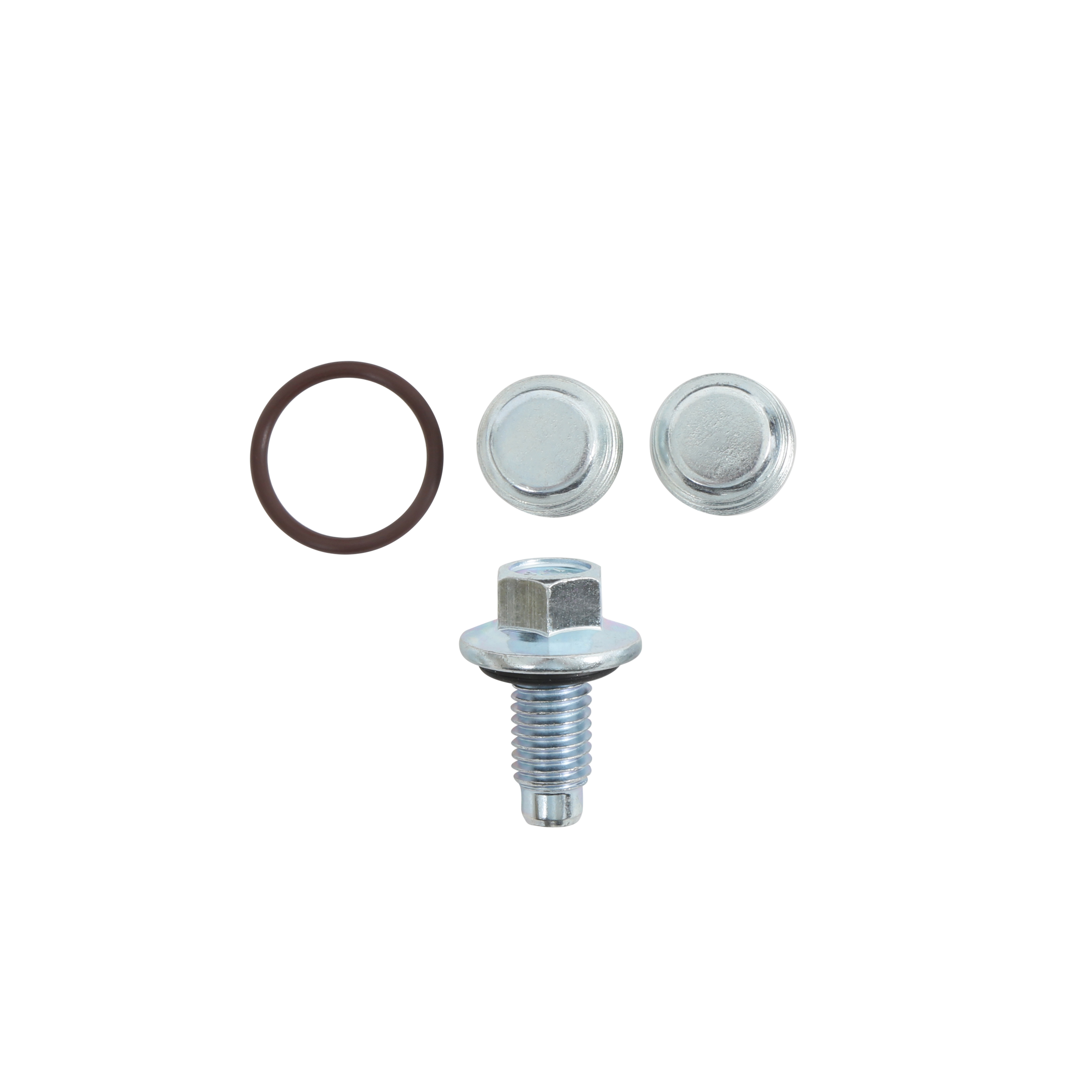

Drain Plug Included: Yes
Turbo Oil Drainback: Yes
Windage Tray Included: Yes
Crank Shaft Wiper Included: No
