Holley Gen III Hemi Swap Oil Pan - Mid-Sump - Hellcat - Natural
SKU
HTPD-302-64
List price
$521.95
Price
$463.95
Description
Fits Gen III Hemi Hellcat Engines - 2015-up 6.2L Supercharged Engines - Mid-Sump Design Fits 1963-1974 Mopar A-Body, B-Body, C-Body & E-Body
Features
- The factory oil pans on Gen III Hemi engines don't fit or hang too low for muscle car engine swaps
- Fits 6.2-liter supercharged Hellcat – Gen III Hemi engines with unique bolt pattern & flange shape

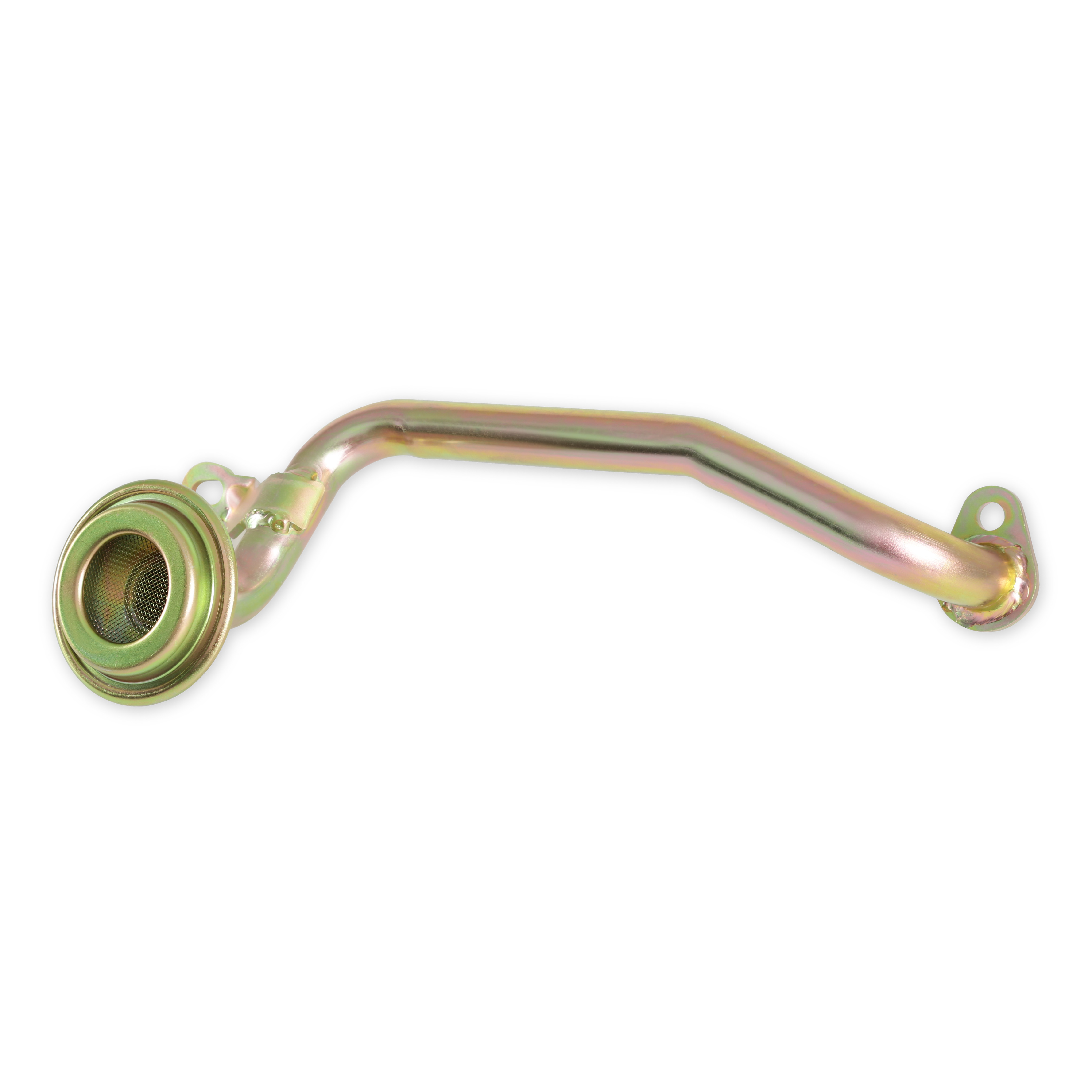

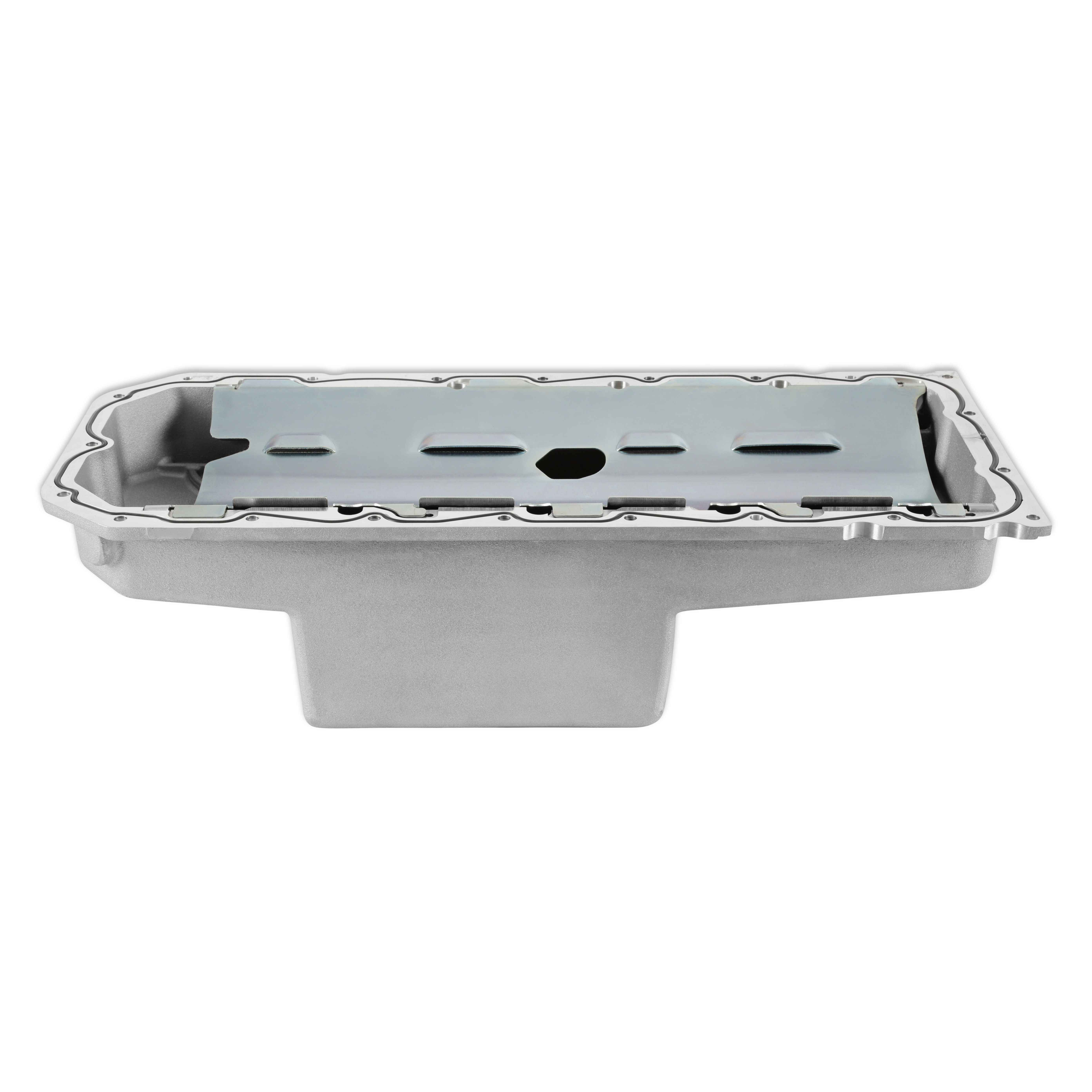

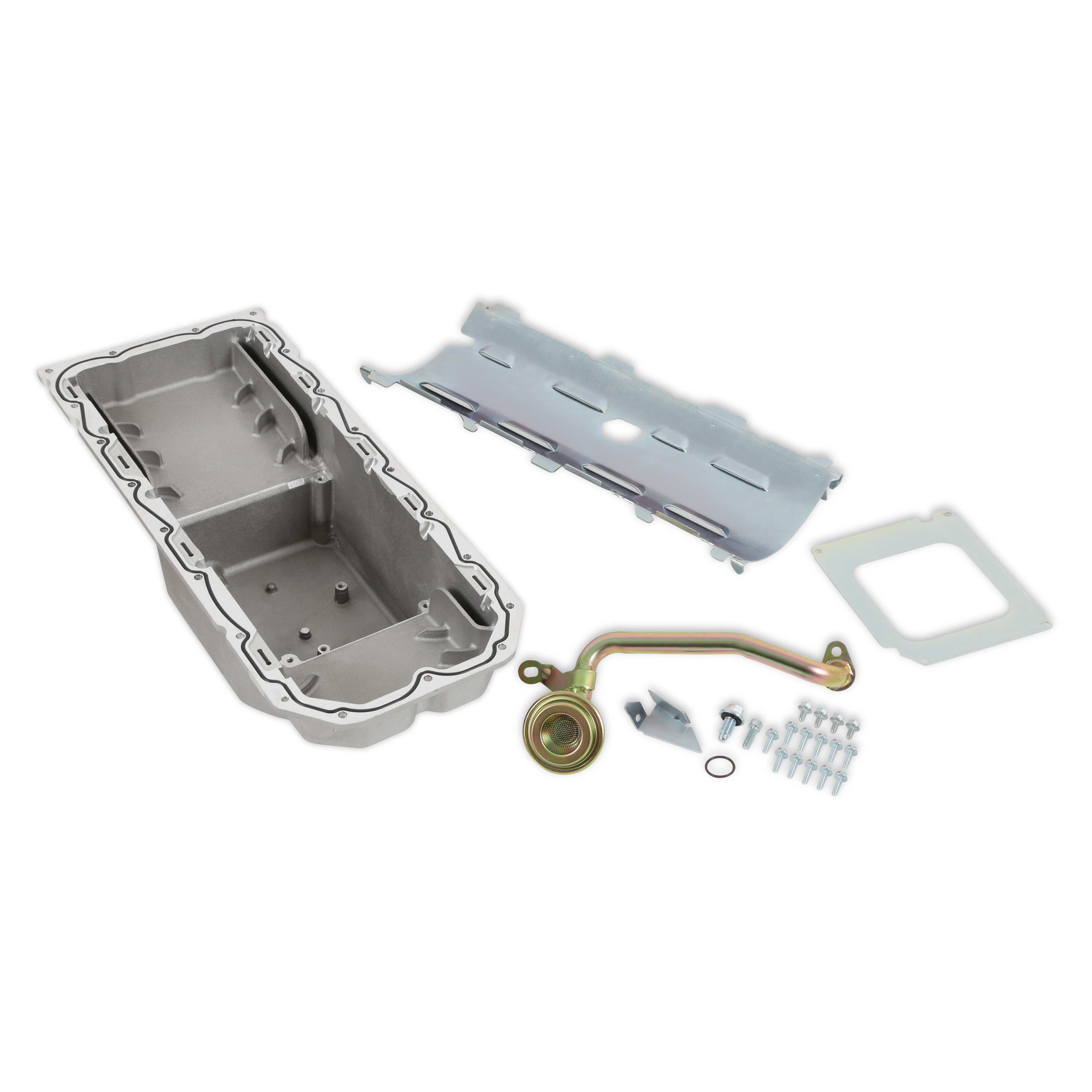

- Complete oil pan kit that includes the oil pan, pickup assembly, O-ring seal, windage tray, baffling & mounting bolts – no extras that must be purchased separately (i.e., gaskets, pickup, windage tray, bolts)

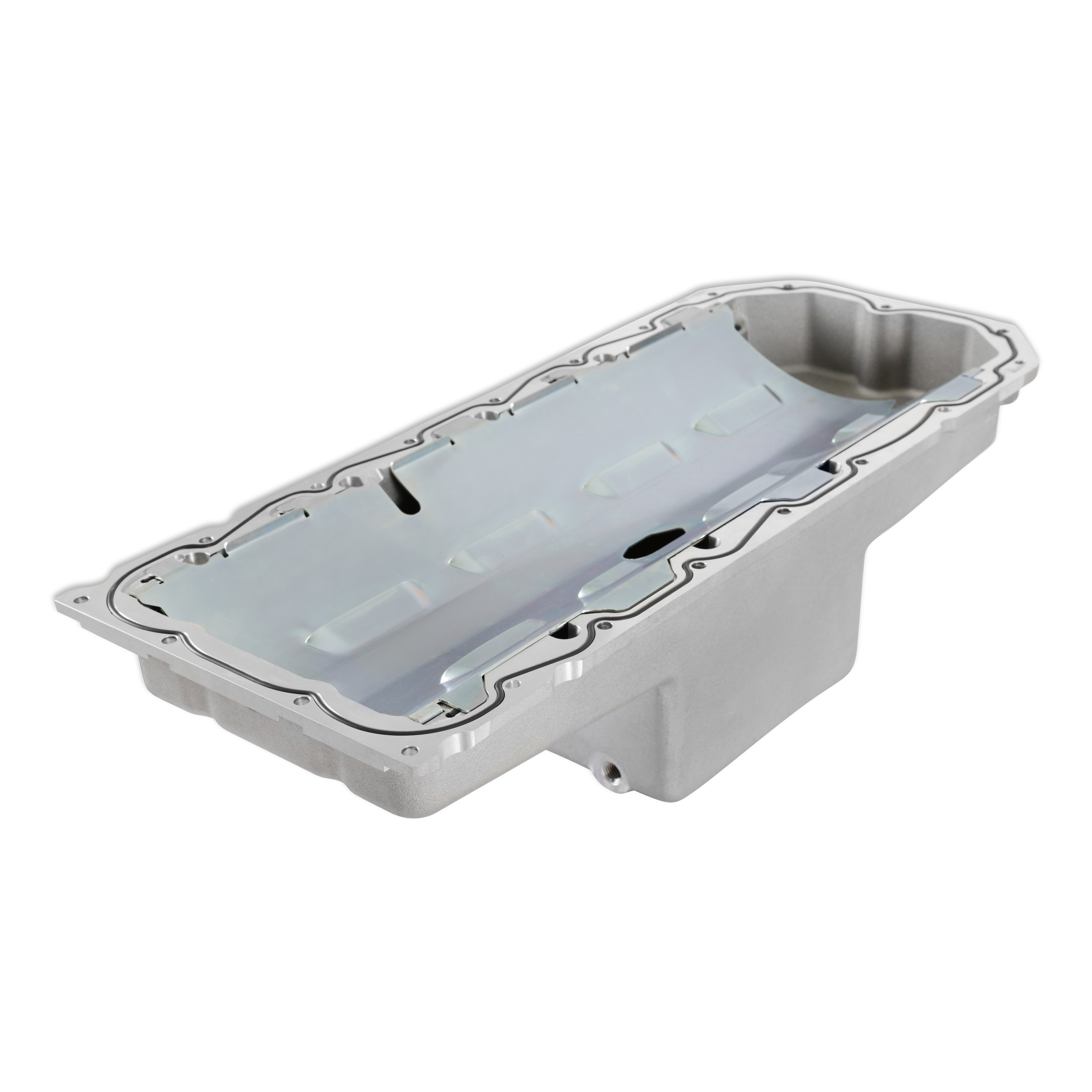

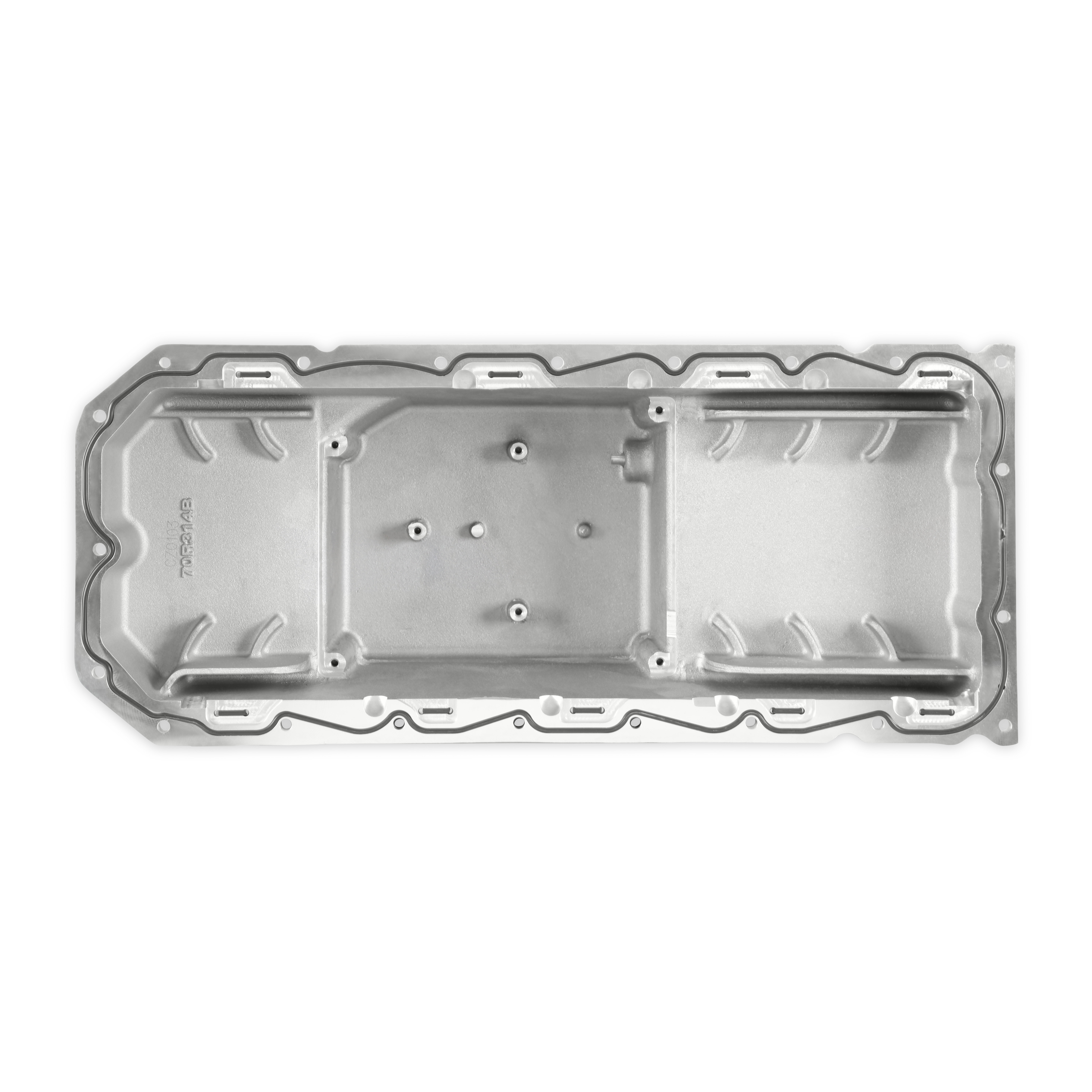

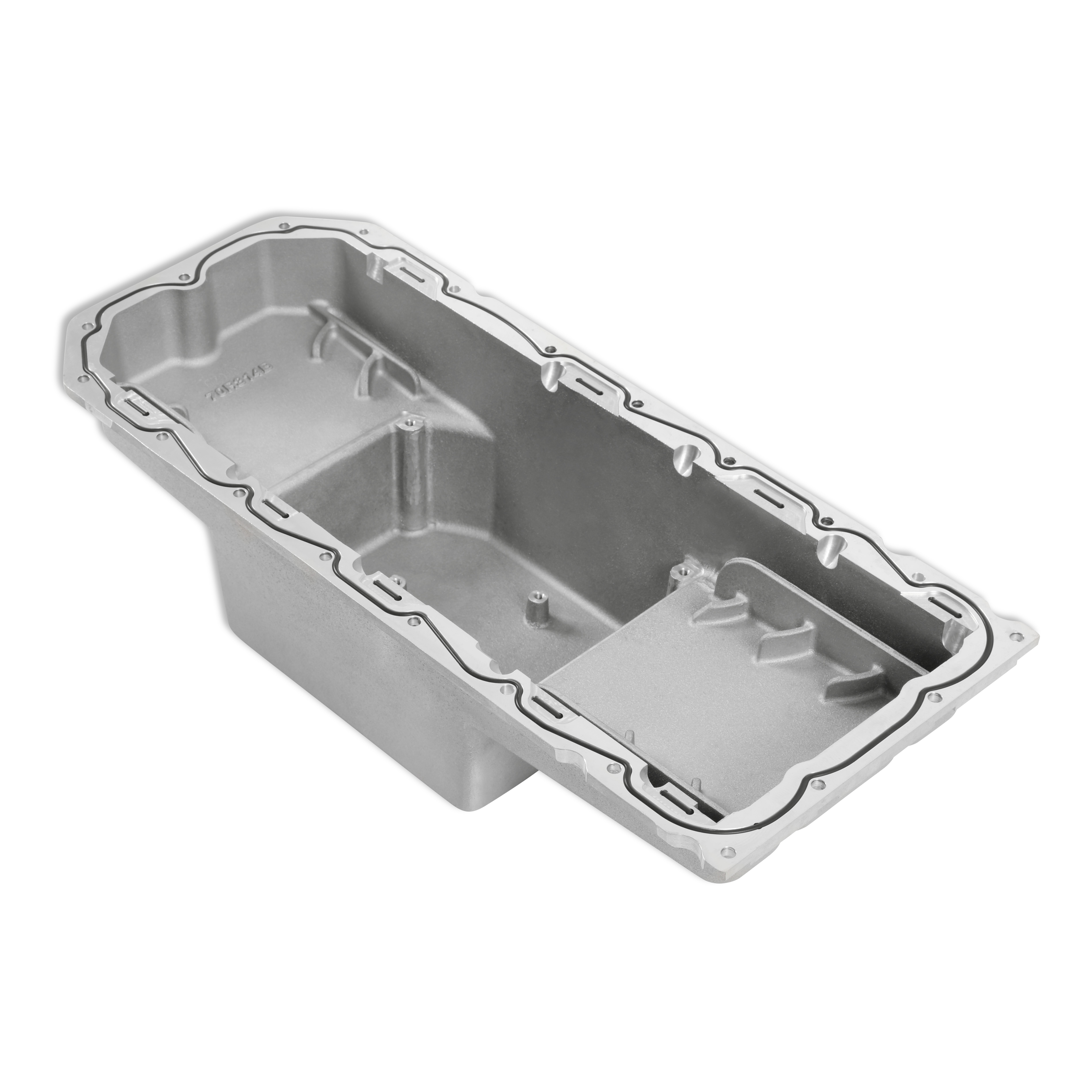

- Cast aluminum mid-sump engine swap oil pan
- Choose from natural as-cast (302-64) or black finish (302-64BK)

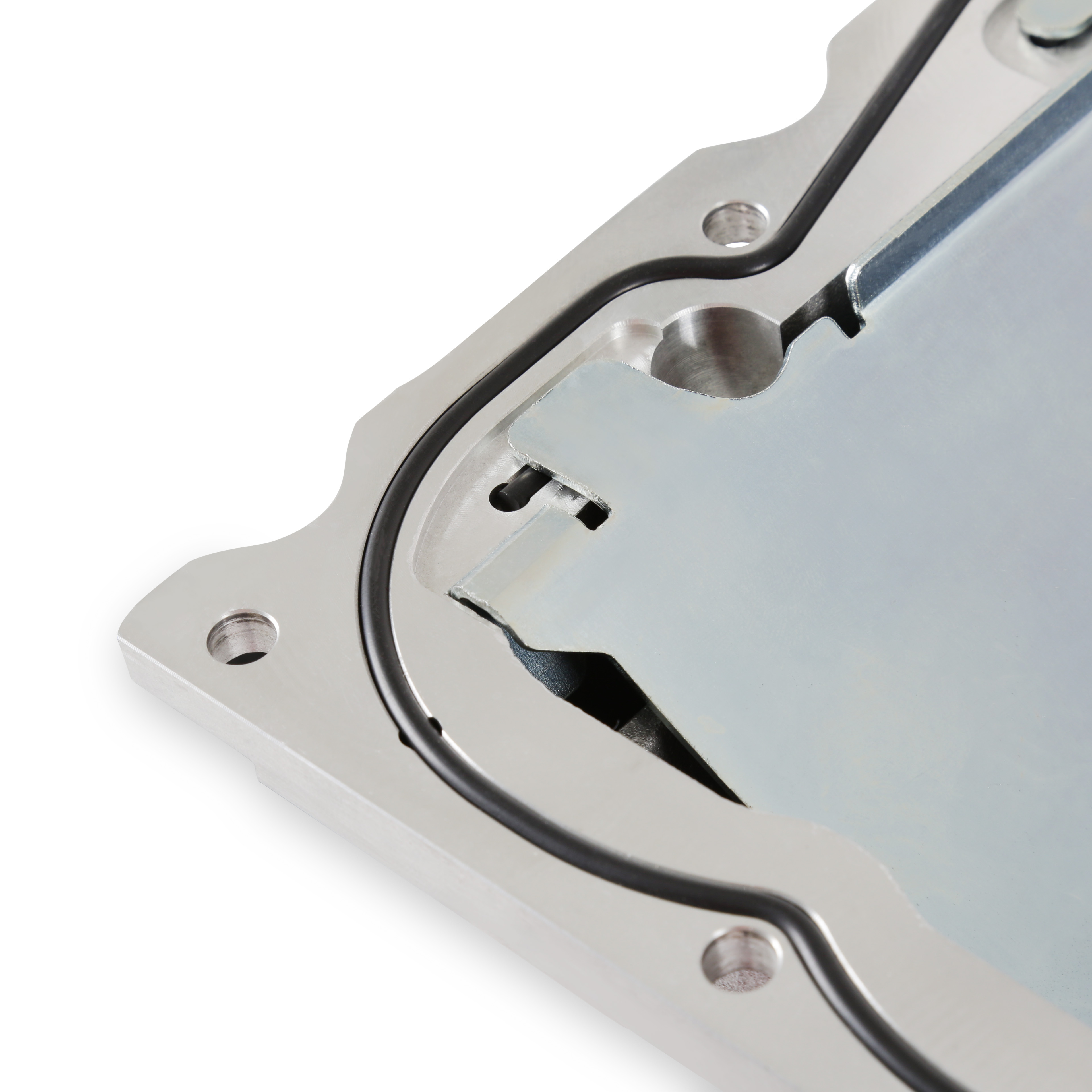

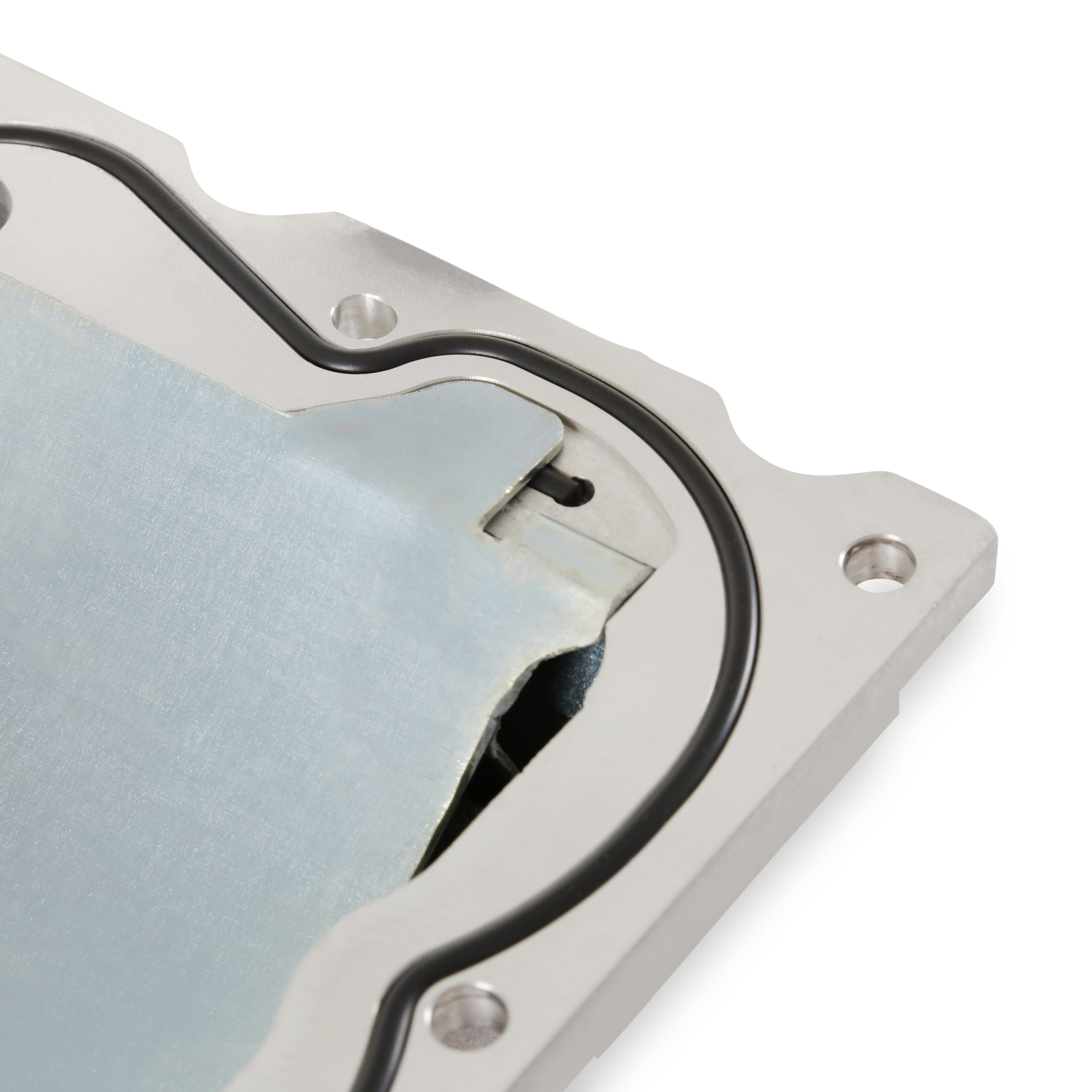

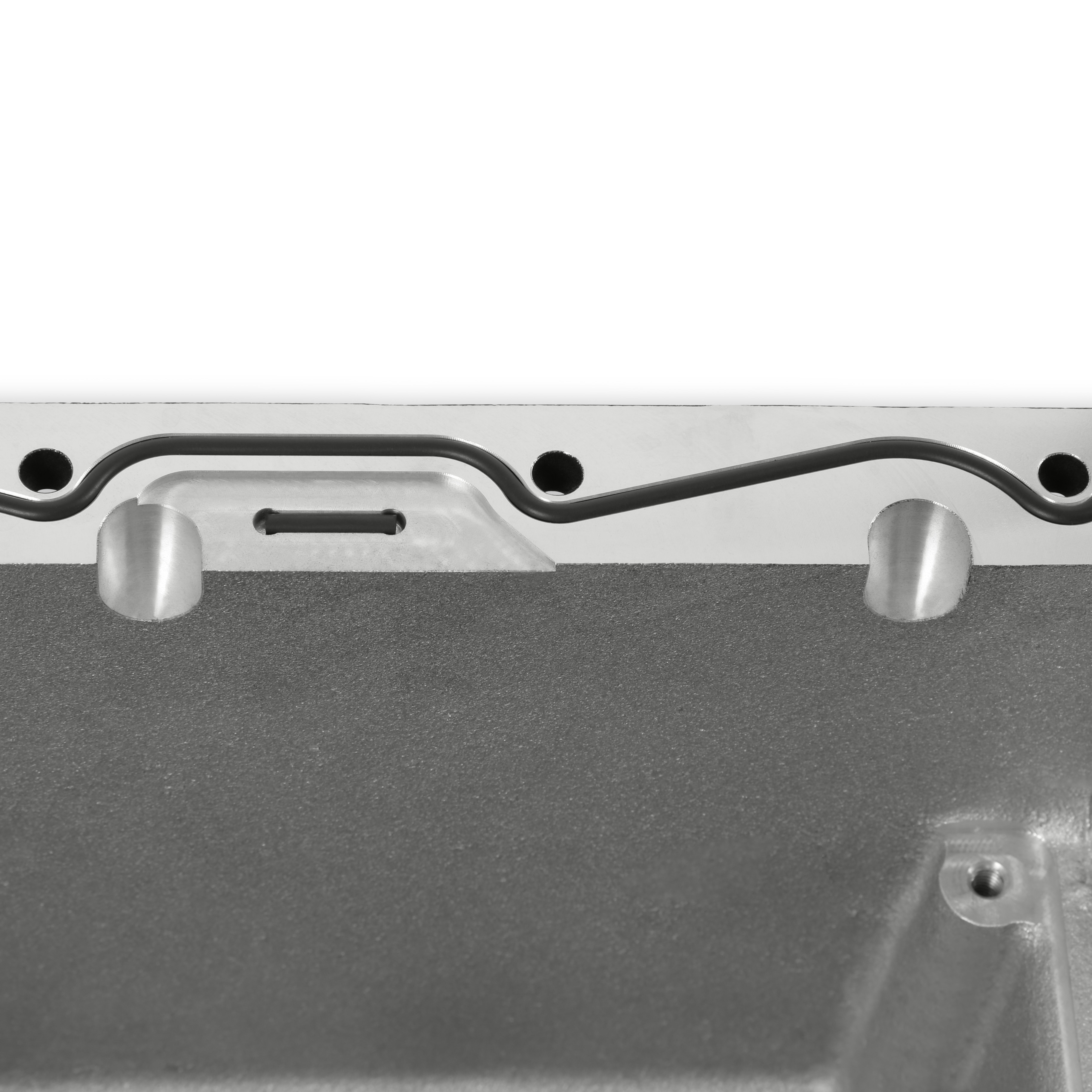

- Unique O-Ring Seal to Block and Captured Windage Tray (Patent Pending)

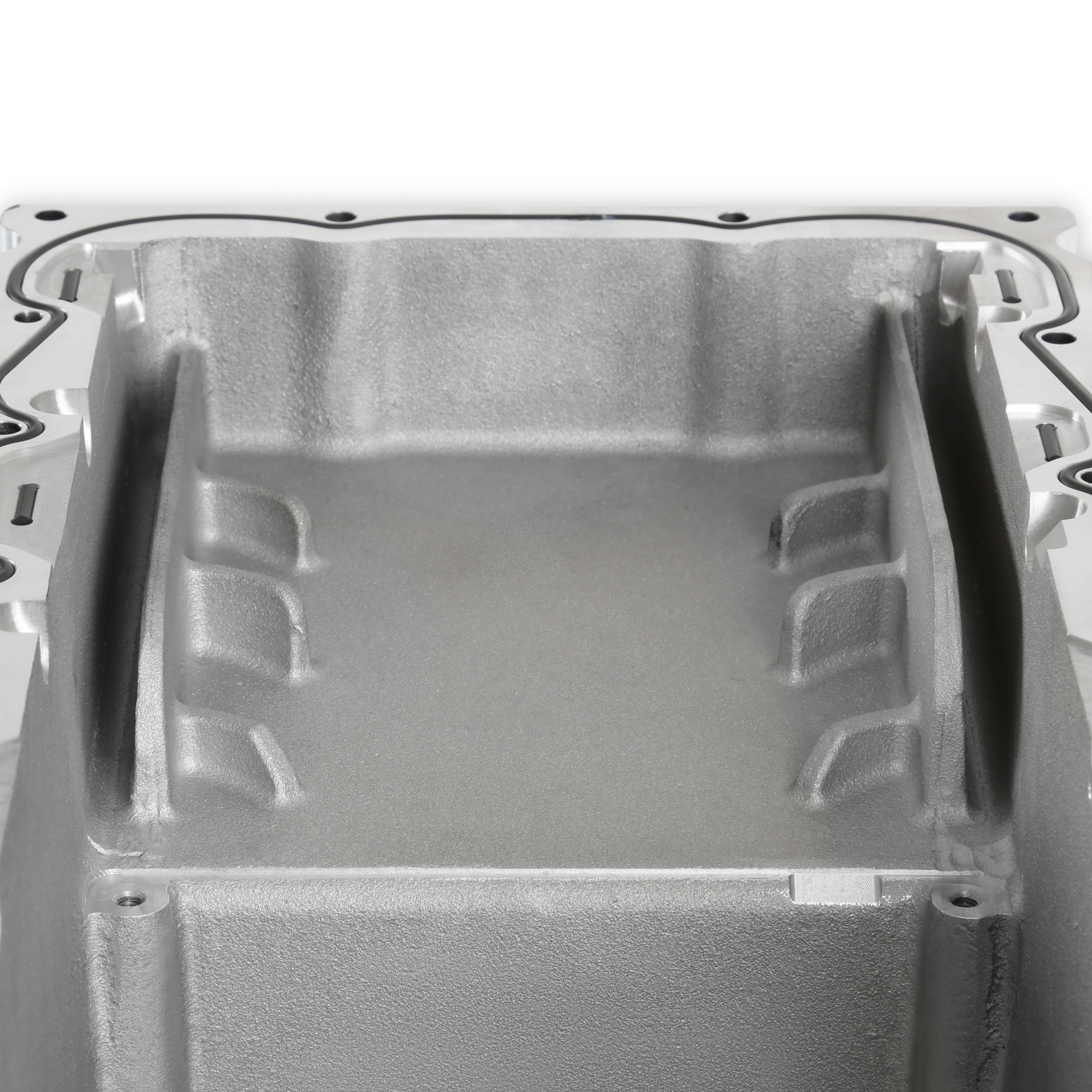

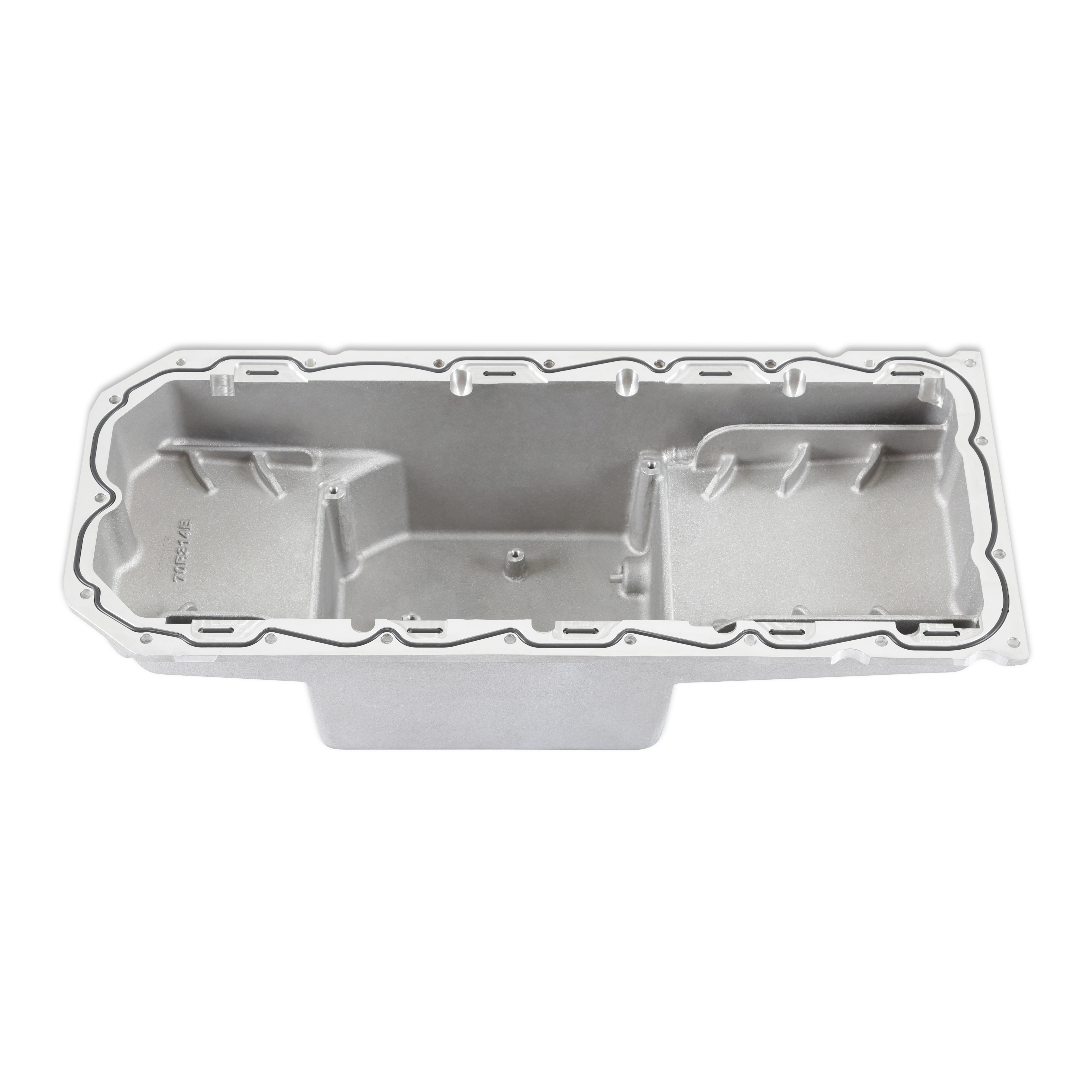

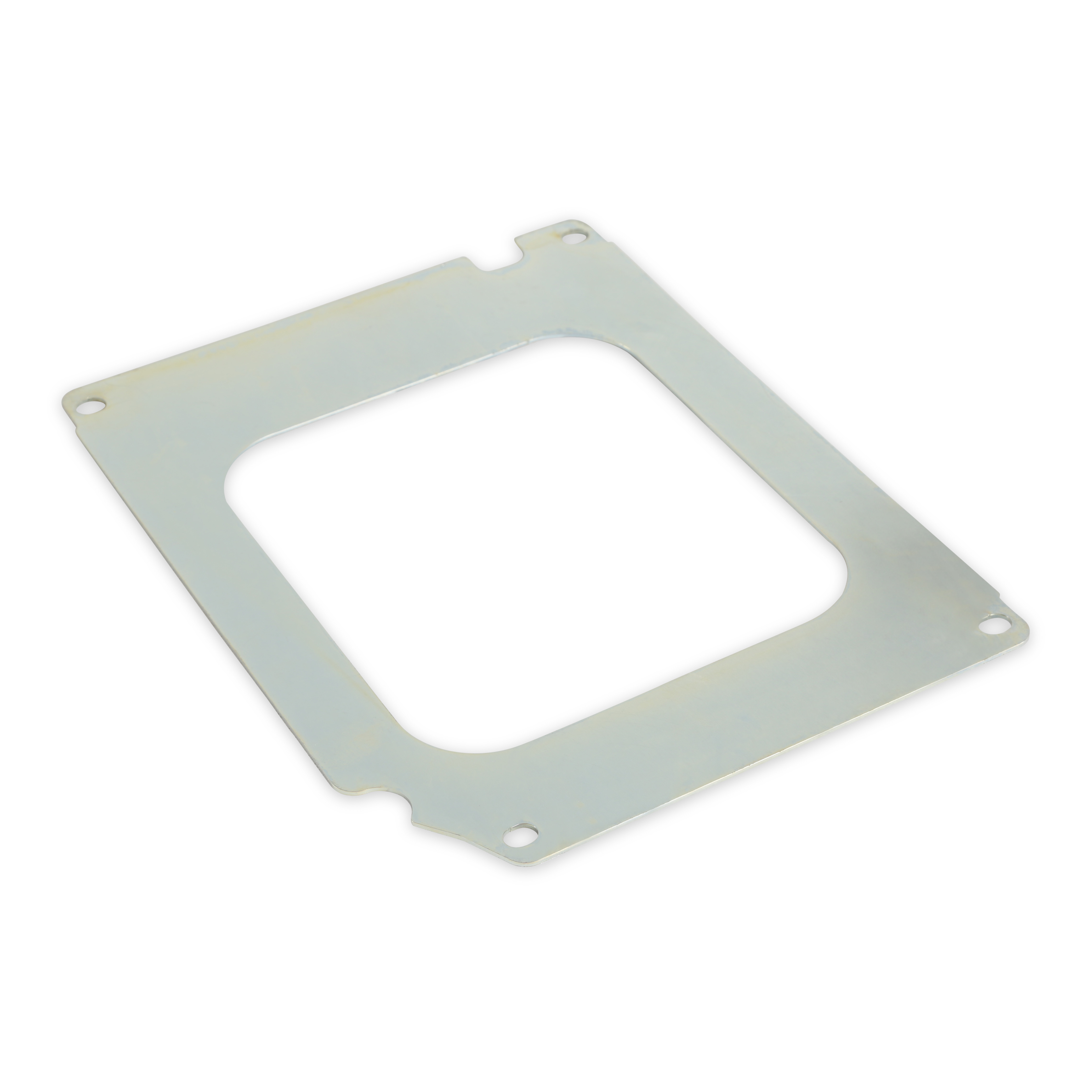

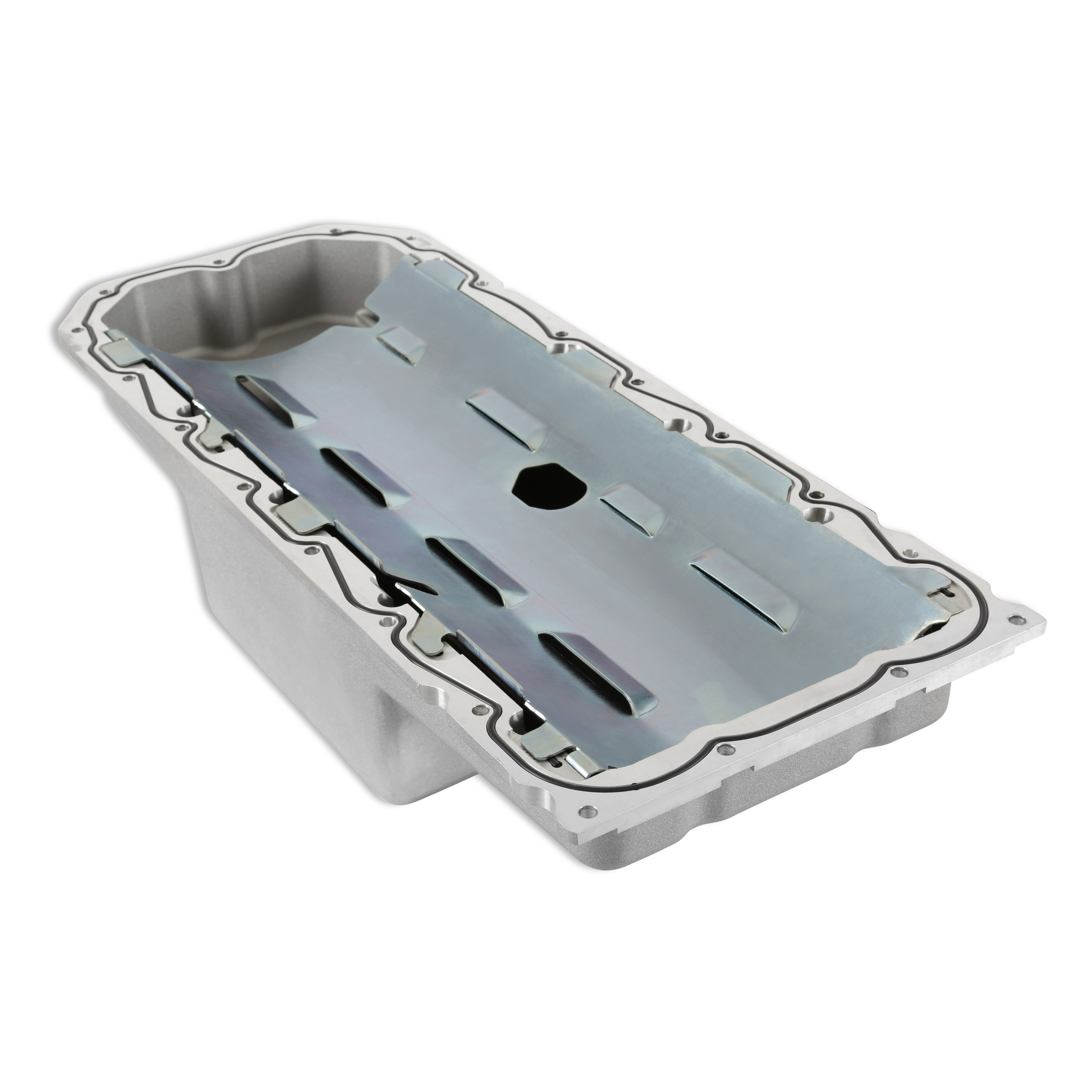

- Integrated Windage Tray & Baffle to Control Oil (Fits up to 4.060” Stroke)
- Fits 1963-1974 Mopar A-Body, B-Body, C-Body, and E-Body – See the Vehicle Application Tab
- Oil Capacity – 6 Quarts (6.5 Quarts w/ Filter)
- Works with Most Factory & Aftermarket Dipsticks - PN 302-74 recommended

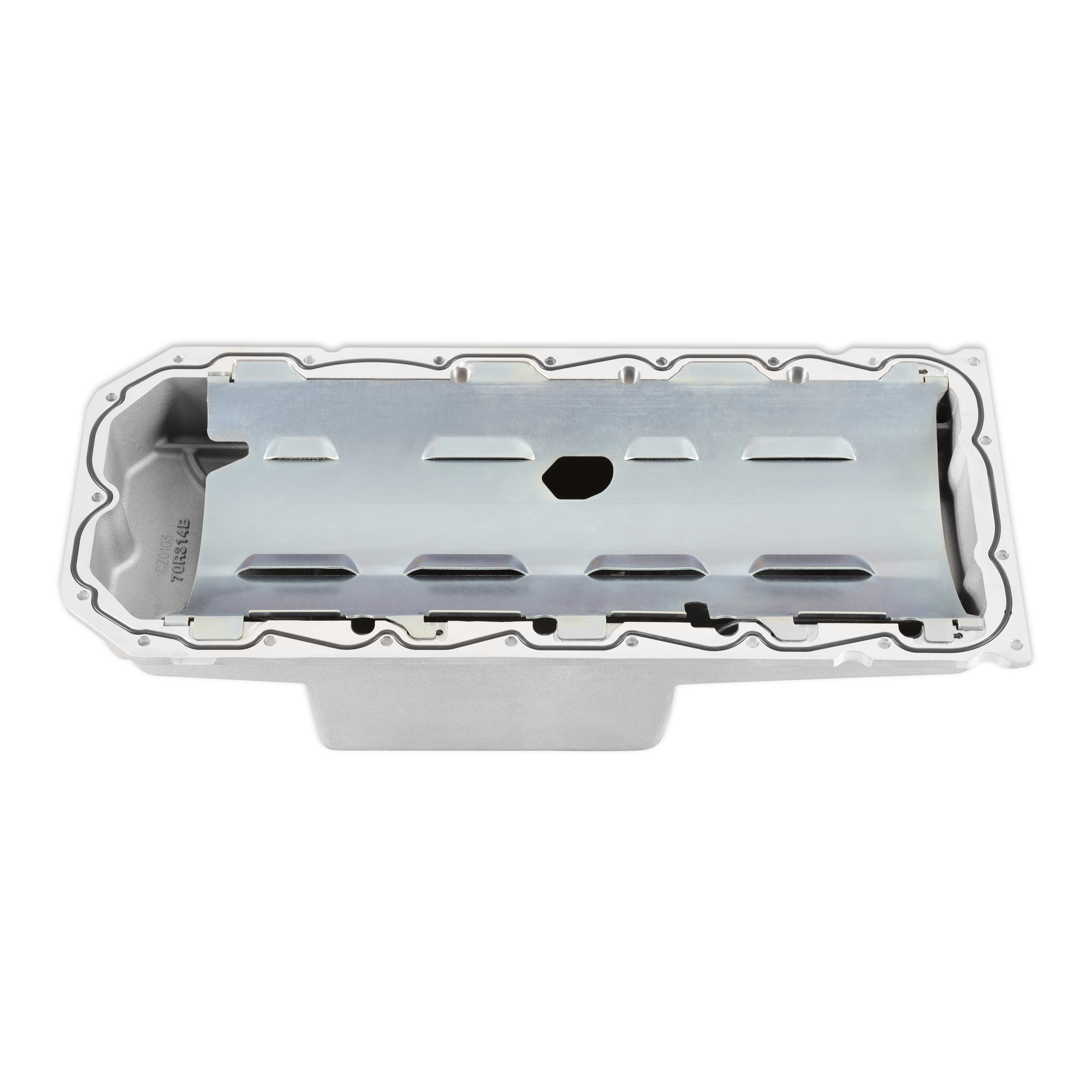

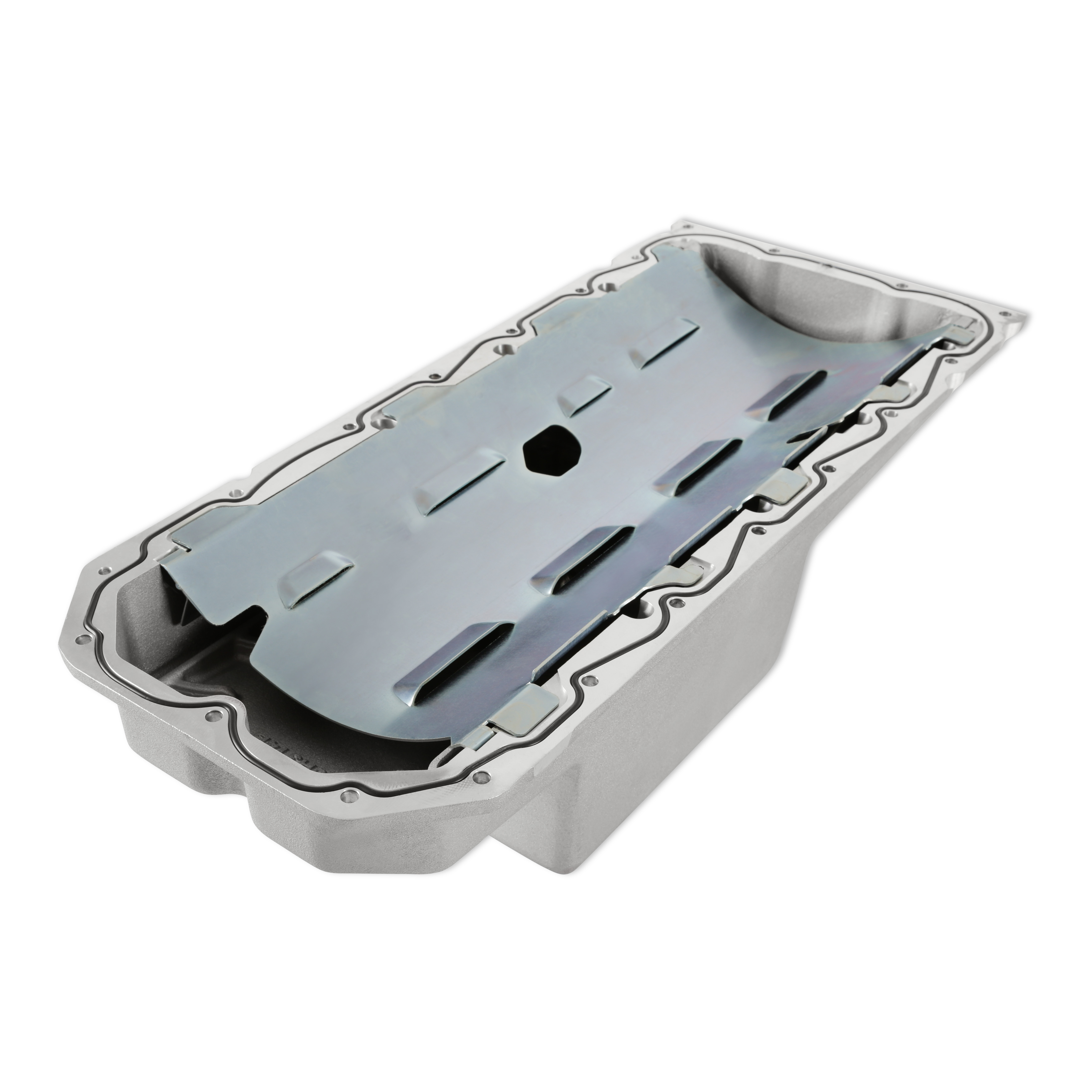

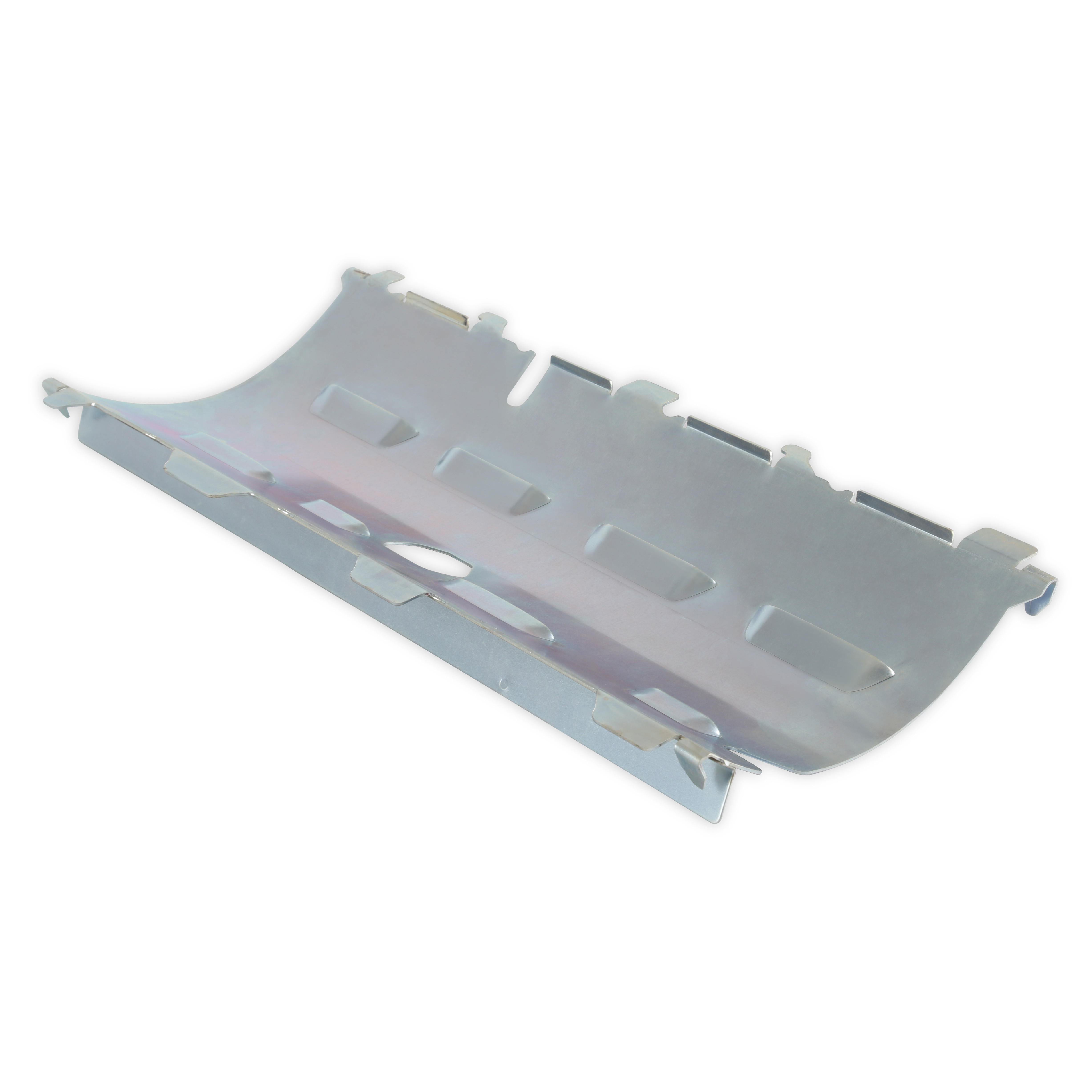

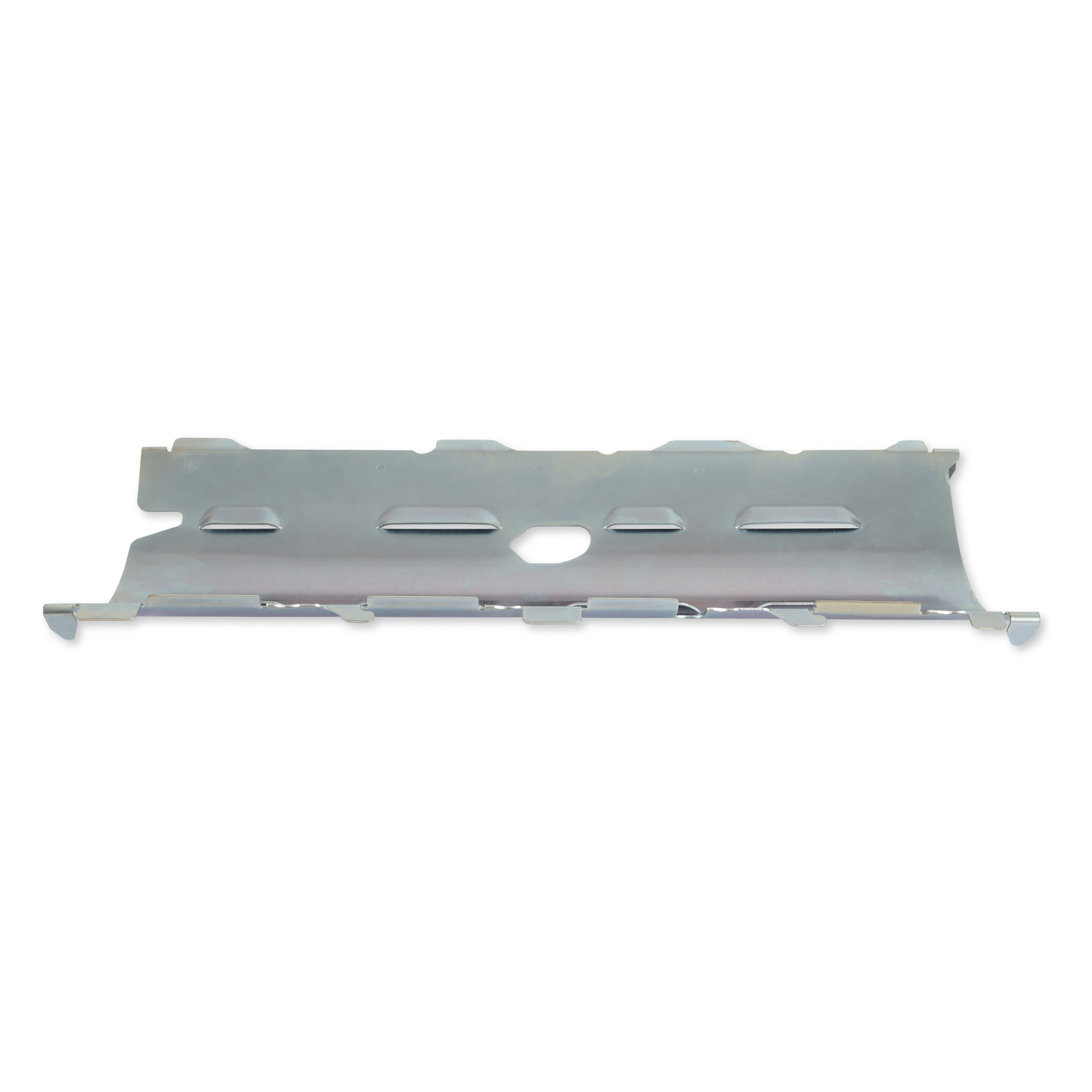

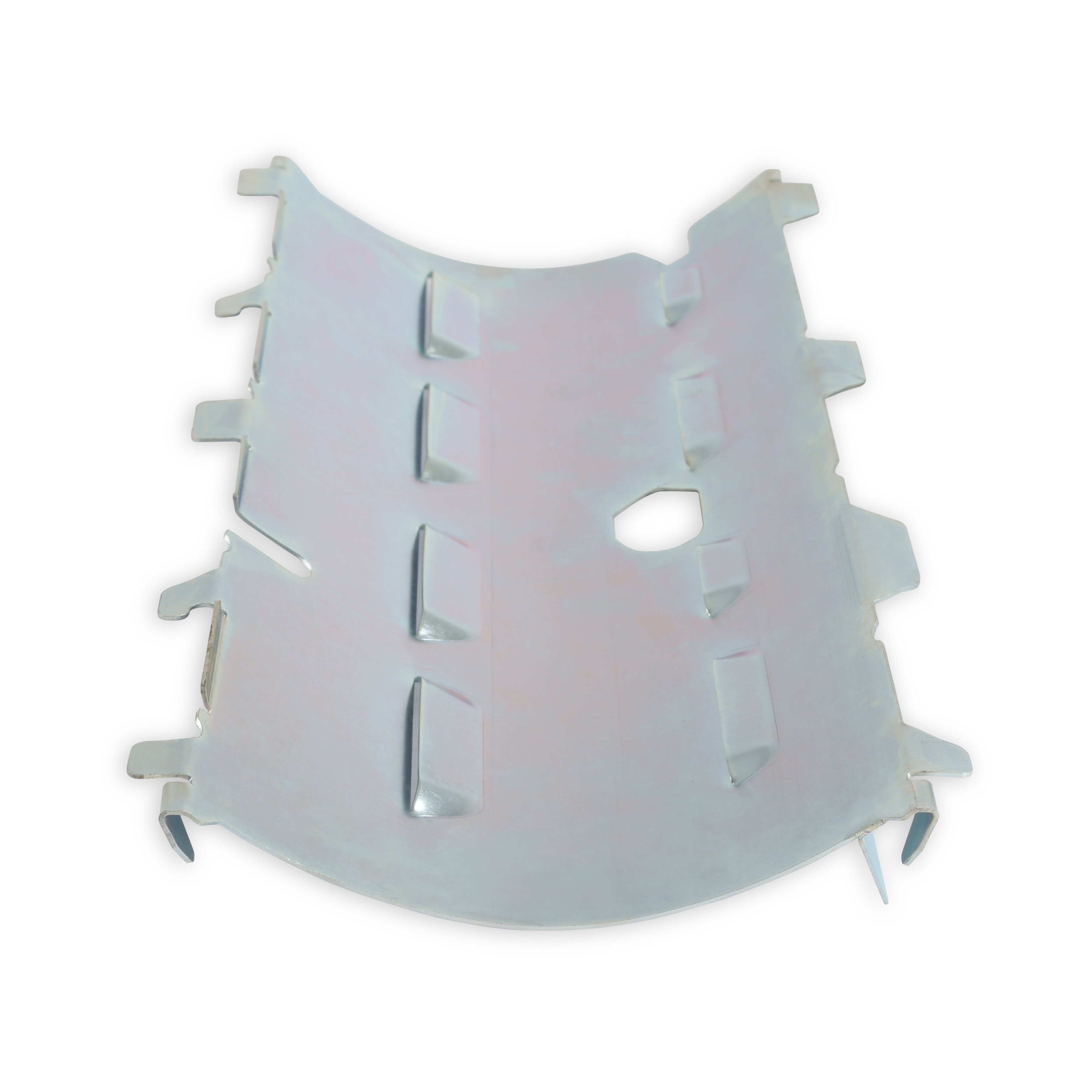

- Steel windage tray - for performance, strength, and durability
- Cast bosses on front corners of pan can be tapped for oil returns - if needed
- Patent Pending
Specs
Brand
HOLLEY
Category
Engine Oil Pan
Specs
Brand: Holley
Color: Silver
Engine: Gen III Hemi
Finish: Natural Cast
Baffled: Yes
Warning: California Proposition 65
Capacity: 6
Category: Engine
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Cam Style: VVT
Sump Type: Wet
part type: Engine Oil Pan
Grade Type: Performance
Application: Gen III Hemi
Oil Pan Type: Cast
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Dipstick Port: No
Emission Code: 6
Sump Location: Center
Maximum Stroke: 4.060"
Oil Return Size: Not Machined
Pickup Included: Yes
Oil Pan Capacity: 6.0 Quarts
Drain Plug Included: Yes
Turbo Oil Drainback: No
Windage Tray Included: Yes
Crank Shaft Wiper Included: No
PDFs
PDFs
68b21a21a5a7e.pdf
(1.37 MB)
