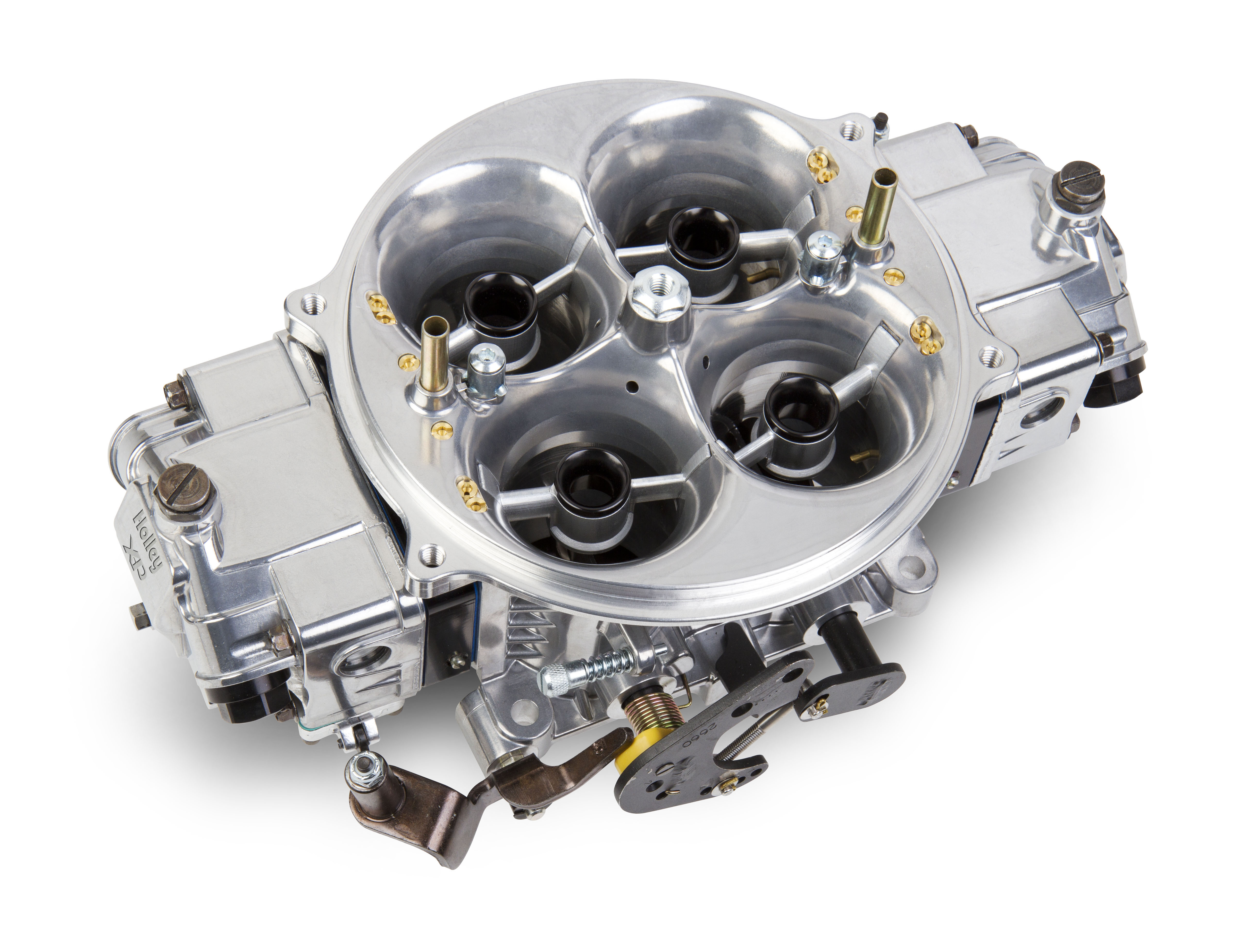

Holley Gen 3 Ultra Dominator Carburetor
SKU
HTPD-0-80910BK
List price
$2,306.95
Price
$2,049.95
Description
1475 CFM - 4500 - Mechanical Secondaries - Shiny - Gasoline
Features
- All aluminum construction saves 3.8lbs. over original models (28% weight savings)
- Shiny with black anodized billet aluminum metering block and booster inserts
- Designed for use on Drag race, Pro Street, or any high horsepower engines
- Calibrations optimized for today's larger race engines and new fuels

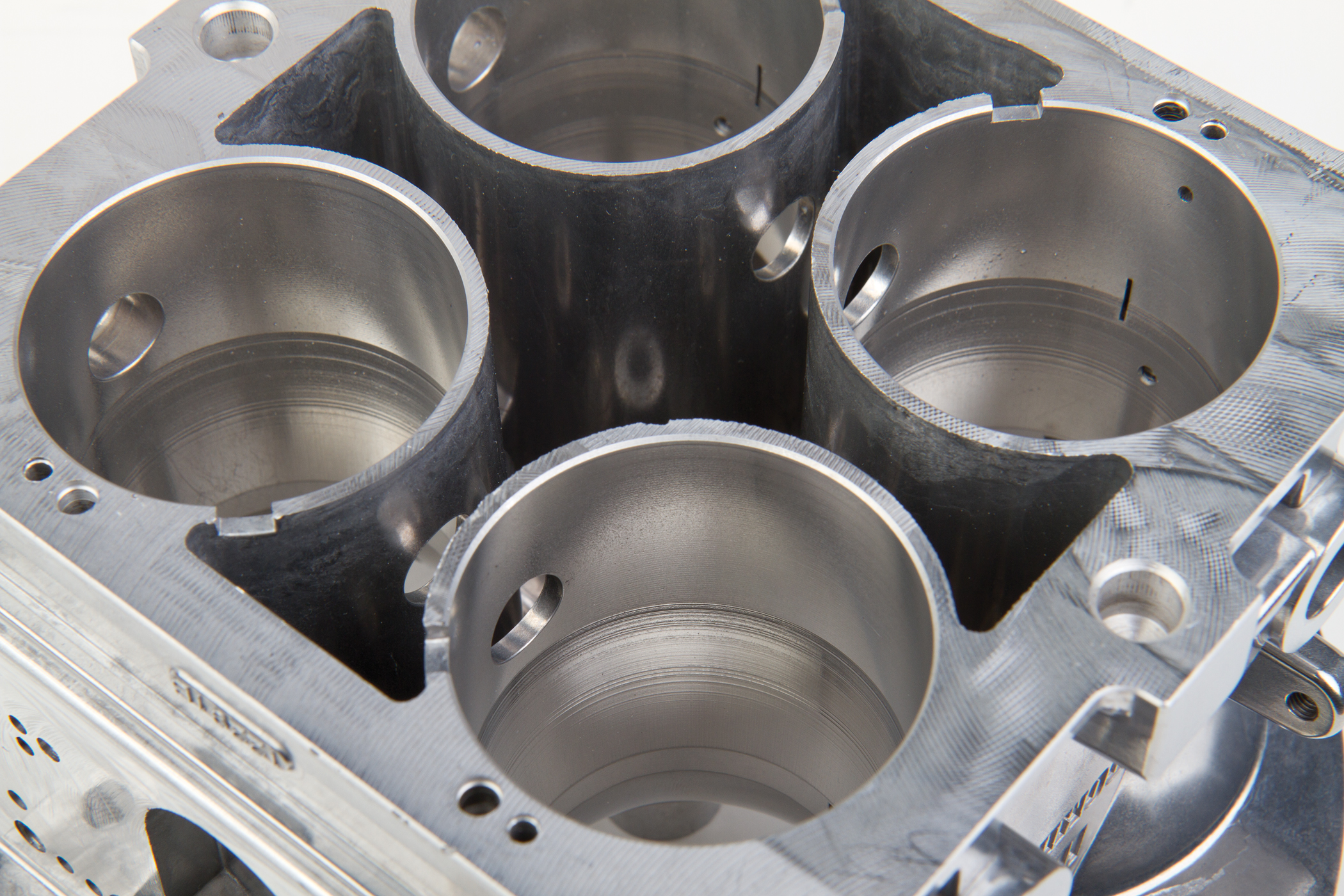

- Fully machined from venturii throat to throttle bore for predictable & repeatable performance

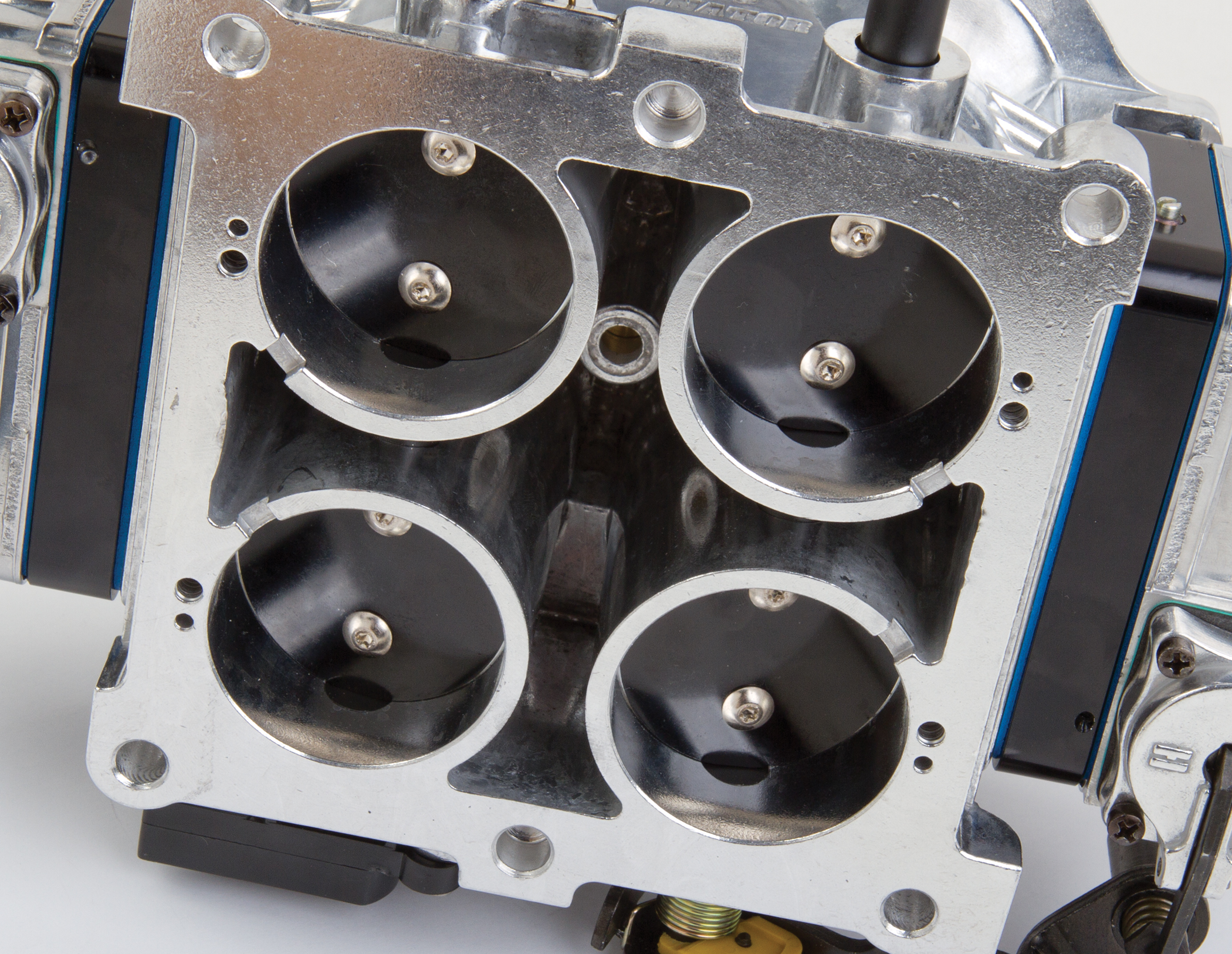

- Integrated idle bypass valve allows for adjustment of idle while maintaining correct throttle plate to transfer slot relationship

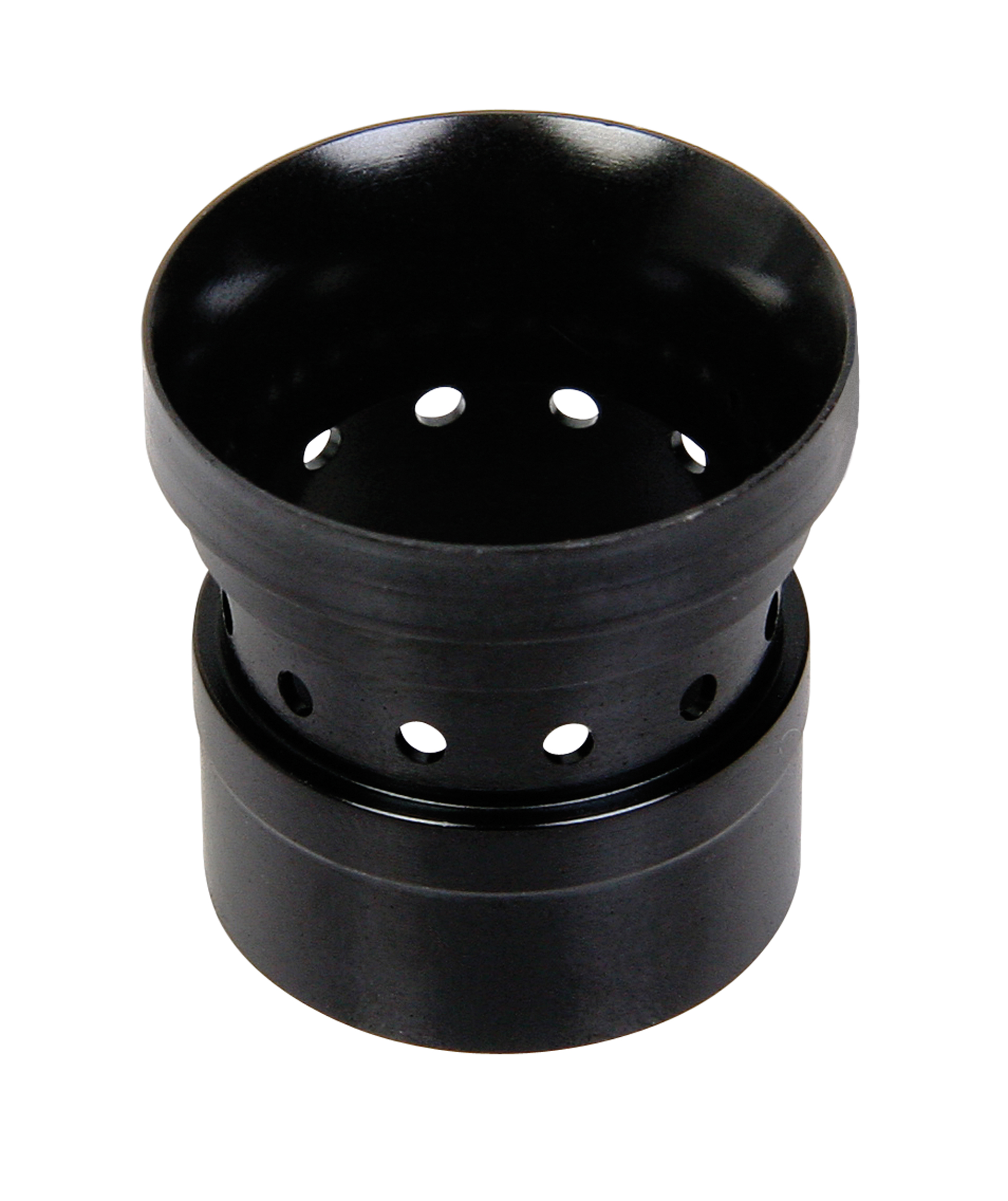

- 12 hole billet booster inserts for superior atomization and crisp throttle response
- New modified skirt boosters maintains strong fuel signal on large CFM carbs

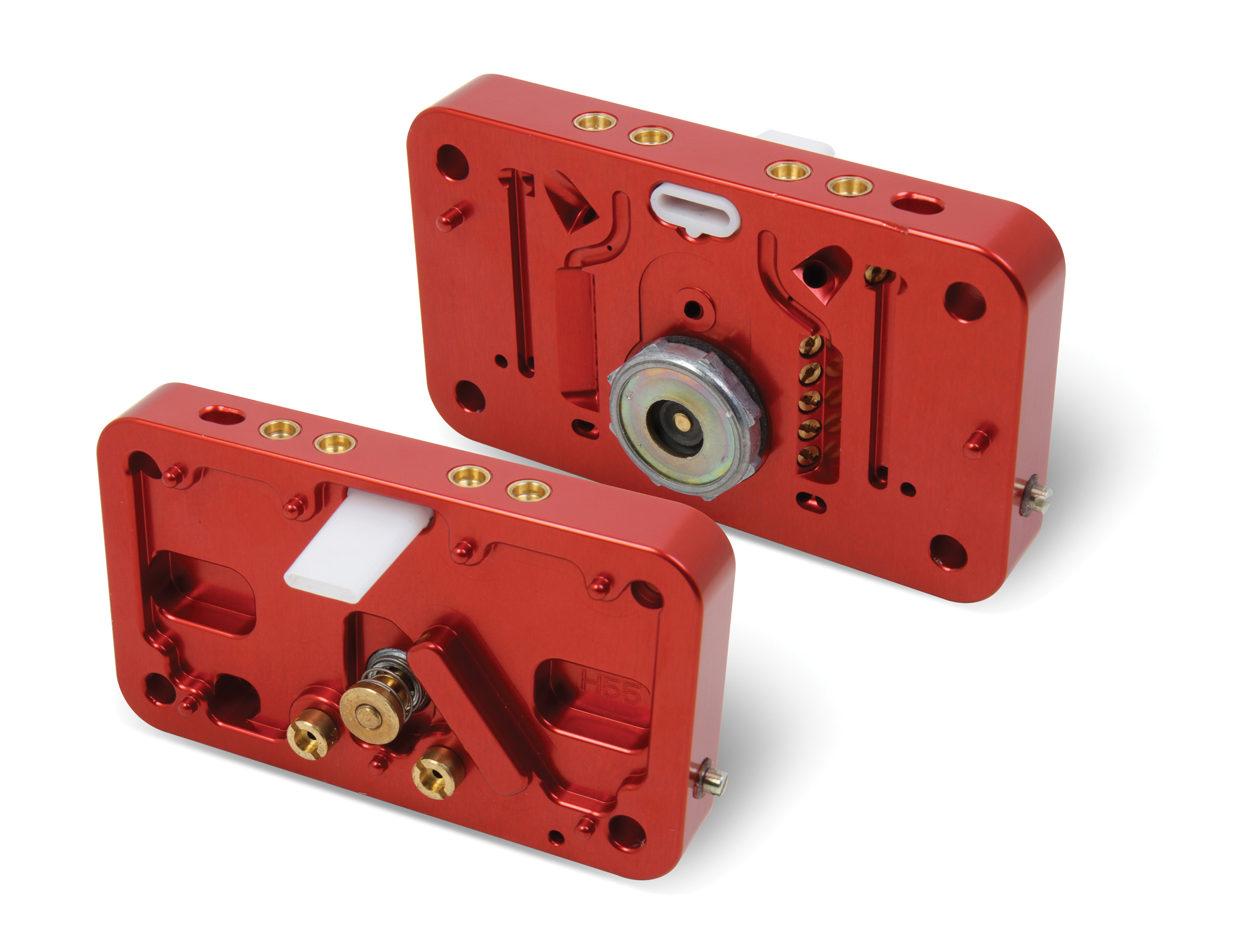

- Metering blocks feature improved durability, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors)
- Dual 50cc accelerator pumps provide the perfect amount of fuel from idle to full throttle

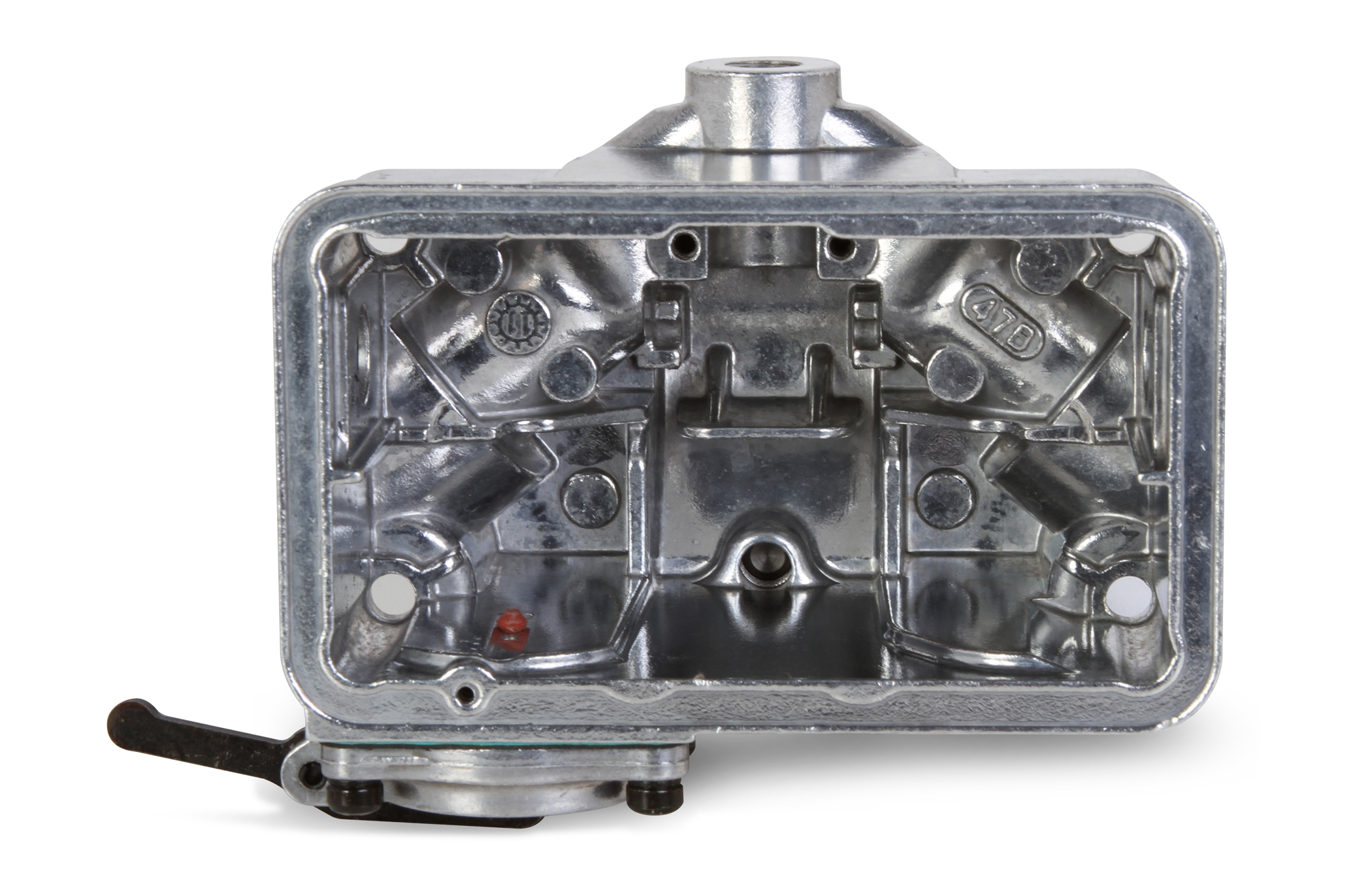

- Fuel bowls provide 20% more fuel capacity while controlling slosh with internal baffling

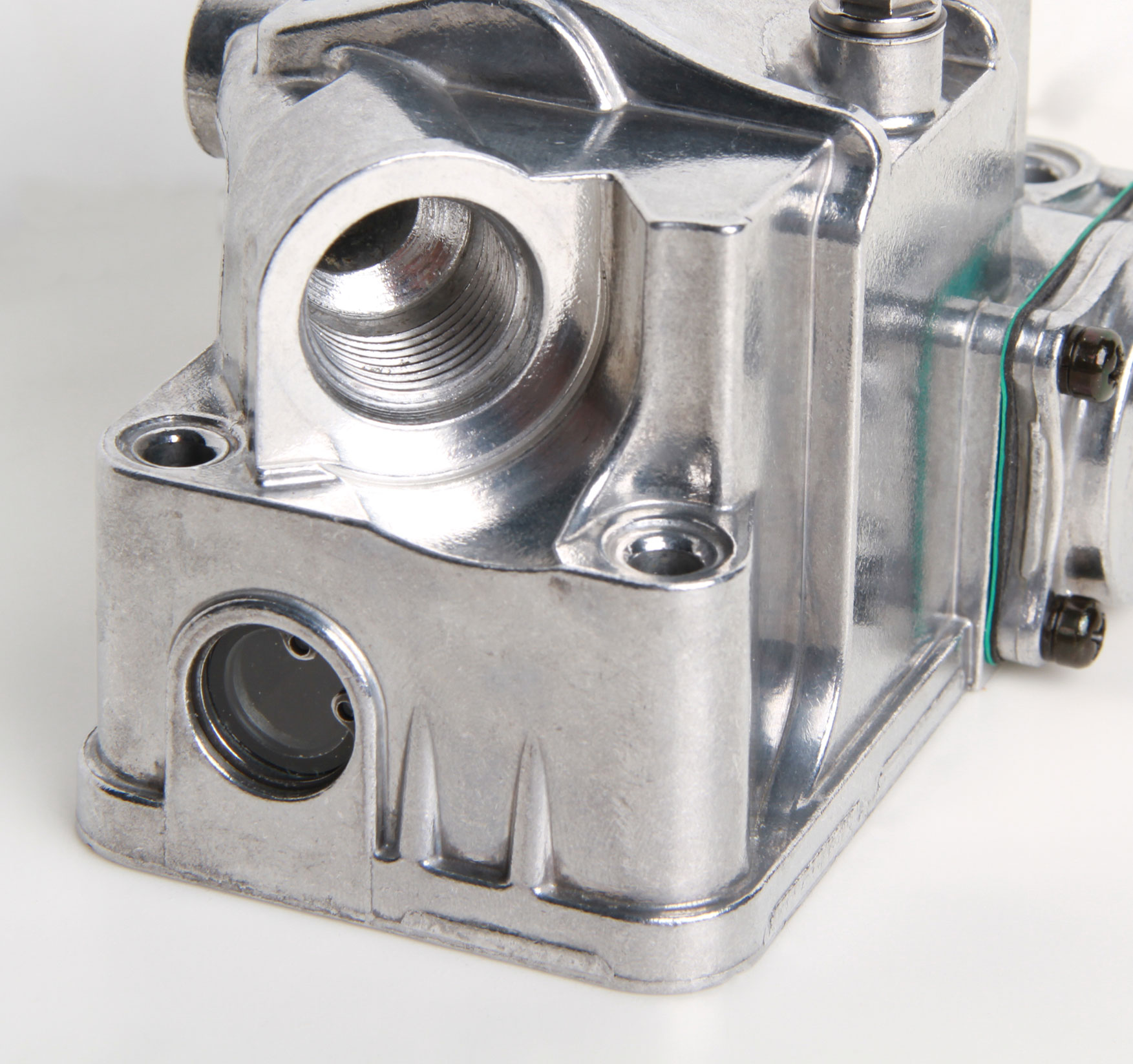

- Clear sight windows on both sides of bowls for easy and safe fuel level adjustments

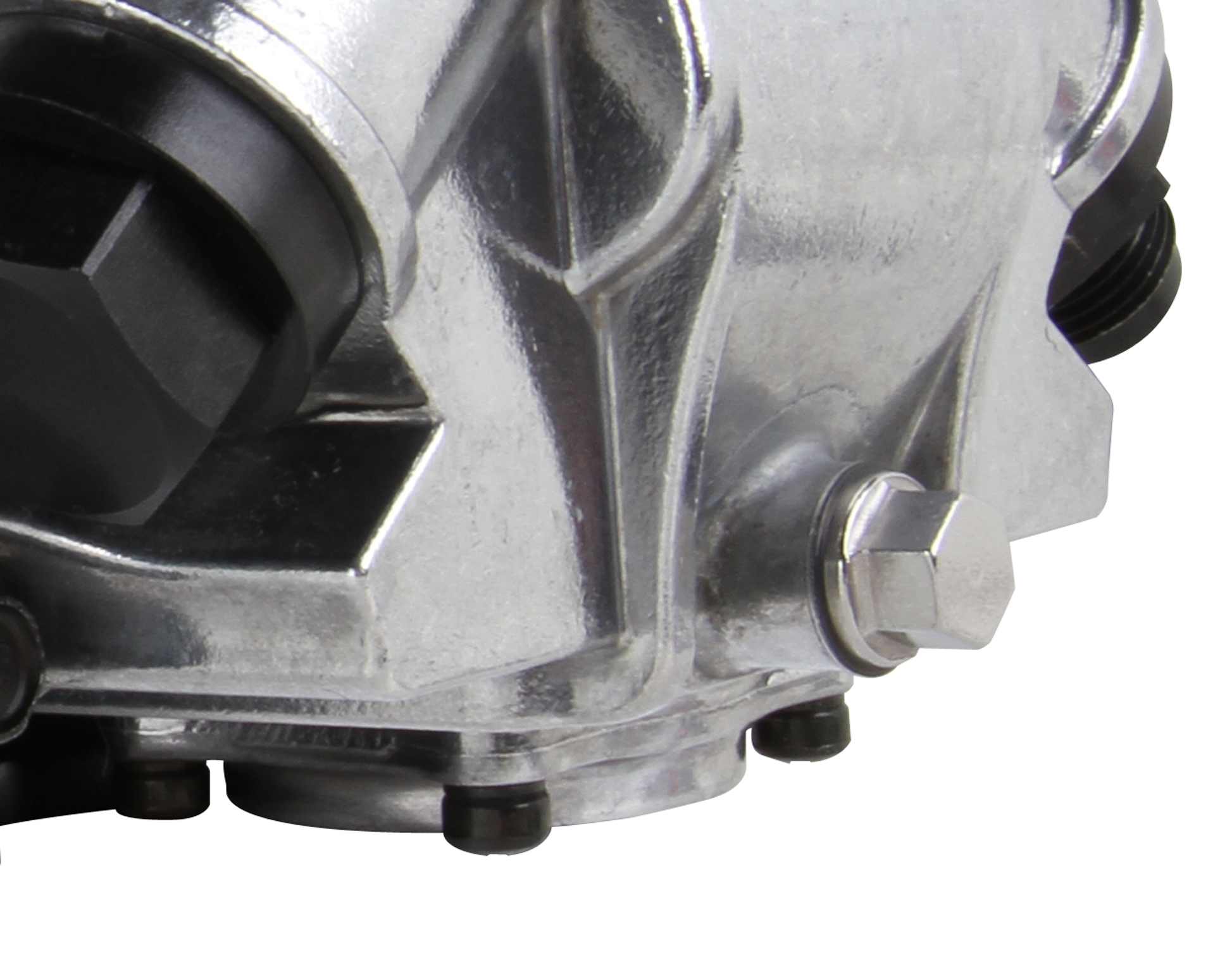

- Built in drain plug in front center of bowl provides easy access to empty contents of bowl
- -8 (o-ringed) inlet threads offer a large variety of plumbing options and can be plumbed from either side

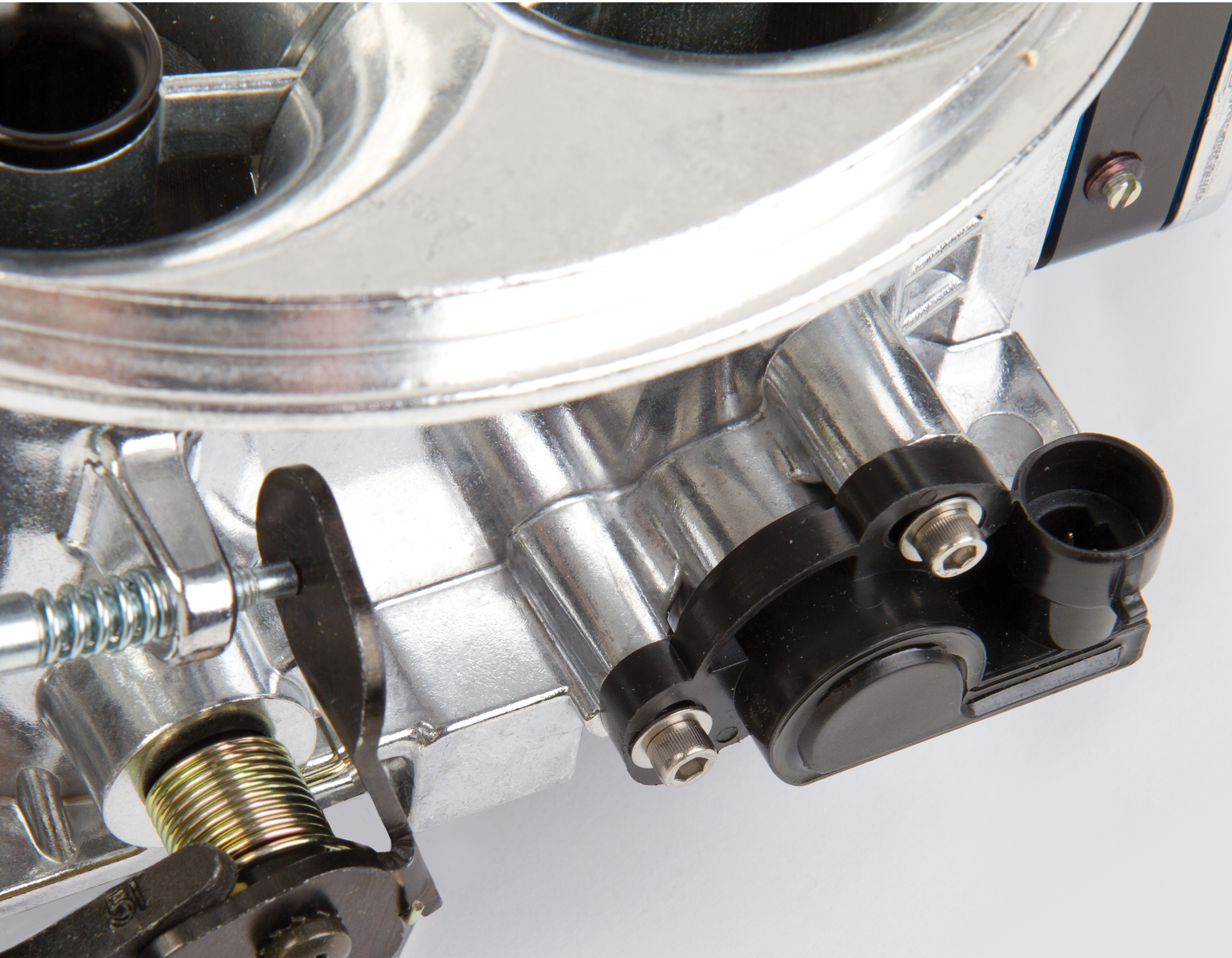

- Factory ready TPS mounting points for use with data acquisition systems (Holley TPS P/N 534-214 available)
- Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools
- Contoured hex head squirter screws for streamlined airflow
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
- Fully adjustable stainless steel external linkage can be adjusted for 1:1 progressive, or soft progressive throttle activation. No linkage parts under the carburetor
Specs
Brand
HOLLEY
Category
Carburetor
Specs
CFM: 1475
Fuel: Gasoline
Brand: Holley
Choke: None
Model: 4500
Finish: Shiny
Barrels: 4
Booster: Annular Billet Insert
Circuit: 3
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Condition: New
part type: Carburetor
Body Color: Polished
Fuel Inlet: Dual
Grade Type: Performance
Marine Use: No
Body Finish: Polished

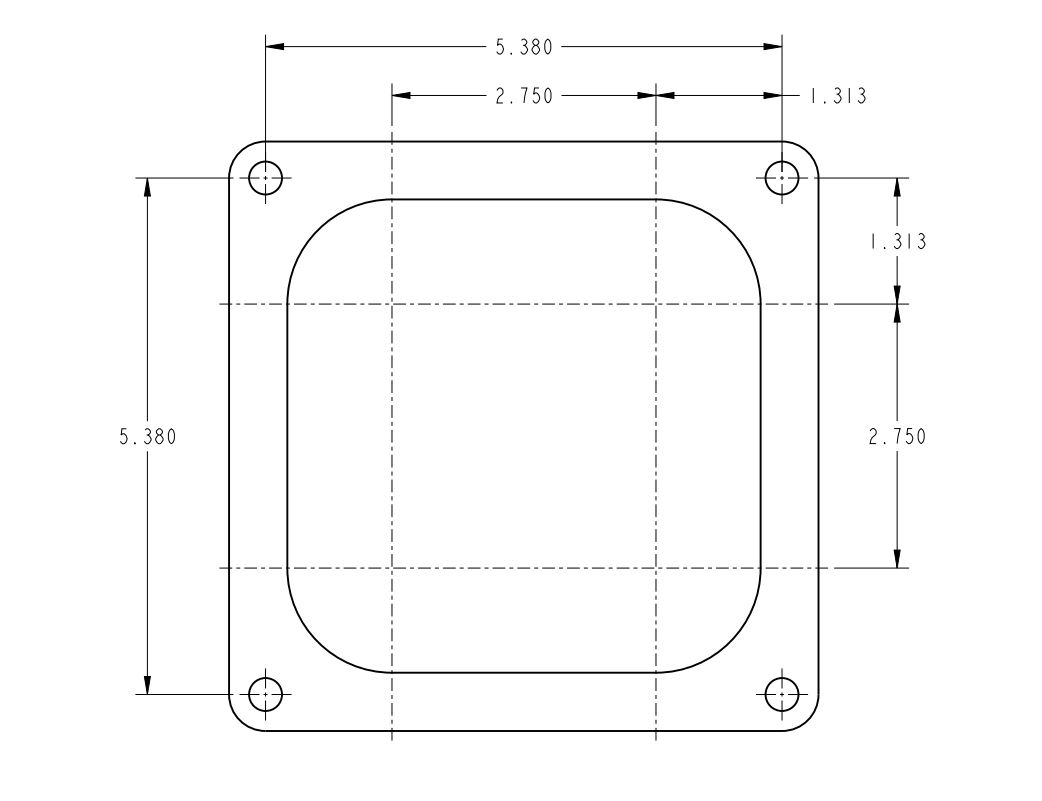

Flange Type: Dominator/4500
Secondaries: Mechanical
Billet Color: Shiny with Black Billet
Product Type: Carburetor
Sub Category: Carburetion
Emission Code: 4
Throttle Bore: 2.350 inch
Venturii Size: 2.105 inch
Booster Design: Annular
Carburetor Use: Professional Race
Barrel Quantity: 4
Marine Approved: No
Spacer Included: No
Linkage Attached: Yes
Primary Main Jet: 98
Secondary Main Jet: 108
Carburetor Material: Aluminum
Idle Air Bleed Size: 51
Primary Power Valve: 5.5
High Speed Air Bleed: 34
Needle and Seat Size: 130;130
Primary Jet Diameter: 98
Intermediate Air Bleed: 70
Mounting Hole Quantity: 4
Primary Pump Nozzle Size: 42
Supercharged Application: No
Secondary Pump Nozzle Size: 42
Cubic Feet Per Minute Rating: 1475
