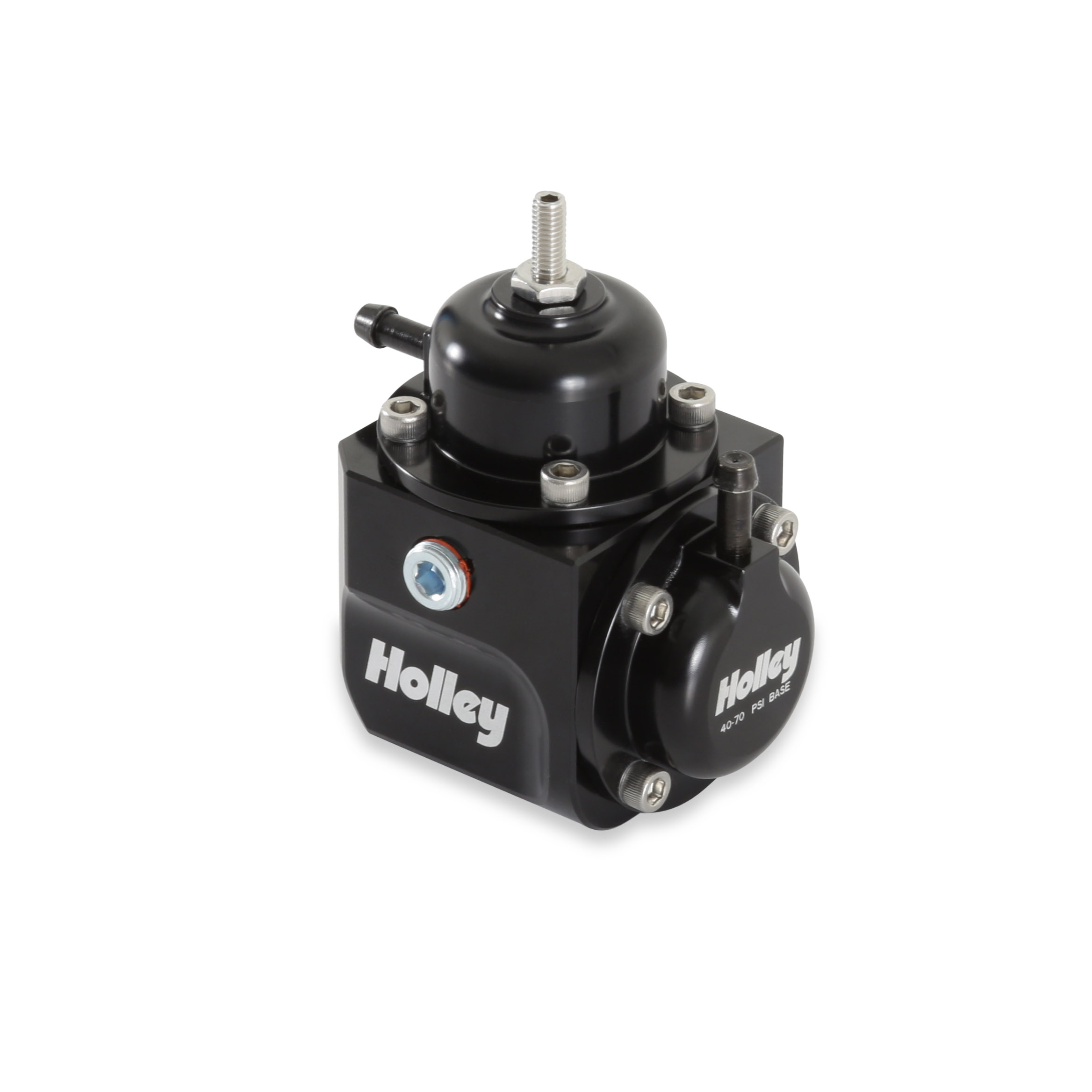

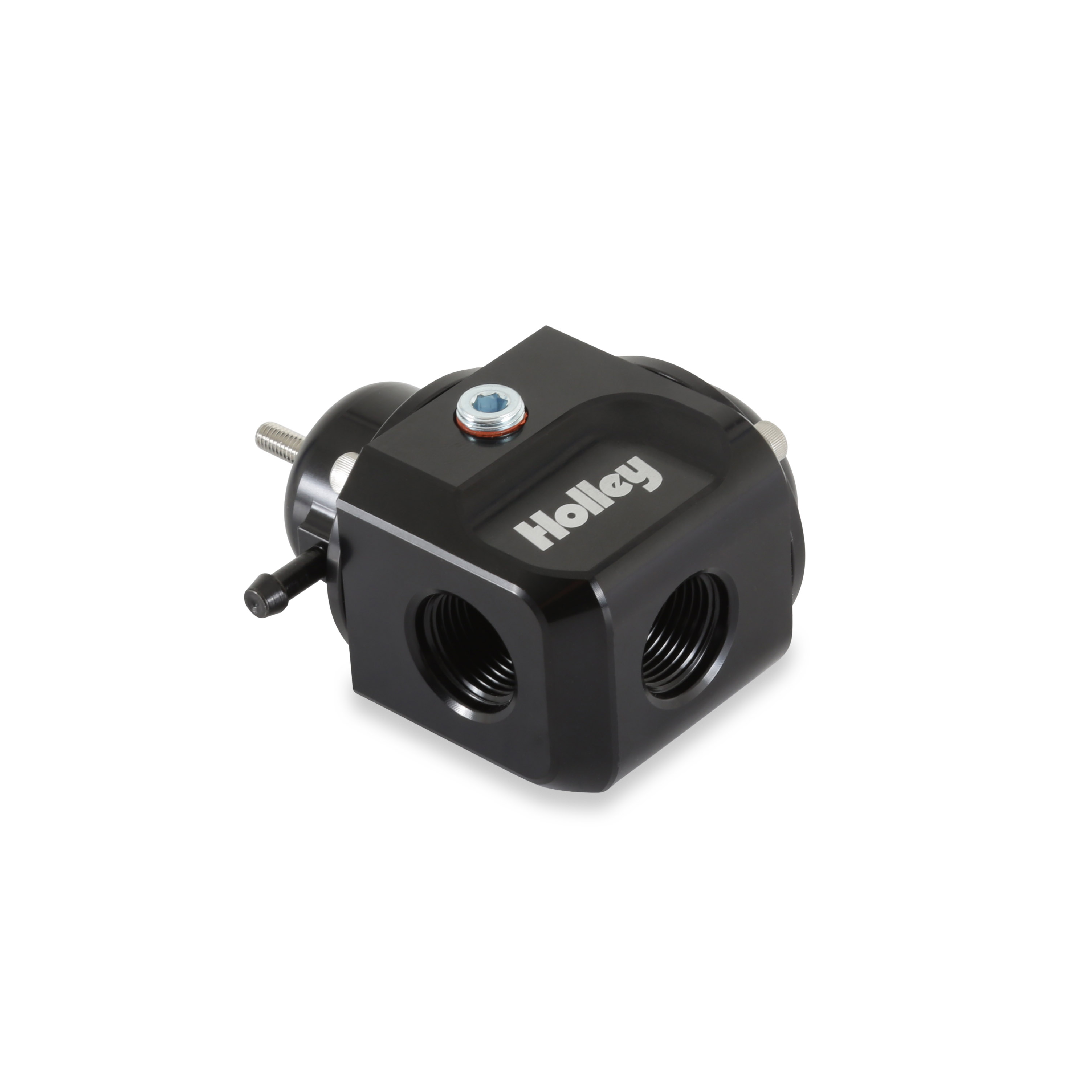

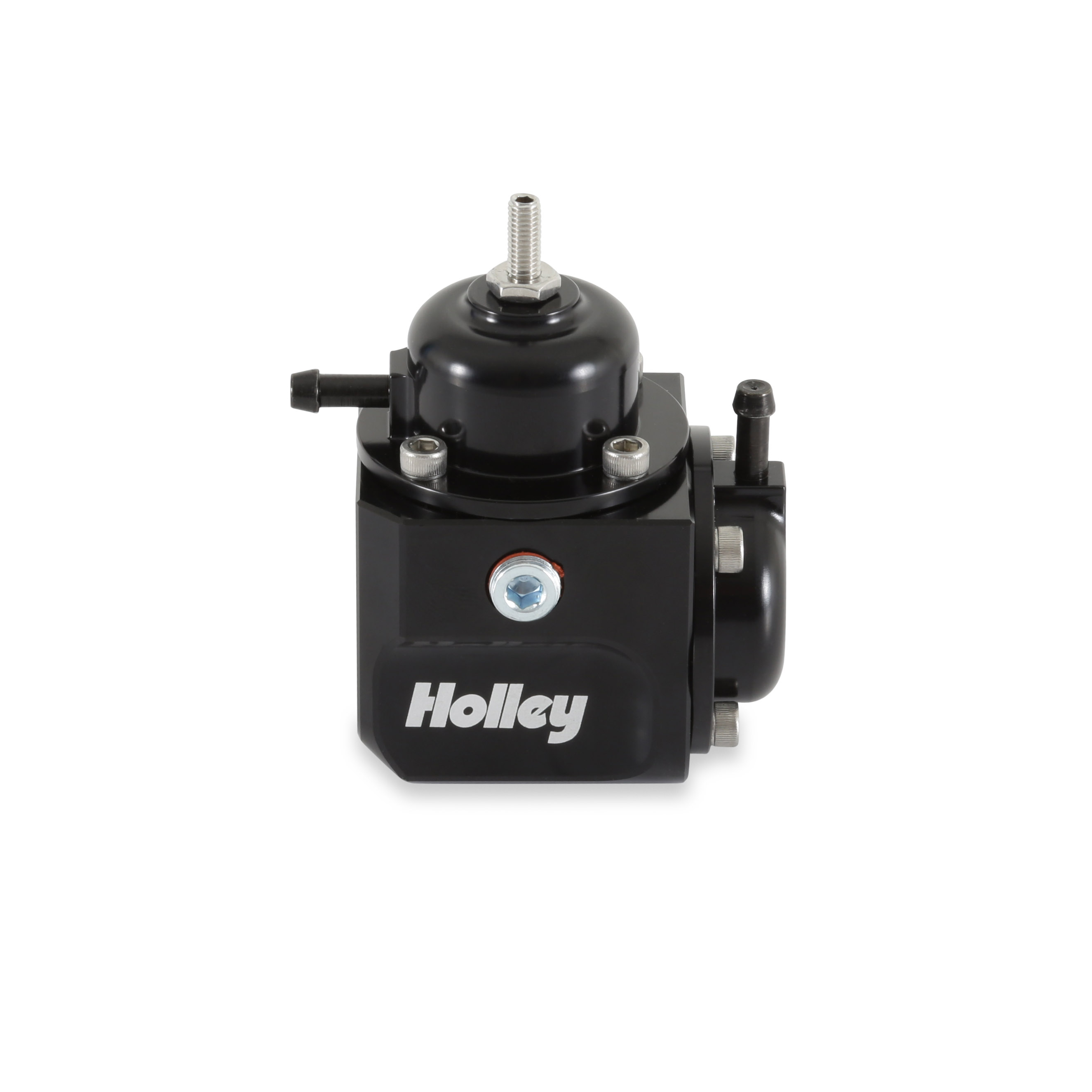

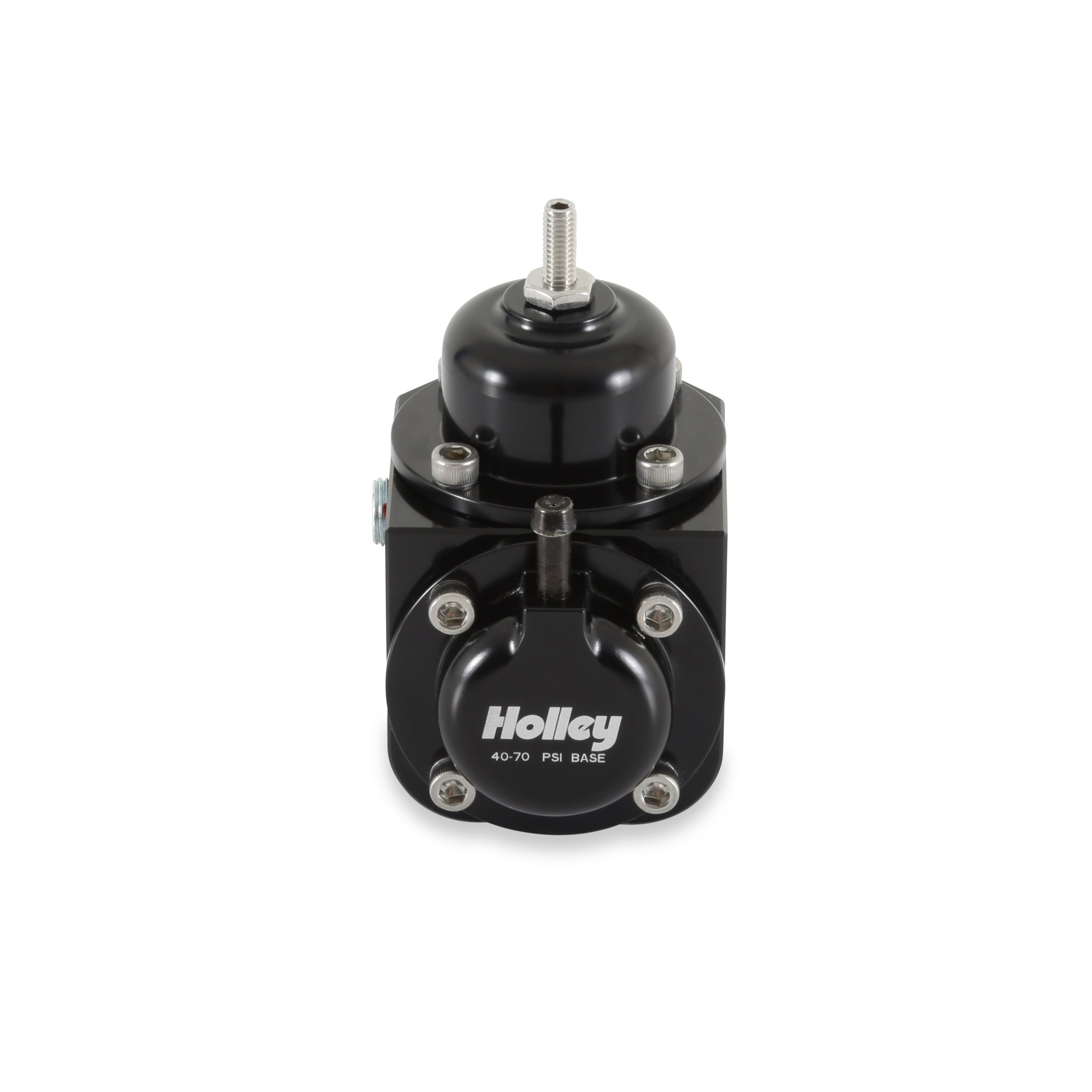

HOLLEY FUEL REGULATOR/DAMPER
SKU
HTPD-12-1000
List price
$385.14
Price
$320.95
Description
REGULATOR/DAMPER, STANDARD RANGE 40-70PSI
Features
- Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
- Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm

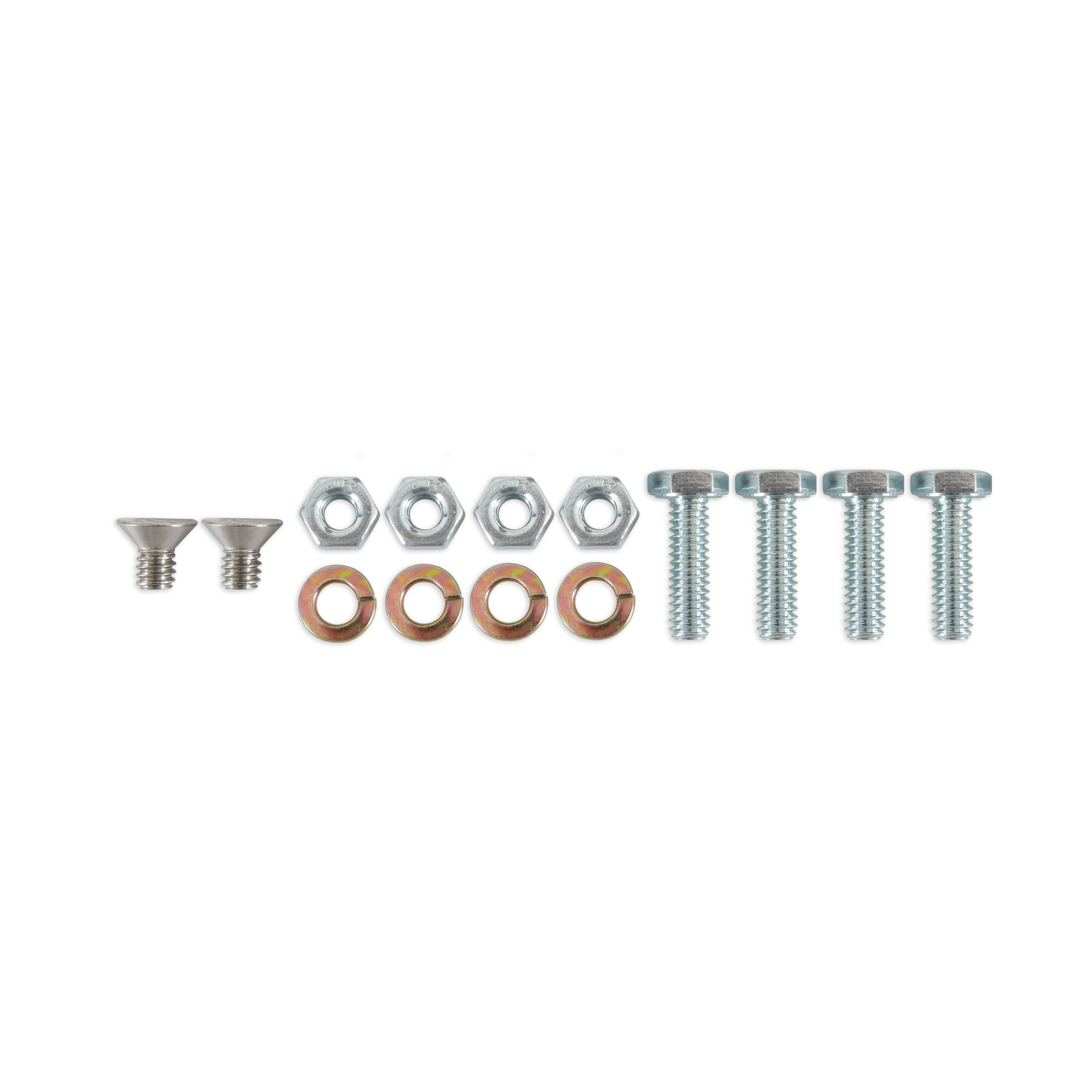

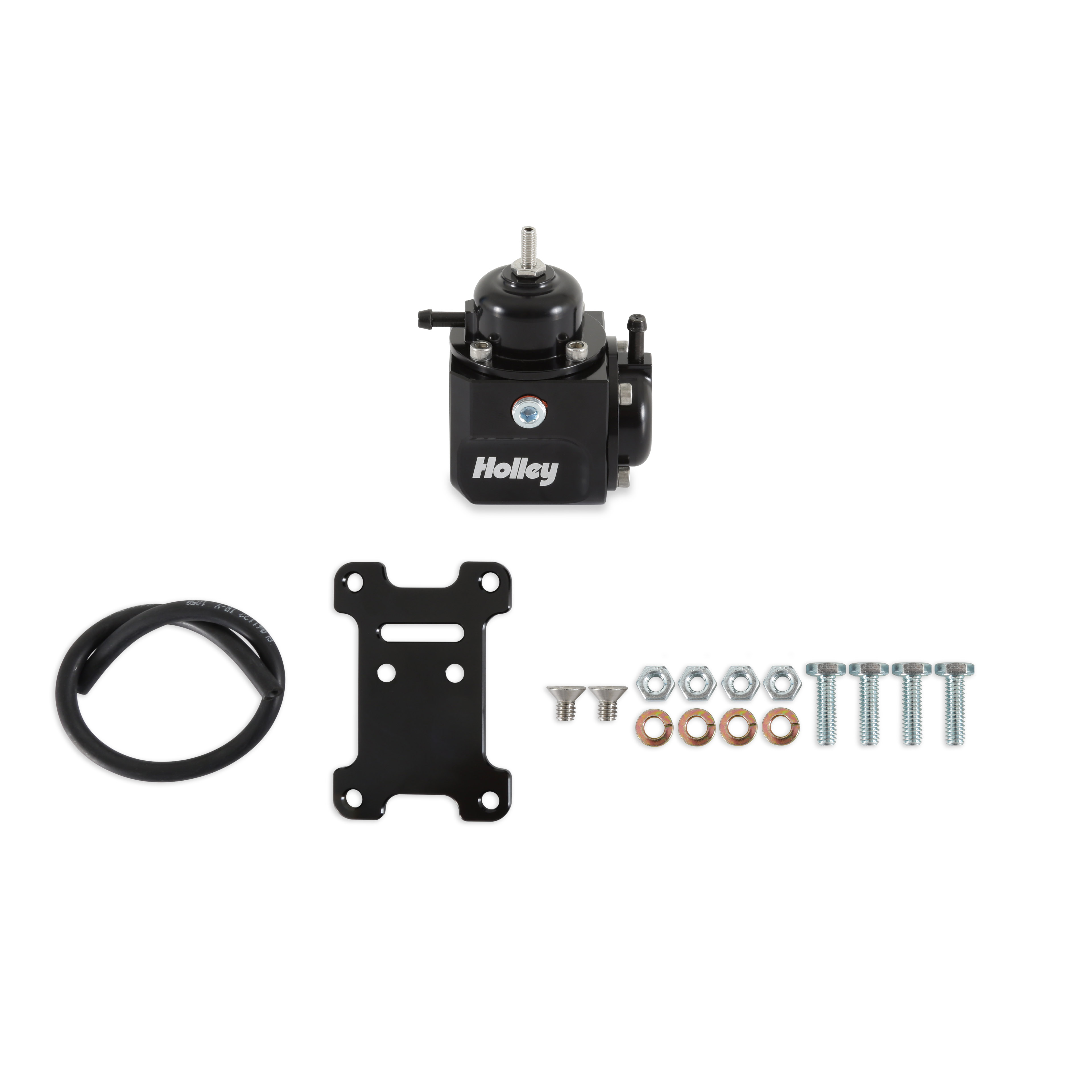

- Fittings included for damper/regulator’s and direct mount dampers

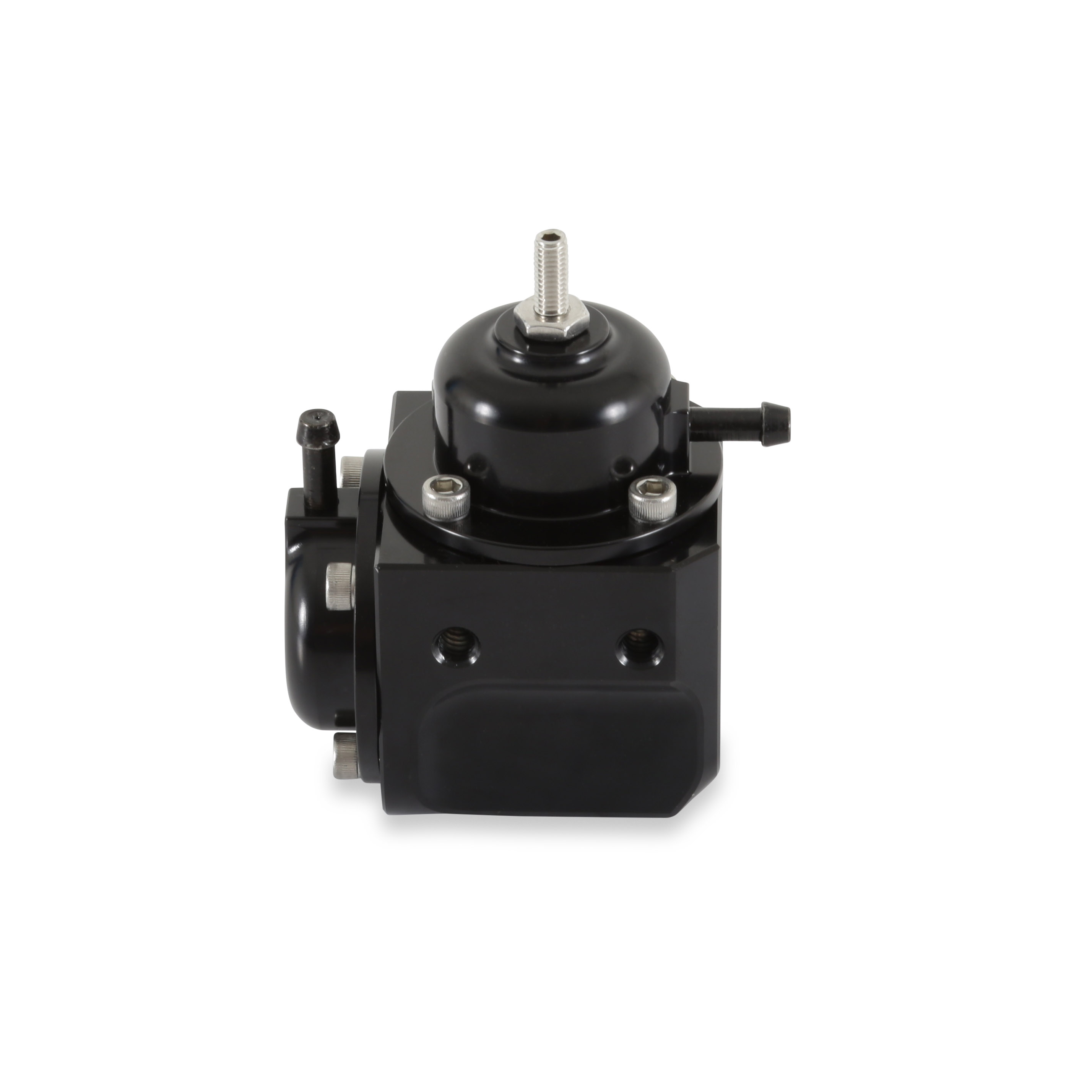

- 1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer

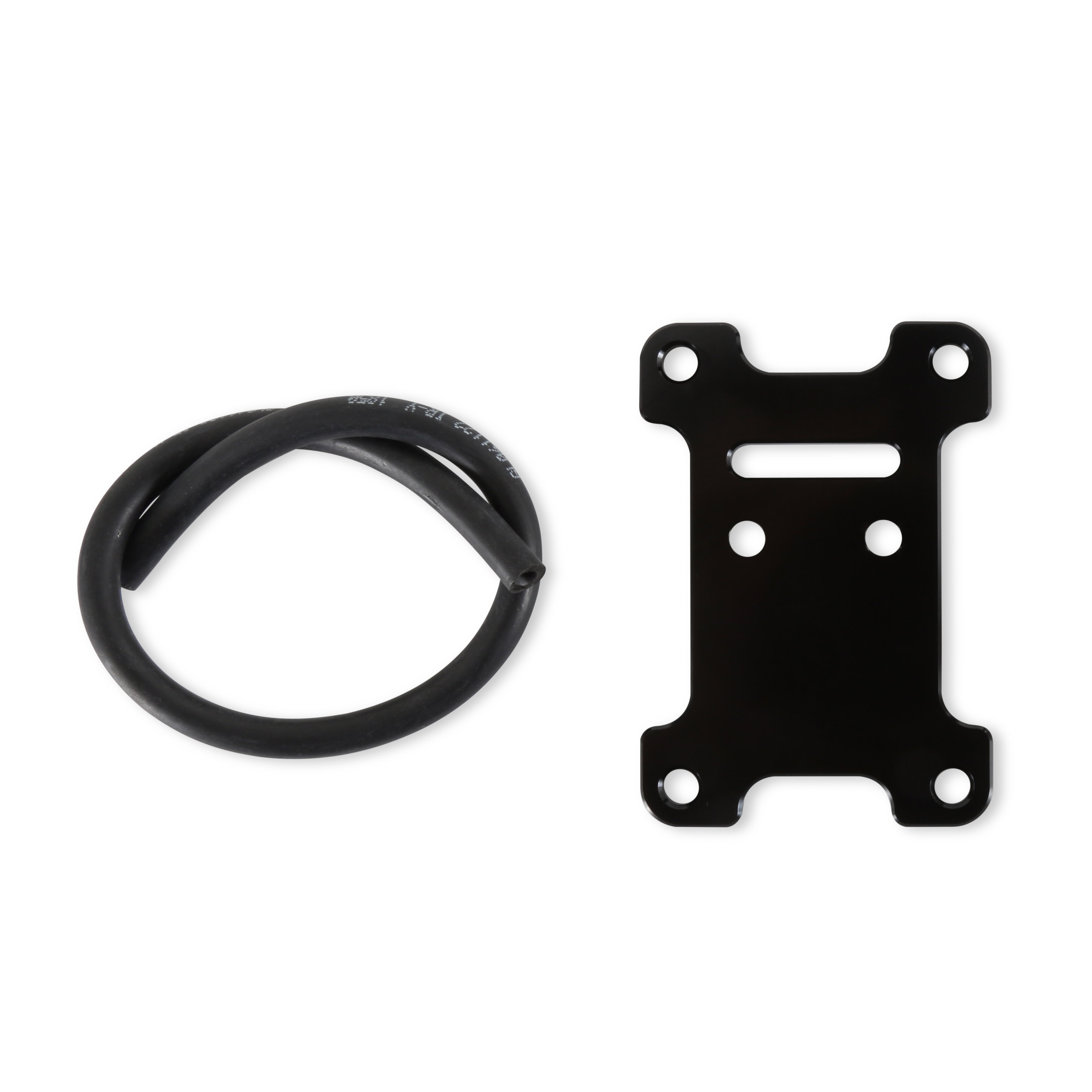

- Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
- Assembled and tested in the USA
Specs
Brand
HOLLEY
Category
Fuel Pressure Regulator
Specs
Brand: Holley
Style: Billet Aluminum
Finish: Anodized Black
Warning: California Proposition 65
Category: Air and Fuel Delivery
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline / Ethanol / Methanol / E85
part type: Fuel Pressure Regulator
Adjustable: Yes
Grade Type: Performance
Inlet Type: 8 AN ORB
Outlet Type: 8 AN ORB
Rebuildable: Yes
Inlet Gender: Female
Product Type: Fuel Pressure Regulator/ Damper
Sub Category: Carburetion
Emission Code: 3
Mounting Type: Inline
Outlet Gender: Female
Port Quantity: 2
Gauge Included: No
Pressure Range: 40-70 PSI
Maximum Pressure: 70
Minimum Pressure: 40
Gauge Port Included: Yes
Inlet / Outlet Size: 3/4-16 Female O-Ring (AN 8)
Inlet Port Diameter: 8 AN ORB
Inlet Port Quantity: 1
Outlet Port Diameter: 8 AN ORB
Outlet Port Quantity: 1
Vacuum Port Quantity: 2
Mounting Bracket Included: Yes
PDFs
PDFs
68b25a8d1f1a3.pdf
(832.64 KB)
