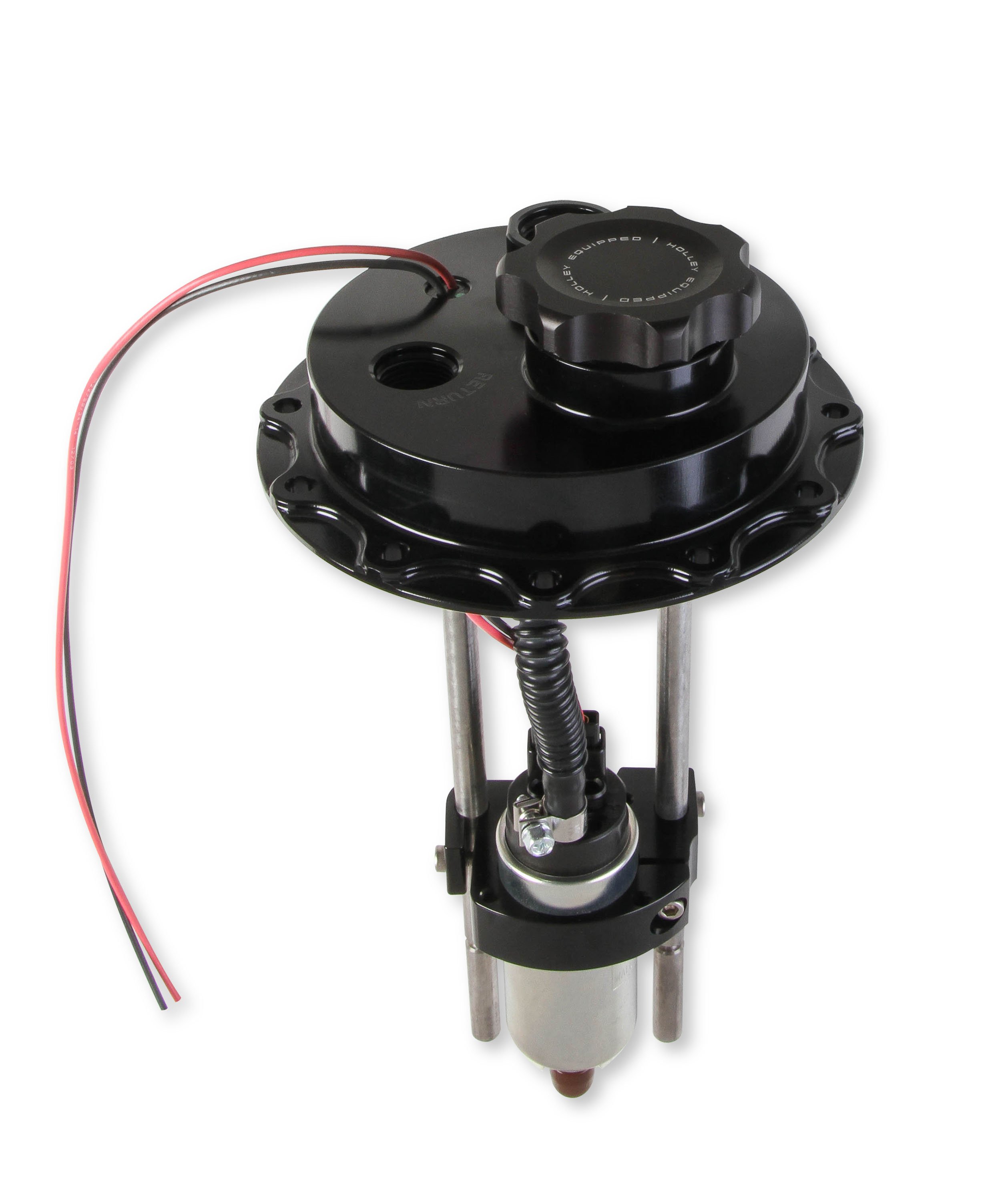

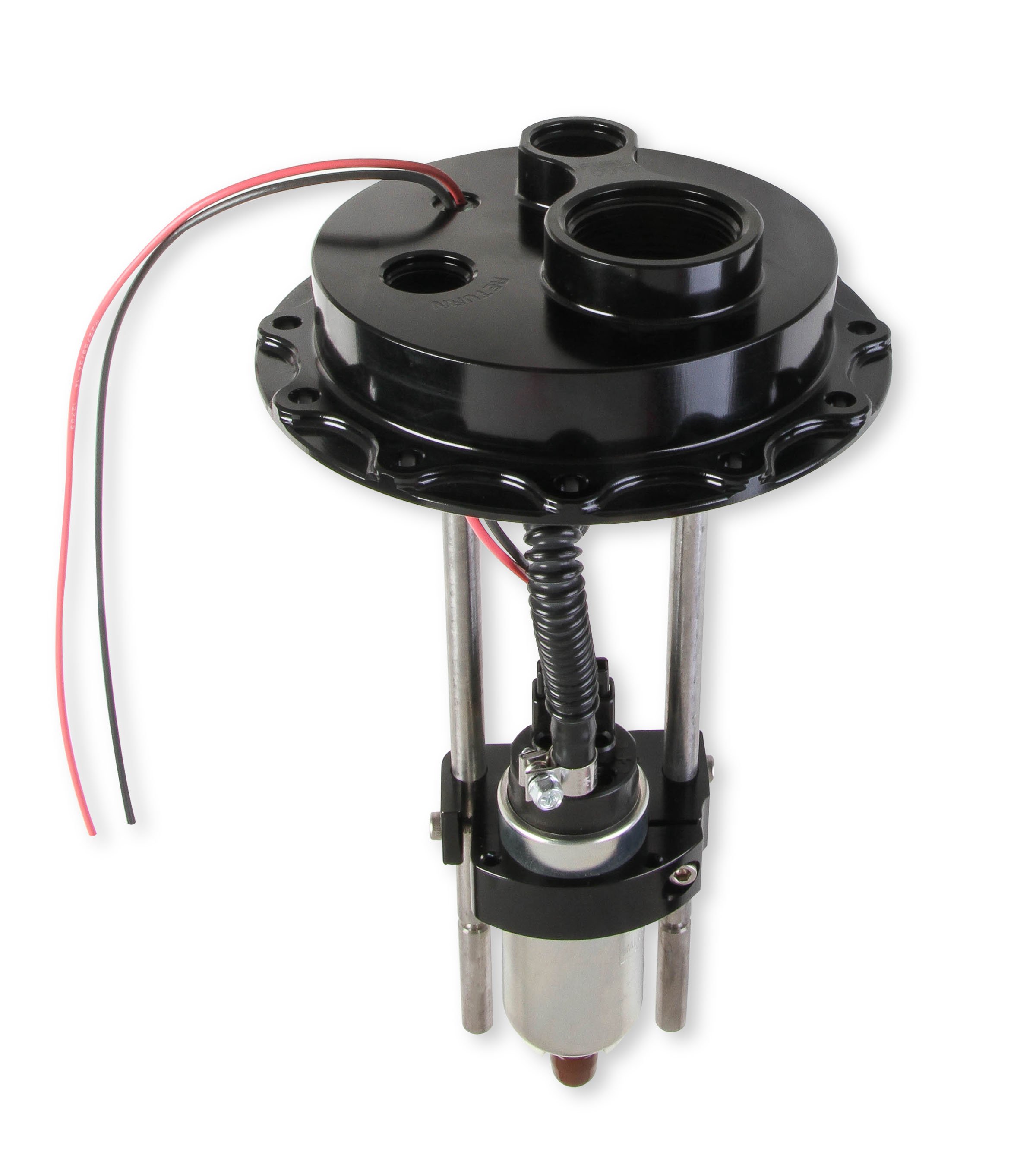

Holley Fuel Cell EFI Pump Module Assembly
SKU
HTPD-12-144
List price
$429.54
Price
$357.95
Description
12-Bolt Flange 255 LPH Drop-In EFI
Features
- Update your fuel cell to EFI the easy way!
- Designed to drop right into your existing 12 bolt flange fuel cell

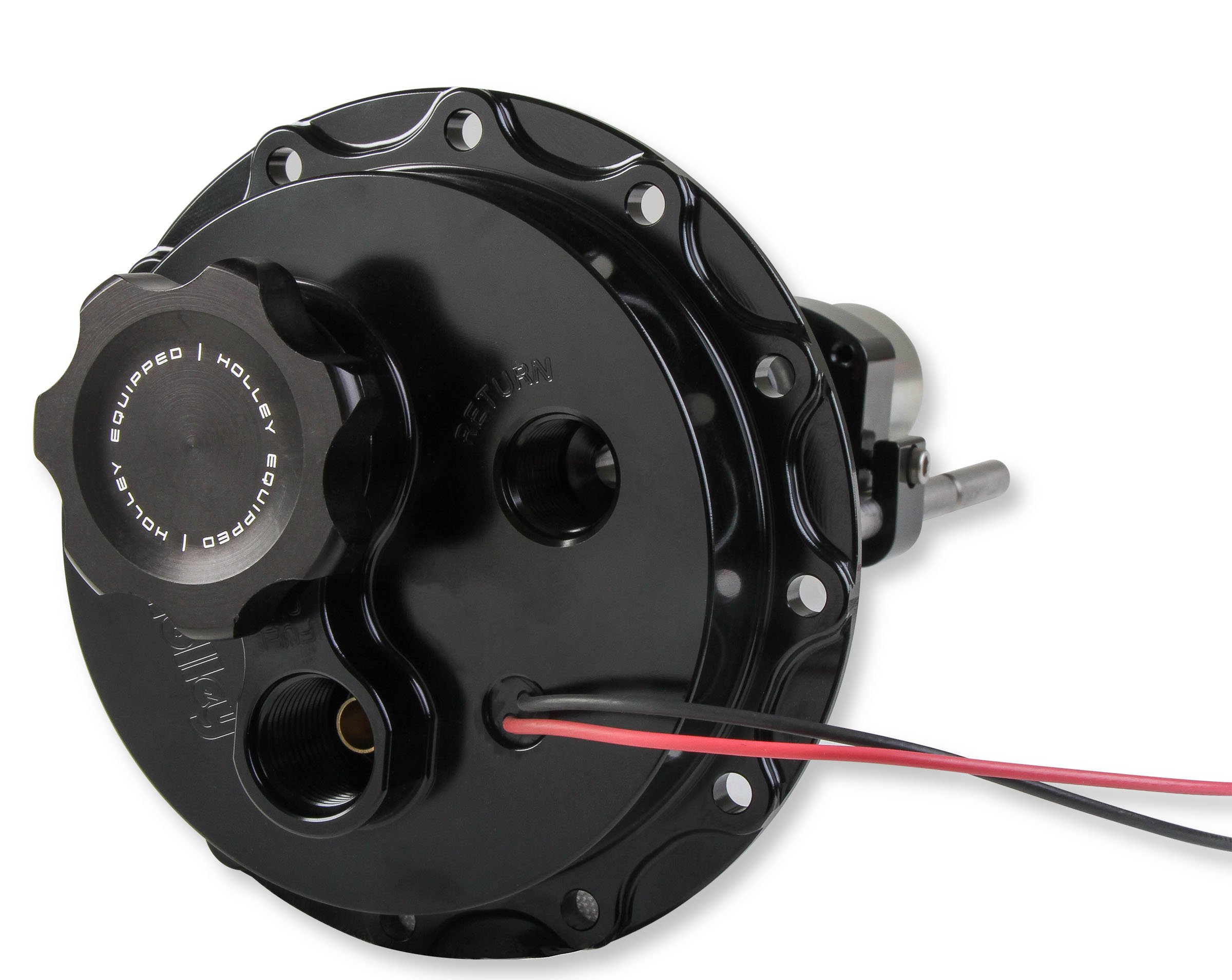

- Billet top flange housing includes an 8AN inlet and 10AN outlet port and a fuel filler cap
- Modules are available with 255 or 450 LPH fuel pumps in single pump configurations

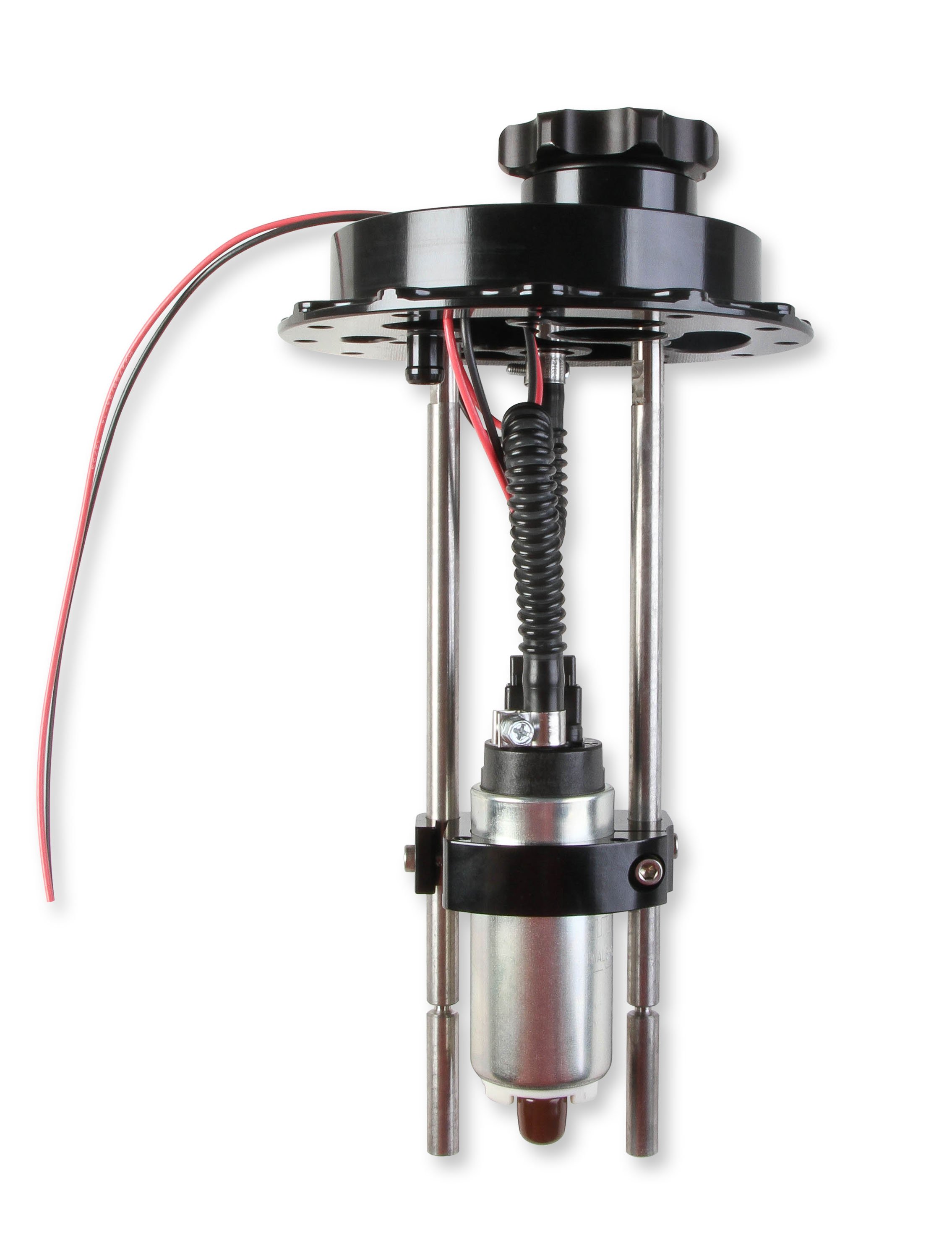

- The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5”-12” deep.
- Supports up to 550 EFI or 700 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
Specs
Brand
HOLLEY
Category
Fuel Pump Module Assembly
Specs
Brand: Holley
Height: Adjustable
Max PSI: 80
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
Pump Type: Electric
Grade Type: Performance
Inlet Size: 8 AN
Inlet Type: 8 AN ORB
Returnless: No
Application: Universal
Outlet Size: 10 AN
Outlet Type: 10 AN ORB
Flange Style: 12 Bolt
Product Type: Fuel Pump
Emission Code: 5
Free Flow GPH: 67
Free Flow LPH: 255
Wire Quantity: 2
Inlet Quantity: One
Negative Ground: Yes
Outlet Quantity: One
Housing Material: Aluminum
Maximum Pressure: 60
Lock Ring Included: Yes
Regulator Included: No
Average Flow Rating: 255
In Tank or External: In Tank
Single Or Dual Pump: Single
Average Current Draw: 10.4
Fuel Filter Included: Yes
Wire Harness Included: Yes
Gasket Or Seal Included: Yes
Gasket Or Seal Material: Cork
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
Mounting Hardware Included: Yes

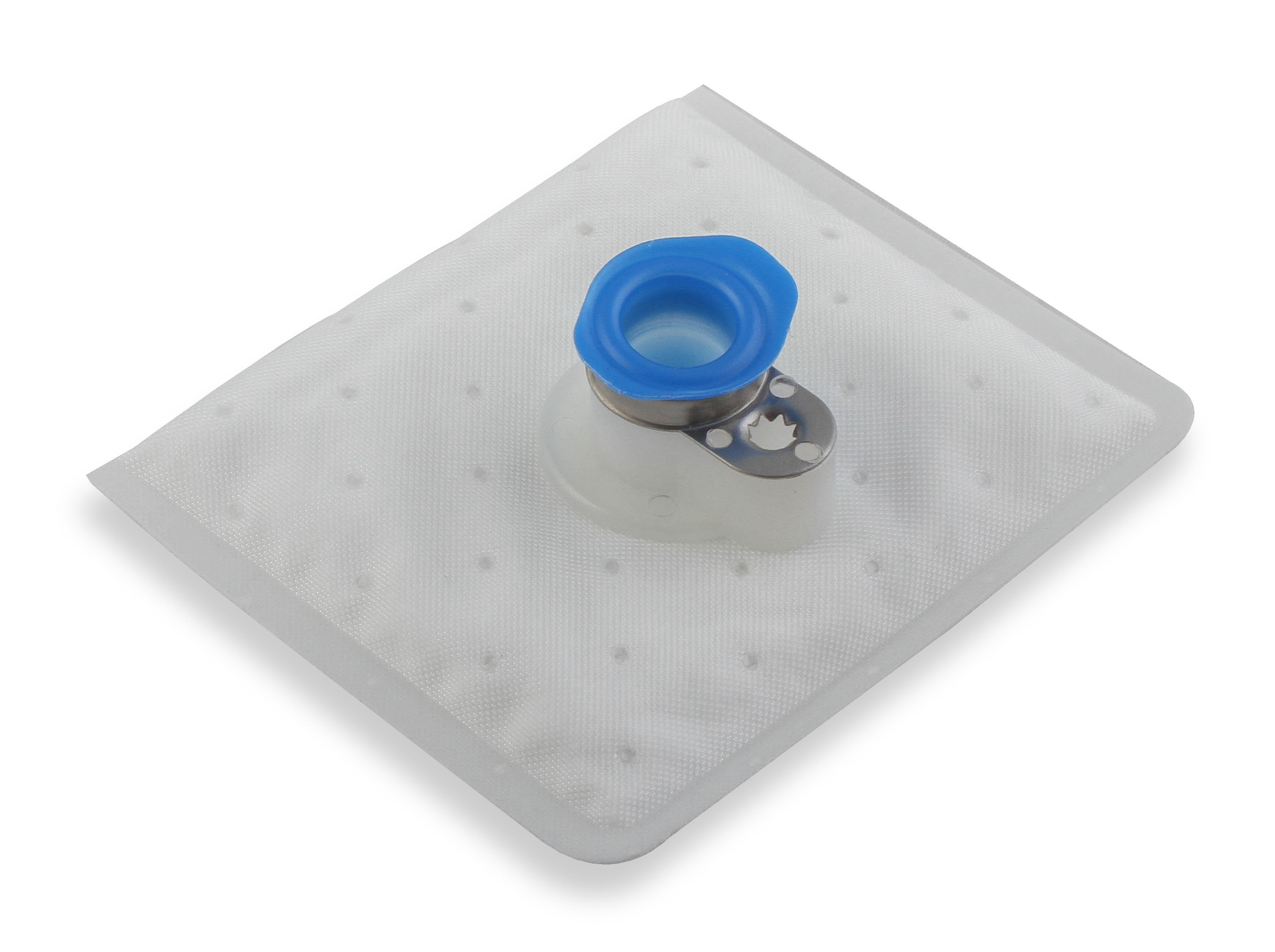

Internal Or External Strainer: External
Fuel Tank Pressure Sensor Included: No
