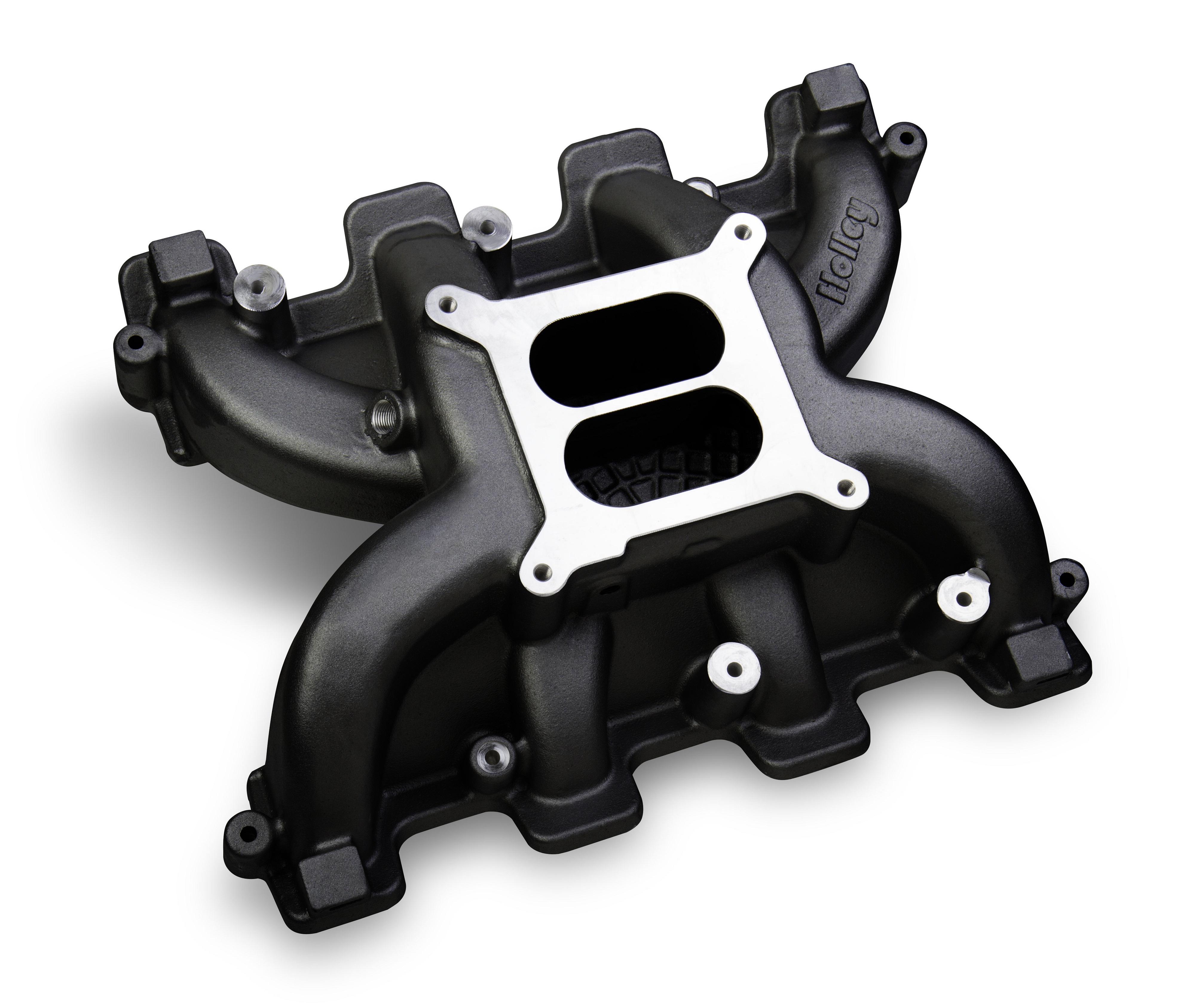

Holley Dual Plane Intake - GM LS1/LS2/LS6 - Black
SKU
HTPD-300-130BK
List price
$589.95
Price
$523.95
Description
All GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads w/Black Ceramic Coating
Features
- 1500-6500 RPM power band
- 4150 Square bore flange
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 1500-6500 RPM
- Minimum carb flange height means it fits in vehicles with minimal or no hood modifications
- Great for carbureted or throttle body EFI street applications
- Cast aluminum construction and efficient casting design for light weight, consistent wall thicknesses and improved casting quality
- Weighs 15.14 lbs.

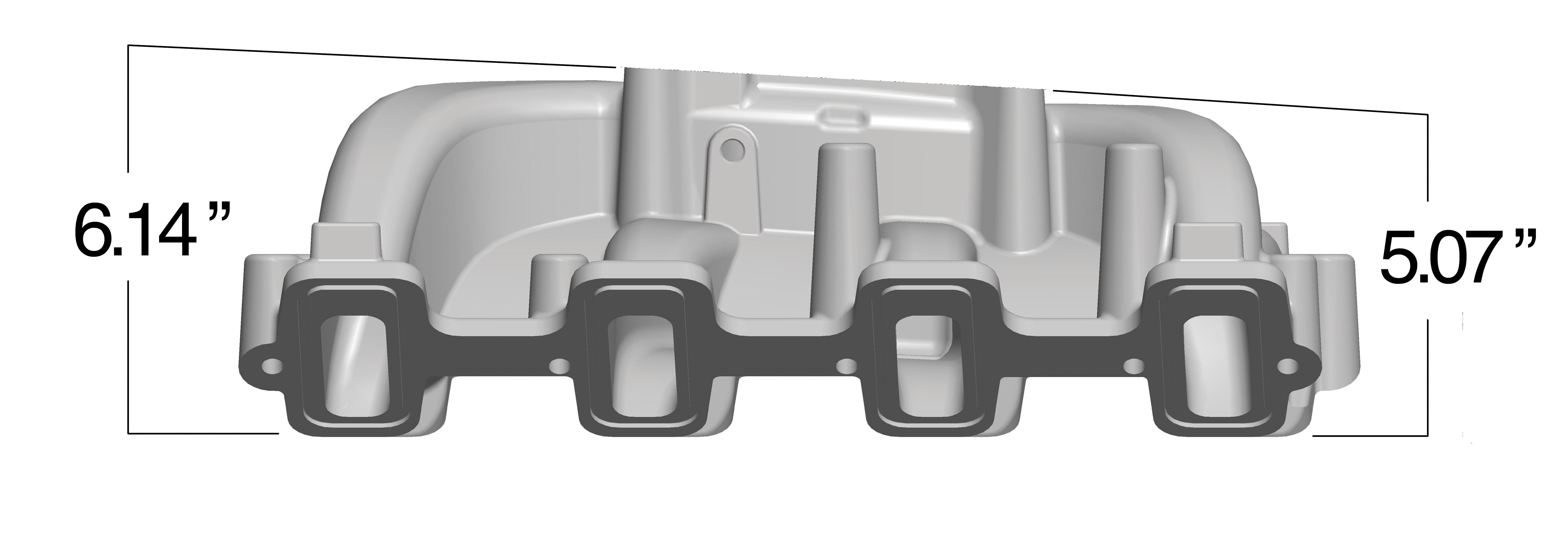

- Height (front) - 5.07" from front lifter valley cover to carb mounting flange
- Height (rear) - 6.14" from rear lifter valley cover to carb mounting flange
- Port size - 2.72" height x 1" wide
- Mounting flange gasket type - O-ring
- Includes Viton® O-rings - Viton® is a registered trademark of DuPont Performance Elastomers
Specs
Brand
HOLLEY
Category
Engine Intake Manifold
Specs
Brand: Holley
Color: Black
Engine: GM LS1/LS2/LS6
Finish: Black
Warning: California Proposition 65
Category: Engine
EGR Port: No
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
part type: Engine Intake Manifold
Grade Type: Performance
Rear Height: 6.14 inch
Construction: Cast
Flange Style: 4150 Square Bore
Front Height: 5.07 inch
Product Type: Intake Manifold
Sub Category: Cylinder Block Components
Emission Code: 3
Manifold Type: Dual Plane
Plenum Finish: Black
RPM Power Band: 1500-6500 RPM
Fuel System Type: Carb
Carburetor Flange: Square/4150
Removable Runners: No
Rear Maximum Height: 6.14
Front Maximum Height: 5.07
Fuel Rail(s) Included: No
Throttle Body Included: No
Fuel Injectors Included: No
Gasket Or Seal Included: No
Nitrous Bung(s) Included: No
Basic Operating RPM Range: 1500-6500
Carburetor Studs Included: No
Single Or Dual Plane Type: Single Plane
Intake Port Gasket(s) Included: No
