HOLLEY DUAL 340 LPH PUMP MODULE SYSTEM
SKU
HTPD-12-350
List price
$1,068.95
Price
$949.95
Description

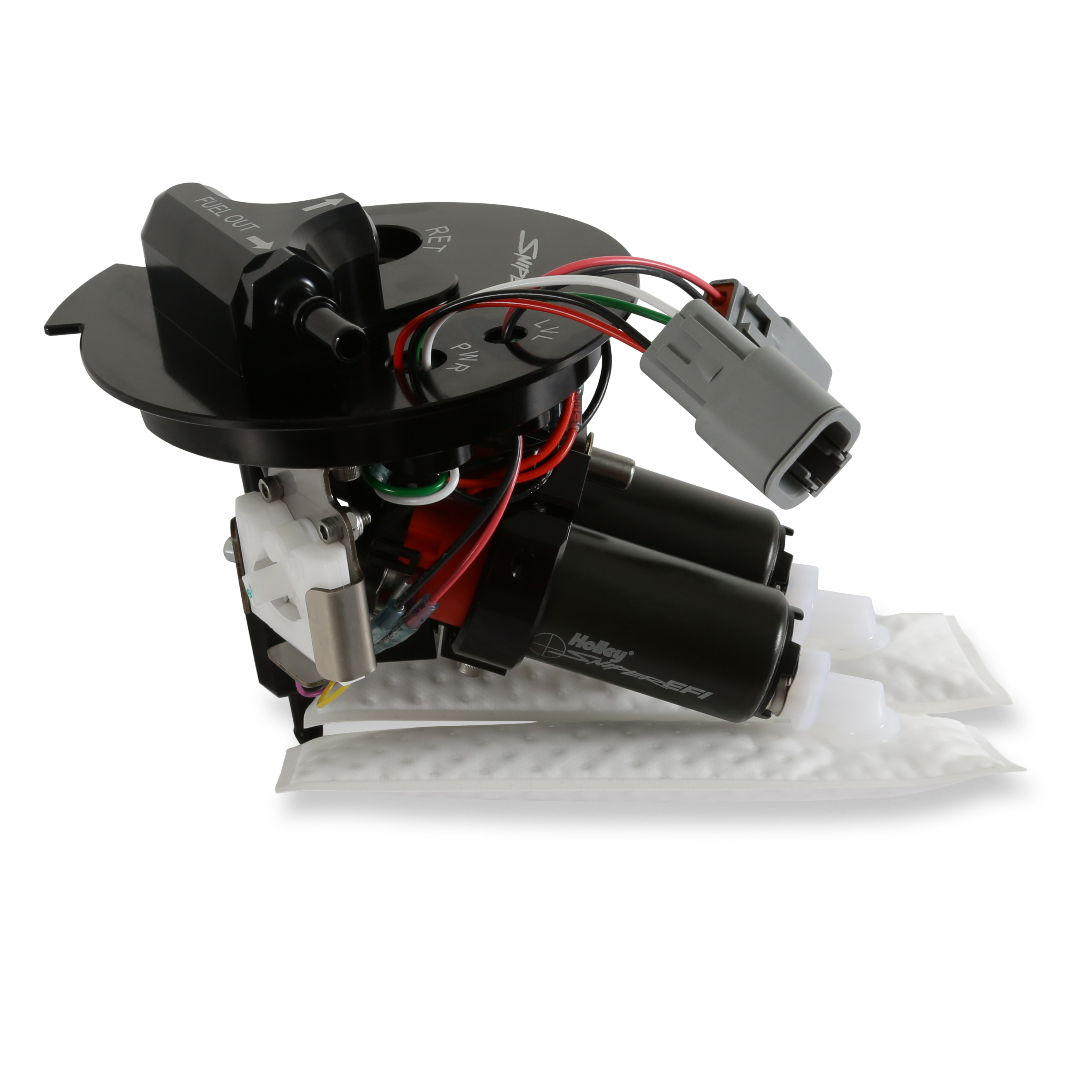

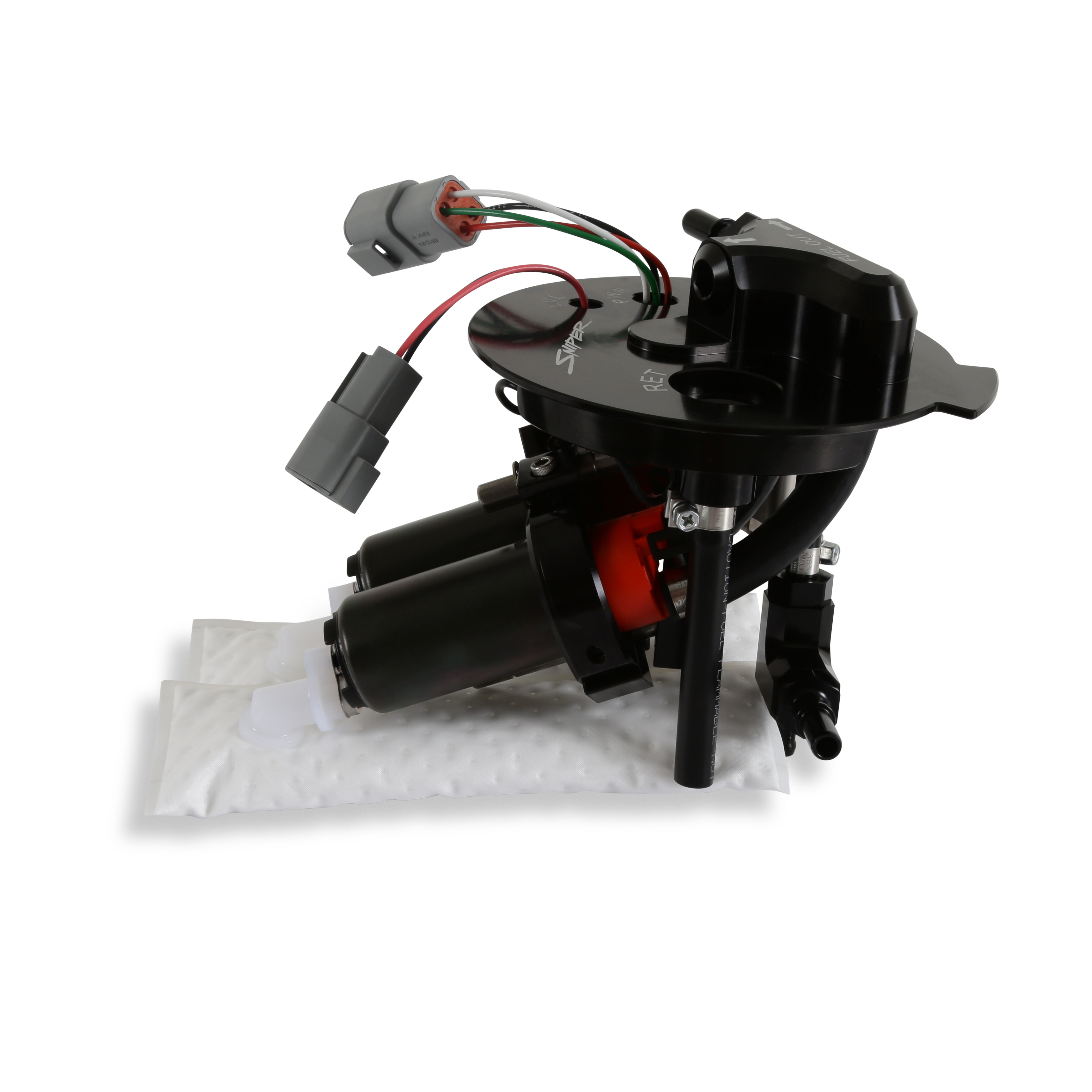

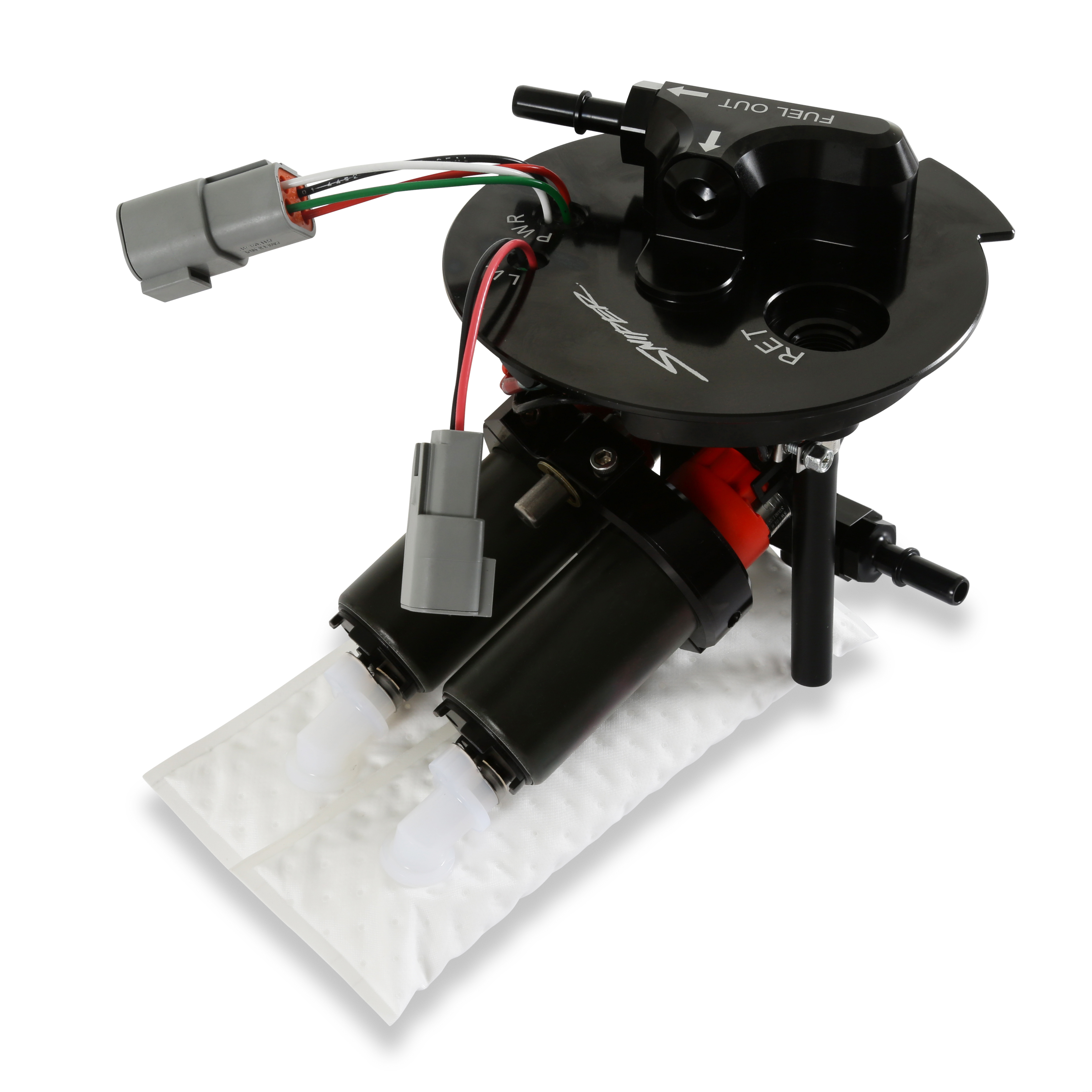

2010-2015 Camaro Dual 340 LPH Pump Module
Features
- -8AN ORB inlets and outlets (return fitting included)

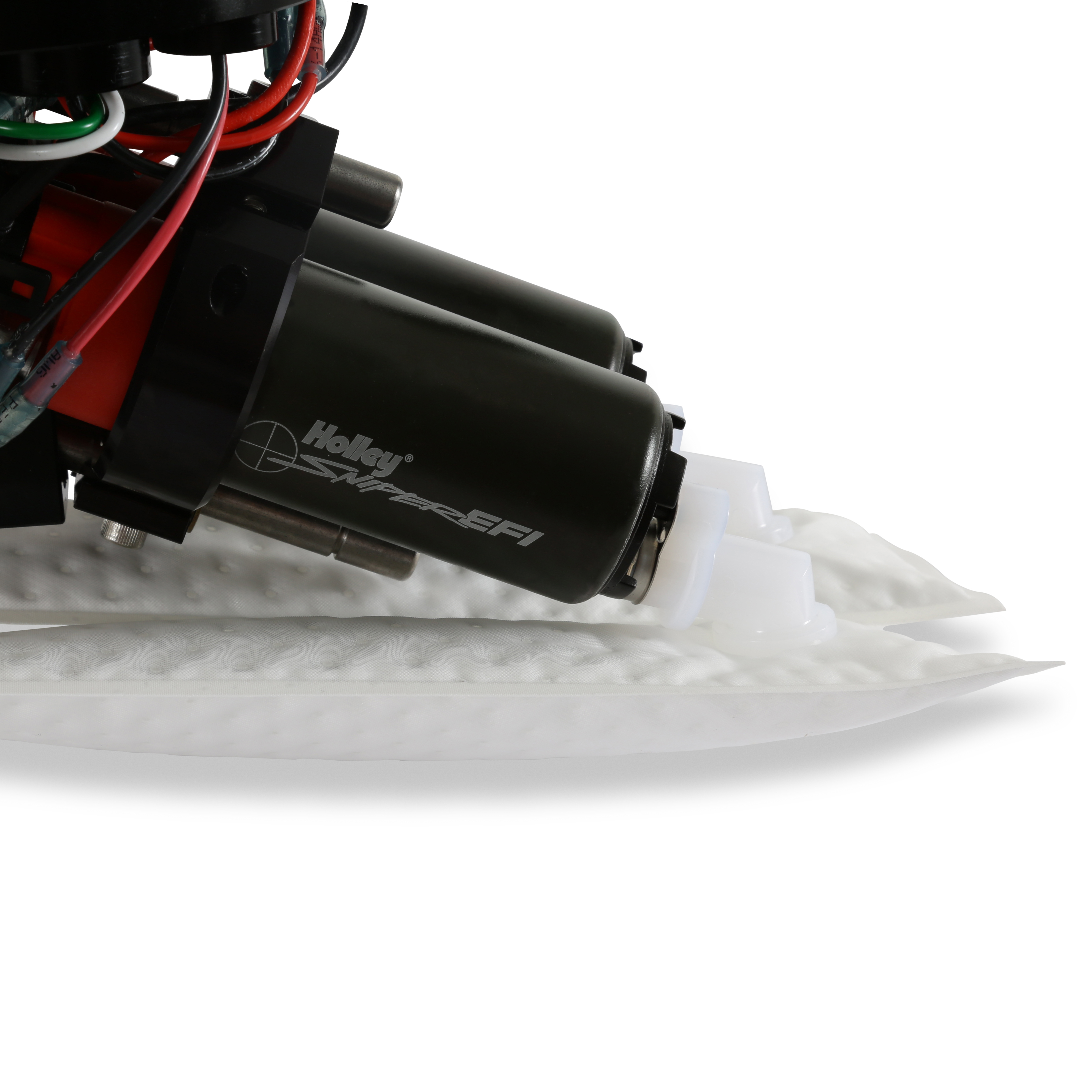

- Dual 340 (1400 hp) @ 60 psi at 13.5 volts / 14.5 amp draw

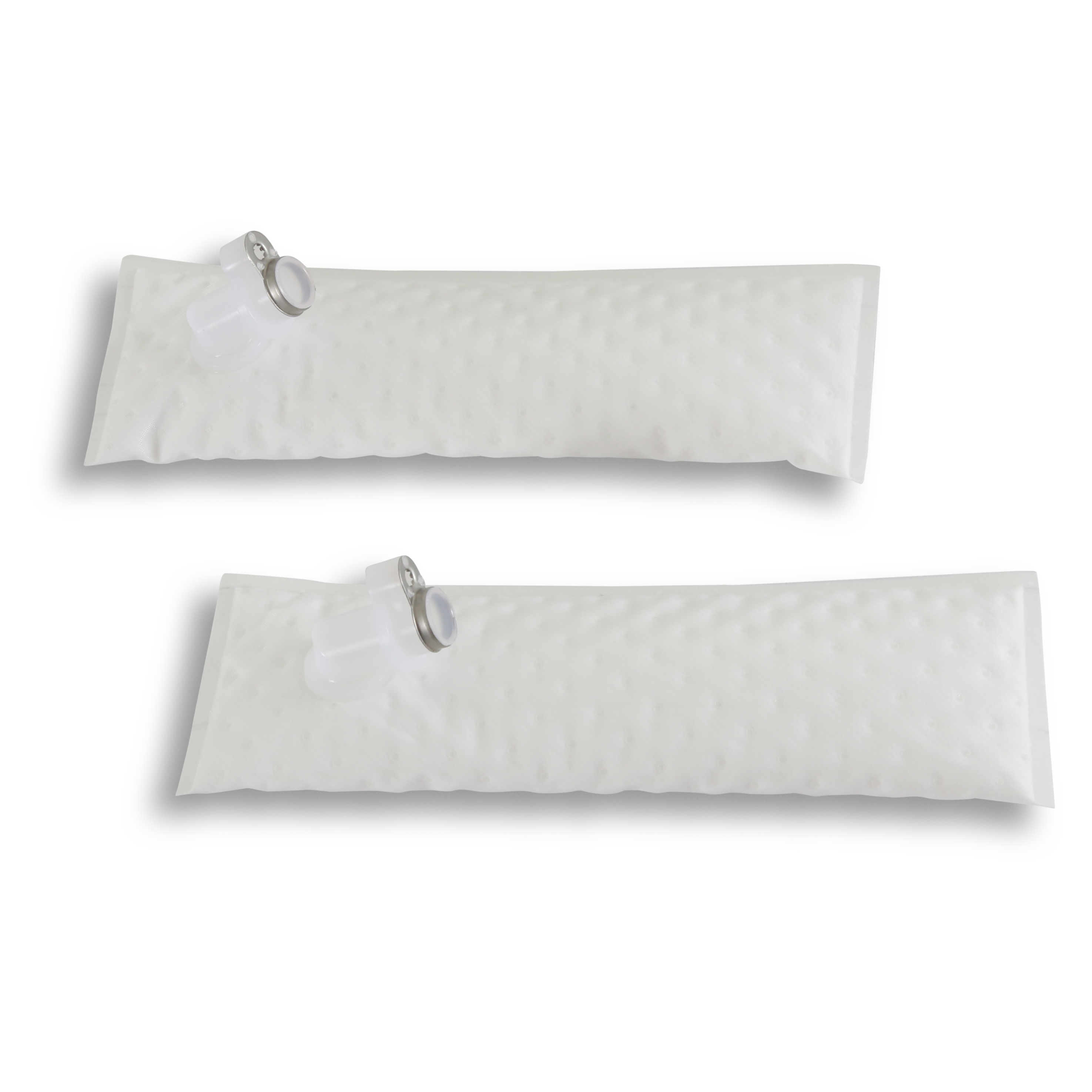

- Two HydraMats, one for each pump
- Integrated jet pump assembly allows retention of factory drivers side fuel pickup
- Have been tested to deliver stable fuel pressure down to low fuel indicator warning light

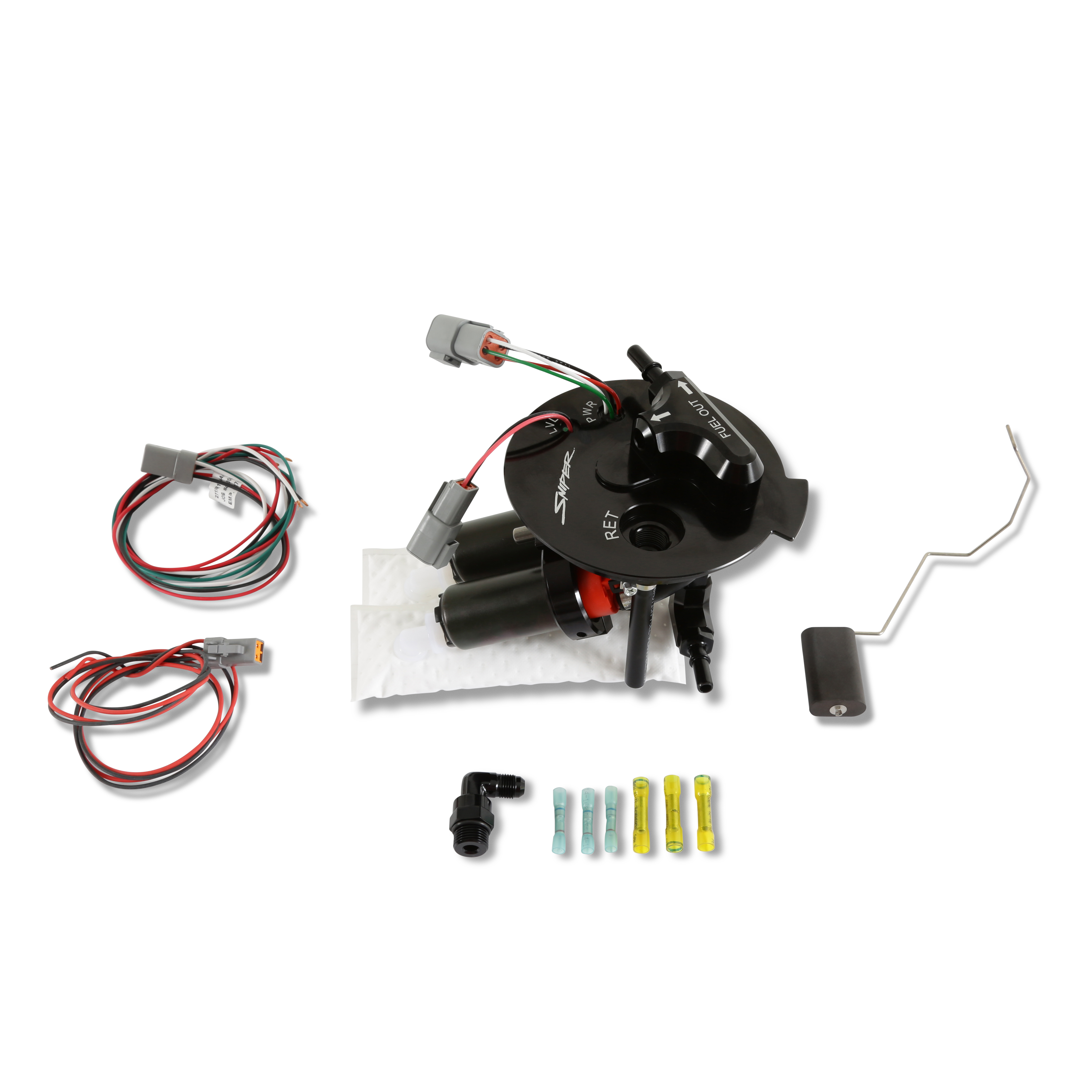

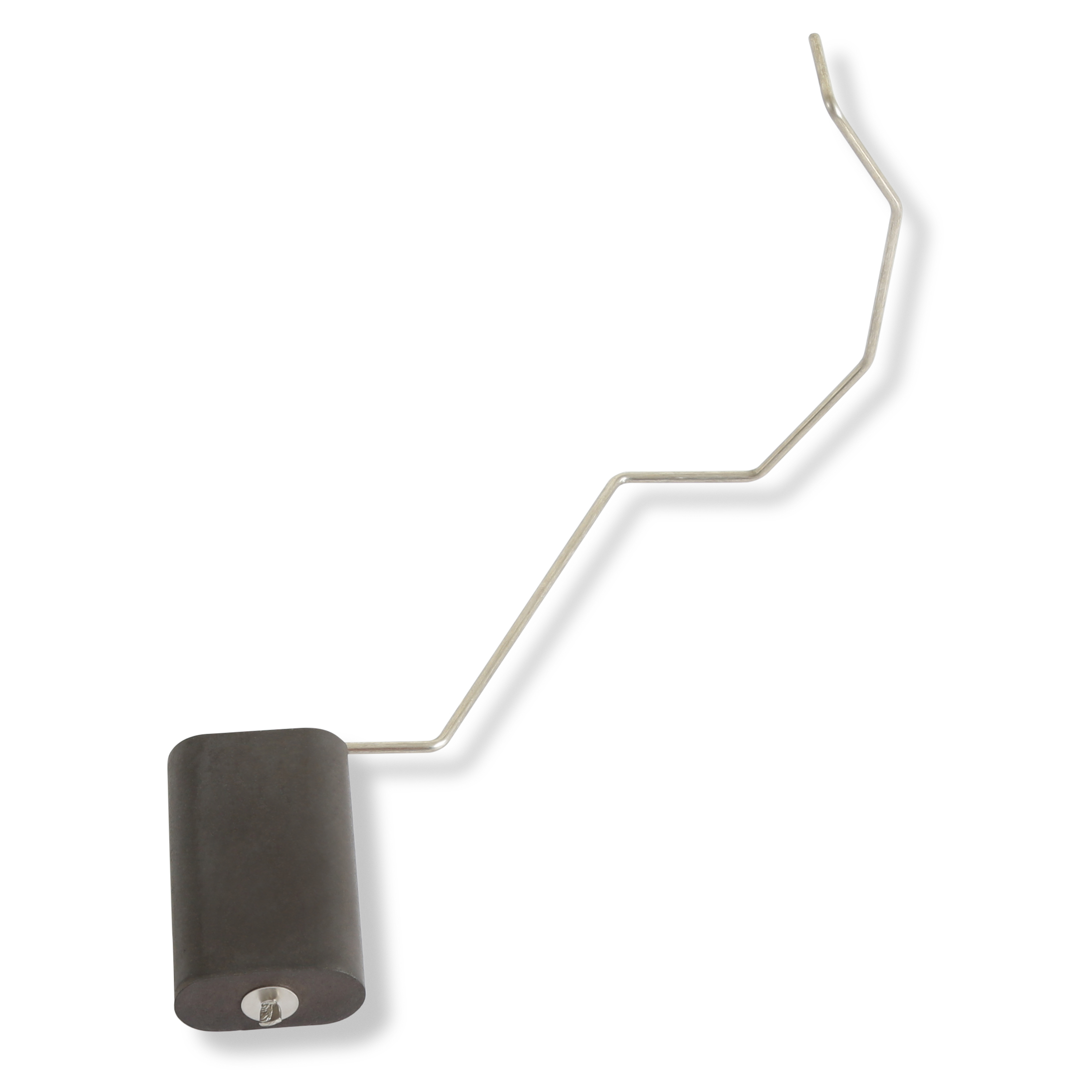

- Brand new level sensor included and pre-installed. Installation is as simple as removing factory module and replacing with Holley module

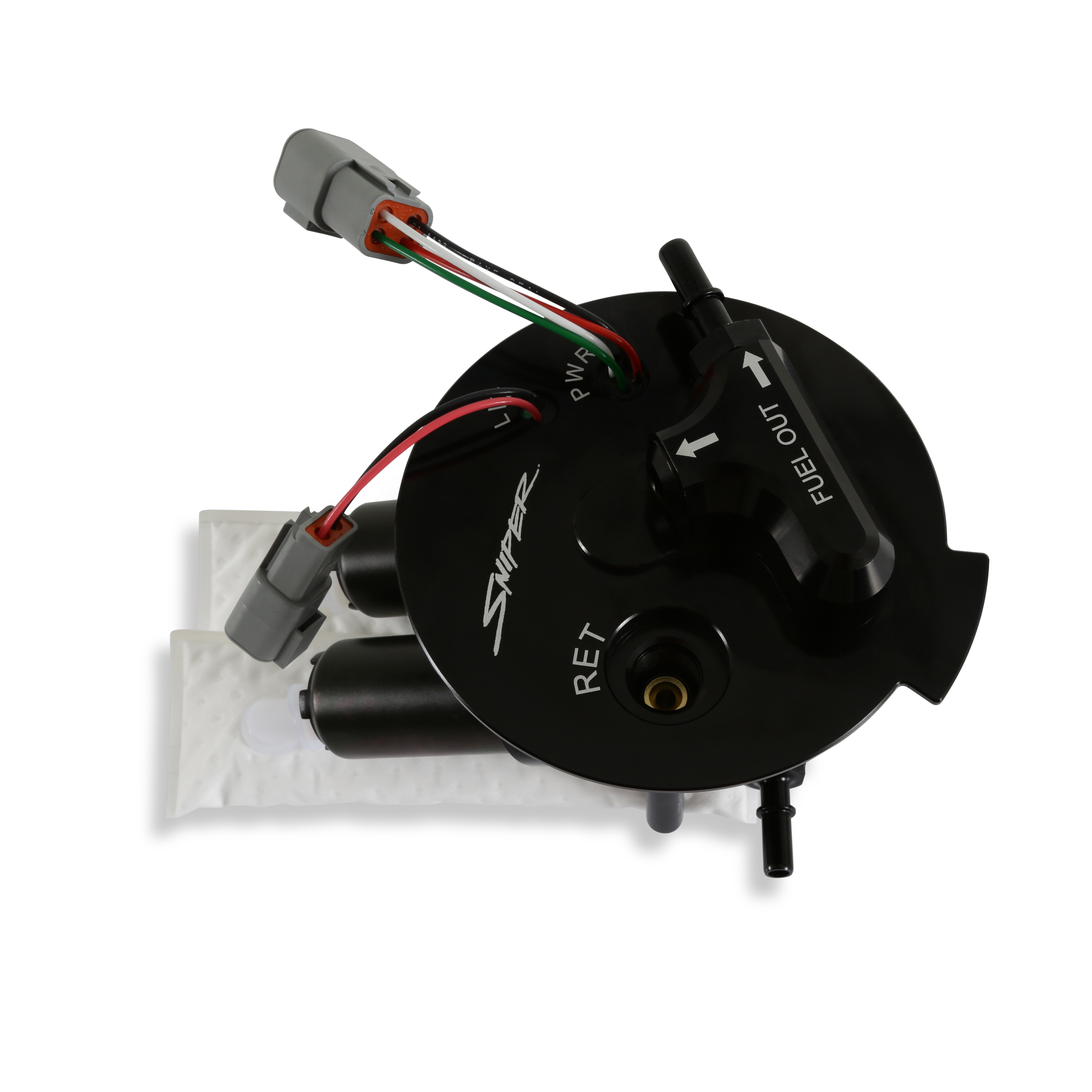

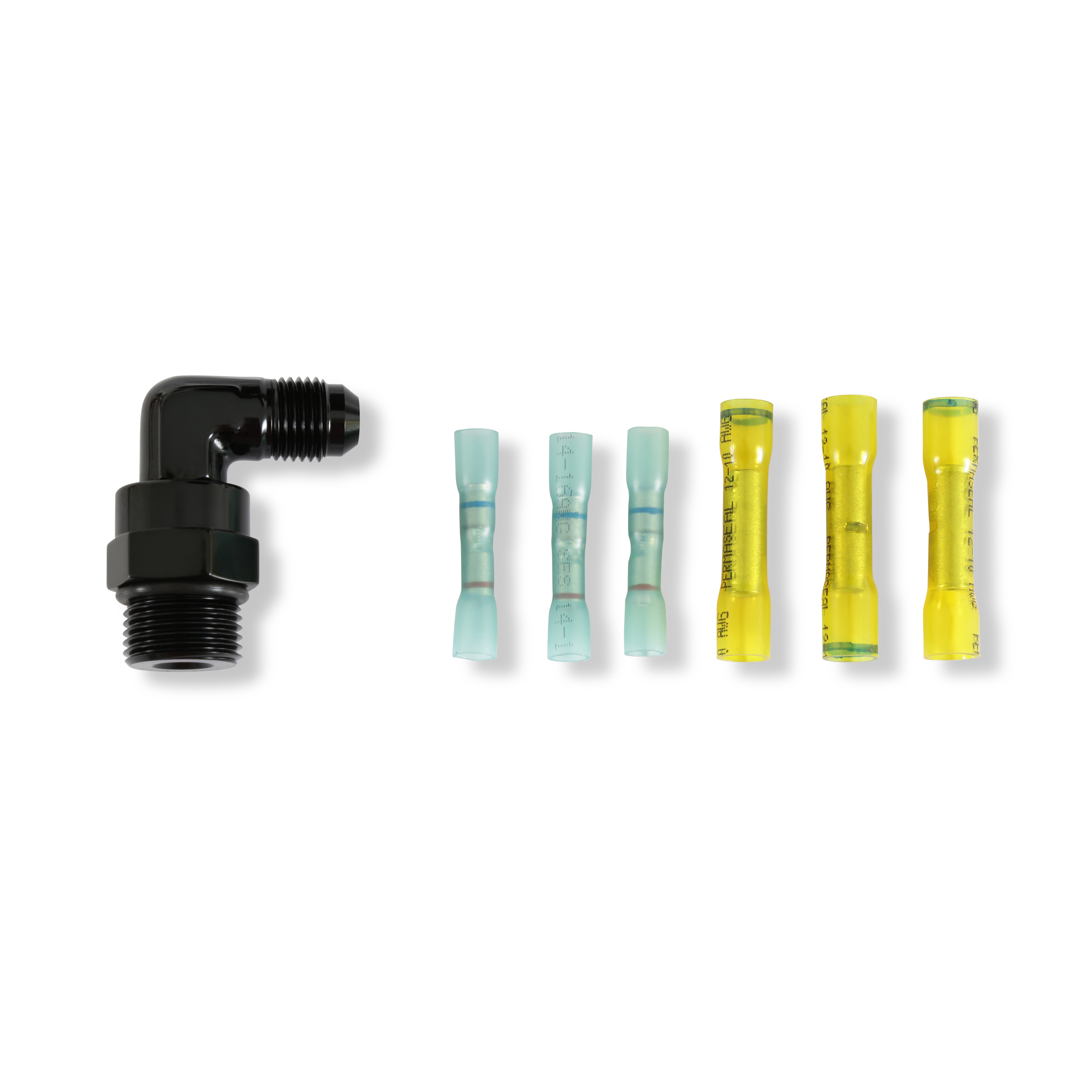

- Outlet fitting included to connect to factory feed line. Secondary ORB port machined into flange for easy AN plumbing of feed line
- Module is return style only so a regulator must be installed
- Machined, billet, anodized, laser etch components for durability and good looks
Fitment
Vehicle Fitment
2010 Chevrolet Camaro LS
2010 Chevrolet Camaro LT
2010 Chevrolet Camaro SS
2011 Chevrolet Camaro LS
2011 Chevrolet Camaro LT
2011 Chevrolet Camaro SS
2012 Chevrolet Camaro LS
2012 Chevrolet Camaro LT
2012 Chevrolet Camaro SS
2012 Chevrolet Camaro ZL1
2013 Chevrolet Camaro LS
2013 Chevrolet Camaro LT
2013 Chevrolet Camaro SS
2013 Chevrolet Camaro ZL1
2014 Chevrolet Camaro LS
2014 Chevrolet Camaro LT
2014 Chevrolet Camaro SS
2014 Chevrolet Camaro ZL1
2014 Chevrolet Camaro Z/28
2015 Chevrolet Camaro LS
2015 Chevrolet Camaro LT
2015 Chevrolet Camaro SS
2015 Chevrolet Camaro ZL1
2015 Chevrolet Camaro Z/28
Specs
Brand
HOLLEY
Category
Fuel Pump Module Assembly
Specs
Sub Category: Fuel Pumps and Related Components
Brand: Holley
Height: Standard
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Billet Aluminum and Steel
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline/E85 Compatible
Pump Type: Electric
part type: Fuel Pump Module Assembly
Grade Type: Performance
Fuel System: EFI
Outlet Type: ORB
Product Type: Fuel Pump Module
Emission Code: 5
Free Flow GPH: 180
Free Flow LPH: 680
Wire Quantity: 6
Inlet Quantity: One
Connector Color: Gray
Negative Ground: Yes
Outlet Quantity: 2
Pump Body Color: Silver
Connector Gender: Female
Housing Material: Aluminum
Maximum Pressure: 60
Connector Quantity: 2
Lock Ring Included: No
Regulator Included: No
Average Flow Rating: 680
In Tank or External: In Tank
Average Current Draw: 29
Fuel Filter Included: Yes
Resistance Ohms Full: 250
Resistance Ohms Empty: 40

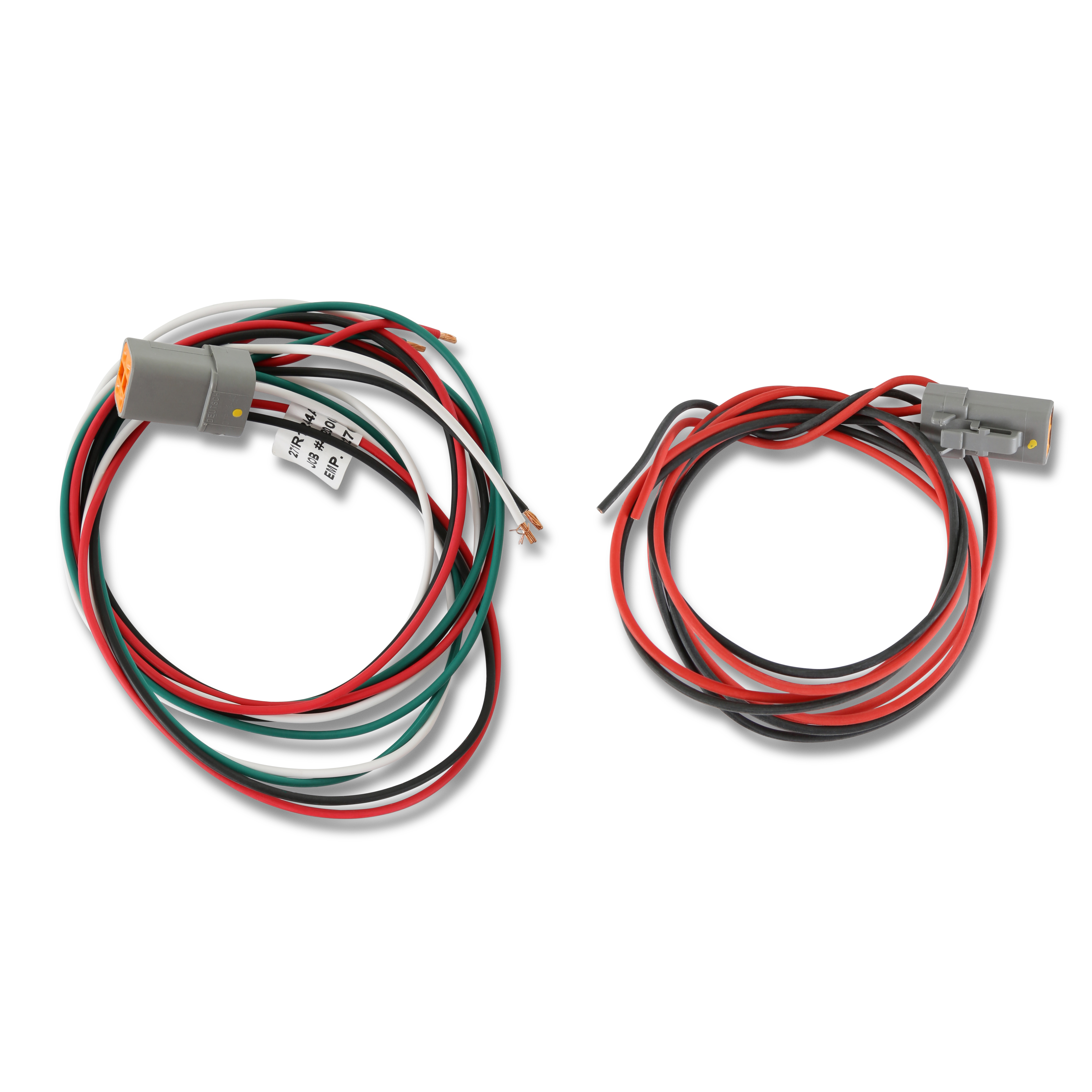

Wire Harness Included: Yes
Gasket Or Seal Included: No
Universal Or Specific Fit: Specific
Fuel Sending Unit Included: Yes
Mounting Hardware Included: Yes
Internal Or External Strainer: External
Fuel Tank Pressure Sensor Included: No
