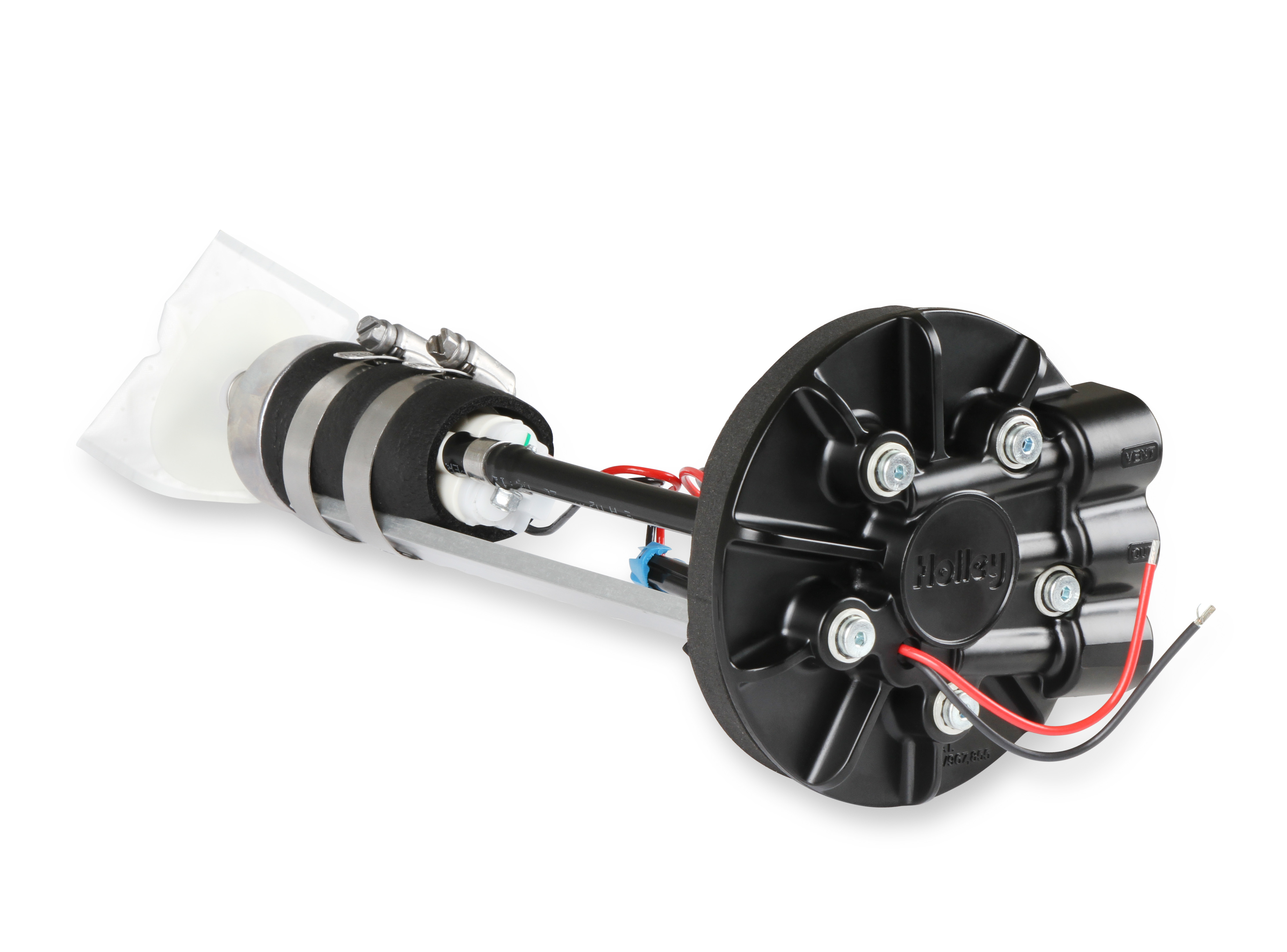

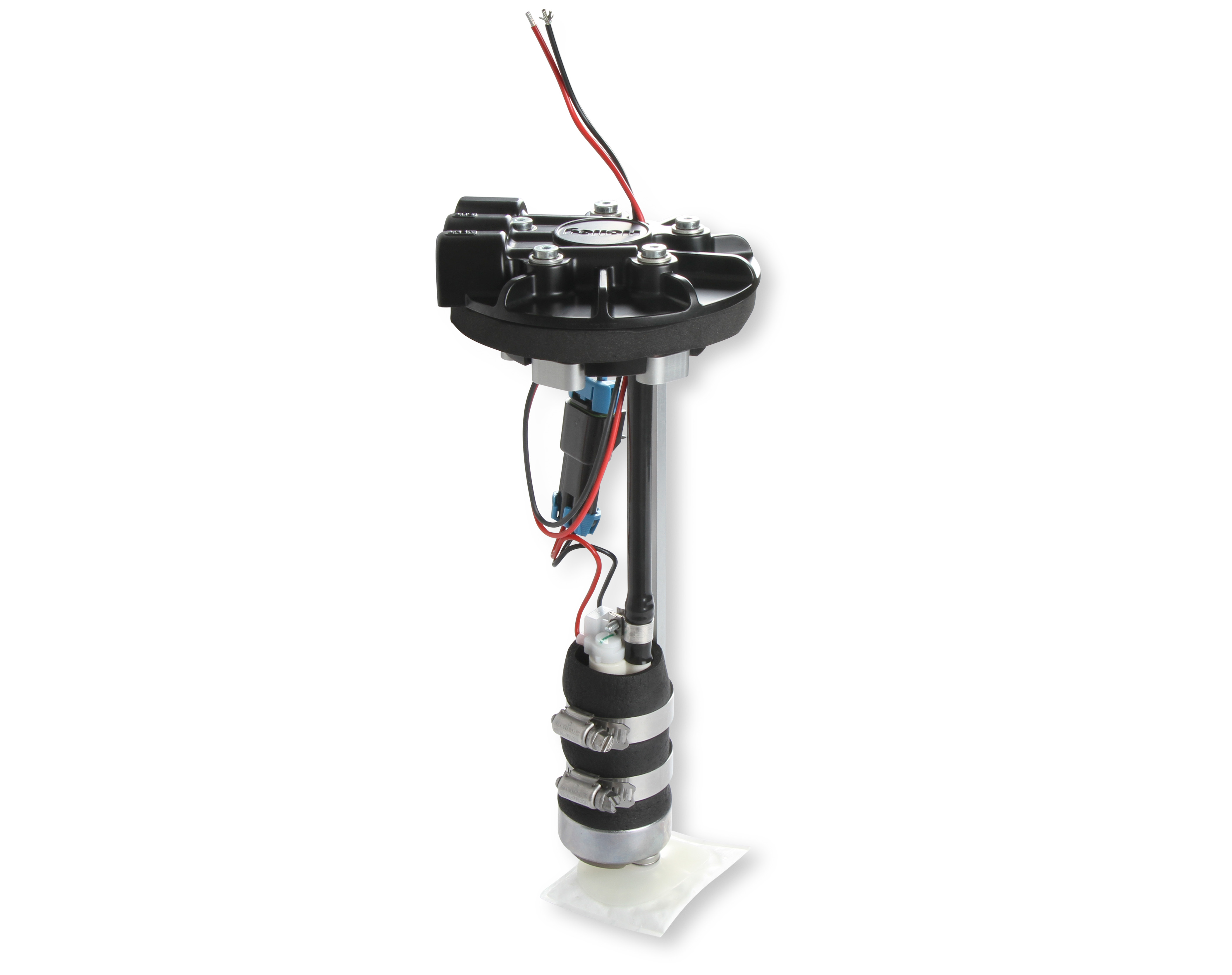

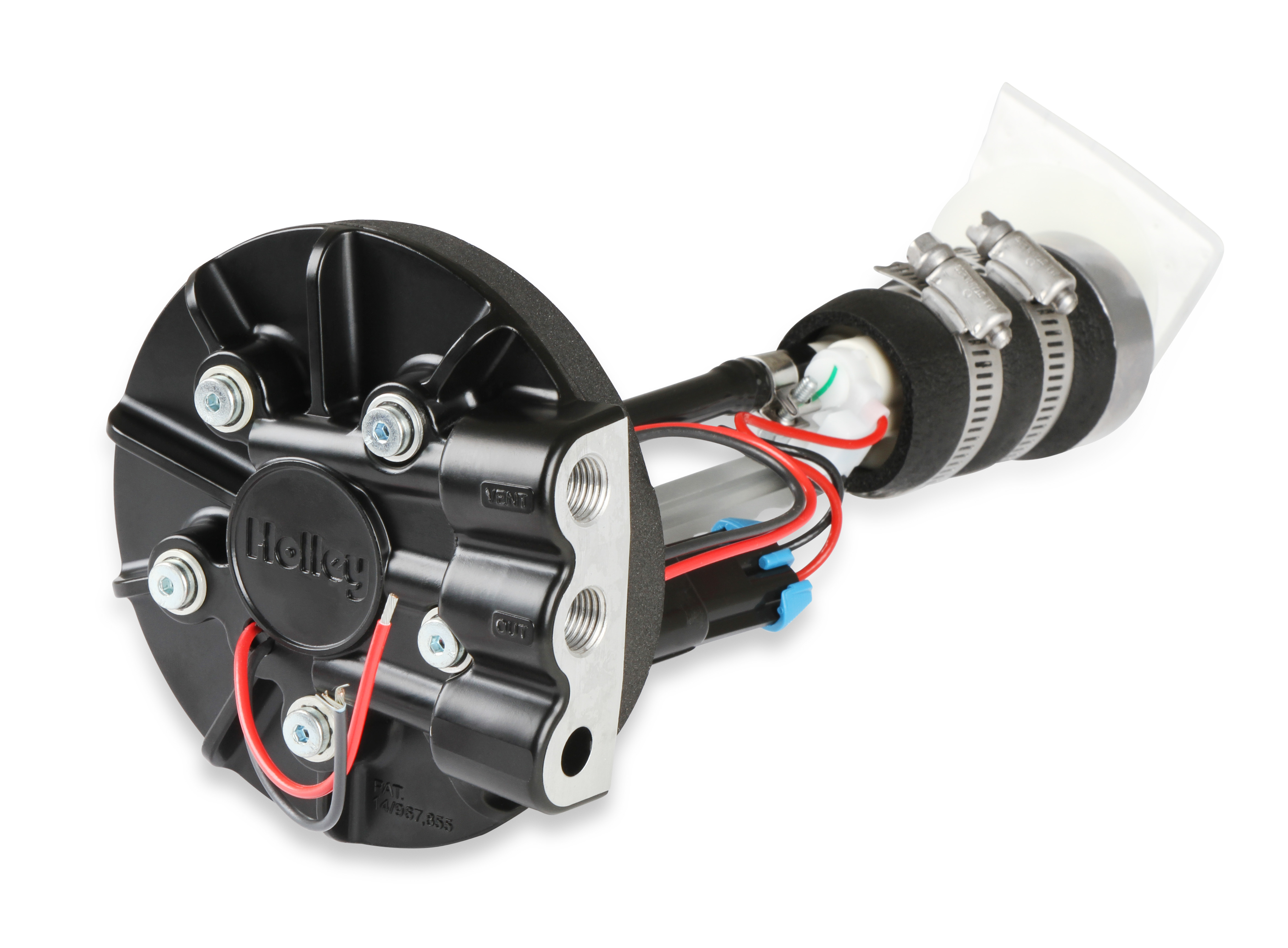

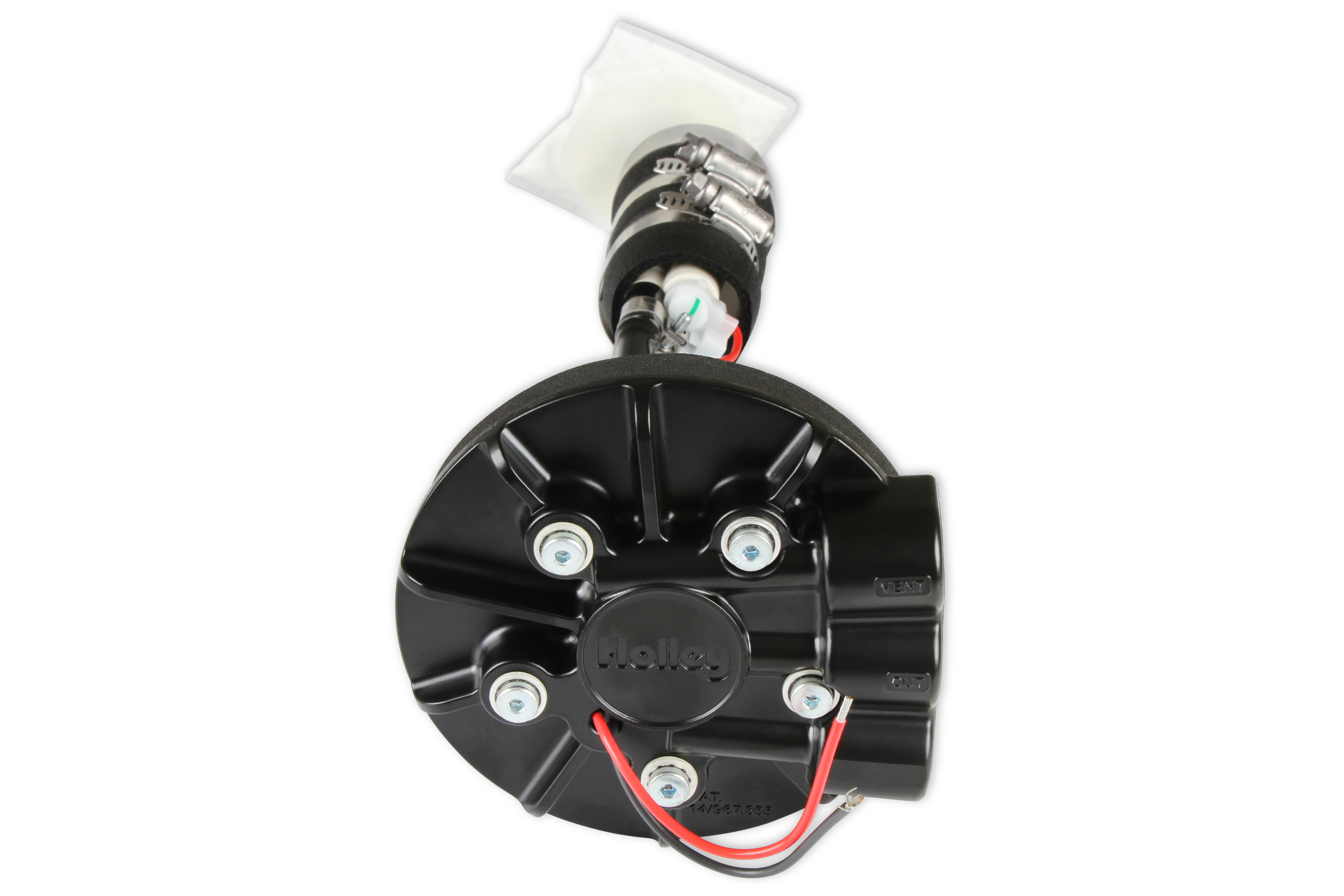

Holley Diecast In-Tank RetroFit Fuel Module Returnless System
SKU
HTPD-12-172
List price
$787.95
Price
$699.95
Description
450 LPH Drop-In Retrofit EFI Fuel System
Supports up to 875 EFI or 1100 Carb HP
Features
- The easiest way to convert your vehicle to an in-tank, EFI fuel system
- Installs in any fuel tank from 7” to 12” deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed

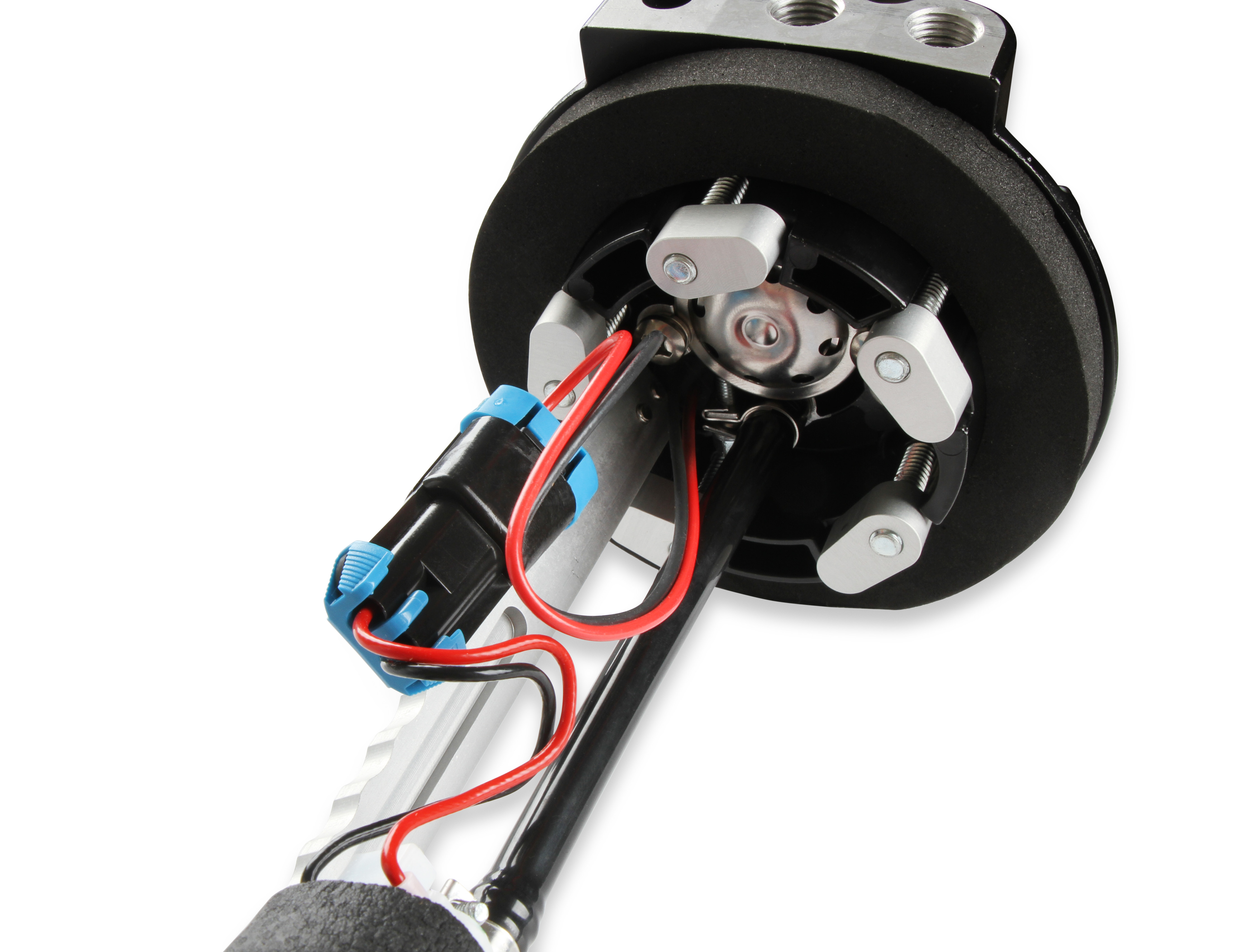

- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Die cast aluminum construction for corrosion resistance and long lasting good looks
- ¼” NPT ports for a wide variety of plumbing options
- Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion
- Optional roll over valve available
- Two different fuel pumps are available to match your requirements - 255LPH or 450LPH for both return and returnless style systems
Specs
Brand
HOLLEY
Category
Fuel Pump Module Assembly
Specs
Brand: Holley
Finish: Black
Height: Adjustable
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Die Cast Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
Pump Type: Electric
part type: Fuel Pump Module Assembly
Grade Type: Performance
Inlet Type: NPT
NPT Thread: 1/4 NPT
Application: Universal
Outlet Type: NPT
Product Type: Fuel Pump Module
Sub Category: Fuel Pumps and Related Components
Emission Code: 5
Free Flow LPH: 450
Wire Quantity: 2
Inlet Quantity: None
Connector Color: Black
Negative Ground: Yes
Outlet Quantity: One
Housing Material: Aluminum
Maximum Pressure: 60
Connector Quantity: 1
Lock Ring Included: Yes
Regulator Included: No
Top Mount Diameter: 5
Average Flow Rating: 450
In Tank or External: In Tank
Average Current Draw: 16.9

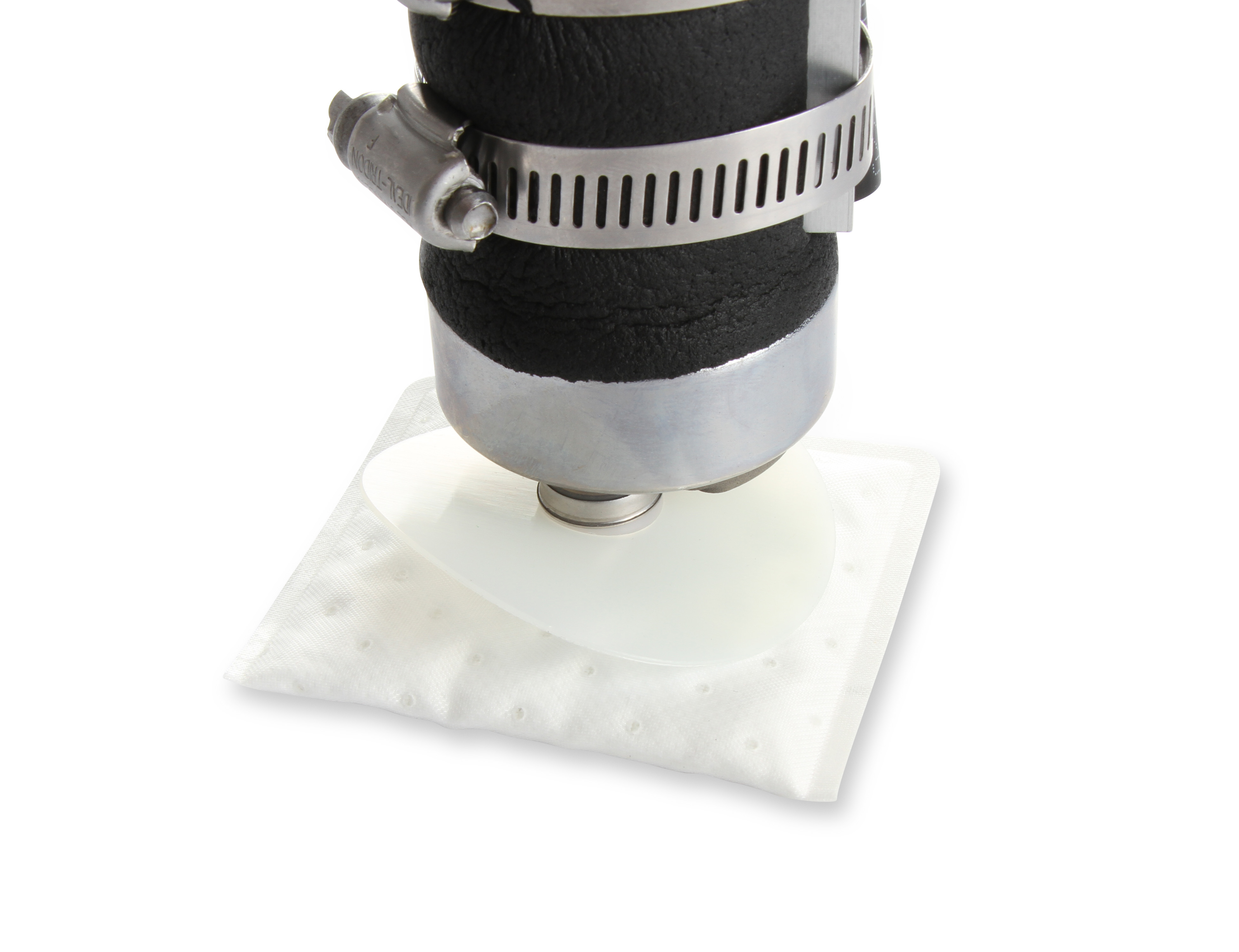

Fuel Filter Included: Yes
Wire Harness Included: Yes

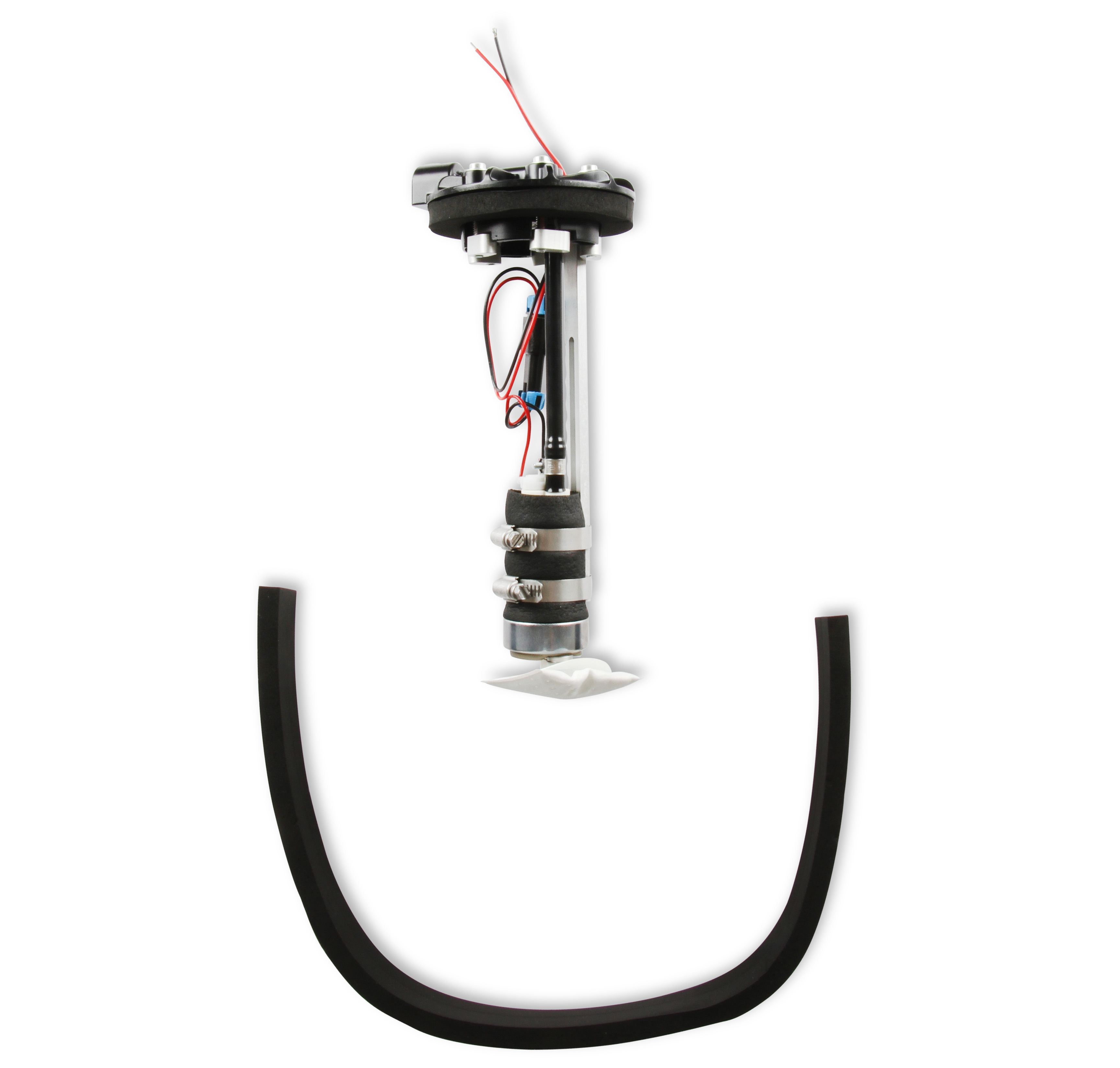

Gasket Or Seal Included: Yes
Gasket Or Seal Material: Foam
Minimum Fuel Tank Depth: 7 inches
Inlet Fitting Thread Size: 1/4
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
Mounting Hardware Included: Yes
Outlet Fitting Thread Size: 1/4
Internal Or External Strainer: External
Fuel Tank Pressure Sensor Included: No
PDFs
PDFs
68b1a98778218.pdf
(828.71 KB)
