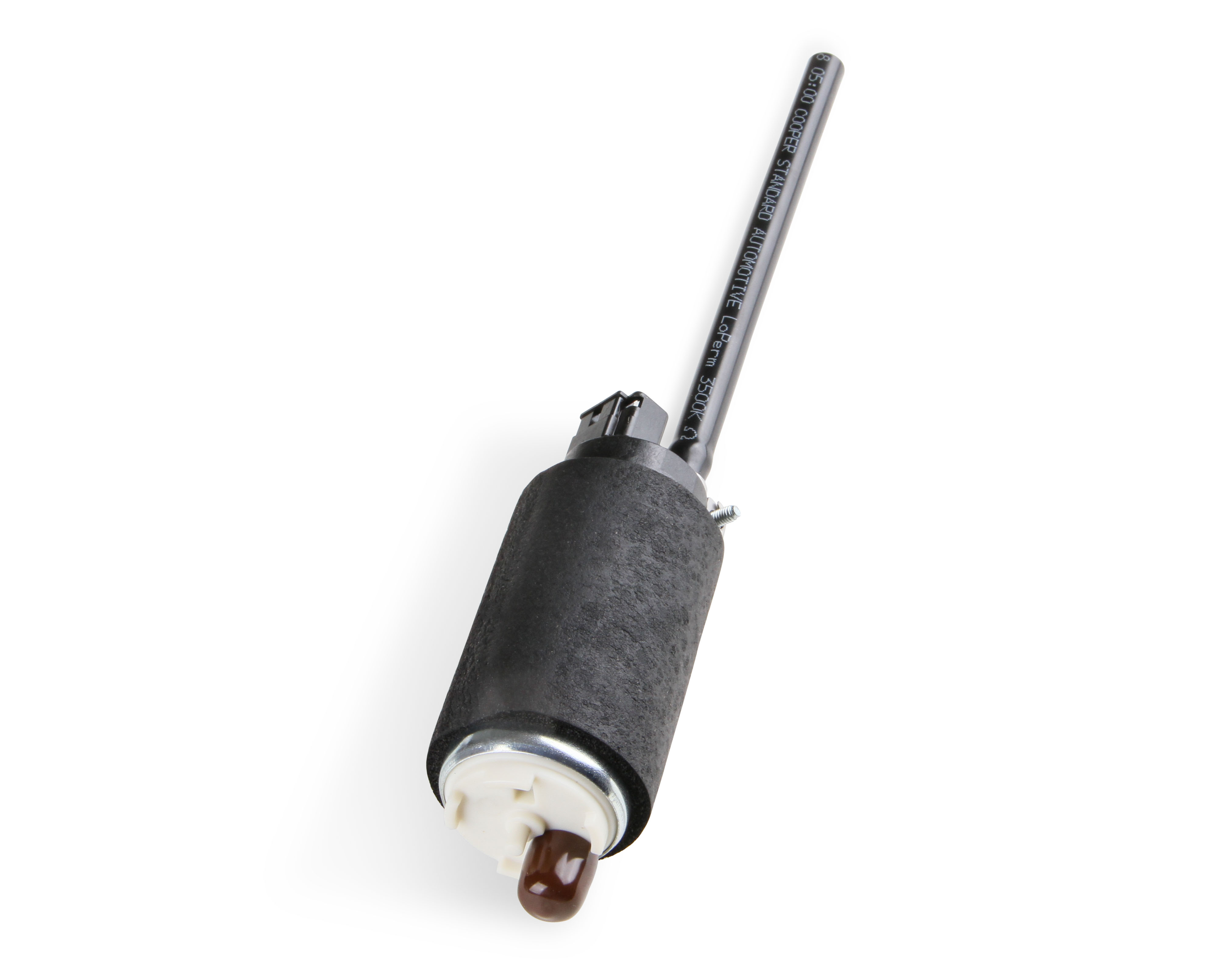

Holley Diecast In-Tank Carbureted RetroFit Fuel Pump Module-Returnless System
SKU
HTPD-12-129
List price
$479.94
Price
$399.95
Description
255 LPH Drop-In Retrofit Carbureted Fuel System Supports up to 700 Carb HP (HP Rating @ 6 PSI at 13.5 Volts / 10.4 AMP Draw)
Features
- The easiest way to convert your vehicle to an in-tank fuel system

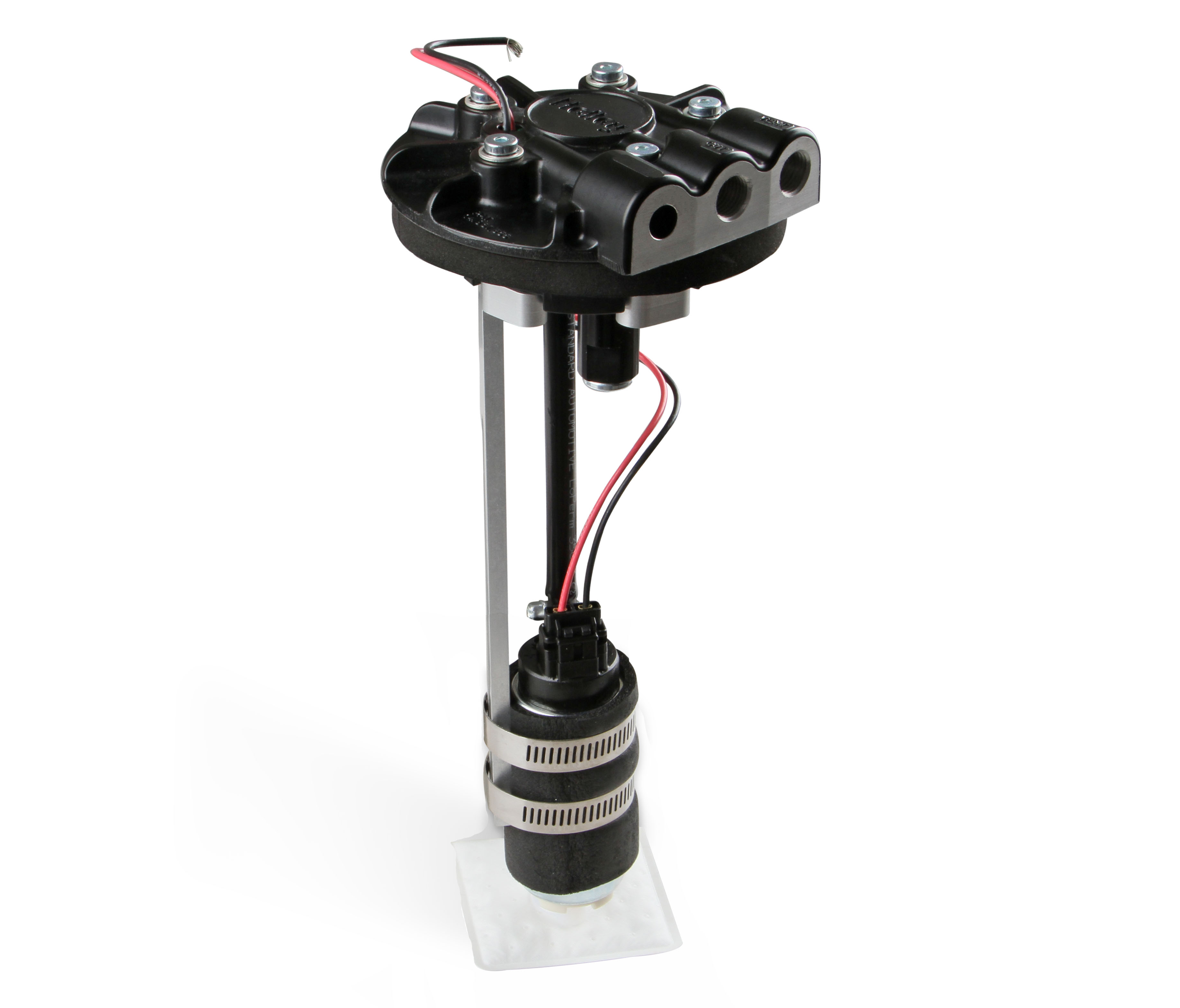

- Installs in any fuel tank from 6.5” to 12” deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed

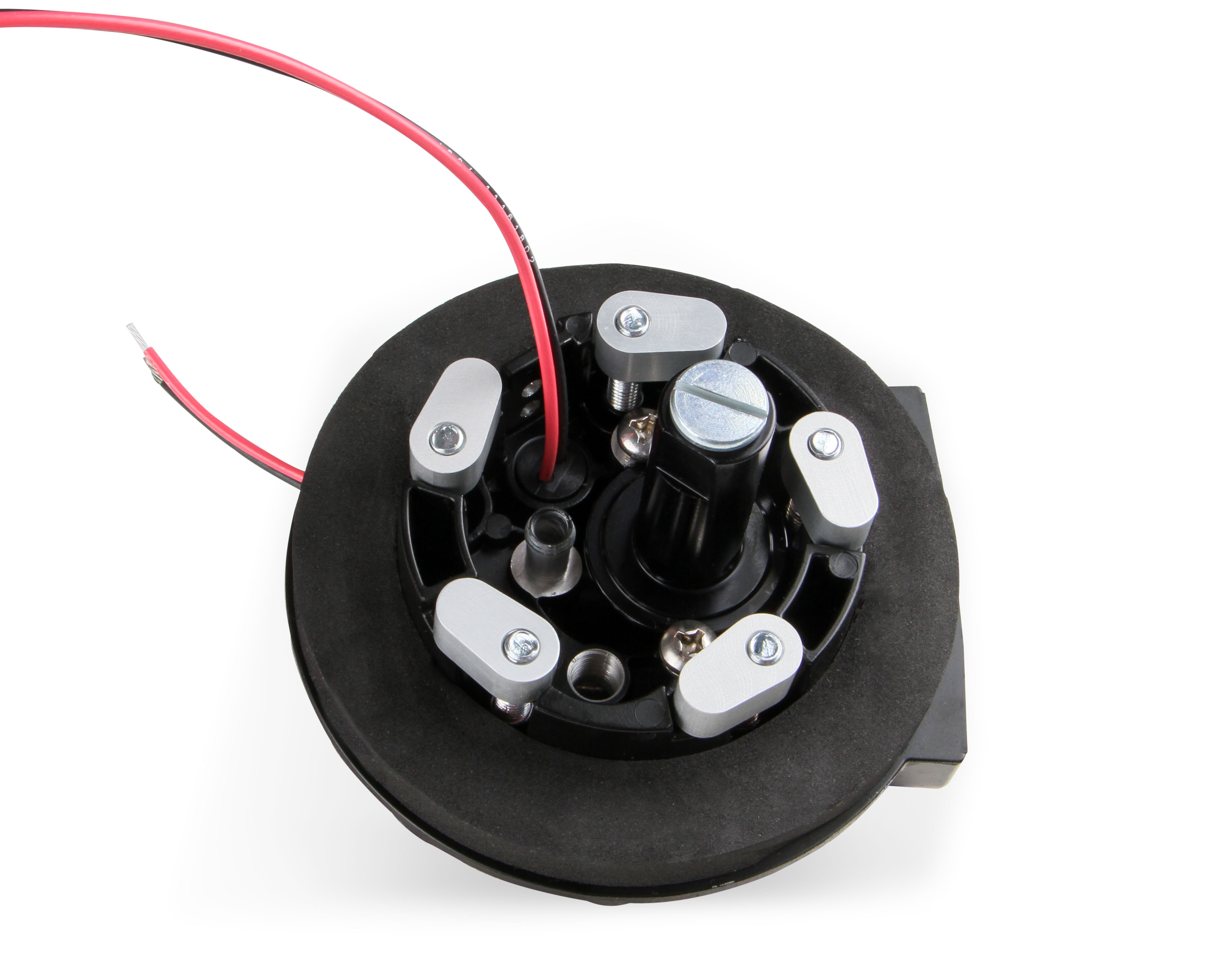

- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Die cast aluminum construction for corrosion resistance and long lasting good looks
- ¼” NPT ports for a wide variety of plumbing options
Specs
Brand
HOLLEY
Category
Fuel Pump Module Assembly
Specs
Brand: Holley
Height: Adjustable
Voltage: 12
Warning: California Proposition 65
Category: Air and Fuel Delivery
Diameter: 4.8"
Material: Die Cast Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
Pump Type: Electric
part type: Fuel Pump Module Assembly
Grade Type: Performance
Inlet Type: NPT
NPT Thread: 1/4 NPT
Application: Universal
Outlet Type: NPT
Product Type: Fuel Pump
Sub Category: Fuel Pumps and Related Components
Emission Code: 5
Free Flow GPH: 67
Free Flow LPH: 255
Wire Quantity: 2
Inlet Quantity: One
Connector Color: Black
Negative Ground: Yes
Outlet Quantity: One
Connector Gender: Male
Fuel System Type: Gasoline
Housing Material: Aluminum
Maximum Pressure: 6
Connector Quantity: 1
Lock Ring Included: Yes
Regulator Included: Yes
Top Mount Diameter: 5
Average Flow Rating: 255
In Tank or External: In Tank
Average Current Draw: 10.4
Fuel Filter Included: Yes
Wire Harness Included: Yes
Gasket Or Seal Included: Yes
Gasket Or Seal Material: Foam
Inlet Fitting Thread Size: 1/4
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No

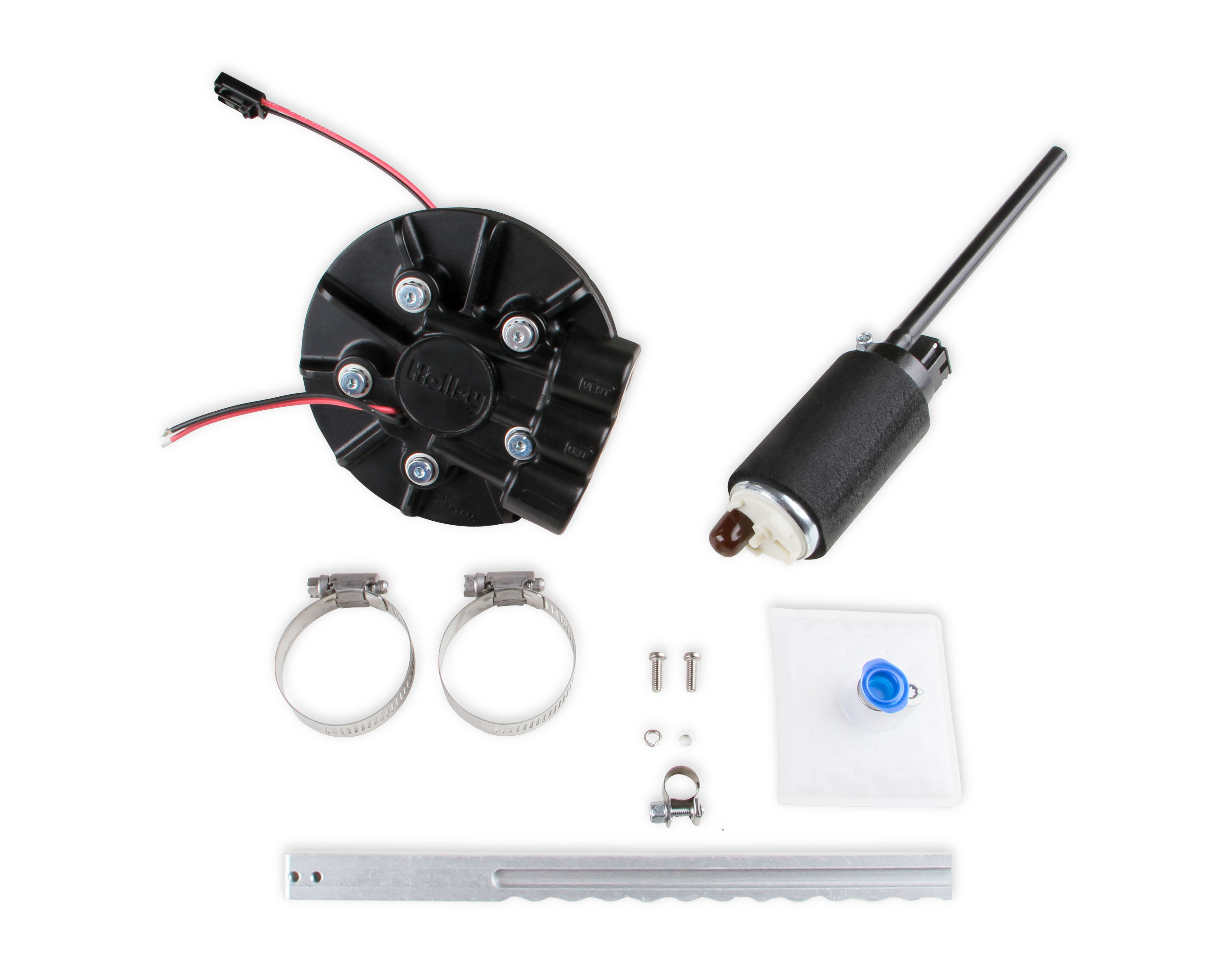

Mounting Hardware Included: Yes
Outlet Fitting Thread Size: 1/4

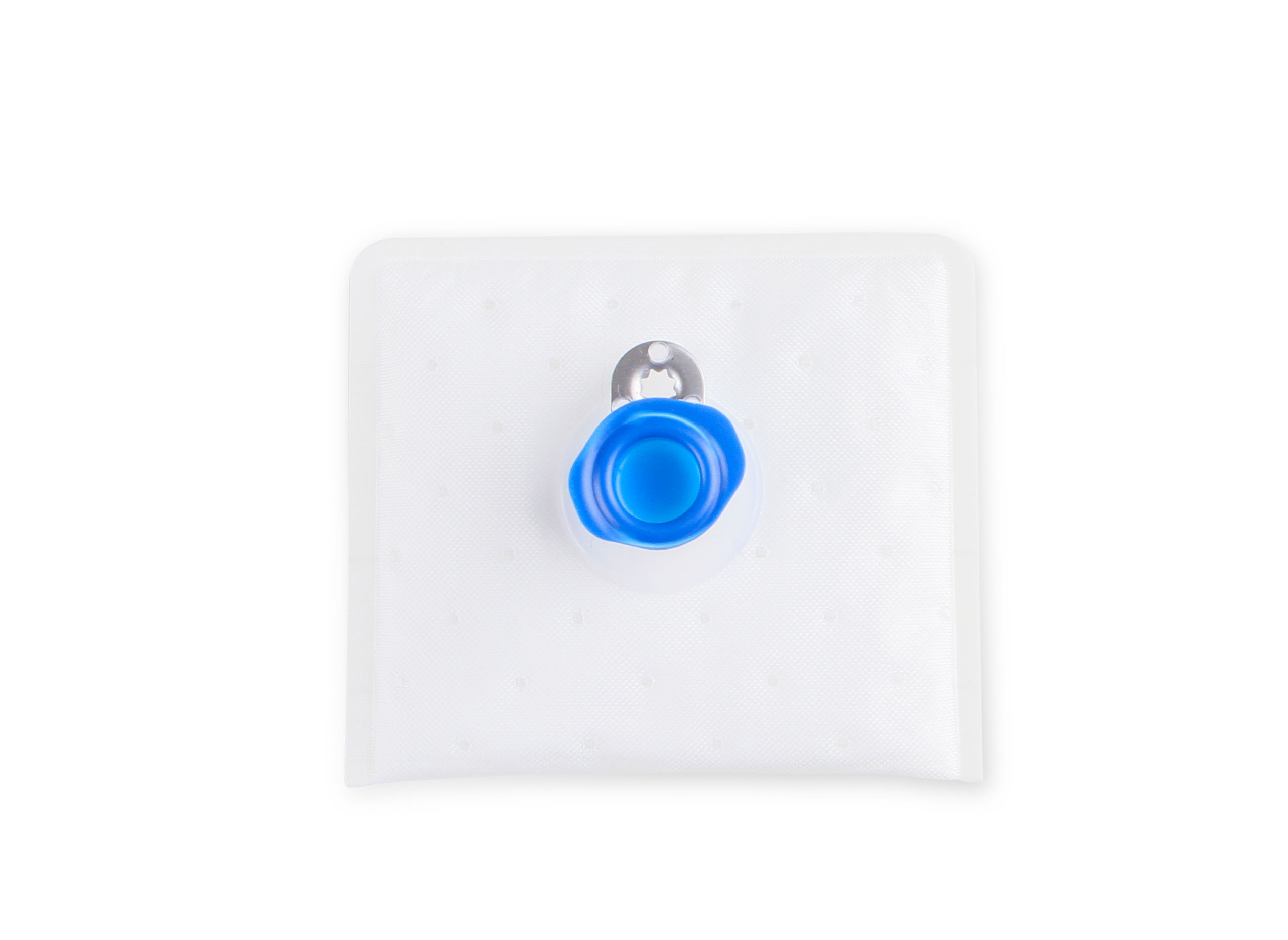

Internal Or External Strainer: External
Fuel Tank Pressure Sensor Included: No
