Holley Complete Transmission Installation Kit - 6-Bolt LS Engine to TKX / TKO
SKU
HTPD-319-504
List price
$2,024.95
Price
$1,799.95
Description

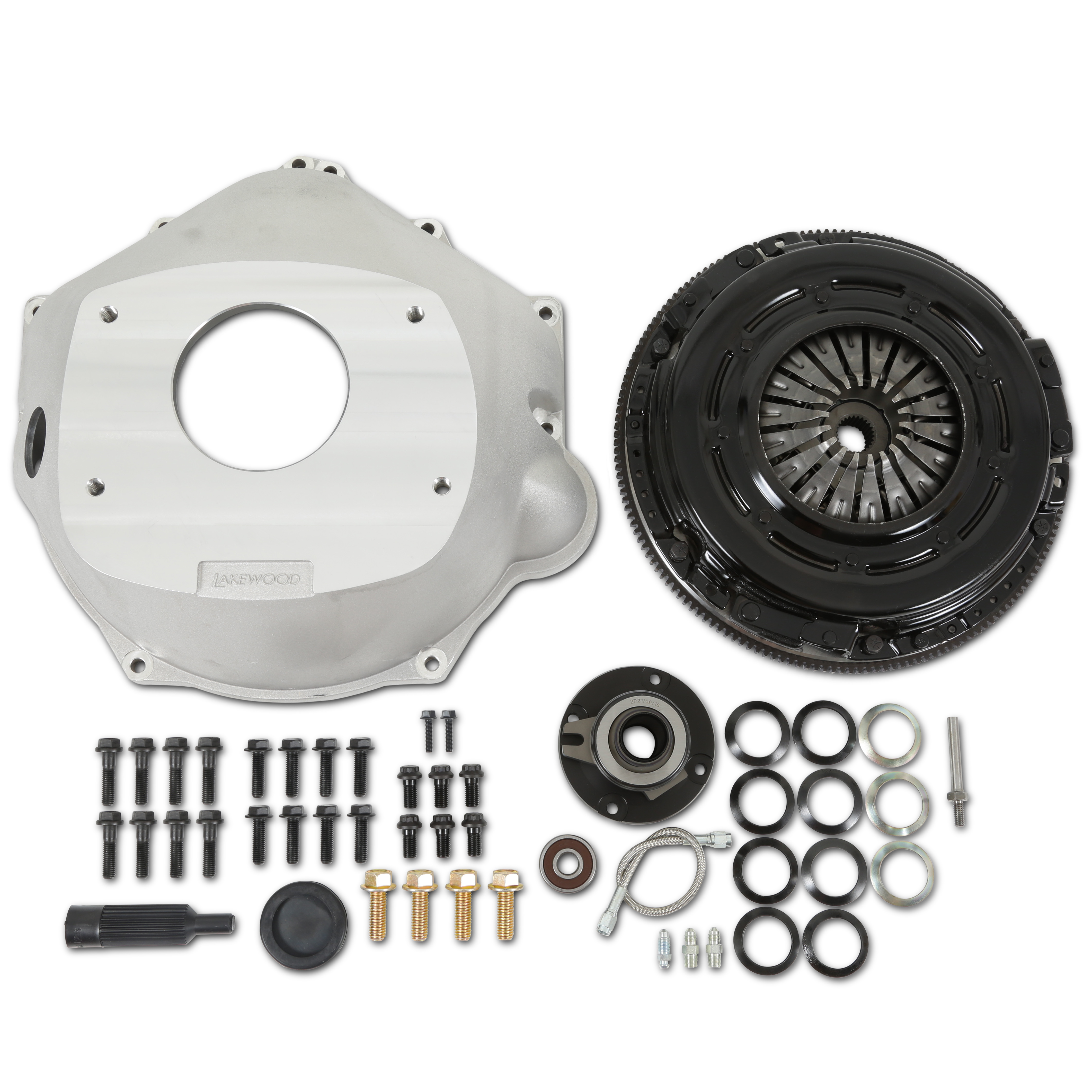

Everything you need to connect a 6-Bolt LS Engine to a Tremec TKX or TKO Transmission
Features
- Designed for Gen III/Gen IV Small Block Chevrolet Engines with 6-bolt crank/flywheel using a TKX or TKO transmission

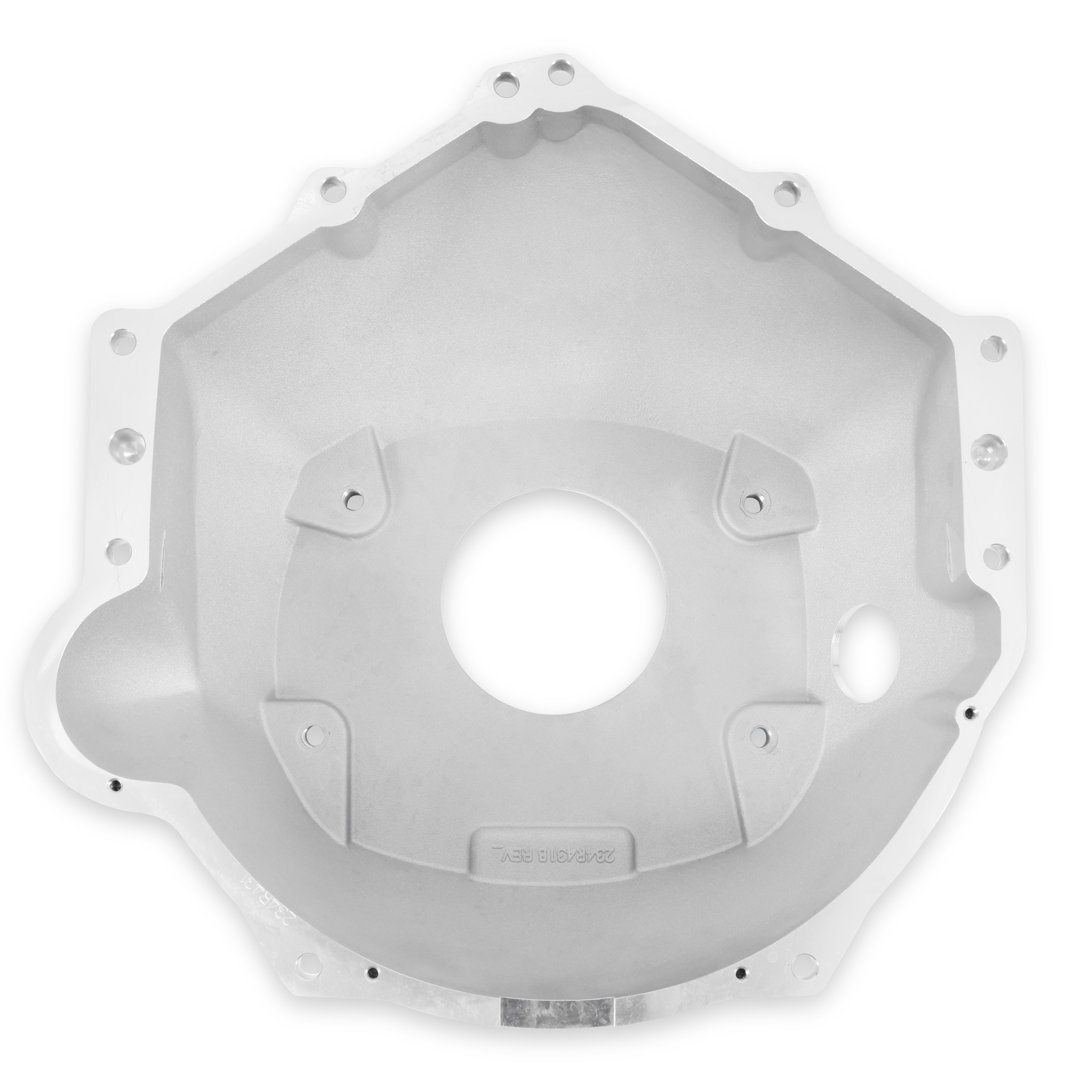

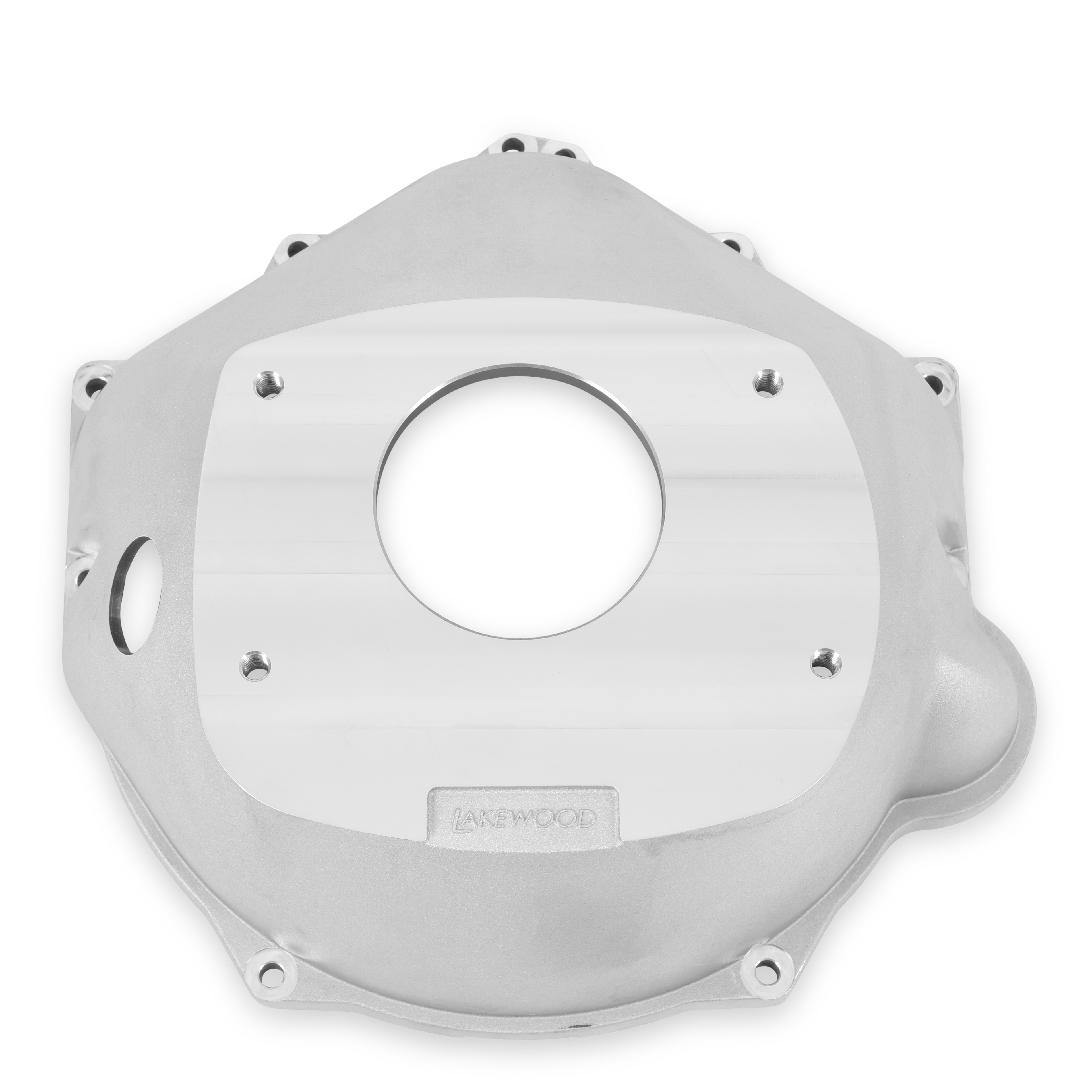

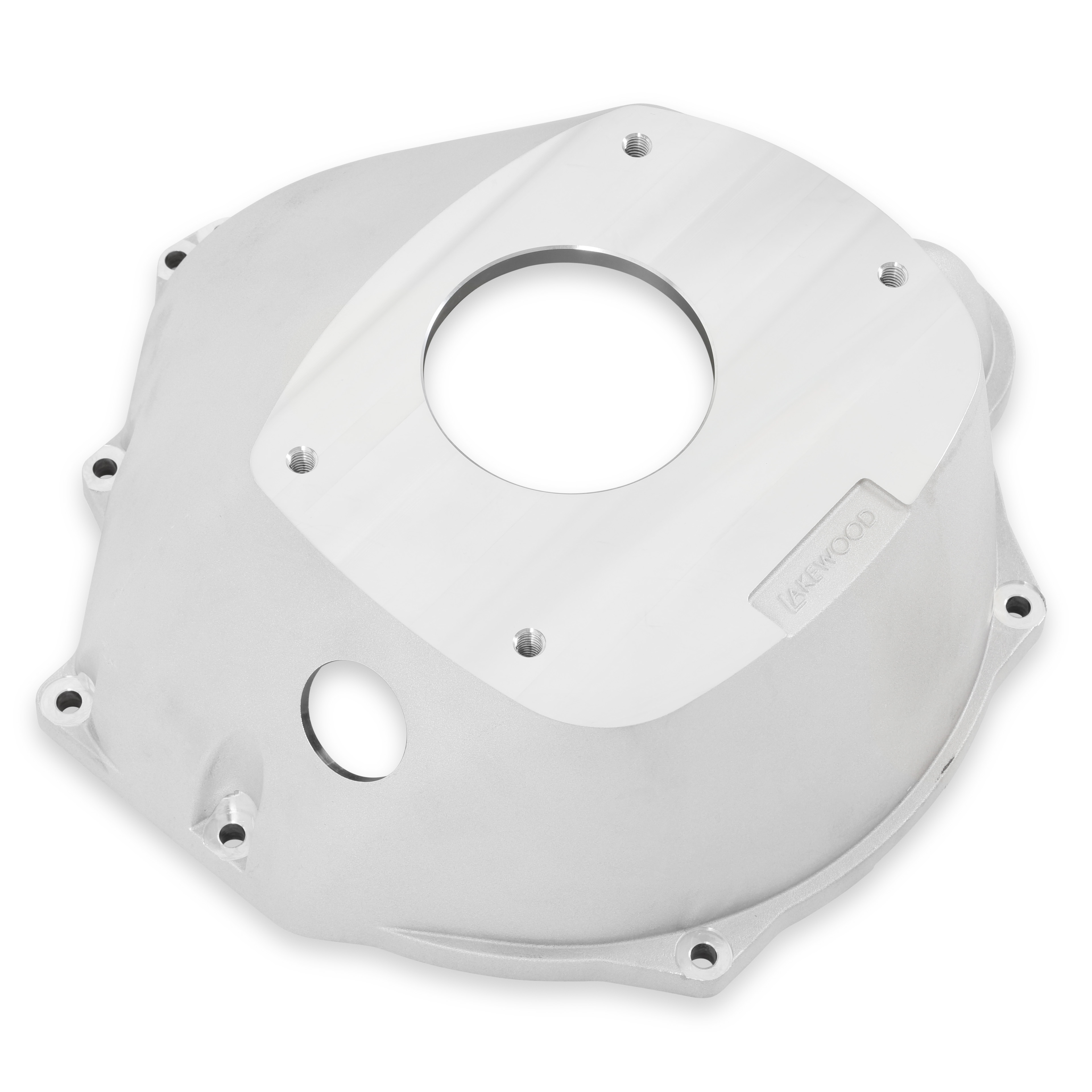

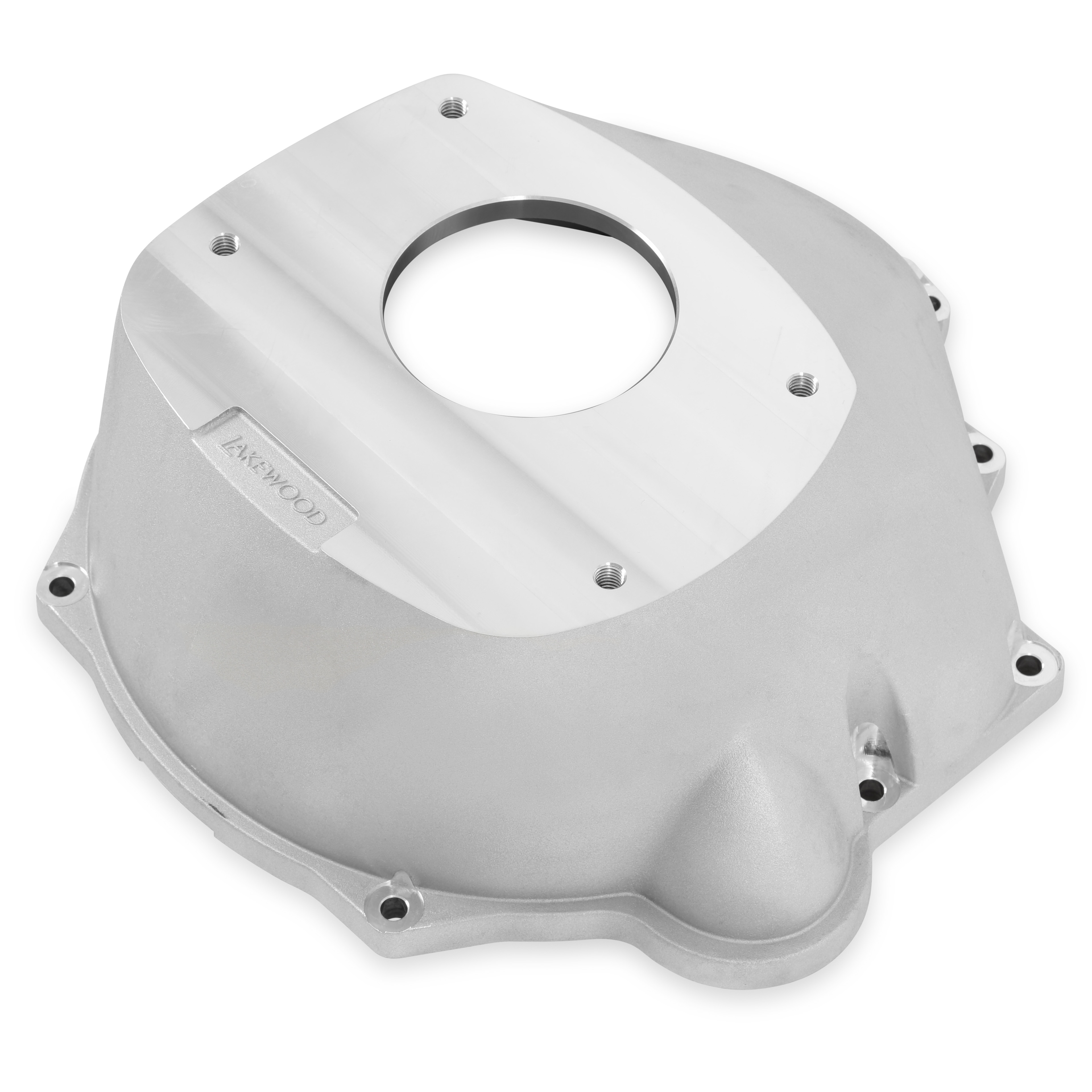

- Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance

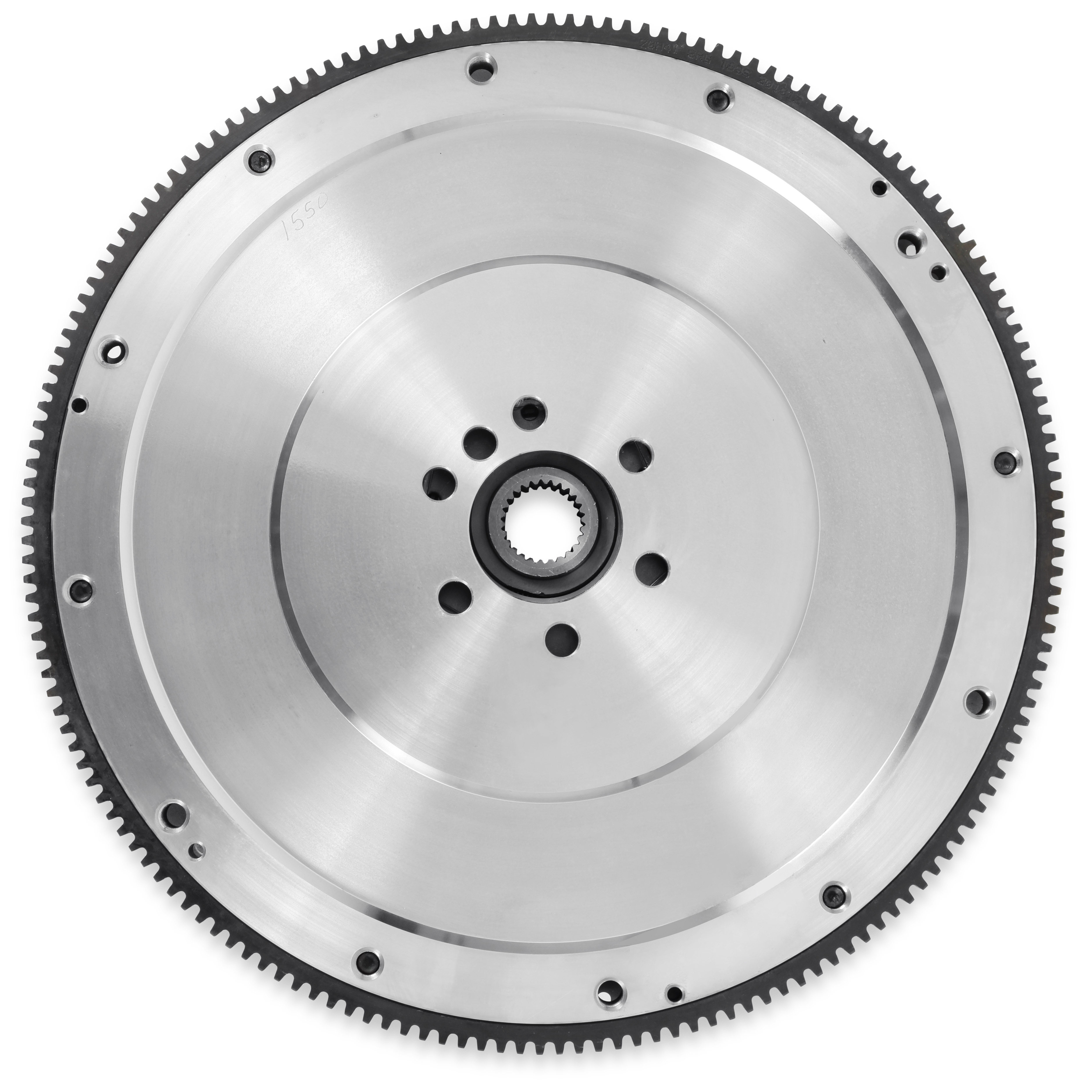

- Billet steel flywheel for light weight (28 pounds) and additional strength
- Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear

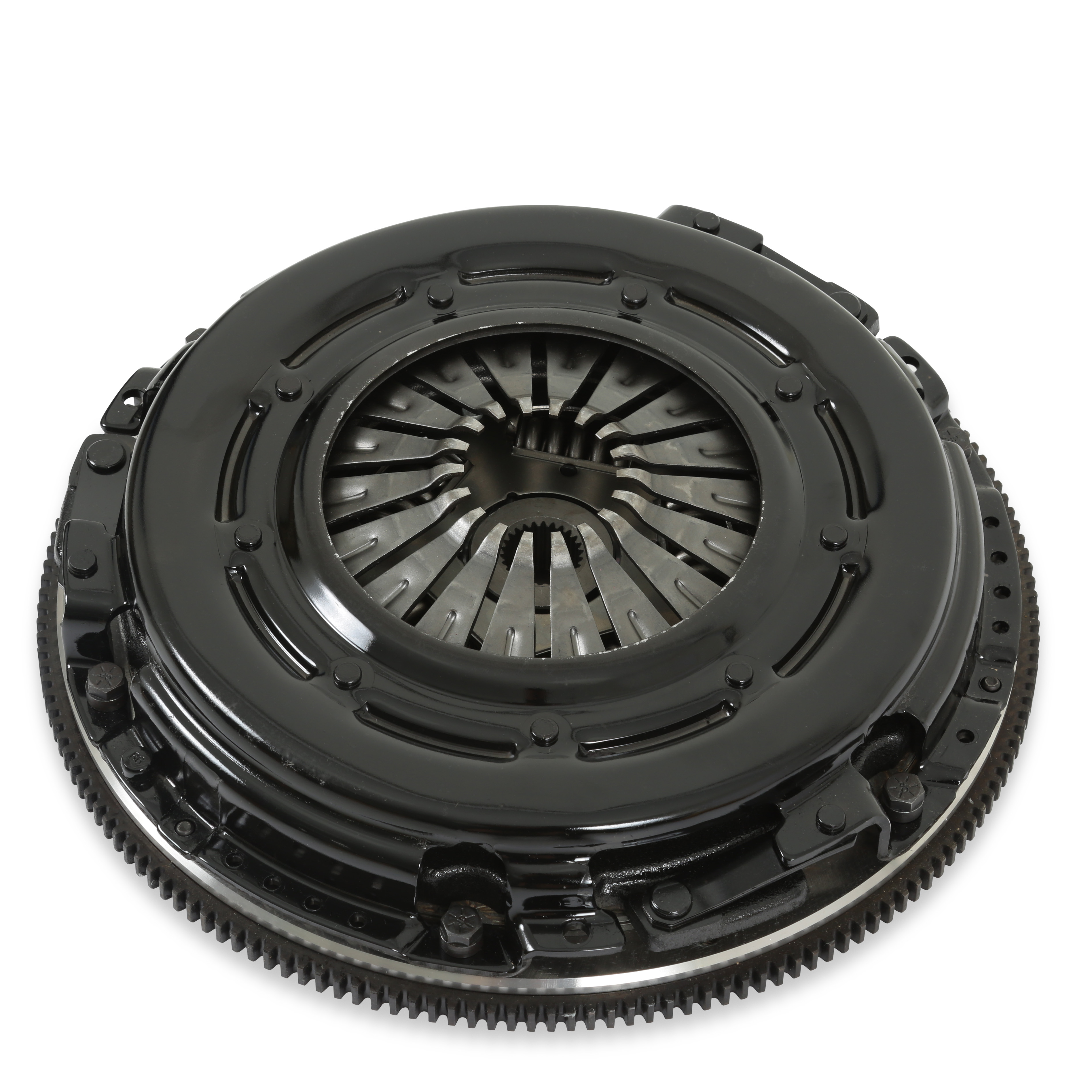

- 26-spline, 12-inch organic sprung clutch offers superior clamping force and smooth engagement for engines up to 550 Naturally Aspirated Horsepower (500 w/ Power Adder)

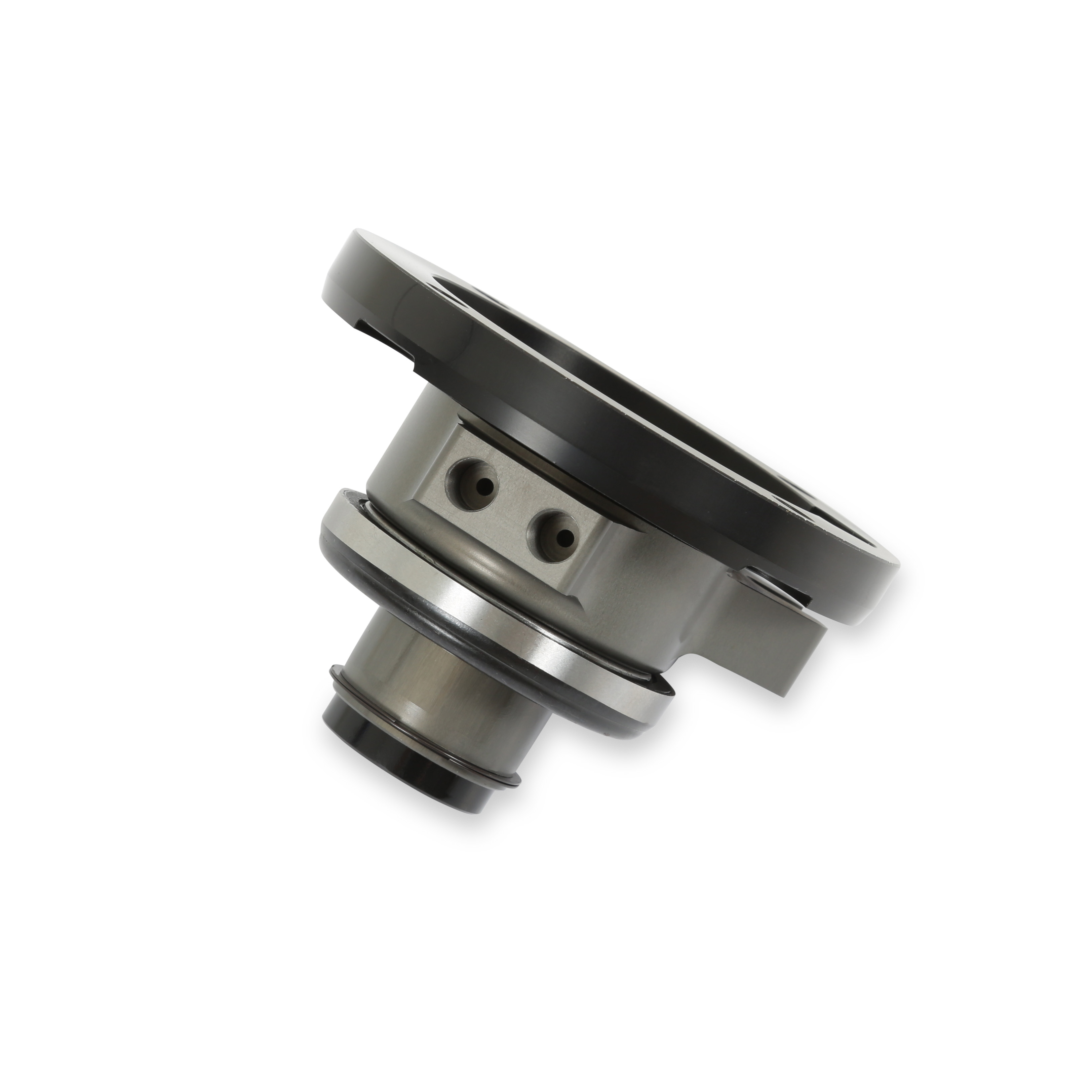

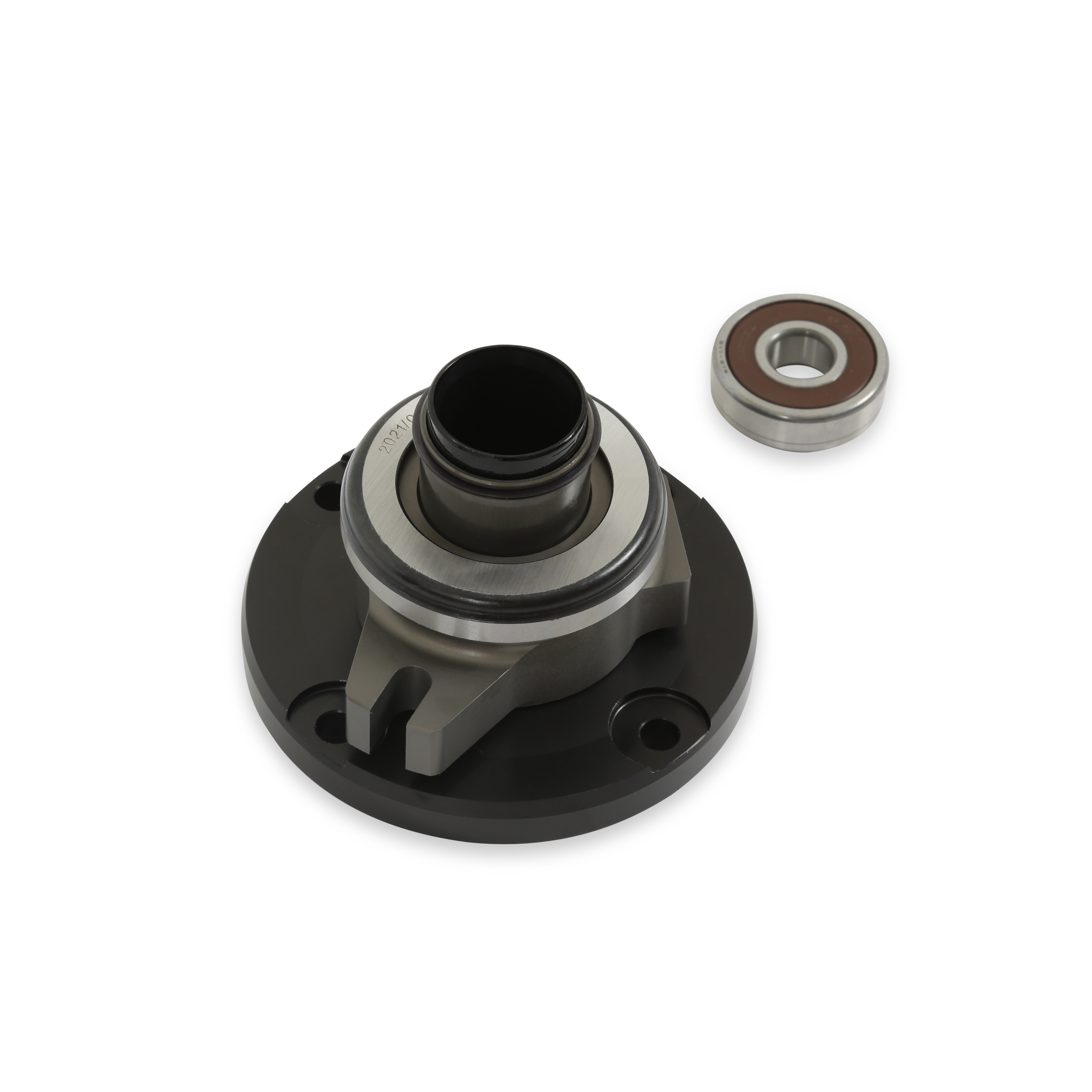

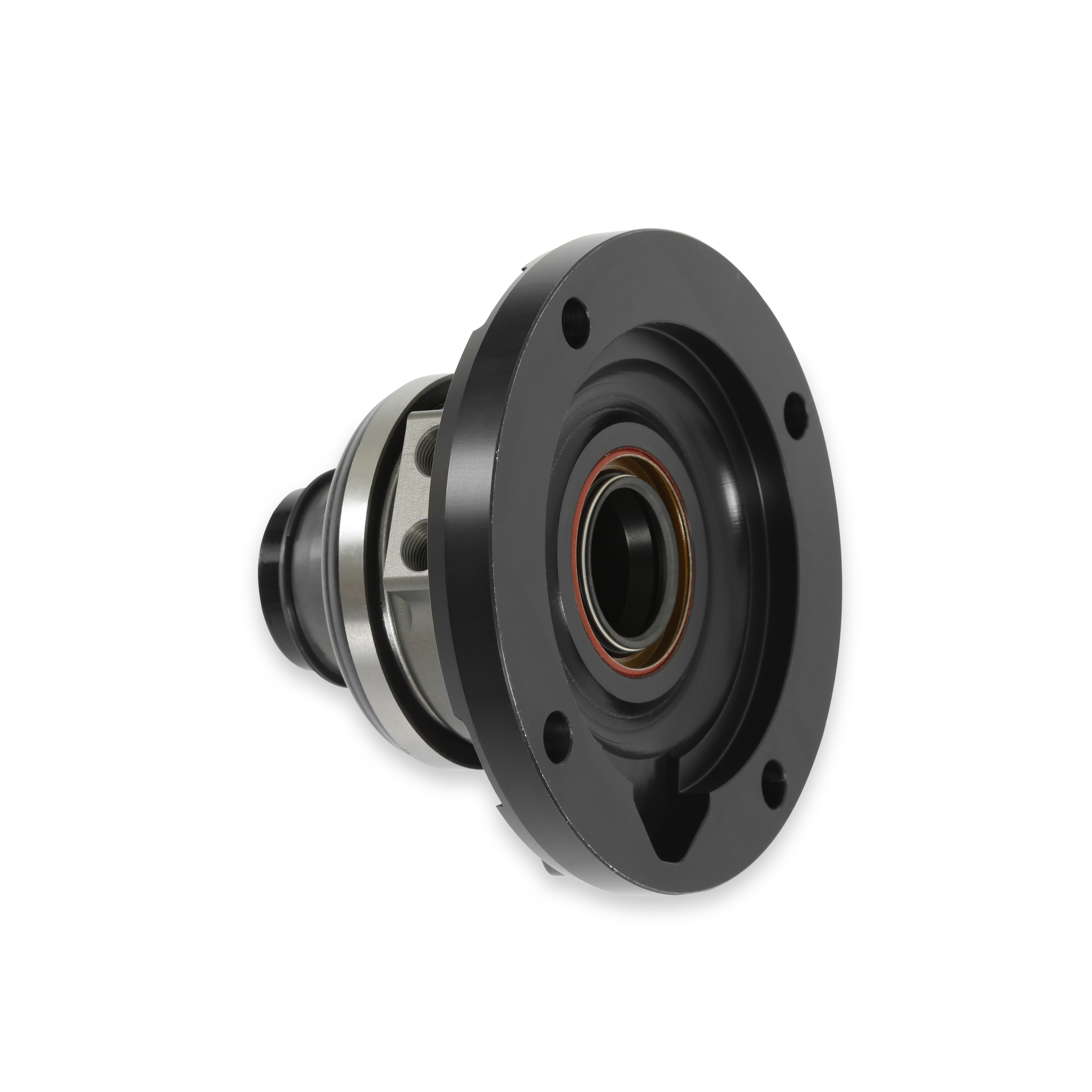

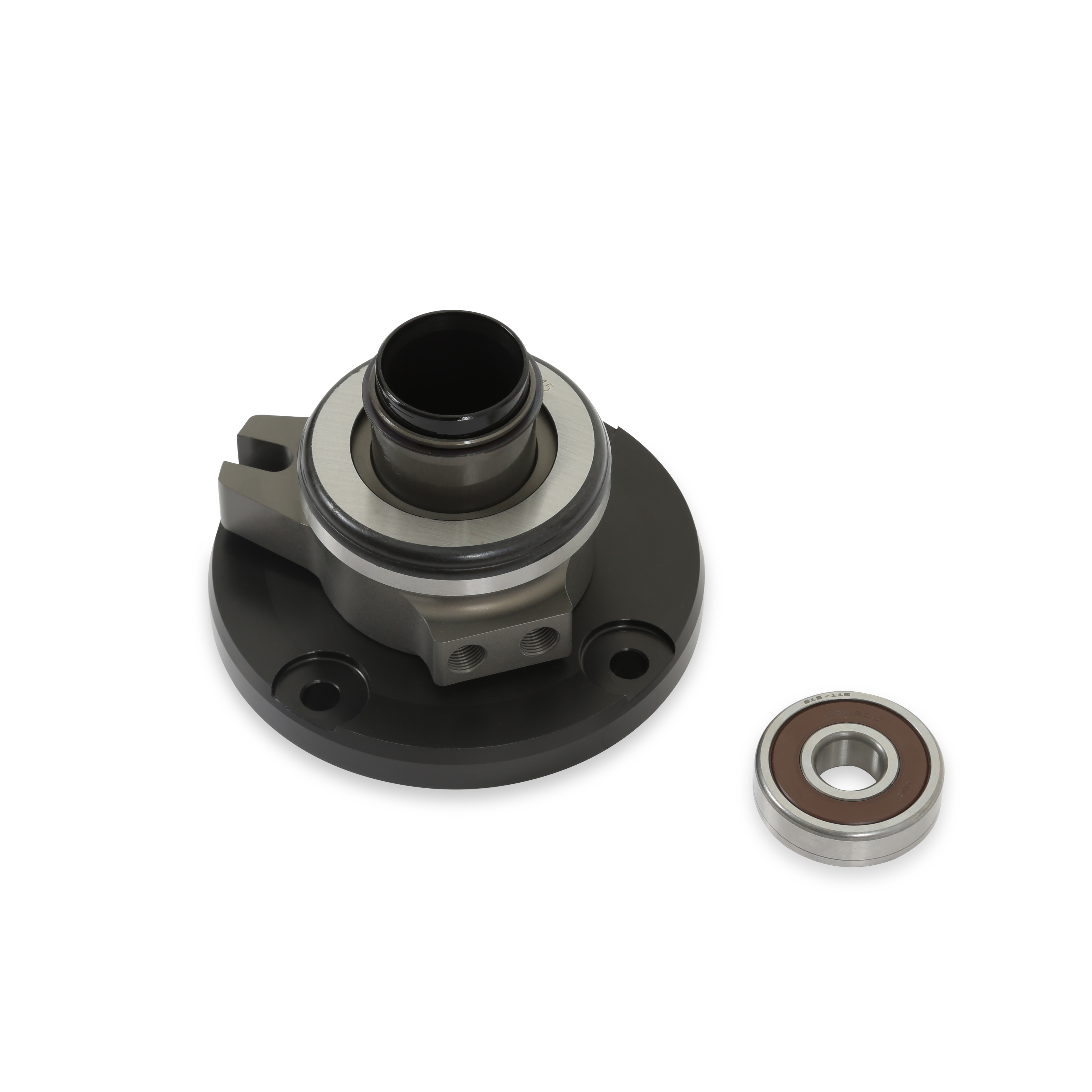

- Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation
- Works with OE (original equipment) or MSD High Torque starters
- All hardware included
Specs
Brand
HOLLEY
Category
Transmission Installation Kit
Specs
Brand: Holley
Engine: GM Gen III/IV (LS)
Warning: California Proposition 65
Category: Transmission
Hardware: Steel
part type: Transmission Installation Kit
Disc Style: Spring Hub
Grade Type: Performance
Engine Make: GM
Input Spline: 26
Product Type: Installation Kit
Sub Category: Manual Transmission Components
Transmission: TKO GM
Disc Diameter: 12
Disc Material: Organic
Emission Code: 5
PILOT BEARING: Roller
RELEASE BEARING: Hydraulic
Flywheel Material: Billet Steel
Bellhousing Material: Aluminum
Input Shaft Diameter: 1-1/8 in.
Pressure Plate Style: Diaphragm
Crankshaft Bolt Hole Count: 6
