Holley Complete Transmission Installation Kit
SKU
HTPD-319-510
List price
$1,631.95
Price
$1,449.95
Description

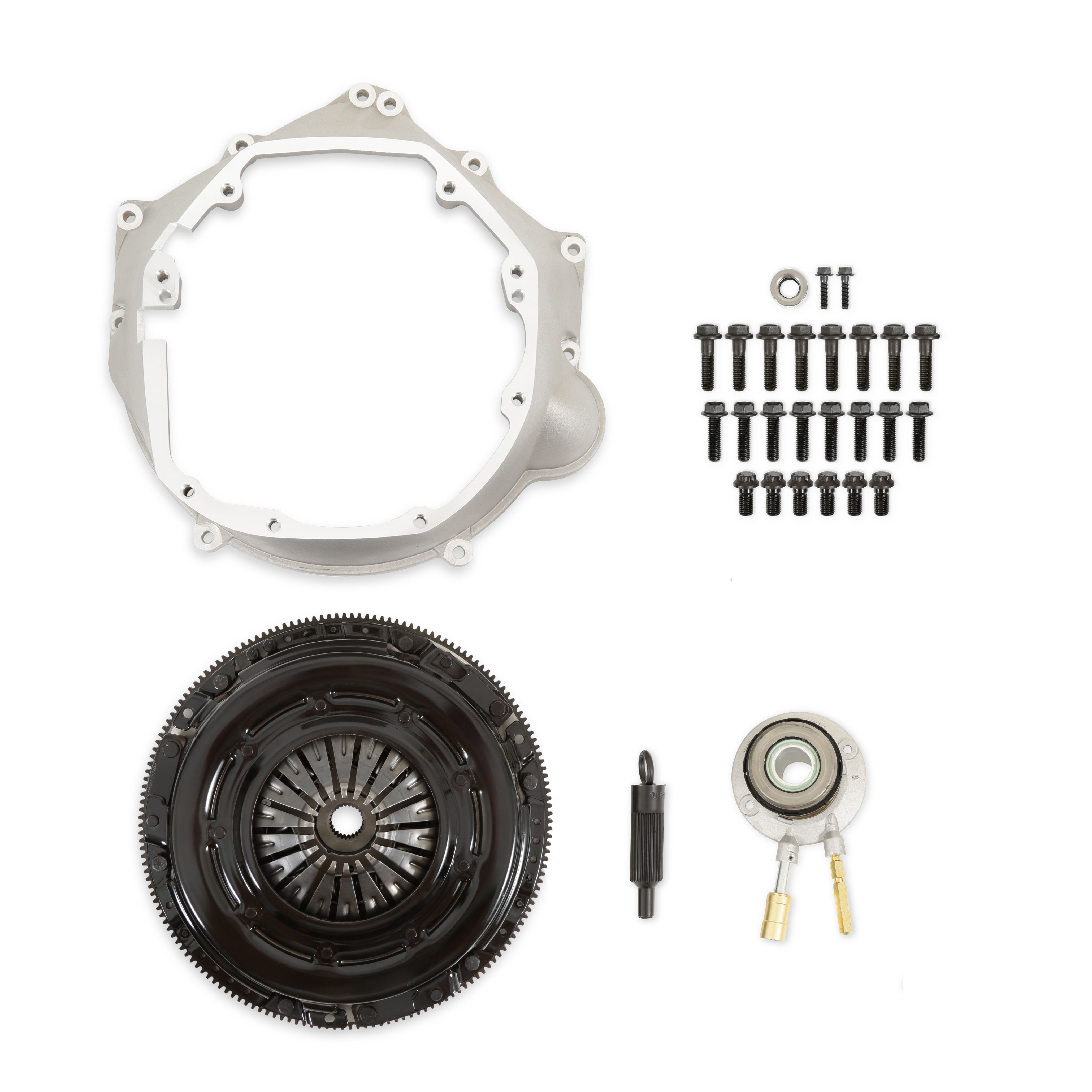

Everything you need to connect a 6-Bolt LS Engine to a Tremec T-56 or Magnum Transmission
Features
- Designed for Gen III/Gen IV Small Block Chevrolet Engines with 6-bolt crank/flywheel using a GM-style Tremec T-56 or Magnum Transmission

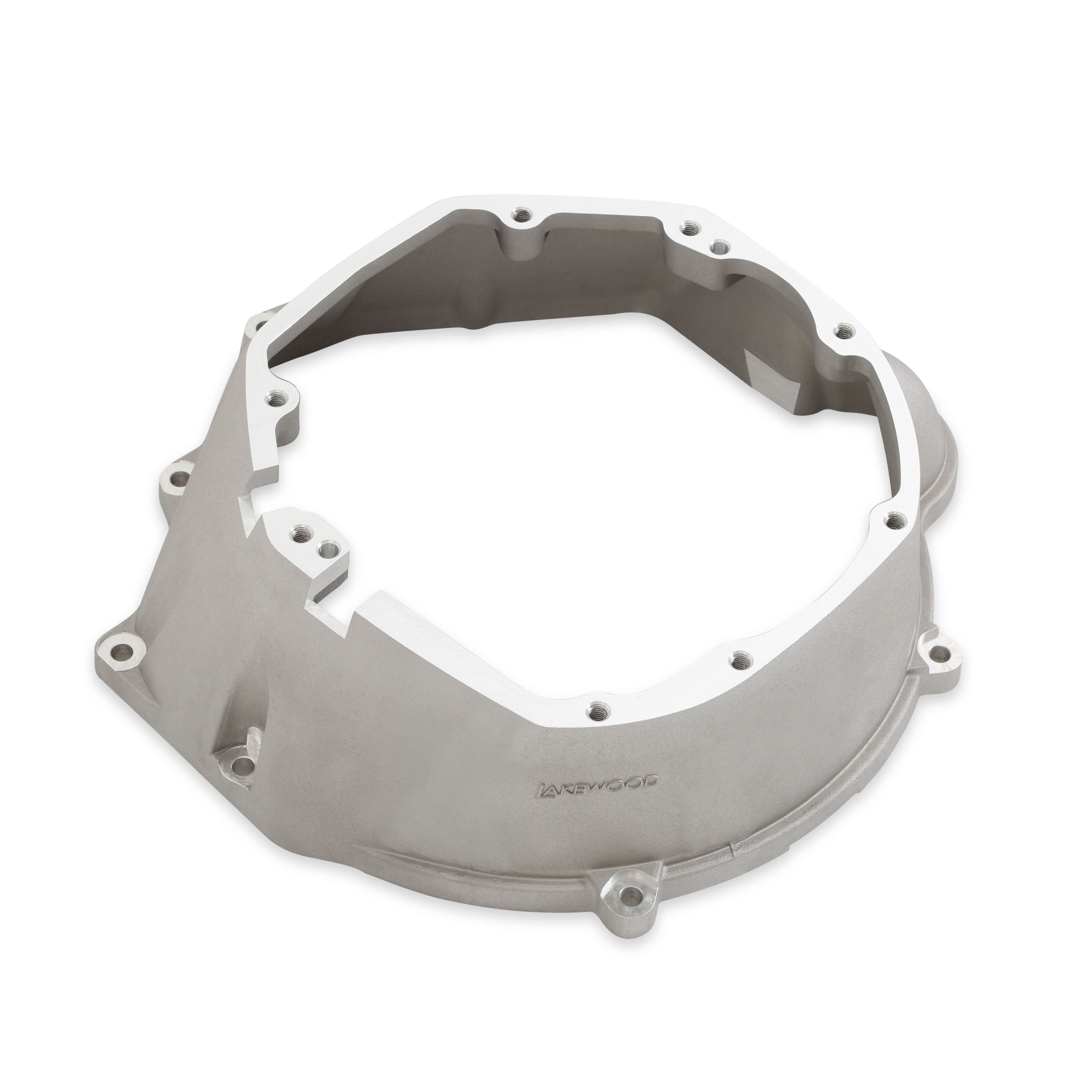

- Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance

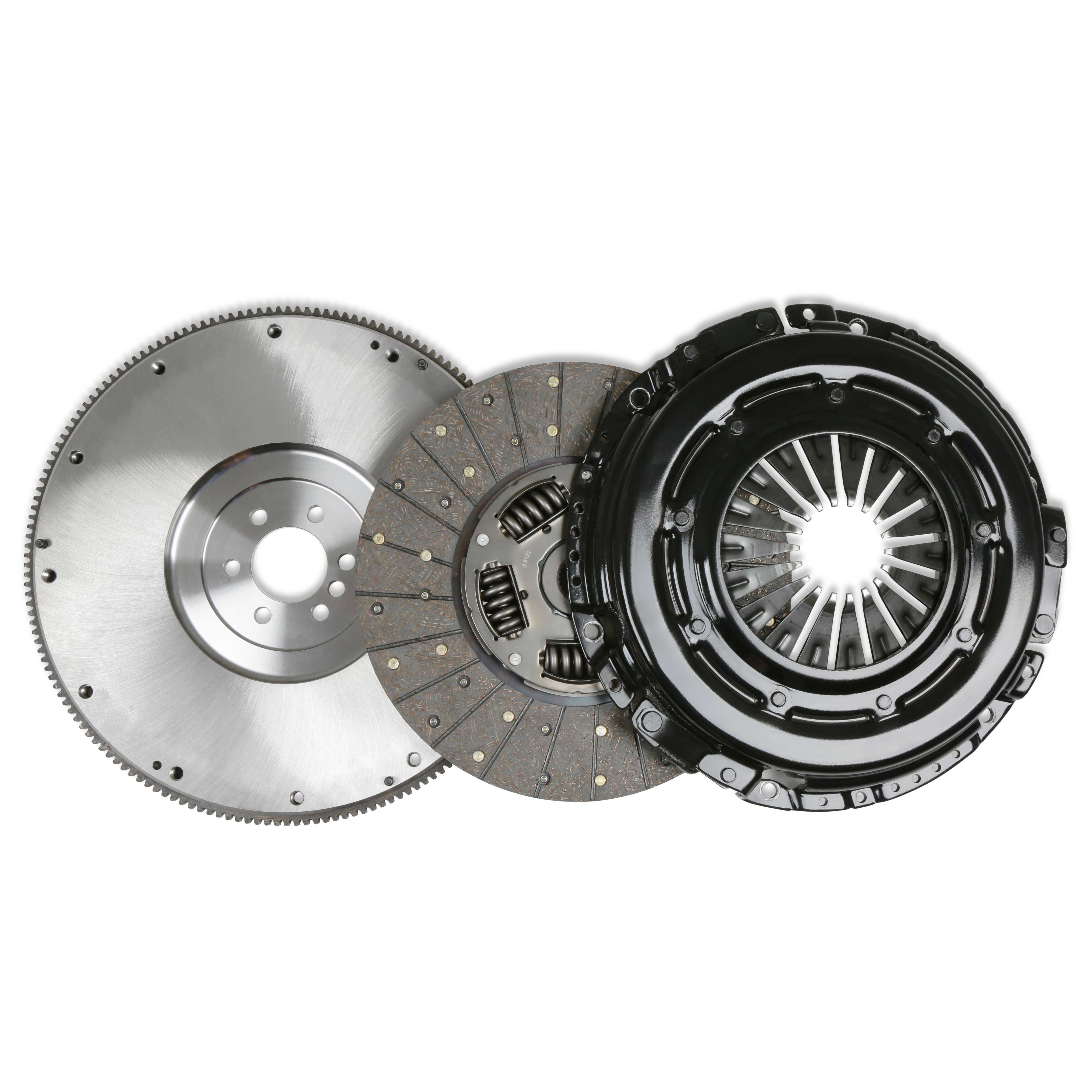

- Billet steel flywheel for light weight (28 pounds) and additional strength
- Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear
- 26-spline, 12-inch organic sprung clutch offers superior clamping force and smooth engagement for engines up to 550 Naturally Aspirated Horsepower (500 w/ Power Adder)

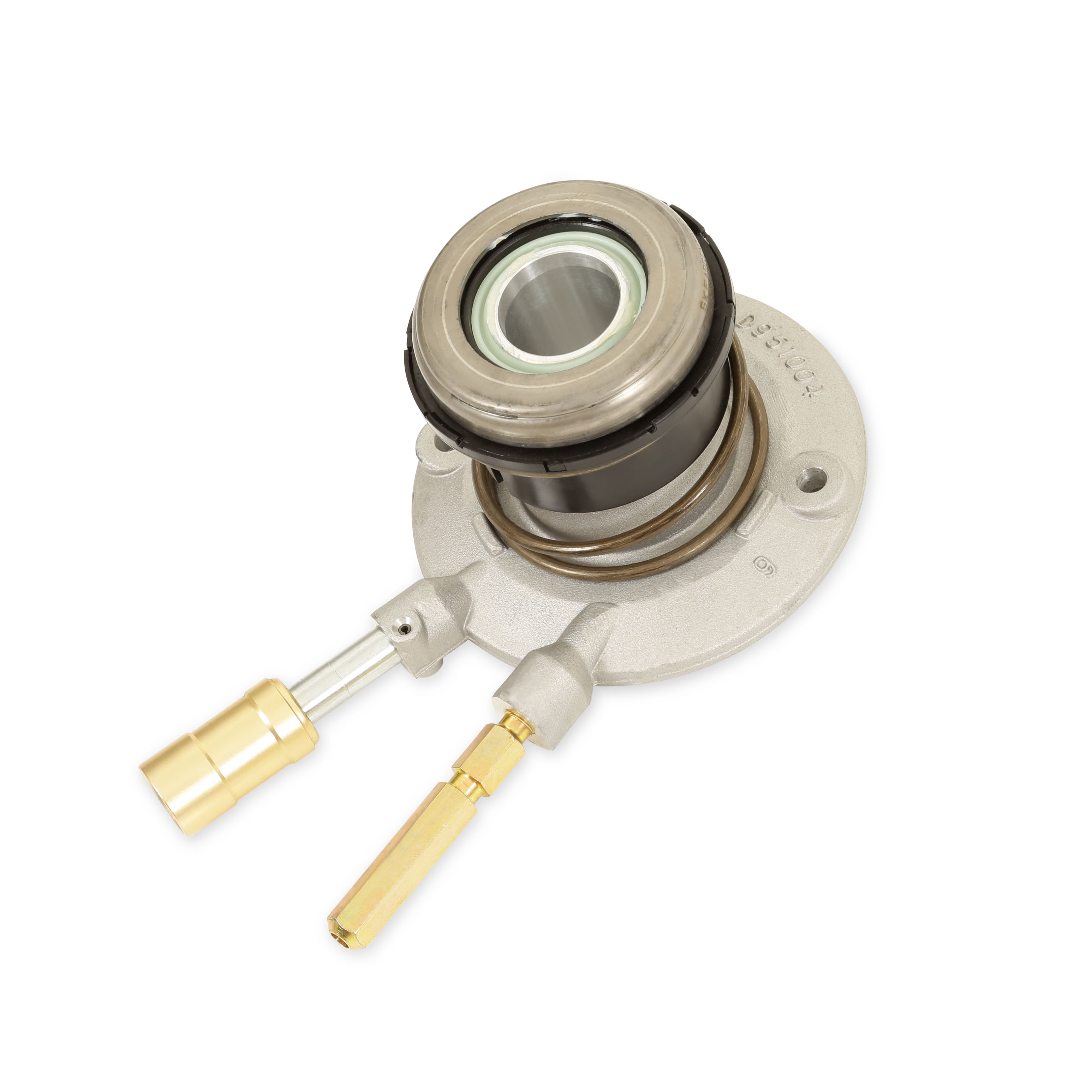

- Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation
- Works with OE (original equipment) or MSD High Torque starters

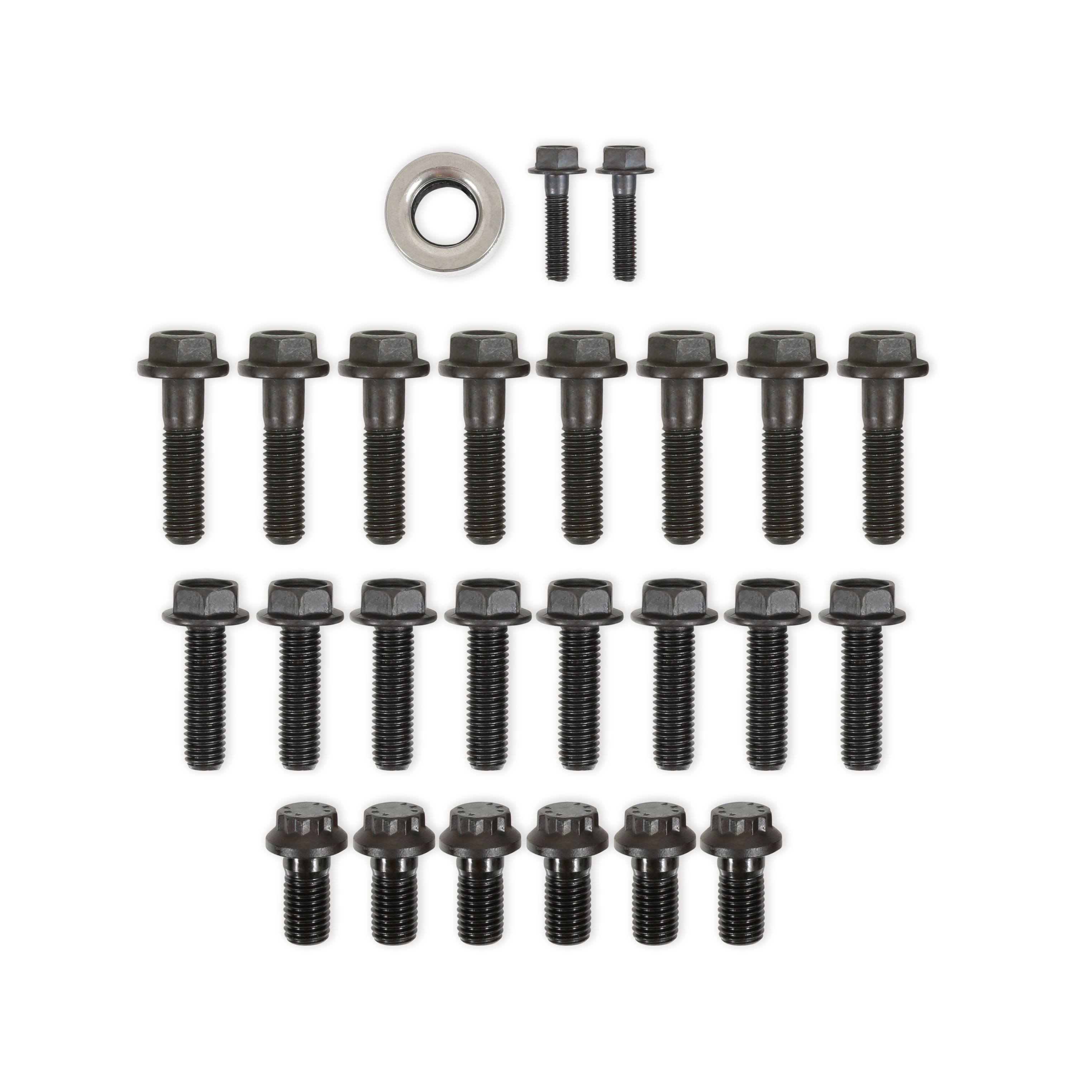

- All hardware included (flywheel, transmission, and engine connections)
Specs
Brand
HOLLEY
Category
Transmission Installation Kit
Specs
Brand: Holley
Engine: GM Gen III/IV (LS)
Warning: California Proposition 65
Category: Transmission
Hardware: Steel
part type: Transmission Installation Kit
Disc Style: Spring Hub
Grade Type: Performance
Engine Make: GM
Input Spline: 26
Product Type: Installation Kit
Sub Category: Manual Transmission Components
Transmission: T56 Magnum GM
Disc Diameter: 12
Disc Material: Organic
Emission Code: 5
PILOT BEARING: Roller
RELEASE BEARING: Hydraulic
Flywheel Material: Billet Steel
Bellhousing Material: Aluminum
Input Shaft Diameter: 1-1/8 in.
Pressure Plate Style: Diaphragm
Crankshaft Bolt Hole Count: 6
PDFs
PDFs
68b263e379048.pdf
(475.84 KB)
