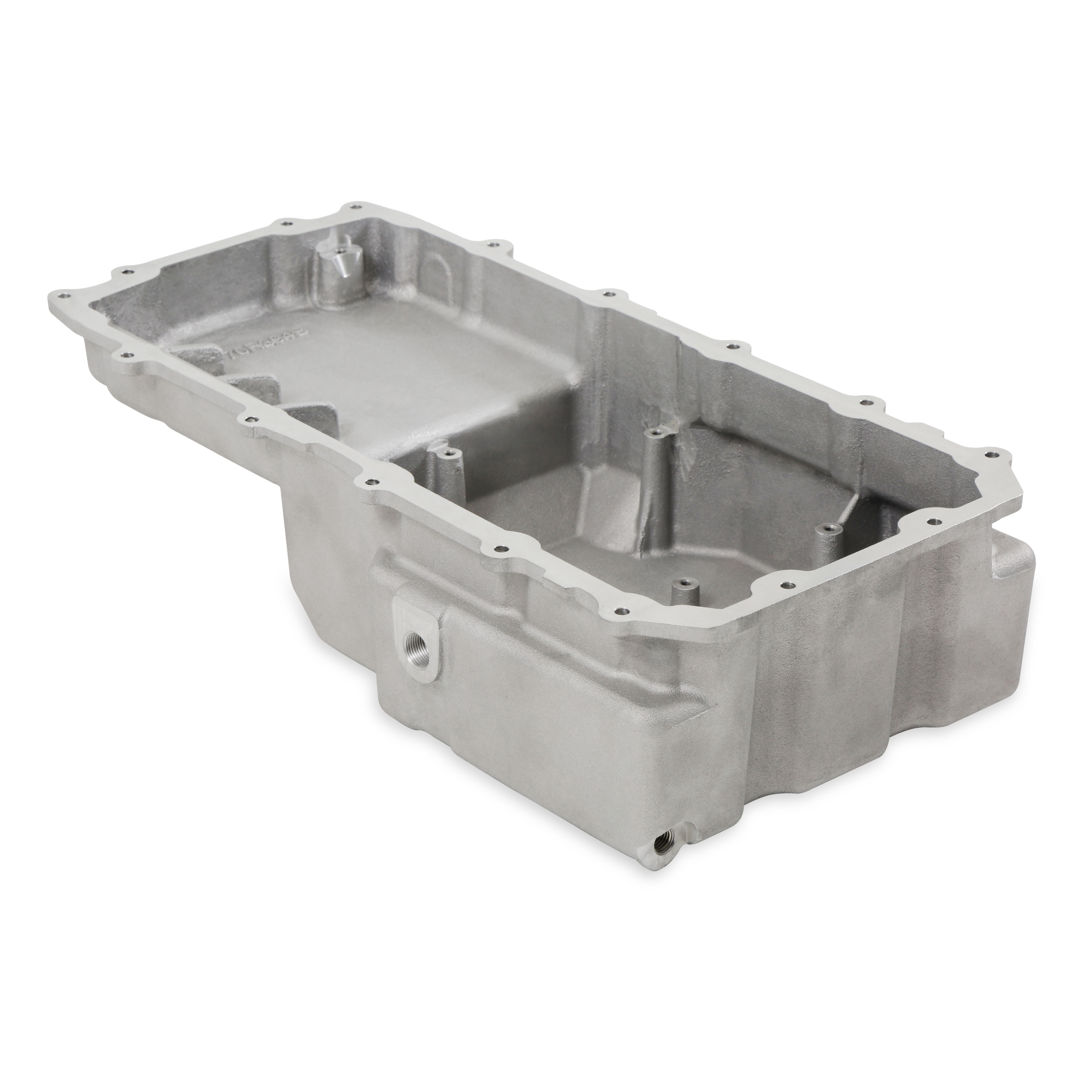

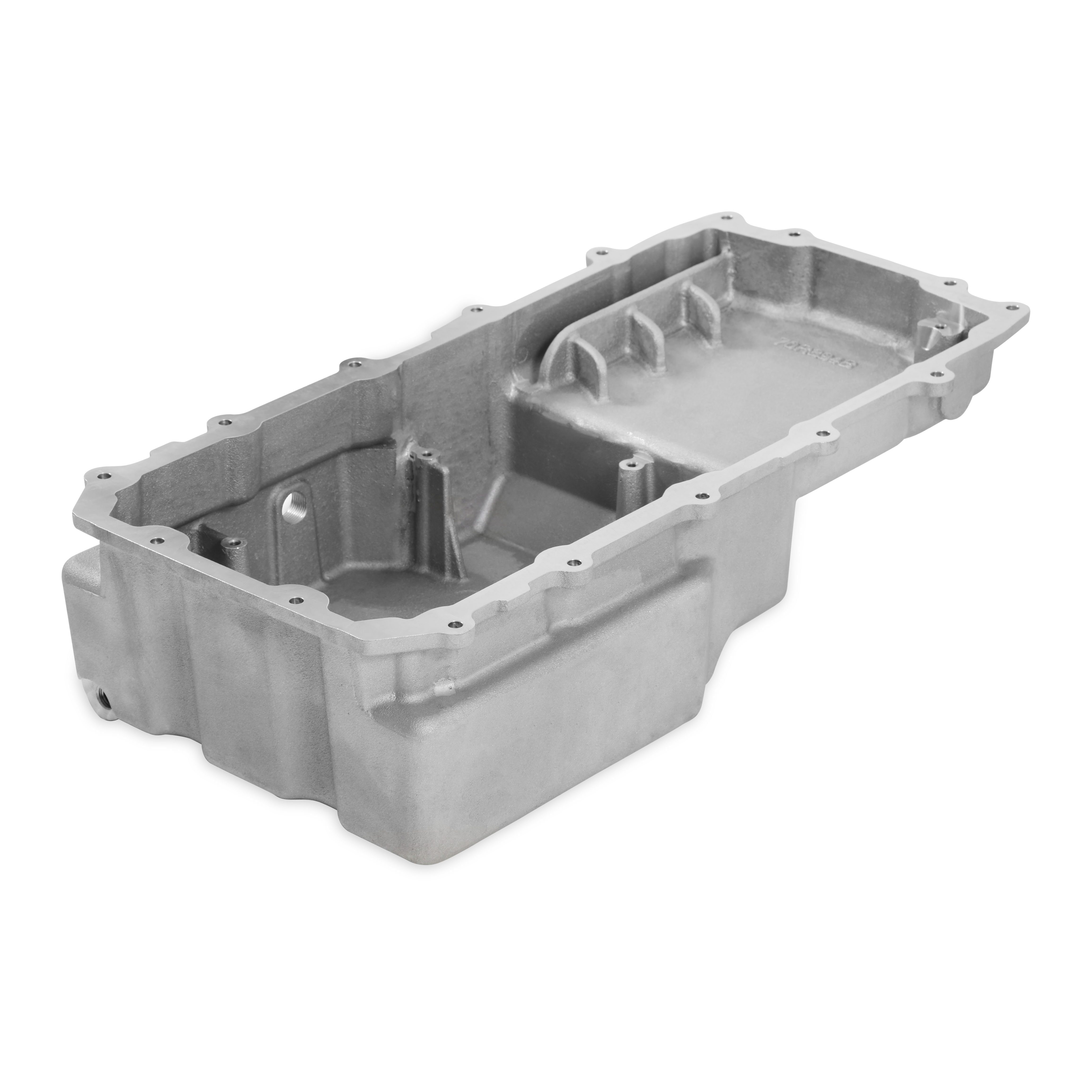

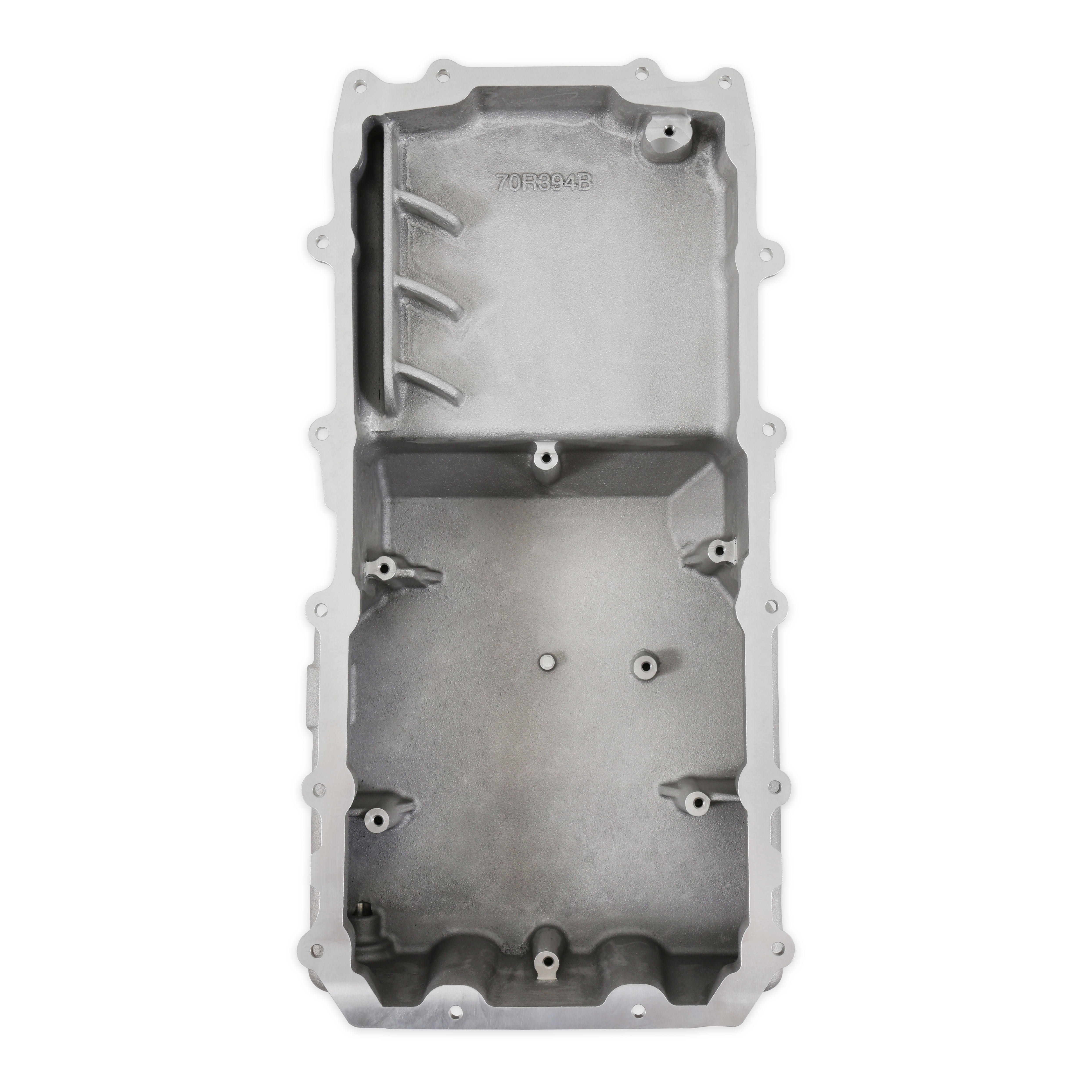

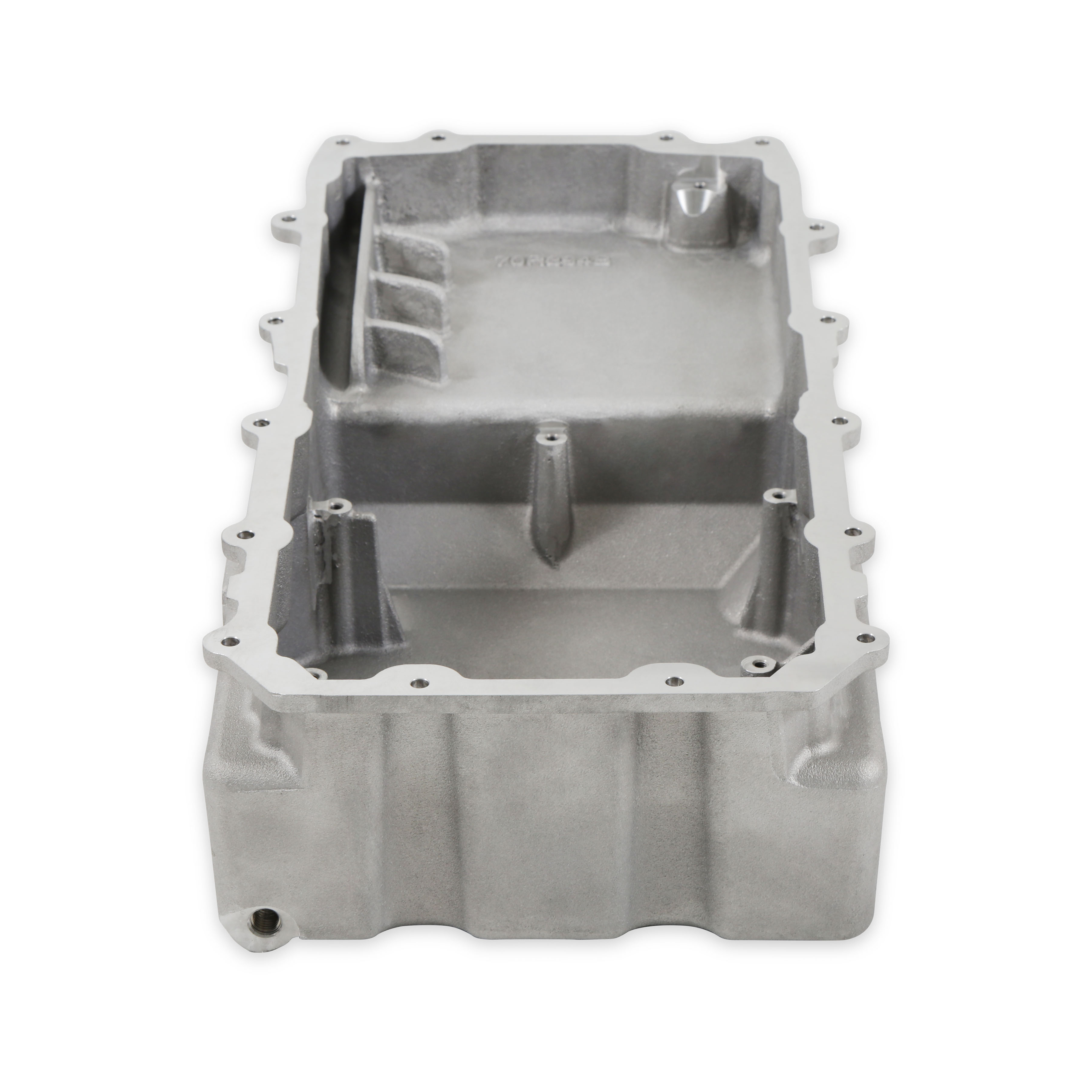

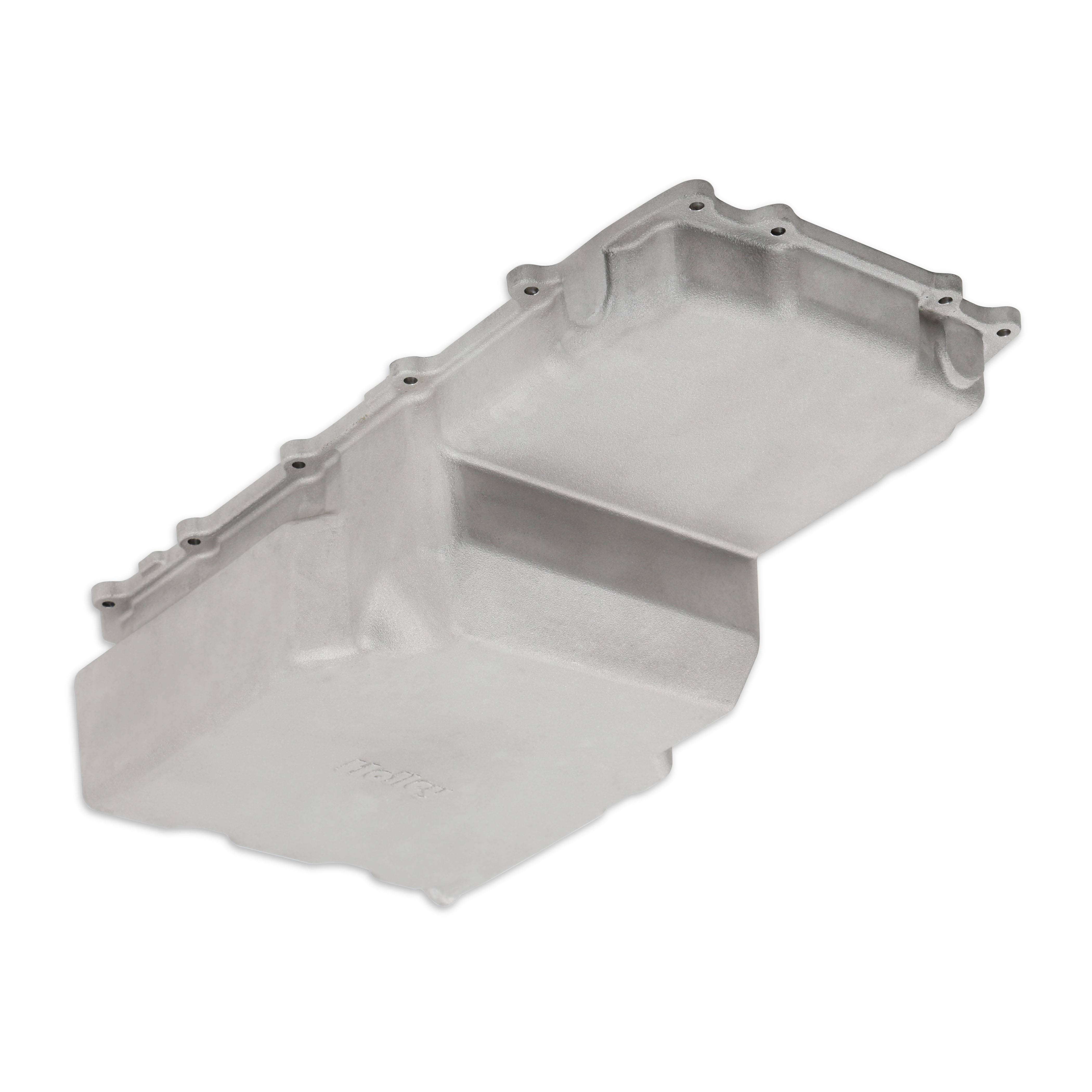

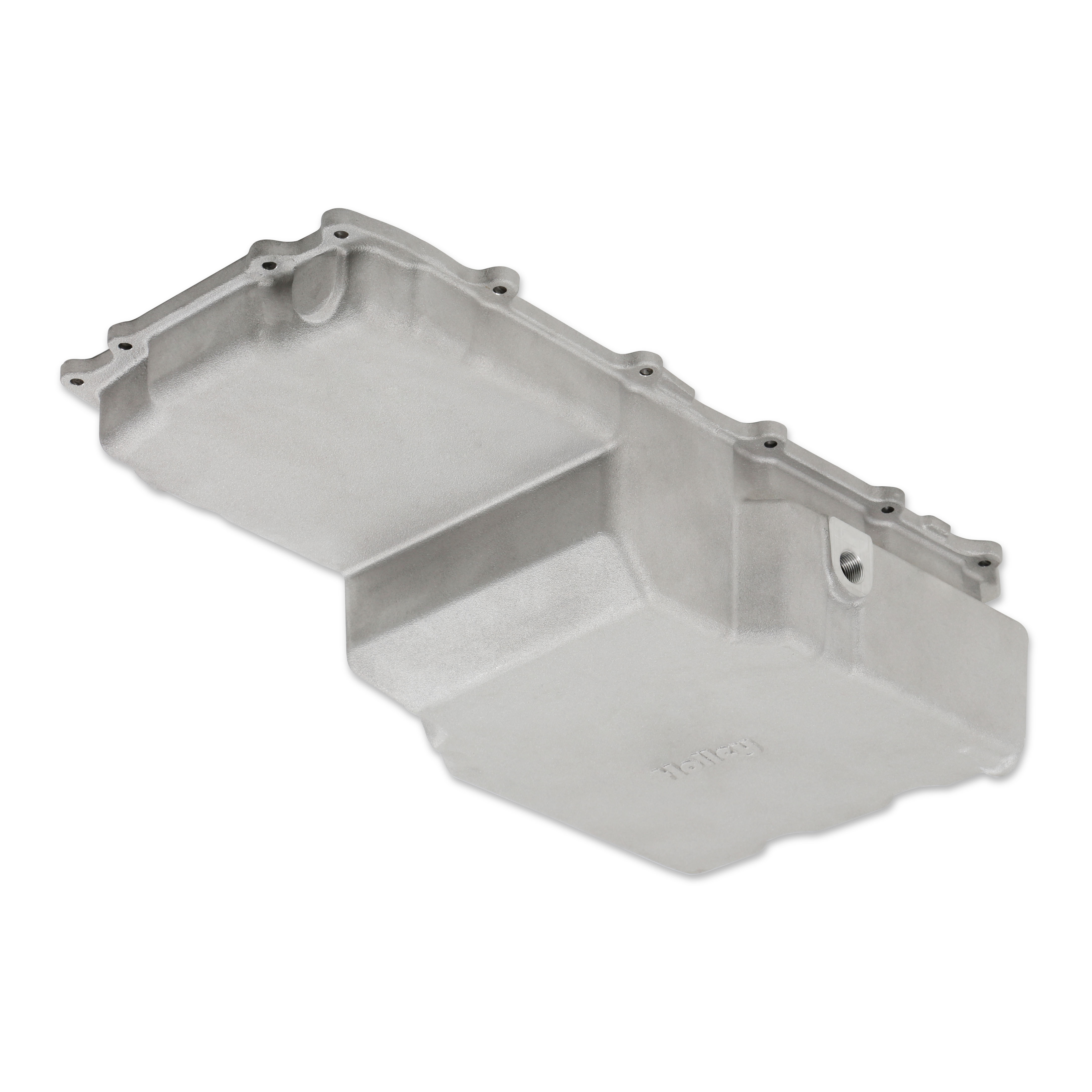

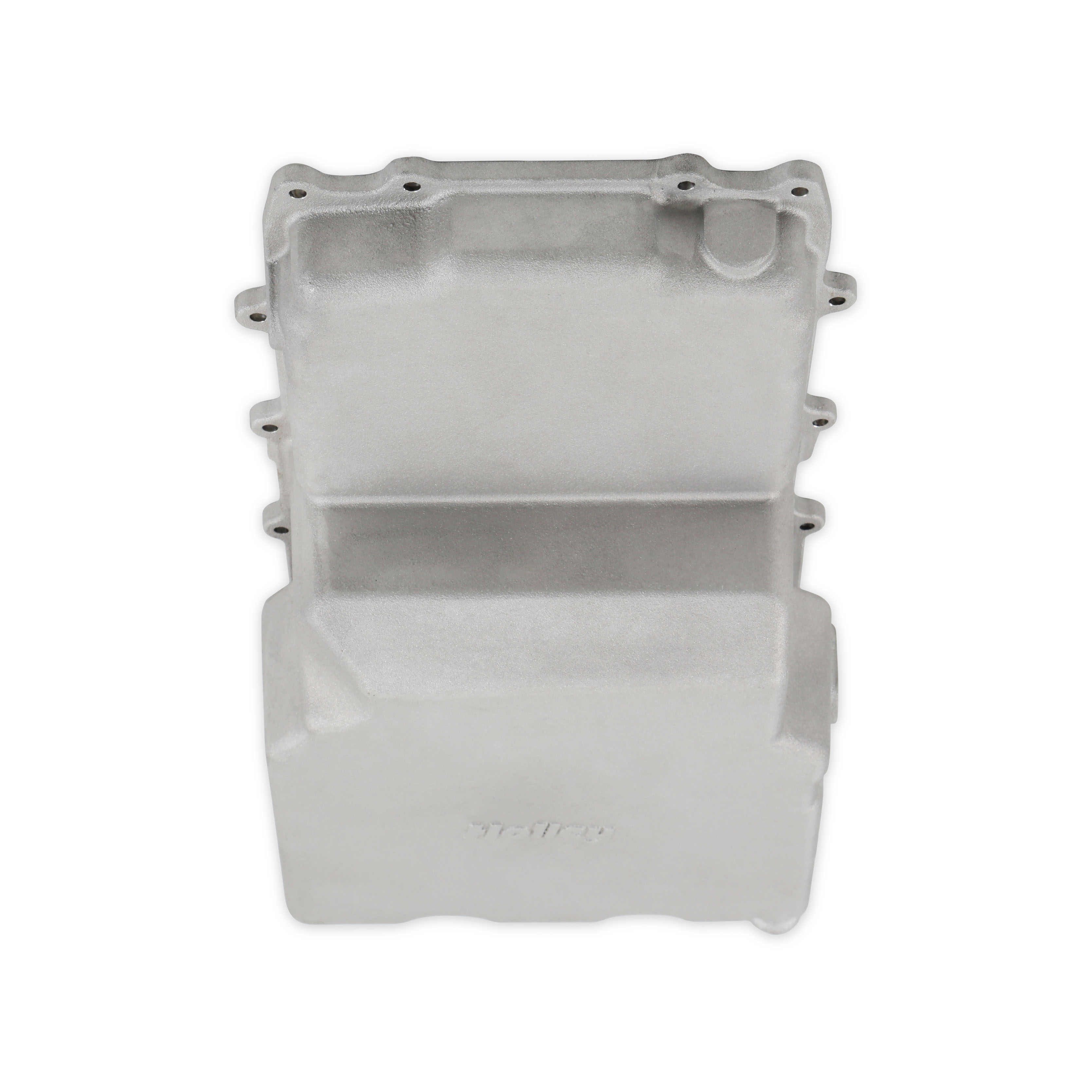

Holley Cast Aluminum Rear Sump Oil Pan - Ford Coyote Swap
SKU
HTPD-302-80
List price
$562.95
Price
$374.95
Description
Fits Gen 1 and 2 Coyote Engines in 1953-1979 Ford F100, F150, and F250 2WD Trucks
Features
- Maintains oil capacity of stock Mustang Coyote oil pan to ensure adequate oil supply in all street performance and factory-stock type racing applications.
- Oil pan fits 2011-2017 Gen I and II Coyote engines.
- Installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics.
- Provides compatibility with the stock Gen 1 and 2 Mustang Coyote engine low-oil level sensor

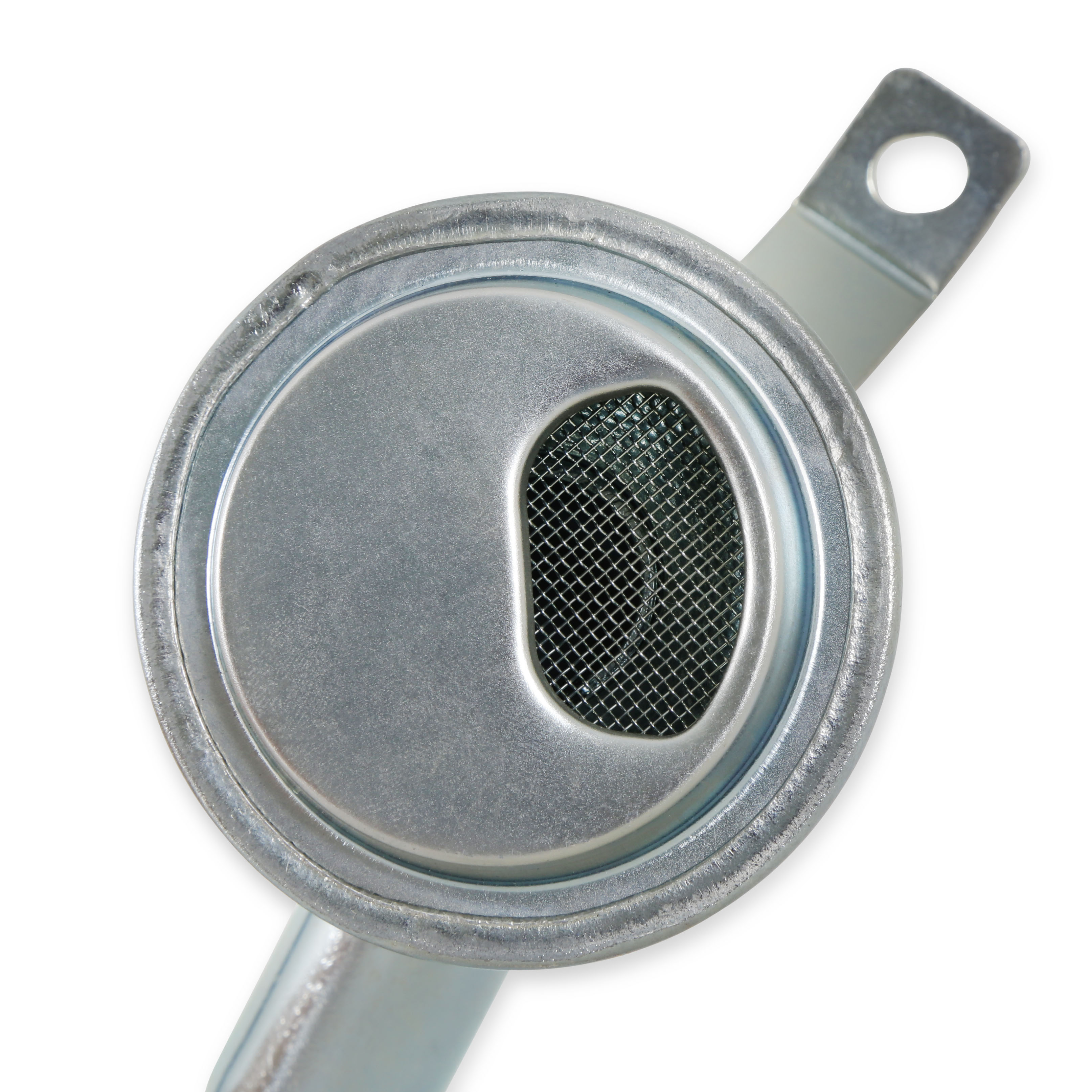

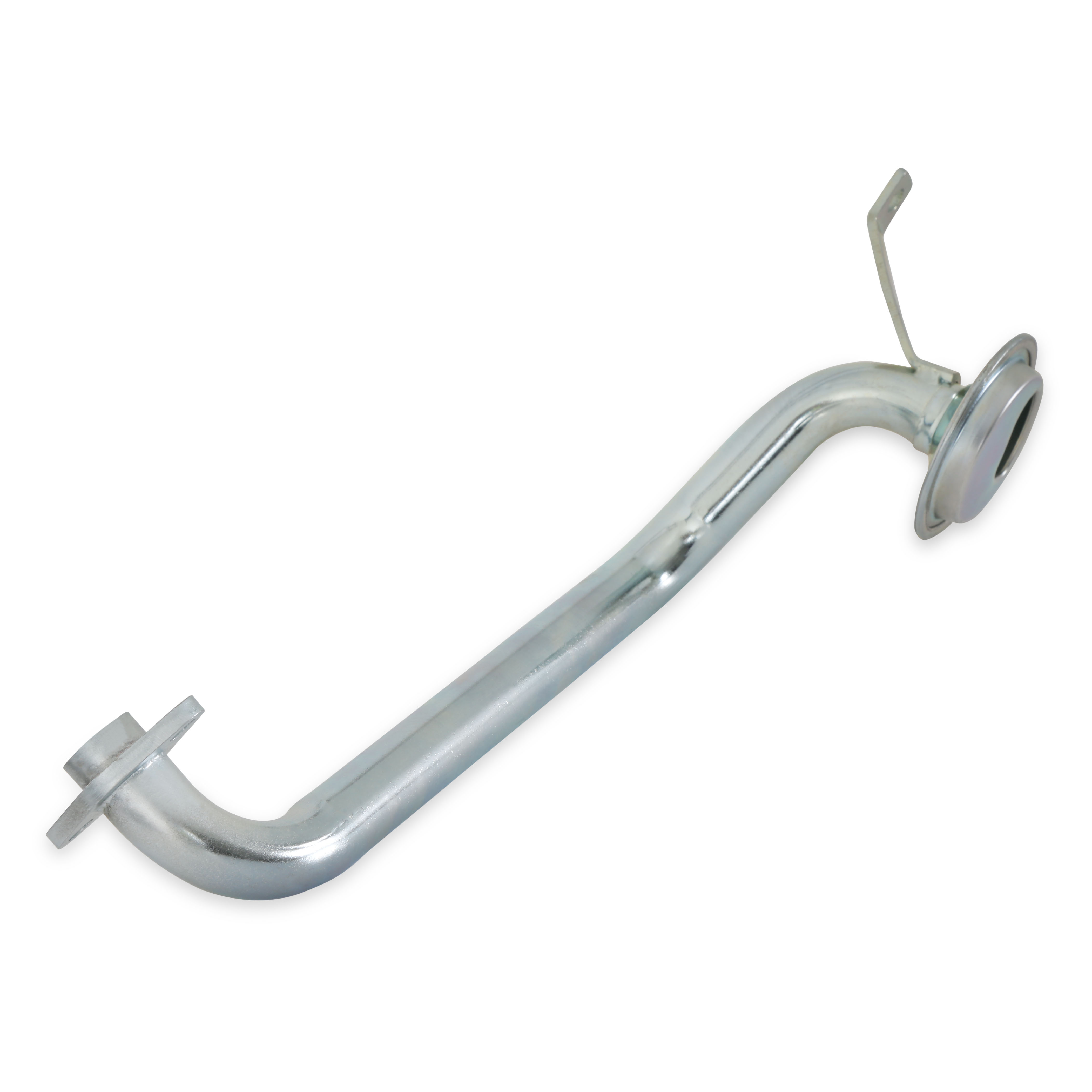

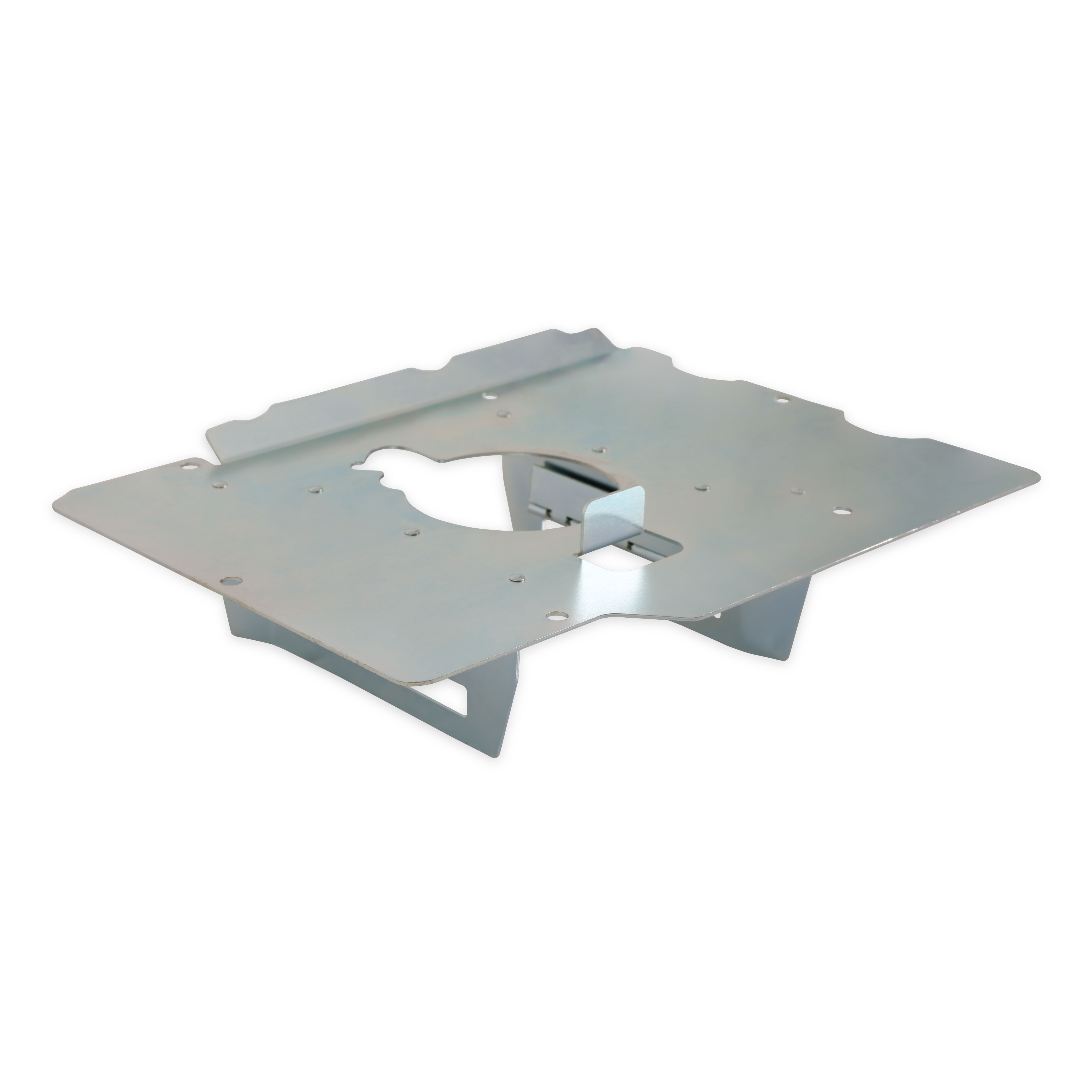

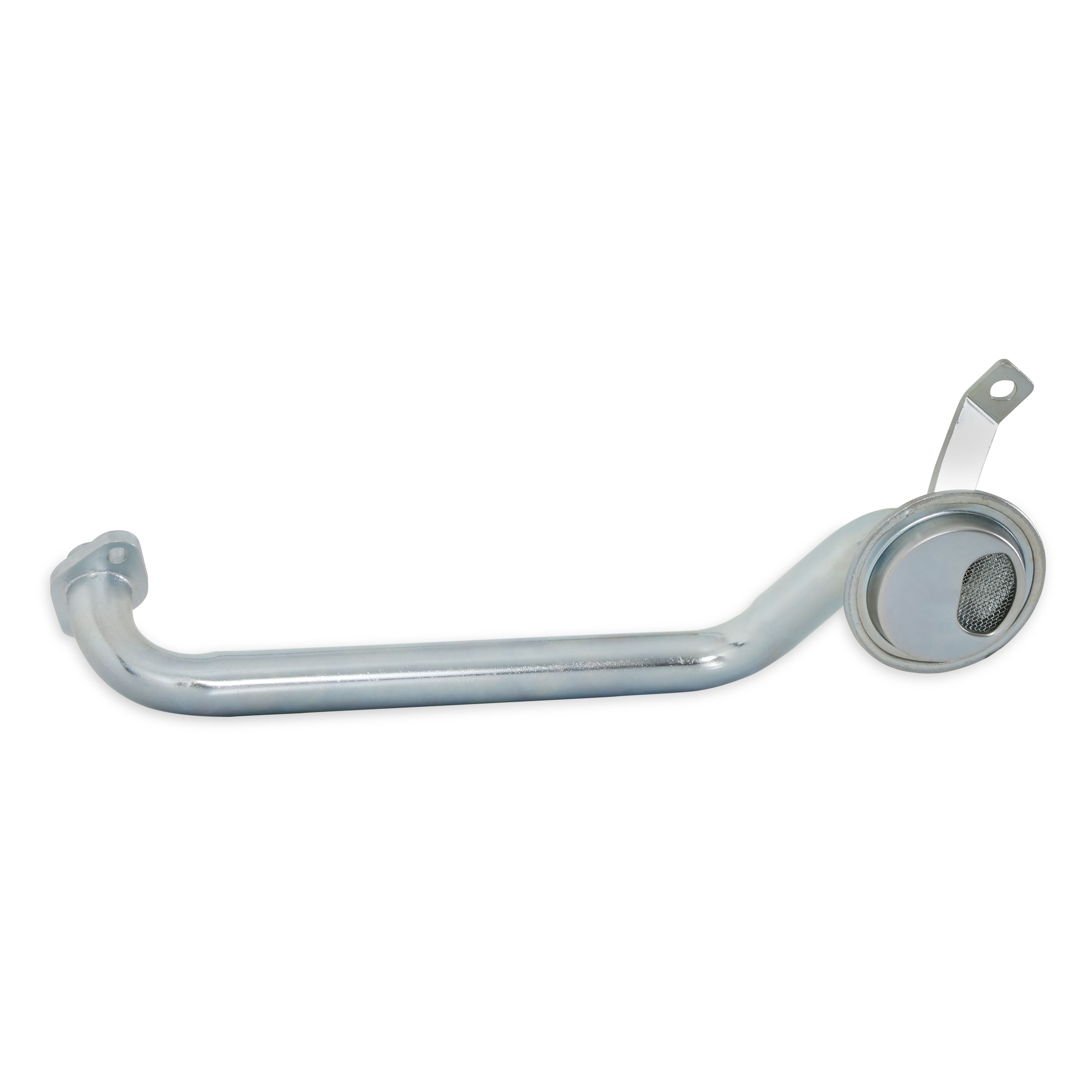

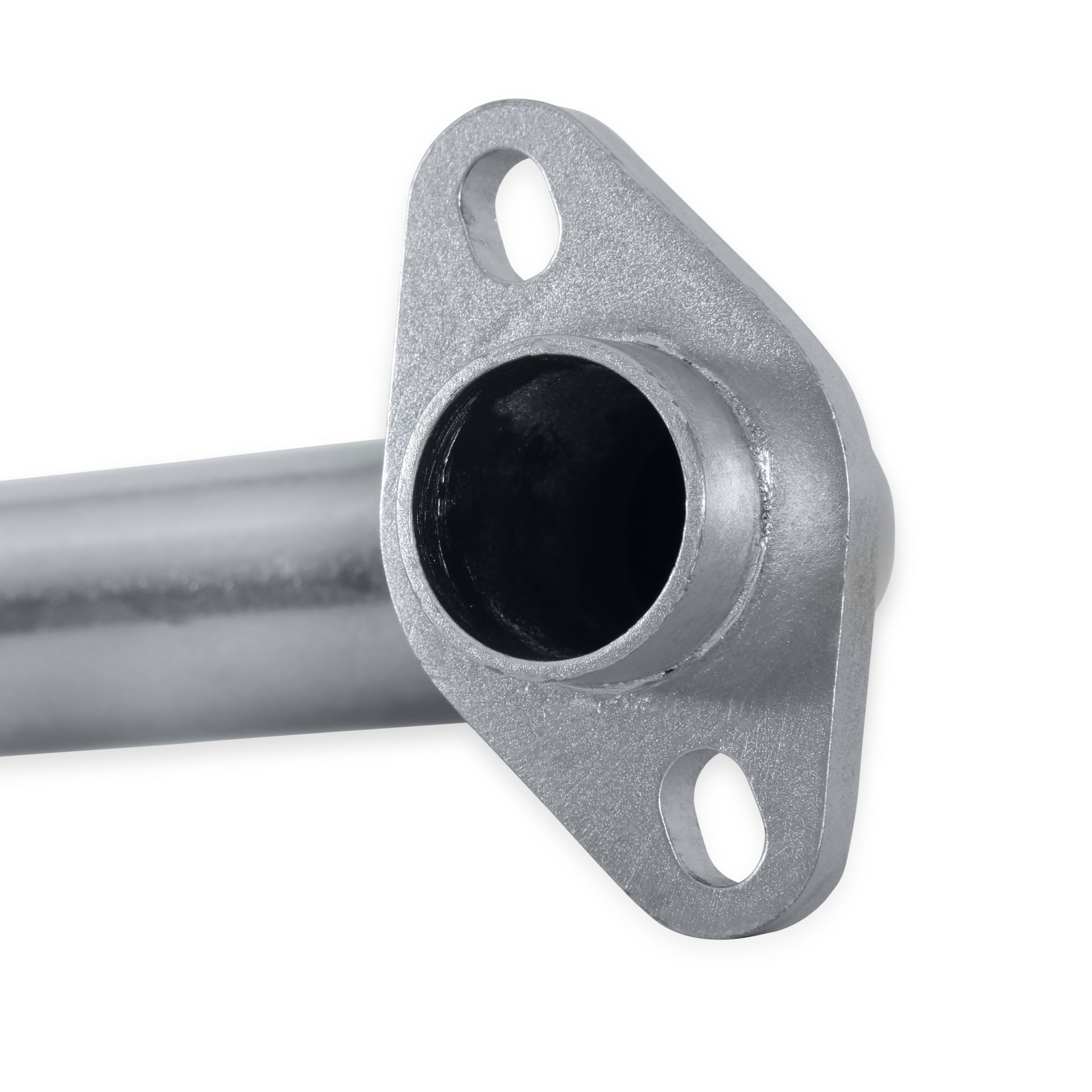

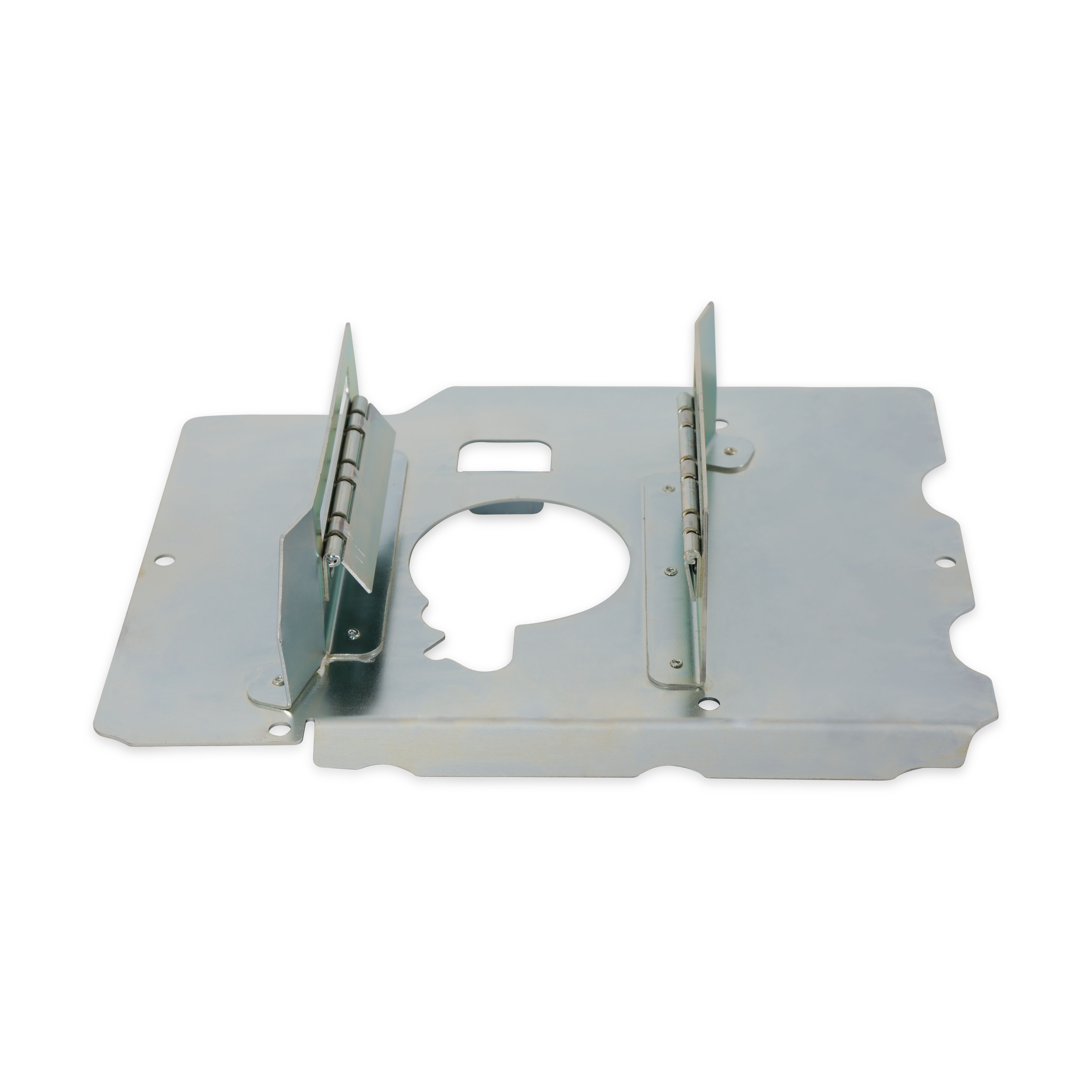

- Proprietary design pick-up tube/O-ring and lower sump baffle plate are included.
- Provides 2 Bosses for drain-back for turbo applications (Unmachined)
- Traditional high-quality cast aluminum appearance with clean exterior styling
Specs
Brand
HOLLEY
Category
Engine Oil Pan
Specs
Brand: Holley
Color: Silver
Engine: Ford Coyote
Finish: Natural Cast
Baffled: No
Warning: California Proposition 65
Capacity: 7.6
Category: Engine
Material: Aluminium
Warranty: Manufacturer's Limited 90 Day Warranty
Sump Type: Wet
part type: Engine Oil Pan
Grade Type: Performance
Application: F250 2WD Trucks
Oil Pan Type: Cast

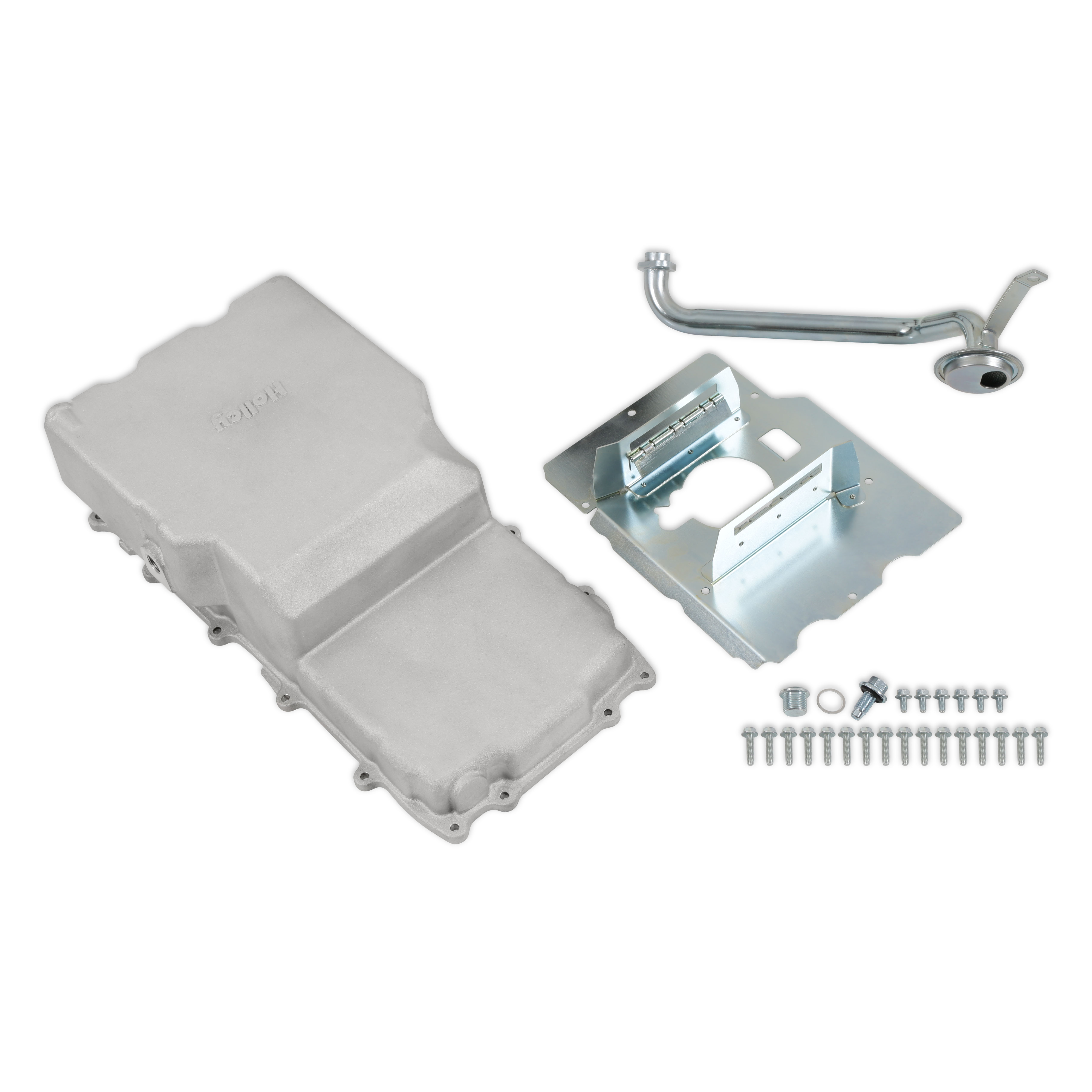

Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Dipstick Port: No
Emission Code: 5
Sump Location: Rear
Pickup Included: Yes
Oil Pan Capacity: 7.6 Quarts
Drain Plug Included: Yes
Turbo Oil Drainback: Boss present (needs drilled and tapped)
Windage Tray Included: No
Crank Shaft Wiper Included: No
Oil System Capacity (w/ filter): 8.1 Quarts
PDFs
PDFs
68b26a5540d10.pdf
(195.92 KB)
