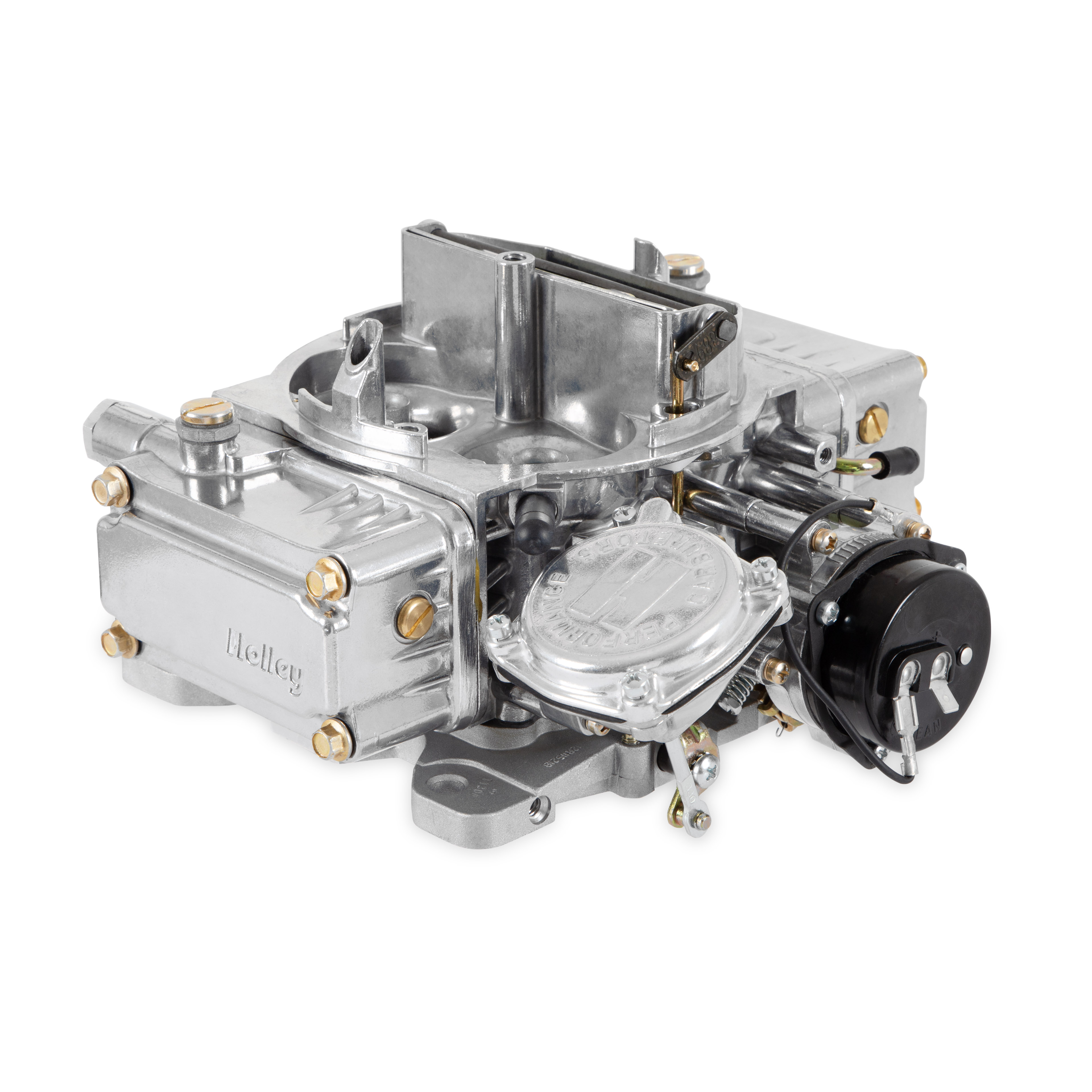

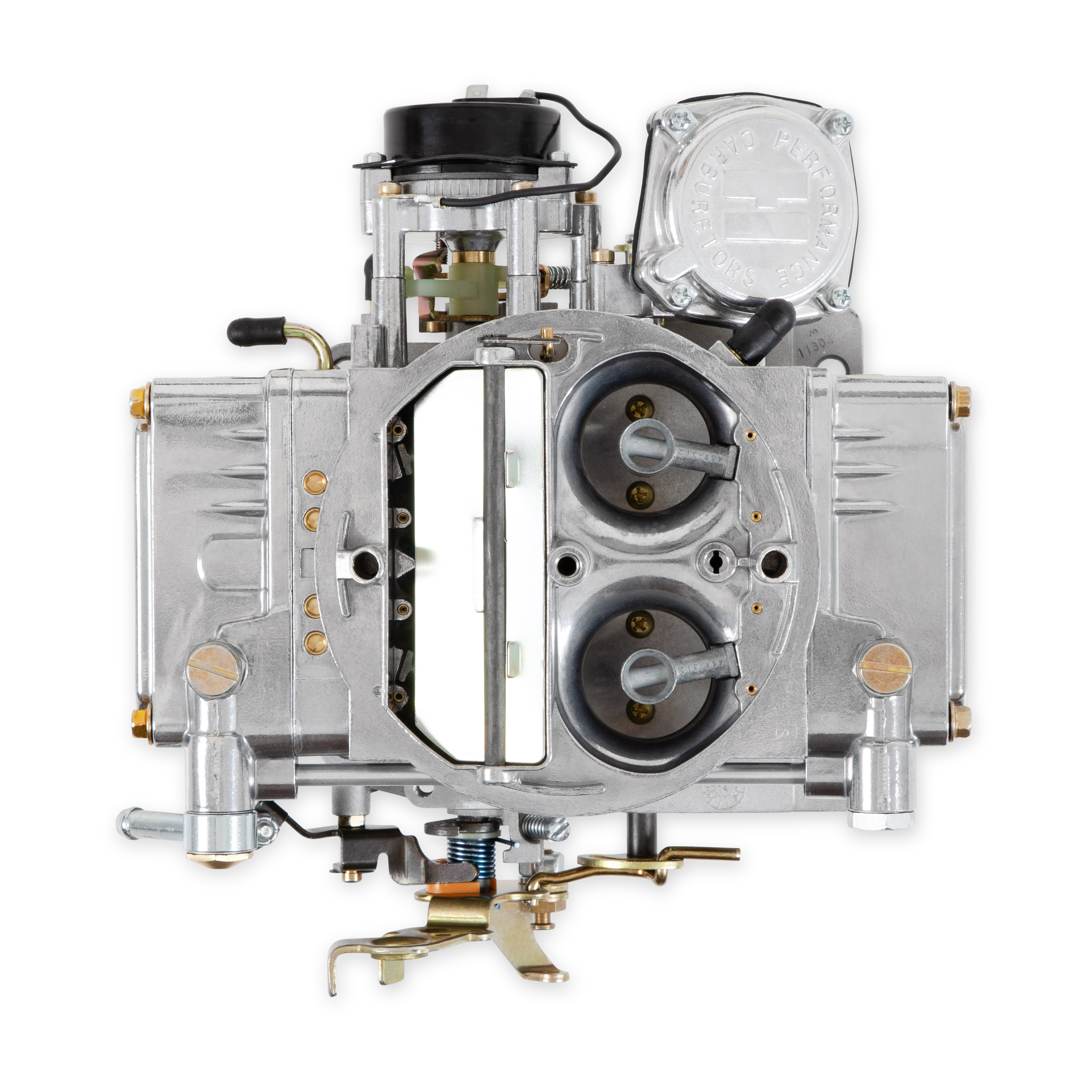

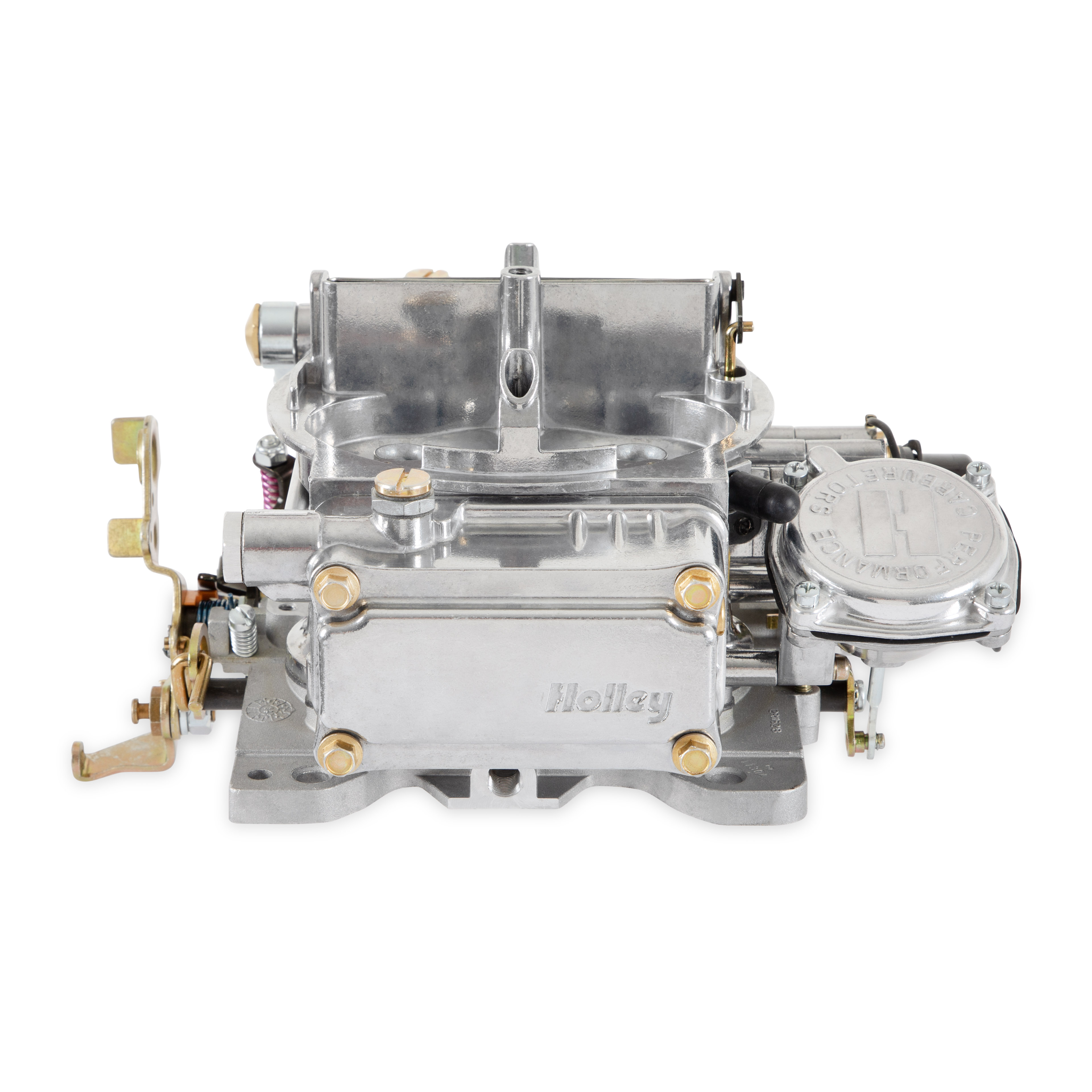

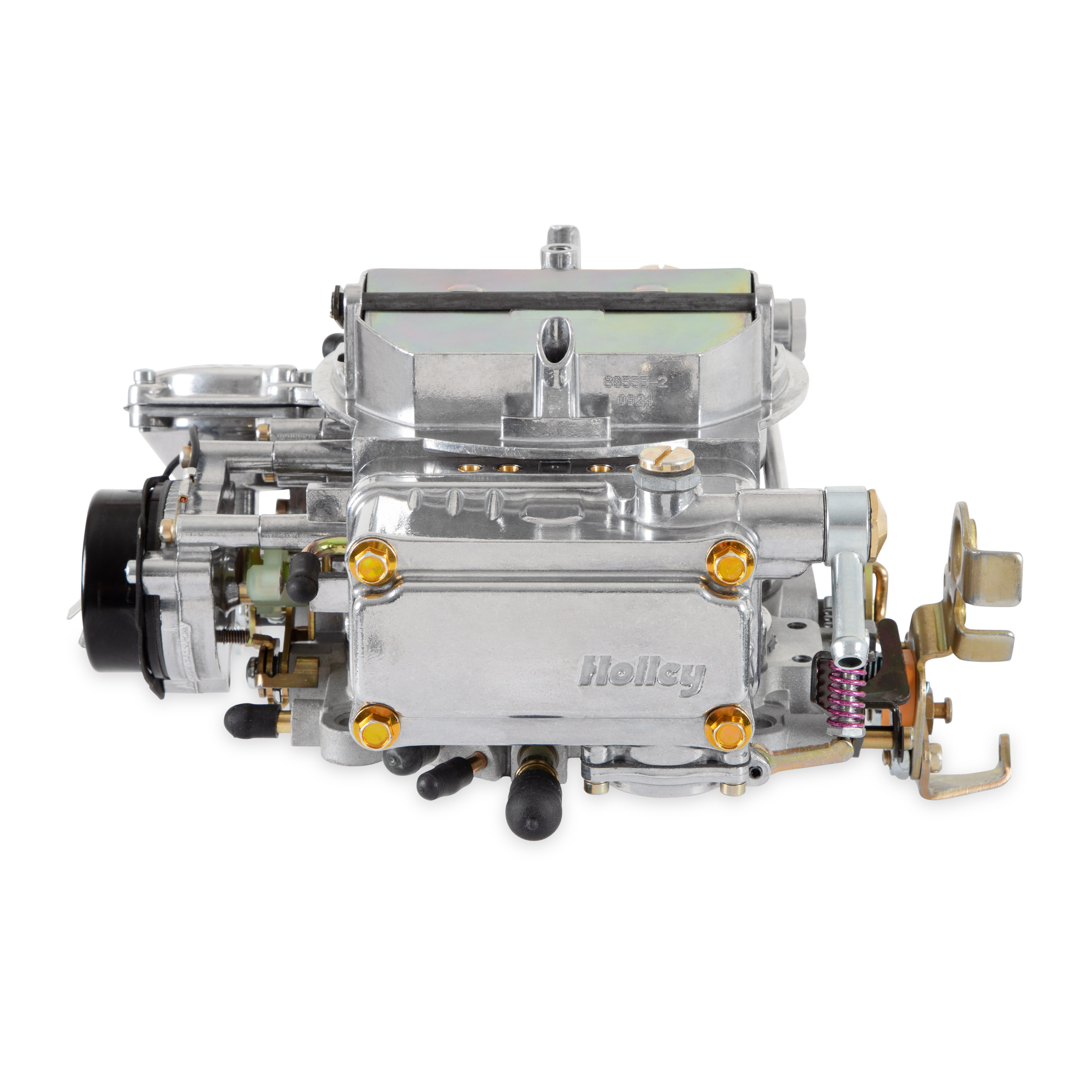

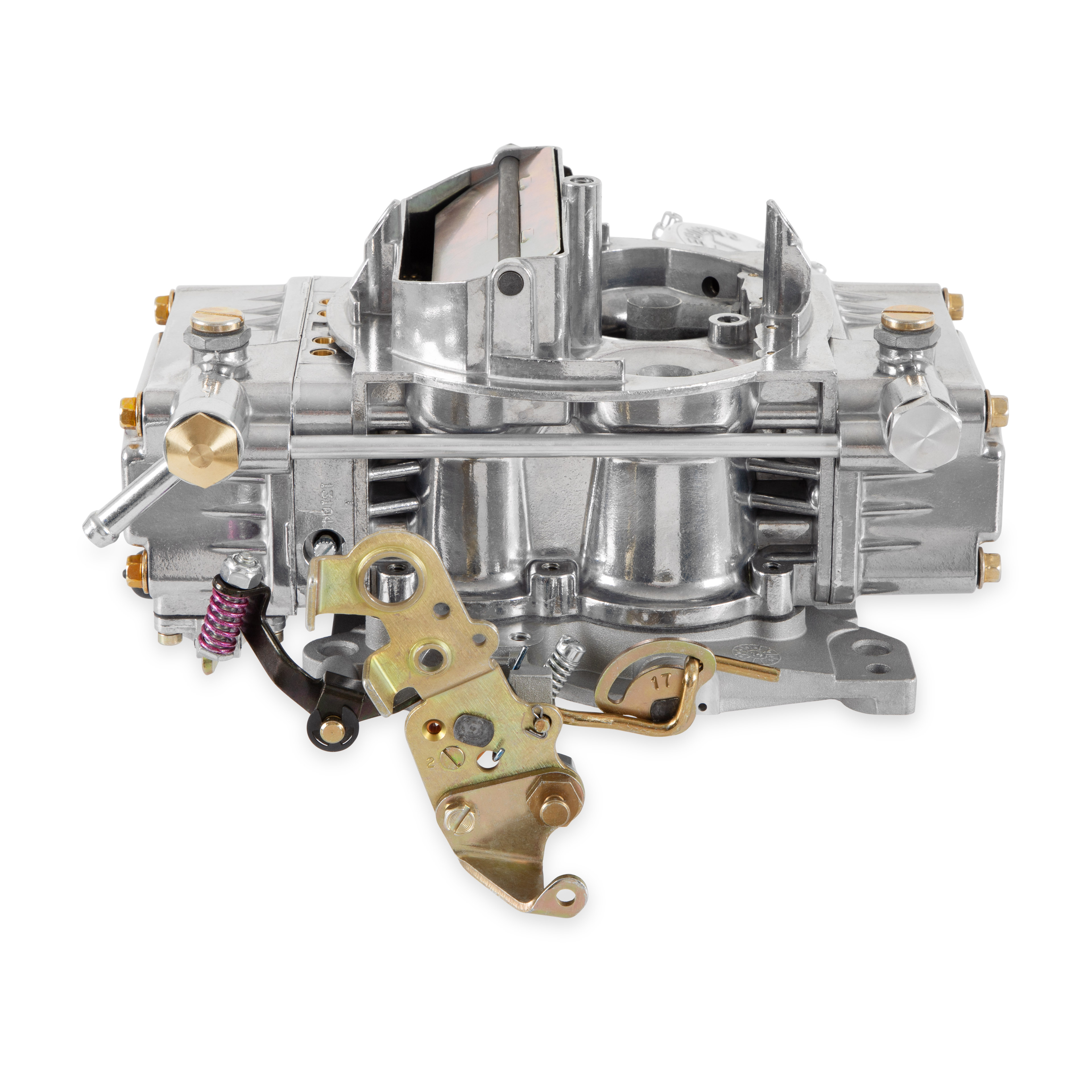

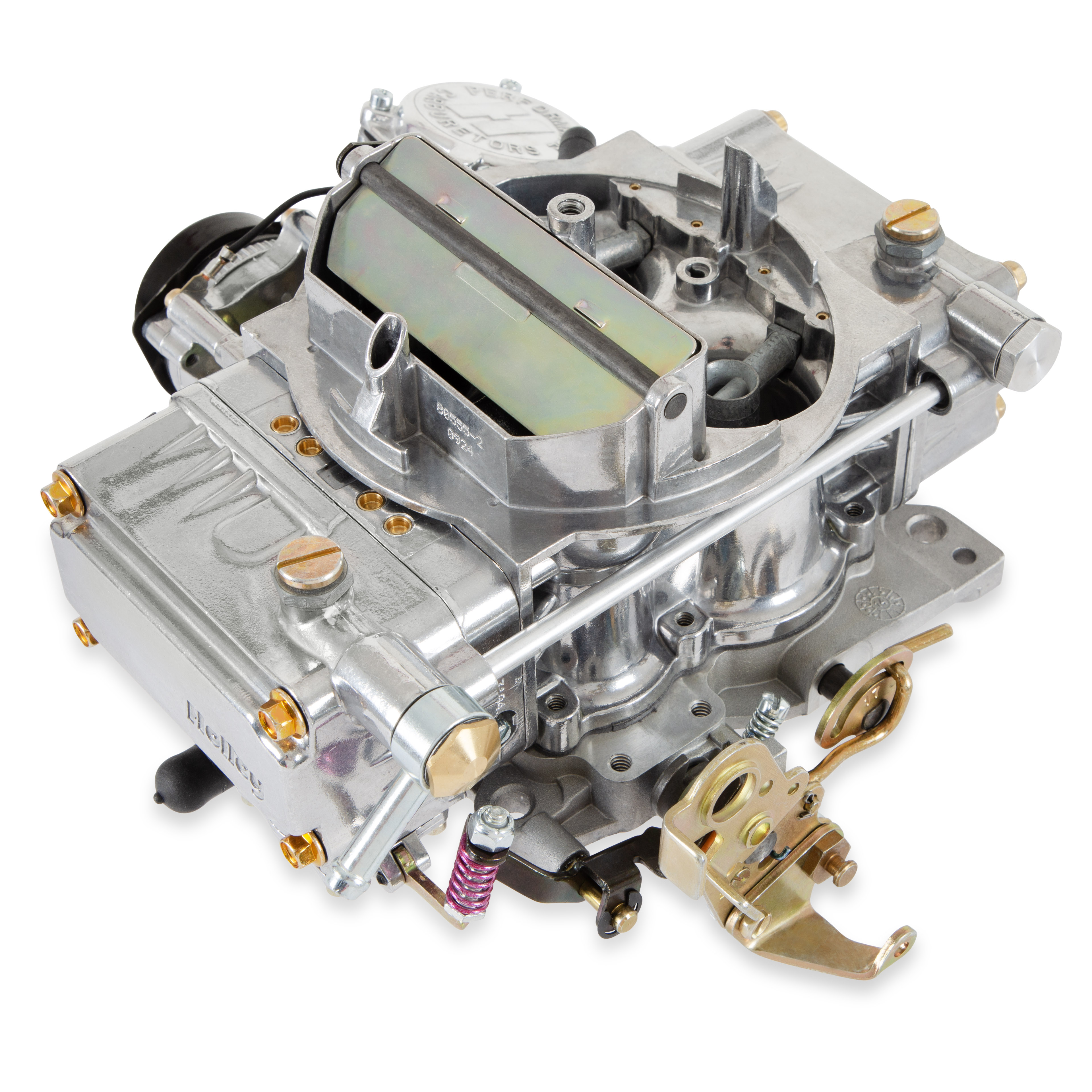

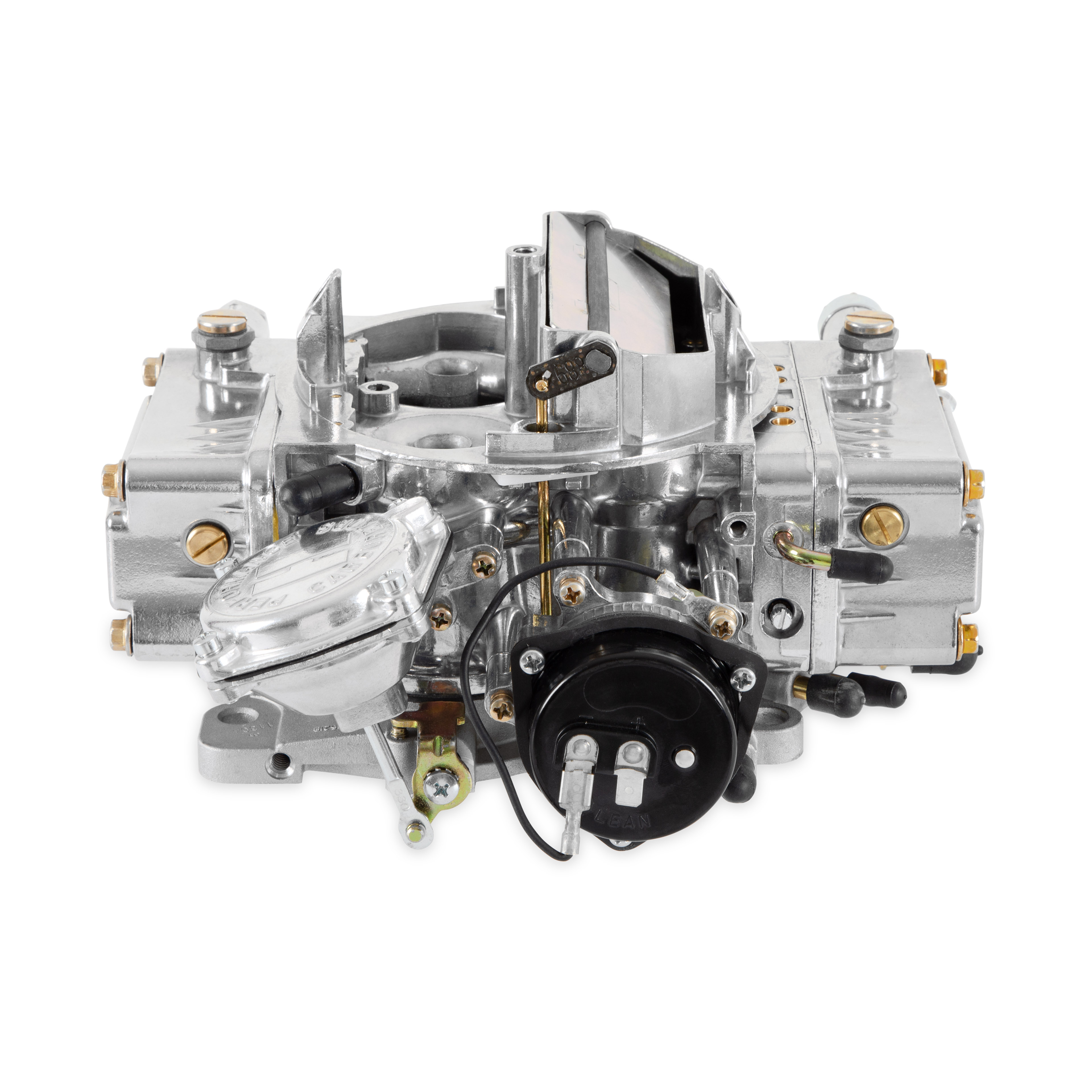

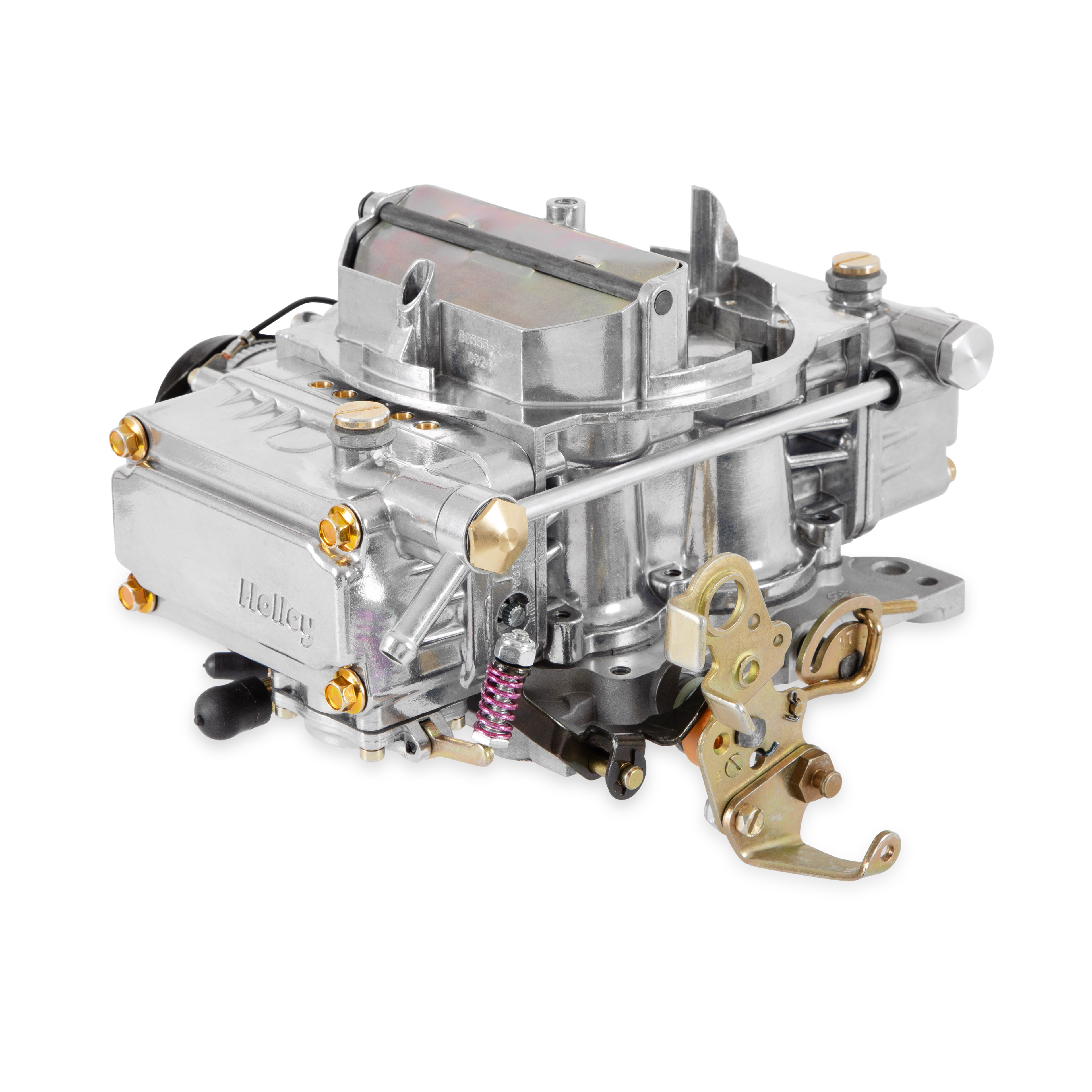

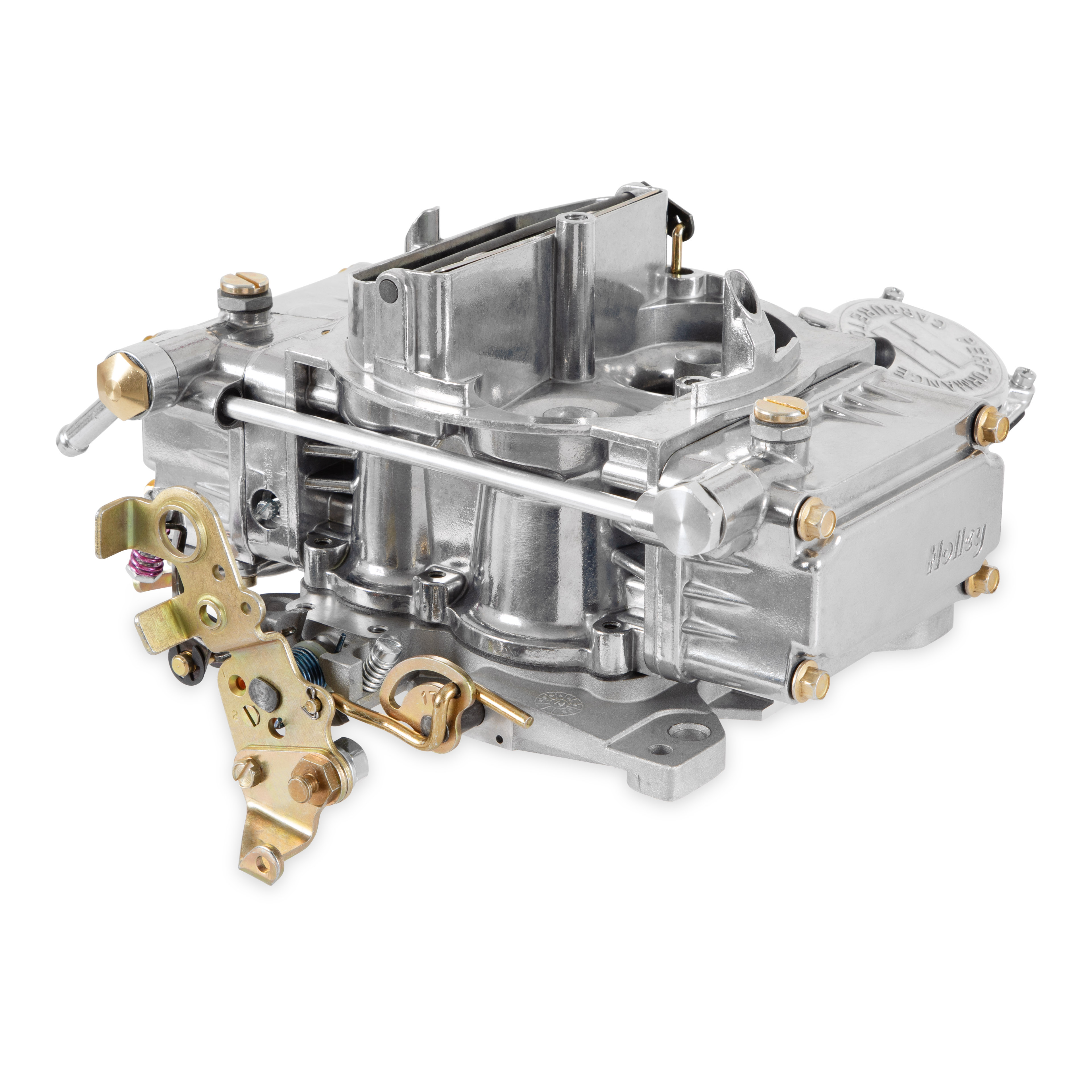

Holley Aluminum Spread-Bore Carburetor
SKU
HTPD-0-80555S
List price
$899.95
Price
$799.95
Description
650 CFM - 4175 - Vacuum Secondaries - Polished Aluminum - Gasoline , Replaces 0-80555C
Features
- Vibratory polished aluminum for good looks, weight savings and long lasting shine
- Universal performance replacement for Q-Jet and other Spread-Bore carbs (4.25" wide spread bore bolt pattern)
- Universal calibration for easy bolt-on performance
- Factory preset electric choke for easy startups
- Vacuum secondaries for use on wide variety of vehicles. Compensate for all vehicle weights, gearing & transmissions to allow smooth opening of secondaries.
- Single feed fuel inlet for easy installation
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Specs
Brand
HOLLEY
Category
Carburetor
Specs
CFM: 650
Fuel: Gasoline
Brand: Holley
Choke: Electric
Model: 4175
Finish: Polished
Barrels: 4
Booster: Straight
Circuit: 2
Warning: California Proposition 65
Category: Carburetors and Components
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Condition: New
Body Color: Polished
Choke Type: Electric
Fuel Inlet: Single
Grade Type: Performance
Marine Use: No
Body Finish: Polished

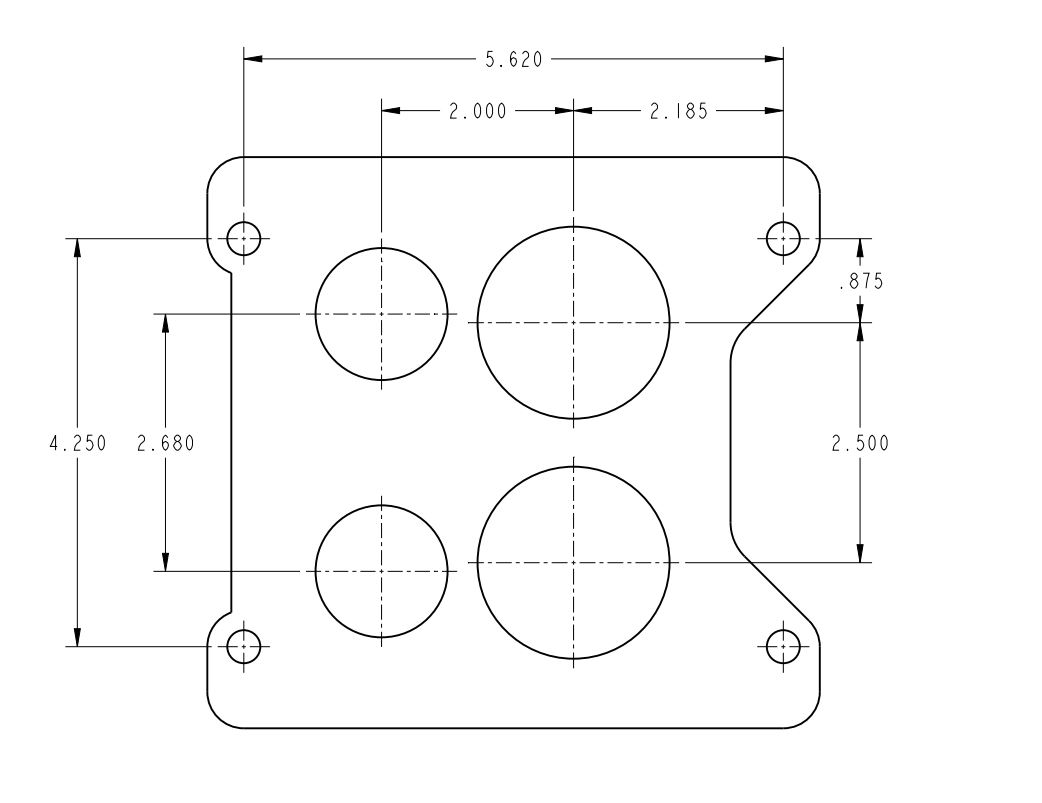

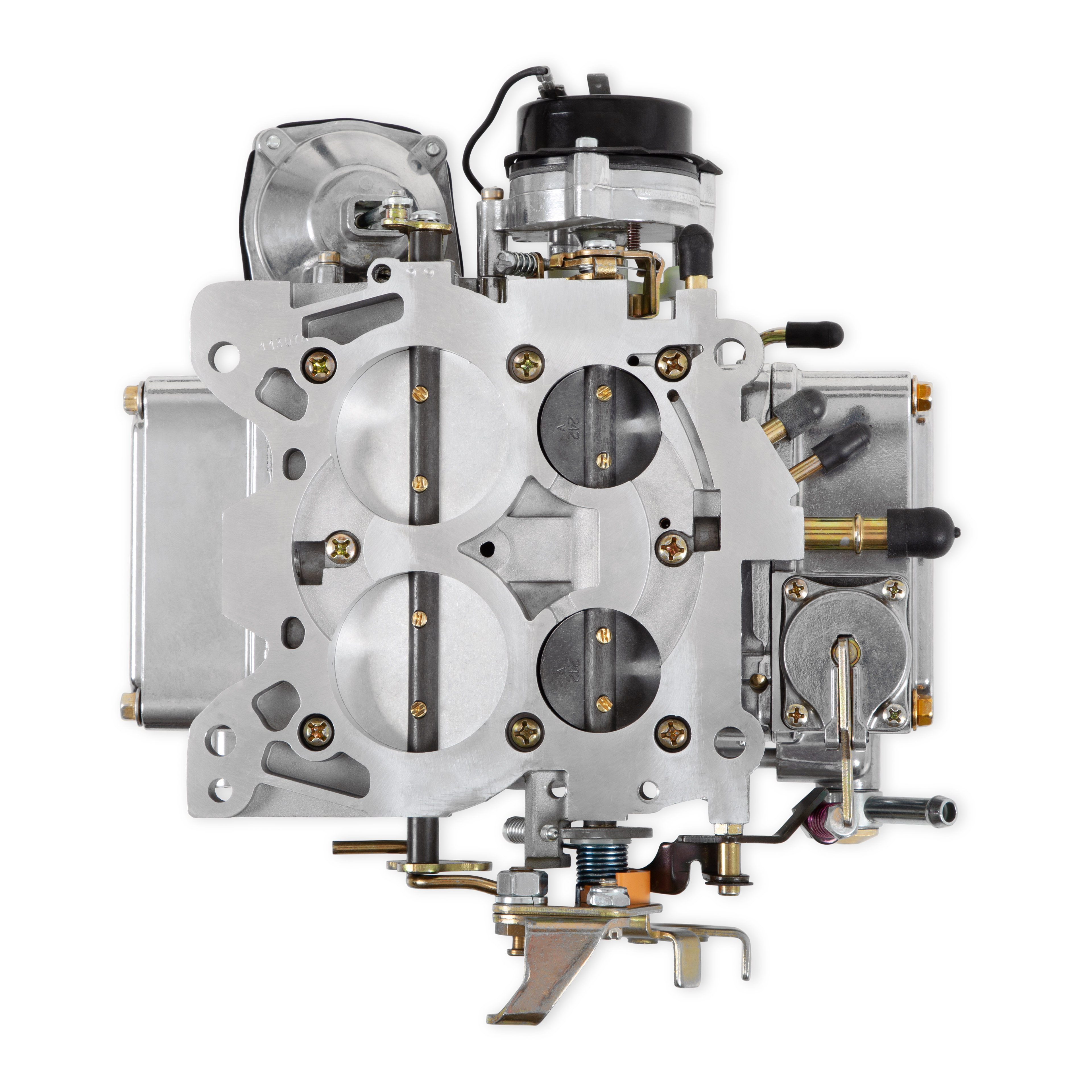

Flange Type: Spread Bore
Secondaries: Vacuum
Billet Color: None
Product Type: Carburetor
Street Legal: Yes
Body Material: Aluminum
Emission Code: 2
Booster Design: Straight
Carburetor Use: Street
Secondary Type: Vacuum
Barrel Quantity: 4
Marine Approved: No
Spacer Included: No

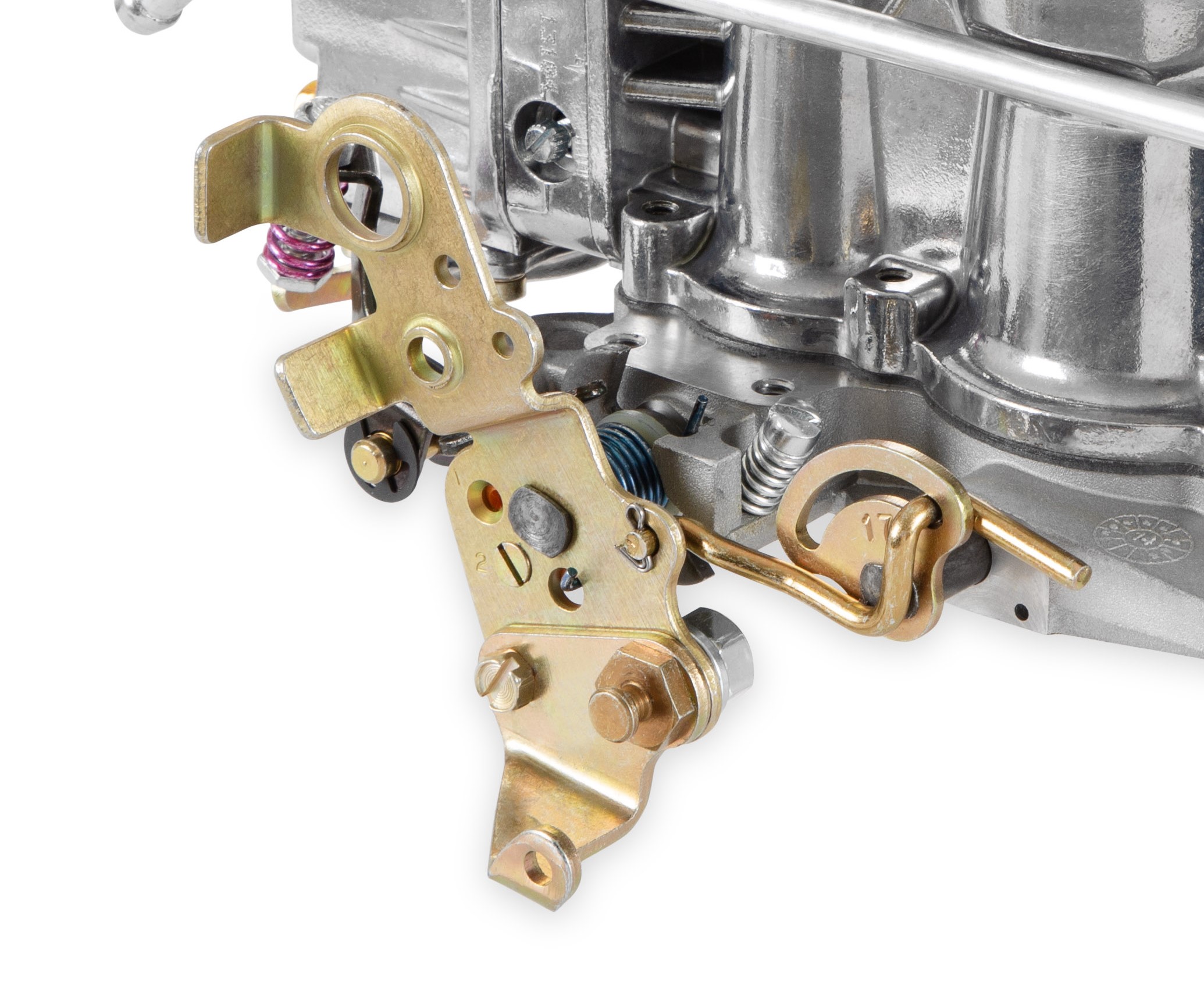

Linkage Attached: Yes
Primary Jet Size: 62
Secondary Jet Size: 81
Carburetor Material: Zinc
Primary Power Valve: 6.5
Air Cleaner Stud Size: 1/4-20 UNC
Primary Throttle Bore: 1.375
Secondary Barrel Type: Vacuum
Secondary Power Valve: None
Mounting Hole Quantity: 4

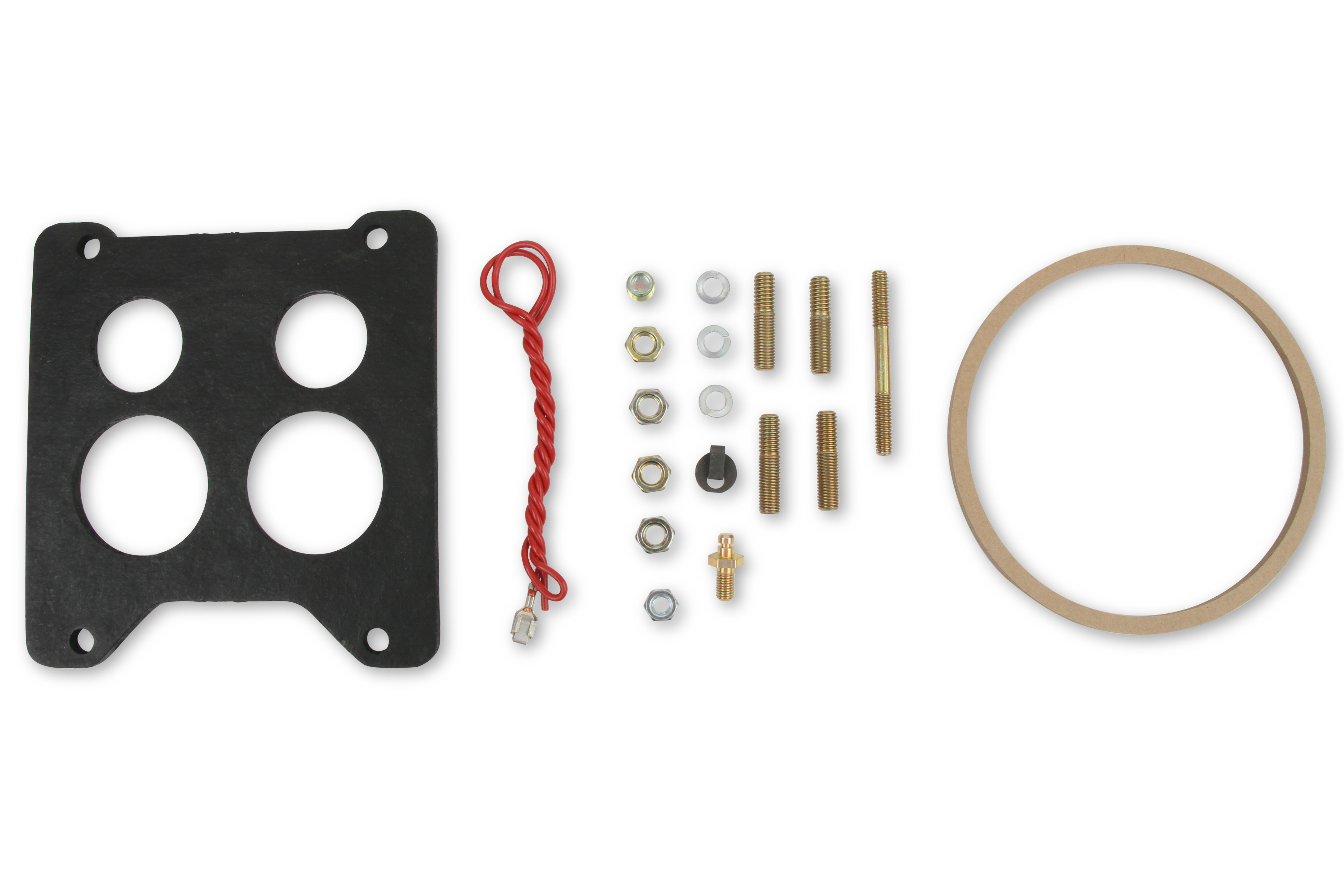

Gasket Or Seal Included: Yes
Secondary Throttle Bore: 2.000
Primary Power Valve (Hg): 6.5
Primary Pump Nozzle Size: 40
Supercharged Application: No
Air Cleaner Flange Diameter: 5-1/8"
Cubic Feet Per Minute Rating: 650
Primary Inner Air Bleed Sizes Included: 63
Primary Outer Air Bleed Sizes Included: 97
Secondary Inner Air Bleed Sizes Included: 63
Secondary Outer Air Bleed Sizes Included: 85
