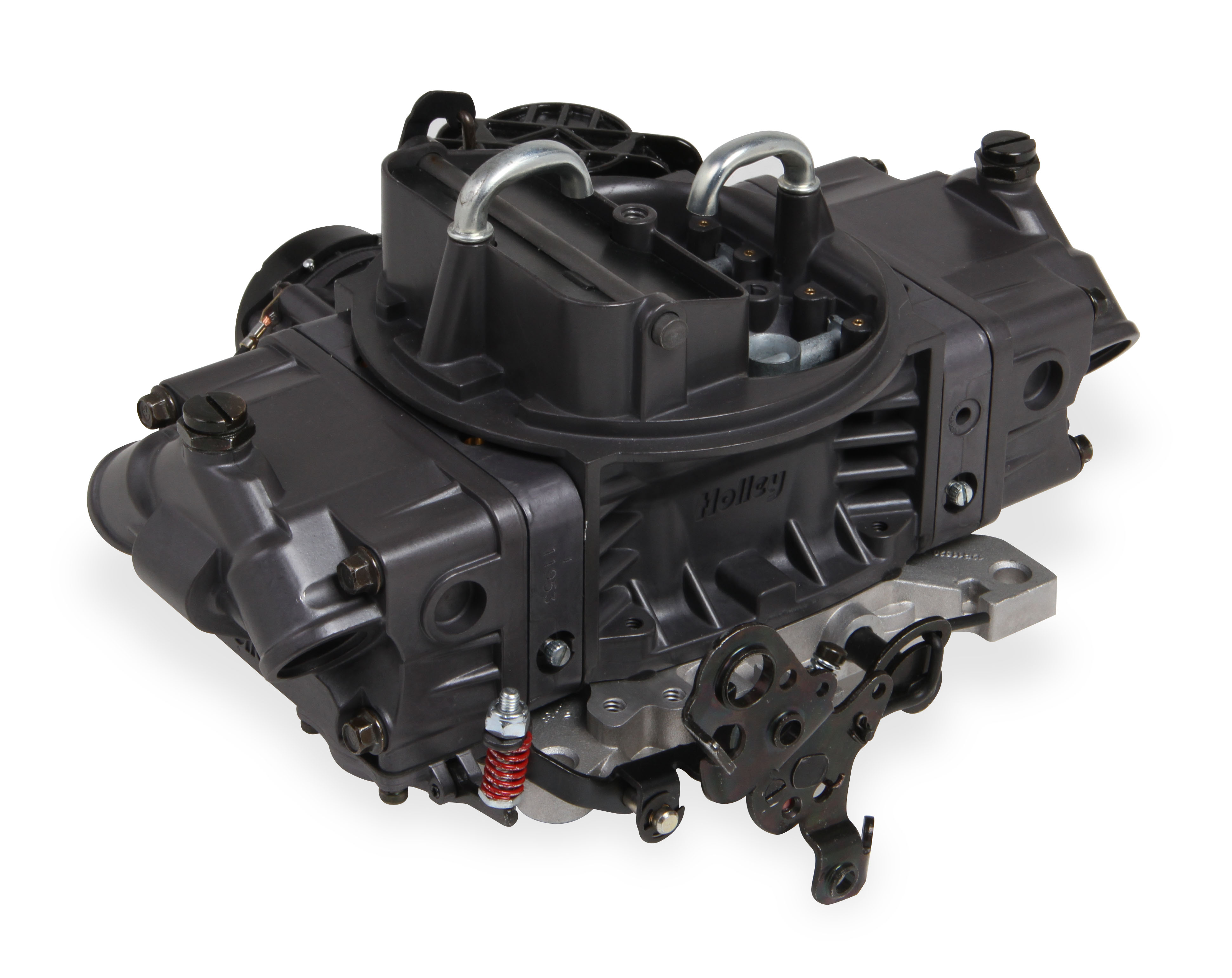

Holley Aluminum Marine Avenger Carburetor
SKU
HTPD-0-82570
List price
$855.60
Price
$640.95
Description
570 CFM - 4150 - Vacuum Secondaries - Hard Core Gray - Gasoline
Features
- All aluminum construction
- Hard Coat Gray finish for corrosion protection in marine environments
- Built to exceed Coast Guard standards and are J1223 Marine Standard Certified
- Dual metering block system utilizing four corner idle adjustment for precision tuning
- Throttle shafts are PTFE coated for corrosion protection
- Calibrated to compensate for unique engine loads found on boats
- Available in 570 CFM, 670 CFM, and 770 CFM sizes to match your application needs
- Limited Lifetime Warranty
Specs
Brand
HOLLEY
Category
Carburetor
Specs
CFM: 570
Fuel: Gasoline
Brand: Holley
Choke: Electric
Model: 4150
Finish: Hard Core Gray
Barrels: 4
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited Lifetime Warranty
Condition: New
part type: Carburetor
Body Color: Hard Core Gray
Choke Type: Electric
Fuel Inlet: Dual
Grade Type: Performance
Marine Use: Yes
Body Finish: E-Coated

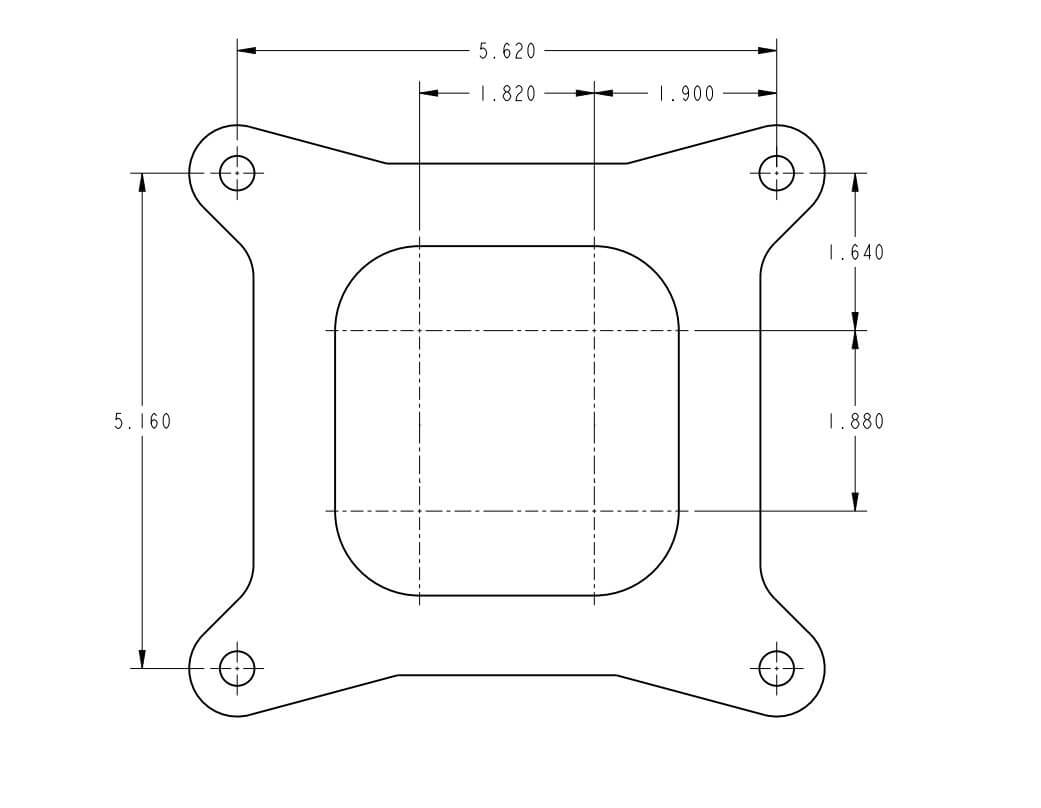

Flange Type: Square/4150
Secondaries: Vacuum
Product Type: Marine Carburetor
Sub Category: Carburetion
Emission Code: 3
Venturii Size: 1.250 inch
Carburetor Use: Marine
Barrel Quantity: 4
Marine Approved: Yes
Spacer Included: No
Linkage Attached: Yes
Primary Main Jet: 62
Marine Engine Size: Universal
Secondary Main Jet: 80
Carburetor Material: Aluminum
Primary Power Valve: 2.5
Needle and Seat Size: 110; 110
Primary Jet Diameter: 62
Primary Throttle Bore: 1.560
Mounting Hole Quantity: 4
Secondary Throttle Bore: 1.560
Primary Pump Nozzle Size: .037
Supercharged Application: No
Cubic Feet Per Minute Rating: 570
