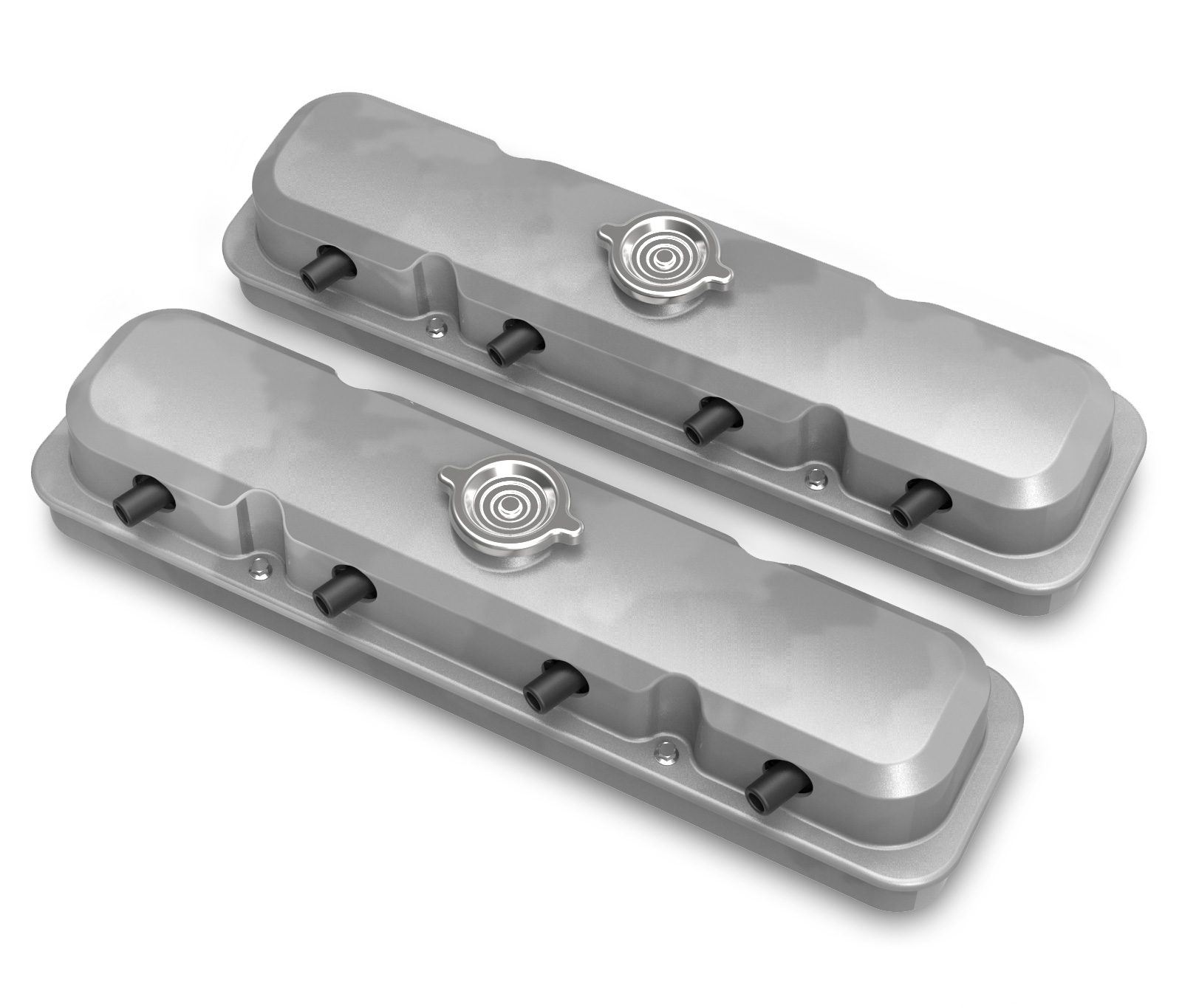

Holley 2-Piece Pontiac Style Valve Cover - Gen III/IV LS - Natural
SKU
HTPD-241-190
List price
$674.95
Price
$599.95
Description
Chevrolet Gen III/IV LS - Cast Aluminum - Coil-Mounting Base & Integrated Coil Cover
Features

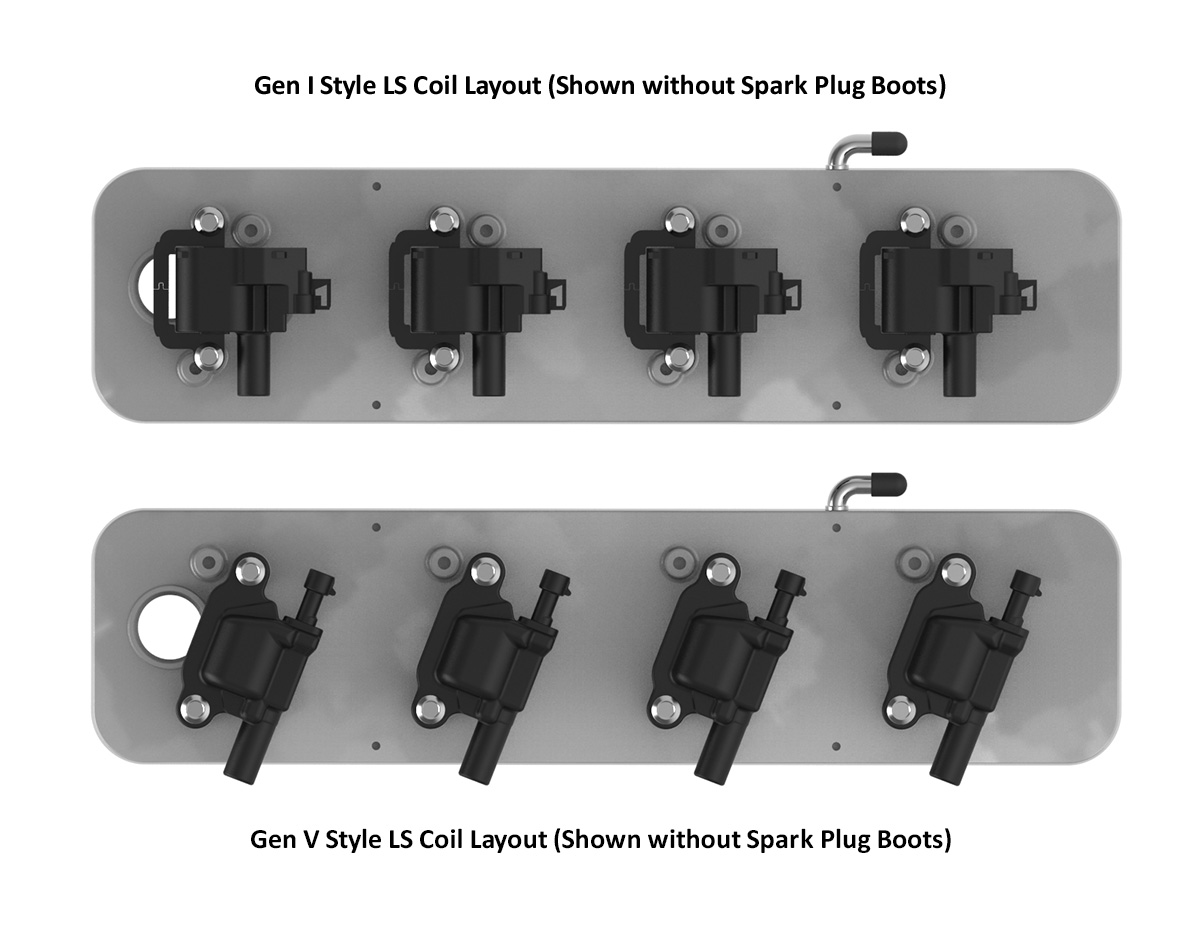

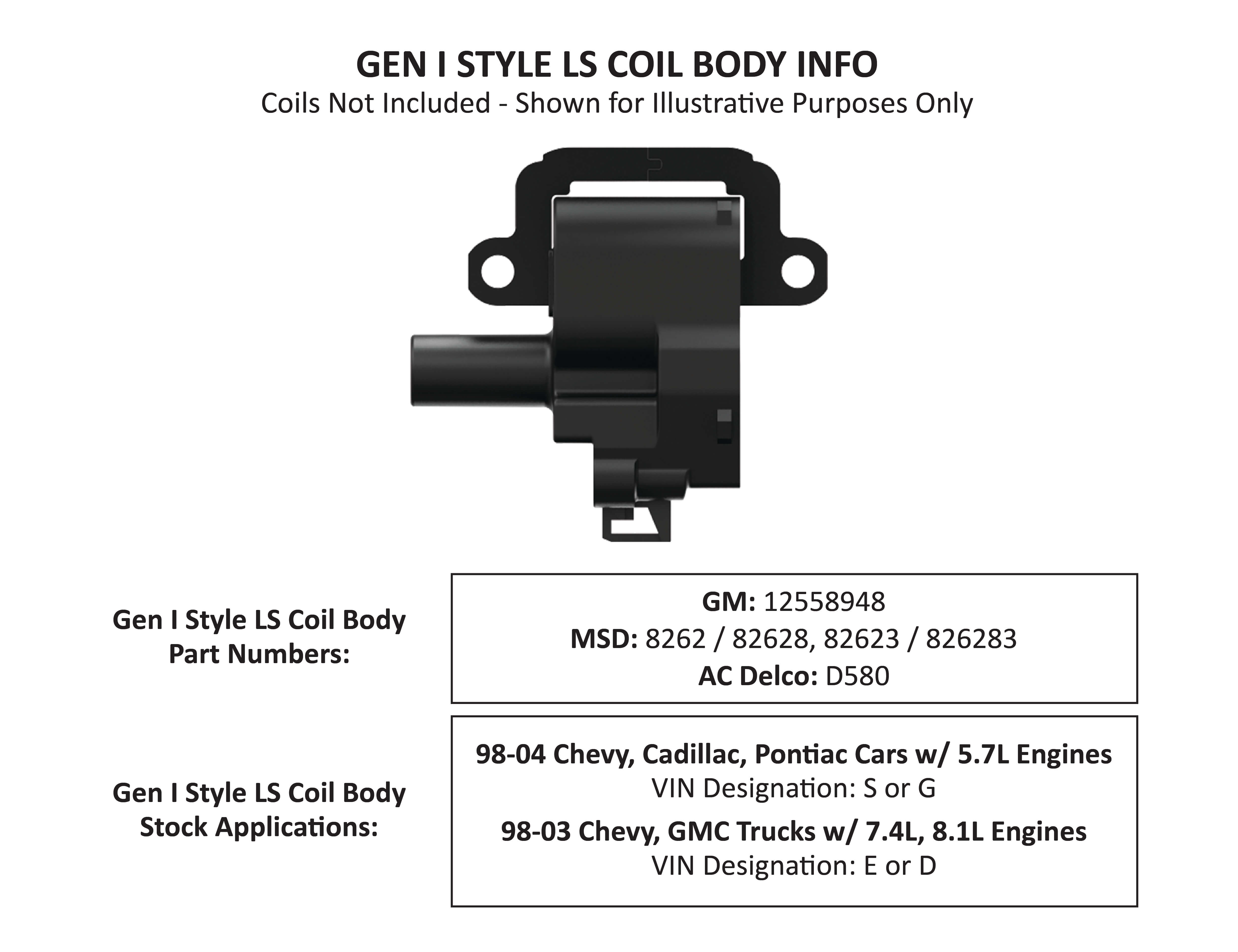

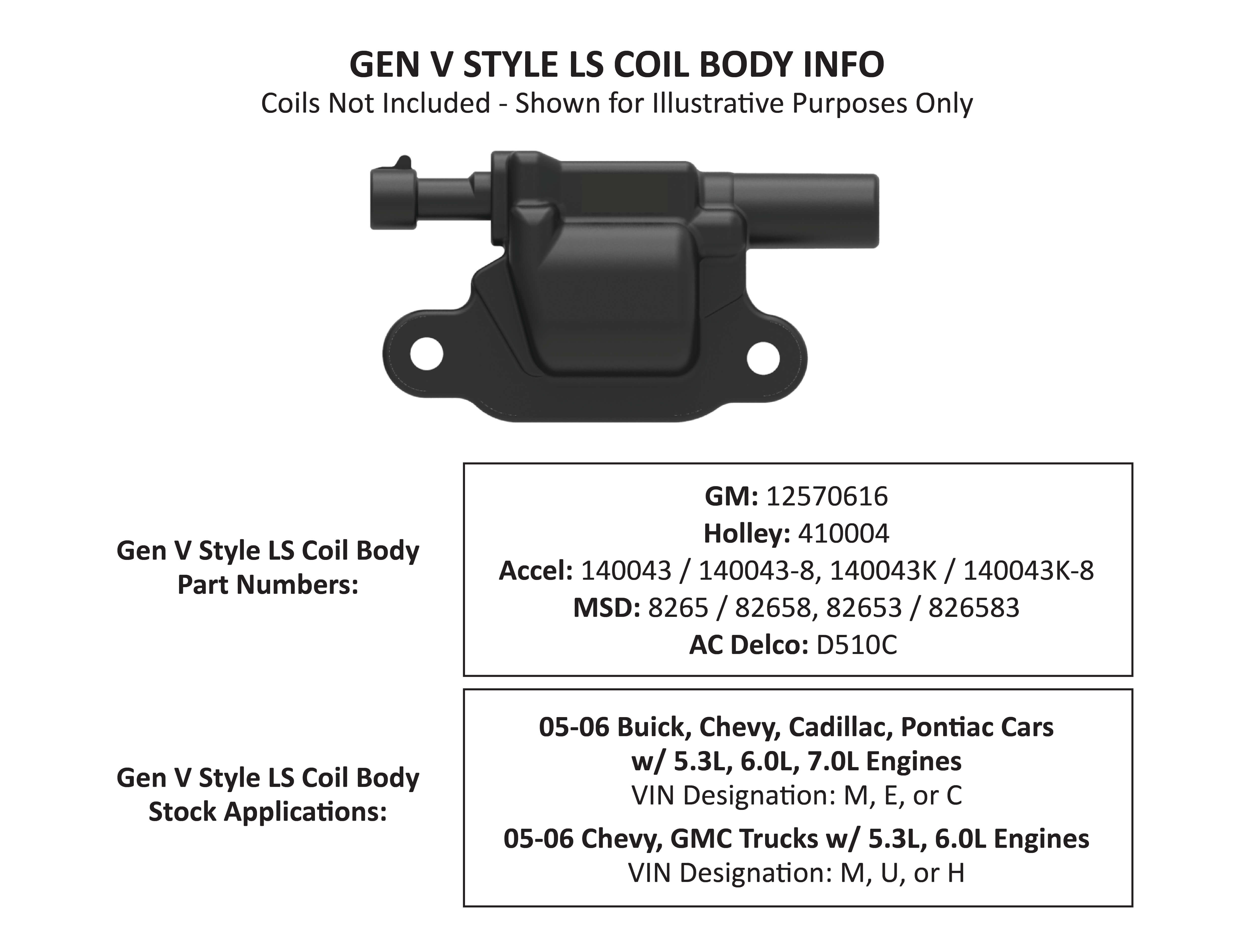

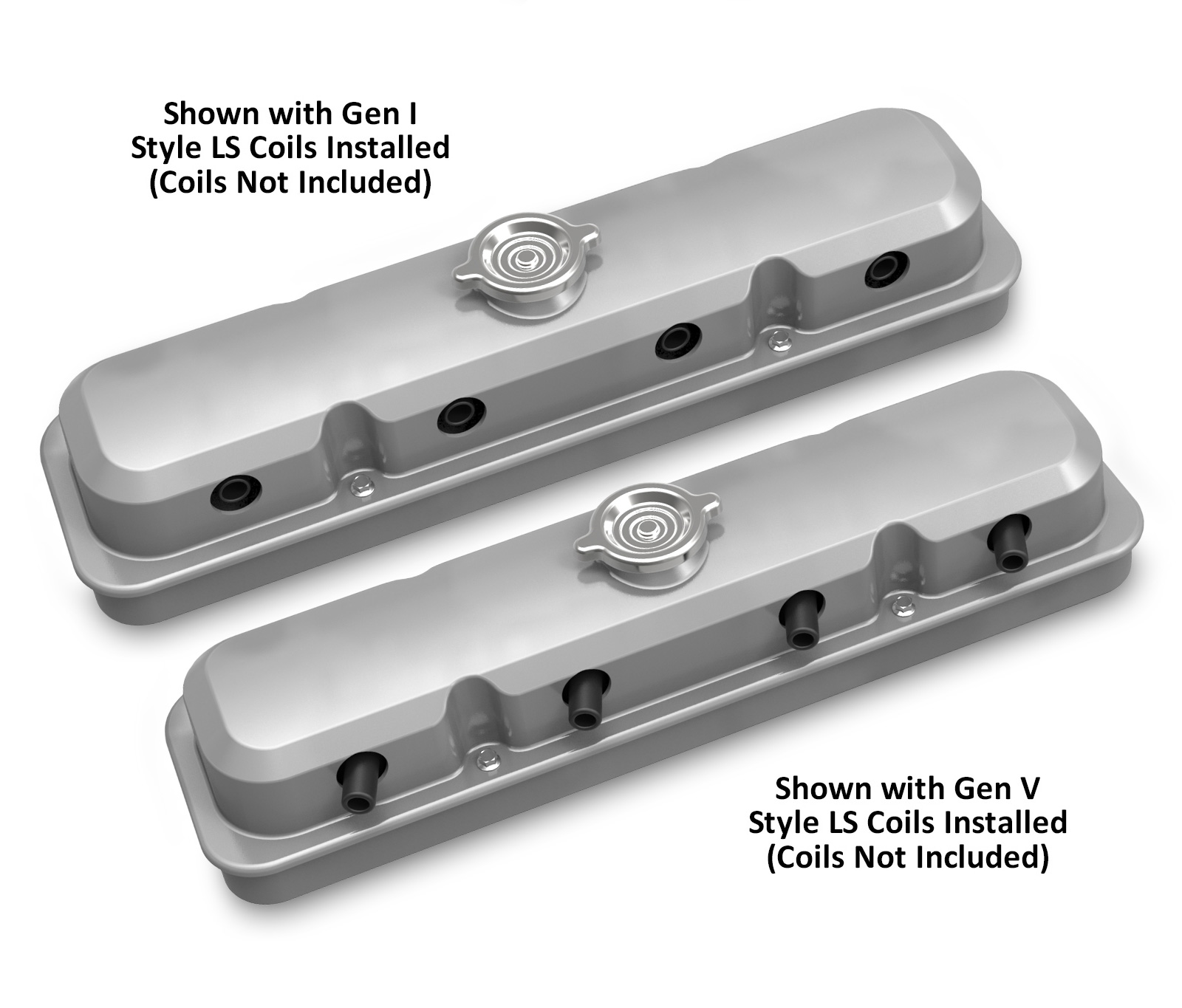

- Cast aluminum 2-Piece LS valve covers designed to mount and hide both Gen I and Gen V style LS coil bodies
- Retain the performance of factory coil-on-cover ignition without the unsightly styling
- Coil cover features vintage Pontiac valve cover styling with a billet aluminum simulated fill cap assembly and cast-in wiring provisions
- Base fits LS1, LS2, LS3, LS6 and LS7 engines with clearance for .750” lift cam with stock style rocker arms

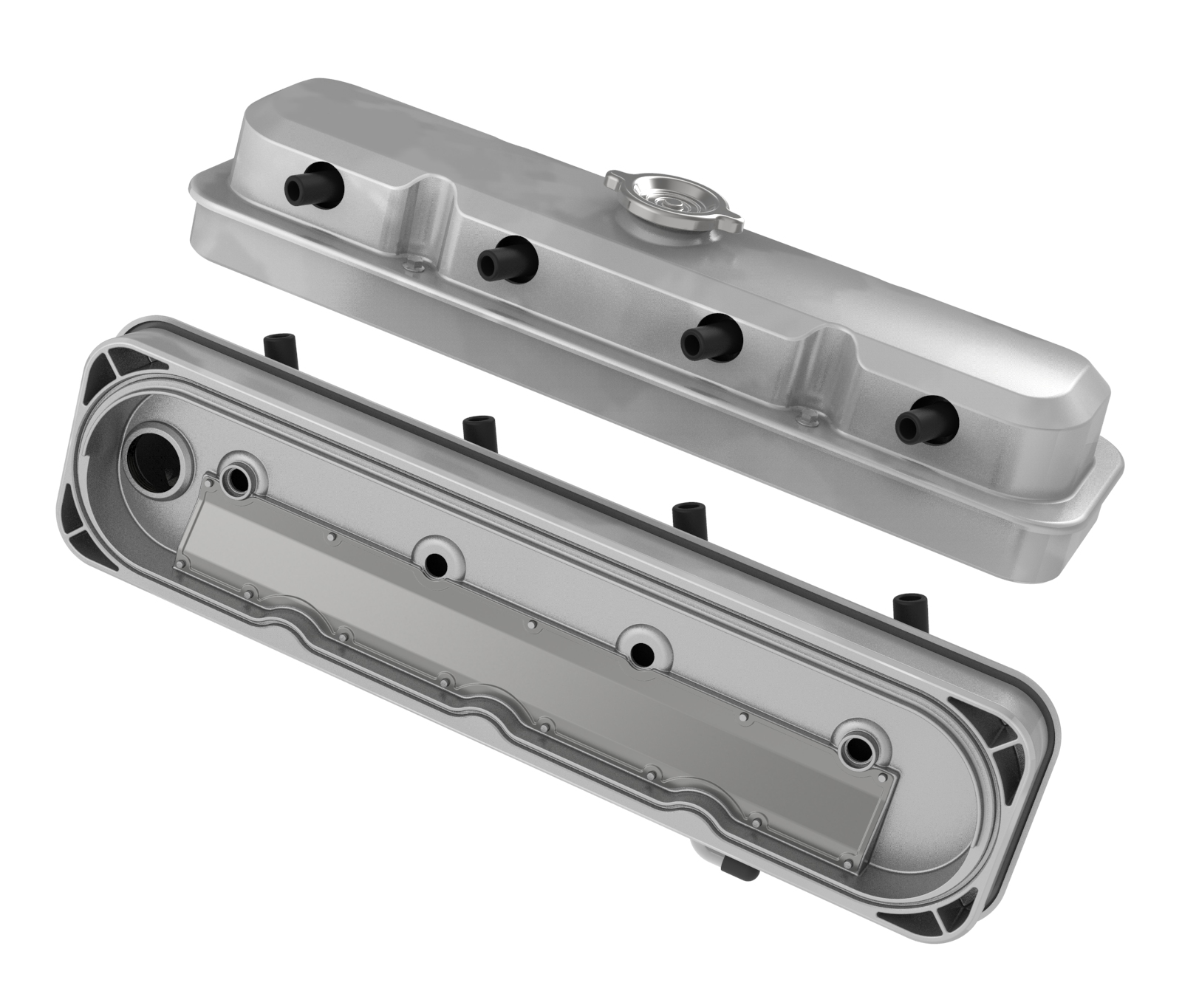

- Base features internally baffled ventilation system
- No coil relocation, wire harness extensions, or custom spark plug wires required
- Includes low-profile billet oil fill cap

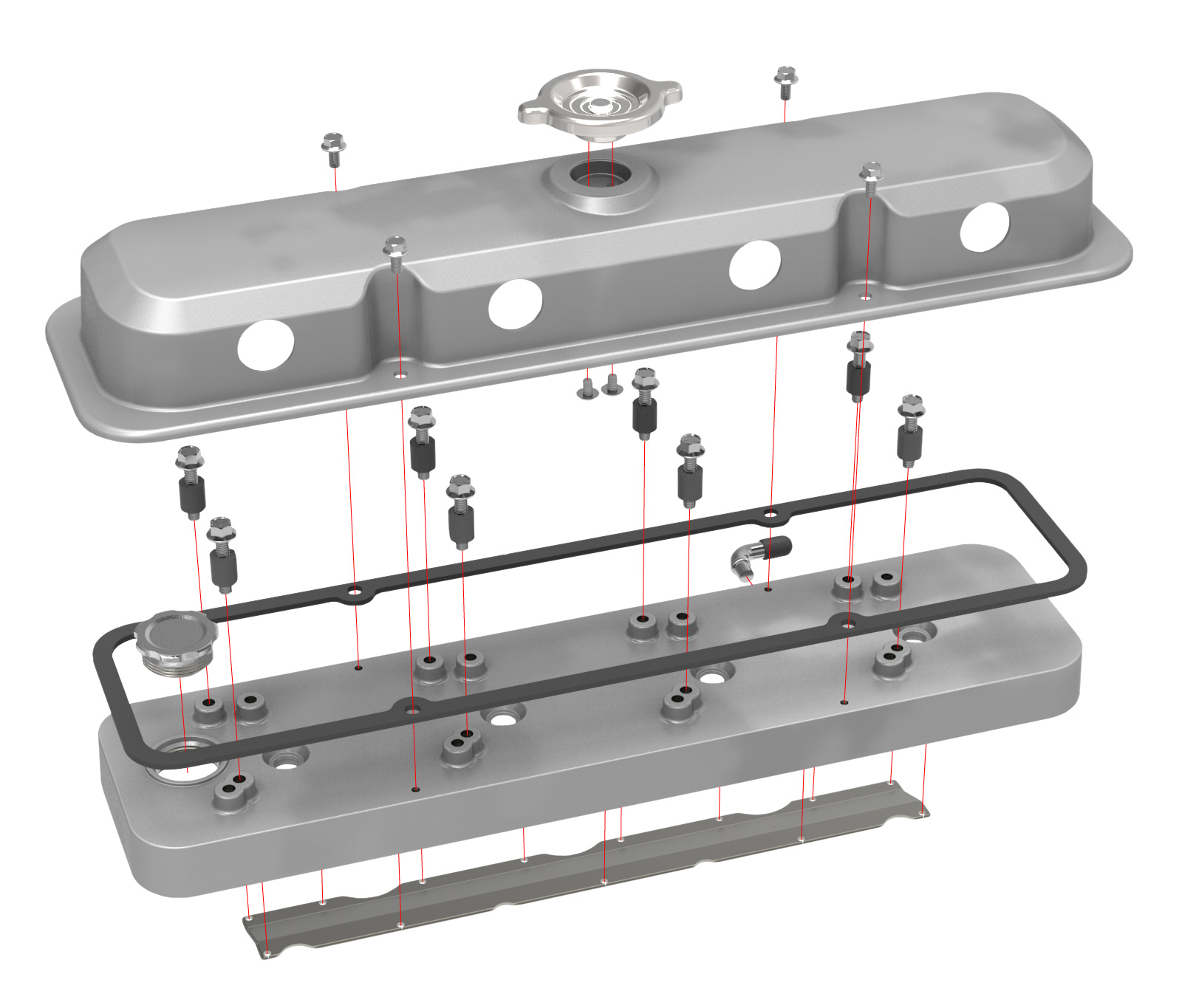

- Includes all necessary coil mounting provisions and dress-up hardware
Specs
Brand
HOLLEY
Category
Engine Valve Cover Set
Specs
Logo: None
Brand: Holley
Color: Natural
Style: Pontiac
Finish: Natural

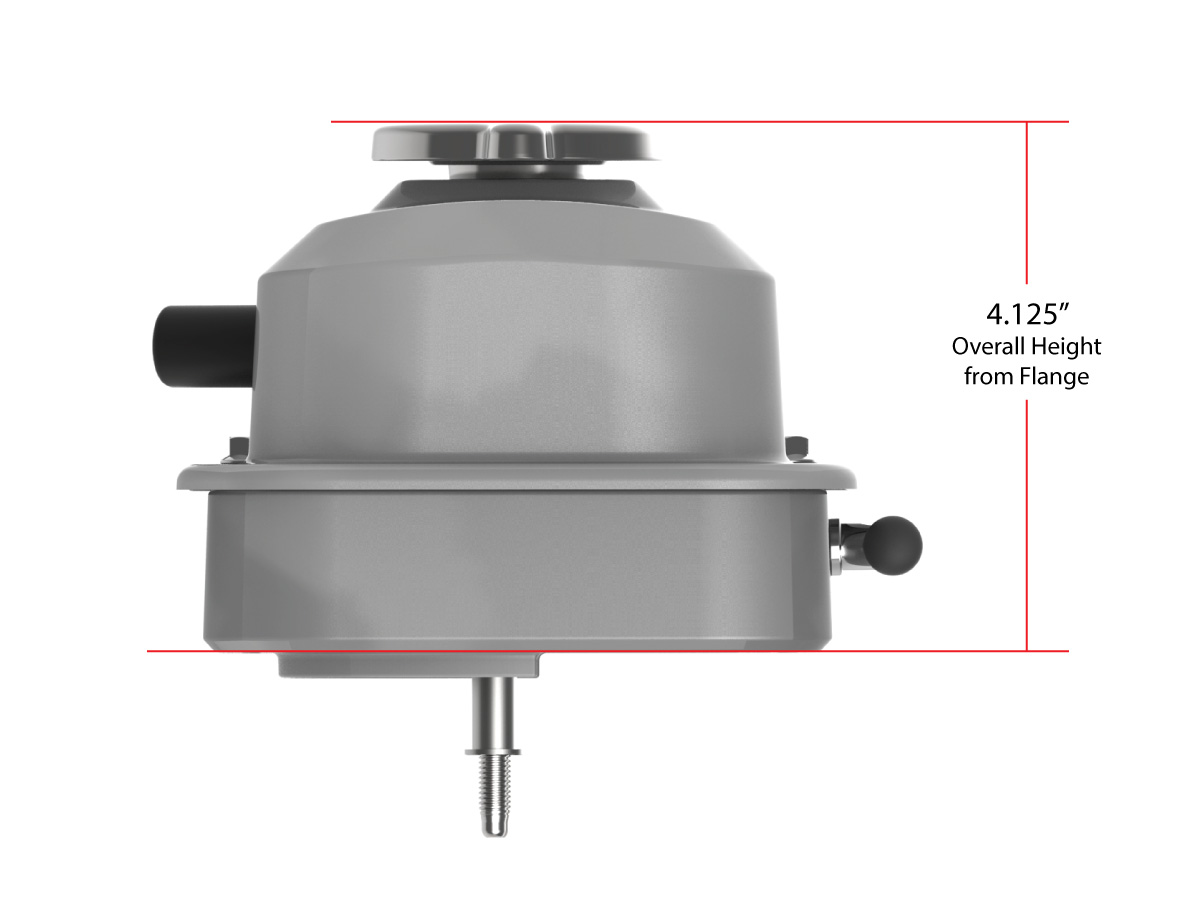

Height: 4.125"
Warning: California Proposition 65
Category: Engine
Material: Cast Aluminum
Oil Fill: Yes
Quantity: Pair
part type: Engine Valve Cover Set
Grade Type: Performance
Application: GM LS Engines
Design Type: 2-Piece LS
Bolt Pattern: Center Bolt
Coil Options: with Coil Stands
Construction: Die Cast Aluminum
Product Type: Valve Cover
Sub Category: Cylinder Block Components
Emission Code: 3
Overall Height: 4.125
Baffle Included: Yes
Gaskets Included: No
Grommets Included: No
Hardware Included: Yes
Type of Component: Valve Cover
Coil Mounting Studs: Yes, on Baseplate
Breather(s) Included: No
Gromment(s) Included: No
Valvetrain Clearance: .750" lift cam with stock style rocker arms
Breather Cap Included: No
Oil Fill Cap Included: Yes
Hold Down Tabs Included: No
Oil Filler Cap Included: Yes
Mounting Hardware Included: Yes
Valve Cover Gasket Included: No
