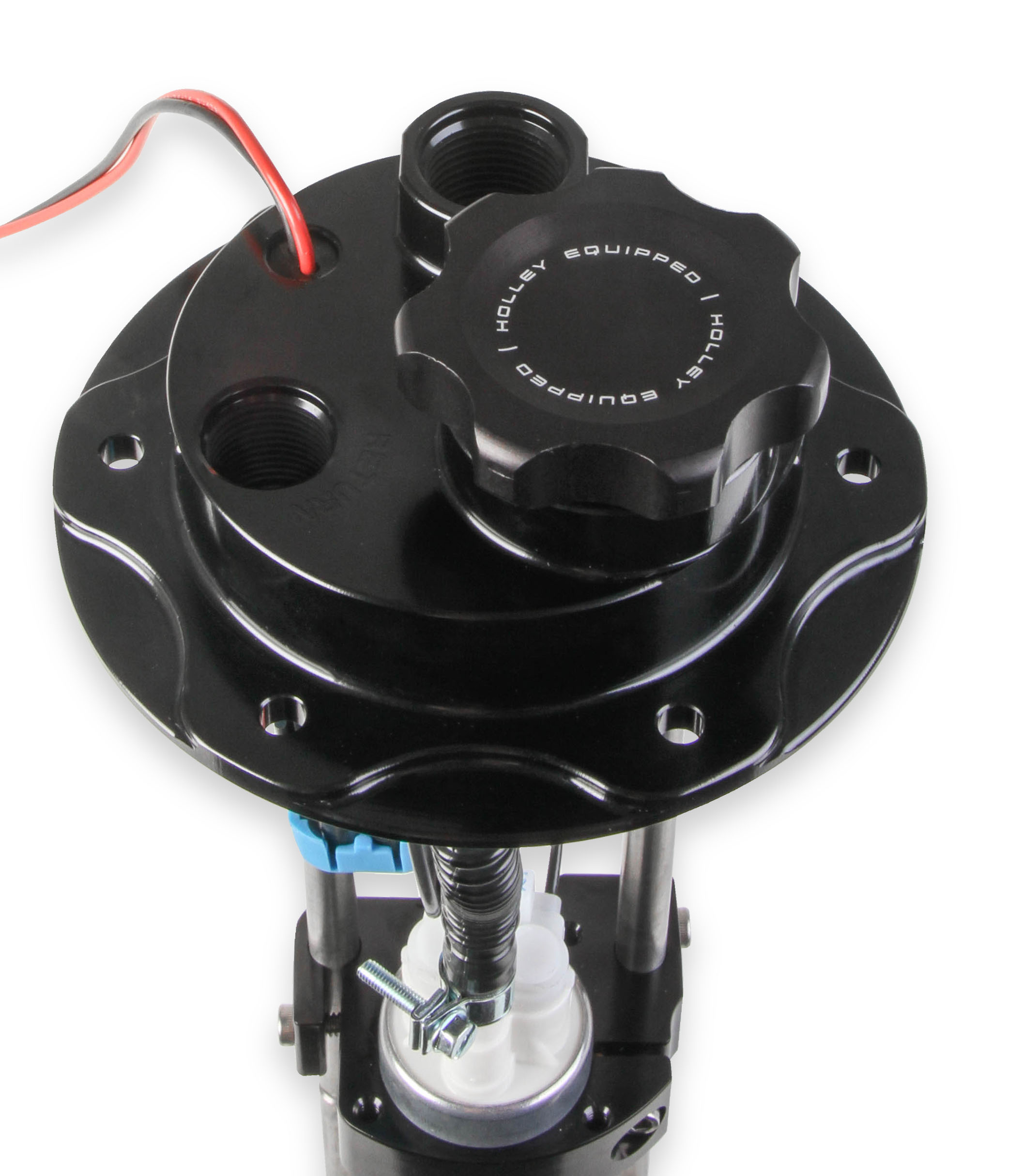

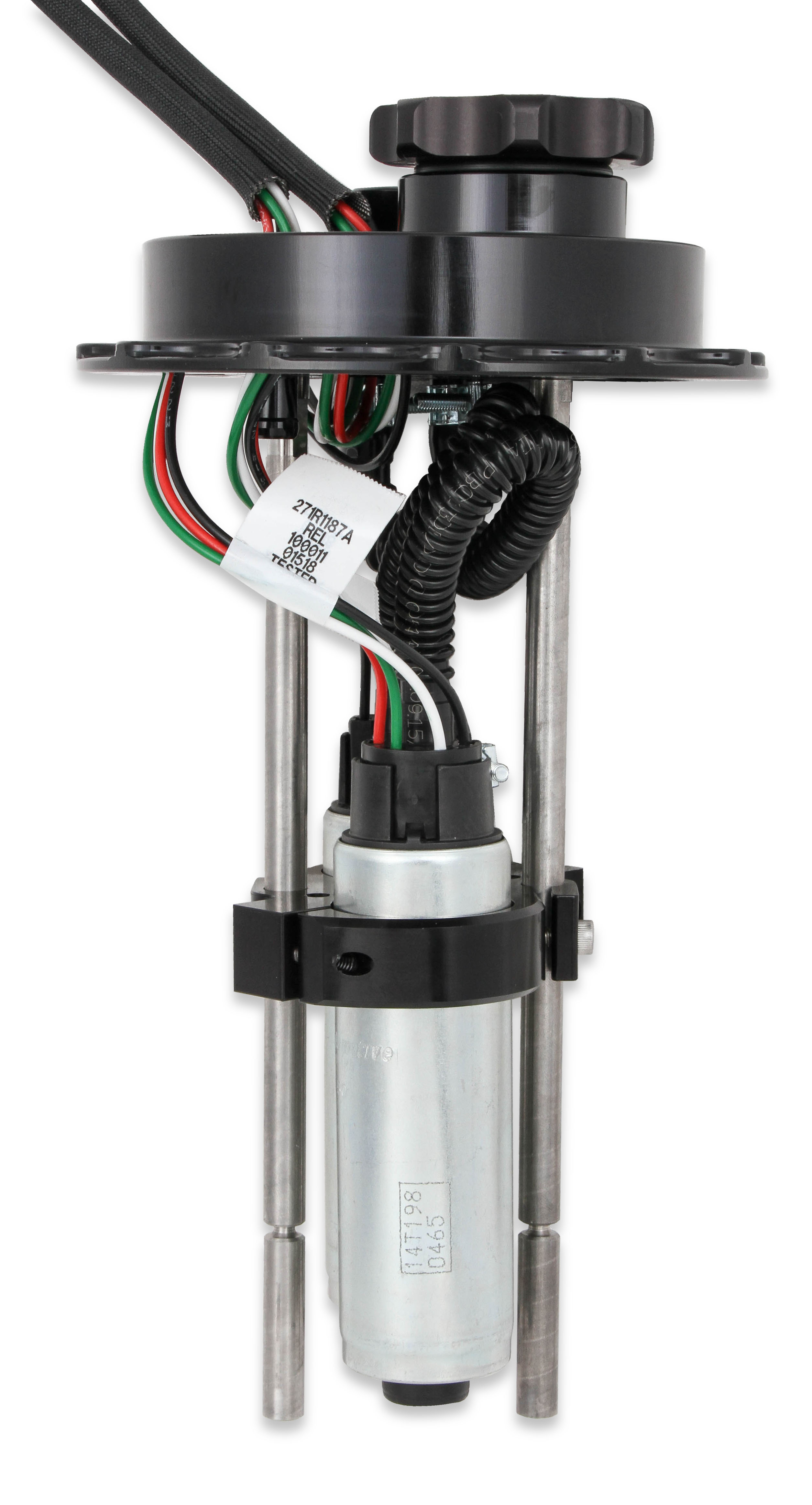

Fuel Cell Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps
SKU
HTPD-12-143
List price
$3,451.20
Price
$2,587.95
Description
Street/Strip Carb or EFI Applications
Supports up to 4400 EFI or 4800 Carb HP
Compatible with Pump Gas, Race Gas, Methanol and E85*
Features

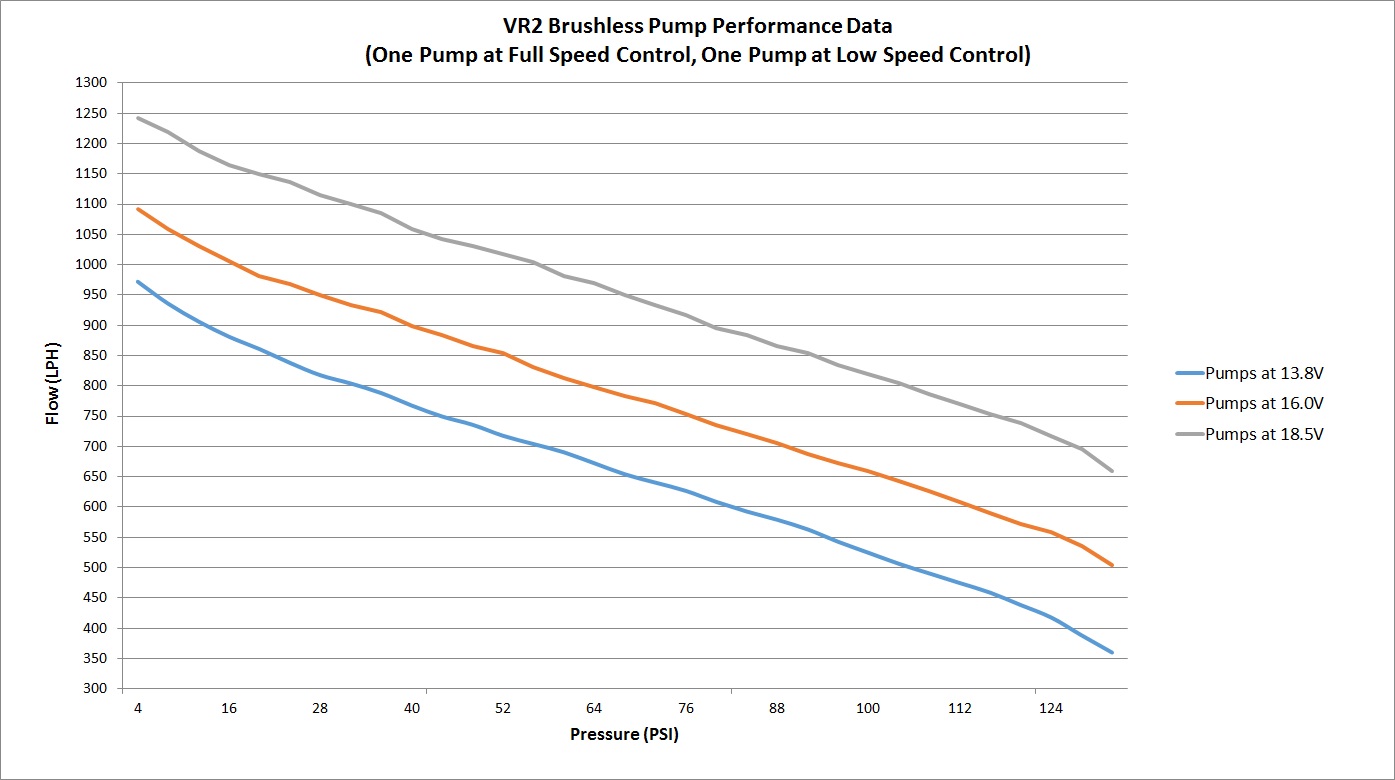

- Capable of 130 PSI while providing significant flow for forced induction applications where belt driven pumps are normally used.
- Unlike other pumps, the VR Series are built for continuous duty if needed.
- Billet aluminum construction for durability and good looks

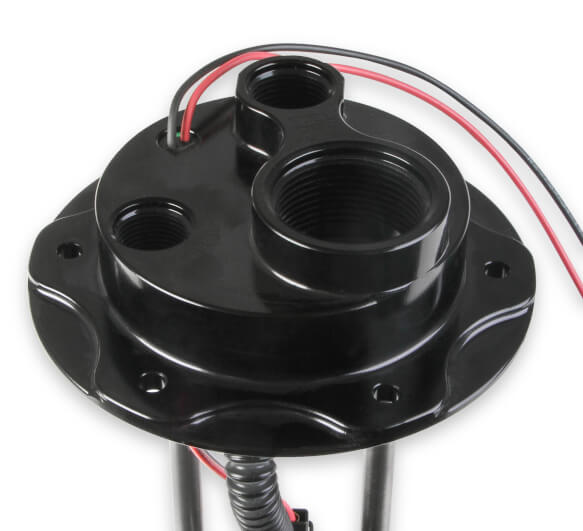

- Designed to drop right into your existing 6 bolt flange fuel cell
- High flow and high pressure with low amperage draw
- Can be fully submerged in the fuel cell or chassis mounted
- Maximum amp draw of 38 AMPS for the VR2

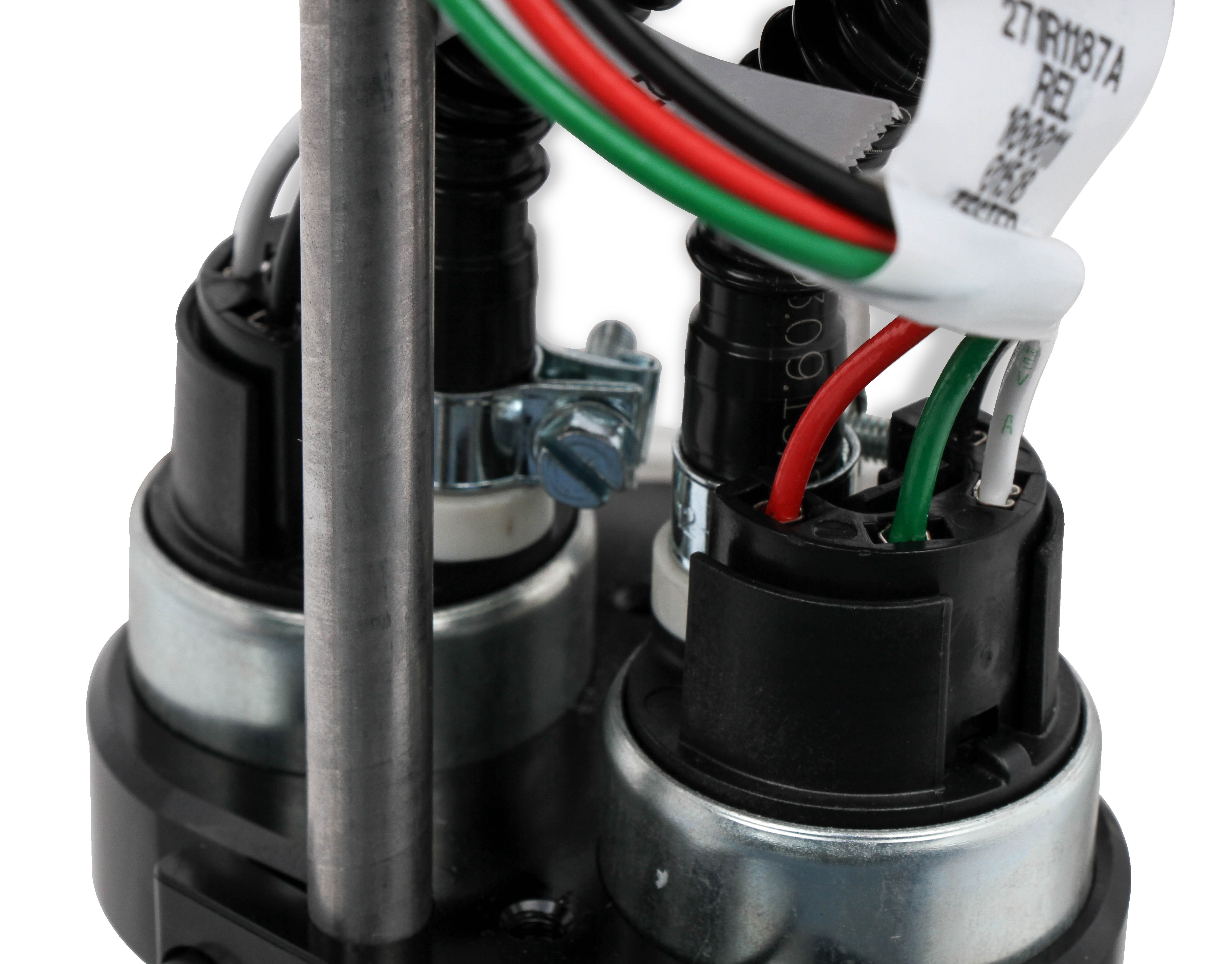

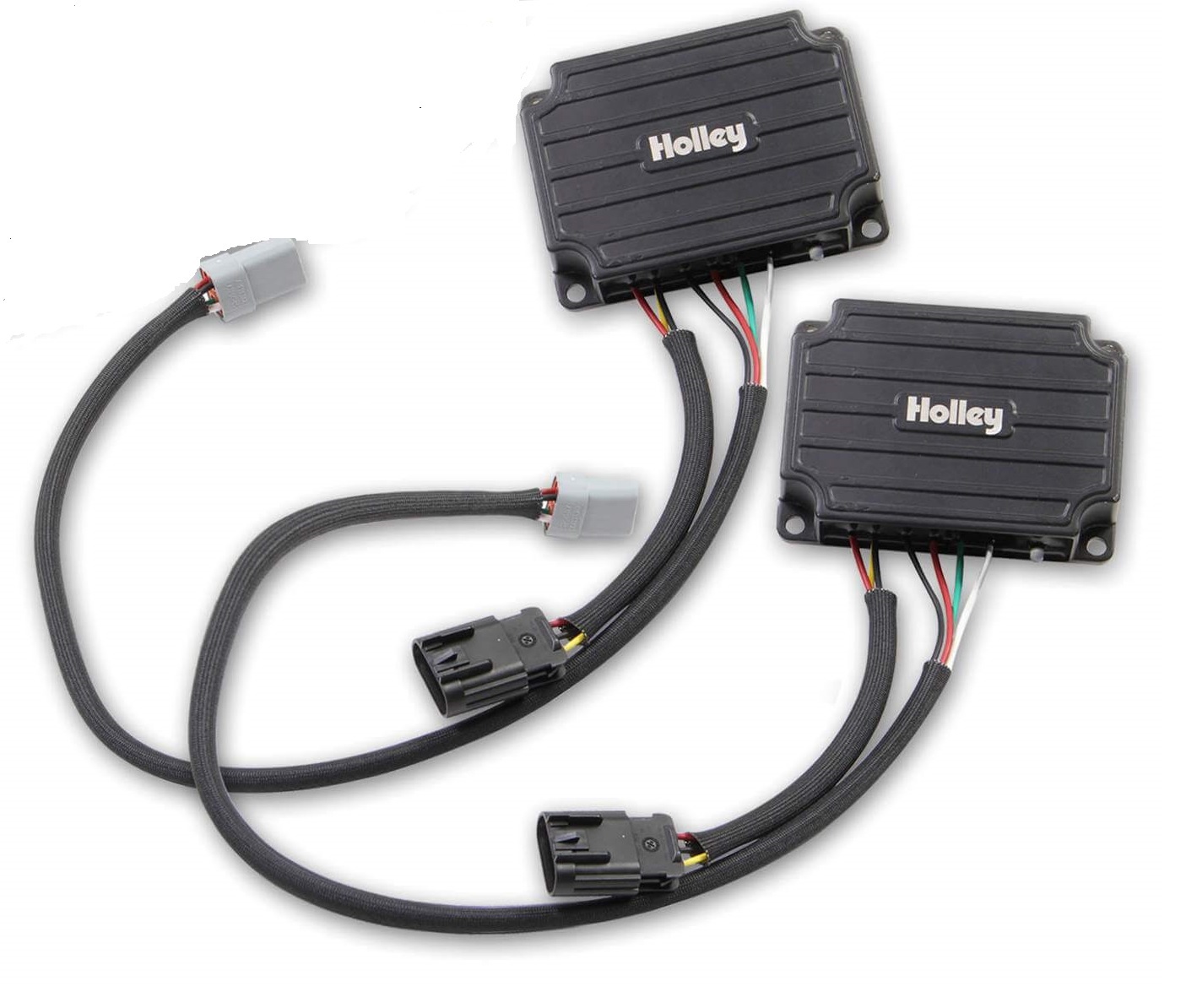

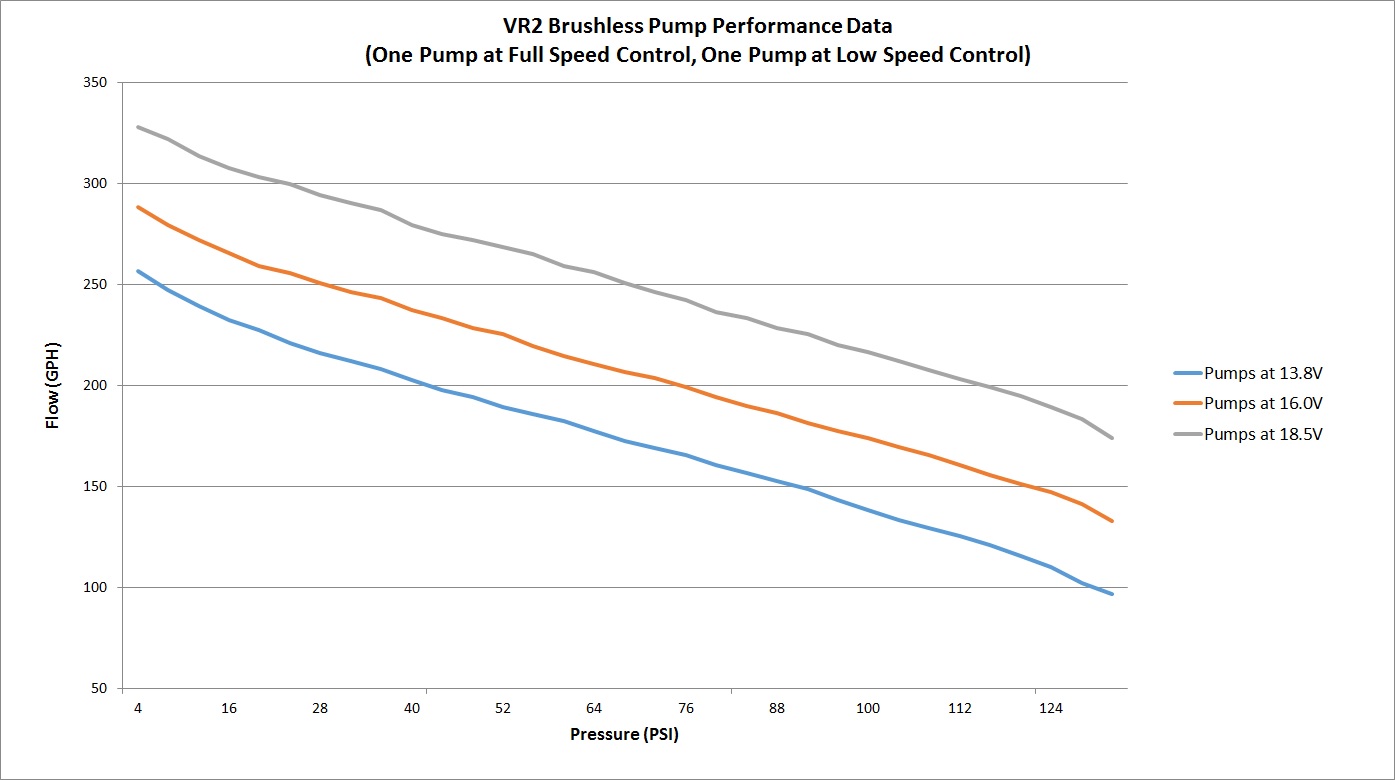

- Modules include dual VR Series Brushless fuel pumps with two step controller and harnesses.
Specs
Brand
HOLLEY
Category
Fuel Pump Module Assembly
Specs
Brand: Holley
Height: Adjustable
Voltage: 12-18.5
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Methanol
Pump Type: Electric
part type: Fuel Pump Module Assembly
Grade Type: Performance
Inlet Size: 8 AN O-Ring
Inlet Type: 8 AN ORB
Application: Universal
Fuel System: EFI
Outlet Size: 10 AN O-ring
Outlet Type: 10 AN ORB
Flange Style: 6 Bolt
Product Type: Brushless Fuel Pump
Sub Category: Fuel Pumps and Related Components
Emission Code: 5

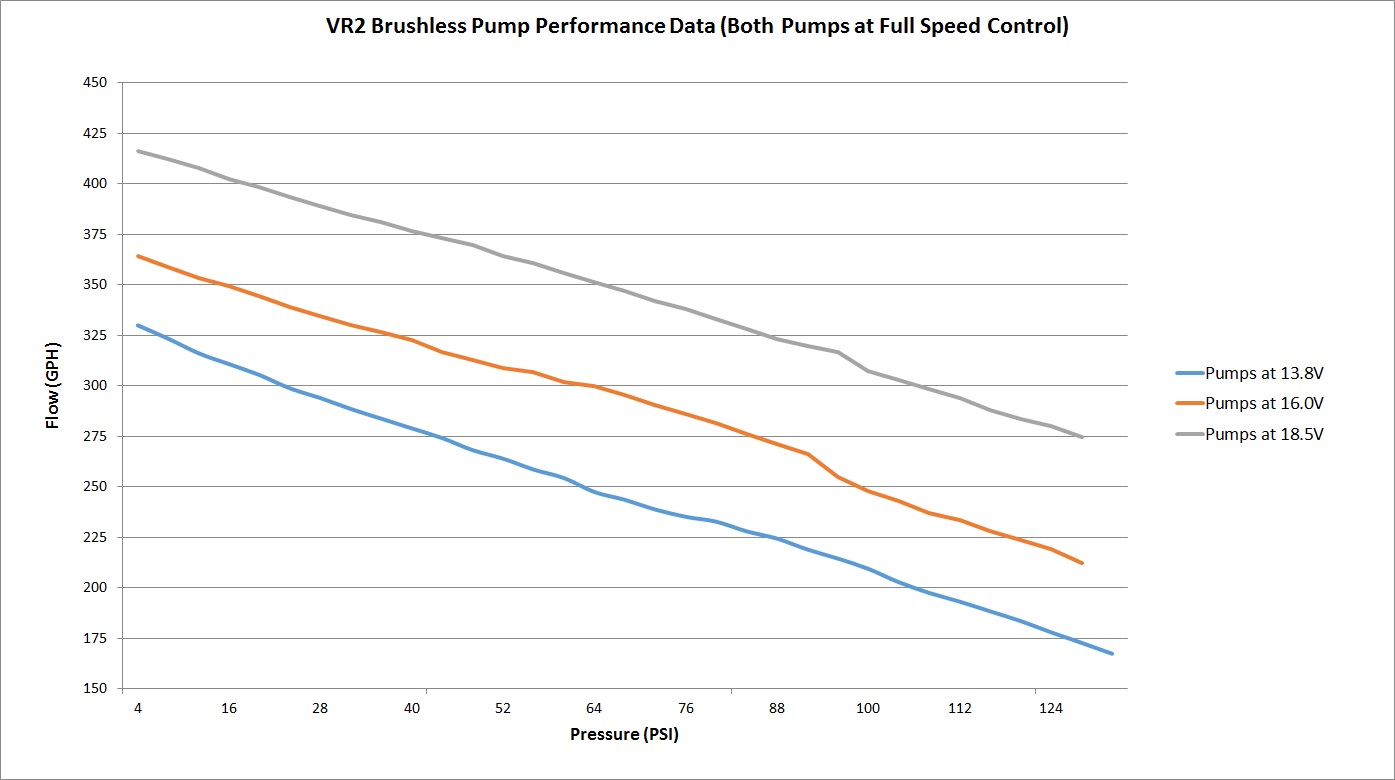

Free Flow GPH: 335 @ 13.8 Volts

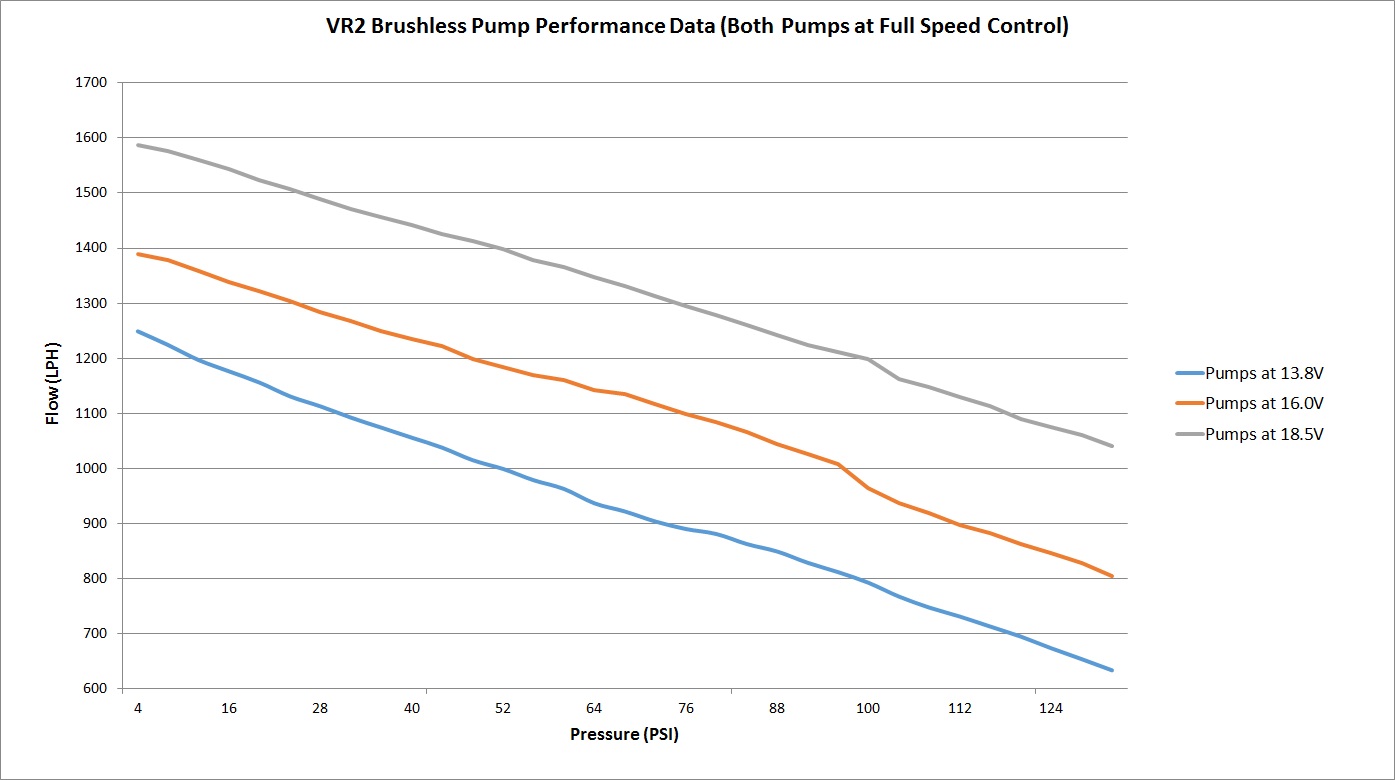

Free Flow LPH: Dual 644
Inlet Quantity: One
Connector Color: Gray
Negative Ground: Yes
Outlet Quantity: One
Pump Body Color: Black
Housing Material: Aluminum
Maximum Pressure: 130
Lock Ring Included: Yes
Regulator Included: No
Average Flow Rating: 335
In Tank or External: In Tank
Single Or Dual Pump: Dual
Fuel Filter Included: Yes

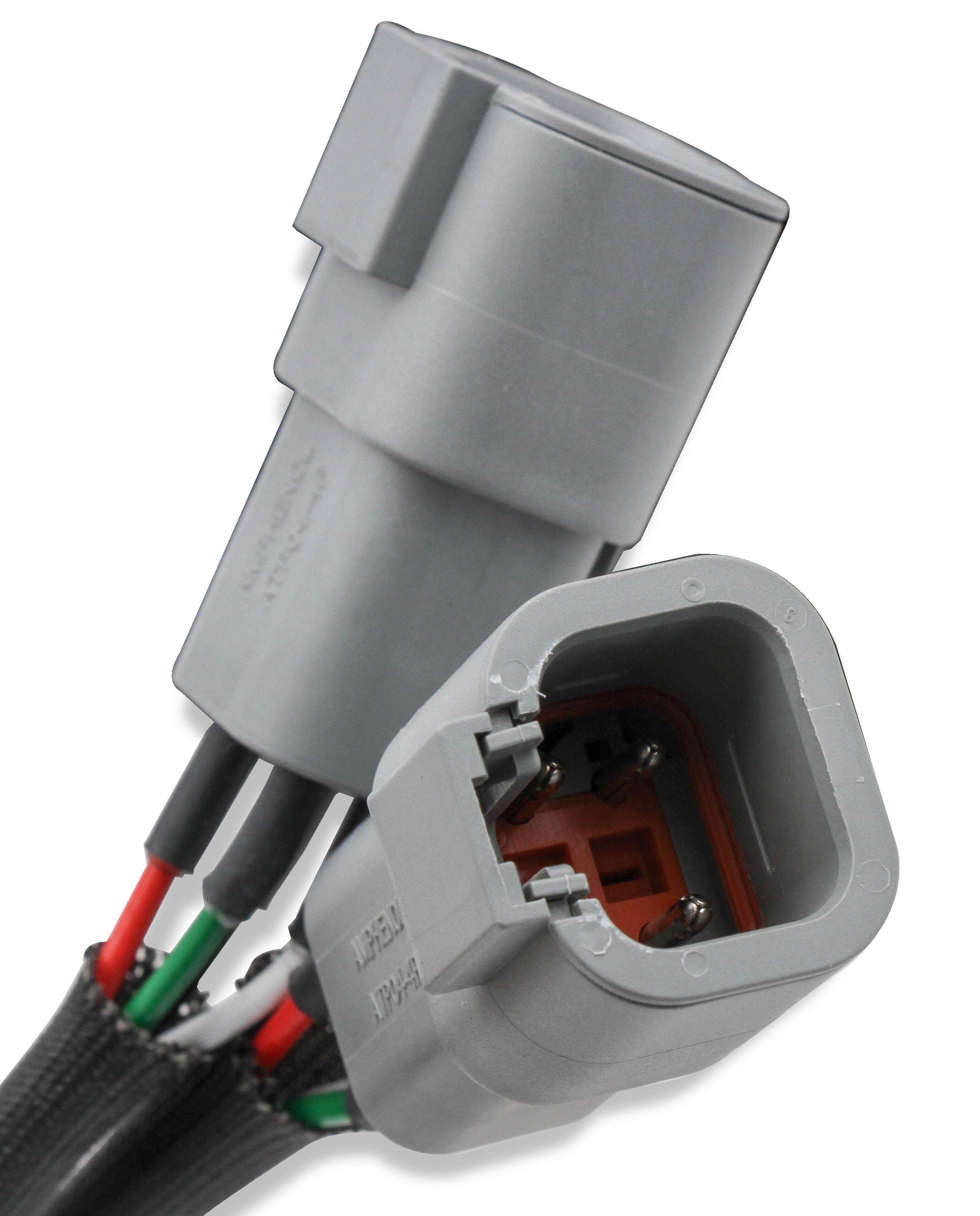

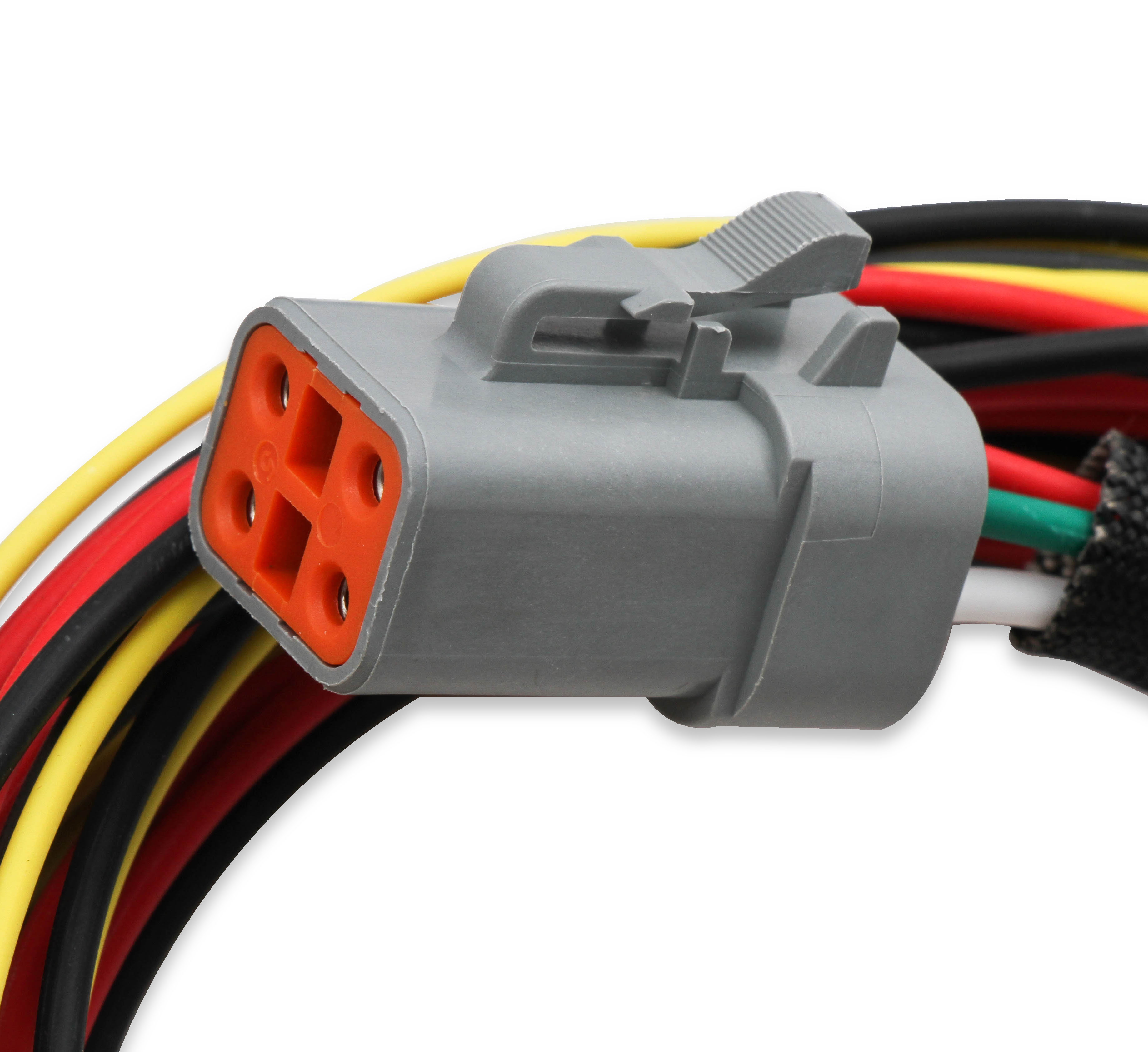

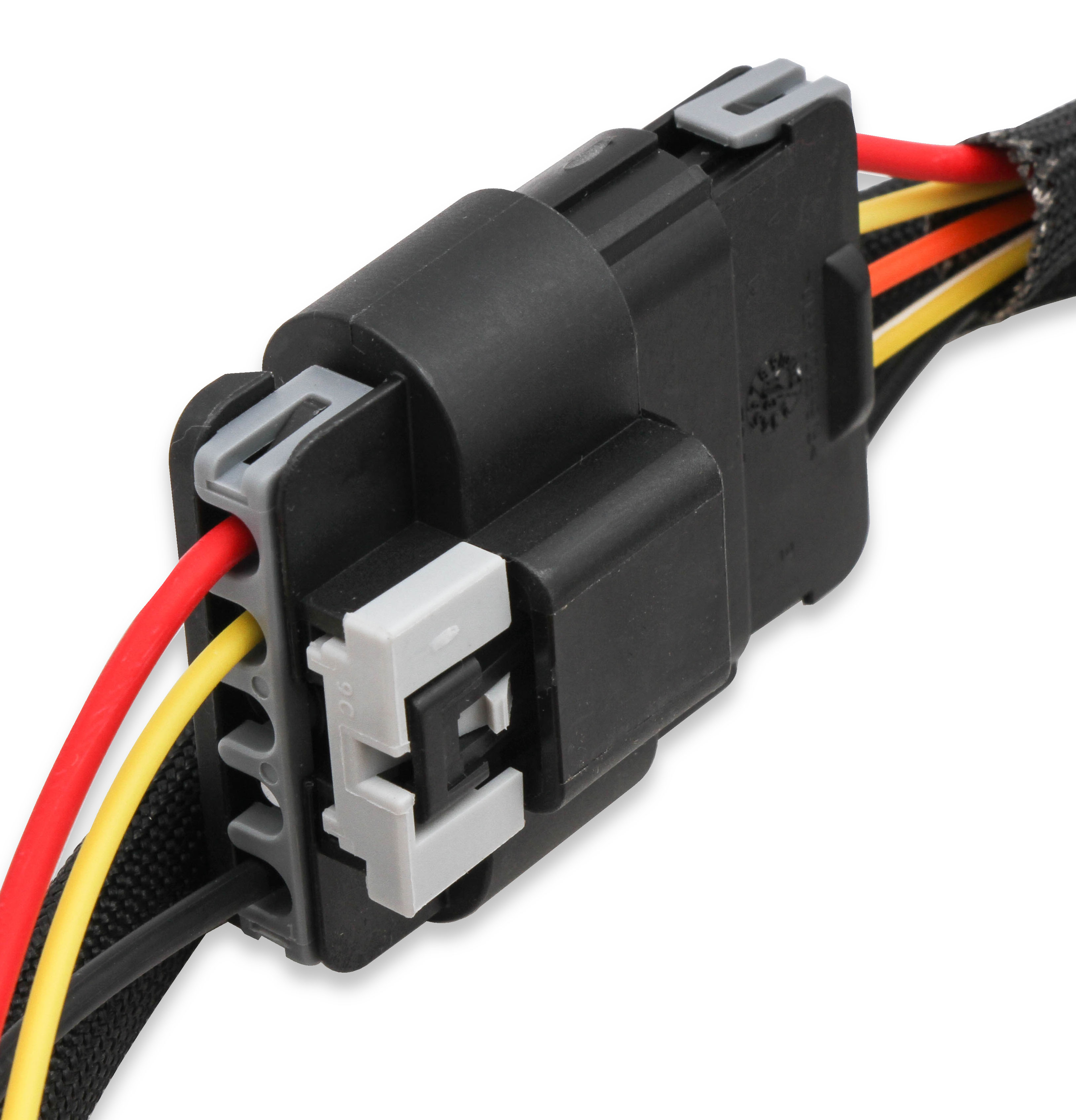

Wire Harness Included: Yes

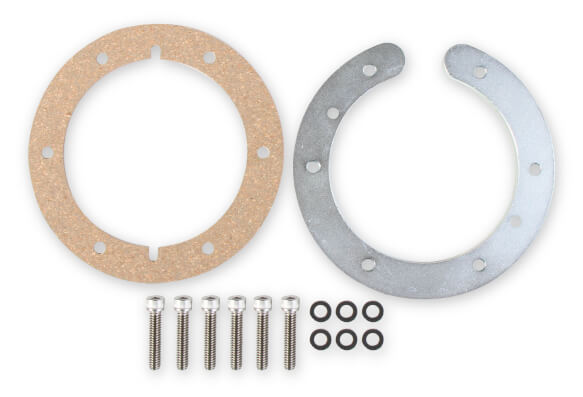

Gasket Or Seal Included: Yes
Gasket Or Seal Material: Cork
Universal Or Specific Fit: Universal
Fuel Sending Unit Included: No
Mounting Hardware Included: Yes

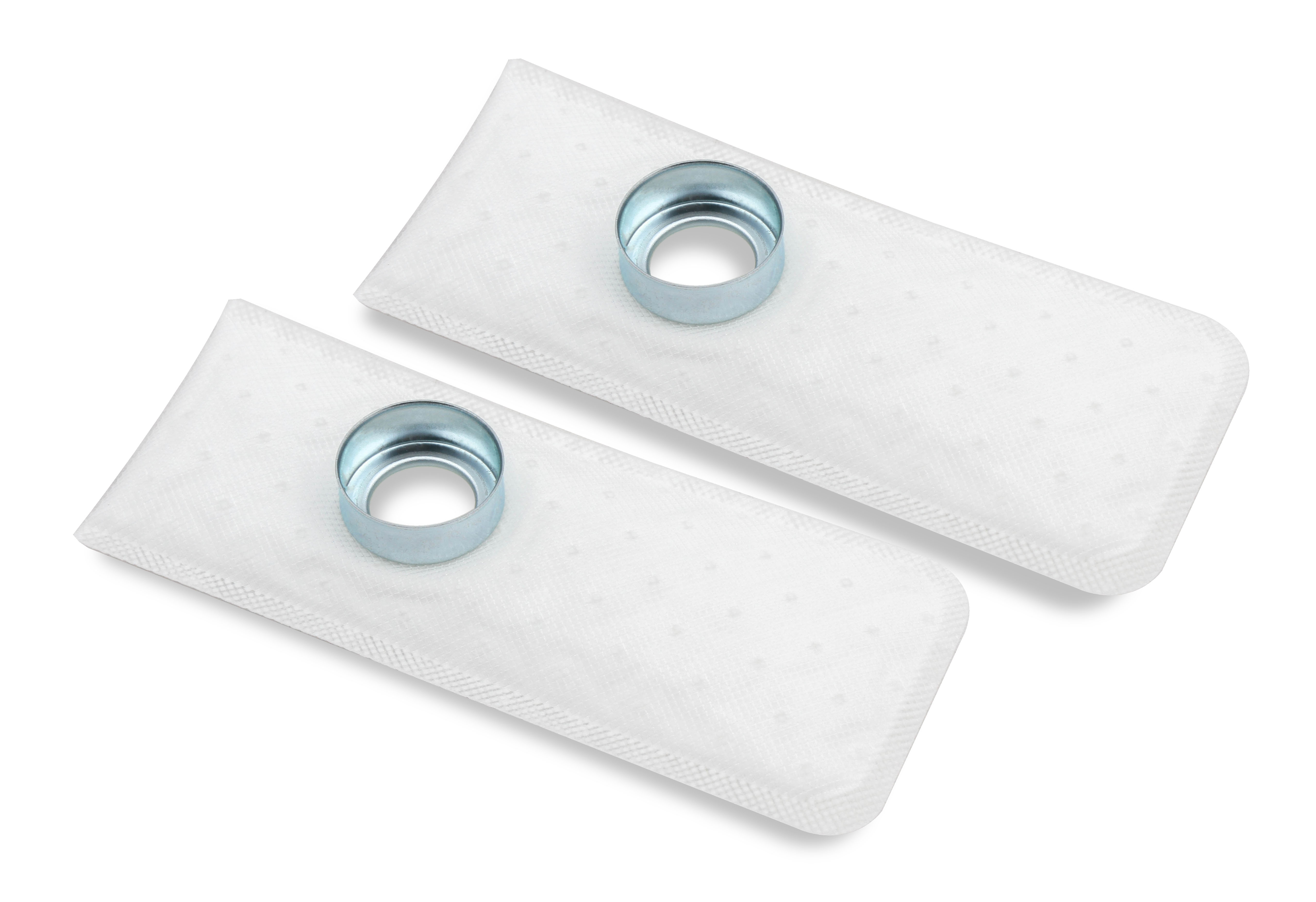

Internal Or External Strainer: External
Fuel Tank Pressure Sensor Included: No
