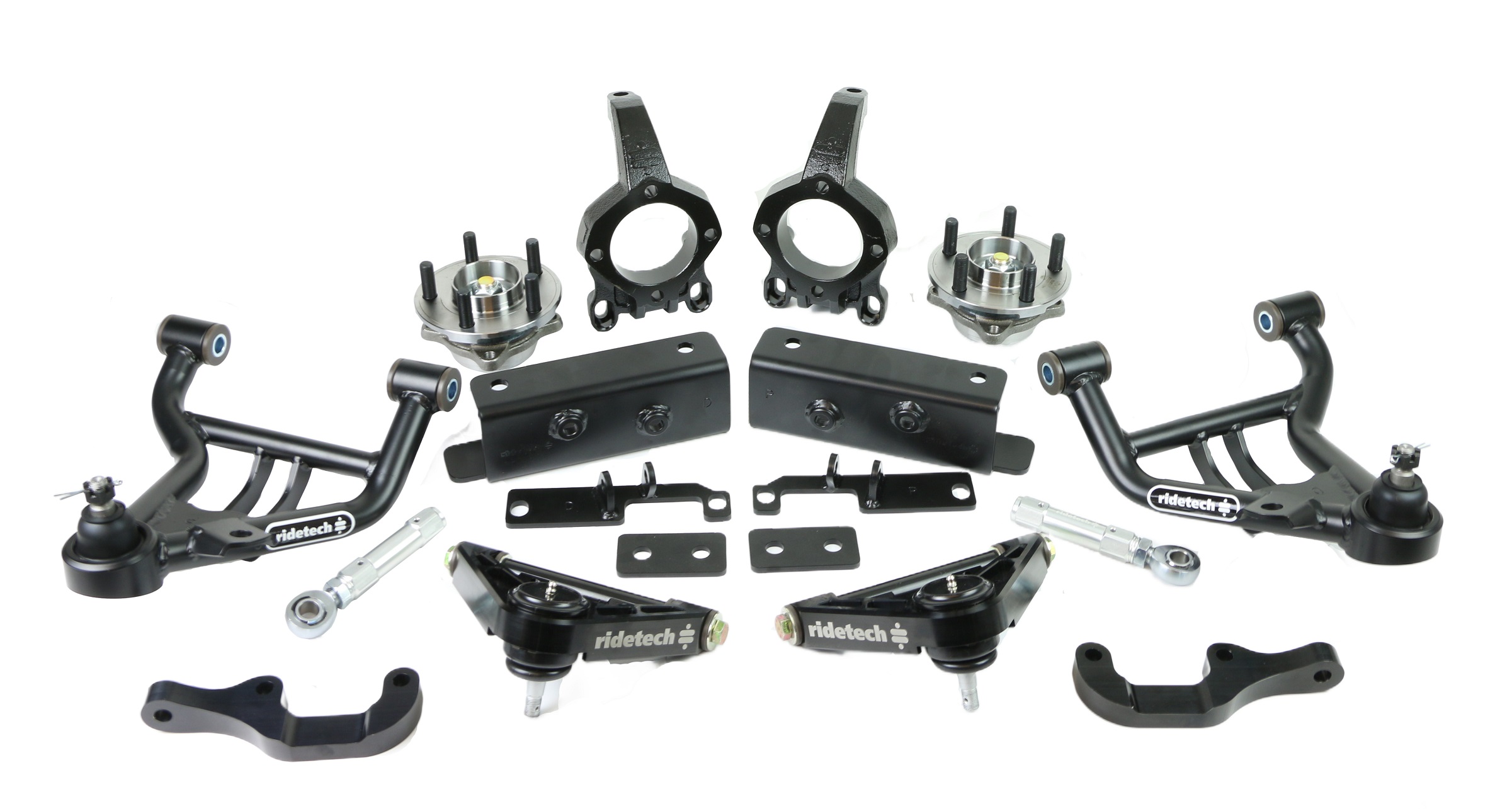

Front Sla Suspension System For 1979-1993 Mustang W/ Aftermarket K-Member For Use W/ Coil-Overs Or Shockwaves Sold Separately Tubular Lower Arms Billet Upper Arms Frame Mounts Spindles Hubs Steering Arms And Tie Rods.

This bolt-in SLA (Short-Long-Arm) suspension system replaces the stock MacPherson strut design with a billet aluminum upper control arm, tubular lower arm and spindles with S550/S650 Mustang hubs.

The factory strut design offers very little camber gain and poor overall geometry.

This design greatly improves negative camber gain, which positions the tire perpendicular to the pavement through the corners without the need for excessive static camber and overly stiff spring rates. Caster, roll center and Ackerman angles were also optimized.

Compatible with either Ridetech Coil-overs or Shockwave air suspension (sold separately).

Features

• Replaces OE MacPherson suspension with superior double-wishbone design for improved handling and geometry
• Incorporates an upper control arm to induce much needed negative camber gain.
• Caster, roll center, bumpsteer and Ackerman angles are optimized.
• Bolt-in frame surrounds create attachment points for the upper control arms and the shocks, this keeps the load on the frame rails for maximum strength and reduced NVH.
• Upper and lower arms feature Delrin bushings infused with Teflon to minimize stiction and eliminate the need for lubrication.
• Spindles includes Moog S550 Mustang rear hubs for maximum strength, consistent braking and reduced maintenance.
• Lower control arm design improves tire clearance and steering angle, 30 degree,s with up to a 275mm wide tire.

Fitment

• Fit's many Aftermarket K-Members including Maximum Motorsports, Team Z, AJE & UPR.
• Uses S550/S650 (15-23) or SN95 (94-04) Mustang brake systems. (Caliper brackets sold separately.)
• 17 inch minimum wheel diameter.
• Compatible with stock and most aftermarket sway bars.
• Perfect pairing with our Ridetech Rear IRS Conversion (replaces live rear axle)

Specifications

• Negative Camber Gain - 1.25 deg./in.
• Positive Caster - 7-9 deg.
• Bump steer - under .050 inch (Optimized with Maximum Motorsport and Team Z k-members)
• Lowers ride height 2 inch
• 50lbs lighter than stock suspension
• Stock track width
