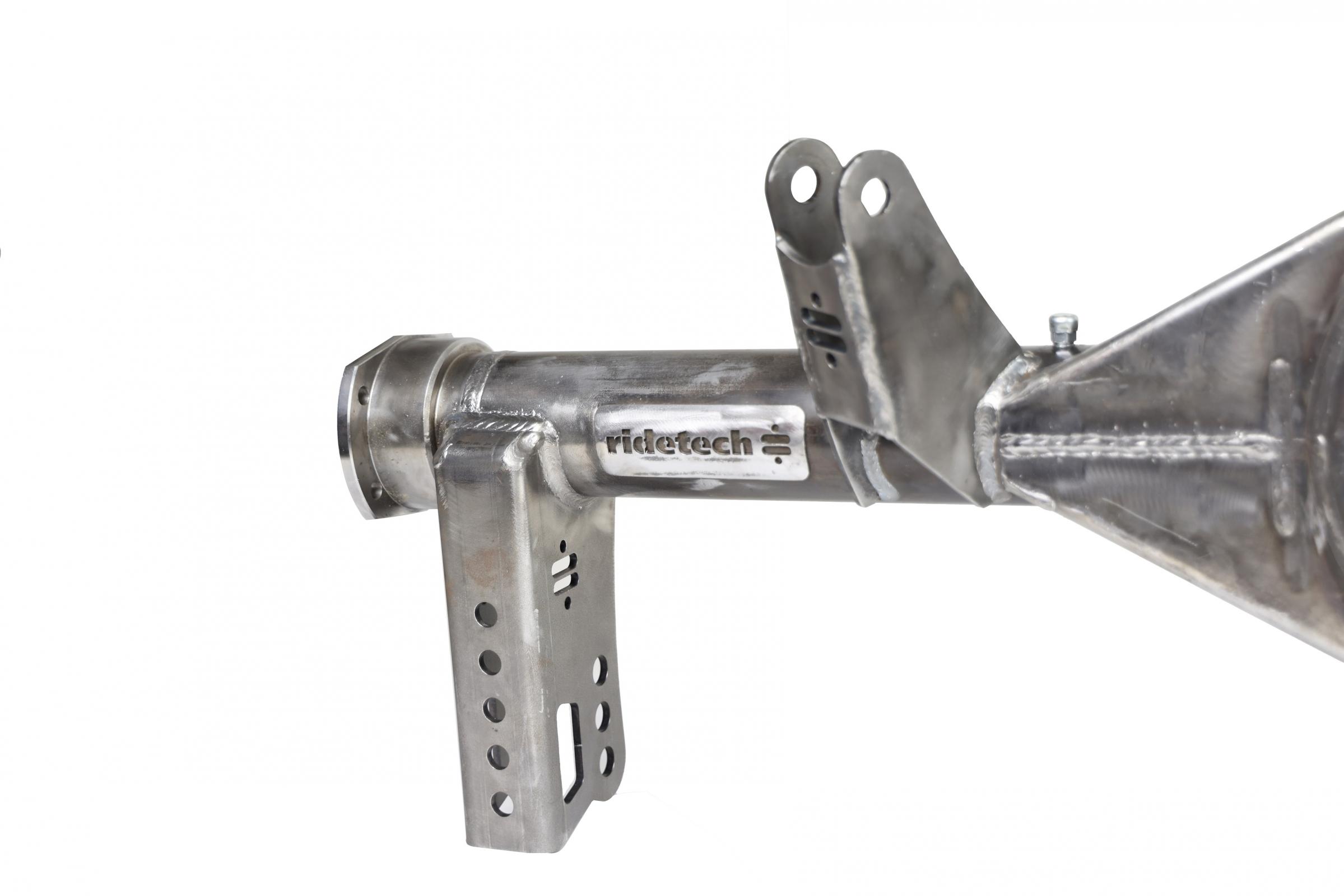

Ridetech 9 inch Rear Axle Housings: Installing a Ridetech Bolt-On 4-Link into your 1970-1981 Camaro/Firebird has never been easier W/ the help of this Ford 9 inch Rearend which includes the 4-Link bar brackets already welded to the housing.

The 9 inch Ford housings are a great foundation for putting torque to the pavement. The housings feature a webbed center section W/ internal gussets W/ 1/4 inch wall 3 inch diameter tubes and billet steel flanges (New Style Big Bearing/Torino).

The pinion is offset 1/2 inch and the axle flange is offset 2 1/2 inch. Stock and narrowed axle widths are also available to satisfy mini-tubbed applications.

These housings include both a drain plug and jack pad and Grade 8 T-bolt hardware for sufficient strength where you need it. 3rd member studs are pre-installed and ready to accept a third member.

Ridetech is offering their housings in both black power-coat and raw for vehicles that are in varied stages of completion to fit customer needs.

The included 31-spline axles are heat treated from 1541H Alloy and feature 5 inch x 4 ѕ inch bolt pattern and Grade 8 1/2 inch-20 x 2 inch wheel studs. Timken SET20 bearings are pressed onto the axles which also include the bearing retaining plates.

All 3rd Members feature Yukon nodular iron case, aluminum Daytona pinion support, 1350 billet steel yoke, Timken bearings and Eaton Trutrac differential unit. The Trutrac is a helical-gear style limited-slip differential that maximizes wheel traction and enhances driving characteristics.

Available W/ 3.50, 3.70, 3.89 or 4.11 ratio. The included LubeLocker gaskets prevents leaking W/out the use of silicon and is reusable.

2nd Gen Camaro (1970-1981) 4-Link Designed to work W/ new style Ridetech 4-Link (Kit 11177187 – 2 piece cradle).

Ridetech 9 inch Rear Axle Housings Features and Benefits:

• Ford 9 Inch Housing And Axles Raw Stock Width 61.25 Inch For 1970-1981 Camaro/Firebird W/ Ridetech Bolt-On 4-Link
• Webbed center section W/ internal gusseting for added strength
• 1/4 inch wall tubes
• 31-spline heat-treated 1541H custom alloy axles
• High-quality Timken tapered bearings on axle as standard
• Available in raw or black powder-coated finishes
• High quality Grade 8 installation hardware included | housing studs, t-bolts, nuts, washers for a seamless install
• Works W/ Ridetech's 70-81 F-Body (Camaro/Firebird) rear 4-link systems Comes W/ 4-link and sway bar brackets already installed
