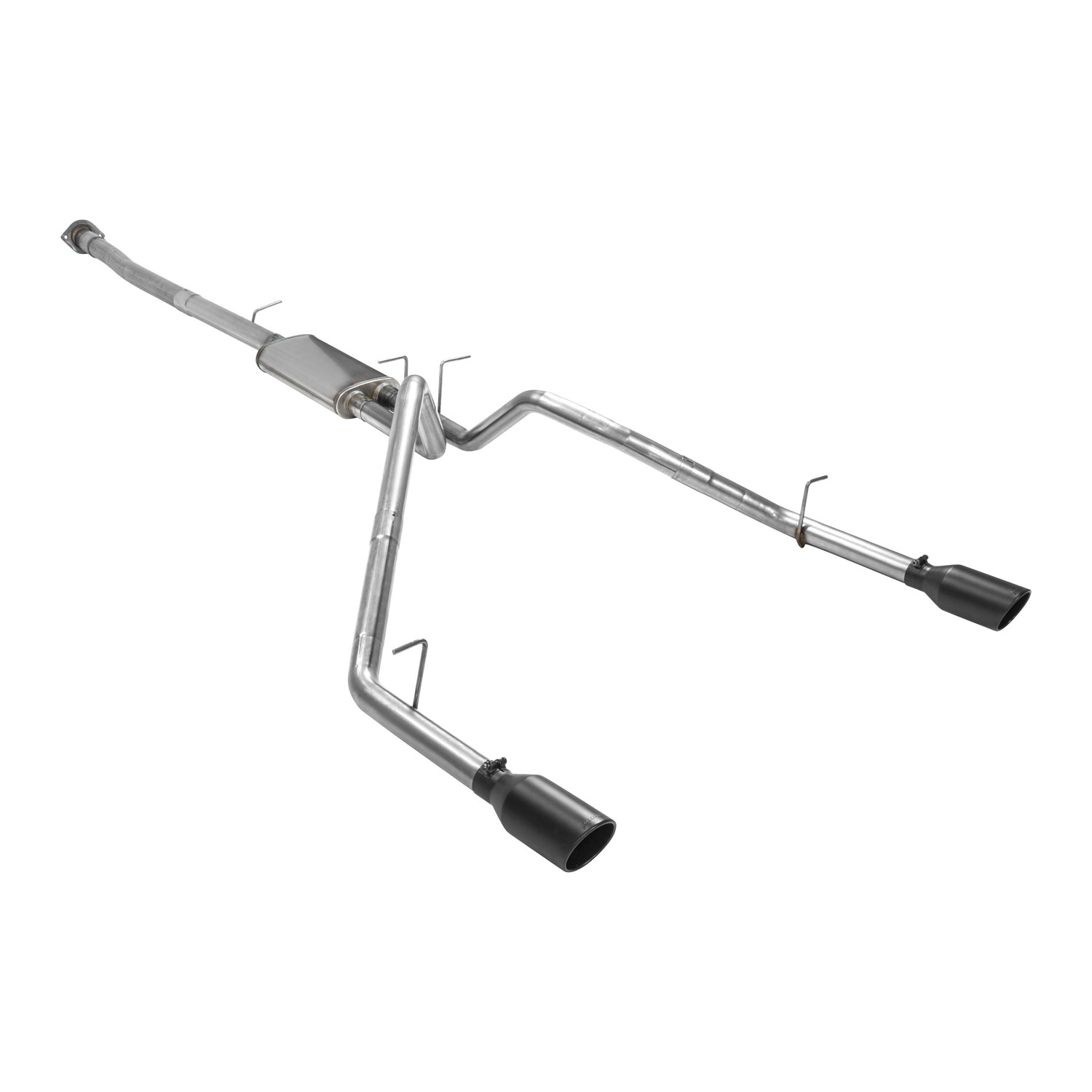

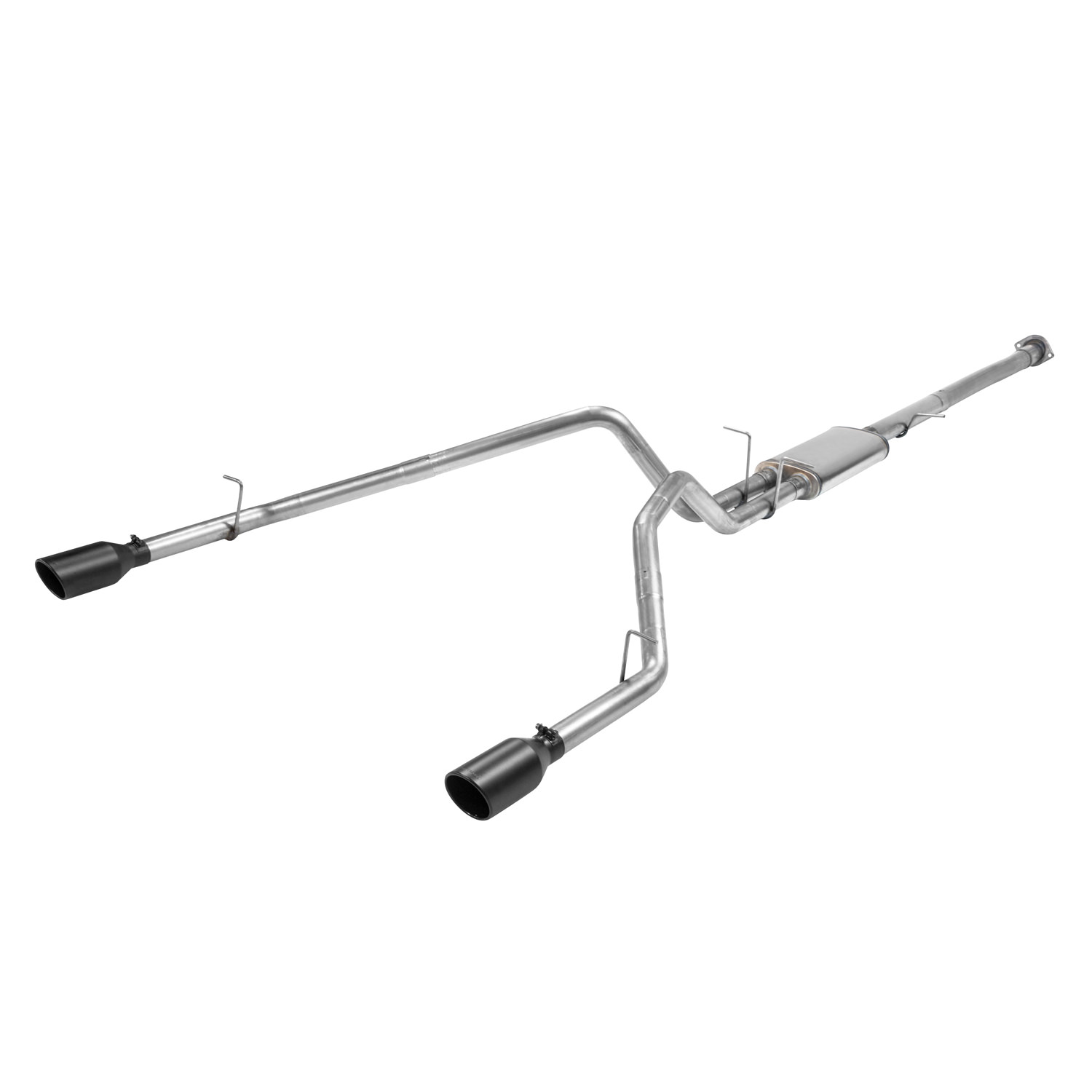

Flowmaster Flow FX Cat-Back Exhaust System
SKU
FFQY-717889
List price
$648.84
Price
$556.15
Description
Fits 2019-2024 RAM 1500 (New body) trucks with 5.7L Hemi Magnum engine and factory dual exhaust. - Aggressive to moderate sound
Features

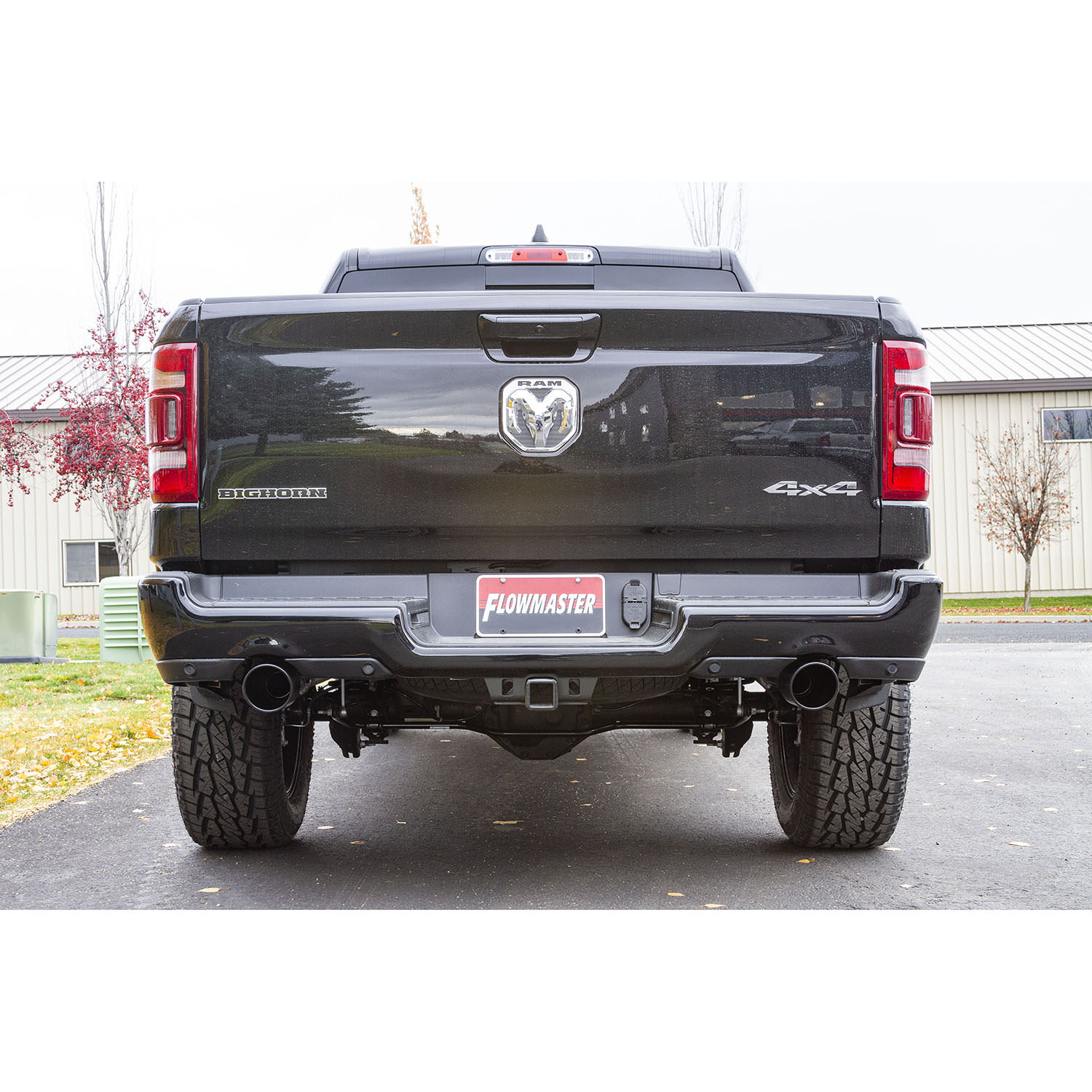

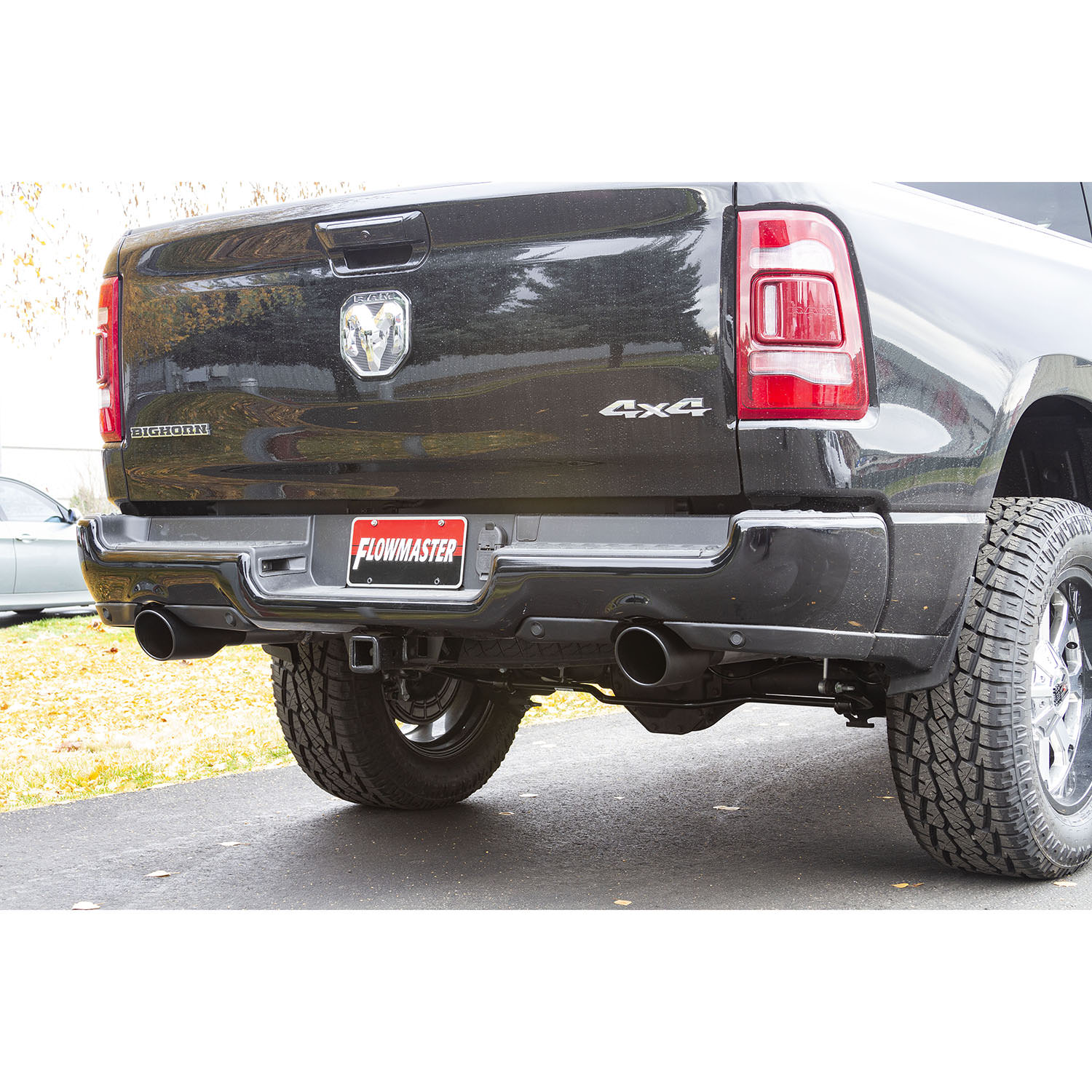

- Exits Through Factory Dual Exhaust Location in the Bumper
- Straight-through FlowFX Series Performance Muffler
- Deep Powerful Tone Inside and Outside the Vehicle
- Mandrel-bent Stainless Steel Construction
- Uses the Factory Hanger Locations
- Quick & Easy at Home Installation

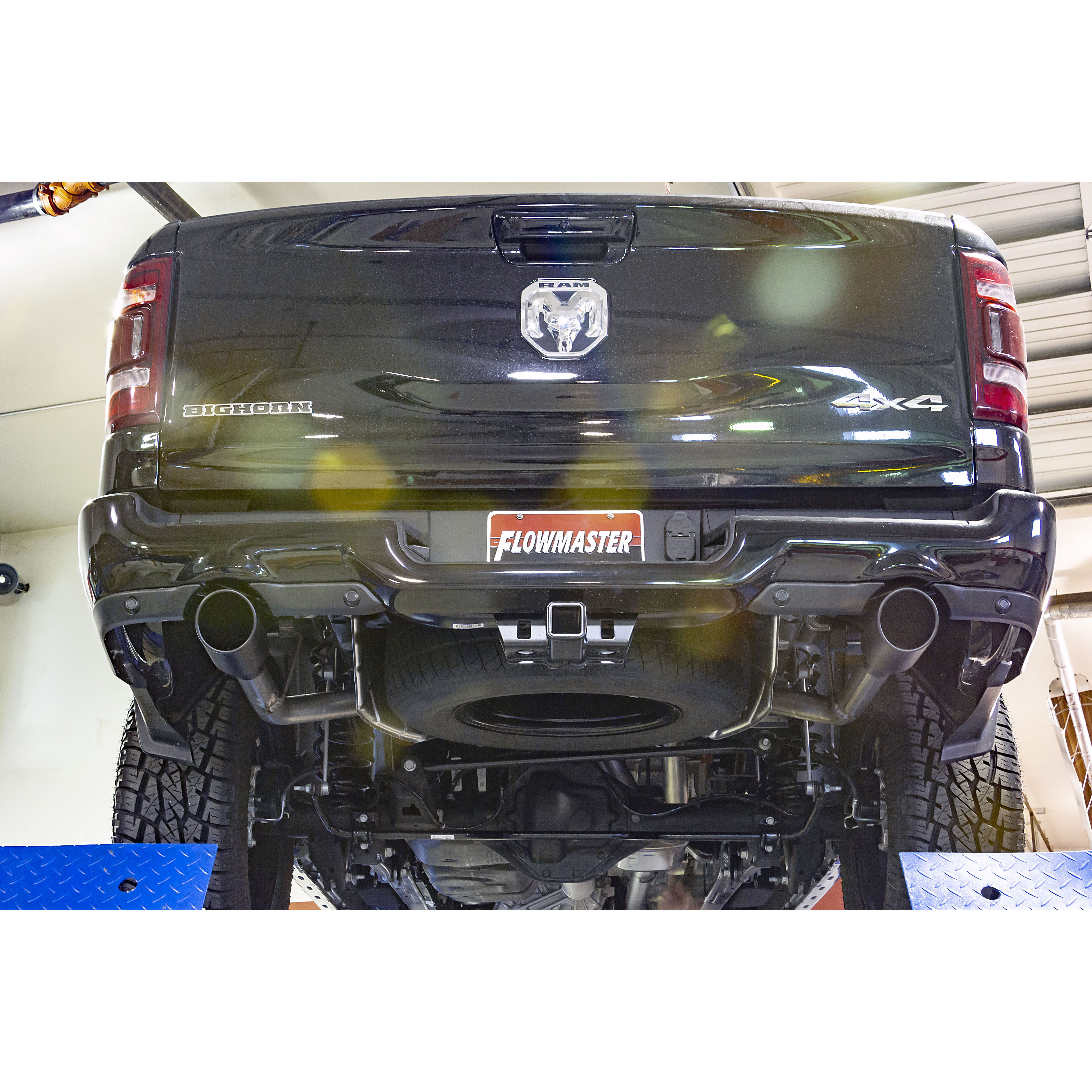

- Clears the Factory Spare Tire
- Lifetime Limited Warranty
Fitment
Vehicle Fitment
2019 Ram 1500 Limited
2019 Ram 1500 Laramie
2019 Ram 1500 Rebel
2019 Ram 1500 Big Horn
2019 Ram 1500 Lone Star
2019 Ram 1500 Tradesman
2019 Ram 1500 Laramie Longhorn
2020 Ram 1500 Limited
2020 Ram 1500 Laramie
2020 Ram 1500 Rebel
2020 Ram 1500 Big Horn
2020 Ram 1500 Lone Star
2020 Ram 1500 Tradesman
2020 Ram 1500 Laramie Longhorn
2020 Ram 1500 Special Service
2021 Ram 1500 Limited
2021 Ram 1500 Laramie
2021 Ram 1500 Rebel
2021 Ram 1500 Big Horn
2021 Ram 1500 Lone Star
2021 Ram 1500 Tradesman
2021 Ram 1500 Laramie Longhorn
2021 Ram 1500 Special Service
2021 Ram 1500 Longhorn
2021 Ram 1500 Limited Longhorn
2022 Ram 1500 Limited
2022 Ram 1500 Laramie
2022 Ram 1500 Rebel
2022 Ram 1500 Big Horn
2022 Ram 1500 Lone Star
2022 Ram 1500 Tradesman
2022 Ram 1500 Limited Longhorn
2023 Ram 1500 Limited
2023 Ram 1500 Laramie
2023 Ram 1500 Rebel
2023 Ram 1500 Big Horn
2023 Ram 1500 Lone Star
2023 Ram 1500 Tradesman
2023 Ram 1500 Limited Longhorn
2024 Ram 1500 Limited
2024 Ram 1500 Laramie
2024 Ram 1500 Rebel
2024 Ram 1500 Big Horn
2024 Ram 1500 Lone Star
2024 Ram 1500 Tradesman
2024 Ram 1500 Limited Longhorn
Specs
Brand
FLOWMASTER
Category
Exhaust System Kit
Specs
Type: Cat-Back
Brand: Flowmaster
Finish: Natural
Tip Cut: Angle
Warning: California Proposition 65
Category: Exhaust
Material: 409 Stainless Steel
Tip Logo: Embossed
Tip Shape: Round
Exit Style: Dual Out Rear
Grade Type: Performance
Inlet Type: Flanged
Mount Type: Uses Factory Hangers
Tip Finish: Black Ceramic Coating
Tip Length: 11.00
Valve Type: Not Applicable
Heat Shield: No
Single Dual: Dual
Sound Level: Aggressive / Moderate
System Type: Cat-back
Muffler Type: Absorption
Product Type: Exhaust System
Sub Category: Exhaust and Tail Pipes
Tip Diameter: 4.50
Tip Material: 304 Stainless Steel
Tip Quantity: 2
Clamping Type: Flat Band
Emission Code: 5
Exit Position: Dual Out Rear
Muffler Color: Silver
Muffler Shape: Oval
Pipe Material: Stainless Steel
Exhaust Series: FlowFX
Muffler Finish: Natural
Muffler Series: FlowFX
Tip Edge Style: Rolled
Valve Included: No

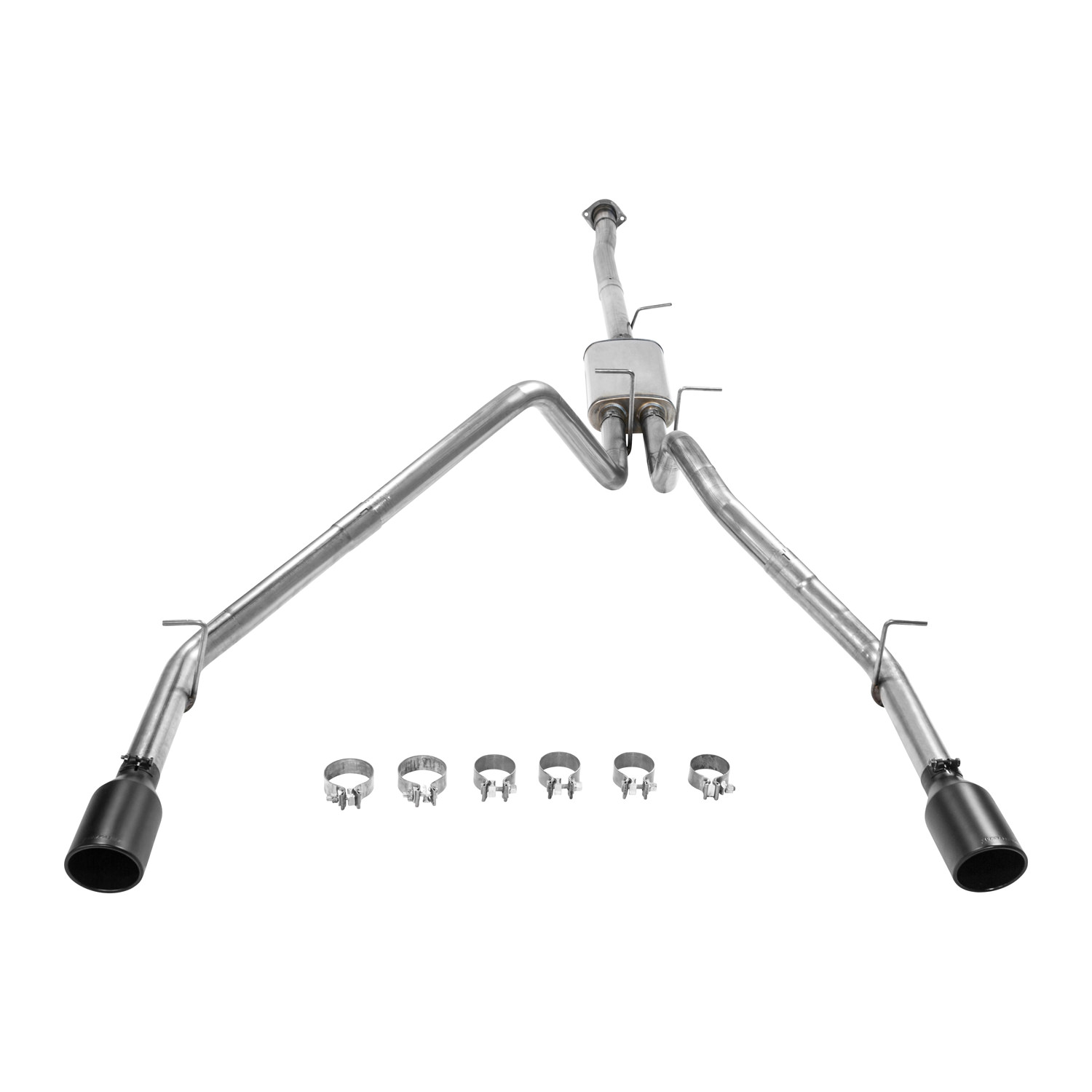

Clamps Included: Yes
Exhaust Tip Cut: Angled
Tubing Diameter: 2.50
Tubing Material: 409 Stainless Steel
Exhaust Tip Edge: Rolled Edge Angle Cut
Exhaust Tip Wall: Single Wall
Hangers Included: Yes
Muffler Material: 409 Stainless Steel
Muffler Quantity: 1
Exhaust Tip Color: Black
Exhaust Tip Shape: Round
Exhaust Tip Finish: Black Ceramic Coating
Exhaust Tip Length: 11.00
Muffler Body Shape: Oval
Muffler Body Width: 9.00
Tail Pipe Quantity: 2
Muffler Body Height: 4.00
Muffler Body Length: 18.00
Muffler Part Number: Kit Only
Exhaust Tip Diameter: 4.50
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 2
Main Piping Diameter: 2.50
Exhaust Tip Resonated: No
Muffler Body Material: 409 Stainless Steel
Muffler Flanged Inlet: No
Exhaust Tip Connection: Clamp-On
Muffler Flanged Outlet: No
Muffler Inlet Diameter: 3.00
Muffler Inlet Location: Center
Muffler Overall Length: 24.00
Exhaust System Kit Type: Cat-Back
Exhaust Tip Intercooled: No
Gasket Or Seal Included: No
Muffler Outlet Diameter: 2.50
Muffler Outlet Location: Dual
Muffler Outlet Quantity: 2
Muffler Inlet Connection: Slip-Fit
Spring Bolt Kit Included: No
Tail Pipe Tapered Outlet: No
Mounting Bracket Included: No
Muffler Outlet Connection: Slip-Fit
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Muffler Inlet Inside Diameter: 3.00
Muffler Inlet Outside Diameter: 3.13
Tail Pipe Outlet Outside Diameter: 2.50
California Proposition 65 Required: Yes
California Proposition 65 Chemical Name: Nickel (Metallic)
