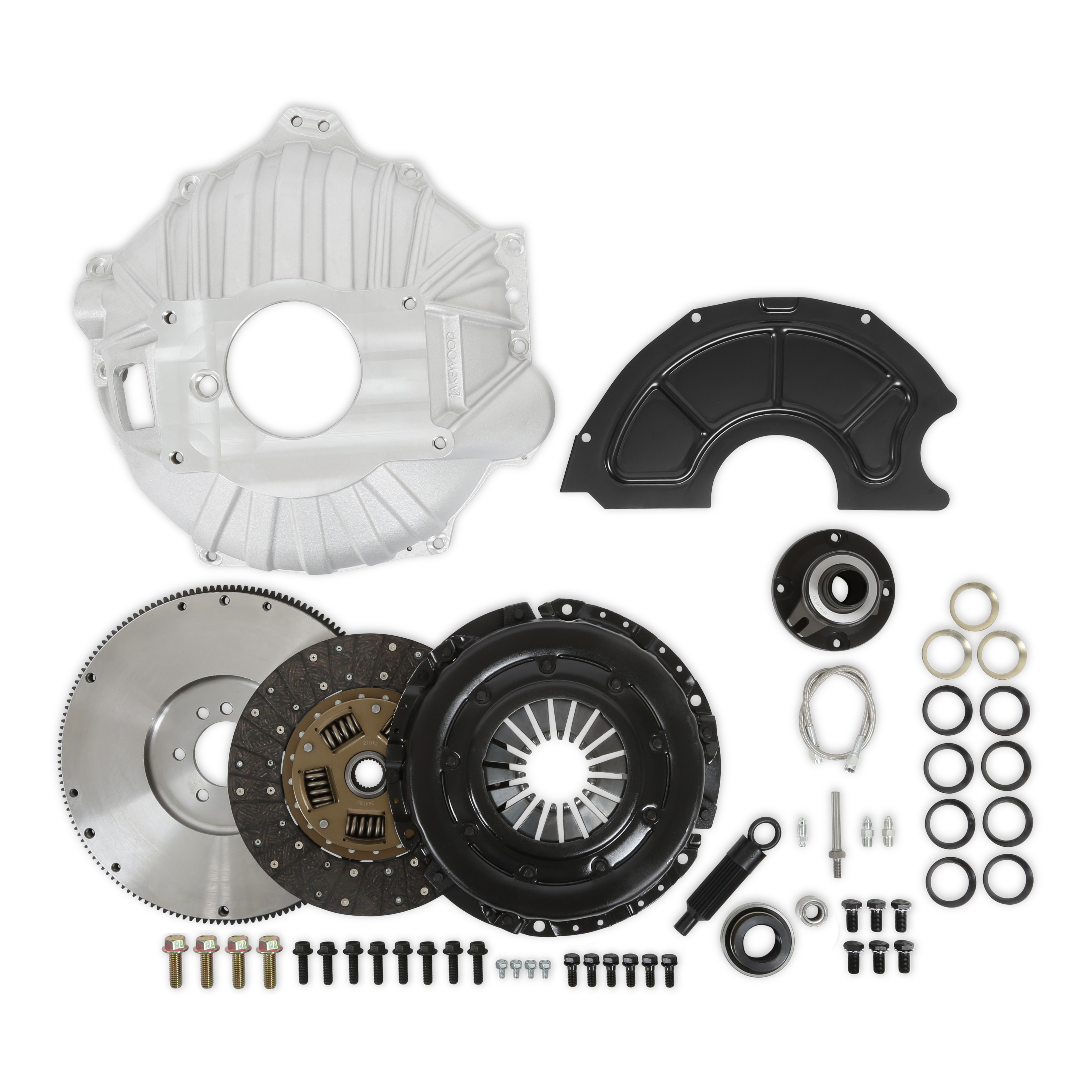

Complete Transmission Installation Kit
SKU
HTPD-319-503
List price
$2,347.20
Price
$1,759.95
Description
GM TKX/TKO Installation kit for 1990-2000 externally balanced 454/502 Big Block Chevrolet Engines
Features
- Designed for 1990-2000 454/502 Big Block Chevrolet Engines using a TKX or TKO transmission

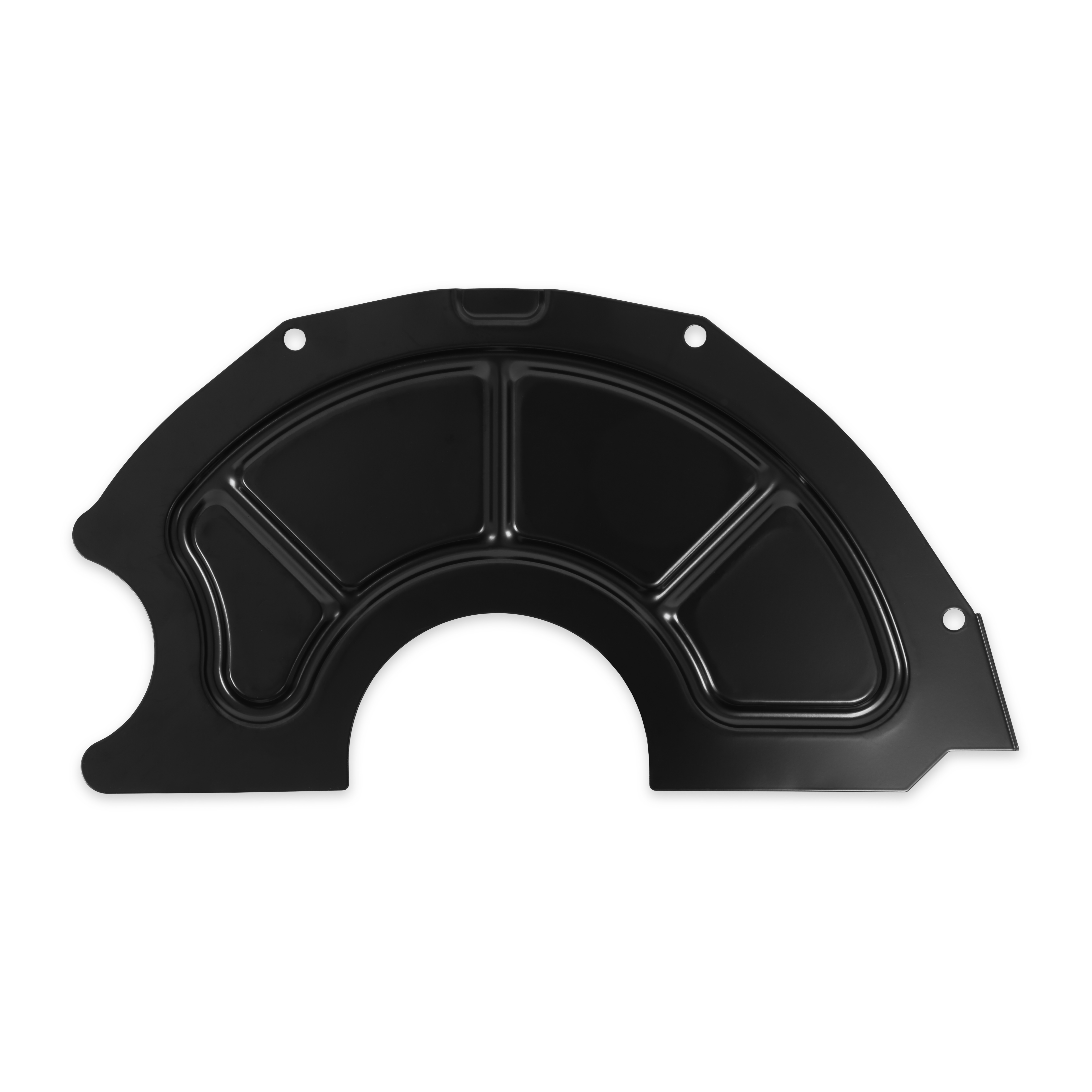

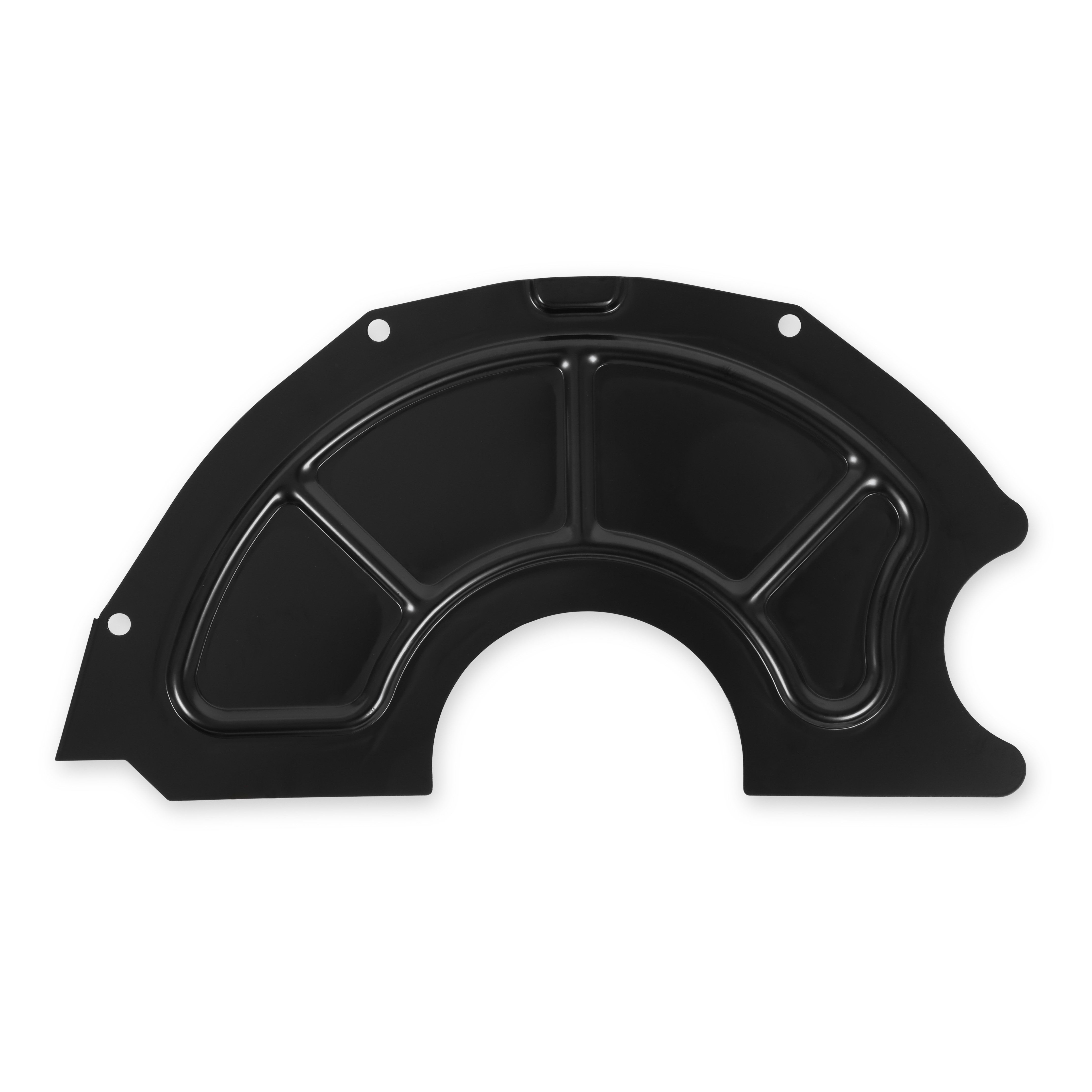

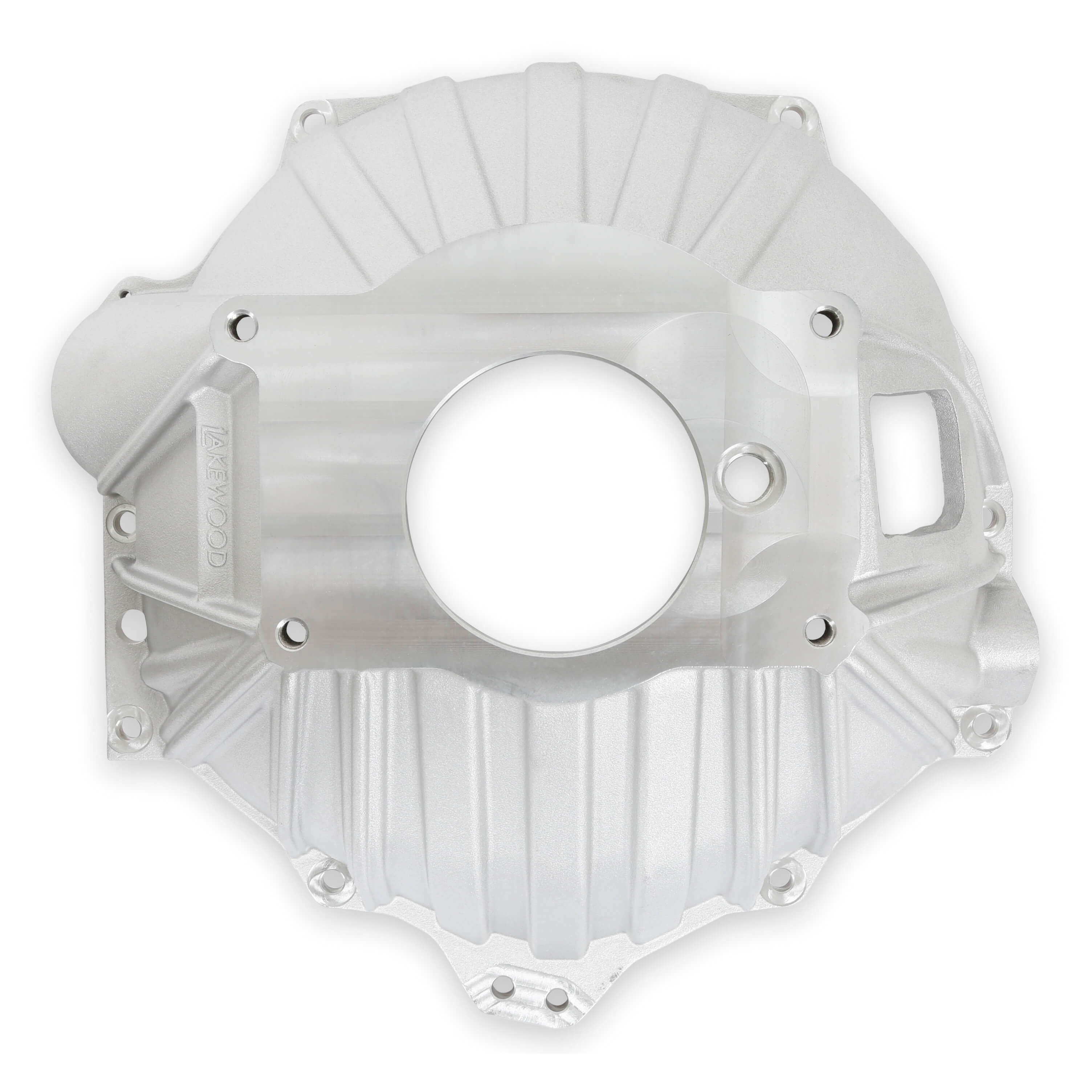

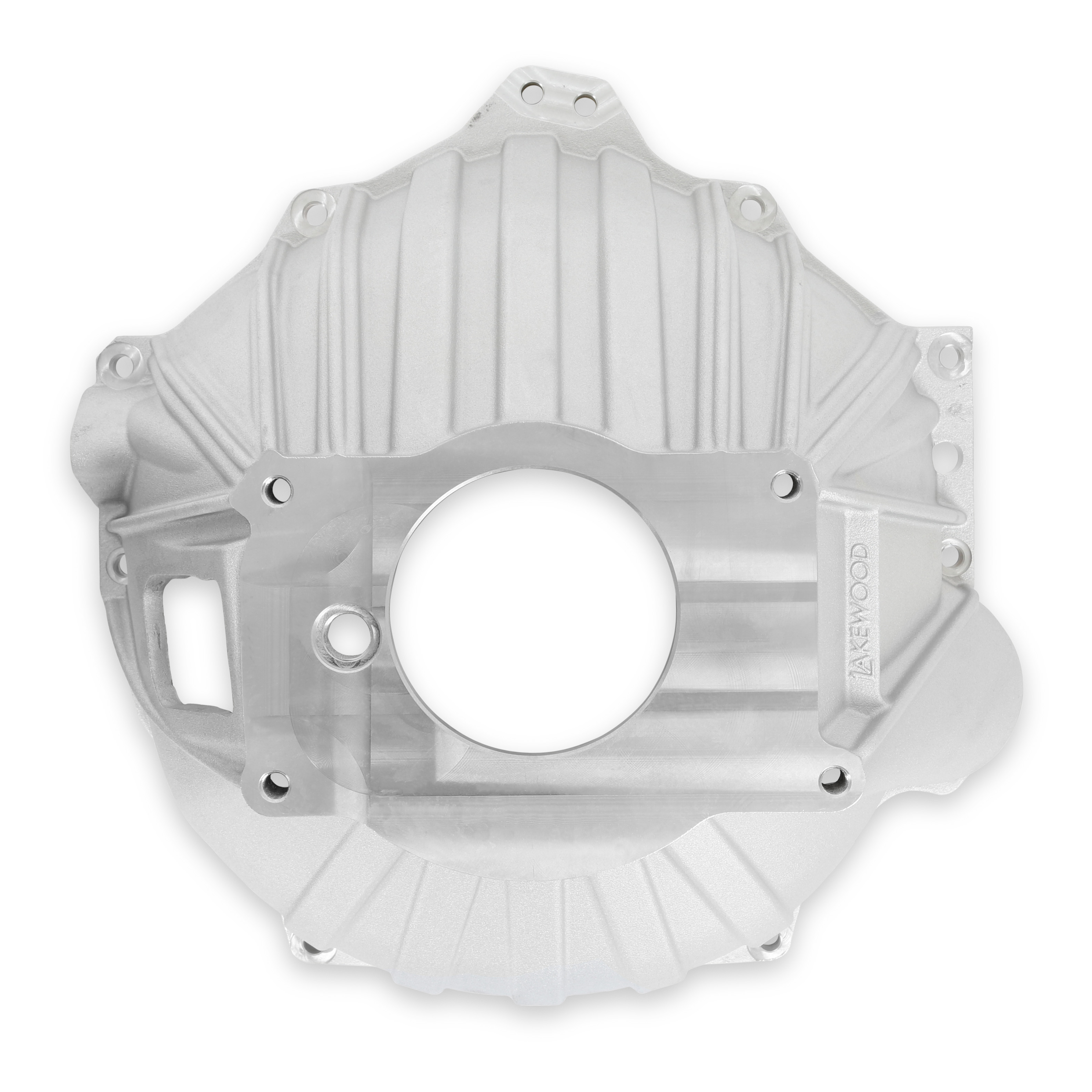

- Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance

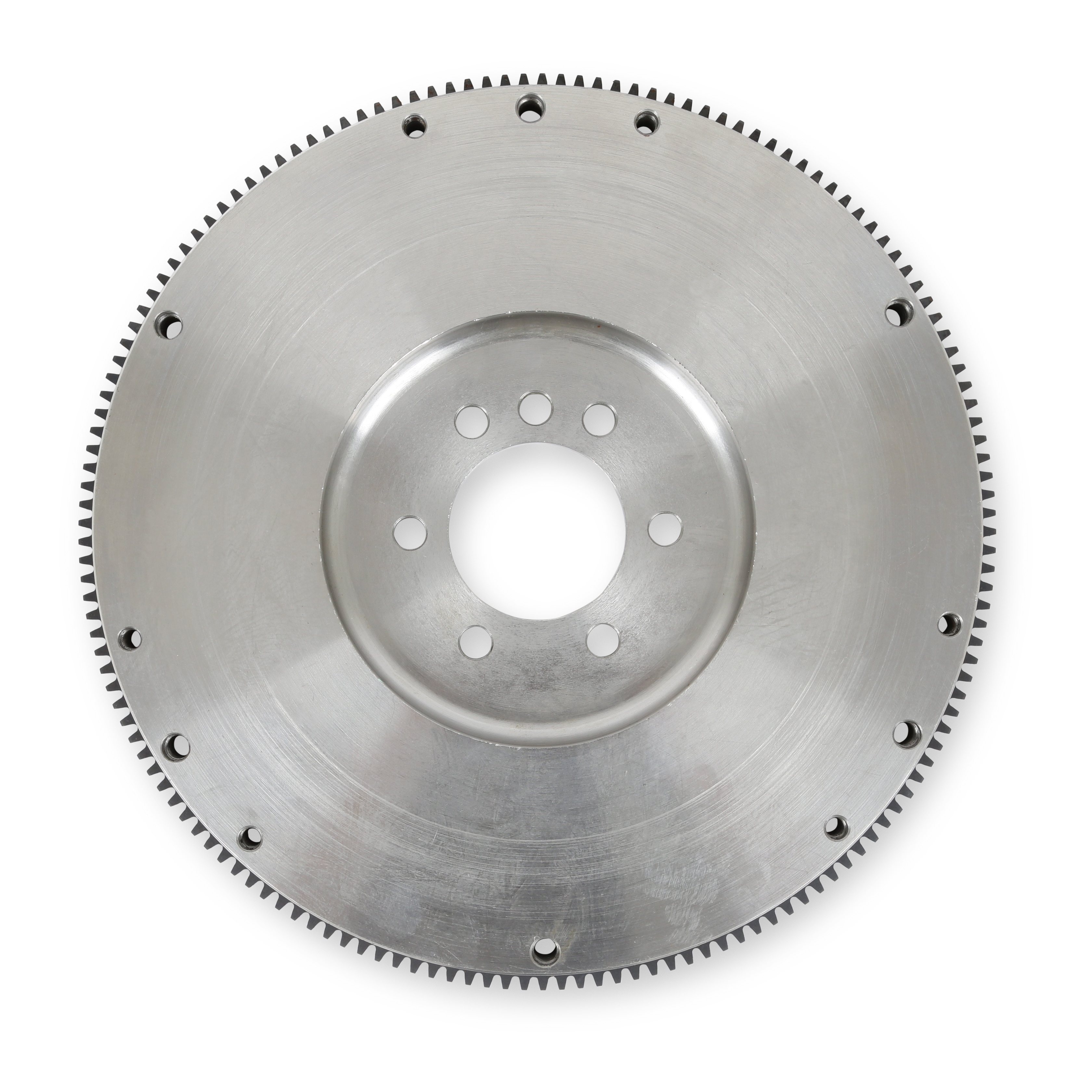

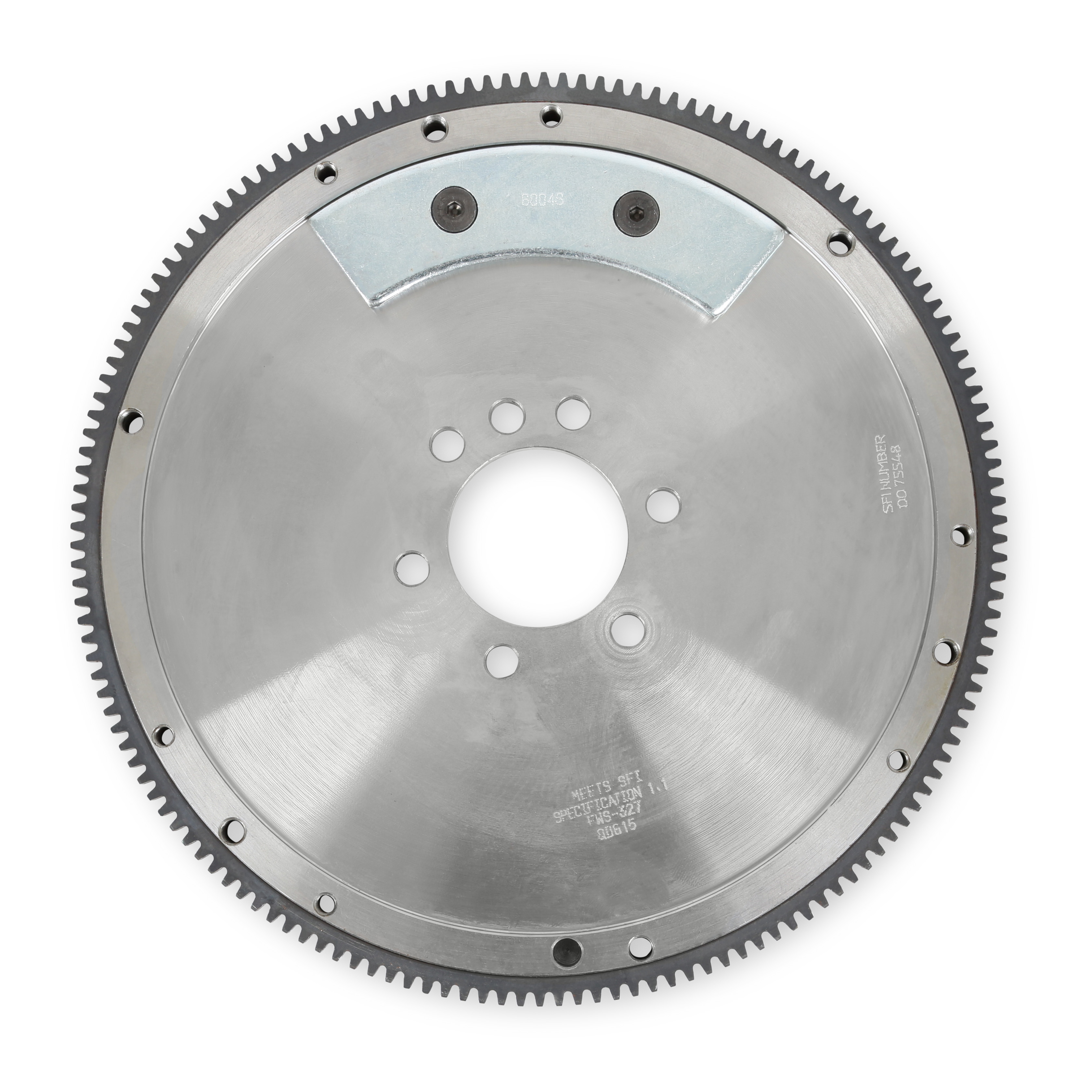

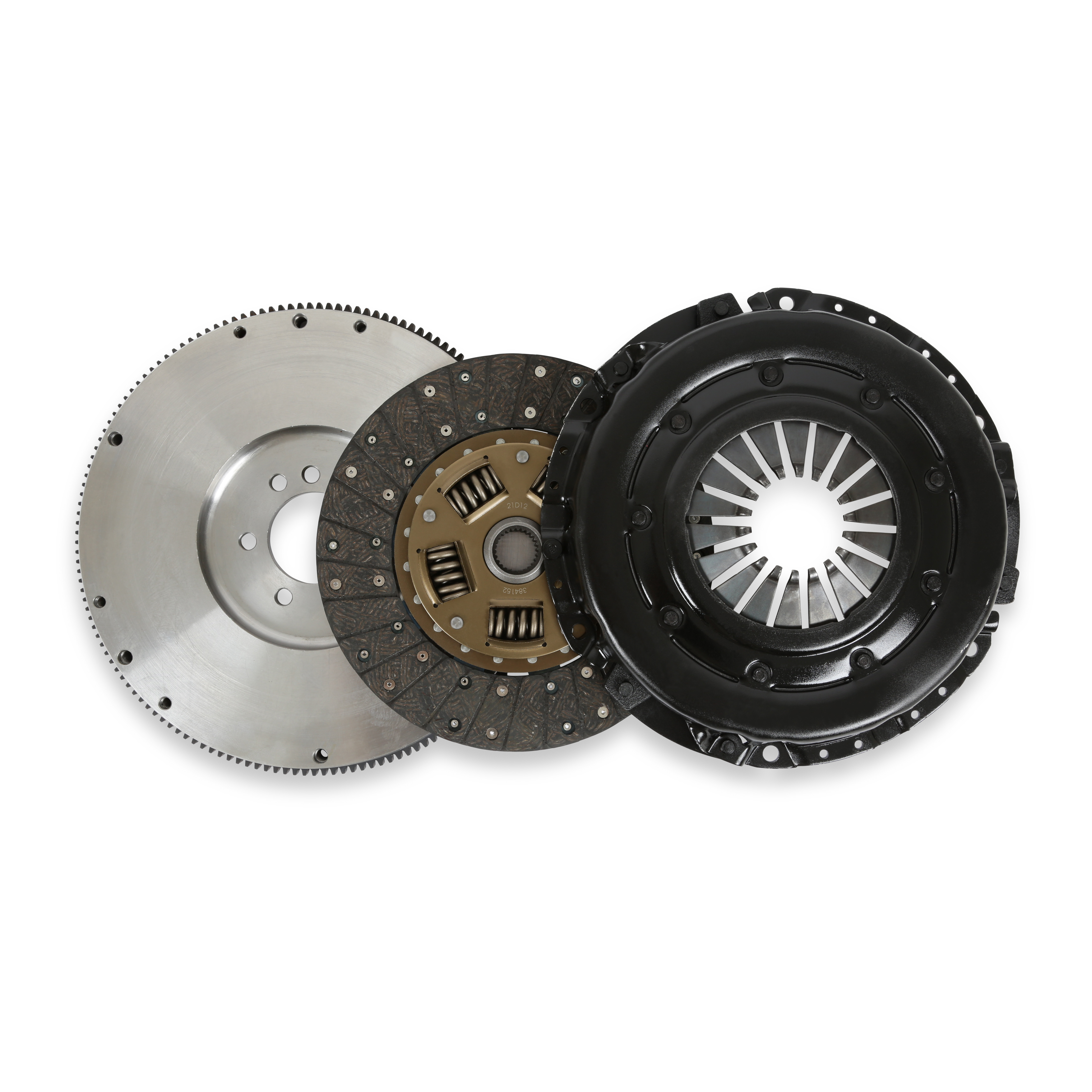

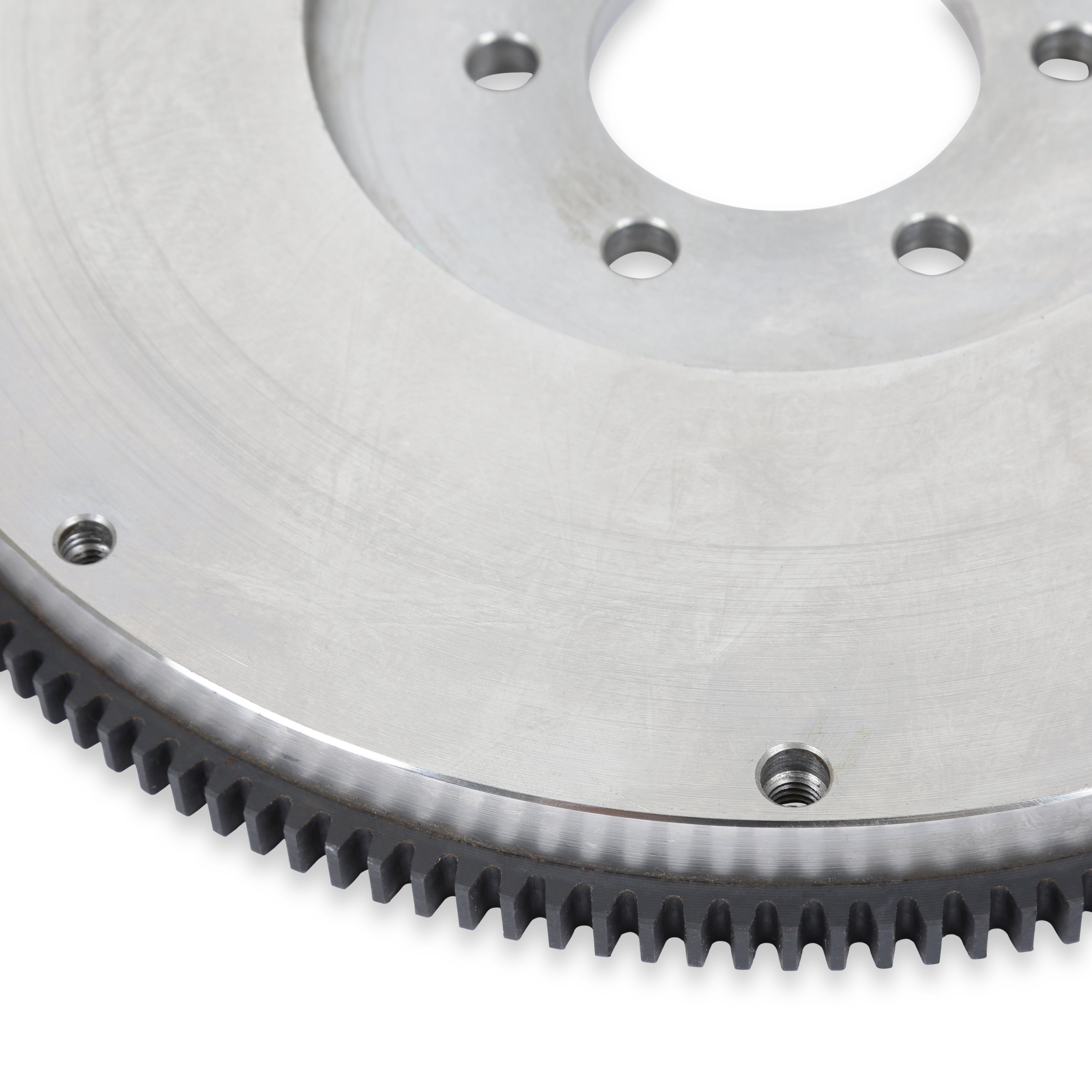

- Billet steel 29 lb, 153 tooth externally balanced flywheel for light weight and strength
- Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear

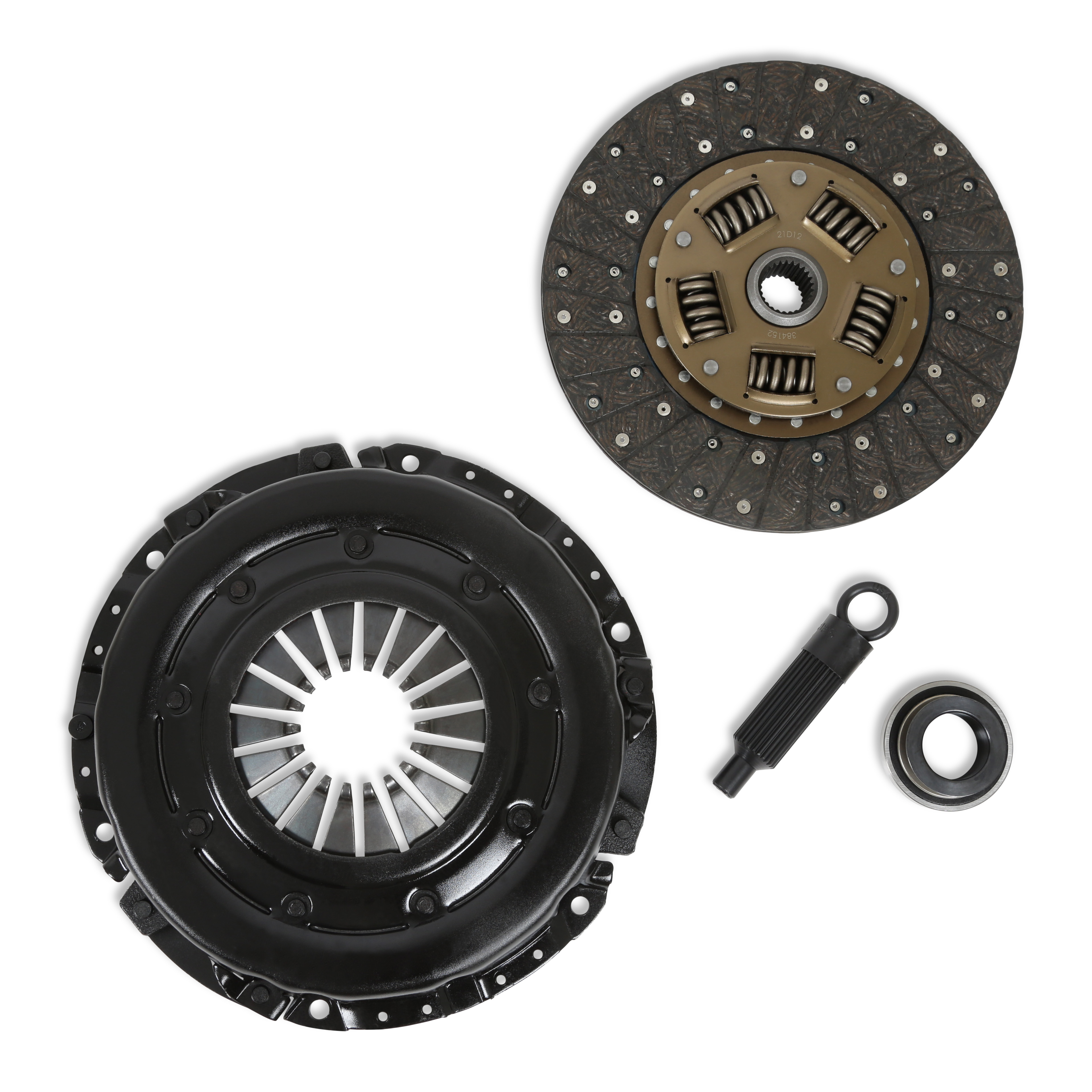

- 26 spline, 10.50-inch clutch disk offers superior clamping force for engines up to 500 hp

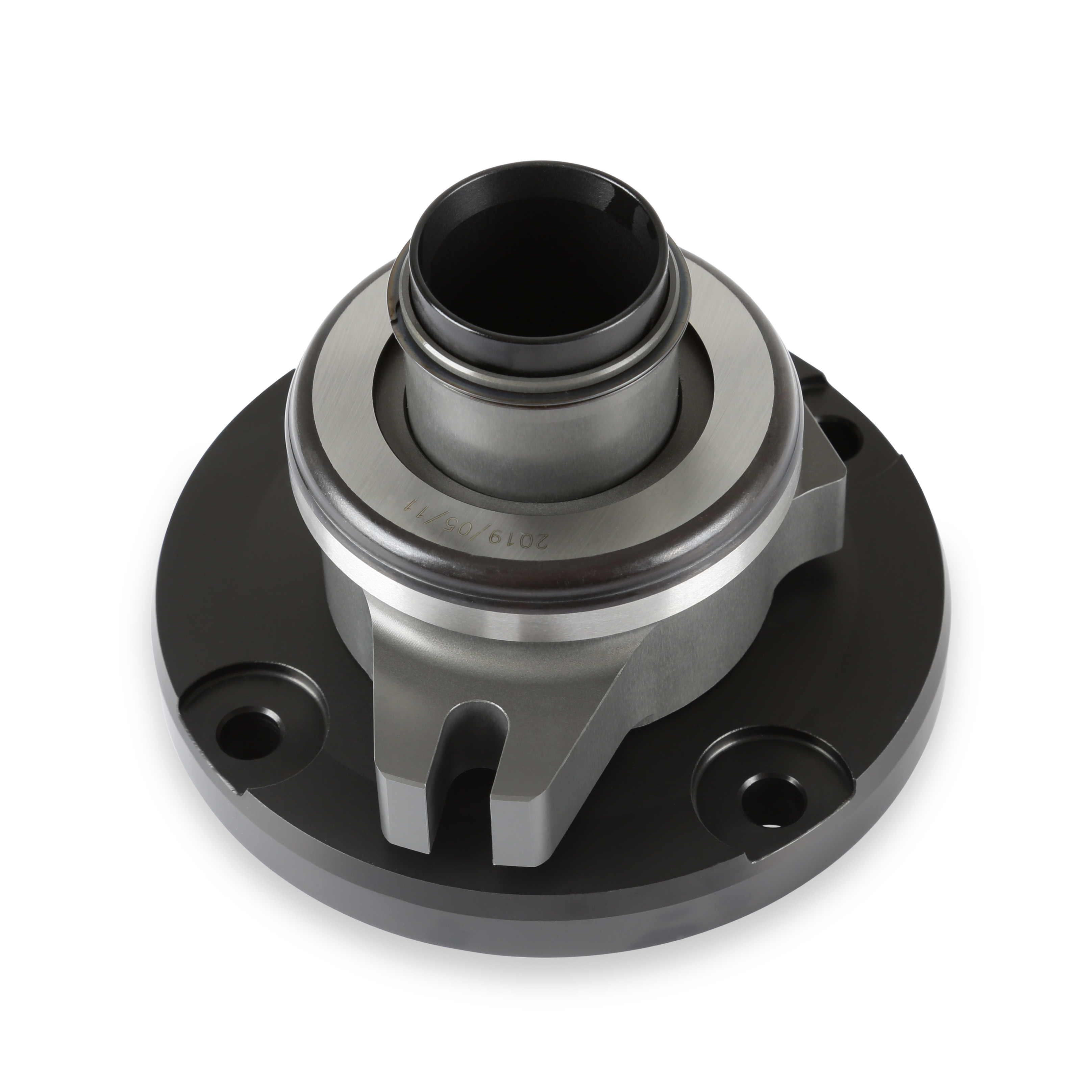

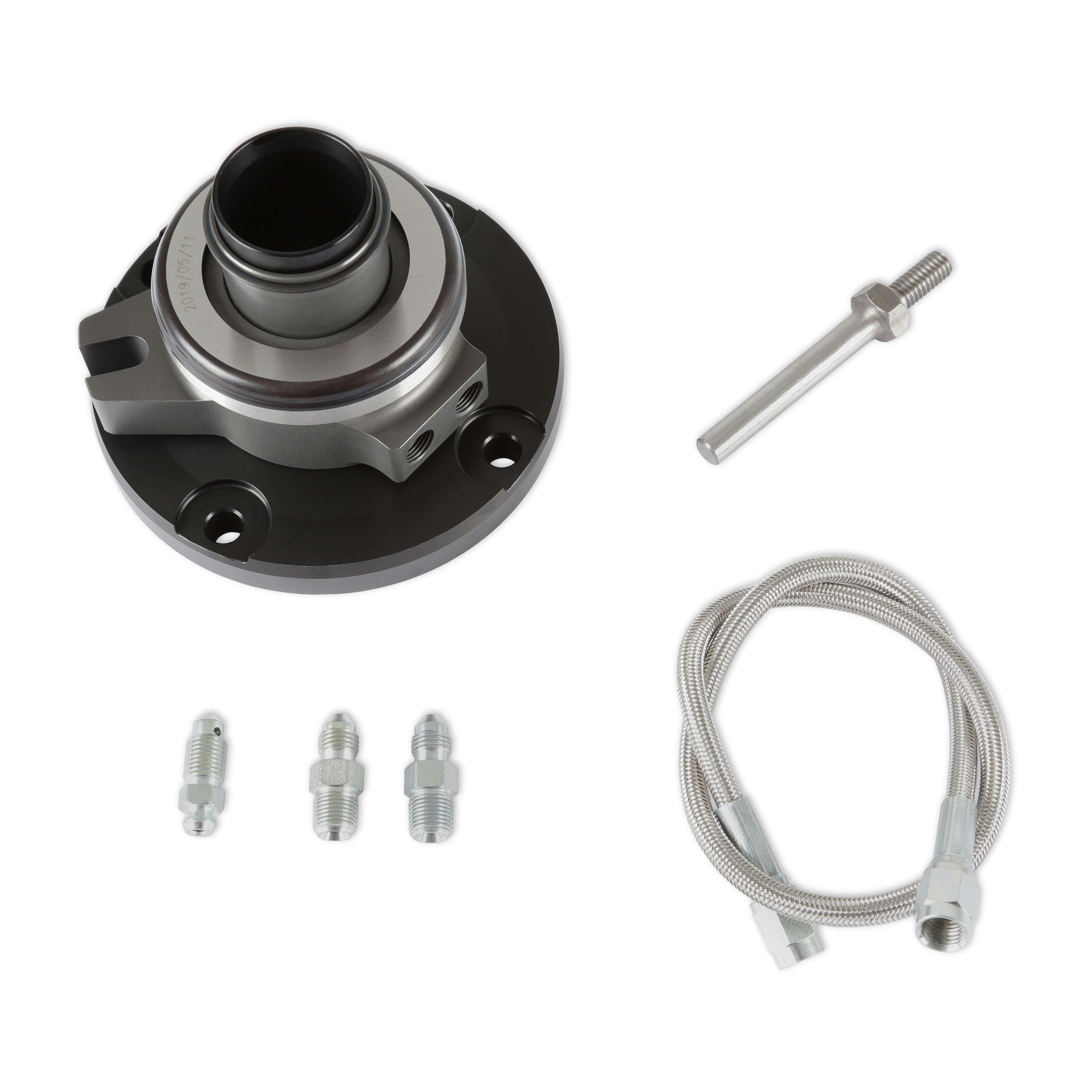

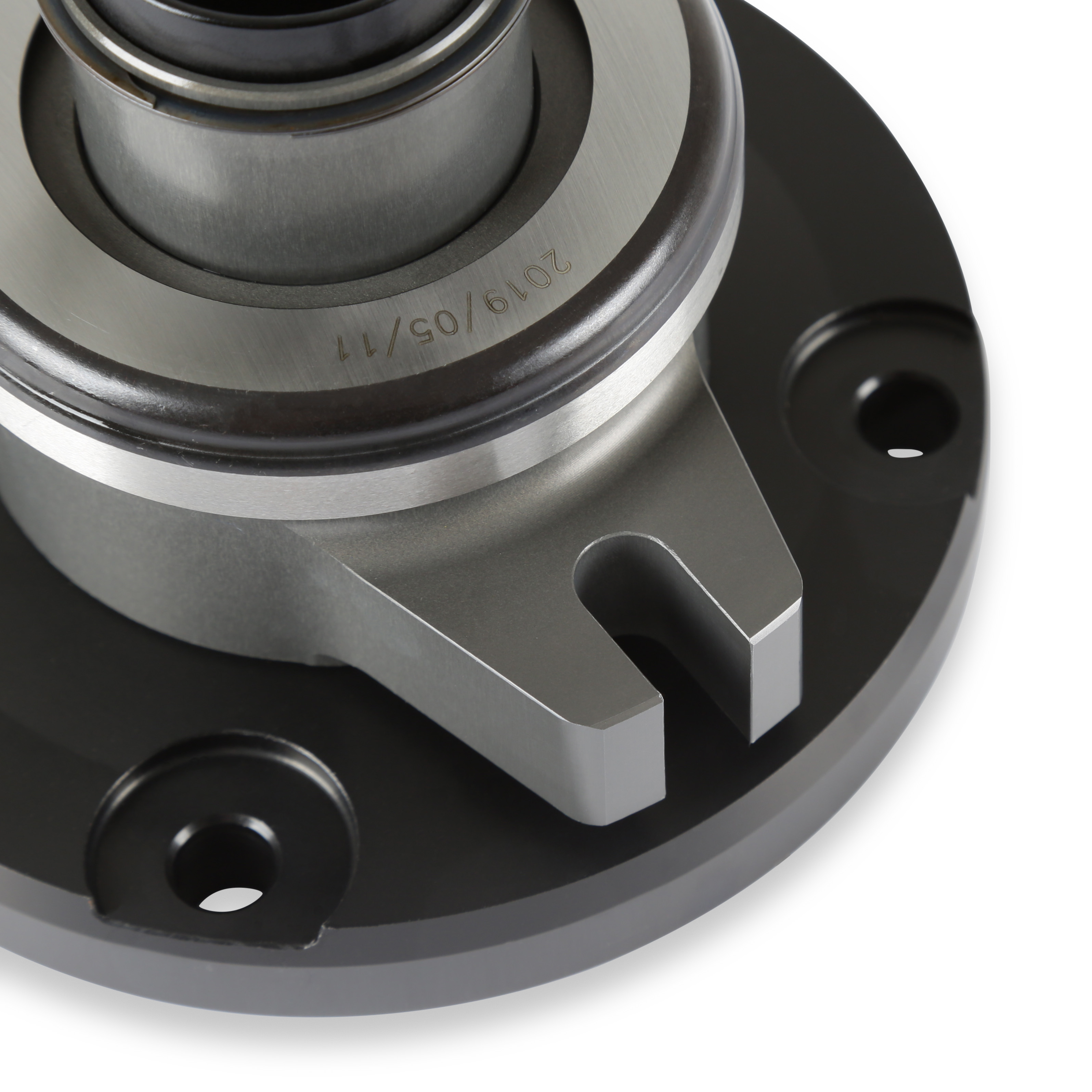

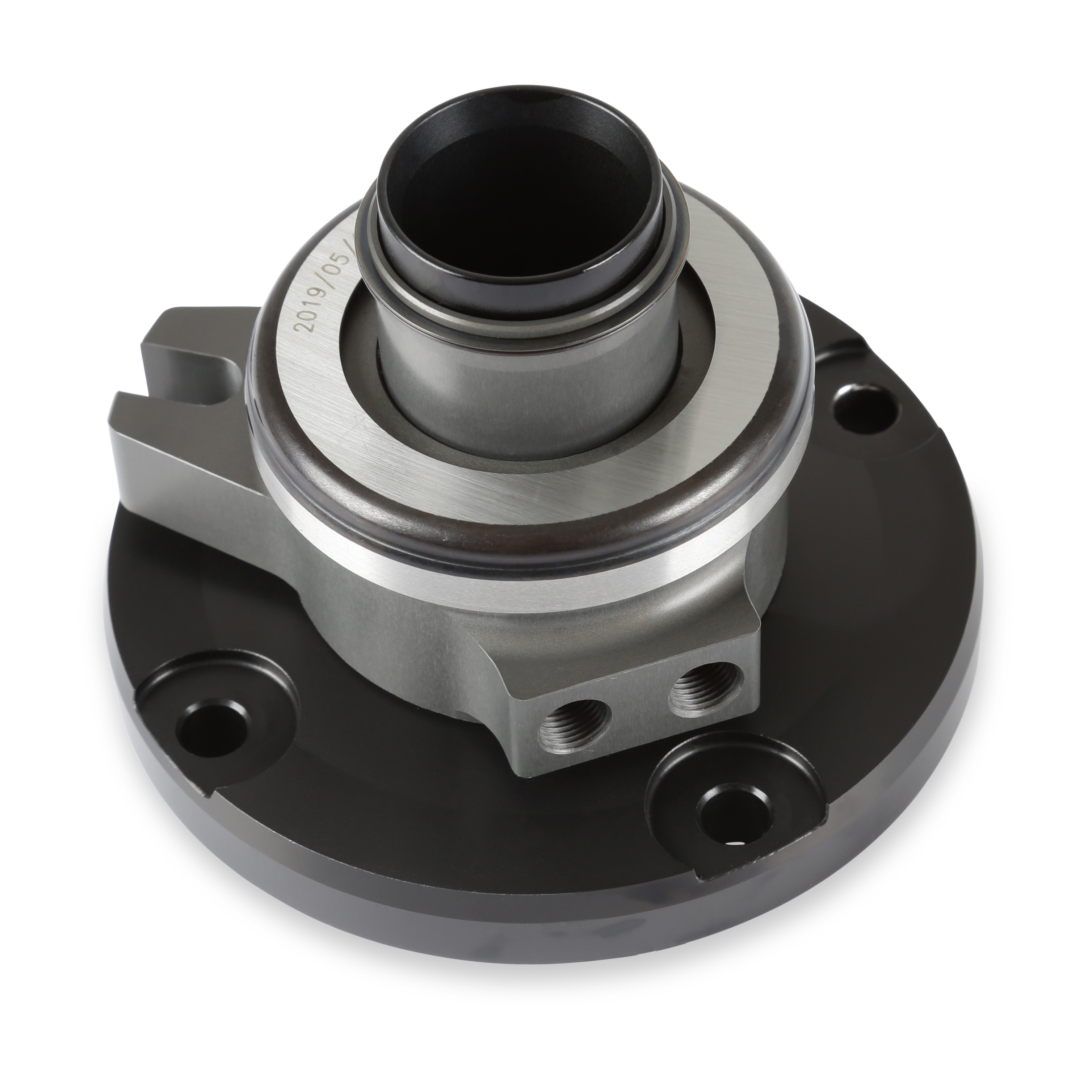

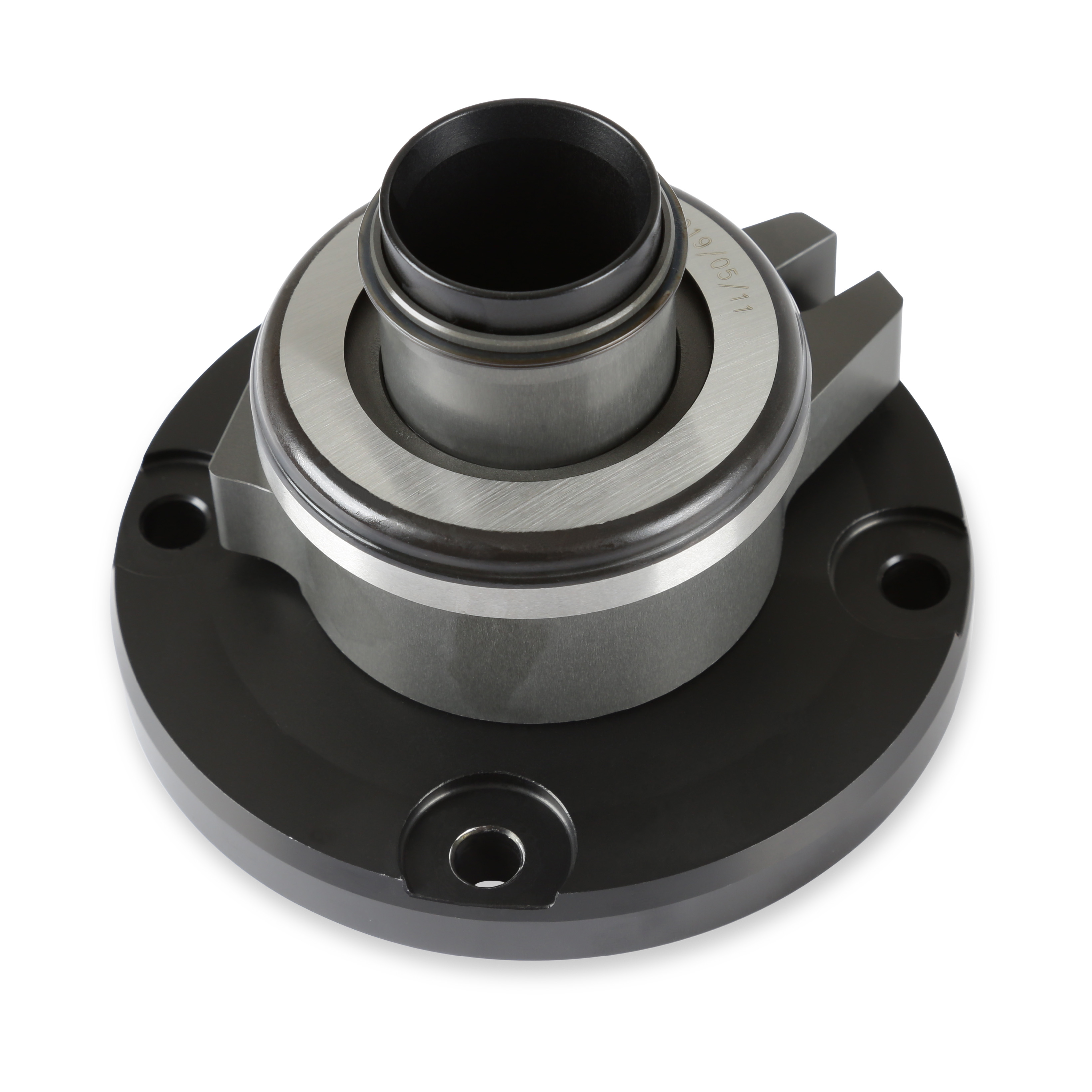

- Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation

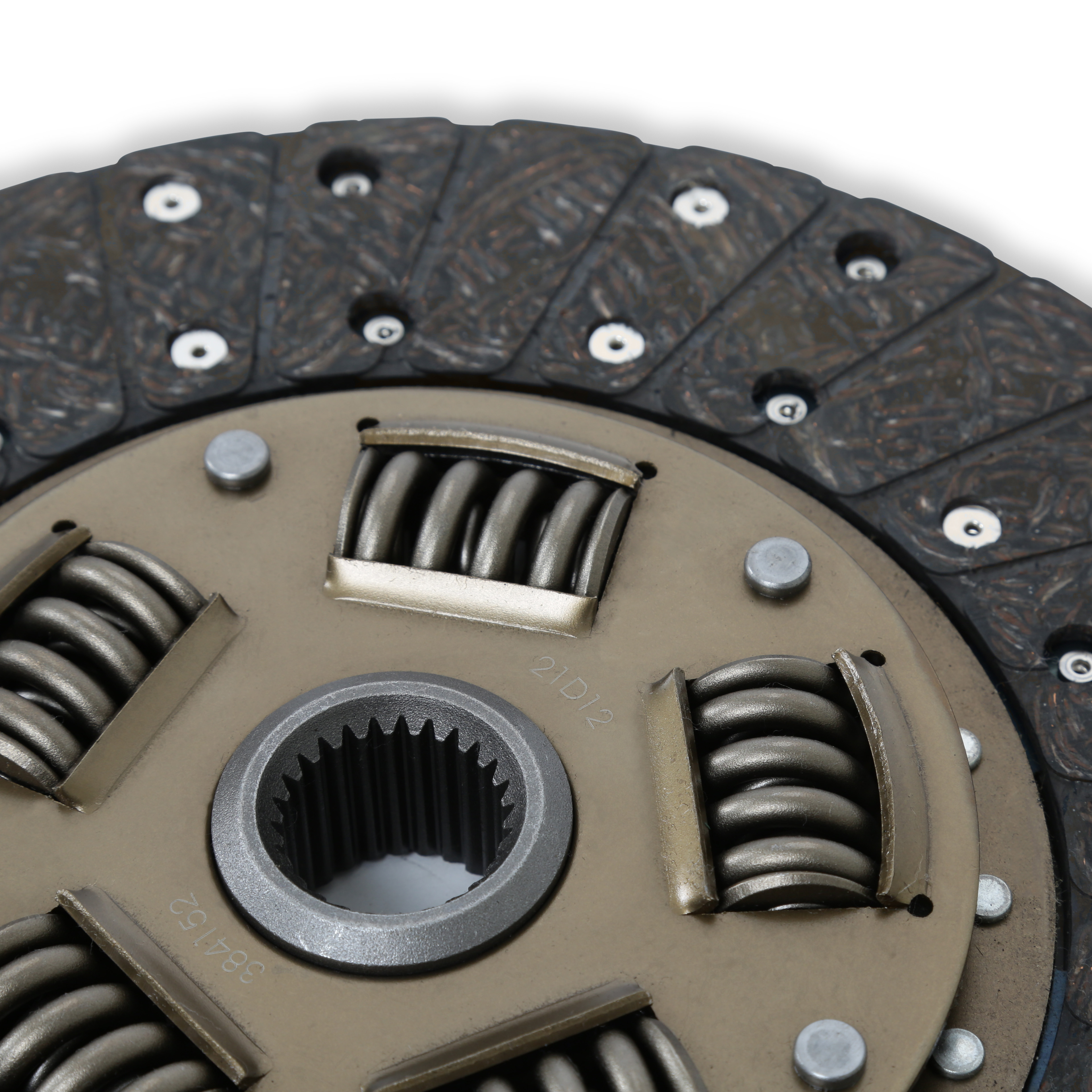

- Organic clutch disc features heavy-duty hub spring assembly for increased load capacity
- Works with OE (original equipment) or MSD High Torque starters
- All hardware included
Specs
Brand
HOLLEY
Category
Transmission Installation Kit
Specs
Brand: Holley
Engine: GM Big Block
Warning: California Proposition 65
Category: Transmission
Hardware: Steel
part type: Transmission Installation Kit
Disc Style: Spring Hub
Grade Type: Performance
Engine Make: GM
Input Spline: 26
Product Type: Installation Kit
Sub Category: Manual Transmission Components
Transmission: TKO GM
Disc Diameter: 10.5
Disc Material: Organic
Emission Code: 6
PILOT BEARING: Roller
Engine Balance: External
RELEASE BEARING: Hydraulic
Flywheel Balance: External
Flywheel Material: Billet Steel
Bellhousing Material: Aluminum
Input Shaft Diameter: 1-1/8 in.

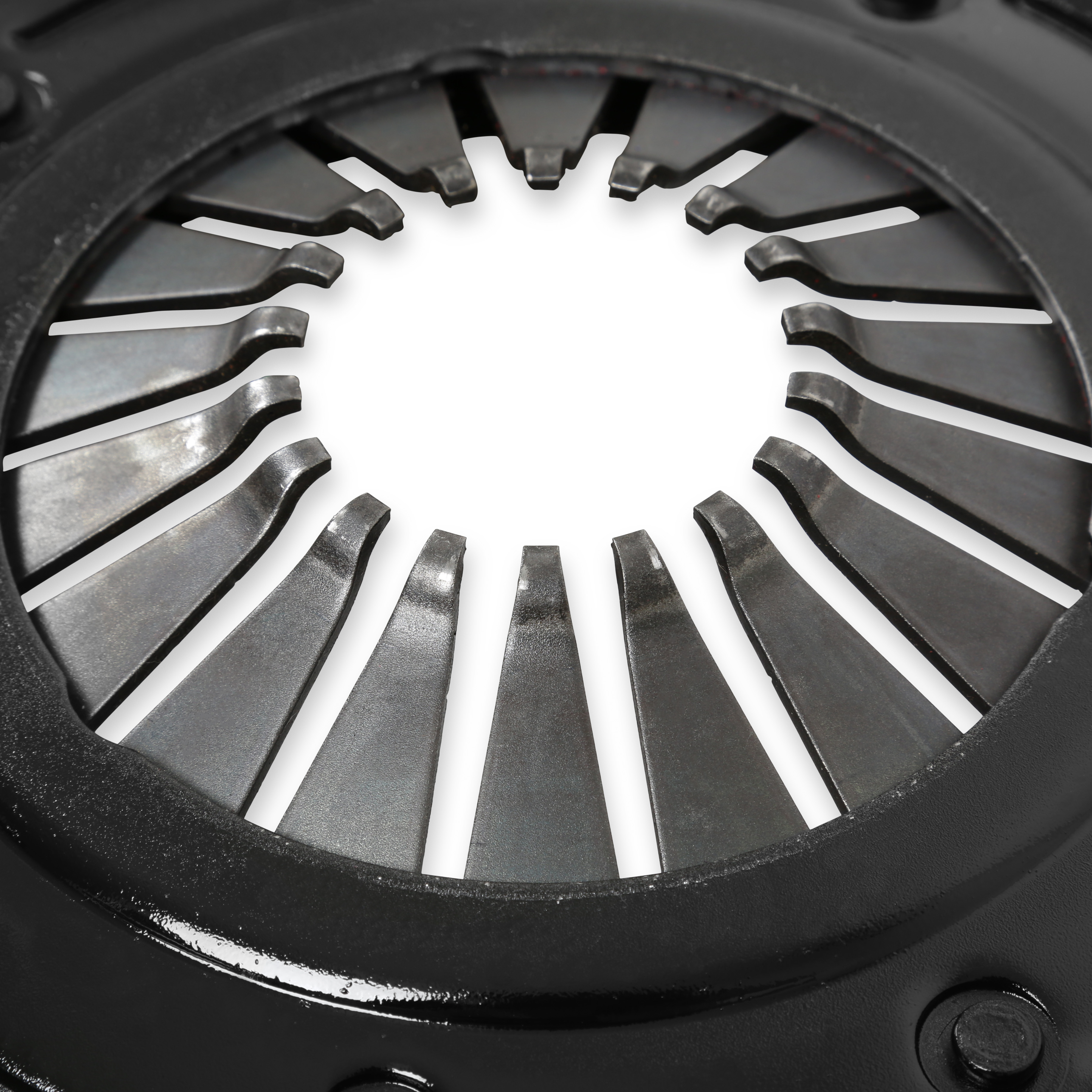

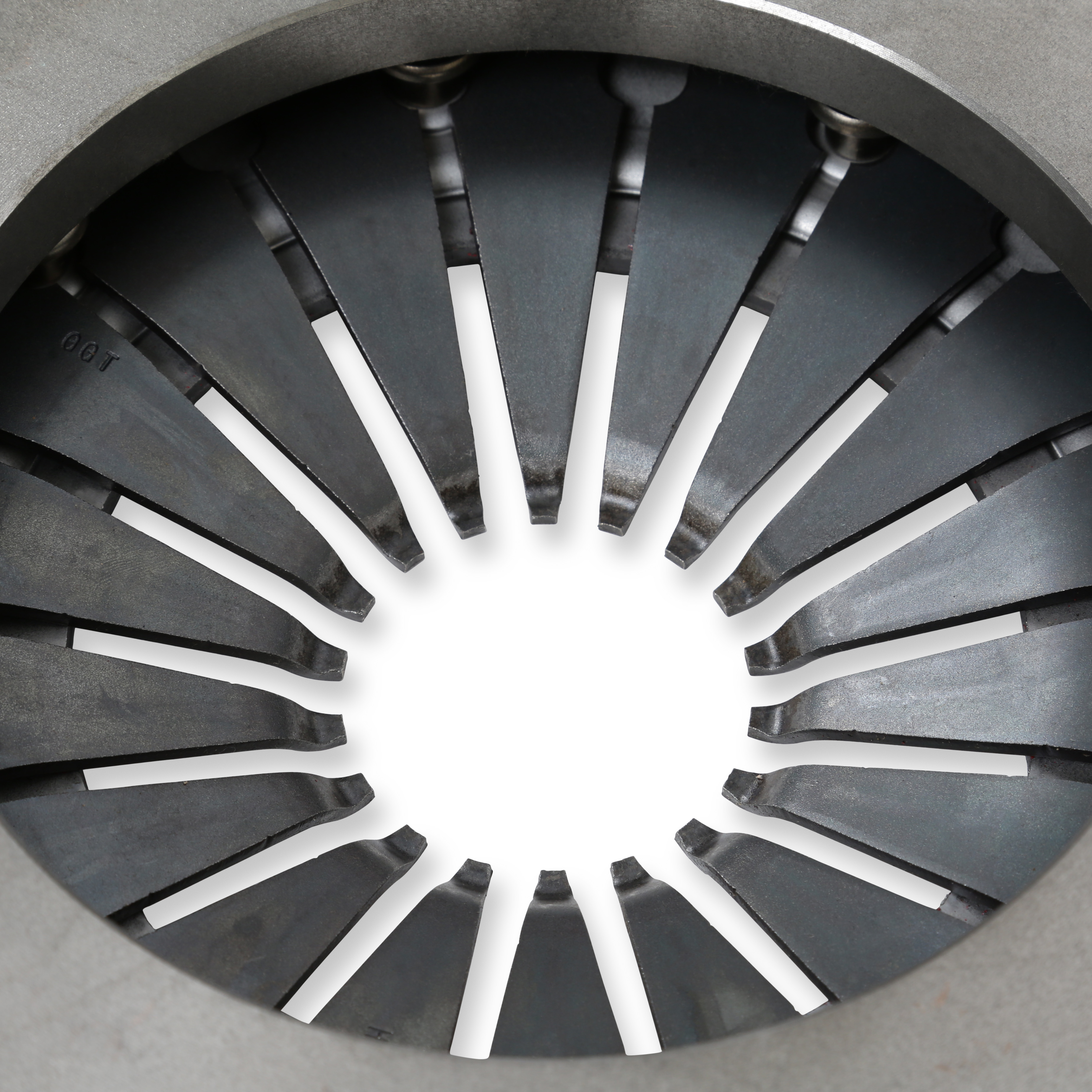

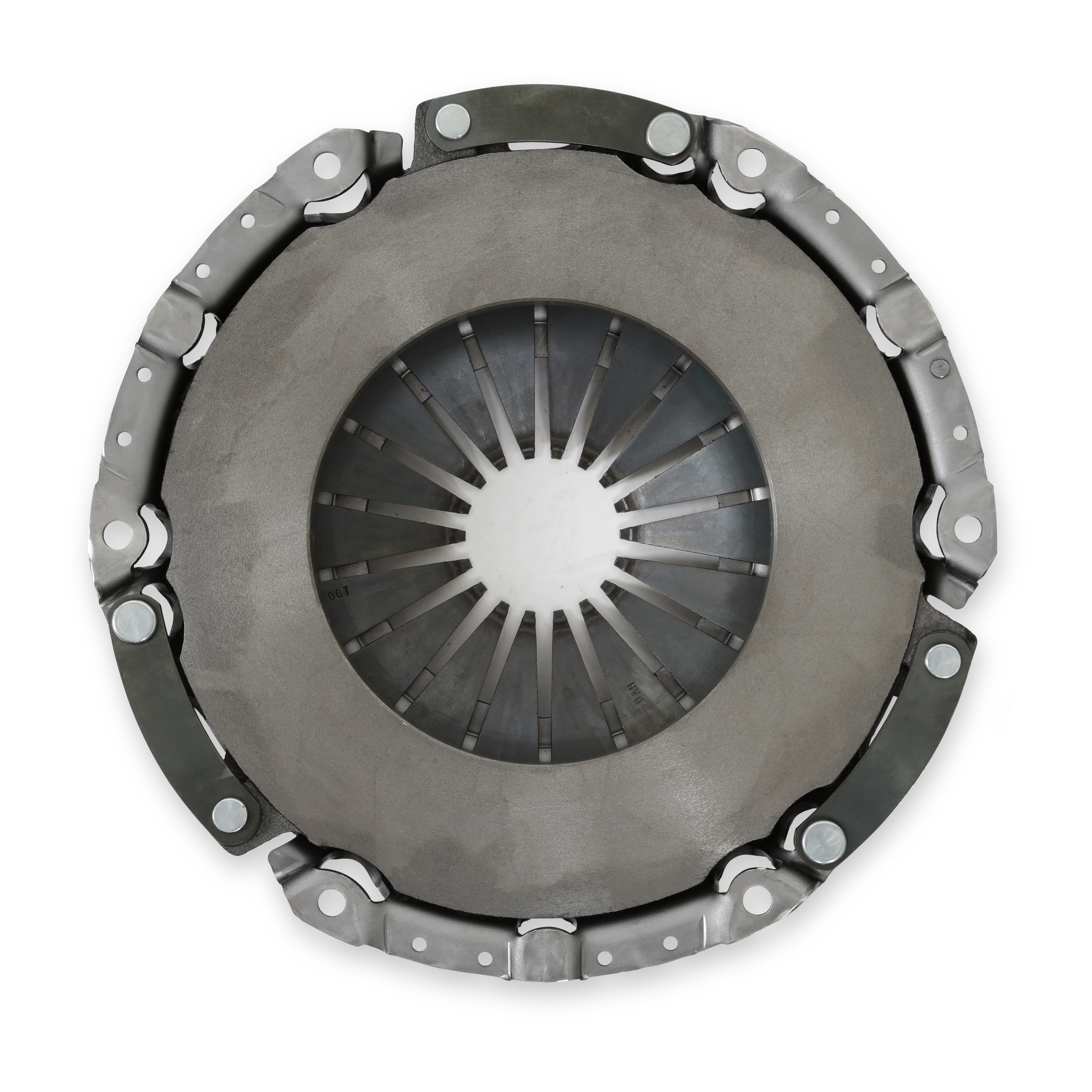

Pressure Plate Style: Diaphragm
