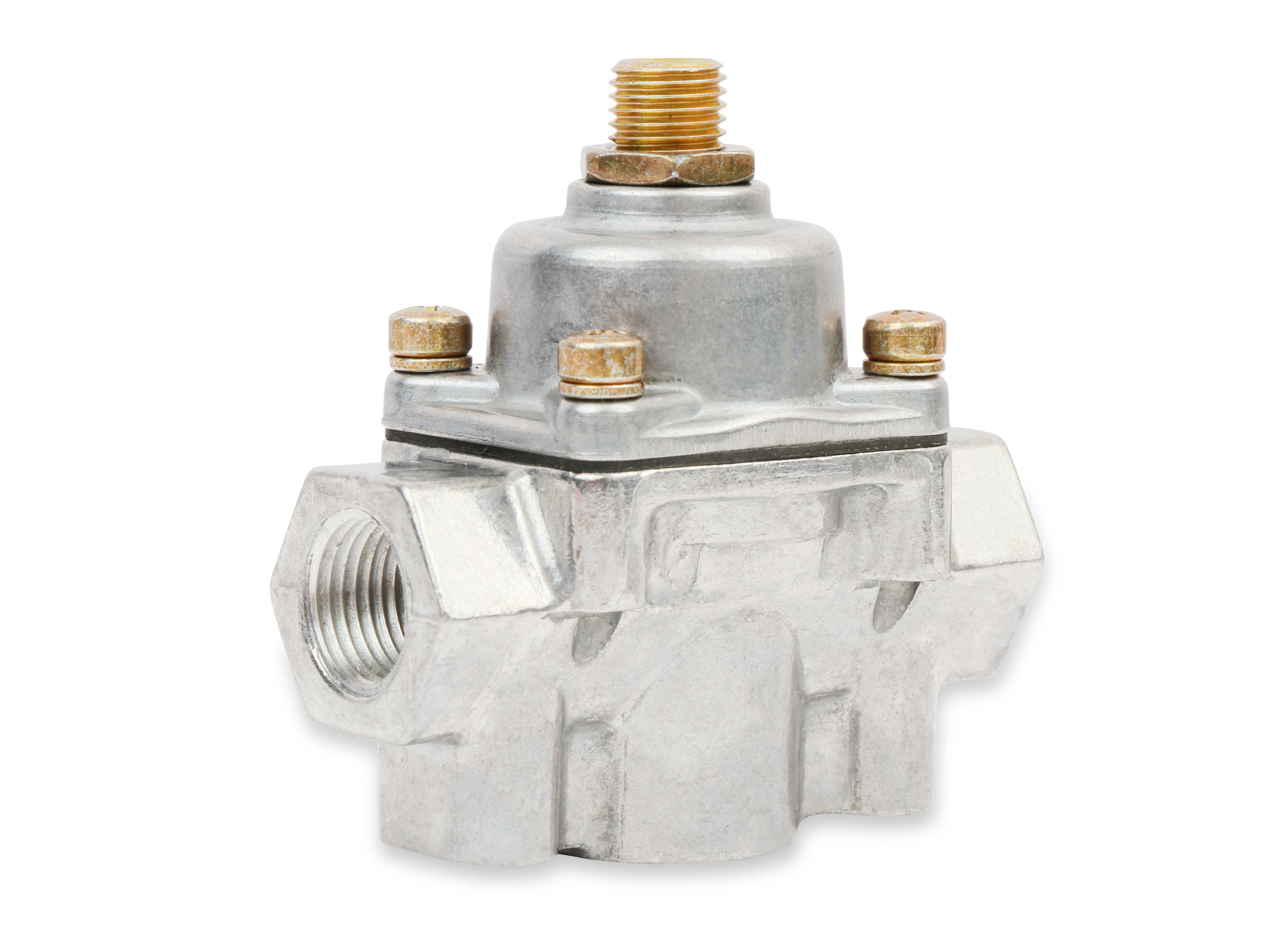

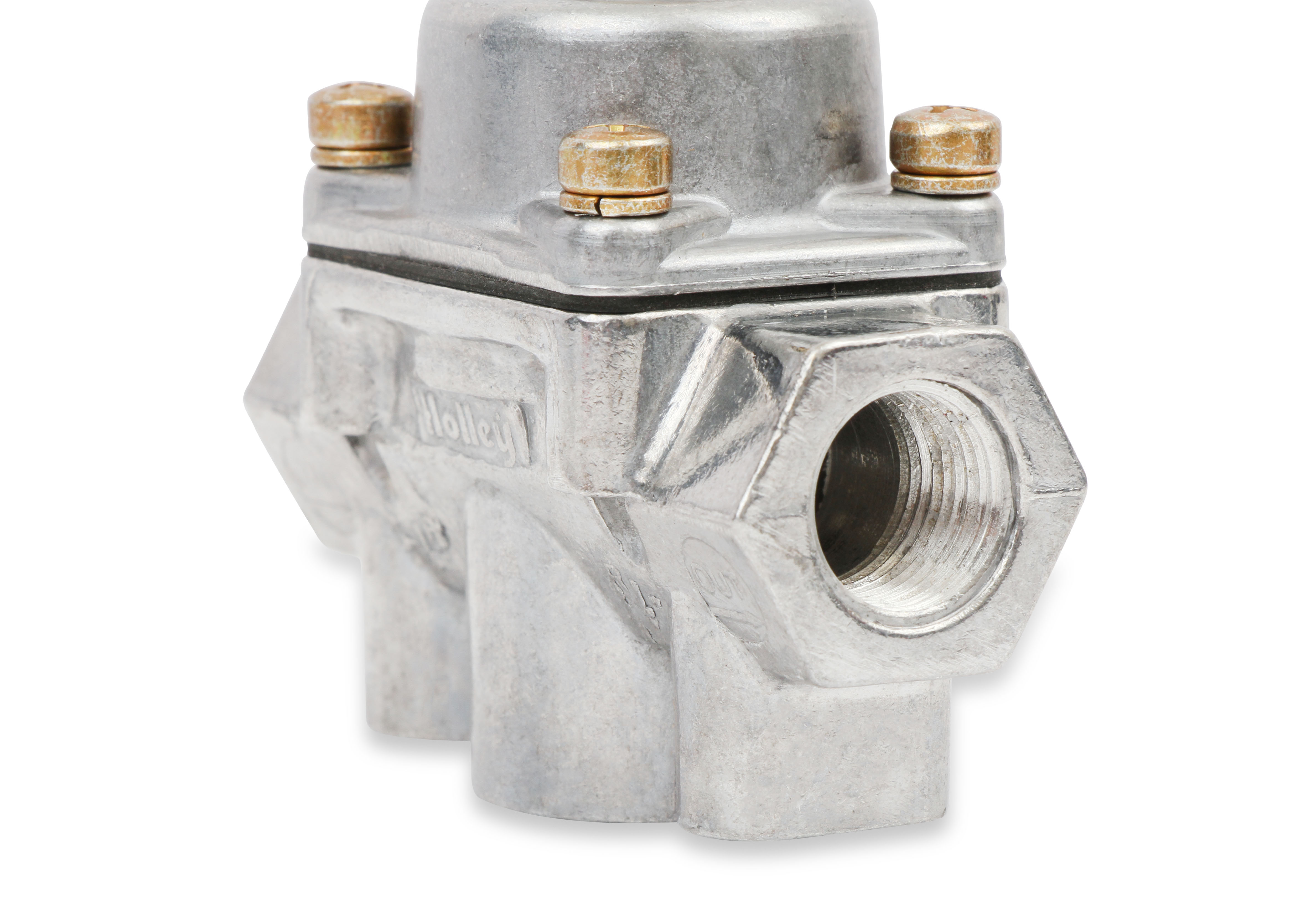

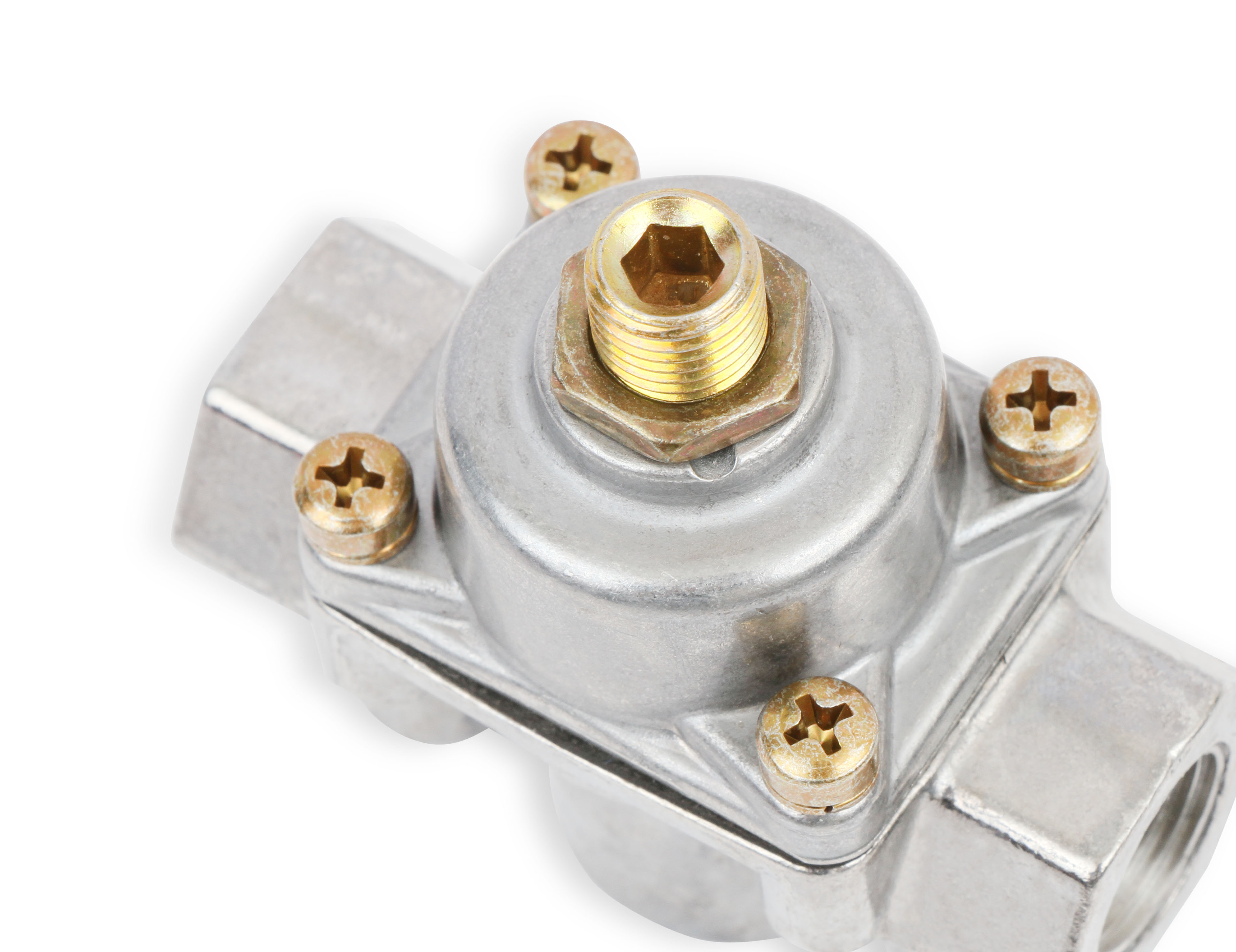

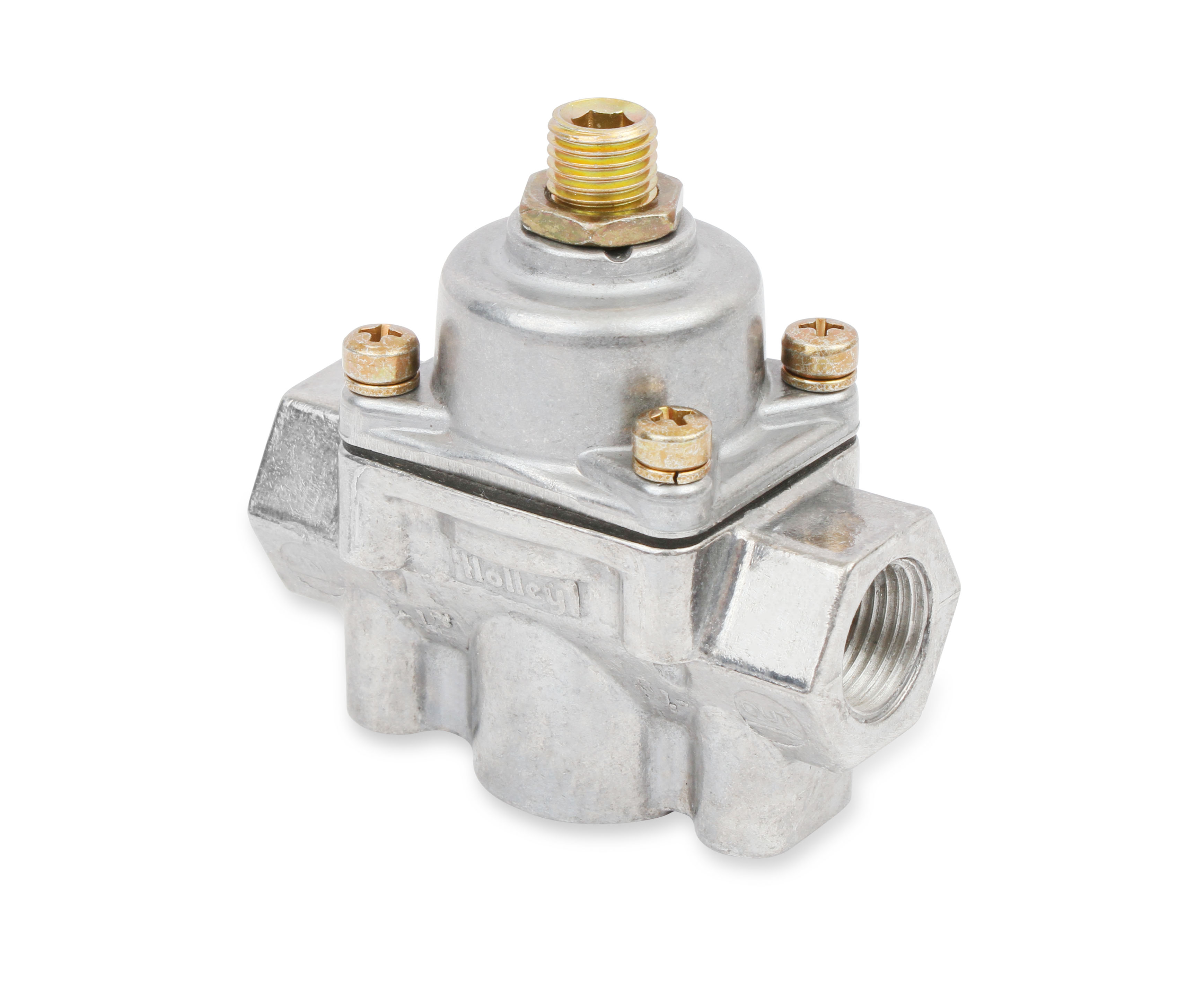

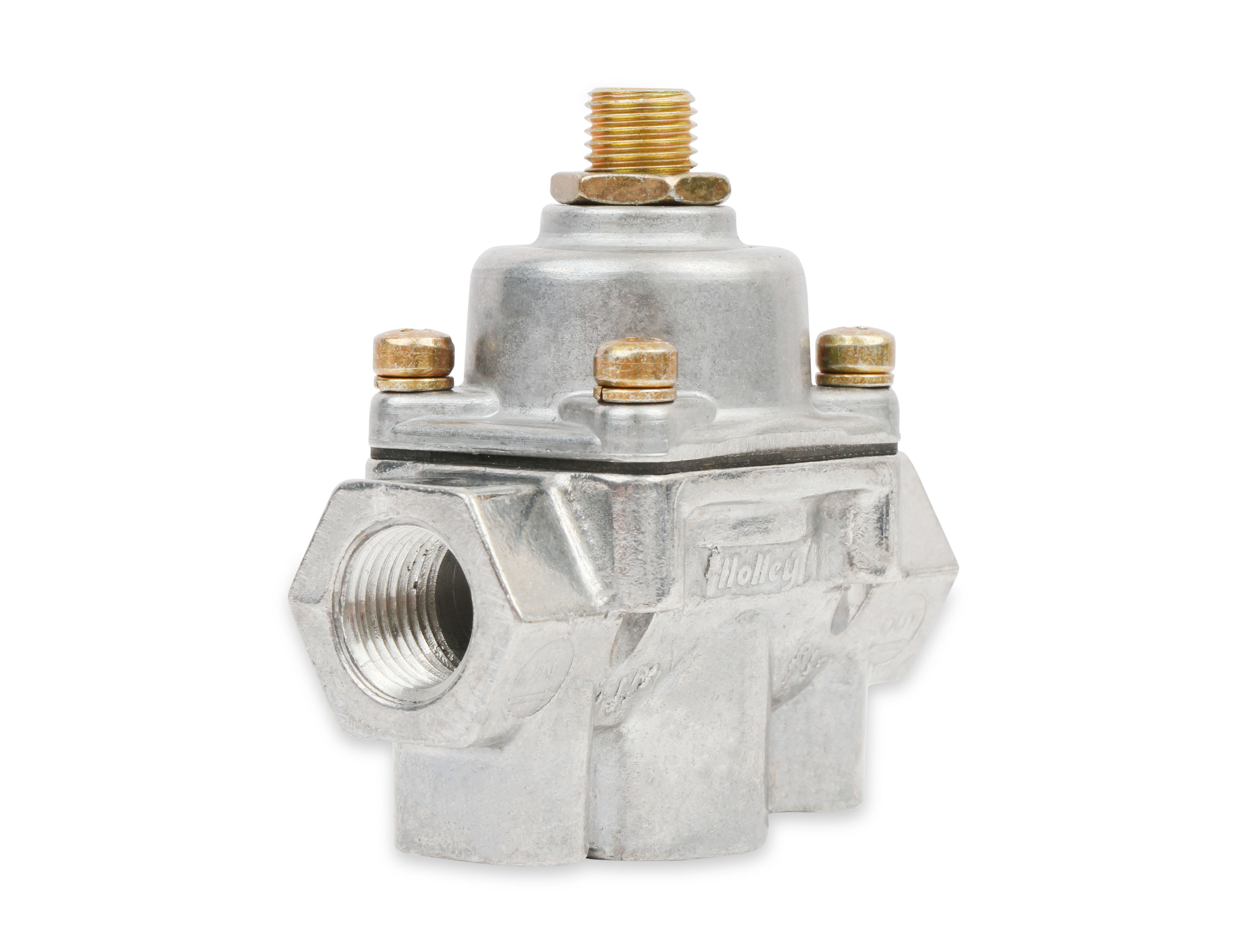

Carbureted Bypass Fuel Pressure Regulator
SKU
HTPD-12-803BP
List price
$166.80
Price
$124.95
Description
Street/Strip Carbureted Applications Two Port Adjustable from 4.5 to 9 PSI
Features
- Adjustable fuel regulation from 4-1/2 to 9 psi
- Preset to 7psi
- 3/8” NPT ports (1 in, 1 out, 1 bypass or return)
- Used in systems with a return line back to the fuel tank
- Quieter fuel pump operation
- Designed only for carburetor use
- Polished finish

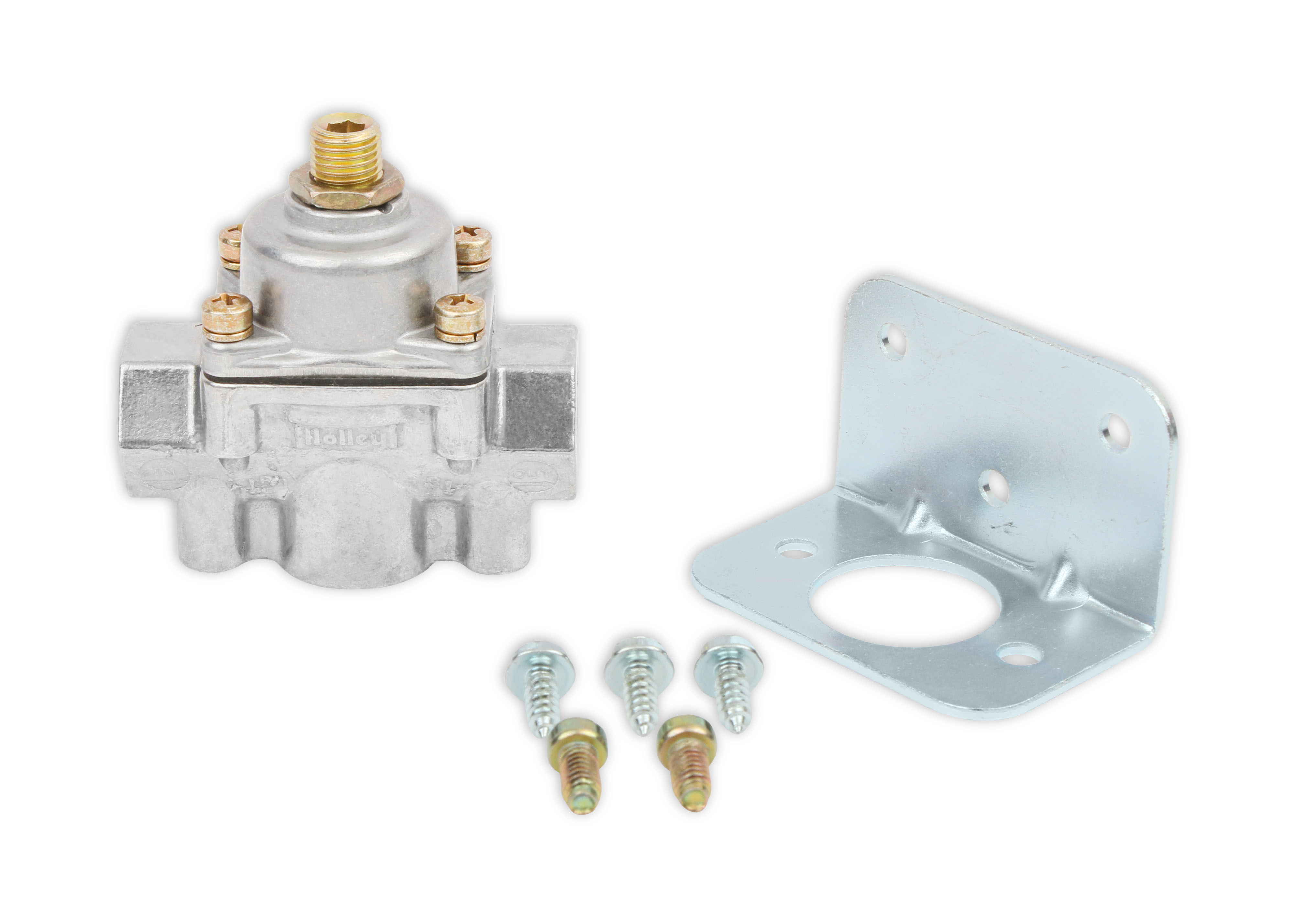

- Mounting bracket included
Specs
Brand
HOLLEY
Category
Fuel Pressure Regulator
Specs
Brand: Holley
Color: Shiny
Style: Bypass
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
part type: Fuel Pressure Regulator
Adjustable: Yes
Grade Type: Performance
Inlet Size: 3/8 inch NPT
Inlet Type: NPT
Fuel System: Gasoline
Outlet Size: 3/8 inch NPT
Outlet Type: NPT
Rebuildable: Yes
Return Size: 3/8 inch NPT
Inlet Gender: Female
Product Type: Fuel Pressure Regulator
Sub Category: Carburetion
Emission Code: 5
Mounting Type: Inline
Outlet Gender: Female
Port Quantity: 3
Gauge Included: No
Pressure Range: 4.5-9 PSI
Maximum Pressure: 9
Minimum Pressure: 4.5
Gauge Port Included: Yes
Inlet Port Diameter: 3/8
Inlet Port Quantity: 1
Outlet Port Diameter: 3/8
Outlet Port Quantity: 2
Mounting Bracket Included: Yes
PDFs
PDFs
68b1ad109f870.pdf
(591.79 KB)
