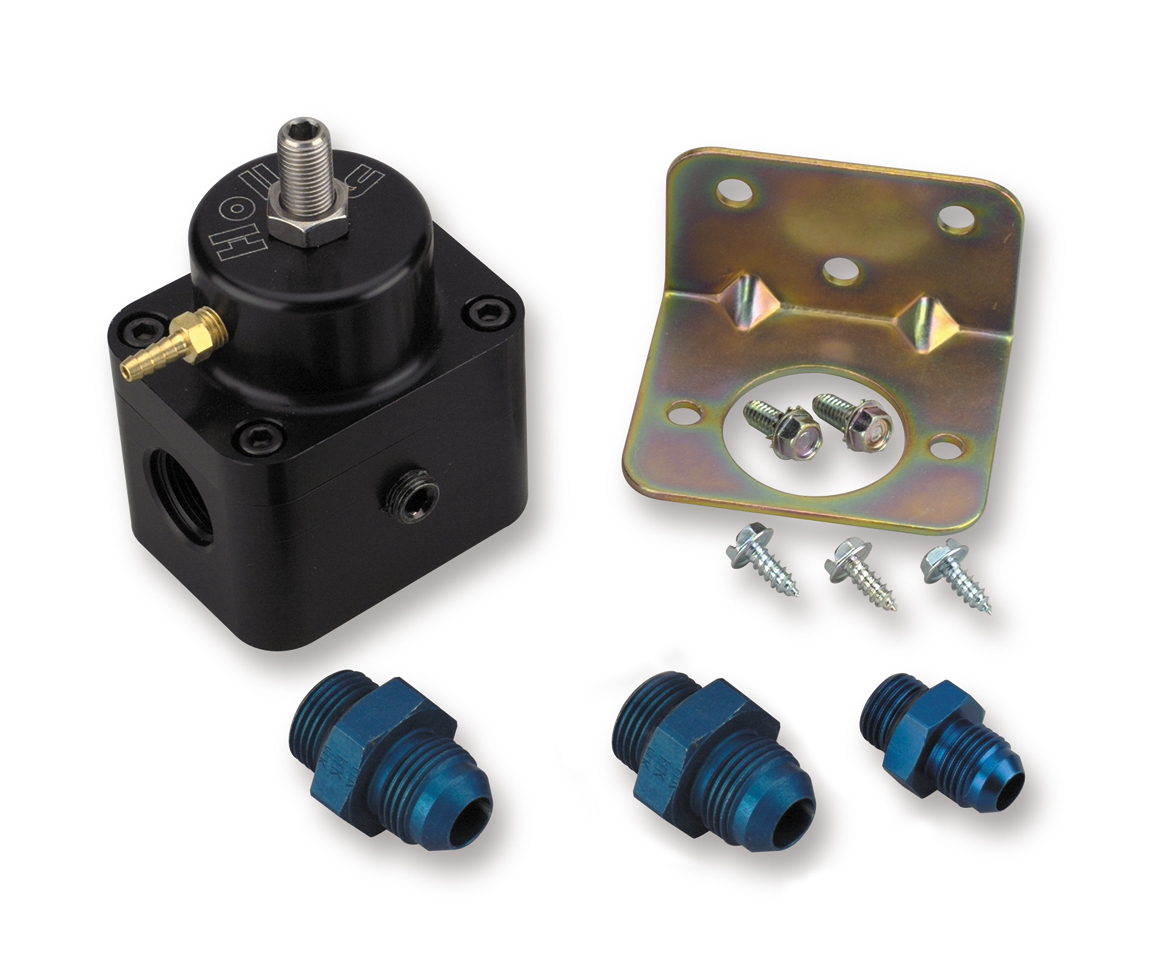

Boost Compensating Universal EFI Fuel Pressure Regulator
SKU
HTPD-512-504-5
List price
$473.95
Price
$420.95

Hot Street/Race EFI Applications
Two Port
Adjustable from 15-65 PSI

Features
  • Black anodized
  • Easy installation
  • -8an & -6an o-ring style fittings included to adapt to steel braided fuel lines
  • Designed to regulate high fuel demands for naturally aspirated EFI, turbo, supercharged and nos race applications
  • Engineered to regulate extreme flow volumes generated by racing fuel systems
  • CNC machined billet aluminum
  • Allows adjustment from 15-65 psi + boost reference
Brand
HOLLEY
Category
Fuel Pressure Regulator
Specs
Brand: Holley
Color: Hard Coat Anodized
Style: Bypass
Warning: California Proposition 65
Category: Air and Fuel Delivery
Material: Aluminum
Warranty: Manufacturer's Limited 90 Day Warranty
Fuel Type: Gasoline
Adjustable: Yes
Grade Type: Performance
Inlet Size: 8 AN O-Ring
Inlet Type: 8 AN ORB
Fuel System: Gasoline
Outlet Size: 8 AN O-Ring
Outlet Type: 6 AN ORB
Rebuildable: Yes
Return Size: 6 AN O-Ring
Inlet Gender: Female
Product Type: Fuel Pressure Regulator
Emission Code: 4
Mounting Type: Inline
Outlet Gender: Female
Port Quantity: 2
Gauge Included: No
Pressure Range: 15-65 PSI
Maximum Pressure: 65
Minimum Pressure: 15
Gauge Port Included: Yes
Inlet Port Diameter: 8 AN ORB
Inlet Port Quantity: 1
Outlet Port Diameter: 8 AN ORB
Outlet Port Quantity: 2
Vacuum Port Quantity: 1
Mounting Bracket Included: Yes
PDFs
68b22f588dac6.pdf (161.79 KB)
