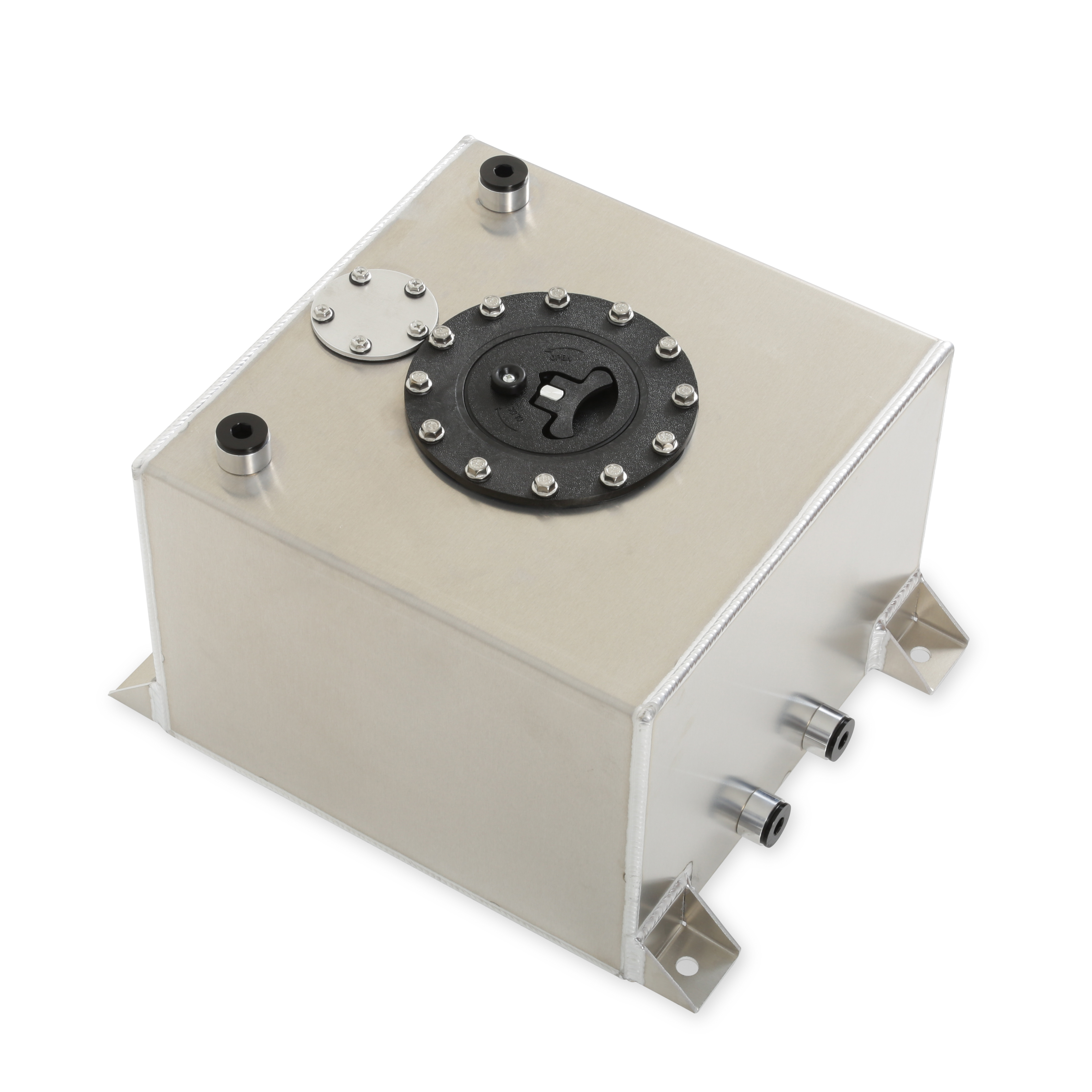

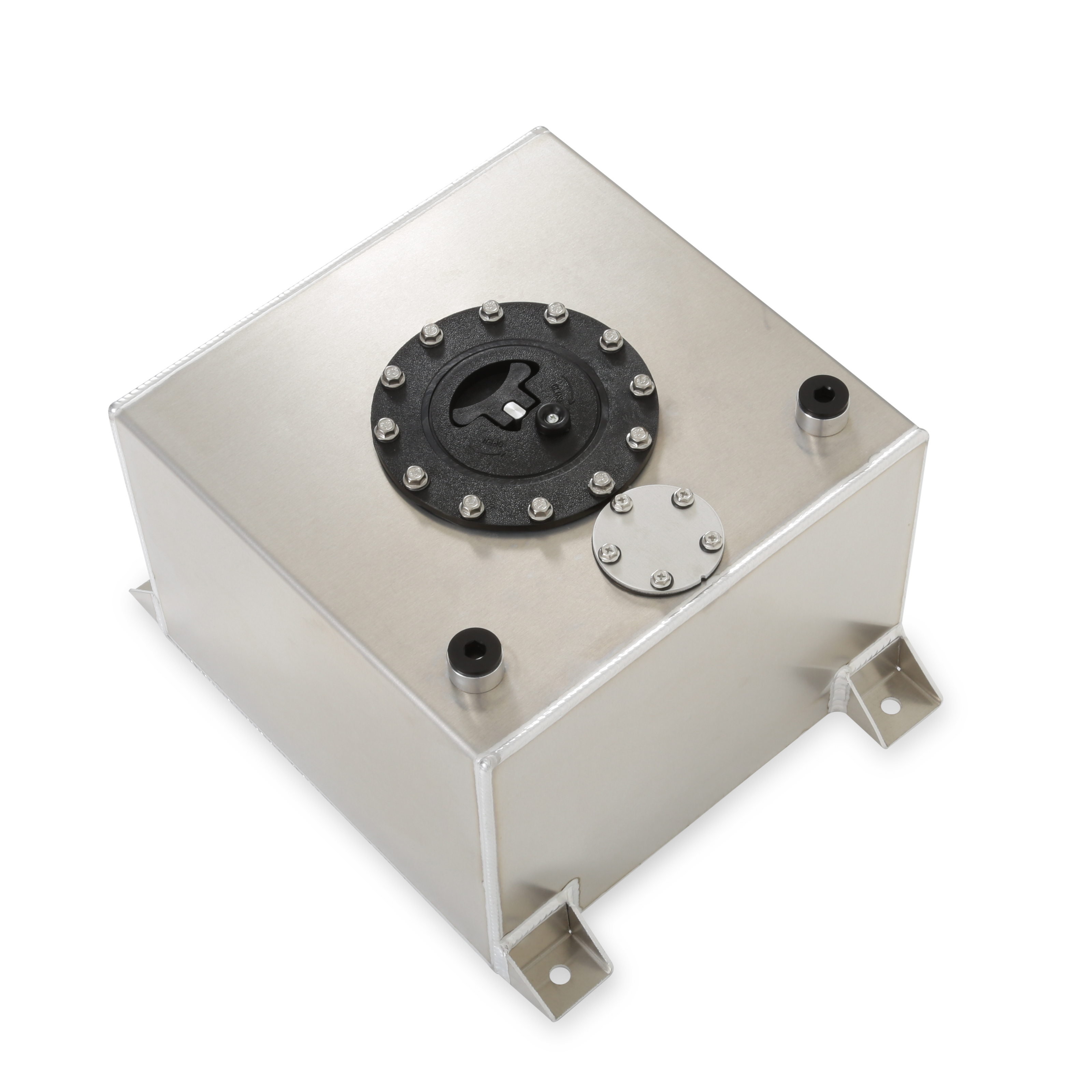

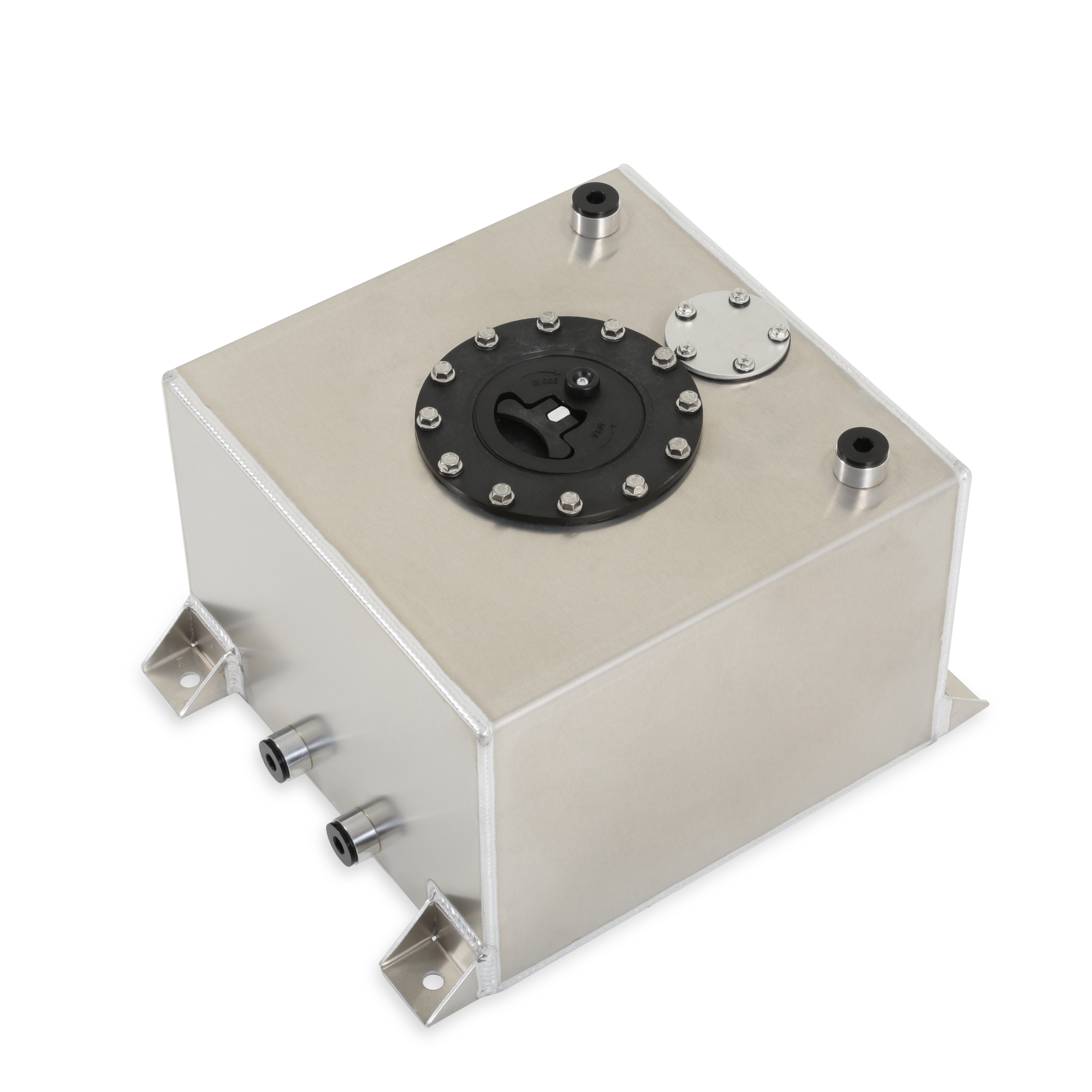

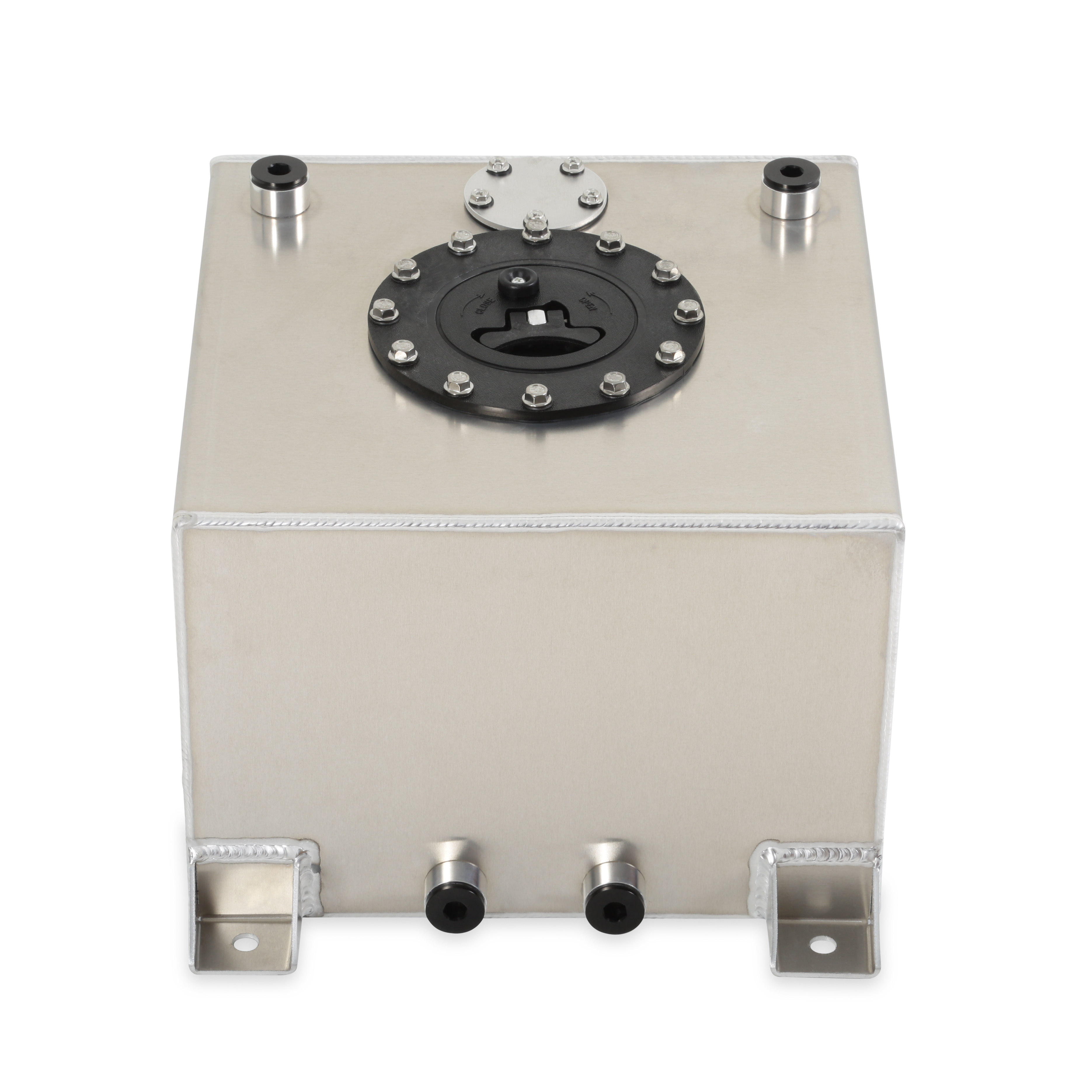

Aluminum Fuel Cell 5 Gallon
SKU
HTPD-19-210
List price
$284.40
Price
$212.95
Description

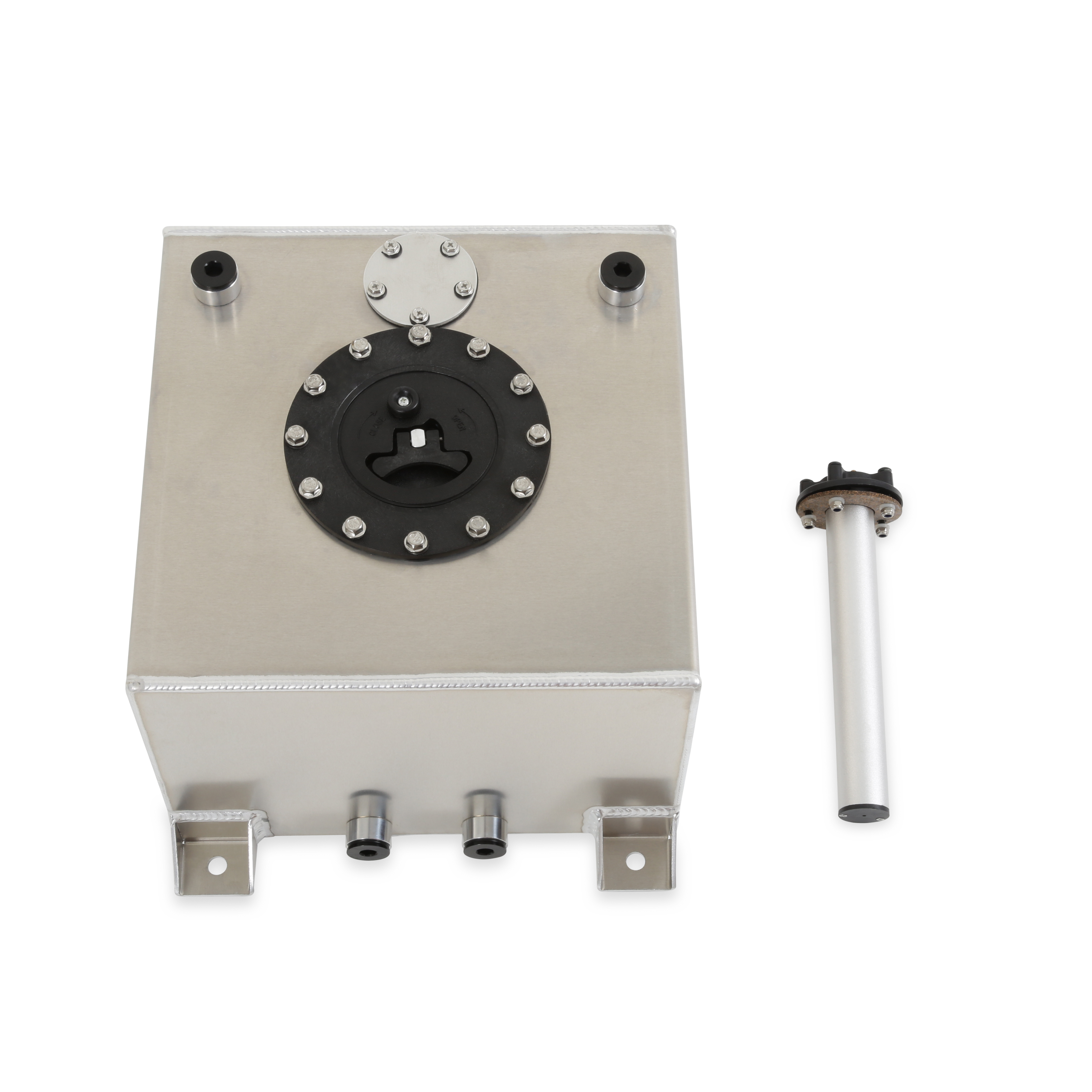

Flat bottom w/ 19-227 (8" depth) Fuel Gauge Sender 12x12x8.5
Features
- Available in 3, 5, 10, 15 and 20-gallon tank sizes
- Offered in both flat bottom or rear sump to help prevent fuel starvation
- -10AN ORB ports (feed, return, vent) for high flow
- Readily adaptable -10AN ORB ports to -6AN, -8AN and -12AN avoids cutting and re-welding male weld bungs
- ORB ports are welded from the inside for a clean look
- Made from 2.5mm thick 5052 aluminum
- Fully TIG welded
- Modular design to be easily upgraded gives customer flexibility to add options to suit their needs
- Anti-slosh foam included and pre-cut to clear fuel level sender *NOTE: foam is not E85 compatible*
- Pre-welded triangulated mounted tabs for added support and easy installation
- Includes flush-mount aircraft-style cap, fuel sender block-off plate, -10AN plugs and -10AN male adapters
- 12-bolt flush-mount cap assembly can be upgraded to a billet fuel cap or an in-tank fuel cell pump module

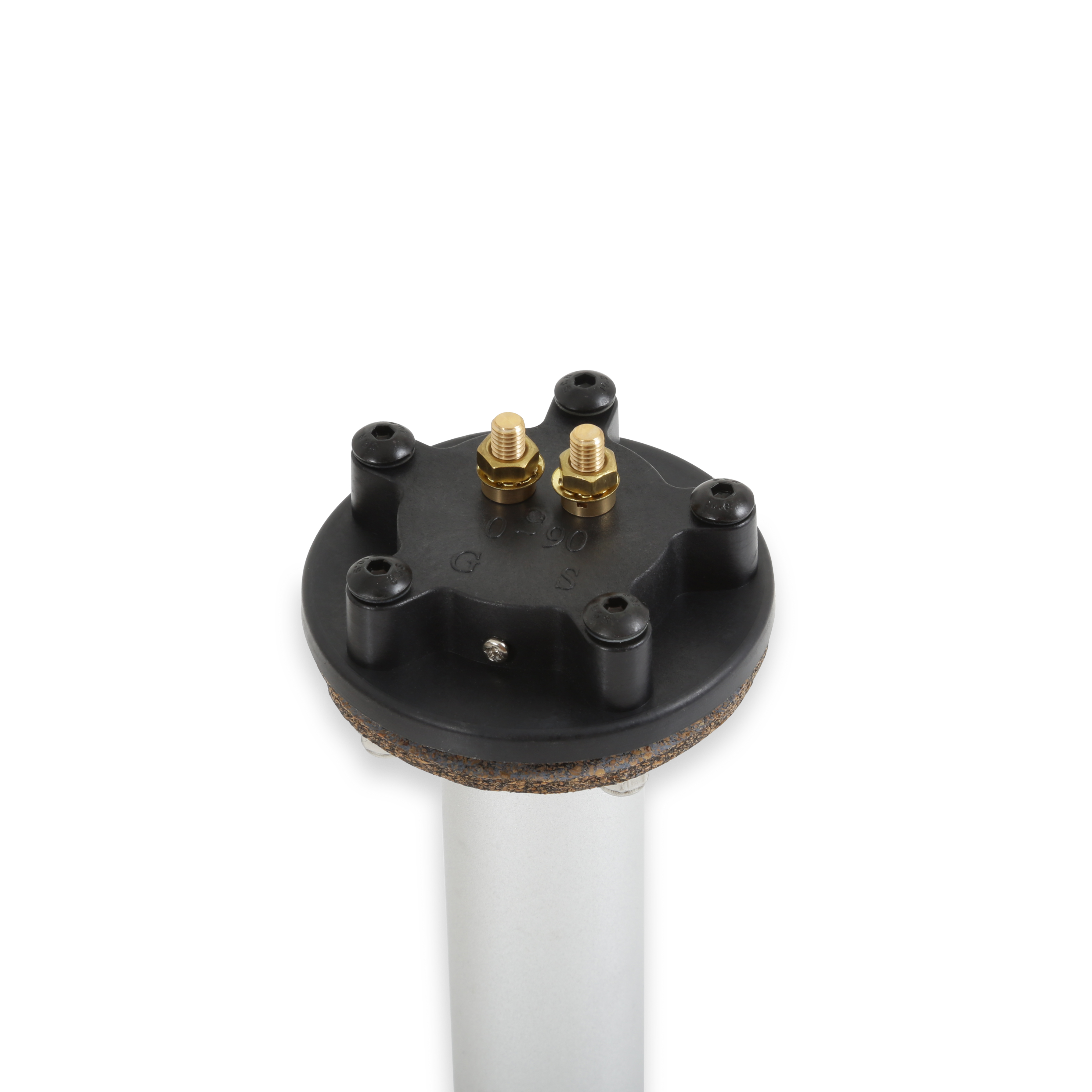

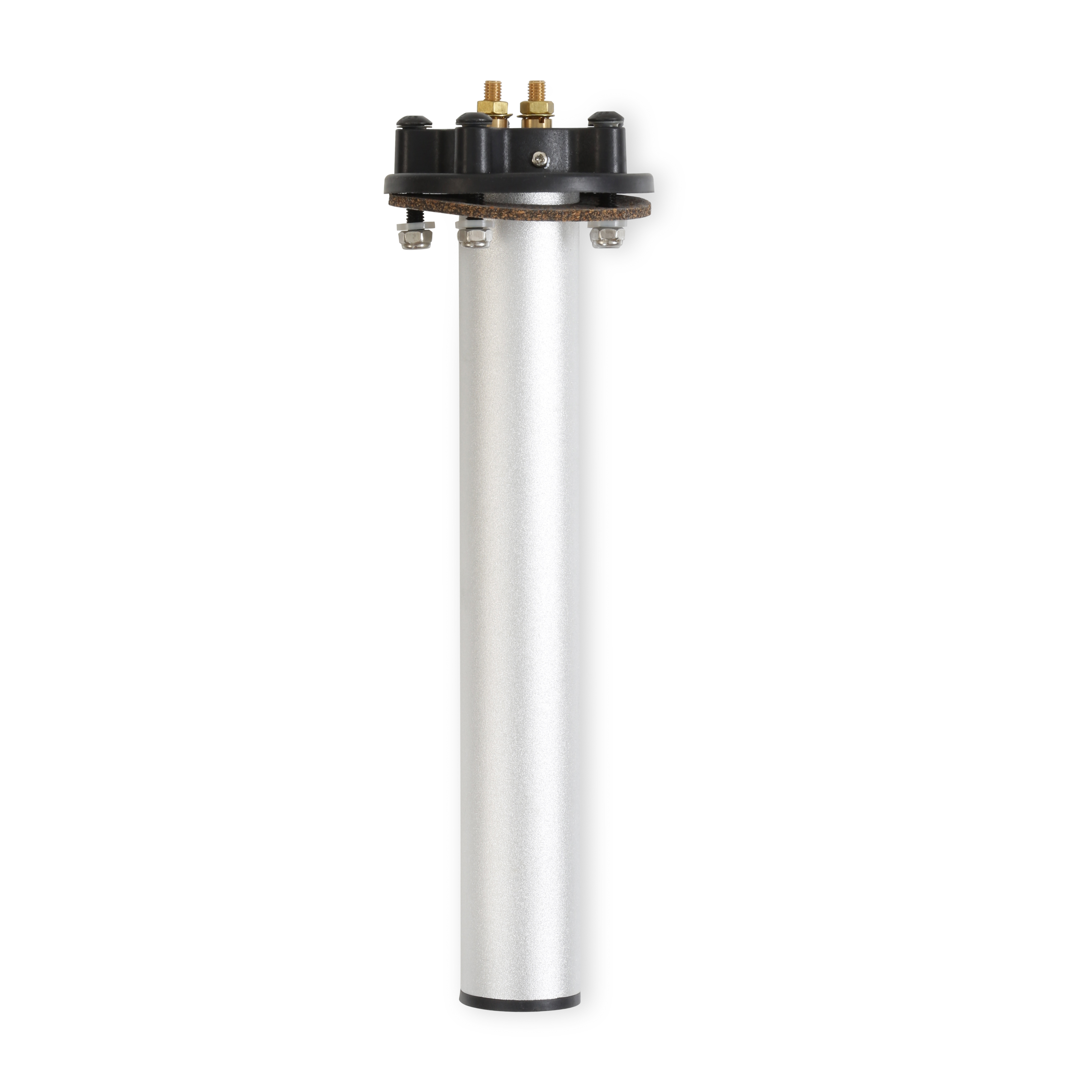

- 5-bolt fuel sender block-off plate can be removed and a fuel gauge tube level sender can be installed
- 0-90 Ohms (empty-full) works with most aftermarket gauges
- Standard SAE 5-bolt mounting pattern
- Tube design acts a damper for consistent readings
- Save space and eliminate need for a float arm
- Comes with gasket and mounting hardware, E85 compatible
- 8-inch depth (PN: 19-227) for 5 & 10-gallon fuel cells
Specs
Brand
HOLLEY
Category
Fuel Cell
Specs
Brand: Holley
Color: Silver
Width: 12
Height: 8.5
Length: 12
Warning: California Proposition 65
Capacity: 5
Category: Air and Fuel Delivery
Material: Aluminium
part type: Fuel Cell
Grade Type: Performance
Product Type: Fuel Cells
Sub Category: Fuel Storage
Emission Code: 4
Filler Neck Attached: No
Sending Unit Included: Yes
Universal Or Specific Fit: Universal
Mounting Hardware Included: No
